USER MANUAL Royal V-ZUG

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarize yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Gültigkeitsbereich

These operating instructions apply to the following model

Model	Type	Model no.
Royal	51018	SMS 55/Euro 60

The model number corresponds to the first three digits on the identification plate

Inhaltsverzeichnis

Operating instructions

40 Introduction

40 Safety information and warnings

41 Operating and Control Panel

42 Freezing

43 Variable inner doors

43 Bottle drawer

43 Special compartment

44 Defrosting

45 Refrigerator

45 Cleaning

46 Informations for energy-saving use

46 Tips

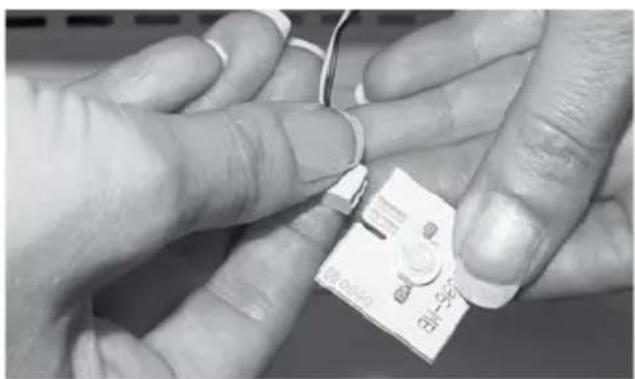

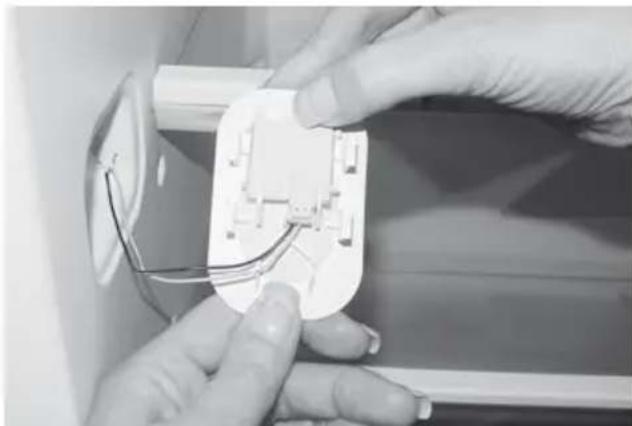

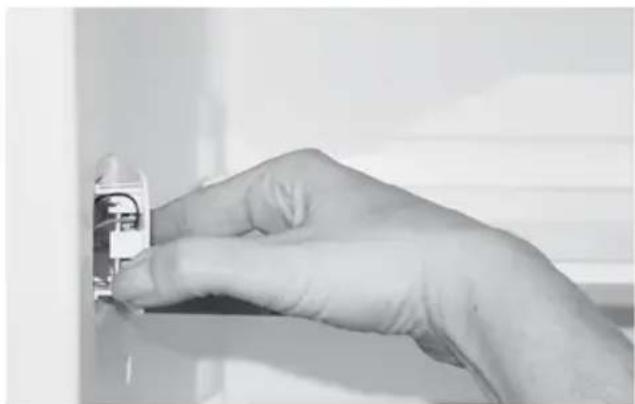

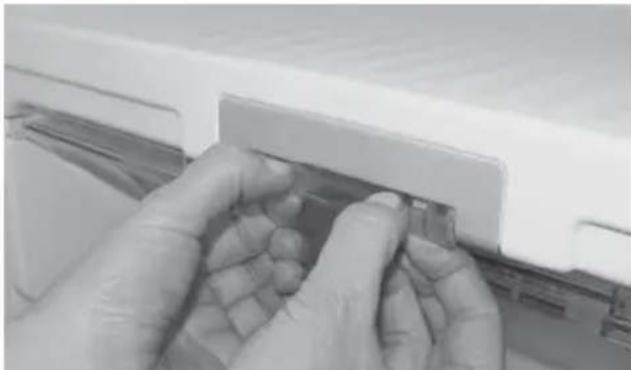

47 Replacing LED

48 Malfunctions

49 Guarantee

50 Operating noises

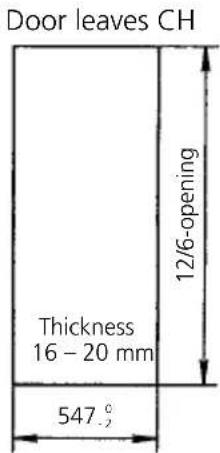

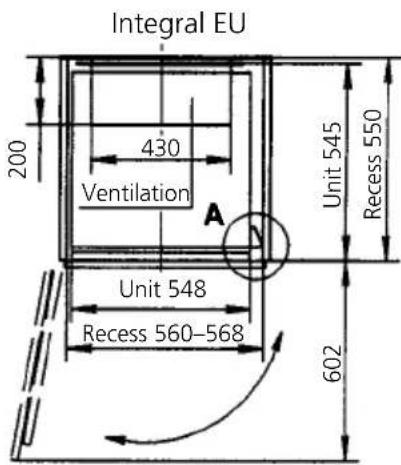

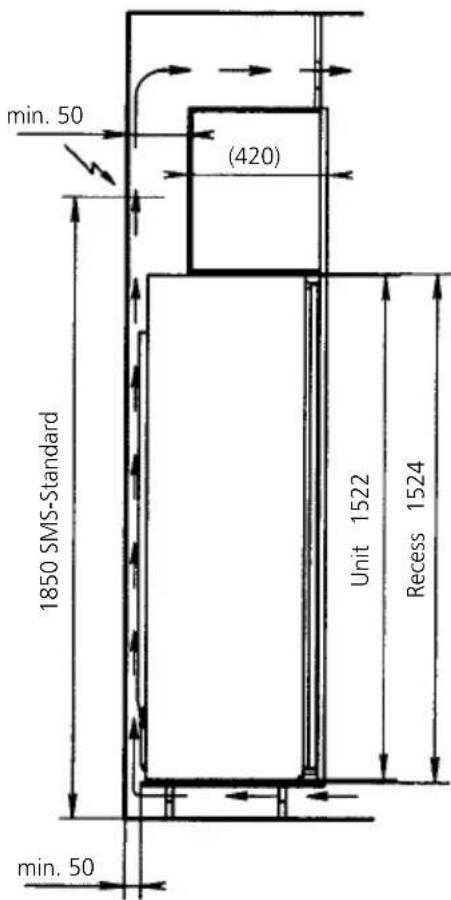

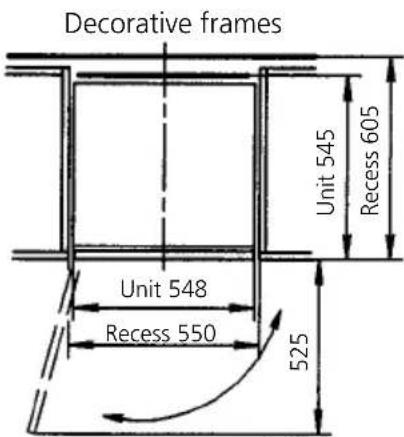

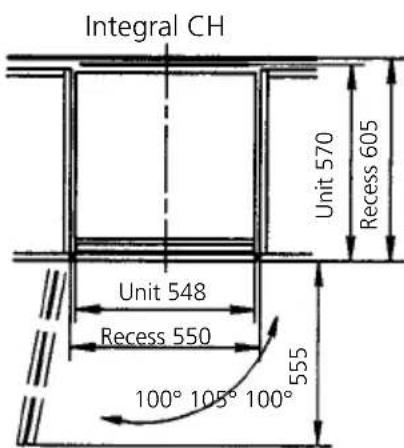

51 Installation / dimensions

Diagram of a device control panel with numbered labels pointing to function buttons and indicators

Close-up of hands installing or adjusting a wall-mounted device component (no visible text or symbols)

①

Interior view of a refrigerator with a hand placing a white plastic basket (no visible text or symbols)

②

Sonderfach

Interior view of a transparent laboratory enclosure with internal compartments and storage tanks (no visible text or symbols)

③

Close-up of a hand placing a transparent plastic tray into a rack (no visible text or symbols)

④

Hinweis: (+ Bild ⑤)

Close-up of a hand adjusting a wall-mounted air conditioner unit (no visible text or symbols)

⑤

Close-up of a hand holding a small electronic component (no visible text or symbols)

⑥

Hand holding a cylindrical device with an arrow pointing to it, against a plain background (no text or symbols visible)

⑦a

Hand holding a white cylindrical object with an arrow indicating rotation (no text or symbols visible)

⑦b

Reinigung

Diagram of a refrigerator interior with numbered compartments for identification

Close-up of a hand inserting a small electrical socket into a wall (no text or symbols visible)

⑨

Close-up of hands installing or adjusting a white electrical socket with visible wiring (no text or symbols)

10

Close-up of hands inserting a small electronic component into a white rack (no visible text or symbols)

⑪a

Close-up of a hand inserting a card into a device with a key inserted (no visible text or symbols)

⑪b

Close-up of hands holding a small electronic device with wires, no visible text or symbols

⑪C

Störungen

Diagram of a device control panel with labeled buttons and indicators, numbered 1 to 7.

Close-up of hands installing or adjusting a wall-mounted device component (no visible text or symbols)

①

Interior view of a refrigerator with a hand placing a white plastic basket (no visible text or symbols)

②

Interior view of a transparent laboratory appliance with internal compartments (no visible text or labels)

③

Close-up of a hand placing a transparent plastic tray into a clear container (no visible text or symbols)

④

Remarque: (+ figure ⑤)

Close-up of a hand inserting a plastic bag into an air conditioner unit (no visible text or symbols)

⑤

Close-up of a hand holding a small electronic component (no visible text or symbols)

⑥

Hand holding a cylindrical tool with an arrow pointing to it, against a plain background (no text or symbols visible)

⑦a

Hand holding a white cylindrical object with an arrow indicating rotation (no text or symbols visible)

⑦b

Nettoyage

Diagram of a refrigerator interior with numbered compartments for identification

Close-up of a hand inserting a small electrical socket into a wall (no text or symbols visible)

⑨

Close-up of hands installing or adjusting a white electrical socket with wires (no visible text or symbols)

10

Close-up of hands inserting a small electronic component into a white plastic housing (no text or symbols visible)

⑪a

Close-up of a hand inserting a card into a device (no visible text or symbols)

⑪b

Close-up of hands holding a small electronic device with wires, no visible text or symbols

⑪C

Pannes

Diagram of a device control panel with numbered labels pointing to function buttons and indicators

Close-up of hands installing or adjusting a wall panel with a mesh cover (no visible text or symbols)

①

Interior view of a refrigerator with a hand placing a plastic bag into the drawer (no visible text or symbols)

②

Scomparto speciale

Interior view of a transparent laboratory enclosure with internal compartments and ventilation grilles (no visible text or symbols)

③

Close-up of hands handling transparent plastic containers with a small container (no visible text or symbols)

④

Close-up of a hand adjusting a wall-mounted air conditioner unit (no visible text or symbols)

⑤

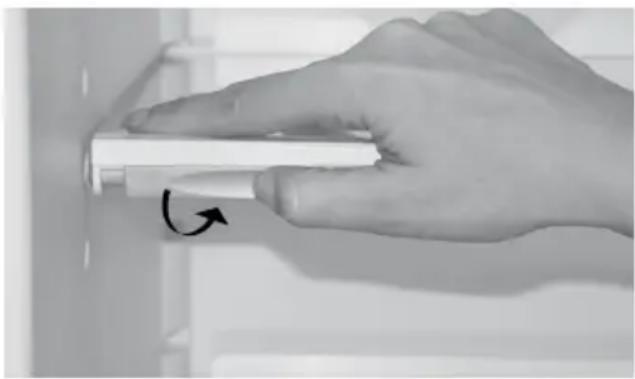

Indicazione:

Close-up of a hand holding a small electronic component (no visible text or symbols)

⑥

Hand holding a white cylindrical object with an arrow pointing to it, against a plain background (no text or symbols visible)

⑦a

Hand holding a white cylindrical device with a black arrow indicating rotation (no text or symbols visible)

⑦b

Pulizia

Diagram of a refrigerator interior with numbered compartments for identification

Close-up of a hand inserting a small electronic component into a wall (no text or symbols visible)

⑨

Close-up of hands installing or adjusting a white electrical socket with wires (no visible text or symbols)

10

Close-up of hands installing or adjusting a white plastic component on a white shelf (no text or symbols visible)

⑪a

Close-up of a hand inserting a card into a device with a key inserted (no visible text or symbols)

⑪b

Close-up of hands holding a small electronic device with wires, no visible text or symbols

⑪C

Guasti

You are the owner of a modern and thus energy-saving refrigerator. Congratulations on your new appliance!

This refrigerator has been designed and manufactured to the latest European directives and in accordance with the latest national and international standards. By affixing the CE mark subsequent to inspection of the product by authorised testing agencies, the manufacturer confirms compliance with the relevant directives and standards for household refrigerator appliances and household refrigerator/freezer appliances.

Disposal of the old appliance

Old appliance should be rendered unserviceable immediately (e.g. cut off the power cable). Please ensure that the piping of your appliance is not damaged before it is transported to the proper environmentally-friendly disposal facility. For disposal of your old appliance, please contact the appropriate facilities of your local authorities. (Unfasten the hinges and remove the doors so that children playing cannot lock themselves in and be in mortal danger).

Disposal of the packing material

All packing materials used are environmentally compatible and recyclable.

Safety information and warnings

Before putting the appliance into service, please read carefully the information given in the operating instructions and keep them carefully for use by a later owner.

■ Electrical safety must be ensured (contact safety) by the installation.
■ This appliance is only for household use as described in the operating instructions.
■ This appliance is not to be used by persons with reduced physical, sensory or mental capacity, or limited experience

and understanding, other than when they are supervised or instructed in how to use this appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

■ If you have been supplied with a damaged appliance please contact your supplier immediately.
■ Do not use an extension cable.
■ Repairs and other service work must only be carried out by a service technician.
■ When cleaning switch off the power supply; pull out the power supply plug or deactivate the fuse. Never pull the plug out of the socket by pulling on the cable or with wet hands. Always grip the plug itself and pull it straight out of the power supply socket.
■ High proof alcohol must only be stored well sealed and upright; further, do not store explosive materials in the appliance.

Explosion danger!

■ This appliance is CFC and FC-free and contains small quantities of isobutane (R600a), an environmentally-friendly coolant.
■ When operating the appliance, care must be taken that the cooling circuit does not get damaged. Should the cooling circuit get damaged then keep it clear of open fires and any type of ignition source. The room in which the appliance is located should be ventilated for a few minutes.
■ Appliance with a damaged cooling circuit must not be put into operation.
■ When the appliance is in operation care must be taken that the ventilation vents are not covered over or closed.
■ No mechanical devices or synthetic materials other than those recommended must be used to accelerate defrosting.

■ No liability will be accepted for any possible damage if the appliance is used for any other purpose, incorrectly operated, or not repaired by a professional technician. In such cases the guarantee and other liabilities are rendered null and void.
If the connection cable of the appliance is damaged it must be replaced by the manufacturer or by his customer service or by a similarly qualified person to avoid any liability.
■ Warning: do not operate any electrically-driven devices inside the foodstuff compartment.

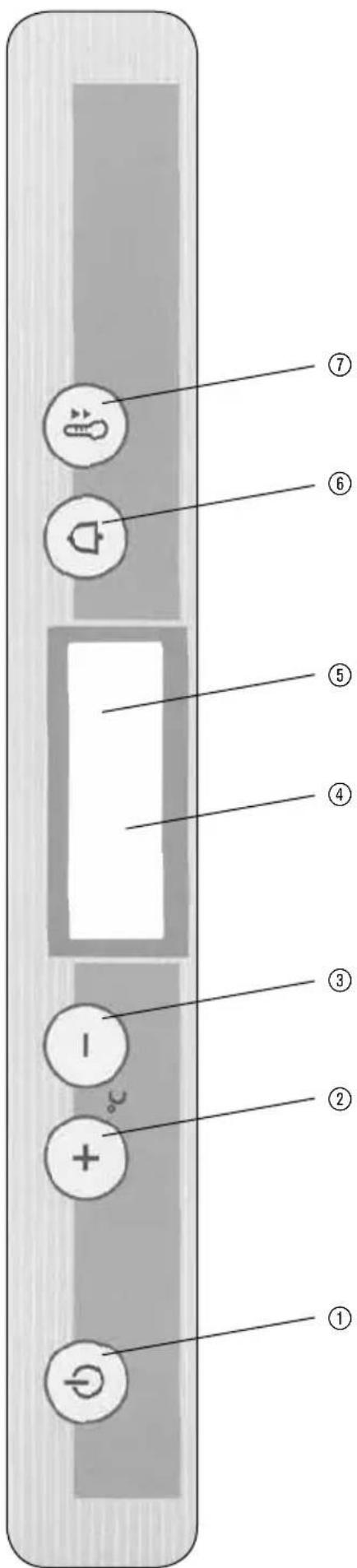

Controls

Child safety lock

The buttons must be pressed for at least 3 seconds.

Alarm acknowledgement

Any button can be used to acknowledge the alarm function.

①Main ON/OFF button
② Increase refrigerator temperature (up to max. 9 °C):

After 3 seconds the temperature display starts to flash and shows the selected temperature value. Each time you now press the button, the temperature value is increased by 1 °C. If you hold down the button, the value increases automatically until you release the button or the maximum value is reached. Approx. 5 seconds after releasing the button, the display stops flashing and the current average temperature is displayed again.

③Decrease refrigerator temperature (down to min. 3 °C):

After 3 seconds the temperature display starts to flash and shows the selected temperature value. Each time you now

Diagram of a device control panel with numbered labels pointing to various function icons and buttons.

press the button, the temperature value is decreased by 1 °C. If you hold down the button, the value decreases automatically until you release the button or the minimum value is reached. Approx. 5 seconds after releasing the button, the display stops flashing and the current average temperature is displayed again.

④Refrigerator temperature display:
A temperature value averaged over 2 hours is displayed, which may be different from the set value. This can be the case particularly after defrosting or if the door has been open for a while. If the temperature is lower than -5 °C, «LO» is displayed; if it is higher than 20 °C, «HI» is displayed.
⑤Special compartment operation display

The carrot icon indicates that the special compartment is ready for use. The best storage temperatures are achieved in the special compartment when the setpoint is between 2 and 6. Warmer settings lead to the temperature in the special compartment rising to over 3°C. When the icon flashes, this indicates that the temperature in the special compartment is too warm or too cold. This can be caused by longish operating periods, the fridge door not being completely closed, a power outage or too warm a setting.

⑥Acknowledge alarm

This button can be used to reset the acoustic alarm.

⑦Fast cool button

This activates maximum chilling performance for the refrigerator. A fan icon appears on the display. After 24 hours the system is reset to the original setting and the fan disappears. The fast cool function can also be disabled before this time by pressing the button manually

again. Once the fast cool function is finished, the refrigerator automatically defrosts.

Refrigerator door alarm

After 2 minutes the LED flashes at 15-second intervals. Reset by pressing any button.

After 3 minutes the LED flashes at 5-second intervals. Reset by pressing any button.

After 4 minutes the LED flashes rhythmically once a second. Reset by pressing any button.

After 10 minutes: Audible alarm. Re set by pressing Acknowledge Alarm button. Lasts for 3 minutes - repeated every 30 minutes. If the freezer door is left open for longer than 10 minutes, an audible alarm sounds until the freezer door is closed or the alarm is stopped by pressing any button.

Temperature alarm

An audible alarm sounds if the temperature in the refrigerator rises 10^ C above the selected temperature value or the average temperature in the freezer is warmer than -9^ C. The temperature alarm can be stopped by pressing any button.

Freezing

■ Only fresh produce is suitable for freezing.
■ Only small quantities should be frozen at one time and the rapid cooling button should be activated (see operating and controll panel) so that the temperature in the freezer does not increase too much. The maximum quantity (2 kg) should be frozen on the grid. For freezing the maximum quantity please activate the rapid cooling button 12 hours before put in produce to be frozen. Leave the temperature in the normal operating position, about 5°C. it is the best to prepack small portions only.

■ Products for freezing should not be brought into contact with products which are already frozen. Products which have been thawed out must not be re-frozen because foodstuffs can spoil.

Variable inner doors

The cover inserts (Figure ①) in the inner doors can be adjusted somewhat and offer the option of a customized setting. To change the location of the inserts and bottle holder: first lift upwards and lift out, then set the required height and replace in the reverse sequence. Please note that the location of the cover of the uppermost cover cannot be adjusted.

Close-up of hands installing or adjusting a wall-mounted panel, no visible text or symbols

①

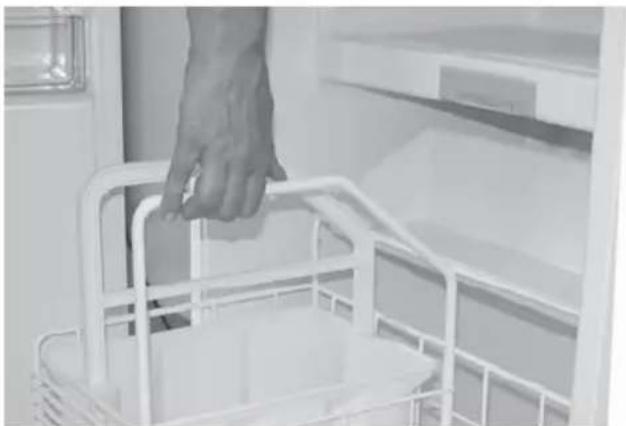

Bottle drawer

In this third zone which has an about 4-5°C higher temperature than the refrigeration space the drinks are retained at the correct, safe drinking temperature of approx. 10°C.

Pull out the basket: (Figure ②)

– Pull out the drawer as far as it will go.

- Use the strap on the basket to inch it to the top.

Insert the basket:

- Hold the basket against the inside wall opposite the hinges, raising the basket slightly forward.

- Position basket with the rear edge on the rails and push together inwards as far as they will go.

– Lock front basket in position by pressing on the operating strap.

Close-up of a hand placing a white plastic bag into a refrigerator (no visible text or symbols)

②

Special compartment

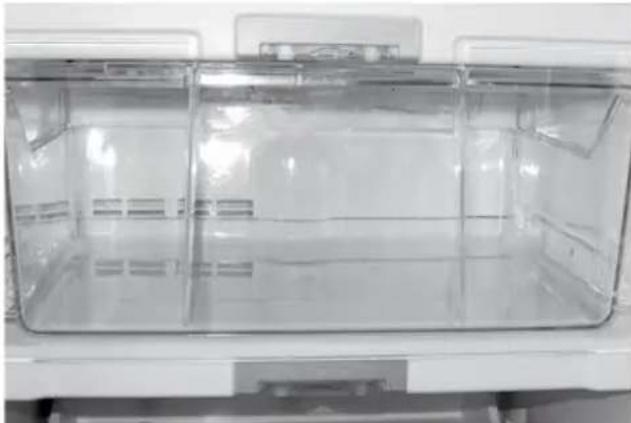

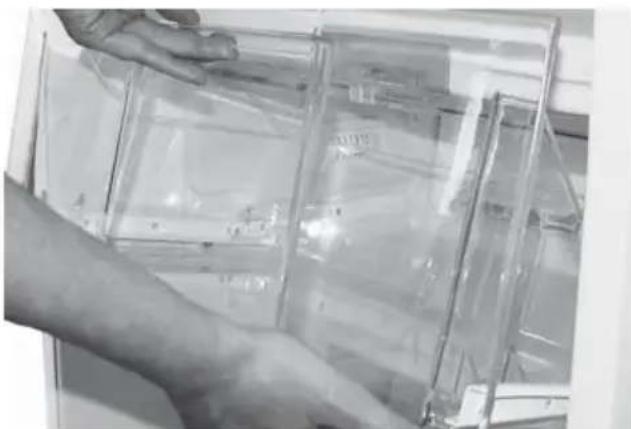

The special compartment (Figure ③) can be used for storing various fresh food products up to three times longer than a conventional fridge. The temperature in the special compartment in between 0°C and 3°C (by 5°C selectet temperature value).

Removing an fitting the special compartment: Pull out the special compartment fully, lift an remove laterally (Figure ④)

Note:(+ Figure ⑤)

The humidity can be infinitely adjusted:

– Small humidity Symbol (left) low humidity (about 45%)

– Large humidity symbol (right) higher humidity (max. 90%)

The humidity in the special compartment depends on:

– Quantity and moisture content of the stored food products
- Type of packaging
- Compartment opening frequency
- packaging

Interior view of a transparent laboratory enclosure with internal compartments and storage tanks (no visible text or symbols)

③

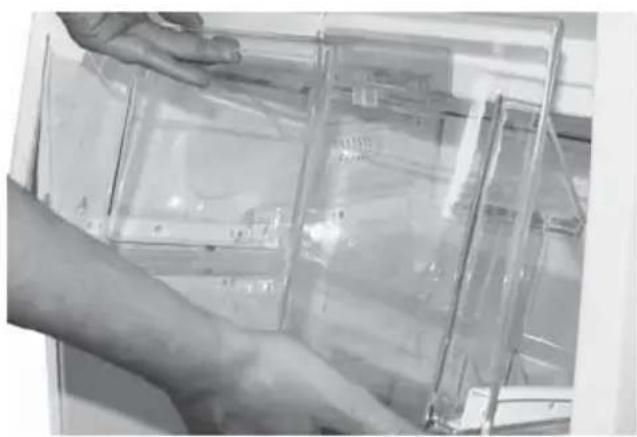

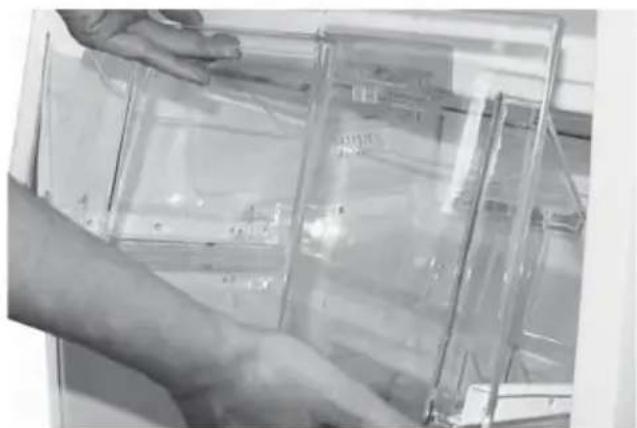

Close-up of a hand placing transparent plastic containers into a refrigerator (no visible text or symbols)

④

Close-up of a hand holding a plastic bag attached to an air conditioner cover (no visible text or symbols)

⑤

Note:

The special compartment should not be used for potatoes, hard cheese, cold-sensitive vegetables such as aubergines, beans, cucumbers, pumpkins, chillies, tomatoes, courgettes.

All cold-sensitive tropical fruits such as pineapple, avocados, bananas, grapefruits, mangos, melons, papayas, passion fruit, etc. should be stored in closed compartments in the fridge (to prevent drying out).

Defrosting

The cold room defrosts automatically. Ice which has formed on the back wall is melted (about once per day, see also the tips). The water flows out of the drainage channel (Figure ⑥) and evaporates from the collection dish outside the appliance.

Be sure to keep the collection channel and the drainage channel clean, so that the melted water can flow out easily. Clean out the drainage channel with the green cleaner provided using an up-and-down and turning motion.

Defrost the freezer compartment if the ice formation becomes excessive. A thick coating of ice reduces the effectiveness of the cold transfer to the frozen products.

Close-up of a hand holding a small electronic component (no visible text or symbols)

⑥

Keep the frozen products as cold as possible and well insulated during the defrosting time, e.g. pack them in newspaper.

• Turn off the appliance by using the main switch (3 sec.)
  – Leave the doors open.

Defrosting can be accelerated significantly if you place a bowl of hot water in the freezer compartment. Attention: do not use sharp implements to remove ice or anything hard frozen. Do not use an electrical heater or an open flame for defrosting.

– After defrosting clean the interior and dry it thoroughly.
- Turn on the appliance by using the main switch (3 sec.)

Refrigerator

The height of the glass shelves can be adjusted individually. Pulling both holders sideways inwardly (Figure ⑦a) and for fixation turn them down and backwards (Figure ⑦b). Pull the glass shelf out of the guidance and replace it in reversed order at the desired position.

Cleaning

The appliance is to be kept clean for the hygienic storage of foodstuffs. It should be washed out from time to time with a mild soapy solution and then dried. An occasional wiping with a vinegar solution suppresses odours and is recommended. Keeping the door seals clean stops them from sticking and thus avoids them being damaged.

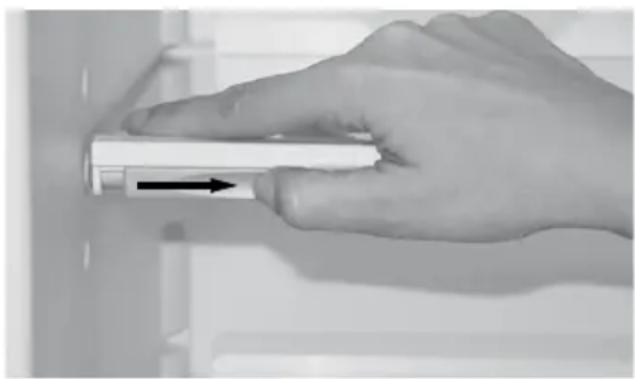

Hand holding a white cylindrical object with an arrow pointing to it, against a plain background (no text or symbols visible)

⑦a

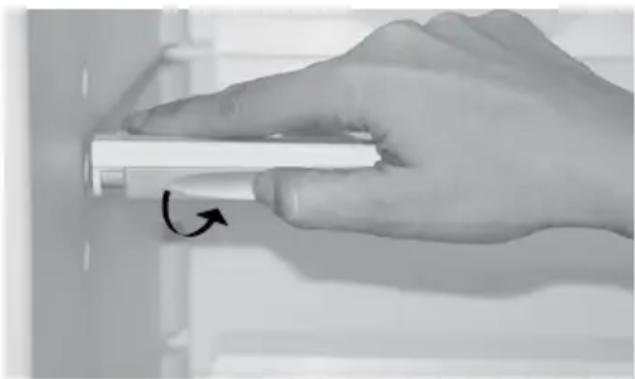

Hand holding a white cylindrical object with an arrow indicating rotation (no text or symbols visible)

⑦b

No scouring cleaners or scratching cloths are to be used. Clean the door seals with a soft brush. If the appliance has not been used for some time, turn off by using the main switch (3 sec.). Empty the appliance, defrost it, clean, and then leave the cold room as well as the freezer compartment open.

• For cleaning the control element please use only a humid flannel.
• Be careful that as little cleaning water as possible goes though the drainage channel into the collection dish.
• Before being put back in use, the appliance and the seals of the cold room and the freezer must all be completely dry.

Informations for energy-saving use

As far as possible, use the cooling unit in its as-delivered state. The arrangement of drawers, shelves and trays ensures the best possible temperature distribution.
■ Do not install the unit near radiators, radiator pipes or smoke extractors and protect it as far as possible from direct sunlight
■ Make sure the unit doors are kept open for as short a time as possible. The quicker the doors are closed again, the less cold is lost.
■ Make sure that the doors are closed fully and correctly. The door seal must be flush against the frame of the fridge.
■ Leave warm or even hot items to cool down outside the unit.
■ The storage of moisture-releasing food-stuffs leads to increased build-up of ice on the rear of the fridge and a reduction in cooling power.

Tips

The following points should be noted when using the new appliance:

■ A appliance which has just been put into use needs approx. 15 hours (with products) until it has reached its normal operating temperatures.
If the doors are open for longer than 2 minutes then the lamp starts to flash. Make sure after closing that the doors are fully sealed. The self-closing hinges assist this.
■ The cooling time for beverages and other products can take up to 6 hours from room temperature down to the cold room temperature. The warmer they are when put in, the longer this time will be.

■ Re-setting the temperature control has no effect on the cooling rate, only on the temperature reached.
■ Condensation can form on the glass shelves if products are stored which emit water vapour.
■ The electronic control defrosts the cold room only about once per day. A cat ice may be visible oftentimes at the back board of the cold room – this is though normal.
■ Be careful that products do not come into contact with the rear wall of the cold room so that they do not freeze to it and that, during defrosting, water does not get diverted into the cold room.
■ When filling be careful that:

• Oil and fats do not come into contact with the polymer parts and the door seals.
• The coldest locations in the cold room for any setting of the temperature controller are at the back wall and above the lowest shelf. Sensitive products should therefore be put on the lowest shelf.

- Loading example:

• Freezer: Freeze and store food products and make ice (①)
• Shelves from top to bottom: Bakery products, ready meals and dairy products (②)
• Racks from top to bottom: Butter an cheese, Tubes, small tins and eggs, large bottles (③)
• Special compartment: Vegetables, fruits, salads, meat and fish (④)
• in pull-out basket: Bottles (⑤).

Diagram of a refrigerator interior with numbered compartments for identification

Changing the LED lighting

Switch off the power supply: pull out the power supply plug or deactivate the fuse.

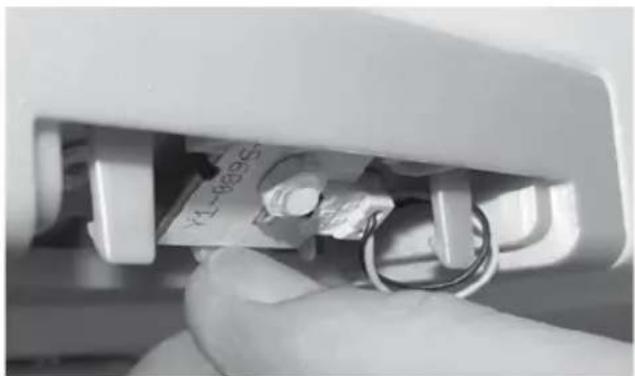

Click off the LED lighting (Figure ⑨). Disconnect the plug to the LED lighting (Figure ⑩). Please insert the new LED lighting in the reverse sequence.

N.B.: Please only use original LED lighting from the manufacturer.

Close-up of a hand holding a small electronic component (no visible text or symbols)

⑨

Close-up of hands installing or adjusting a white electrical socket with wires (no visible text or symbols)

10

LED light above and below the special compartment

Pull the transparent cover down (Fig. ⑪a).

Click the LED light off (Fig. ⑪b)

Undo the connection to the LED light (Fig. ⑪c)

Close-up of hands inserting a small electronic component into a white plastic housing (no text or symbols visible)

⑪a

Close-up of a hand inserting a card into a device with a key inserted (no visible text or symbols)

⑪b

Close-up of hands holding a small electronic device with wires, no visible text or symbols

⑪C

Malfunctions

The appliance is checked for trouble-free operation before being supplied. Should you have any problems please contact your nearest service facility, advising them of the model number and the details of the problem.

A malfunction can occur if the electrical fuse is tripped. This problem can be solved easily if the fuse mechanism is re-activated.

Display following power failure

After interruption on the power supply the temperature display flashes and shows the temperature value that measured after restart. You can stop the temperature display flashing by pressing any button. The current average temperature value is then displayed.

Sensor error functions:

• Sensor error F1 on the left-hand side of temperature display = temperature sensor in the cold room is defective
• Sensor error F2 or F3 right-hand side of temperature display = temperature sensor in the special compartment is defective
• Sensor error F7 on the right-hand side of temperature display = surrounding room temperature sensor defective

Emergency mode

If a sensor error (F1 or F4) is displayed, the entire unit continues to operate in a time-controlled emergency mode independently of the defective sensors.

Guarantee

We warrant the guarantee as of the delivery date of the appliance.

Any malfunctions which might occur during this time despite correct operation and which are caused by material or construction errors will be corrected under this guarantee by our customer service.

Not covered by the guarantee:

• LED defects
• Breakage of the glass shelves or polymer parts
• Defects resulting from not following the operating instructions or incorrect usage
  – Damage claims beyond the guarantee
  – Appliance which have been repaired by third parties.

Operating Noises

Noises which are entirely normal

The chill cabinet is cooled by a compressor (refrigeration aggregate). The compressor pumps coolant through the cooling system, producing operating noises. Even when the compressor cuts out, noises caused by changes in temperature and pressure are unavoidable.

This appliance is fitted with a quiet compressor and a low-noise cooling circuit designed in line with the latest technical developments.

However, a certain level of noise, dependent on the size of the appliance, is inevitable. Operating noise will be most audible immediately after the compressor cuts in. It becomes quieter as the operating period continues.

Noises which are not normal

Unusual noise is normally the result of improper installation. The appliance must be installed or built-in so that it is level and stable. Under no circumstances must tubing come into contact with a wall, other furniture or with another tubing.

Where the appliances are installed in open-plan kitchens or in partition walls, the level of operating noise will be heard more acutely. However, this is due to the surrounding architecture and not to a fault with the appliance.

Description Cause Notes

Droning Cooling aggregate		Normal operating noise of the cooling aggregate.The level is dependent on the size of appliance and on the load-dependent speed of the compressor motor
Humming	Fan	Normal operating noise of the fan.
Gurgling BabblingMurmuring	Cooling circuit	Normal operating noise as coolant flows through the circuit.
Hissing	Cooling circuit	Normal operating noise as coolant is injected into the condenser.
Rattle	Shelves, contents	Arrange the shelves and contents so that they are fixed and not touching one another.
Cracking	Housing	Normal as materials expand and contract caused by temperature variations (e.g. plastics, insulation).
Hissing	valve	normal operating noise of the valve

Fitted refrigerator Recess SMS 12/6 (1524 mm)

For recess depths of 550, the power data of the units are guaranteed the same

Electrical safety (personnel protection safety) is to be ensured during fitting.

If the mains power supply is not accessible after installation then a separation device is to be provided by the installer. This can be a switch with a contact opening of at least 3 mm, this includes line protection cut-outs as well as contactors.

Ventilation cross-section top and bottom min. 200 cm ^4

100 120

min. 50 (420) 1850 SMS-Standard Unit 1522 Recess 1524 min. 50

Door leaves CH Thickness 16 - 20 mm 547 ° 12/6-opening

Detail A

Door leaves EU Thickness 16 - 24 mm 1524+ recess projection below and above max. 594

Integral CH Unit 570 Recess 605 Unit 548 Recess 550 100° 105° 100° 555

Decorative frames Unit 545 Recess 605 Unit 548 Recess 550 525

Integral EU 200 430 Ventilation A Unit 548 Recess 560-568 602 Unit 545 Recess 550

Reparatur-Service

Whether you contact us for repairs or orders, please always state the serial number (FN) and the name of the appliance. Enter these details below and also on the service sticker which comes with the appliance.

Stick it in a cospicuous place or in your telephone agenda.

Appliance NF

You will also find said details on the certificate of guarantee, the original sales invoice and the identification plate of the appliance

Open the appliance door.

- The identification plate is located on the right-hand inside.

If the appliance is not working properly, contact your nearest V-ZUG LTD service centre using freephone 0800 850 850 and stand in close proximity to the appliance.

Queries, orders, service agreements

For administrative or technical queries or problems, as well as for ordering spare parts and accessories, please contact our head office in Zug on tel. [phone].

As regards the maintenance of all our products, when the warranty expires you have the option of taking out a service agreement. We will be happy to send you the necessary forms.

V-ZUG AG

Industriestrasse 66, 6301 Zug

Tel. [phone], Fax [phone]
