USER MANUAL SR4120 MARANTZ

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

SAFETY INSTRUCTIONS

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions — All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions — The safety and operating instructions should be retained for future reference.
3. Heed Warnings — All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions — All operating and use instructions should be followed.
5. Water and Moisture — The appliance should not be used near water — for example, near a bathtub, wash-bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
6. Carts and Stands — The appliance should be used only with a cart or stand that is recommended by the manufacturer.
7. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Wall or Ceiling Mounting — The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
2. Ventilation — The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
3. Heat — The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

4. Power Sources — The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

5. Grounding or Polarization — The precautions that should be taken so that the grounding or polarization means of an appliance is not defeated.

Line drawing of an electric power plug with two leads (no text or symbols)

AC POLARIZED PLUG

1. Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
2. Cleaning — The appliance should be cleaned only as recommended by the manufacturer.
3. Power Lines— An outdoor antenna should be located away from power lines.
4. Outdoor Antenna Grounding — If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Fig. 1.
5. Nonuse Periods — The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
6. Object and Liquid Entry — Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

7. Damage Requiring Service — The appliance should be serviced by qualified service personnel when:
   A. The power-supply cord or the plug has been damaged; or
   B. Objects have fallen, or liquid has spilled into the appliance; or
   C. The appliance has been exposed to rain; or
   D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
   E. The appliance has been dropped, or the enclosure damaged.

8. Servicing — The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

FIGURE 1
EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE INSTRUCYIONS CONTAINED IN ARTICLE 810 - "RADIO AND TELEVISION EQUIPMENT"

ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ELECTRIC SERVICE EQUIPMENT GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV (Cable-TV) system installer's attention to Article 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE: Changes or modifications may cause this unit to fail to comply with Part 15 of the FCC Rules and may void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

This section must be read carefully before any connection is made to the mains supply.

WARNINGS

• Do not expose the equipment to rain or moisture.
• Do not remove the cover from the equipment.
• Do not insert anything into the equipment through the ventilation holes.
• Do not handle the mains lead with wet hands.

INTRODUCTION

Thank you selecting the Marantz receiver for your system.

This receiver incorporates a number of features designed to enhance the listening of your favorite music.

Please read these operating instructions carefully. We recommend that you read the entire user guide before you attempt to connect or operate the receiver.

After you have reviewed the contents of this manual, We recommend that you make all system connections before you attempt to operate the unit.

Refer to the figures on the page 5. The call out numbers on the figures correspond to those found in the text. All references to the connections and controls that are printed in BOLD type are as they appear on the unit.

INSTALLATION

Remember the following important points when installing the receiver.

• Do not expose the component to rain or moisture, as this may cause damage to the receiver.
• All receivers produce some heat during operation and this heat must be allowed to disperse freely. Do not close any ventilation openings and insure that there is adequate ventilation space behind, beside and above the receiver.
• Prevent extra heat from reaching the unit. Never put the receiver in the full glare of the sun or near a heat source.

PRECAUTIONS

The following precautions should be taken when operating the equipment.

GENERAL PRECAUTIONS

When installing the equipment ensure that:

– the ventilation holes are not covered.
- air is allowed to circulate freely around the equipment.
- it is placed on a vibration-free surface.
- it will not be exposed to excessive heat, cold, moisture or dust.
– it will not be exposed to direct sunlight.
- it will not be exposed to electrostatic discharges.
– always install the unit horizontally.

In addition, never place heavy objects on the equipment.

If a foreign object or water does enter the equipment, contact your nearest dealer or service center.

Do not pull out the plug by pulling on the mains lead; grasp the plug itself.

it is advisable when leaving the house, or during a thunderstorm, to disconnect the equipment from the AC outlet.

FEATURES

● Equipped with 4 audio inputs.
- FTC 55 watt x2 output power.
- Full discrete main amplifier.
- FM/AM each 30-stations random preset memory.

LOCATION AND FUNCTION OF PARTS AND CONTROLS

Front panel Features

①STANDBY indicator

This indicator lights up when in the standby mode.

②F/P (frequency or preset number) button

This use the display mode to select the frequency or preset number display.

③P.SCAN button

This button is used to automatically scan the tuner's preset stations.

When pressed, the tuner starts scanning the preset stations.

④MEMO (Memory) button

Press this button to memorize the desired station frequency.

⑤FM MODE button

Press this button to select stereo or monaural mode, when listening to FM broadcasts.

⑥Input selectors button

These buttons select the audio source. The selected source name will be displayed on Fluorescent display.

⑦Tuning / preset UP and DOWN knob

During AM or FM reception, you can scan to other frequencies or preset number by adjust knob.

⑧VOLUME CONTROL knob

Adjust the sound volume with this control knob. Pre-out can also do control.

⑨POWER switch

When this switch is pressed once, the power turns ON and display appear on the display panel.

When pressed again, the power turns OFF.

After initialization or resetting, press this switch to enter the standby mode.

To turn the power ON, press any of the function buttons of the main unit or the POWER button of the remote control unit.

⑩PHONES socket for stereo headphones

This jack is compatible with a wide range of conventional dynamic headphone types.

⑪SPEAKERS (system 1 or 2) buttons

Use these buttons to select speaker system 1 or 2, or both.

⑫BASS CONTROL knob

Adjust the low frequency level with this control according to your taste and room acoustics.

⑬TREBLE CONTROL knob

Adjust the high frequency level with this control according to your taste and room acoustics.

⑭BALANCE CONTROL knob

Adjust the sound volume between left and right speakers with this control knob.

⑮Display

① STEREO indicator

This indicator lights up, when in FM stereo mode.

bTUNED indicator

This indicator lights up, when a broadcast is received properly.

©TAPE MONITOR indicator

This indicator lights up, when in TAPE MONITOR Mode.

dPRESET indicator

This indicator lights up, when in preset display Mode.

©MEMORY indicator

When the MEMO (memory) button is pressed, this indicator lights up for about 5 seconds.

fPRESET NUMBER, DISPLAY

Shows the selected preset number.

@FREQUENCY/CHARACTER DISPLAY

This display's the selected station frequency or the corresponding words when selecting a program source.

Rear panel connections (see pages 5)

All connections to the rear panel should be made with entire power off to the system. To avoid miss-connection, it is advisable to connect one cable at a time between the different components. This is the safest way to avoid cross-connecting channels or mix-up signal inputs with outputs.

ⒶAntenna terminal

FM antenna terminal

For connecting an external FM antenna with a coaxial cable, or for connecting a cable network.

AM antenna and ground terminal

For connecting the supplied AM loop antenna. Use the terminals marked "AM" and "GND".

The supplied AM loop antenna will provide good AM reception in most areas. Position the loop antenna to the best reception.

⑧PHONO INPUT jacks

Connect the output jacks of a turntable to these jacks.

©AUX(TV) INPUT jacks

Connect to the TV's (or other equipment) audio out jack.

©TAPE input/output jacks

Connect the output (play) jack of the cassette deck to the IN jack, and connect the input (REC.) jack to the OUT jack.

©CD input jacks

Connect to the CD's audio out jack.

⑤REMOTE jacks

Connect to other Marantz components equipped with REMOTE jacks. (see page 9)

Marantz components utilize the Philips RC-5 remote control system language.

©PRE OUT jacks

These jacks supply pre-amplifier output signals, and are used for connection to external power amplifiers.

(if necessary)

©SPEAKER terminals

Connect to the L or R channel speakers.

①AC outlets

Connect the AC power cable of a CD player, cassette deck, etc., of your system. The power supply from switched outlet is interlocked with the POWER switch of the receiver.

The maximum total power consumption of the connected components must not exceed the following limit :

120 WATT MAX. TOTAL

JAC power cord

Plug into AC120V household outlet.

Note on loudspeaker impedance :

The power ratings specified for this Marantz receiver are obtained using fixed value test load impedance.

However, the actual impedance of a loudspeaker system will vary with frequency, deviating from the nominal rating.

This Marantz receiver will drive any modern loudspeakers system with a rated impedance of 8 ohms or higher.

A few newer loudspeakers feature impedance of less than 8 ohms. The high current output capability of this Marantz receiver can provide the additional power necessary to drive such low impedance speakers.

However, during extended passages of high volume, the protection circuitry may temporarily interrupt operation.

If this occurs, simply reduce the volume accordingly. The protection circuitry is specially designed so that it cannot affect the sound quality during normal operation.

Remote control bus connections

This unit is equipped with a remote control function. By connecting this unit's remote control jacks to a Marantz CD player or tape deck equipped with remote control (D-BUS) jacks, it allows system remote control operation.

Connect REMOTE CONT. OUT jack of the receiver to REMOTE CONT. IN of other Marantz equipment, i.e. CD player or Cassette deck, by using an RCA pin cable.

The sequence of connection between components has no order.

Note:

If a component equipped with remote control (D-BUS) jacks has an INT/EXT switch on the rear panel, set the switch to EXT when using the system control function.

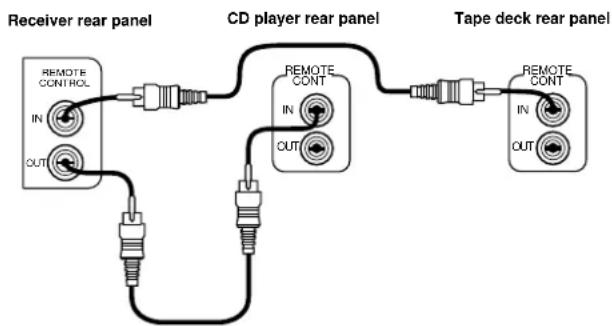

(Connection example)
    end

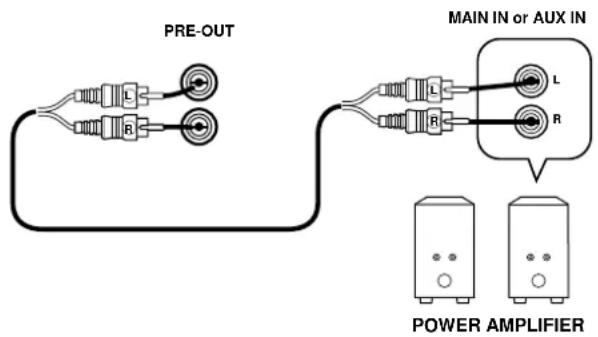

PRE OUT jacks

The receiver is equipped with PRE OUT jacks. The receiver has enough power for normal listening but these jacks are prepared to connect other amplifiers for higher power output. In such a case, connect these jacks to the main input or AUX input jacks of the power amplifier.

PRE-OUT MAIN IN or AUX IN L R POWER AMPLIFIER

BASIC OPERATION

Listening to the tuner

1. Press the POWER switch ⑩ to turn on the power.
2. Press the AM/FM button ⑥ to select the desired band.
3. Adjust the TUNING UP and DOWN knob ⑦ to tune in the desired station. Adjust once for less than a half second changes the frequency by one step. Adjust longer sequentially scans frequencies in the indicated direction. Releasing the button in this state activates the auto tuning function, which automatically scans the frequencies until it reaches a station, at which point the TUNED and auto tuning stops.
4. Adjust the sound volume with the VOLUME control ⑧.

If necessary, adjust the tone controls (BASS/TREBLE) ⑬ and ⑭.

PRESETTING STATIONS

Up to FM/AM each 30 stations can be preset at random, regardless of the reception band.

Tune in the station to be memorized using the auto or manual tuning.

manual preset

1. Press the MEMO(memory) button ④, then the "MEMORY" indicator lights up for about 5 seconds.
2. When the MEMORY indicator goes off, press again to memorize.
3. Select the preset number with TUNING UP/DOWN knob ⑦.
4. Press the MEMO (memory) button ④ again.
5. Repeat steps 1 to 3 to memorize other stations.

- When memorizing a new station, the prevision memorized station the same preset number is cleared.

auto preset

1. The receiver is set in FM.
2. You keeps pushing MEMO (memory) button ④ at about 3 seconds.
3. Then, tuner automatically begins scanning.

Scanning stops automatically after radio stations have been stored in the Auto Preset memory.

LISTENING TO FM STEREO BROADCASTS

• During FM broadcasts, press the FM MODE button ⑤ to select the auto stereo mode.
• Each time this button is pressed, the mode changes as follows.
  stereo mode : STEREO indicator lights up. monaural mode : STEREO indicator goes off.
• When listening to very weak FM stereo stations, you may experience higher than normal background hiss Switch to monaural sound to eliminate the hiss.

PLAYBACK OPERATION

Normal playback

1. Press the POWER switch ⑩ to turn on the power.
2. Press the desired input selector ⑥ according to the table shown below.
3. Start playing the desired source.

Adjust the volume using the VOLUME control ⑧. If necessary, adjust the tone using the BASS and TREBLE controls ⑬ and ⑭.

Source component Input selector
CDV-CD player CDFM or AM broadcasting TV or AUX AUX/TVAnalog player PHONOCassette deck TAPE MONI	FM/AM

ADJUSTMENTS

● RECORDING WITH A CASSETTE DECK

Recording with TAPE 1

1. Select the program source to be record with the INPUT FUNCTION SELECTOR buttons ⑥.
2. Start recording on the cassette deck connected to the TAPE 1 jacks.
3. The volume, balance, bass and treble setting have no effect on the recording or dubbing.

REMOTE CONTROL UNIT RC-66PM

The RC-66PM can be used to control a Marantz AV component equipped with a remote sensor as well as other Marantz components connected to the first component through the Remote Control Bus. The buttons of the RC-66PM are laid out on its control panel according to the functional groups as described below.

POWER 2 VOLUME 1 2 3 MUTE 4 5 6 A. F/P 7 8 9 B. — 0 TV PHONO CD TUNER TAPE 3 VCR TV 1—AUX—2 LD TAPE 1 TAPE 2 TAPE 1 VCR OPEN CLOSE MODE MEMO TEXT TIME 1—MODE—2 RC—66PM REMOTE CONTROL UNIT 5 4 1 2 4 6

When the button of the Tuner source selection buttons is pressed, the remote control buttons will have the functions as listed below.

BUTTON NAME	FUNCTION
+ Preset up
- Preset down
A, F/P+3(Frequency) Direct. Tuning
MODE Stereo/Mono
MEMO Preset memory
POWER 2 Receiver ON/OFF
MUTE Amp Audio Mute/Demute
VOL ▲mp Volume up
VOL ▼mp Volume dow

When source selection button 1 is pressed, the buttons in groups 2, 3, 4 and 5 become the operation buttons of the player, tuner, TV, etc., which is selected with the amplifier source selection button.

USING THE REMOTE CONTROL UNIT

1. Remote control

Operate the remote control unit (RC-66PM) within a distance of approx. 5 m from the infrared signal reception window (remote sensor) on the front of the Receiver.

Remote control operation may not be possible if the remote control unit's transmitter is not pointing in the direction of the remote sensor or if there is an obstruction between the transmitter and the remote sensor.

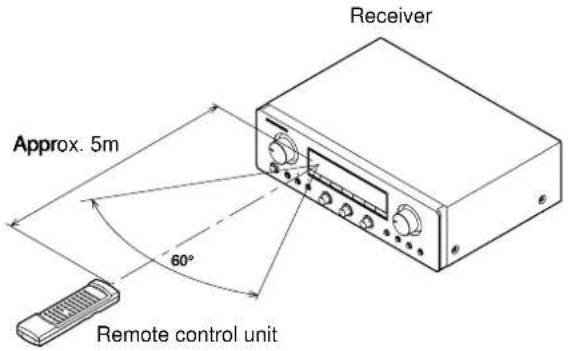

Remote control operating range

Receiver Approx. 5m 60° Remote control unit

2. Loading batteries

Batteries in this remote control unit have a life of approximately 1 year under normal operating conditions. When the remote control unit is not to be used for an extended period of time, remove the batteries. Also, when you notice that the batteries are starting to run down, replace them as soon as possible.

①Remove the battery cover

Remote control unit (RC-66PM) Rear side

②Insert the batteries with correct R/S orientation.

Two AA (R6)-size batteries

③Close the battery cover until it clicks shut.

Diagram of a car interior with directional arrow indicating movement (no text or symbols)

NOTES ON INSTALLATION

When the component is installed on or near other audio equipment hum sometimes occurs. Position the equipment so that the hum ceases. Always install the unit horizontally.

This model incorporates a microprocessor with high performance. In case of any malfunction due to static electricity, etc., please turn off the POWER switch, and after 30 seconds turn it on again.

CARE AND MAINTENANCE

This section describes the care and maintenance tasks that must be performed to optimize the operation of your Marantz equipment.

CLEANING OF EQUIPMENT EXTERNAL SURFACES

The exterior finish of your receiver will last indefinitely with proper care and cleaning. Never use scouring pads, steel wool, scouring powders or harsh chemical agents (e.g., lye solution), alcohol, thinners, benzine, insecticide or other volatile substances as these will mar the finish of the equipment. Likewise, never use cloths containing chemical substances. If the equipment gets dirty, wipe the external surfaces with a soft, lint-free cloth.

If the equipment becomes heavily soiled:

– dilute some washing up liquid in water, in a ratio of one part detergent to six parts water;
- dip a soft, lint free cloth in the solution and wring the cloth out until it is damp;
- wipe the equipment with the damp cloth
– dry the equipment by wiping it with a dry cloth.

REPAIRS

Only the most competent and qualified service technicians should be allowed to service your unit. Marantz and its factory trained warranty station personnel have the knowledge and special equipment needed for the repair and calibration of this precision instrument.

In the event of difficulty, call the proper toll-free telephone number listed on the face of the warranty to obtain the name and address of the Marantz Authorized Service Center nearest you. In many cases, the dealer where you purchased your Marantz unit may be equipped to provide service. Please include the model, serial number of your unit together with a copy of your purchase receipt and a full description of what you feel is abnormal in its behaviour.

Memory backup

In case a power outage occurs or the power cord is accidentally unplugged, the receiver is equipped with a backup function to prevent memory data such as the preset memory from being erased. The memory functions are backed up for up to about one week.

TROUBLE SHOOTING GUIDE

If your receiver/amplifier should not perform as expected, consult the table below to see if the problem can be corrected before seeking help from your dealer or our service organization.

PROBLEM	POSSIBLE CAUSE	REMEDY
No power	The AC input cord is disconnected.Poor connection at AC wall outlet or the outlet is inactive.	Connect cord securely.Check the outlet using lamp or other appliance.
The sound is shut off	The speaker cables are shorted.	Check the speaker connections.
No sound from the speakers	The speaker cables are disconnected.The master volume adjusted too low.The mute button is pressed to on.The speaker switches are not pressed correctly.Incorrect selections of program source.Incorrect connections between the components.	Check the speaker connections.Adjust the master volume.Press the MUTE button to cancel.Press the speaker switch to ON.Select the desired program source correctly.Make connections correctly.
Sound is only heard from one of front speakers	The BALANCE control is set to one end.One of the connection cords is disconnected.	Adjust BALANCE control.Connect the right and left connection cords securely.
The remote control unit does not operate	Batteries are not loaded or exhausted.The remote sensor is obstructed.	Replace the with new batteries.Remove the obstacle from the remote sensor.
Not receiving the station	No antenna is connected.The desired station frequency is not tuned in.	Connect an antenna.Tune in the desired sating again.
Not receiving the preset station	An incorrect station frequency has been memorized.The memorized stations are cleared	Memorized the correct station frequency.Memorize the stations again.
Poor FM reception	No antenna is connected.The antenna is not positioned for the best reception.	Connect an antenna.Change he position of the antenna.Route as high as possible.
Continuous hissing noise during FM reception, especially when a stereo broadcast is received	Week signal.	In areas remote from the transmitter, a 5 to 8 element antenna designed exclusively for FM is suggested.
Continuous or intermittent hissing noise during AM reception, especially at night.A hum can be heard during AM reception.	Noise is caused by motors, fluorescent, lamps or lightning, etc..The AC input cord may be too close to the AM loop antenna or the antenna wire.	Keep the receiver away from noise sources.Install an outdoor AM antenna.Position the AC input cord away from the antenna wire and the AM loop antenna.Adjust the position of the AM loop antenna.

TECHNICAL SPECIFICATIONS

FM Tuner Section

Frequency Range 87.5 - 108.0 MHz

Usable Sensitivity.... IHF 2.0 ∝ V/11.3 dBf

Signal to Noise Ratio.... Mono/Stereo 70/65 dB

Distortion .... Mono/Stereo 0.3/0.5 %

Stereo Separation 1 kHz 32 dB

A.C.S. ±400 kHz 50 dB

Image Rejection 98.1 MHz 40 dB

Tuner Output Level 1 kHz, ±75 kHz Dev 600 mV

AM Tuner Section

Frequency Range 520-1710 kHz

Usable Sensitivity .... Loop 500 ∝ V

Signal to Noise Ratio 40 dB

Distortion 1 kHz, 30 % Mod. 1.0 %

Selectivity .... ± 10 kHz 25 dB

Audio Section

Rated Power 20 Hz – 20 kHz 8 ohms 60 W/Ch

THD 20 Hz – 20 kHz 8 ohms 0.09 %

Input Sensitivity/Impedance

Linear 200 mV/47 k ohms

Signal to Noise Ratio (IHF A)

Linear 95 dB

Others

Power Supply AC 120 V 60 Hz

Power Consumption 1.8 A

Dimensions (MAX)

Width 17-5/16 inches (440 mm)

Height 5-3/8 inches (137 mm)

Depth 15-7/16 inches (392 mm)

Weight 16.5 lbs (7.5 kg)

Specifications subject to change without prior notice.

AVANT-PROPOS

ECOUTE D'EMISSIONS FM STEREO

Diagram of a car interior with directional arrow indicating movement or force (no text or symbols)

REMARQUES D'INSTALLATION

COUNTRY COMPANY ADDRESS

ALGERIE Azur 2000 8, Lotissement Ben Hatadi, Alger, Algerie
ARMENIA NGYIG Ltd. 47 A/75 St. Lalaiants, 375000 Yerevan, Armenia
AUSTRALIA Jamo Australia Pty. Ltd., 24 Lionel Road, Mt. Waverley, VIC 3149, Australia
AUSTRIA	Huber & Prohaska GmbH	Taborstraße 95 / Ladestraße 1, Gebäude Hangartner, A-1200 Wien, Austria
BAHREIN Ambassador Stores P.O. Box 237,141, Government Avenue, Manama,Bahrein
BANGLADESH Target 1078, Ramjoy Mohanja Lane Asadgonj, Chittagong 4000, Bangladesh
BELGIUM Van der Heyden Audio N.V. Brusselbaan 278. 9320 Erembodegem, Belgium
BULGARIA	Ariescommerce GmbH	Makedonia Blvd. 16, 1606 Sofia, Bulgaria
CANADA	Lenbrook Industries Limited	633 Granite Court, Pickering, Ontario
CHINA	Guang Chang Audio International Co., Ltd.	No.38 Yushan Road, ShiQiao, Pan Yu, Guang Dong, China
CYPRUS	Empire Hifi systems Ltd.	P.O. Box 5604, Nicosia, Cyprus
CZECH REPUBLIC	Audio International	Sokolska 41, 67902 Rajecko, OKR,Blansko, Czech Republic
DENMARK	Audio Nord	Dali Allé 1, 9610 Noerager, Denmark
DUBAI	V.V.& SONS	P.O. Box 105, Dubai, U.A.E.
EGYPT	Solimco	9, El Attibaa St. Doki, Cairo, Egypt
ESTONIA HiFi Club Estonia	Ehte 4, 90503 Haapsalu, Estonia
F.Y.R.O.M.	T.P. KODI	ul.Cedomir Kantargiev 21a, Skopje, Former Yugoslavian Republic of Macedonija
FINLAND	Audio Nord	Uudenmaankatu 4-6, Helsinki SF-00120, Finland
FRANCE	Marantz France	A division of Marantz Europe B.V., P.O. Box 301, 92 156 Suresnes Cedex, France
GERMANY	Marantz Deutschland	Hakenbusch 3, 49078 Osnabrück, Germany
GREECE	Adamco S.A.	188, Hippocratous Street, 11471 Athens, Greece
HEADQUARTERS EUROPE:	Marantz Europe B.V.	Building SFF-2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands
HONG KONG	Marantz Asia Ltd.	Unit 1706, Metroplaza II, 223 Hing Fong Road, Kwai Fong, N.T., Kowloon, Hong Kong
HUNGARY	Infovox Ltd. Terez Krt.31, 1067 Budapest, Hungary
ICELAND ID Electronics Ltd. Armula 38, 108 Reykjavik, Iceland
INDIA	NOVA Audio Private	8,Punam Co-op Society 29/30 Road#5, Union Park MUMBAI 400052, India
IRAN	Home Co.	5th floor no 878 Philips Building Enghelab ave, P.O. 11365/7844 Tehran, Iran
IRELAND Marantz Ireland	Clonskeagh, Dublin 14, Ireland
ISRAEL	Elmor Ltd.	52 Heh Beiyar Street, Kikar Hamedina, Tel Aviv, Israel
ITALY	Marantz Italy	Via Casati 23, 20052 Monza (Milano), Italy, Servizio Consumatori 1678-20026, Numero Verde
IVORY COAST	Hifivoir	B.P. 2428, Abidjan 01, Ivory Coast
JAPAN	Marantz Japan Inc.	35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan
KOREA	Mk Enterprises Ltd.	121-210, 2F Shinhan Bldg., 247-17 Seokyo-dong, Mapo-ku, Seoul, Korea
KUWAIT	alAlamiah Electronics Intl.	P.O. Box 8196, Salmiah 22052, Kuwait
LATVIA	Ace Ltd.	61, LacPlesa Str., Riga LV 1011, Latvia
LEBANON	AZ Electronics S.A., 1,	P.O. Box 11 2833, Beirut, Lebanon
LITHUANIA	Accapella Ltd.	Ausros, Vartu G/5, Pasazo SKG., 2001 Vilnius, Lithuania
MALAYSIA	Wo Kee Hong Electronics Sdn. Bhd.	102 Jalan SS 21/35, Damansara Utama, 47400 Petaling Jaya, Selangordarul Ehsan, Malaysia
MALTA	Doneo Co Ltd.	78 The Strand, Sliema SLM07, Malta
MAURITIUS	SKR Electronics Ltd.	P.O. Box 685, Bell Village, Port Louis, Mauritius
MILITARY MARKET EUROPE	PASCO GmbH	PO BOX 1280, Sandhausen 69200, Germany
NETHERLANDS	Marantz Domestic Sales	A division of Marantz Europe B.V., Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands
NEW ZEALAND	Wildash Audio Systems	14 Malvern Road, Mt. Albert, Auckland, New Zealand
NORWAY Audio Nord	Sandkerveien 64, Oslo 0483, Norway
OMAN	Mustafa & Jawad Trading CO.	P.O. Box 1918, Ruwi, Oman
POLAND	Philips Polska Sp. z.o.o.	Al.Jerozolimskie 195b, 02 222 Warszawa, Poland
PORTUGAL	Corel2	Comércio de Electrónica Lda., Av. Luís Bívar, No 85 A, 1050 Lisboa, Portugal
PROFESSIONAL EUROPE	Marantz Professional Products	Kingsbridge House, Padbury Oaks, 575-583 Bath Road, Longford, Middlesex UB7 0EH, U.K.
PROFESSIONAL U.S.A.	Marantz Professional Products	Distributed by: Superscope Technologies Inc., 1000 Corporate Blvd. Ste.D, Aurora, Illino
QATAR	Almana & Partners W.W.L.	P.O. Box 49, Doha, Qatar
REUNION	Vision +	180 Rue du Marechal Leclerc, 97400 Saint Denis, Ile de la Reunion
ROMANIA	Nova Music Entertainment	5, Zagazului Str. Bl.1G,apt.18, sector 1,Bucharest, Romania
RUSSIA	Absolute Audio	7/2, Montazhnaya Street, 107497 Moscow, Russia
SAUDI ARABIA	Adawlia Univ. Electr. Apl	P.O. Box 2154, Alkhobar 31952, Saudi Arabia
SINGAPORE	Forward Marketing (S) Pte. Ltd.	Wo Kee Hong Centre, 29 Leng Kee Road, Singapore 159099, Singapore
SLOVAKIA	Bis Audio s.r.o.	Nam. SNP 10, 96001 Zvolem, Slovakia
SLOVENIA	Bofex	Smartinska 152, HALA V/3, 61000 Ljubljana, Slovenia
SOUTH AFRICA	Coherent Imports (PTY) Ltd.	P.O. Box 1614, Alberton, 1450, South Africa
SPAIN	Marantz Spain	Martinez Villergas 2, Apartado 2065, Madrid 28027, Spain
SRI LANKA	The listening Room	Mezzanine Floor, The Landmark 385, Galle Road, Colombo - 3, Sri Lanka
SWEDEN	Audio Nord	Almedalsvagen 4, Gotenborg 402-23, Sweden
SWITZERLAND	Sound Company AG	Postfach, 8010 Zürich, Switzerland
SYRIA	Hamzeh & Partners	Hafez Ibrahim Str. No 117, Damascus Shalan, Syria
TAHITI	Covecolor	Av. Prince Hinoi, Cours de l'union sacré, P.O. Box 2334, Papeete, Tahiti
TAIWAN	Pai-Yuing Co. Ltd.	6th No 148 Sung Kiang Road, Taipei 10429, Taiwan R.O.C.
THAILAND	MRZ Standard Co. Ltd.	746-750 Mahachai Road, Wangburapa, Bangkok 10200, Thailand
TUNESIA	Societe EDEVIG	40, Avenue du Golfe Arabe, El Menzah, 1004, Tunisia
TURKEY	Türk Philips Ticaret A.S.	Yukari Dudullu Organize sanayi Bolgesi, 2.Cadde no.28, 81260 Umraniye-Istanbul, Turkey
U.K.	Marantz Hifi UK Ltd.	Kingsbridge House, Padbury Oaks, 575-583 Bath Road, Longford, Middlesex UB7 0EH, U.K.
U.S.A.	Marantz America Inc.	440 Medinah Road, Roselle, IL 60172, U.S.A.
YUGOSLAVIA	ITM Company	Omladinskih Brigada 86, 11070 Belgrade, Yugoslavia
EXPORT	Marantz Domestic Sales	A division of Marantz Europe BV,Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, TheThe Netherlands

www.marantz.com
