USER MANUAL Z1 VDO

1487 23 m/s 87 19% TRIP DIST 82.64 Z1

VDO SERIES-Z

FOR CYCLING

Z1

INSTRUCTION MANUAL / BEDIENUNGSANLEITUNG / MANUEL D'INSTALLATION ET D'UTILISATION / HANDLEIDING / MANUALE D'INSTALLAZIONE E FUNZIONAMENTO INSTRUKCJA OBSLUGI LICZNIKA / INSTALACION Y OPERACIÓN MANUAL

My Settings

AGE:	WEIGHT:	MAX HEARTRATE:
LIMIT 1: LOW: HIGH:
LIMIT 2: LOW: HIGH:
LIMIT 3: LOW: HIGH:
		RECOVERY PULSE: RECOVERY TIME:
BIKE 1 WEIGHT:		BIKE 2 WEIGHT:
BIKE 1 WHEELSIZE:		BIKE 2 WHEELSIZE:
BIKE 1 SERVICE INTERVAL:		BIKE 2 SERVICE INTERVAL:
HOME ALTITUDE:
FURTHER SETTINGS:

Picturebook

P01

Line drawings of various smartwatch components and accessories, including a steering wheel, camera, and display case (no text or symbols)

ONLY FOR MODELS

Z2 PC-LINK / Z3 PC-LINK

Line drawing of a medical device with a clamped band and connector (no text or symbols)

* Watch out: old batteries require special disposal B Please read instructions for end-off-life disposal treatment

OPEN CLOSE OPEN CLOSE !

OPEN CLOSE !

Picturebook

P03

ONLY FOR

MODELS

Z2/Z2 PC-LINK

Z3/Z3 PC-LINK

OPEN CLOSE

Picturebook

P04/05

Technical diagram showing mechanical assembly steps with 90° rotation indicator and component placement

Picturebook

P08

ONLY FOR

MODELS

Z2/Z2 PC-LINK

Z3/Z3 PC-LINK

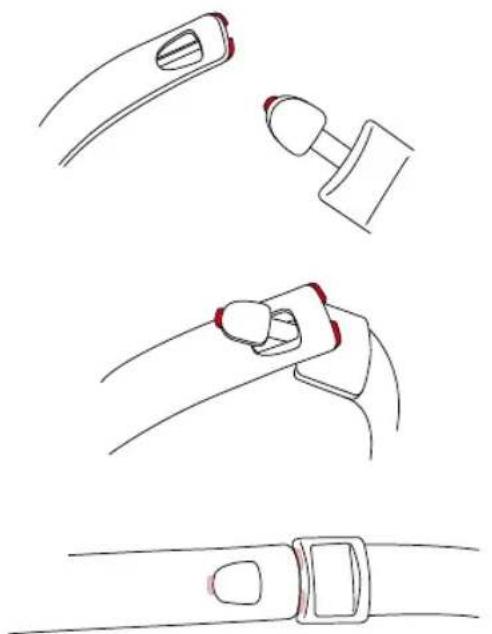

Line drawings of a hand gripping a car seatbelt, showing three different designs (no text or symbols)

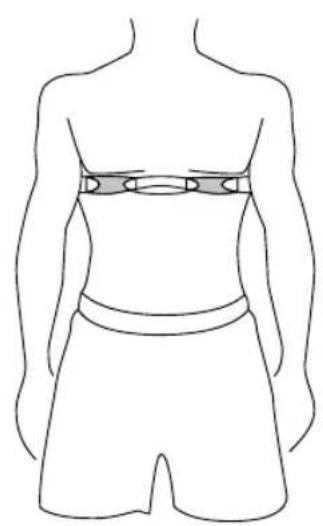

Line drawing of a human torso with a bandage and belt, no text or symbols present

Line drawing of a human torso with a bandage on the chest (no text or symbols)

Picturebook

P09 P09-2

CLOSE OPEN

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

1x WS in mm / inch

Tire size	WS in mm KMH	WS in inch MPH
47-305	16x1,75	1272	50,1
47-406	20x1,75	1590	62,6
34-540	24x1	3/8	1948
47-507	24x1,75	1907	75,1
23-571	26x1	1973	77,7
40-559	26x1,5	2026	79,8
47-559	26x1,6	2051	80,7
47-559	26x1,75	2055	80,9
50-559	26x1,9	2060	81,1
n/a 26 x 1,95	20x0 81,5
54-559	26x2,00	2075	81,7
n/a 26 x 2,1	2060 81,9
57-559	26x2,125	2133	84,0
37-590	26x1	3/8	2105

Tire size	WS in mm KMH		WS in inch MPH
20-571	26x3/4	1/4	1954	76,9
32-630	27x1			2199
410-622	28x1,5		2224	87,6
47-622	28x1,75		2268	88,3
40-635	28x1	1/2		2265
37-622	28x1	3/9		2205
18-622	700x18C		2102	82,8
20-622	700x20C		2114	83,2
23-622	700x23C		2133	84,0
25-622	700x75C		2146	84,5
28-622	700x28C		2149	84,6
32-622	700x32C		2174	85,6
37-622	700x37C		2205	86,8
410-622	700x10C		2224	87,6

86,6 80,2 86,8

Picturebook

P11

ONLY FOR

MODELS

Z2 PC-LINK

Z3 PC-LINK

MODELS Z2 PC-LINK Z3 PC-LINK

EN

Congratulations

With your selection of a VDO Z1 you have opted for high-quality sports information computer. In order to fully benefit from the potential of the computer, we recommend that you carefully read this manual. It contains all operating instructions and many useful tips.

We extend our best wishes for enjoyment and satisfaction when riding with your VDO computer.

VDO Cyclecomputing Cycle Parts GmbH

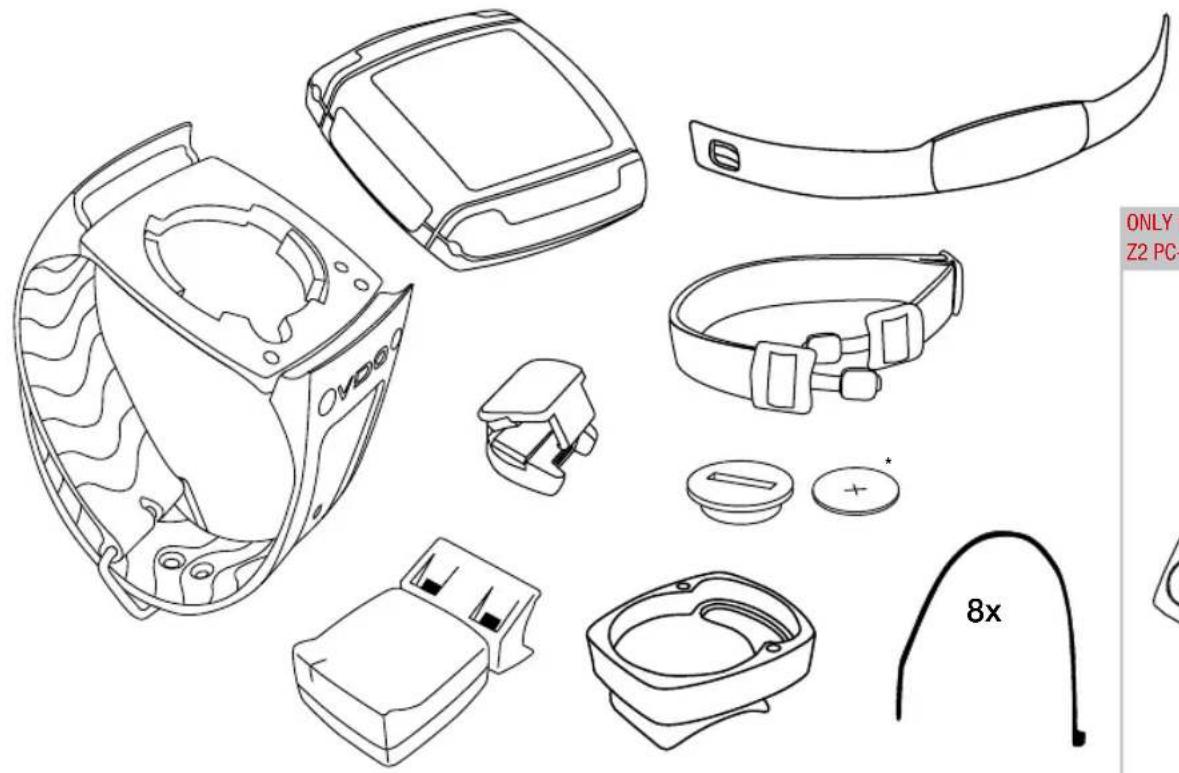

Package contents >>> P01

First, please ensure that the contents of this package are complete:

1 VDO computer Z1

1 VDO speed transmitter

1 battery for computer, 3 V type 2032

1 handlebar holder

1 wrist band holder

1 lock for the wrist band holder

1 spoke magnet

8 cable ties

Optional extension set:

VDO cadence transmitter

Reference to the appropriate pages in the picture book. This is where the content is again presented in picture form, e.g.:

P01 — P01 page 1 in the picture book

INSTRUCTION MANUAL

TABLE OF CONTENTS

1.1. GENERAL
1.2. IMPORTANT INSTRUCTIONS FOR THE DIGITAL WIRELESS SYSTEM
1.3. Control system - operation
1.3.1. Operating mode
1.3.2. Setting mode
1.4. The display
1.5. Extension options & accessories

2. INSTALLATION

2.1. Battery installation
2.1.1. Battery installation - computer and speed/cadence transmitter
2.2. Installation - holder/computer/transmitter/magnet
2.3. Mounting the computer on the wrist band

3.1. Initial operation, AC-button
3.2. Language selection
3.3.1. Manual pairing - INITIAL operation wireless system
3.3.2. Initial operation - speed transmitter
3.3.3. Initial operation - cadence transmitter

4. GENERAL SETTINGS

4.1. Setting the language
4.2. Setting time & date
4.3. Setting the alarm, alarm clock

5. BICYCLE FUNCTION SETTINGS

5.1. Measuring and setting wheel size/s
5.2. Changing wheel size
5.3. Setting total kilometers
5.4. Bike check / service interval

6. PERSONAL SETTINGS IMPORTANT NOTE

Ensure that you make the personal settings first so that you can fully utilize the possibilities offered by the computer.
6.1. Personal settings

7. POWER CALCULATION

7.1. Power calculation in watt

8. ALTITUDE FUNCTION SETTINGS

8.1. Setting the home altitude (starting altitude)
8.2. Setting the actual altitude
8.3. Annual uphill altitude difference bike 1 and bike 2 and walk mode
8.4. Annual downhill altitude difference bike 1 and bike 2 and walk mode

9. RESET MODE

9.1. Resetting trip data
9.2. Reset total ride time
9.3. Resetting the total distance meter
9.4. Resetting the Navigator
9.5. Resetting to factory settings (AC button)

EN

10. OPERATION MODE SELECTION

Selecting the operation mode: Bike mode or walk mode

11. OPERATION MODE

11.1. Function overview
11.2. Fast pairing after interruption > 15 minutes
11.3. GETTING STARTED
11.3.0. The permanent functions in the display
11.3.1. to 11.3.28. Quick overview - functions/operation/reset/max. values

12. RIDING WITH THE NAVIGATOR

12.1. Selecting Navigator mode
12.2. Resetting the Navigator at the orientation point

13. THE TIMING FUNCTIONS

13.1. Selecting the timing function
13.2. Setting the timer (when selecting timer 1 or timer 2 or timer 1 + 2)
13.3. Setting timer 1 + 2 repeats (when selecting timer 1 + 2)
13.4. Setting the countdown (when selecting countdown timer)
13.5. Stopwatch
14. SLEEP MODE

15. TROUBLESHOOTING

16. GUARANTEE CONDITIONS

17. TECHNICAL SPECIFICATIONS

INSTRUCTION MANUAL

1.1. GENERAL

1.2. IMPORTANT INSTRUCTIONS FOR THE DIGITAL WIRELESS SYSTEM

Your VDO series Z1 works entirely without cable; it works with double digital wireless transmission based on well-established ANT+Sport® wireless protocol. The ANT+Sport® wireless protocol has already been successfully implemented by manufacturers such as Garmin, Specialized, and Suunto. Speed signals, cadence signals (optional) to the respective receiver (computer) as digital and coded signals. Signal coding ensures that only the data of your own speed, and cadence (optional) transmitters are processed (this is advantageous when riding in a group).

The ANT+Sport digital technology is significantly more reliable than the technology of older analog systems. The ANT+Sport technology uses standard industrial wireless components, and it can best be compared to the technology used in modern WLAN networks. The connection between transmitter and receiver is more stable, and subject to significantly less frequent malfunction, and it is virtually completely safeguarded from data loss.

The speed transmitter has a memory component that buffers data every 65 sec. Thus no data is lost if there is a malfunction lasting for this duration. After the malfunction this data will be resent to the computer. Subsequently the following data will be updated:

Daily distance

Ride time

Average speed

Navigator

Total distance

Total ride time

After a malfunction the data can change suddenly = updating the computer. Initial operation of a completely digital system requires somewhat more care than does initial operation of conventional analog systems. The first time batteries are inserted, or after a battery change, the transmitter automatically generates a new code. The computer has to learn this code. To do this you must execute a DIG CONNECT SET. Strictly follow the instructions in chapter 3.3.1. to do this.

ATTENTION: Your VDO computer is not suitable for use on motorcycles.

The control system of your computer is based on dual assignment of the 4 main buttons. In this regard the devices distinguishes between operation mode and setting mode.

EN

1.3.1. OPERATION MODE - use this mode to display all information Button assignment is shown on the housing.

    M["OPERATION MODE"] --> N["A"]
    M --> O["P"]
    M --> P["Z1"]

    Q["Displaying all altitude measuring functions"] --> R["Displaying the bike functions 1"]

    S["Displaying all interval data stored"] --> T["Manual start/stop of the stopwatch and of all other timers"]
    S --> U["Displaying the bike functions 2"]

    V["CLOCK"] --> W["NAVIGATOR"]
    W --> X["ODO BIKE 1"]
    X --> Y["ODO BIKE 2"]
    Y --> Z["ODOTOTAL"]
    Z --> AA["TIME BIKE1"]
    AA --> AB["TIME BIKE2"]
    AB --> AC["TOTALTIME"]

    AD["TIMER"] --> AE["* POWER WATT"]

    AF["* Not in walk mode !"] --> AG["* Not in walk mode !"]

INSTRUCTION MANUAL

1.3.2. SETTING MODE - use this mode to make all settings. The assignment of buttons is on the buttons

To go to setting mode: Press button 1 for 3 seconds

LANGUAGE SELECT

NAVIGATOR SET

WHEELSIZE SET

WHEELSIZE CHANGE

CLOCK SET

ALARM SET

TIMER SETTINGS

ODOMETER SET

... Chap. 4.1.

... Chap. 12.1.

... Chap. 5.1.

... Chap. 5.2.

... Chap. 4.2.

... Chap. 4.3.

... Chap. 13.1.

... Chap. 5.3.

HOME ALTI SET

ACTUAL ALTI SET

ALTI UP SET

ALTI DOWN SET

PERSON DATA SET

OP MODE SELECT

BIKE CHECK SET

POWER CALC SET

DIG-CONNECT SET

... Chap. 8.1.

... Chap. 8.2.

... Chap. 8.3.

... Chap. 8.4.

... Chap. 6.1.

... Chap. 10.

... Chap. 5.4.

... Chap. 7.5.

... Chap. 3.3.

(Once) = last step, or back one menu level (Hold) = return to start menu
Select/confim displayed option In the highest menu level select the next menu level Page down within the menu level

In SET mode (number flashes): Reduce number Page up within the menu level
In SET mode (number fl ashes): Increase number After subsequent confirmation of a setting the computer automatically returns to operation mode.

EN

1.4. THE DISPLAY

The display of your VDO computer is comprised of three large areas.

The following information is displayed in operation mode:

* If the computer is worn as a sport watch then the temperature can be falsified by body warmth.

Header - Actual altitude - Actual temperature - Actual ascending gradient/ descending gradient 2487 27 17 27 87 34 2 TRIP 124.06 MIDDLE BAR - Actual cadence (optional) - Actual speed - Timing indicator for ongoing timing function - Indicator for set alarm/alarm clock - Walk mode indicator - Selection indicator bike 1 / bike 2 - Arrow indicators for comparing the actual speed to the average speed - Service interval icon indicates that bike is due for service 3. Footer: DOT matrix full-text - display of the selected/displayed function - In setting mode menu prompting (chapter 5-8) provides informa- tion about what is shown in the display.

INSTRUCTION MANUAL

1.5. EXTENSION OPTIONS & ACCESSORIES

Extension option: You have the possibility of extending your computer with the cadence extension set

In this case the following cadence functions are available to you:

Actual cadence

Average cadence

Maximum cadence

In addition you can also get the following original VDO replacement parts from your dealer

Designation article number
Universal handlebar holder - wireless art. no. 5503
Magnet S/M for speed impulses art. no. 4410
Magnet L/XL for speed impulse art. no. 4412
Cadence magnet art. no. 4411
Speed transmitter art. no. 6602
Cadence kit art. no. 6603
Wrist band art. no. 6607

Wrist band lock art. no. 6608
Universal mount kit art. no. 6601

When purchasing look for the VDO Cyclecomputing original equipment logo. Only products bearing this logo are authorized by VDO Cyclecomputing for use with your computer.

2. INSTALLATION

2.1. BATTERY INSTALLATION

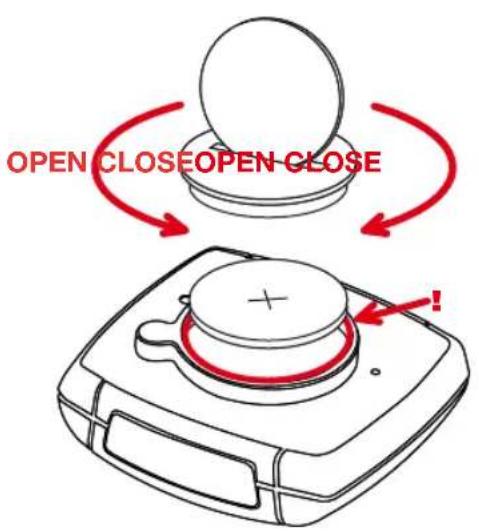

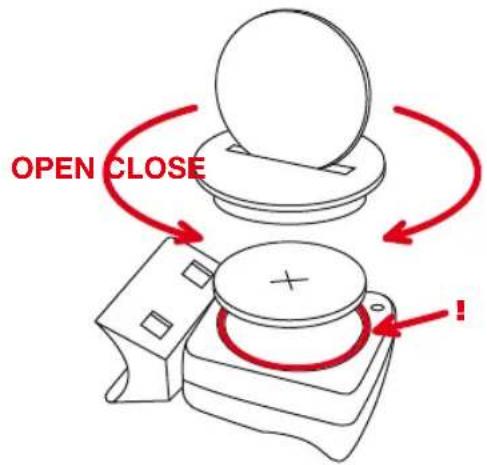

2.1.1. BATTERY INSTALLATION - COMPUTER AND SPEED/CADENCE TRANSMITTER >>> P02

step 1 Insert the battery into the computer/transmitter housing with the + pole up.
step 2 Ensure that the battery is not tilted.
step 3 Ensure that the rubber seal lies smoothly on the lid of the battery compartment.
step 4 Insert the battery compartment lid into the opening and use a coin to firmly turn the battery door to right until the stop (approximately 1/3 turn)

TIP for changing batteries: VDO recommends changing the batteries yearly to avoid undesired data loss. Thus strictly ensure that you note the entered wheel sizes as well as the previous ridden kilometers for bike 1 & bike 2, as well as the total altitude difference for bike 1, bike 2, and the altitude difference walked. Reprogram this information after inserting the new batteries.

EN

2.2. INSTALLATION - HOLDER/COMPUTER/TRANSMITTER/MAGNET

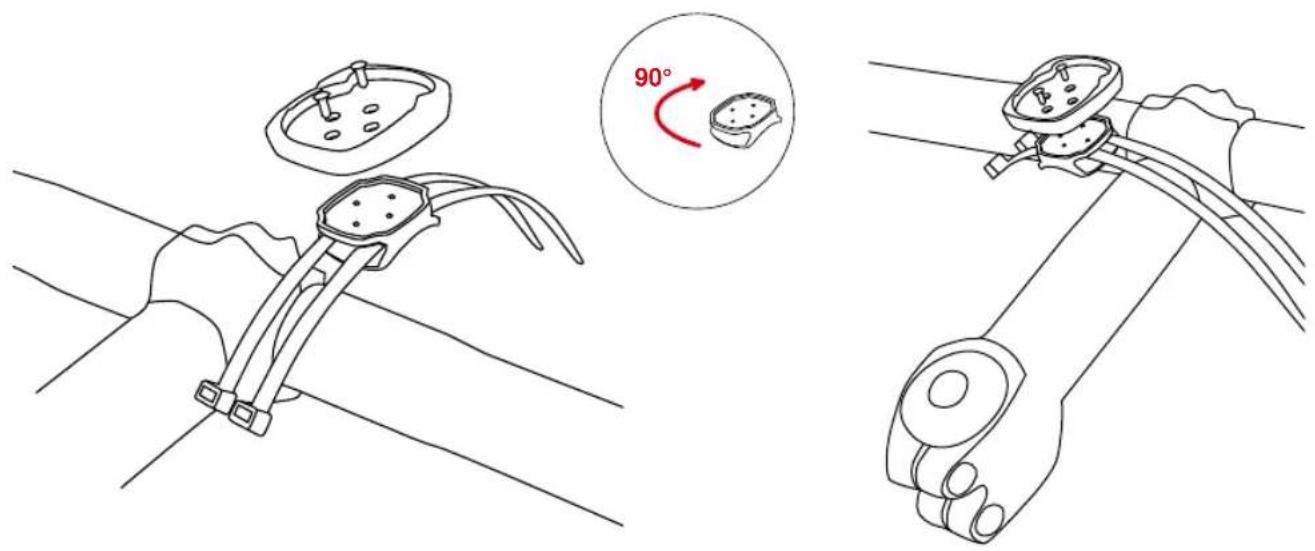

a. Holder >>> P04/05: Your VDO computer is shipped with a universal handlebar holder.

step 1 You can mount the holder either on the handlebar or the stem. If you are installing the holder on the handlebar decide whether you want it on the right side or the left side. If installing on the stem, loosen the screws in the holder and turn the foot of the holder to stem installation. Then screw the foot firmly onto the holder again.

step 2 Route the cable ties through the provided eyes of the holder foot and pull both of them tight.

b. Computer>>> P07

The VDO twist-click system securely connects the computer to the handlebar holder.

step 1 Insert the computer, turned to the left approximately 45 degrees (10 o'clock position) into the holder.

step 2 Twist the computer to the right until it audibly engages (clicks) in the holder system (12 o'clock position).

step 3 To remove the computer turn it to the left (do not press or pull).

c. Speed transmitter and magnet >>> P06

Mount the transmitter on the same side of the handlebar that the computer is mounted on. If you have installed the holder on the stem then we recommend mounting the transmitter on the left side.

step 1 Loosely fasten the transmitter on the fork with cable ties (do not tighten).

step 2 Place the spoke magnet on a spoke

step 3 Align the spoke magnet to the transmitter marking with a clearance of approximately 3 mm and click it together.

step 4 Align transmitter and magnet relative to each other and tighten the cable tie on the transmitter.

Please pay attention to the maximum distances:

- Maximum transmitter-computer distance = 120 cm

- Transmitter-magnet distance: 3 mm to a maximum of 10 mm

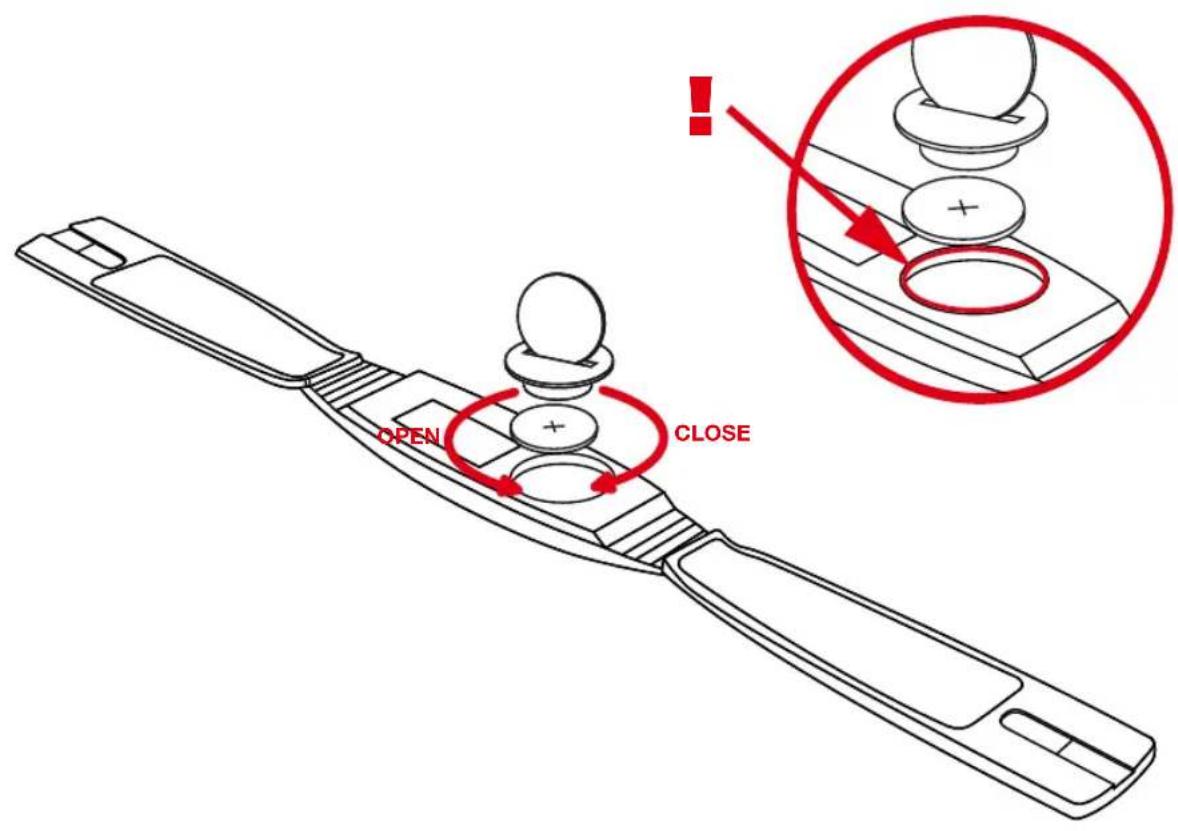

2.3. MOUNTING THE COMPUTER ON THE WRIST BAND >>> P09

step 1 Insert the computer into the opened wrist band

step 2 Insert the lock into the wrist band holder from below

step 3 Turn the lock with a coin to tighten it

ATTENTION: Never use a screwdriver to operate the lock. This could damage the lock (if the lock should be damaged then you can get the lock as original replacement part)

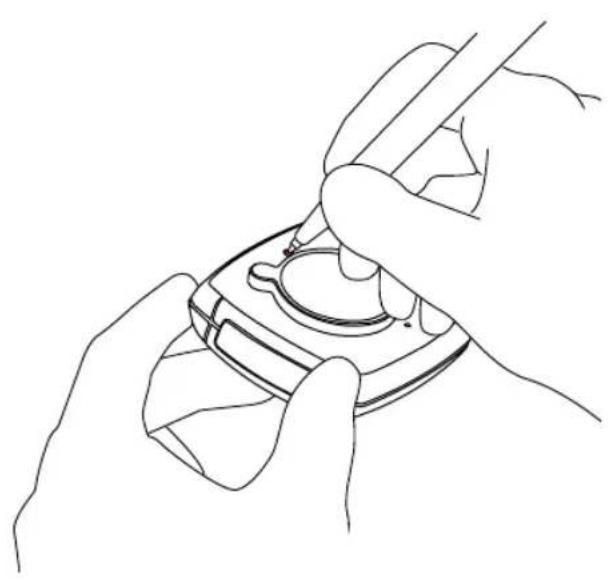

After inserting the batteries we recommend that you first reset the device to factory settings to ensure that no residual data from the quality control process remains in the computer. This puts the computer into an assured start mode.

- Press the AC button for approximately 2 seconds with a sharp object, such as a pencil

3.2. LANGUAGE SELECTION

3sec. ① Setting mode LANGUAGE SELECT

INSTRUCTION MANUAL

step 2 M Confirm LANGUAGE SELECT with M

step 3 ▼▲ Press the up or down button until the desired language appears

step 4 M Confirm your language selection with M

3.3.1. MANUAL PAIRING - INITIAL OPERATION WIRELESS SYSTEM

For initial operation of the digital wireless system manual pairing must ALWAYS be executed. Manual pairing ensures that the computer learns the coding of the transmitter you are using.

step 1 Insert the computer into the twist-click holder

step 2 Ensure that there are no ANT+Sport digital transmitters other than the transmitter you are using within a 5-meter area around the computer

Your computer will randomly select one of 128,000 codes. This ensures that signals of other transmitters are not received or processed (e.g. when riding in a group). If dashes are shown in the display, in spite of pairing, you must repeat the manual pairing process. In doing so ensure that the distance between the magnets and the speed/cadence transmitter is not greater than 5 mm.

ATTENTION: Your computer can save the codes of up to 4 transmitters

1. Speed transmitter of bike 1

2. Speed transmitter of bike 2

3. Cadence transmitter of bike 1 (optional)

4. Cadence transmitter of bike 2 (optional)

3sec. 1 Setting mode LANGUAGE SELECT

▼ ▲ Select DIG CONNECT SET

M Display DIG CONNECT

▼ ▲ Select SPEED SEARCH

M SPEED PAIRING

Now turn the front wheel (both magnet and transmitter must be already mounted)

PAIR DONE appears in the display after several seconds if the speed transmitter was found. Automatic return to the TRIP DIST menu

SPEED REPEAT appears if the speed transmitter was not found.

Use ☐ to repeat the pairing process for the speed transmitter.

For troubleshooting see chapter 15.

3.3.3. INITIAL OPERATION - CADENCE TRANSMITTER (OPTIONAL EXTENSION see chapter 1.5)

3sec. ① Setting mode LANGUAGE SELECT

▼ ▲ Select DIG CONNECT SET

MDisplay DIG CONNECT

▼ ▲ Select CADENCE SEARCH

M CADENCE PAIRING

Now turn the crank (magnet and transmitter must be already mounted) PAIR DONE appears in the display after several seconds if the cadence transmitter was found.

Automatic return to the TRIP DIST menu

If the cadence transmitter was not found CADENCE REPEAT will be displayed.

With M repeat the pairing for the cadence transmitter

For troubleshooting see chapter 15.

EN

IMPORTANT NOTE / Re-open of transmitter search for the receive channel after interruption

If no signal is received from an already paired transmitter after 15 minutes (for example riding without chest belt for Z2 and Z3, also PC-LINK models), the receive channel will be closed for this transmitter. In this case your VDO computer will show dashes for the respective function in the display. To re-open all receive channels press the ① and A buttons at the same time: Now your VDO computer will again receive all previously paired transmitters that are in range.

4. GENERAL SETTINGS

4.1. SETTING THE LANGUAGE

3sec. ① Setting mode LANGUAGE SELECT M LANGUAGE SELECT

Select „LANGUAGE ENGLISH“

M Automatic return to TRIP DIST

Language selection done.

4.2. SETTING TIME & DATE

3 sec. 1 Setting mode LANGUAGE SELECT

CLOCK SET

MSET HOUR ?CONTINUE?

Setting hours

MSET MINUTES ?CONTINUE?

Setting minutes

SET

YEAR

?CONTINUE?

Setting the year

MSET MONTH ?CONTINUE?

Setting the month

MSET DAY ?CONTINUE?

Setting the day

M CLOCK ?SET OK?

M

CLOCK

SET

DONE

Automatic return to CLOCK

4.3. SETTING THE ALARM, ALARM CLOCK

3 sec. ① Setting mode LANGUAGE SELECT

ALARM SET

M ALARM ON or ALARM OFF ( ▼ to switch on)

When the alarm clock is switched off setting mode ends automatically by M.

MSET HOUR ?CONTINUE?

▼▲ Selecting the hours value

M„SET MINUTES ?CONTINUE?

▼▲ Selecting the minutes value

M ALARM ?SET OK?

M

ALARM

SET

DONE!

Automatic return to the operation mode for CLOCK. Setting the alarm clock done.

The alarm clock icon is now shown in the display (center bar left).

5. BICYCLE FUNCTION SETTINGS

5.1. Measuring and setting wheel size/s

In order for your VDO computer to measure correctly you must first measure the circumference of your wheel. If this value is set incorrectly

INSTRUCTION MANUAL

then all values calculated on the basis of this value, such as speed, trip, etc. will be wrong. To use your VDO computer on two different bikes e.g. mountain bike and road bike you can enter two different wheel sizes. Measuring the wheel circumference:

step 1 Align the valve of the front wheel so that it is precisely vertical to the ground
step 2 Mark this point on the ground with a line (use chalk for example)
step 3 Push the bike one wheel rotation forward until the valve is again vertical to the ground.
step 4 Mark this point on the ground as well.
step 5 Measure the distance between the two marks. The result is your wheel circumference (=roll circumference).
step 6 Enter the wheel circumference as described below into your VDO computer.

ATTENTION: If you have selected KMH display then you must enter the wheel circumference in mm. If you have selected MPH display then enter the wheel circumference in inches. The values listed in table

P10 are approximate values. These values deviate depending on brand of tire, tire height and tire tread.

Setting wheelsize:

3 sec. 1 Setting mode LANGUAGE SELECT

WHEELSIZE SET
M WHEELSIZE KMH-DISPLAY or WHEELSIZE MPH-
DISPLAY ( ▼ to change to mph)
MWHEELSIZE 1 ... SET SIZE ?CONTINUE?
Set wheel size 1 in mm (keep button depressed for

fast run-through)

M WHEELSIZE 1 ?SET OK?
M WHEELSIZE 1 SET DONE

Automatic change to

Set wheel size 2 in mm (keep button depressed for fast run-through)
M WHEELSIZE 2 ?SET OK?
MWHEELSIZE 2 SET DONE

Automatic return to operation mode for TRIP DIST. If you do not want to set wheel size 2 then hold ⬆ to return to TRIP DIST operation mode.

Attention: Factory settings for bike 1 = 2155 mm and for bike 2 = 2000 mm. If you do not enter wheel sizes the computer will work with the factory settings. The values measured in this manner for speed, distance, etc. can deviate from the actual values.

5.2. CHANGING THE WHEEL SIZE

With wheel size you change the computer from bike 1 (e.g. road bike) to bike 2 (e.g. mountain bike). The computer now works with the settings for bike 2.

3 sec. ① Setting mode LANGUAGE SELECT

WHEELSIZE CHANGE

M

WHEELSIZE 1 or WHEELSIZE 2 ?SET OK?

M

Changing the wheel size
M WHEELSIZE SET DONE

Automatic return to TRIP DIST

EN

Wheel size set done

Display of the actual wheel size in the center bar of the display, right bottom (1 or 2)

5.3. SETTING TOTAL KILOMETERS

You can program the total distances into your VDO computer that get lost when changing batteries or that you have previously counted with a different device. This function is available for both wheel sizes (both bikes).

Setting total KM 1 or 2

3 sec. 1 Setting mode LANGUAGE SELECT

ODOMETER SET

M ODO BIKE 1 SET or ▲ ODO BIKE 2 SET

MODO BIKE 1/2 NEXT DIGIT?

Set last digit (keep button depressed for fast run-through)

MODO BIKE 1/2 NEXT DIGIT?

Set digit (keep button depressed for long run-through) ... repeat for all digits from back to front

MODO BIKE 1/2 ?SET OK?

Set first digit (keep button depressed for fast run-through)

MODO BIKE 1/2 SET DONE

Automatic return to operation mode for ODO BIKE 1/2 menu. Set ODO BIKE 1/2 done

5.4. BIKE CHECK / SERVICE INTERVAL

Your VDO computer allows you to set the service interval to any interval for both of your bikes independently. The service check reminds you to have your bicycle serviced, like the service indicator in your car.

Set bike check bike 1 or bike 2

3 sec. ① Setting mode LANGUAGE SELECT

BIKE CHECK SET

M BIKE CHECK ON or BIKE CHECK OFF ( ▼ to switch off the bike check)

M„BIKE 1 SET or BIKE 2 SET

Set service interval in KM or m (keep button depressed for fast run-through)

MBIKE 1/2 ?SET OK?

MBIKE 1/2 SET DONE

Automatic return to operation mode for TRIP DIST Bike check set done

If BIKE CHECK is shown in the display then you should either perform the recommended bike check yourself or have your bike checked by your dealer. Press any button. The BIKE CHECK text will disappear. After another 50 km the service interval icon (screw driver) will disappear.

6. PERSONAL SETTINGS (YOUR DATA)

6.1. PERSONAL SETTINGS

3 sec. 1 Setting mode LANGUAGE SELECT

PERSON DATA SET

M SET AGE ?CONTINUE?

Setting age

M SET WEIGHT ?CONTINUE?

INSTRUCTION MANUAL

Setting weight

M

SET

SEX

?CONTINUE?

Setting sex (M = male, F = female)
MPERSON DATA ?SET OK?
MPERSON DATA SET DONE

Automatic return to operation mode for the selected timer.

7. POWER CALCULATION IN WATT

7.1 SETTING THE BASIC VALUES FOR POWER CALCULATION IN WATT (OPTIONAL)

IMPORTANT: Power calculation is only activated if the optional cadence extension is installed.

Power is calculated in WATT via a mathematical algorithm. Deviations from a real WATT measurement system are possible, particularly if there is a strong headwind or tailwind. The more precise the setting of the bicycle used, (its weight as well as your seat position), the more precise the displayed value will be.

IMPORTANT: If the cadence option is installed the WATT shows ZERO when you stop moving the pedals.

3 sec. ① Setting mode LANGUAGE SELECT

POWER CALC SET

M

BIKE

TYPE

SELECT

MROAD BIKE SELECT or ▼ MTB SELECT
M„SITTING POS SELECT
MUPRIGHT SELECT or ▼ LOW RACE SELECT

M SET WEIGHT ?SET OK? (Note: This is where the bike weight, including panniers if necessary, is entered)

Setting the weight in kg

M POWER CALC SET DONE

Automatic return to the mode for POWER WATT

Set watt calculation done

8. ALTITUDE FUNCTION SETTINGS

The altitude measurement function of your VDO computer is based on barometric pressure. The opening necessary in this regard on the underside of the device should not be manipulated (never poke a sharp object into this opening). Note the following for precise altitude measurement:

a. Prior to starting each trip you must enter a start altitude into your computer. If you always start your trip from the same location then you only need to enter the start altitude once.
If the start location changes then you must set the new start altitude.
b. Your VDO computer records barometric pressure changes (e.g. due to weather changes) in sleep mode as a change in actual altitude. If for example your bicycle is in the cellar for two days and the air pressure changes due to weather, then your computer will show a changed actual altitude. This is why the home altitude must be recalculated prior to starting each trip.
c. For longer trips the actual altitude should be readjusted at certain points (e.g. readjust to summit altitudes). Deviations can occur due to

EN

different weather conditions at the various points of the trip. You should make corrections so that the measurement is as accurate as possible. Tip home altitude:

You can obtain the correct information for the altitude of your home location or your usual trip starting point from your local weather bureau.

When planning trips you can find the original altitudes at certain points of your trip on special maps. These maps are available in book stores.

8.1. SETTING THE HOME ALTITUDE (STARTING ALTITUDE)

3 sec. 1 Setting mode LANGUAGE SELECT

HOME ALTI SET

M

Setting the home altitude

MHOME ALTI ?SET OK?

M

HOME

ALTI

SET

DONE

Automatic return to the operation mode for ALTI UP. The set home altitude will be displayed as actual altitude. Home altitude set done

Re-calibrating the air pressure to home altitude. Important: Prior to each trip the actual measured pressure must be calculated back to the set home altitude = re-calibrate. Short-cut press the A button for 4 seconds.

8.2. SETTING THE ACTUAL ALTITUDE

3 sec. 1 Setting mode LANGUAGE SELECT

ACTUAL ALTI SET

Automatic return to the operation mode for ALTI UP. Actual altitude set done

8.3. ANNUAL UPHILL ALTITUDE GAIN BIKE 1 AND BIKE 2 AND WALK MODE

Your VDO computer accumulates values for the meters in altitude for the uphill gain covered separately for:

- Bike 1

- Bike 2

- Walk mode (see chapter 10 for selection)

These values can be programmed in, if for example you want to transfer the values from an older device, or if the values have been deleted when changing batteries.

Setting the annual uphill gain in altitude

3 sec. 1 Setting mode LANGUAGE SELECT

ALTI UP SET

M ALTI UP 1 SET (for bike 2 or walking

▲ ALTI UP 2 SET / WALK UP SET)

M ALTI UP 1 NEXT DIGIT/ ALTI UP 2 NEXT DIGIT / WALK UP NEXT DIGIT

Set last digit (keep button depressed for fast run-through)

M... repeat for all digits from back to front

M ALTI UP 1 ?SET OK? / ALTI UP 2 ?SET OK? / WALK UP ?SET OK?

INSTRUCTION MANUAL

Setting the first digit
M ALTI UP 1 SET DONE / ALTI UP 2 SET DONE / WALK UP SET DONE

Automatic return to the operation mode for TOTAL UP. Annual uphill altitude gain set done.

8.4. ANNUAL DOWNHILL ALTITUDE LOSS BIKE 1 AND BIKE 2 AND WALK MODE

Setting the annual downhill altitude loss

3 sec. ① Setting mode LANGUAGE SELECT

ALTI DOWN SET
M ALTI DOWN 1 SET (for bike 2 or
walking ▲ ALTI DOWN 2 SET / WALK DOWN SET)
M ALTI DOWN 1 NEXT DIGIT / ALTI DOWN 2 NEXT DIGIT / WALK DOWN NEXT DIGIT
Set last digit (keep button depressed for fast run-through)
M... repeat for all digits from back to front
M ALTI DOWN 1 ?SET OK? / ALTI DOWN 2 ?SET OK? / WALK DOWN ?SET OK?
Setting the first digit
M ALTI DOWN 1 SET DONE / ALTI DOWN 2 SET DONE / WALK DOWN SET DONE

Automatic return to the operation mode for TOTAL DOWN Annual downhill altitude loss set done

9. RESET MODE

In reset mode of your VDO computer you reset the saved ride data of the bicycle computer. You can also reset the computer to the factory settings

9.1 TRIP DATA

ATTENTION: When resetting the trip data the following day trip data will be deleted:

• Daily distance
• Trip ride time
• Average speed
• Maximum speed
• Uphill altitude gain
• Downhill distance
• Maximum trip altitude
• Average ascending gradient
• Maximum ascending gradient
• Downhill altitude loss
• Downhill distance
• Average descending gradient
• Maximum descending gradient

If the cadence option is mounted then the cadence data will also be reset.

• Average cadence
• Maximum cadence

3 sec. 2 TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

EN

MTRIP DATA RESET DONE

Automatic return to operation mode for TRIP DIST

9.2 RESET TOTAL RIDE TIME

ATTENTION: When resetting total ride time the following data is deleted:

• Total ride time
• Total ride time bike 1
• Total ride time bike 2
  3 sec. 2 TRIP DATA ?RESET?

TOTAL TIME ?RESET?
MTOTAL TIME ?RESET? <> flashing
M TOTAL TIME RESET DONE?

Automatic return to the operation mode for TOTAL TIME

Reset total time done

9.3. RESETTING THE TOTAL DISTANCE METER

ATTENTION: When resetting the total distance the following data is deleted:

• Total distance
• Total distance bike 1
• Total distance bike 2

3 sec. 2 TRIP DATA ?RESET?

ODOTOTAL ?RESET?
MODOTOTAL ?RESET? <> flashing
MODOTOTAL RESET DONE

Automatic return to the operation mode for ODOTOTAL

Odototal reset done

9.4. RESETTING THE NAVIGATOR

Please see the detailed description of Navigator functions in chapter

12.1.-12.2. There you will learn more about use of this reset.
3 sec. ② TRIP DATA ?RESET?

▼ ▲ NAVIGATOR ?RESET?

M NAVIGATOR ?RESET? <> flashes
MNAVIGATOR RESET DONE

Automatic return to the operation mode for NAVIGATOR

Navigator reset done

9.5. RESETTING TO FACTORY SETTINGS

WARNING: When resetting to factory settings all ride data and all computer settings will be reset, including the personal data. Only perform this reset if a software malfunction occurs or if your computer can no longer be operated.

step 1 Use a sharp pencil
step 2 Press the AC button on the back of the computer for 2 sec

Reset to factory settings done.

10. OPERATION MODE SELECTION

Your VDO computer uses different measuring and analysis programs for different sport types. Certain functions are not available depending on the selected mode. For this reason you must select one of the following modes prior to starting your exercise:

• Cycle mode ⊗
• Walk mode 📄 (also for jogging, running, Nordic walking, inline skating)

INSTRUCTION MANUAL

Select operation mode:

3 sec. ① Setting mode LANGUAGE SELECT

OP MODE SELECT
M CYCLE MODE ?SET OK?
▼ to change to WALK MODE ?SET OK?
M Automatic return to the operation mode for TRIP DIST (in cycle mode), or ALTI UP (in walk mode)

11. OPERATION MODE

11.1. An overview of mode functions is provided in section 1.3.1.

11.2 FAST PAIRING after transmission interruption

If no signal is received from one of your already paired transmitters for more than 15 minutes (e.g. magnet moved unintentionally) the receive channel for this transmitter will be closed. In this case your VDO computer will show dashes for the respective function in the display. To re-open all receive channels press the ⏻ and Ⓐ buttons at the same time:

In this case your VDO computer will then receive all paired transmitters that are in range. See also chapter 14. Sleep mode.

11.3. GETTING STARTED - quick overview

Functions/operation/reset/max values

11.3.0. PERMANENT FUNCTIONS

The following functions are permanently shown in the display:

HEADER

• Actual altitude
• Actual temperature

- Actual ascending gradient in percent! Not in walk mode!

CENTER BAR

• Stopwatch icon if the timing function is running
• Actual speed: Maximum value 120 km/h or mph (! not in walk mode !)
• Actual cadence (optional)
• Comparison of actual speed to average speed▲= above, ▼below (! not in walk mode !)
• Selected wheel size 1 or 2

FOOTER

- Shows selected information and corresponding value

ALTITUDE FUNCTIONS (button A)

Re-calibrating the air pressure to home altitude. Short-cut press the button for 4 seconds.

11.3.1. ⊗ ALTI UP = uphill altitude gain for the actual trip

Display A ALTI UP

Reset: 3 sec. 2 TRIP DATA ?RESET?

M TRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

Automatic return to operation mode for TRIP DIST

11.3.2. ⊗ DIST UP = uphill distance of the actual trip

Display A DIST UP

Reset: 3 sec. 2 TRIP DATA ?RESET?

M TRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

EN

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

Note: The minimum altitude change for the correct distance measurement must be 1 m

11.3.3. TRIP MAX = maximum altitude of the actual trip

Display A TRIP MAX

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST.

11.3.4. AVG CLIMB = average climb of the actual trip in percent

Display: A „AVG CLIMB

Reset: 3 sec. 2 „TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

11.3.5. ⊗ MAX CLIMB = maximum climb of the actual trip in percent

Display A MAX CLIMB

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? > flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

11.3.6. Ⓧ TOTAL UP = total uphill altitude gain Bike 1

and Bike 2

Display A „Tot 1/2 HM UP“ (walk mode TOTAL UP)

11.3.7. Ⓧ ALTI MAX = maximum altitude Bike 1 and Bike 2

Display A „Total Max 1/2“ (walk mode ALTI MAX)

11.3.8. Ⓧ ALTI DOWN = downhill altitude loss

of the actual trip

Display A ALTI DOWN

Reset: 3 sec. 2 TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

11.3.9. DIST DOWN = downhill distance of the actual trip

Display A DIST DOWN

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

Note: The minimum altitude change for the correct distance measurement must be 1 m

11.3.10. AVG DOWN = average downhill slope in percent

INSTRUCTION MANUAL

Display

„Dschn

down"

Reset: 3 sec.

2 TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

11.3.11. MAX DOWN = maximum downhill gradient in percent

Display A MAX DOWN

Reset: 3 sec. 2 TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by ●

Automatic return to operation mode for TRIP DIST

11.3.12. Ⓧ TOTAL DOWN = total downhill altitude bike 1 and bike 2

Display A TOTAL DOWN (walk mode TOTAL DOWN)

BICYCLE FUNCTIONS (button 1)

With the exception of the CLOCK function NO bicycle functions are available in walk mode. The 1 button has no function in walk mode.

11.3.13. TRIP DISTANCE = distance of the actual trip

Display 1 TRIP DISTANCE

Reset: 3 sec. 2 TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

This resets all data of the functions marked by

Automatic return to operation mode for TRIP DIST

Maximum value: 999.99 KM or MI. If this number is overranged then

TRIP DISTANCE, RIDE TIME, and AVERAGE SPEED will be set to ZERO.

11.3.14. ⊗ RIDE TIME = ride time of the actual trip

With auto start/stop function: Starts automatically when you start off and stops automatically when you stop

Display 1 RIDE TIME

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

Automatic return to operation mode for TRIP DIST

Maximum value 24 hours. If this number is overranged then TRIP

DISTANCE, RIDE TIME, and AVERAGE SPEED will be reset to ZERO.

11.3.15. ⊗ AVG SPEED = average speed of the actual trip

Display 1 AVG SPEED

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

Automatic return to operation mode for TRIP DIST

Accuracy: 2 decimal places. If DAILY DISTANCE or RIDE TIME are overranged this value will be reset to ZERO

11.3.16. MAX SPEED = maximum speed of the actual trip

Display 1 MAX SPEED

EN

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

。

Automatic return to operation mode for TRIP DIST

Maximum value 120 km/h or mph. Accuracy 2 decimal places. Not suitable for motorcycles.

OPTION ONLY WITH CADENCE EXTENSION

11.T1. ⊗ CAD AVG = average cadence of the actual trip

Display 1 CAD AVG

Reset: 3 sec. 2 TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

Automatic return to operation mode for TRIP DIST.

11.T2. ⊗ CAD MAX = maximum cadence of the actual trip

Display 1 CAD MAX

Reset: 3 sec. ② TRIP DATA ?RESET?

MTRIP DATA ?RESET? <> flashing

MTRIP DATA RESET DONE

Automatic return to operation mode for TRIP DIST

BICYCLE FUNCTIONS (button 2)

IMPORTANT NOTE: NO bicycle functions except the CLOCK function are available in walk mode. The 2 button in walk mode automatically shows the actual time.

11.3.17. CLOCK

Setting, see chapter 4.2. (Either in 12h or 24h format; in 12h format am/pm will be shown as well)

Display 2 CLOCK

11.3.18. ⊗ NAVIGATOR

Setting, use, see chapter 12.1.-12.2.

Display 2 NAVIGATOR

Reset: 3 sec. 2 TRIP DATA ?RESET?

NAVIGATOR ?RESET?

M NAVIGATOR ?RESET? <> flashes

M NAVIGATOR RESET DONE

11.3.19. ⊗ ODO BIKE 1 = total distance bike 1

Shows the sum of all distances ridden with bike 1 in km or mi (automatic conversion of all values when converting to mi)

Display 2 ODO BIKE 1

Maximum value: 99,999 km or mi

11.3.20. ⊗ ODO BIKE 2 = total distance bike 2

Shows the total of all distances ridden with bike 2 in km or mi (automatic conversion of all values when switching to mi)

Display 2 ODO BIKE 2 Maximum value: 99,999 km or mi

11.3.21. ODOTOTAL = total distance bike 1 and bike 2

Shows the total of all distances ridden with bike 1 and bike 2 in km or mi (automatic conversion of all values when switching to mi)

INSTRUCTION MANUAL

Display

ODOTOTAL

Maximum value 199,999 km or mi

11.3.22. ⊗ TIME BIKE 1 = total time bike 1

Shows the total time of all day trips ridden with bike 1 in hhh:mm

Display 2 TIME BIKE 1

Maximum value 999:59 hhh:mm

11.3.23. ⊗ TIME BIKE 2 = total ride time bike 2

Shows the total time of all day trips ridden with Bike 2 in hhh:mm

Display TIME BIKE 2

Maximum value 999:59 hhh:mm

11.3.24. TOTAL TIME = total ride time bike 1 and bike 2

Shows the total time of all day trips ridden with bike 1 and bike 2 in hhh:mm

Display 2 TOTAL TIME

Maximum value: 1999:59 hhhh:mm

TIMING FUNCTIONS/WATT (button P)

11.3.25. STOPWATCH = manual stopwatch

Prerequisite: Only after selecting stopwatch, chapter 13.1.

Display P STOPWATCH

Start measuring STW Press

Stop measuring STW Press

Reset: STW Press button for 4 sec.

11.3.26. Ⓧ TIMER = timer 1 / timer 2 / timer 1+2

Prerequisite: Only after selecting timer, chapter. 13.1.

Display

Start measuring STW Press

End of measurement Automatic after timer period

elapses (or number of sequences for timer 1+2), beeper

signal

Reset: STW Press button for 4 sec.

11.3.27. Ⓧ COUNTDOWN = countdown timer

Prerequisite: Only after selection of countdown timer, chapter 13.1.

Display

Start measuring STW Press

End of measurement Automatic after elapse of count-

down, beeper signal

Reset: STW Press button for 4 sec.

11.3.28 ⊗ POWER WATT = actual power in watt (optional)

Prerequisite: Only if personal data have been entered, chapter 6.

Displaying the information P POWER WATT

IMPORTANT: Only functions with installed cadence extension. If the cadence option is installed the power display shows ZERO when the pedals are not moving.

EN

12. RIDING WITH THE NAVIGATOR

With the VDO Navigator you can complete trips according to Roadbooks (e.g. Moser Guide). Roadbooks are offered by many publishing houses for fantastic trips (for road bikes as well as mountain bikes) by many publishing houses. Taking a specified trip is facilitated thanks to the detailed km description of certain orientation points.

Note: This function is not available in walk mode.

The VDO Navigator is an independent km or mi counter and works in the following modes:

a. Counting down: To display the distance remaining to the next orientation point

b. Counting up: To display the distance covered since the last orientation point

Note: The Navigator always runs automatically even if you have not set it.

The Navigator km status can be set/changed at any point desired. Thus you can start in the middle of a trip or execute a km correction if you took a wrong turn.

12.1. SELECTING NAVIGATOR MODE

3 sec. 1 Setting mode LANGUAGE SELECT

▼ ▲ NAVIGATOR SET

M NAVIGATOR FORWARD ( ▼ to go to NAVIGATOR BACKWARD)

M NAVIGATOR NEXT DIGIT

Set last digit (keep button depressed for fast run-

through)

M., NAVIGATOR NEXT DIGIT ... repeat for all digits from back to front

M NAVIGATOR ?SET OK?

Set first digit (keep button depressed for fast run-through)

M NAVIGATOR SET DONE

Automatic return to the operation mode for NAVIGATOR

12.2. RESETTING THE NAVIGATOR AT THE ORIENTATION POINT 3 sec. ② TRIP DATA ?RESET?

▼ ▲ NAVIGATOR ?RESET?

M NAVIGATOR ?RESET? <> flashes

M NAVIGATOR RESET DONE

Automatic return to the operation mode for NAVIGATOR Navigator reset done

13. THE TIMING FUNCTIONS

Your VDO computer has 5 different timing functions. If one of the timing functions is running the TIMING indicator icon will always be flashing in the left part of the display. The setting range/measuring range for all timing functions is 0:00:00 h to 24:00:00 h

TIMER 1: You can program a time e.g. for interval training. TIMER 1 counts from zero forward. At the end of TIMER 1 there is a single beep. Timer 1 only functions if you have set a time. If you have forgotten to set a time your VDO computer displays TIMER ERROR

TIMER 2: You can program a time, e.g. for the rest phase in an interval

INSTRUCTION MANUAL

training. TIMER 2 counts from zero forward. At the end of TIMER 2 there are two beeps. Timer 2 only functions if you have set a time. If you have forgotten to set a time your VDO computer displays TIMER ERROR

TIMER 1+2 runs until you stop these functions. Timers 1 + 2 only function if you have set a time. If you have forgotten to set a time your VDO computer displays TIMER ERROR.

COUNTDOWN: You can program a time, the timer will count backwards from this time. At the end of the COUNTDOWN time there is a single beep. Countdown only functions if you have set a time. If you have forgotten to set a time your VDO computer will display COUNTDOWN ERROR.

STOPWATCH: manual stop watch to measure riding time of certain trip sections.

13.1. SELECTING THE TIMING FUNCTION

3 sec. 1 Setting mode LANGUAGE SELECT

TIMER SETTINGS

M

TIMER

?SELECT?

Select M TIMER 1 ?SELECT?

Timer ▼ TIMER 2 ?SELECT?

☑ TIMER 1 + 2 ?SELECT ? >>> Query repeats TIMER

1 + 2 REPEATS ?SELECT?

COUNTDOWN ?SELECT?

STOP WATCH ?SELECT?

M Confirm selection SET DONE

If you have not yet set any values for timer 1, timer 2, timer 1 +2, or countdown, then your VDO computer will now show ERROR in the display. In this case proceed as explained in the following chapter 13.2 Setting the timer.

13.2. SETTING THE TIMER (when selecting timer 1 or timer 2 or timer 1+2) Setting times for timer 1/timer 2

3 sec. ① Setting mode LANGUAGE SELECT

TIMER SETTINGS

M TIMER ?SELECT?

TIMER ?SET?

M TIMER 1 ?SET?

TIMER 2 ?SET?

Select ☑ TIMER ?SET?

M SET HOUR ?CONTINUE?

Setting hours (keep button depressed for fast run-through)

M SET MINUTES ?CONTINUE?

Setting minutes (keep button depressed for fast run-through)

M SET SECONDS ?CONTINUE?

Setting seconds (keep button depressed for fast run-through)

EN

MTIMER ?SET OK?

M

TIMER

SET

DONE

Automatic return to the operation mode for TIMER 1/2. If you have not yet set any values for timer 1, and/or timer 2, then your VDO computer will now show ERROR in the display.

13.3. SETTING TIMER 1 + 2 REPEATS (when selecting timer 1 + 2)

3 sec. ① Setting mode LANGUAGE SELECT

TIMER SETTINGS

M

TIMER

?SELECT?

TIMER 1 ?SELECT?

TIMER 1 + 2 ?SELECT?

MTIMER 1+2 REPEATS ?SELECT?

Setting the number of repeats (keep button depressed for fast run-through)

MTIMER 1+2 ?SET OK?

MTIMER 1+2 SET DONE

Automatic return to the operation mode for TIMER 1/2. If you have not yet set any values for timer 1, and/or timer 2, then your VDO computer will now show ERROR in the display.

13.4 SETTING THE COUNTDOWN (when selecting countdown timer)

3 sec. 1 Setting mode LANGUAGE SELECT

TIMER SETTINGS

M

TIMER

?SELECT?

▼

TIMER

?SET?

M TIMER 1 ?SET?

▼

COUNTDOWN

?SET?

MSET HOUR ?CONTINUE?

Setting hours (keep button depressed for fast run-through)

MSET MINUTES ?CONTINUE?

Setting minutes (keep button depressed for fast run-through)

M

SET

SECONDS

?CONTINUE?

Setting seconds (keep button depressed for fast run-through)

MCOUNTDOWN ?SET OK?

M

COUNTDOWN

SET

DONE

Automatic return to the operation mode for COUNTDOWN If you have not yet set any values for countdown, then your VDO computer will now show ERROR in the display.

13.5. STOPWATCH

Use of the stopwatch does not require any previous setting. After preselect (see chapter 13.1), it can be stopped or started at any time with STW.

14. SLEEP MODE

Your VDO computer has a two-stage sleep mode.

Sleep mode is activated automatically if the computer no longer receives data.

Phase 1 after 5 minutes: - The display goes into sleep mode

INSTRUCTION MANUAL

Now the display shows temperature, time, date, and day of the week. After an additional 10 minutes the second phase of sleep mode will be activated, the receiver will be switched off. FOR WAKE UP press any button.

15. TROUBLESHOOTING

Here is a list of possible errors, their causes, and what you can to correct the error:

Problem when pairing the speed transmitter/cadence transmitter

- Check the magnet position (distance between magnet and transmitter, position of the magnet to the transmitter point on the transmitter) - Check the battery in the transmitter - Check the battery in the computer (if battery voltage is insufficient then the receiver cannot receive the signals)

Problem when pairing the speed transmitter/cadence transmitter	- Check the magnet position (distance between magnet and transmitter, position of the magnet to the transmitter point on the transmitter) - Check the battery in the transmitter - Check the battery in the computer (if battery voltage is insufficient then the receiver cannot receive the signals)
No speed display - Check the magnet position (distance between magnet and transmitter, position of the magnet to the transmitter point on the transmitter) - Check the battery in the transmitter - Check the battery in the computer (if battery voltage is insufficient then the receiver cannot receive the signals)

EN

No cadence display - Check the magnet position(distance between magnet and transmitter, position of the magnet to the transmitter point on the transmitter)- Check the battery in the transmitter- Check the battery in the computer (if battery voltage is insufficient then the receiver cannot receive the signals)
No speed display (dash in the display)	The receive channel for speed is switched off (a 15-minute period has elapsed without receiving a speed signal)Press buttons A + 1 at the same time
No cadence data (dash in the display)	The receive channel for cadence is switched off (a 15-minute period has elapsed without receiving cadence signals)Press buttons A + 1 at the same time

Watt display does not function -	Personal data has not been set- Watt settings have not been made- Cadence transmitter is not installed- Cadence transmitter does not function
Screwdriver is flashing on the display ↗	Service interval for your bicycle is displayed. Take your bicycle in for service or perform the service yourself
Walking shoe is shown in the display (bicycle distance data is no longer displayed) ↙	Walk mode is switched on.In walk mode certain bike functions are not available
The timer indicator is flashing ☎	A timer is still running.
Bell icon is displayed ▲	An alarm is set (alarm time)

INSTRUCTION MANUAL

16. GUARANTEE CONDITIONS

VDO Cycle Parts offers a 5-year guarantee on your VDO computer, starting from date of purchase. The guarantee extends to material and manufacturing defects on the computer itself, on the docking station, on the transmitters and on the handlebar and wrist band holder. Cable and batteries, as well as other mounting materials are excluded from the guarantee.

The guarantee is only valid if the components in questions have not been opened (exception: battery compartment of the computer), if force has not been applied, and if willful damage is not present. Please keep the purchase receipt in a safe place because it must be submitted if there is a complaint. You will receive a comparable replacement device if there is a legitimate complaint.

A claim for replacement of the identical model does not exist if the model in question is no longer in production due to a model change. Please contact the dealer from whom you purchased the device for all complaints and guarantee claims. Or send your complaint directly to

Cycle Parts GmbH, Große Ahlmühle 33, D-76865 Rohrbach. We would be pleased to answer any technical questions you might have at the following hotline number: [phone]. Additional technical information is available at: http://www.vdocyclecomputing.com

In the course of further development we reserve the right to make technical changes without prior notice.

17. TECHNICAL SPECIFICATIONS

Computer: Approximately 49.6 x 46.6 x 16.5 mm, weight:

Approximately 45 g

Handlebar holder: Weight approximately 15 g

Speed transmitter: Weight approximately 20 g

Battery: 3V, type 2032 (computer); type 2032 (speed transmitter)

Battery service life:

Computer: Approximately 300 hours, approximately 8000 KM (5000 M) (speed only)

Working temperature of the display: -15 °C to +60 °C

Speed range: for wheel size 2155 mm, min 3 km/h, max 120 km/h

Ride time measurement range: Up to 24:00:00 HH:MM:SS

Stopwatch measurement range: Up to 24:00:00 HH:MM:SS

Day trip measurement range: Up to 999.99 km or mi.

NAVIGATOR measurement range: Up to 999.99 km or mi.

Total KM 1 and 2 measurement range: Up to 99,999 km or mi.

Total kilometers measuring range: Up to 199,999 km or mi.

Wheel size: 100 mm minimum, 3999 mm maximum

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

EU-Declaration of Conformity

We, CYCLE PARTS GmbH, Grosse Ahlmuehle 33, D-76865 Rohrbach declare under our responsibility that the products VDO Z1, Z2,Z3,Z2 PC-Link, Z3 PC-Link and all transmitters Z-CAD, Z-PULSE, Z-SENDER, Dockingstation are compliant with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC). The declaration of Conformity can be found at www.vdocyclecomputer.com.

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the cycle computer head with the receiving antenna.

- Increase the separation between your equipment and the cycle computer head with the receiving antenna.

- Consult your bicycle dealer or an experienced radio/TV technician for help.

NOTICE: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE: This Class B digital apparatus complies with Canadian ICES-003

NOTICE: Warning: Changes or modifications made to this equipment not expressly approved by VDO Cycle Parts GmbH may void the FCC

authorization to operate this equipment.

February 2008, Cycle Parts GmbH, Grosse Ahlmuehle 33, D-76865 Rohrbach, Germany

USA CDN

ADDENDUM TO USER MANUAL

FCC ID: TFO 6604

IC 5957A-6604

C€0682

Cycle Parts GmbH

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the cycle computer head with the receiving antenna.

- Increase the separation between your equipment and the cycle computer head with the receiving antenna.

- Consult your bicycle dealer or an experienced radio/TV technician for help.

NOTICE: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE: This Class B digital apparatus complies with Canadian ICES-003

NOTICE: Warning: Changes or modifications made to this equipment not expressly approved by VDO Cycle Parts GmbH may void the FCC

authorization to operate this equipment.

February 2008, Cycle Parts GmbH, Grosse Ahlmuehle 33, D-76865 Rohrbach, Germany

VDO SERIES-Z

FOR RUNNING / HIKING

1487 t 23 HM UP 380 Z1

www.vdocyclecomputing.com
