USER MANUAL Taurus SUL XP 2P Vaude

THE SPIRIT OF MOUNTAIN SPORTS

USER MANUAL TAURUS UL XP

Black-and-white photo of a sailboat with geometric wings and structural supports (no visible text or symbols)

TAURUS UL XP

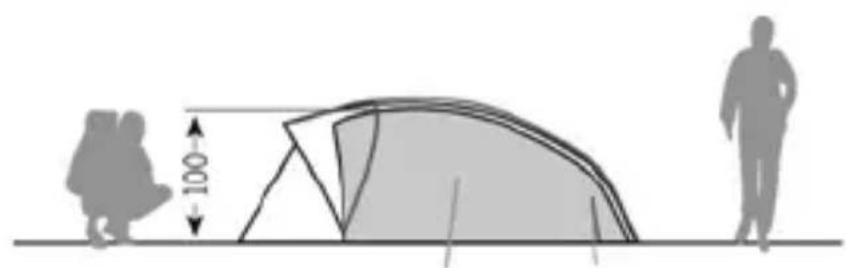

Diagram showing a person standing near a large tent with a 100-unit height measurement, alongside a smaller human silhouette (no text or symbols)

130 80 90 220 100

MIN 1610 g

MAX 1710 g

STUFF SACK SIZE

50 X 15 cm

BODEN/GROUNDSHEET

10.000 mm

AUSSENZELT/FLY

3.000 mm

DEUTSCH

AUFBAU - ALLgEmEinE HinWEiSE:

Endless freedom, adventure and summit thrills.

Mountains and nature as far as the eye can see.

Peace and excitement all in one.

That is the Spirit of Mountain Sports.

We here at VAUDE are passionate about mountain sports. This passion can be found in every single one of our VAUDE products.

As a modern family business we take our social and environmental responsibility very seriously: we have been a bluesign member since 2008, one of the most stringent ecological standards in the world. And as the first European outdoor outfitter we are also constantly improving our environmental performance through EMAS certification, the EU's eco-management and audit scheme.

So hope to see you soon up in the mountains...

Antje von Dewitz

CHooSing YoUR SiTE:

- Pitch your tent on level ground, in an area protected from wind and not in a hollow, where water can quickly collect when it rains.

- Take into account wind direction when pitching your tent – face the entrance downwind and sheltered if possible.

• Take into account that camping near water sources could lead to condensation build up on your tent and belongings.

- Don't pitch your tent in dangerous places. This includes gorges, underneath cliffs or rocks, near glacier-fed rivers, in forests or near fire spots.

- Remove all pointy or sharp objects that could damage the tent floor.

- Use a tent footprint or groundsheet to protect the tent floor.

- If you are planning on camping in one spot for a longer period of time, make sure to pitch in shade or half shade – UV radiation accelerates the aging process of tent fabrics and coatings.

- When camping on snow and in freezing conditions, dig a pit in front of the tent door or in the vestibule in which cold air can collect.

• Avoid snow build up by regularly clearing snow off the surface of the tent.
• Cooking inside your tent should be avoided whenever possible due to the danger of fire or carbon dioxide poisoning. If you need to make an exception, make sure to ensure sufficient ventilation and keep the stove as far from the tent walls as possible. This might mean having to detach the inner tent and fold it back.

SET UP - gEnERAL inSTRUCTIONS:

VAUDE tents are well known for their simple set up. If any step in the process seems difficult, do not use force; take the time to find out what the problem is.

1. Spread out the tent on the ground. (Inner and outer tent are delivered attached to each other.) In windy conditions you should stake out the tent. Use guy lines to anchor it, for example, to a rock, backpack, etc.
2. Sort the poles and assemble the sections by sliding them into each other. Do not whip out the pole sections so they snap together. Make sure that each pole section is fully inserted into the next section; otherwise they may crack or break under pressure. Gently slide the poles through the pole sleeves. Do not pull them through.
3. Erect the tent and make sure that the entrance zip is not under undue tension or strain which could easily damage the zip. Use the releasing lock or hook at the bottom of the entrance.

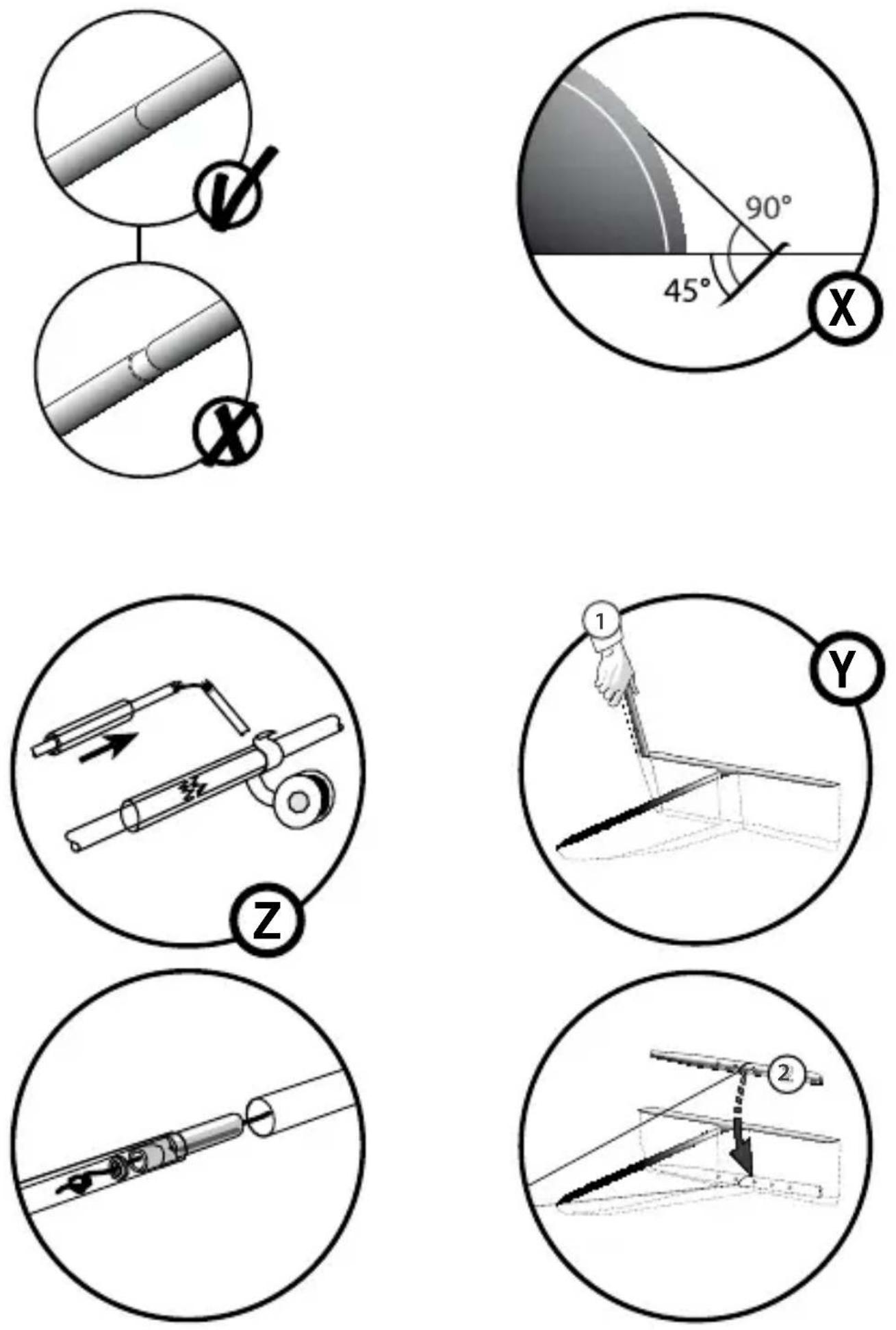

4. Stakes should be driven in at a 45^ angle away from the tent. (X)

The VAUDE Y-stakes that come with our tents are very durable and resistant to bending and especially suited for hard ground and grass. For extremely hard ground, we recommend the use of tent pegs or spikes. VAUDE offers special stakes for very soft ground, snow or sand. Hammer them in vertically for soft soil or bury them horizontally to anchor in sand or fresh powder snow. (Y)

SET UP

Please follow these instructions consecutively; their order is important.

1. Clear the ground of any sharp items (Use a groundsheet protector when needed.)

2. Spread out the tent on the ground. Note: Inner and outer tent are delivered attached to each other.

3. Sort and assemble the poles.

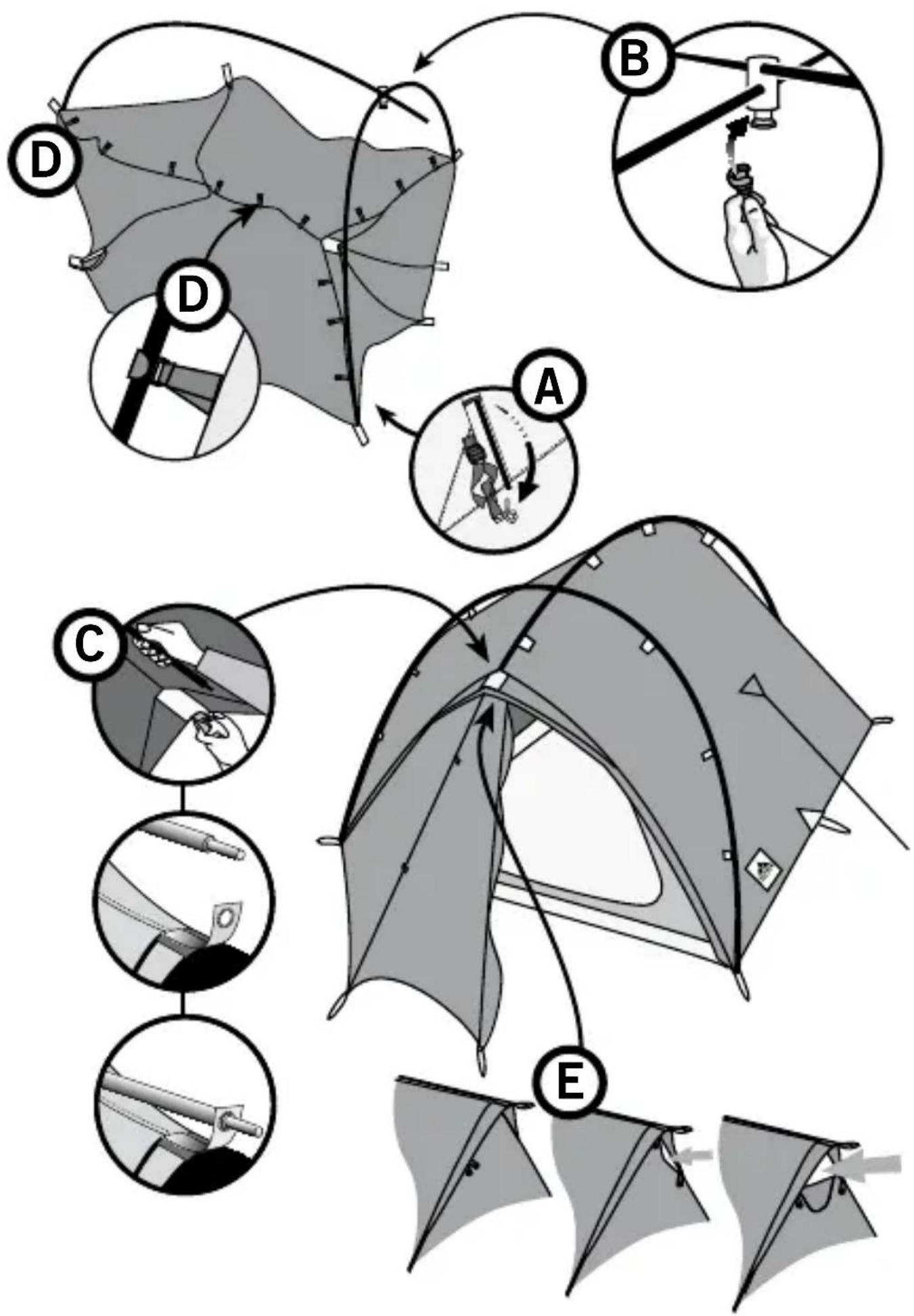

4. Insert cross pole into the pins on the right and left of the entrance and then tense the pole (A).
5. Attach the tent hook in the top of the tent onto the pole connector and insert the end of the ridge pole into the grommet above the entry, attaching it with the clip in front of it. NOTE: The finger loops are not intended for staking out the tent. (B) (C)
6. Insert the end of the ridgepole into the grommet at the foot of the tent and attach the remaining pole clips. (D)
7. Stake out the pins at the foot of the tent.
8. Stake out the tent and use guylines to stake out the vestibule (use storm anchors if necessary).
9. Ensure that the tent has sufficient airflow. Use the zip at the vestibule to let air enter the tent without rain entering. (E)

TAKE DoWn - gEnERAL inSTRUCTIONS:

• Remove everything from the tent's interior.
  • Freestanding tents can be gently shaken out to remove leaves, sand, and other debris.
• Turn the tent over with floor facing upward and allow it to dry a bit longer.
• If it's not possible to dry the tent completely before packing it, this should be done within 12 hours to prevent the risk of mold and mildew growth.
• As in the tent set up, never pull the poles out of the pole sleeves; rather push them through.
• When storing a tent in its stuff sack, make sure that stakes and poles don't press against the tent fabric and damage it.
• Before taking down your tent, close all zips and roll up the guy lines. That way you won't have to untangle them when it comes time to set the tent up again, and pitching is that much easier.

TAKE DoWn

1. Remove the ridgepole above the entry. Unclip the pole clips.
2. Poles - loosen footings and let the tent collapse.
3. Collect the poles and roll them together with the tarp. Don't pack the tent first and then force in the poles!

SToRAgE/CARE/REPAiRS:

- As soon as the tent is dry and clean it can be stored in its pack sack in a well-ventilated, cool and dry place. Please do not store the tent near paints, adhesives, oils, plastics, or fuels (gas canisters, etc.)! The gasses emitted from these materials contain plasticizers that can damage your tent over time.

- Zips are always a weak point in a tent's structure. If they get dirty, clean them with a (tooth) brush and lubricate them with graphite (pencil lead), silicon or sewing machine oil. Apply carefully and remove excess oil with a soft cloth.

- Never store your tent when it's wet for a longer period of time. Unpack it as soon as you arrive and dry it out in a well-ventilated place. To do so, separate the inner and outer tents or use the poles to create space between the two.

- Do not whip out tent poles and snap the sections together. This can damage the pole ends as well as the anodization. Check the poles regularly for cracks or other potential damage. Wash the poles and use silicon spray at any sign of corrosion (from salt water, for example)

- VAUDE only uses poles from the renowned manufacturers DAC and Yunan. These tend to become slightly bent with use, helping to reduce fracturing. Please do not attempt to bend these back into shape. Although aluminum is extremely flexible this might damage or even break the poles. Every VAUDE tent comes with a Pole Doctor or repair sleeve. If a tent pole breaks while out on a trip, simply slide the repair sleeve over the broken section and then use tape to attach it. (Z)

- The tent should only be cleaned by hand, never in a washing machine! Use a soft cloth and luke warm water. Detergents or cleaning agents may harm the tent's coating and waterproofing.

Use a brush to rub Nikwax Tech Wash in a 1:4 ratio with water on stub-born stains. Follow up with Nikwax Tent & Gear Solarproof waterproofing, applying generously to the area cleaned.

- When on the road, repair tears in the tent wall with repair tape and seal from the inside with a PU or silicon seam sealer. The seam should however be correctly repaired as soon as possible in order to prevent further tea-

ring. Please contact your retailer to do this.

- Tent pole shock cords can be retightened if necessary (elasticity can wear out in very cold conditions or due to aging). To do this first remove the end cap and then untie the knot in the cord. Retie the knot further up the cord and replace the cap.

TECHniCAL DETAiLS:

Depending on tent models, VAUDE tents feature the following:

SiLiCon SEAm SEAL:

VAUDE is the only manufacturer to successfully factory seam seal siliconized tents for full waterproof protection!

SiLiConiZED:

Increases tent life by 20% - a triple coating reflects damaging UV radiation to a much greater degree than standard treatments.

8-times greater tear resistance – siliconized fabrics attain a tear resistance of 8-11 kg compared to 1.3 kg of PU coated fabrics.

Excellent water beading properties – water simply beads on the surface.

Retensioning – the nylon carrier material swells up when damp or wet. The tent needs to be retensed if rain/snow initiate.

Sealing – siliconized materials cannot be factory seam sealed (exception: VAUDE Silicon Seam Seal). When camping in extremely rainy conditions we recommend sealing all seams by hand with a silicon seam sealer.

oUTER TEnT:

SUPER LigHTWEigHT 20D PolYAmiDE RiPSToP 280T Si/Si; 3000 mm water column.

- Good tear resistance thanks to extremely fine, super lightweight yet high-tenacity polyamide thread with reinforced cross threads.

- SI - Triple layer silicon coating on both inner and outer sides for maximum tear strength and water beading effect, as well as increased UV resistance.

innER TEnT:

30D POLYESTER RiPSToP 285T

- 285T – tightly woven ripstop polyester. Wind, sand and snow proof with high tear resistance and breathability.

15D POLYESTER 320T/20D POLYESTER FinE mESH

- Ultralight material blend made from highly breathable mesh and wind resistant, tightly woven polyester.

TEnT FLooR:

40D PoLYAmiD RiPSToP 240T, PU laminated, water column 10,000 mm Tightly woven with reinforced cross threads, tear resistant polyamide floor with a laminated PU membrane; waterproof up to 10,000 mm.

SAFETY gUiDELinES:

• Please heed safety guidelines for all appliances used in the tent.
  • Always keep exits and throughways as well as vent openings accessible.
• Find out what the rules and regulations are for the campsite you are on and heed fire safety precautions.

- Avoid hazardous materials inside the tent, such as stove or automobile fumes (for example in the Drive Base/Van).

- Wear your shoes around the tent. Stakes and other anchors can be very sharp.

- Do not stake out the guy lines over paths or trails. These can be easily tripped over in the dark.
