Product type	Rotary hammer
Brand	Hitachi
Model	DH 45MR
Weight	8.0 kg (without cord or side handle)
Power input	1200 W
Voltage	110V, 115V, 120V, 127V, 220V, 230V, 240V (depending on region)
No-load speed	120 – 240 min⁻¹
Full load impact rate	1250 – 2500 min⁻¹
Drilling capacity (bit)	45 mm
Drilling capacity (core bit)	125 mm
Tool holder	SDS max
Operating modes	Rotation + hammering, hammering only, chiseling
Electronic speed adjustment	Yes (6 positions)
Included accessories	Case, side handle, quill, grease A for hammer
Applications	Concrete drilling, anchoring, chiseling, digging, roughing
Sound power level (LwA)	105 dB(A)
Sound pressure level (LpA)	94 dB(A)
Vibration value (ah)	11.4 m/s²
Maintenance	Grease change every 6 months, brush inspection by authorized service center
Repairability	Spare parts available; repairs exclusively by authorized Hitachi service center
Compliance	European WEEE directive (recycling)

Frequently Asked Questions - DH 45MR HITACHI

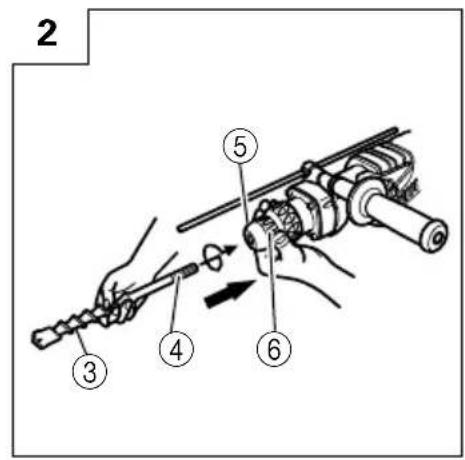

How to install a drill bit in the Hitachi DH 45MR?

Clean and grease the shank of the tool with the supplied grease (green tube). Insert the tool into the hole until it touches the bottom. Slightly pull the sliding lock, insert the tool fully, then release the lock to secure it. Pull the tool to check that it is firmly fixed.

How to adjust the speed and impact?

Turn the adjustment ring to one of the 6 positions (1 = min, 6 = max). The markings correspond to a speed of 120 to 240 rpm and an impact rate of 1250 to 2500 bpm. Never adjust the ring while the tool is running.

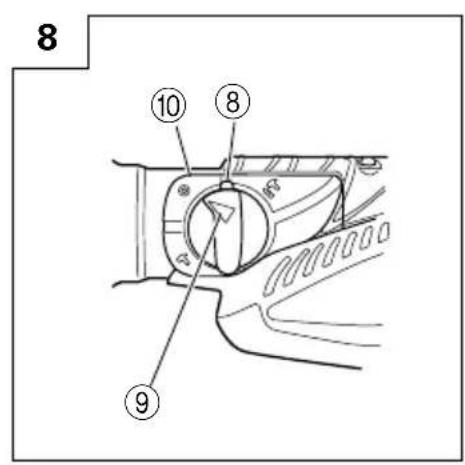

What operating modes are available?

The drill offers two modes: rotation + hammering (for concrete drilling) and hammering only (for chiseling, digging, etc.). Selection is made using the selector lever, with the motor completely stopped.

How often should the grease be replaced?

It is recommended to replace the grease every 6 months of use. Use exclusively Hitachi Hammer Grease A. Remove the housing cover, wipe off the old grease, and apply 30 g of new grease before closing.

What optional accessories are available?

You can use SDS plus bits (via adapter), core bits from 25 to 125 mm, a 13 mm drill chuck (for wood/metal drilling), cold chisels, routing bits, etc. Refer to the manual for the complete list.

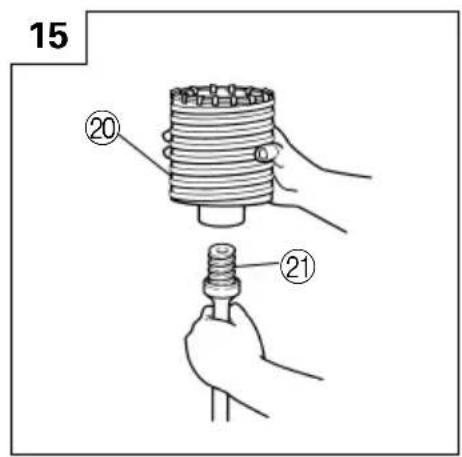

How to use the core bit?

Mount the core bit on the core bit shank, grease the screw. Insert the shank into the tool like a drill bit. Use the center pin to guide the drilling. After 5 mm depth, remove the center pin and guide plate, then continue. Always unplug the tool before removing these accessories.

What safety precautions are essential?

Always wear safety glasses, a dust mask, and ear protection. Use the supplied side handle. Do not touch the bit after use (risk of burns). Check for the absence of cables or pipes before drilling a wall.

How to remove a stuck bit or chisel?

To remove the tool, pull the sliding lock completely backward and remove the tool. If a chisel is stuck, you can operate the tool in hammer mode for a few seconds to loosen it, then try again.

What to do if the power cord is damaged?

Do not use the tool. Take it to an authorized Hitachi service center for safe cord replacement.

Where can I find spare parts?

Spare parts are available from authorized Hitachi service agents. Use the parts list provided in the manual to order the exact references. Only repairs by an authorized service center ensure safety.

USER MANUAL DH 45MR HITACHI

Rotary Hammer Bohrhammer Marteau perforateur Martello perforatore Boorhamer Martillo perforador Martelo perfurador Σφυροδραπανο περιζτροφικο

DH 45MR

Technical line drawing of a mechanical drill bit with spiral and threaded shaft (no text or symbols)

Read through carefully and understand these instructions before use. Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen. Lire soigneusement et bien assimiler ces instructions avant usage. Prima dell'uso leggere attentamente e comprendere queste istruzioni. Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen. Leer cuidadosamente y comprender estas instrucciones antes del uso. Antes de usar, leia com cuidado para assimilar estas instruções. Διαβάστε προσεκτικά και κατανοήσετε αυτές τις οδηγίες πριν τη χρήση.

Handling instructions Bedienungsanleitung Mode d'emploi Istruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo Instruções de uso Οδηγίες χειρισμού

Illustration of a hand holding a tool with a pointed tip, no text or symbols present

Illustration of a hand using a screwdriver to apply material (no text or symbols visible)

Illustration of a hand holding a screwdriver with mechanical components (no text or symbols)

Illustration of a hand holding a cylindrical tool with a textured top, being handled (no text or symbols)

Illustration of a hand using a tool to tighten a bolt (no text or symbols present)

	English Deutsch	Français Italiano
1	Tool shank	Werkzeugschaft	Queue	Gambo
2	Grease	Schmierfett	Graisse	Grasso
3	Tool	Werkzeug	Outil	Utensile
4	Part of SDS max shank	Teii des SDS-max Schaftes	Elément de la tige SDS max	Parte dell'asta SDS max
5	Front cap	Vordere Abdeckung	Capuchon avant	Protezione davanti
6	Grip	Spannbacke	Attache coulissante	Presa davanti
7	Dial	Skalenscheibe	Bague	Manopola
8	Button	Knopf	Bouton	Tasto
9	Selector lever	Wahlhebel	Sélecteur	Leva di selezione
10	Lever holder	Hebelhalter	Support de levier	Supporto leva
11	Stopper	Anschlagstange	Quenouille	Bacchetta d'arresto
12	Side handle	Seitengriff	Poignée latérale	Impugnatura laterale
13	Taper shank adapter	Konusschaftadapter	Raccord de queue conique	Adattatore del gambo conico
14	Drill bit (taper shank)	Bohren (mit konischem Schaft)	Mèche (Queue conique)	Punta del trapano (gambo conico)
15	Indicating groove shows standard depth matching the outside diameter of the anchor for drilling.	Anzeigerille zeigt Normalloch-tiefe gemäß Außendurchmesser des Ankers für Bohren.	La rainure indicatrice montre la profondeur standard adaptée au diamètre extérieur de l'ancre pour le perçage.	Scanalatura di riferimento indicante la profondità standard con il diametro esterno dell'ancora per il trapanaggio.

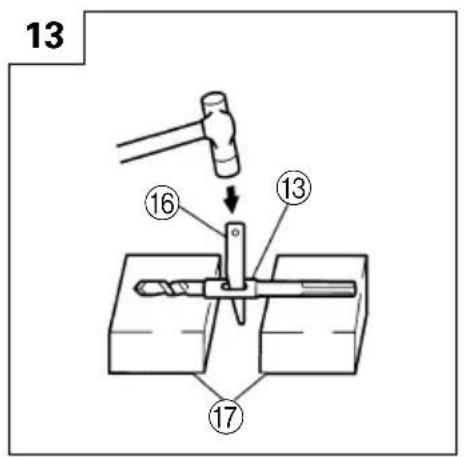

16	Cotter	Keil	Clavette	Chiave trasversale
17	Rest	Auflage	Support	Appoggio

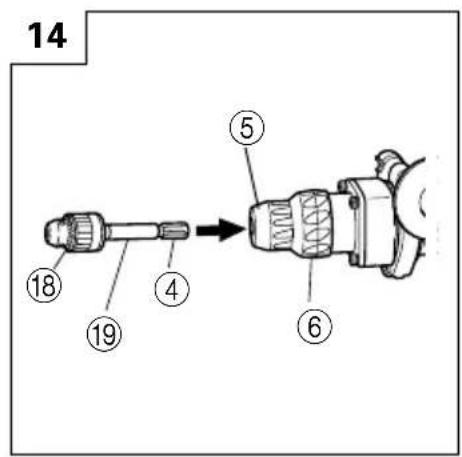

18	Drill chuck	Bohrfutter	Mandrin porte-foret	Mandrino
19	Chuck adapter	Bohrfutteradapter	Raccord de mandrin	Adattatore per mandrino
20	Core bit	Bohrkrone	Couronne	Corona
21	Core bit shank	Bohrkronenschenkel	Queue de couronne	Gambo della corona
22	Guide plate	Führengsplatte	Plaque de guidage	Piastra di guida
23	Center pin	Mittelstift	Goujon central	Perno ralla
24	Core bit tip	Bohrkronenspitze	Bout de couronne	Punta della corona
25	Crank cover	Kurbelabdeckung	Cache de carter	Coperchio manovella
	Nederlands Español	Português Ελληνικά
1	Boorschacht	Barrena	Cabo de ferramenta	Στέλεχος εργαλείου
2	Smering	Grasa	Lubrificante	Γράσο
3	Gereedschap	Herramienta	Ferramenta	Εργαλείο
4	Onderdeel van SDS max schacht	Parte del SDS max vástago	Peça do cabo SDS max	Τμήμα του στελέχους SDS max
5	Voorkap	Cubierta frontal	Tampa da frente	Μπροστινό περίβλημα
6	Greep	Sujetador	Mordente	Λαβή
7	Draaiknop	Dial	Dial	Καντράν
8	Knop	Botón	Botão	Κουμπί
9	Keuzeschakelaar	Palanaca selectora	Seletor	Μοχλός επιλογής
10	Behuizing	Sujetador de palanca	Suporte da alavanca	Στήριγμα μοχλού
11	Stopper	Tope	Tampão	Στόπερ
12	Zijgreep	Mango lateral	Empunhadura lateral	Πλευρική λαβή
13	Schachtadaptor	Adaptador de barrena ahusada	Adaptador de cabo cônico	Κωνικός προσαρμογέας στελέχους
14	Booreinde (vernauwde schacht)	Broca de barrena (barrena ahusada)	Broca	Λεπίδα τρυπανιού
15	Indikatiegroef laat de standaard-diepte zien, die gelijk is aan de diameter van het anker voor boren.	Ranura indicadora que muestra la profundidad normal de coin-cidencia del diámetro exterior del anclaje para taladrar.	A ranhura indicadora mostra a profundidade padrão correspondente ao diâmetro externo da âncora para perfuração.	Η ενδεικτική αυλάκωση δείχνει το κανονικό βάθος που ταιριάζει στην εξωτερική διάμετρο του άγκιστρου για τρύπημα.
16	Cotter	Chaveta	Cavilha	Κόφτης
17	Steun	Apoyo	Suporte	Στήριγμα
18	Boorkop	Portabrocas	Mandril	Σφικτήρας τρυπανιού
19	Boorkopadaptor	Adaptador del portabrocas	Adaptador do mandril	Προσαρμογέας σφικτήρα
20	Kernstuk	Barrena tubular	Coroa	Κυλινδρικό κοπτικό τμήμα
21	Kernstukschacht	Espiga de barrena	Cabo de coroa	Άξονας κυλινδρικού κοπτικού τμήματος
22	Plaatje	Placa guía	Placa-guia	Οδηγητική πλάκα
23	Middenpin	Pasador central	Pino central	Κεντρική περόνη
24	Top van kernstuk	Punta barrena tubular	Cabo da coroa	Άκρη κυλινδρικού κοπτικού τμήματος
25	Krukafdekking	Cubierta de la manivela	Tampa da manivela	Κάλυμμα στροφάλου

GENERAL SAFETY RULES

WARNING!

Read all instructions

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

SAVE THESE INSTRUCTIONS

1) Work area

a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust of fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.

b) Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

PRECAUTIONS ON USING ROTARY HAMMER

1. Wear ear protections Exposure to noise can cause hearing loss.
2. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.
3. Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confirm that such items as electric cables or conduits are not buried inside.

SPECIFICATIONS

1. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
2. Always hold the body handle and side handle of the power tool firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.
3. Wear a dust mask Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.

Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power input 1200 W*
Capacity Drill bit: 45 mm	Core bit: 125 mm
No load speed 120 – 240 min	-1
Full-load impact rate 1250 – 2500 min	-1
Weight (without cord, side handle) 8.0 kg

*Be sure to check the nameplate on product as it is subject to change by areas.

STANDARD ACCESSORIES

(1) Case 1
(2) Side Handle 1
(3) Stopper 1
(4) Hammer Grease A .... 1 Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Through-hole drilling (Rotation + Hammering)

(1) Drill bit (SDS max shank)

Outer diameter (mm)	Overall length (mm)
16	340, 540
19
22	320, 520
25
28	370, 570
32
38
40

1. Anchor hole drilling (Rotation + Hammering)

(1) Drill bit (taper shank) External dia.: 11, 12.3, 12.7, 14.3, 14.5, 17.5 mm

(2) Taper shank adapter (SDS max shank)

Taper shank adapter	Application drill bit
Morse taper Drill bit (taper shank)(No. 1) 11, 12.3, 12.7, 14.3, 14.5, 17.5 mm

(1) Drill bit (SDS-plus shank)

(2) Adapter for SDS-plus shank bit (SDS max shank)

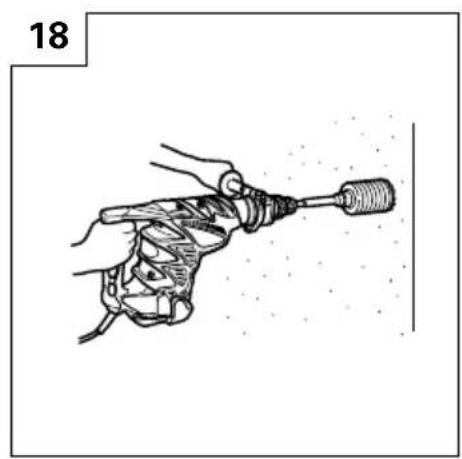

1. Large dia. hole boring (Rotation + Hammering)

(1) Center pin
●Applied to core bits from 38 mm to 125 mm
●Applied to core bits 32 mm and 35 mm

NOTE:

Do not use core bits 25 mm or 29 mm.

(2) Core bit

●External dia. 25, 29, 32, 35, 38, 45, 54, 64, 79, 94, 105, 120, 125 mm (with guide plate, not applicable to cores 25 mm or 29 mm)

(3) Core bit shank

●Applied to core bits above 38 mm

●Applied to core bits below 35 mm

1. Drilling holes .... For drilling metal and wooden materials

Chuck wrench

1. Bolt placing operation with Chemical Anchor (Rotation + Hammering)

(Standard socket on the market)

(SDS max shank) 12.7 mm Chemical Anchor Adaptor 19 mm Chemical Anchor Adaptor

1. Crushing (Hammering)

(1) Bull point Overall length: 280, 400 mm

1. Groove digging and edging (Hammering)

(1) Cold chisel Overall length: 280, 400 mm

1. Asphalt cutting (Hammering)

(1) Cutter

1. Scooping Work (Hammering)

(1) Scoop

1. Surface Roughing (Hammering)

(1) Bushing Tool

(2) Shank

1. Tamping (Hammering)

(1) Rammer 150 × 150 ~mm

(2) Shank

1. Syringe (for chip removal)

○Hammer grease A

500 g (in a can)

70 g (in a green tube)

30 g (in a green tube)

Optional accessories are subject to change without notice.

APPLICATIONS

○Drilling holes in concrete

○Drilling anchor holes

○Crushing concrete, chipping, digging, and squaring (by applying optional accessories)

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

1. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a power receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

1. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

1. How to install tool

NOTE:

For tools such as a bull point and a cold chisel, use only Hitachi genuine parts.

(1) Clean, then smear the tool shank with the grease provided in the green tube (Fig. 1).

(2) To attach the tool (SDS max shank), insert it into the hole until it contacts the innermost end of the hole as illustrated in Fig. 2.

If you continue to turn the tool with slight pressure, you can feel a spot where there is a hitch. At that spot, pull the grip to the direction of an arrow mark and insert the tool all the way until it hits the innermost end.

Releasing the grip reverts the grip and secures the tool in place.

(3) Pull the tool to make sure it is locked completely.

(4) To remove the tool, fully pull the grip in the direction of the arrow and pull out the tool.

5. Regulating the number of rotations and hammering (Fig. 3)

This Rotary Hammer is equipped with a built-in electronic control circuit that can adjust and regulate the number of rotations and times of hammering. This Rotary Hammer can be used by adjusting the dial, depending upon the contents of operation, such as boring holes into fragile materials, chipping, centering, etc.

The scale '1' of the dial is designed for a minimum speed with the number of 120 rotations per minute and 1250 times of blow per minute. The scale '6' is designed for a maximum speed with the number of 240 rotations per minute and 2500 times of blow per minute.

CAUTION:

Do not adjust the dial during operation. Doing so can result in injury because the Rotary Hammer must be held by only one hand, disabling the steady control of the Rotary Hammer.

HOW TO USE THE ROTARY HAMMER

1. How to drill holes (Fig. 4)

(1) Pull the switch trigger after applying the drill bit tip to the drilling position.

(2) It is unnecessary to forcibly press the rotary hammer main body. It is sufficient to slightly press the rotary hammer to an extent that shavings are freely discharged.

CAUTION:

Although this machine is equipped with a safety clutch, if the drill bit becomes bound in concrete or other material, the resultant stoppage of the drill bit could cause the machine body to turn in reaction. Ensure that the main handle and side handle are gripped firmly during operation.

2. How to chisel or crush (Fig. 5)

By applying the drill bit tip to the chiseling or crushing position, operate the rotary hammer by utilizing its empty weight.

Forcible pressing or thrusting is unnecessary.

3. When drilling at "rotation + hammering": CAUTION:

If you switch the selector lever during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Be sure to switch the selector lever when the motor is at a complete stop.

(1) Switching to "rotation + hammering"

(a) Push the button, release lock and turn the selector lever clockwise.

(b) Align ▲ of the selector lever and IT of the lever holder as illustrated in Fig. 6.

(c) Release the button to lock the selector lever.

NOTE:

Turn the selector lever (do not push the button) to check if it is completely locked and make sure that it does not turn.

4. When chipping and chiseling at "hammering": CAUTION:

○If the selector lever is switched during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Make sure to switch the selector lever when the motor is at a complete stop.

○If the bull point or cold chisel is used at the position of "rotation + hammering", the tool can start to rotate, resulting in unexpected accidents. Make sure that they are used at the position of "hammering".

(1) Switching to "hammering"

(a) Push the button, release lock and turn the selector lever counterclockwise.
(b) Align ▲ of the selector lever and ⬆ of the lever holder as illustrated in Fig. 7.
(c) Release the button to lock the selector lever.

NOTE:

Turn the selector lever (do not push the button) to check if it is completely locked and make sure that it does not turn.

(2) When fixing working positions of tools such as cold chisel, etc.,

(a) Push the button, release lock and turn the selector lever.

Align ▲ of the selector lever and Ⓞ of the lever holder as illustrated in Fig. 8.

(b) Release the button to lock the selector lever.

(c) Turn the grip as illustrated in Fig. 9 and fix the tool to the desired working direction.

(d) Switch the selector lever to "hammering" according to the procedures mentioned in the above item (1) and secure the position of the tool.

5. Install the stopper (Fig. 10)

(1) Loosen the side handle and insert the straight portion of the stopper into the handle bolt hole.
(2) Move the stopper to the specified position and rotate the grip of the side handle clockwise to fix the stopper.

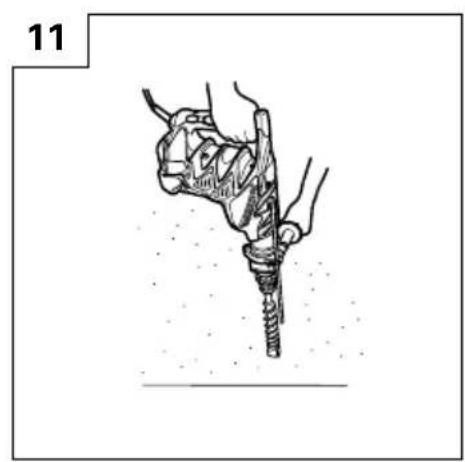

6. Warming up (Fig. 11)

The grease lubrication system in this unit may require warming up in cold regions.

Position the end of the bit so makes contact with the concrete, turn on the switch and perform the warming up operation. Make sure that a hitting sound is produced and then use the unit.

CAUTION:

When the warming up operation is performed, hold the side handle and the main body securely with both hands to maintain a secure grip and be careful not to twist your body by the jammed drill bit.

DRILLING AND DRIVING-IN OPERATIONS FOR ANCHORS

1. When a taper shank adapter is used. (Fig. 12)

(1) Install drill bit with taper shank in the taper shank adapter.
(2) Turn the power on and drill a base hole to the depth sounded by indicating groove on the drill bit.
(3) After cleaning out dust with a syringe, attach the plug to the anchor tip and drive in the anchor with a manual hammer.
(4) To remove the drill bit (taper shank), insert the cotter into the slot of the taper shank adapter and strike the head of the cotter with a manual hammer supporting on a rest. (Fig. 13)

USING DRILL CHUCK, CHUCK ADAPTER

Note that this machine can be used at "rotation only" if separately sold parts such as drill chuck and chuck adapter are attached. Use it with the selector lever positioned at "rotation + hammering".

CAUTION:

During operation, be sure to grip the handle and the side handle firmly to prevent your body from swaying.

(1) Switching to "rotation + hammering"

For switching to "rotation + hammering", follow the same procedures mentioned in [3. When drilling at "rotation + hammering"].

(2) Attaching chuck adapter to drill chuck (Fig. 14)

(a) Attach the chuck adapter to the drill chuck.

(b) The SDS max shank of the chuck adapter is equivalent to the drill bit. Therefore, follow the same procedure as [How to install tool] for attaching and detaching.

(3) Drilling

(a) Even if you apply more-than-required pressure to the machine body, drilling can never be performed as quickly as you expect. Applying more force or pressure to the machine body than what is needed, on the contrary, damages the drill tip, resulting in the declined working efficiency and shortened life of this machine.

(b) A drill can snap sometimes when drilling is almost finished. It is important to relax your thrusting pressure when drilling is nearing the end.

HOW TO HANDLE A CORE BIT

When a core bit is used, large diameter holes and blind holes can be drilled. In this case, use optional accessories for core bits (such as a center pin and core bit shank) for more efficient operation.

1. Mounting

CAUTION:

Prior to mounting a core bit, always disconnect the plug from the power supply receptacle.

(1) Mount the core bit on the core bit shank. (Fig. 15) Before that, feed oil to the screw portion of core bit shank for easy dismounting.

(2) Mount the core bit shank on the main body in the same manner as in mounting the drill bit and the bull point. (Fig. 16)

(3) Insert the center pin into the guide plate until it reaches the extremity.

(4) Fit in the guide plate by aligning its concaved portion with the core bit tip. When the position of the concave is shifted by turning the guide plate right or left, the guide plate never slips off even when the drill is used in a downward direction. (Fig. 17)

2. Drilling holes

(1) Insert the plug into a receptacle.

(2) A spring is built in the center pin. By straightly and gently pressing it to the wall or floor surface, the entire surface of the core bit tip attains contact to start the hole drilling job. (Fig. 18)

(3) When the hole depth reaches approximately 5 mm, the hole position can be determined. Then remove the center pin and guide plate from the core bit and continue the hole drilling job.

CAUTION:

When removing the center pin and guide plate, always disconnect the plug from the receptacle.

3. How to dismount the core bit

○By holding the rotary hammer (with the core bit inserted) in an upward position, drive the rotary hammer to repeat impact operation two or three times, whereby the screw is loosened and the rotary hammer becomes ready for disassembly. (Fig. 19)

○Remove the core bit shank from the rotary hammer, hold the core bit with one hand, and strongly strike the head of the SDS max shank portion of the core bit shank with a manual hammer two or three times, whereby the round head screw is loosened and the rotary hammer is ready for disassembly. (Fig. 20)

HOW TO REPLACE GREASE

This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage. Therefore, the machine can be used without lubrication for long periods. Replace the grease as described below.

1. Grease replacement period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest Hitachi Authorized Service Center. Proceed for replacement of grease.

2. Grease replenishment

CAUTION:

Before replenishing the grease, turn the power off and pull out the power plug.

(1) Remove the crank cover and wipe off the grease inside. (Fig. 21)

(2) Supply 30 g of Hitachi Electric Hammer Grease A (Standard accessory, contained in tube) to the crank case.

(3) After replenishing the grease, install the crank cover securely.

NOTE:

The Hitachi Electric Hammer Grease A is of the low viscosity type. If necessary purchase from an Hitachi Authorized Service Center.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes

For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a HITACHI Authorized Service Center.

5. Replacing supply cord

If the supply cord of Tool is damaged, the Tool must be returned to Hitachi Authorized Service Center for the cord to be replaced.

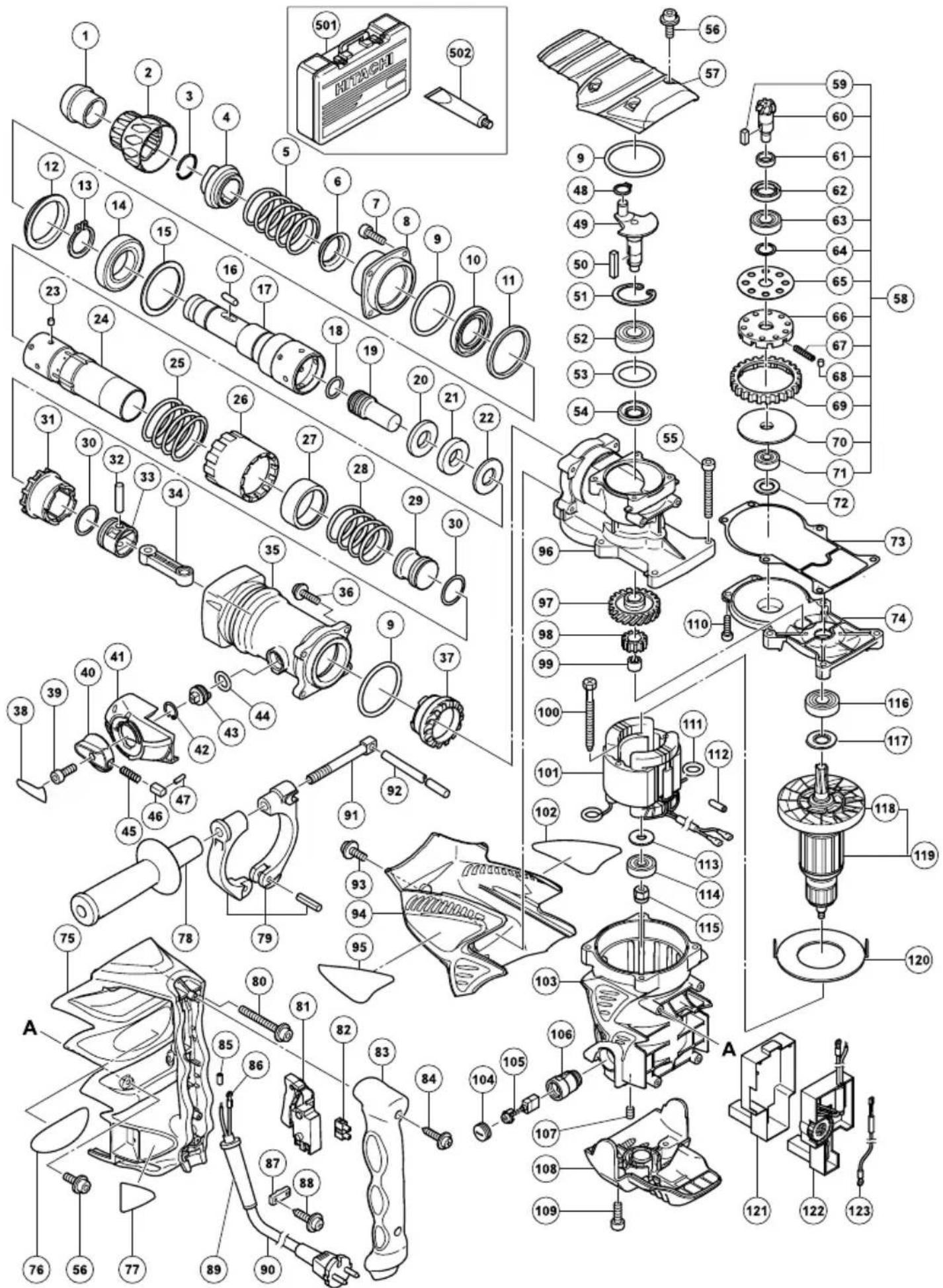

6. Service parts list

A: Item No.

B: Code No.

C: No. Used

D: Remarks

CAUTION

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATION

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

NOTE:

Due HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT:

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal.

NOTE:

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

Information concerning airborne noise and vibration The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 105 dB (A). Measured A-weighted sound pressure level: 94 dB (A). Uncertainty KpA: 3 dB (A).

Wear ear protection.

The typical weighted root mean square acceleration value: 11.4 m/s ^2 .

1. Broyage (Percussion)

(1) Point de broyage

1. Puisage (Percussion)

(1) Scoop

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

(2) Queue(1) Boucharde

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Bourroir

(2) Queue

150 × 150 mm

25, 29, 32, 35, 38, 45, 54, 64, 79, 94, 105, 120, 125 mm

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Pestello 150 × 150 ~mm

(2) Gambo

Technical line drawing of a mechanical component with a cylindrical part and a shaft (no text or symbols)

Technical line drawing of a mechanical component with two views: one showing a zigzag groove and the other a conical tool (no text or symbols)

(1) Borstelhulpstuk

(2) Schacht

1. Aanstampen (Slaan)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Heiblok 150 × 150 ~mm

(2) Schacht

25, 29, 32, 35, 38, 45, 54, 64, 79, 94, 105, 120, 125 mm

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

(1) Desbastadora
(2) Barrena

Technical line drawing of a mechanical component with a flanged base and a cylindrical shaft (no text or symbols)

(1) Pisón

150 × 150 mm

(2) Barrena

(1) Broca (cabo SDS-plus)

Technical line drawing of a drill bit and a screwdriver (no text or symbols)

Mandril de 13 mm (13 VLA)

Adaptador de mandril (cabo SDS max)

Chave de mandril

Technical line drawing of a hexagonal bolt and a cylindrical tool (no text or symbols)

(1) Ferramenta de embuchamento

(2) Cabo de ferramenta

1. Socadura (Martelamento)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

(1) Soquete 150 × 150 ~mm

(2) Cabo de ferramenta

COMO MANUSEAR UM NÚCLEO DE BROCA

Technical line drawing of a mechanical component with two views: one showing a threaded part and the other a tapered shaft (no text or symbols)

Technical line drawing of a mechanical component with a flanged shaft and circular housing (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

A B C D

1 321-306 1
2 321-305 1
3 318-590 1
4 321-304 1
5 321-303 1
6 321-302 1
7 981-942 4 M6×25
8 321-300 1
9 956-996 3 1AS-60
10 321-301 1
11 325-229 1
12 315-868 1
13 948-131 1
14 600-7DD 1 6007DDUAV2S
15 321-297 1
16 313-421 2 D8×20
17 324-919 1
18 324-921 1
19 324-920 1
20 324-922 1
21 324-923 1
22 324-924 1
23 313-057 4 D6×6
24 324-925 1
25 324-930 1
26 324-931 1
27 324-927 1
28 324-928 1
29 324-926 1
30 325-297 2 I.D 27.2
31 324-929 1
32 324-917 1
33 324-915 1
34 324-916 1
35 324-932 1
36 991-712 4 M6×25
37 324-933 1
38 321-867 1
39 983-162 1 M4×12
40 321-309 1
41 324-935 1
42 311-229 1
43 324-934 1
44 873-095 1 P-16
45 321-310 1
46 321-311 1
47 321-312 1
48 939-540 1
49 324-909 1
50 971-750 1 3X3×20
51 948-391 1
52 620-3DD 1 6203DDCMPS2L
53 996-363 1 S-40
54 971-745 1
55 986-940 4 M6×45
56 994-192 8 M5×16
57 324-937 1
58 324-912 1 “59-61, 63-71”
59 944-109 1 3×3×8
60 324-913 1
61 321-279 1
62 313-050 1
63 600-2DD 1 6002DDCMPS2L
64 313-058 1
65 313-053 1
66 321-281 1
67 321-282 10
68 320-343 10
69 324-914 1
70 321-283 1
71 629-VVM 1 629VVC2PS2L
72 944-525 1

A B C D

73 325-230 1
74 324-944 1
75 324-947 1
76 ————1
77 324-938 1
78 313-078 1
79 313-079 1
80 980-673 2 M5×40
81 313-093 1
82 938-307 1
83 324-948 1
84 301-653 2 D4×20
85 981-373 2
86-1 980-063 1
86-2 930-804 1 " GBR (110V),"
87-1 960-266 1
87-2 981-987Z 1 "SUI"
88 984-750 2 D4×16
89-1 953-327 1 D8.8
89-2 938-051 1 D10.1
90 ————1
91 313-080 1
92 971-786 1
93 998-471 1 M5×12
94 324-936 1
95 ————1
96 324-908 1
97 324-910 1
98 324-911 1
98 939-299 1 M661
100 961-501 2 D5×60
101-1 340-646C 1 110V "111"
101-2 340-646E 1 230V "111"
101-3 340-646F 1 240V "111"
102 ————1
103 324-943 1 "106, 107"
104 945-161 2
105 999-071 2
106 962-777 2
107 938-477 2 M5×8
108 324-946 1
109 984-508 2 M5×20
110 321-313 2 M6×22
111 937-623 2
112 321-322 1
113 985-436 1
114 620-0VV 1 6200VVCMPS2L
115 318-721 1
116 620-2DD 1 6202DDCMPS2L
117 980-700 1
118 318-918 1
119-1 360-737C 1 110V "118"
119-2 360-737E 1 230V "118"
119-3 360-737F 1 240V "118"
120 324-945 1
121 324-942 1
122-1 324-940 1 110V
122-2 324-941 1 120V
122-3 324-939 1 230V-240V
123 317-113 1
501 324-820 1
502 981-840 1 30G

Line drawing of a quill pen with inkwell (no text or symbols)

English		Nederlands
GUARANTEE CERTIFICATE1Model No.2Serial No.3Date of Purchase4Customer Name and Address5Dealer Name and Address(Please stamp dealer name and address)		GARANTIEBEWIJS1Modelnummer2Serienummer3Datum van aankoop4Naam en adres van de gebruiker5Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)
Deutsch		Español
GARANTIESCHEIN1Modell-Nr.2Serien-Nr.3Kaufdaturn4Name und Anschrift des Kunden5Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		CERTIFICADO DE GARANTIA1Número de modelo2Número de serie3Fecha de adquisición4Nombre y dirección del cliente5 Nombre y dirección del distribudor(Se ruega poner el sellú del distribudor con su nombre y dirección)
Français		Português
CERTIFICAT DE GARANTIE1No. de modèle2No. de série3Date d'achat4Nom et adresse du client5Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA1Número do modelo2Número do série3Data de compra4Nome e morada do cliente5Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)
Italiano Ελληνικά
CERTIFICATO DI GARANZIA1Modello2N° di serie3Data di acquisto4Nome e indirizzo dell'acquirente5Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΕΓΓΥΗΣΗΣ1Αρ. Μοντέλου2Αύξων Αρ.3Ημερομηνία αγοράς4Όνομα και διεύθυνση πελάτη5Όνομα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)

HITACHI

1
2
3
4
5

Hitachi Koki

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

English

Only for EU countries

Do not dispose of electric tools together with household waste material!

In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Deutsch

Nur für EU-Länder
