DH 36DL - Drill HITACHI - Free user manual and instructions

Product type	Cordless hammer drill
Brand	Hitachi
Model	DH 36DL
Battery voltage	36 V Li-ion
Battery capacity	2.6 Ah (BSL3626)
No-load speed	0 - 1100 min⁻¹ (Power mode)
Impact frequency	0 - 4500 min⁻¹
Drilling capacity steel	13 mm
Drilling capacity concrete	26 mm
Drilling capacity wood	30 mm
Weight (with battery)	3.9 kg
Operating modes	Rotation + impact, rotation only, impact only (DAL model)
Charger	UC36YRL (charging time approx. 80 min)
Included accessories	Side handle, depth gauge, charger, plastic case, spare battery, battery cover
Power modes	Save (economy) and Power (full power)
Battery protection	Automatic shut-off in case of overload, discharge or overheating
Maintenance and cleaning	Wipe with a dry or slightly soapy cloth; do not use solvents
Safety	Wear hearing protection, dust mask, use side handle
Spare parts and repairability	Contact an authorized Hitachi service center for any repairs

Frequently Asked Questions - DH 36DL HITACHI

How do I change the drill bit on the Hitachi DH 36DL?

To change the drill bit, pull the sliding attachment on the tool holder (SDS-plus) fully and remove the old bit. Insert the new bit, turn it until it locks, then check it is secure by pulling on it.

How do I charge the battery of the DH 36DL?

Use the UC36YRL charger. Connect the charger to the mains, insert the battery fully, the red lamp lights up during charging. It flashes red when charging is complete (about 80 minutes for a BSL3626 battery). Do not charge at a temperature below 0°C or above 40°C.

What are Save mode and Power mode?

The change button allows switching between Save mode (reduced impact force, for thin drill bits <5 mm) and Power mode (maximum force, for drill bits >5 mm or drilling in wood/metal). Do not use Save mode for drilling wood (risk of motor overheating).

How do I use the dust collector (B)?

Insert the dust collector (B) over the end of the drill bit, aligning it with the groove of the handle. Press it against the concrete surface before activating the tool to prevent it from rotating. Use it only for concrete drilling and empty the dust every 2 to 3 holes.

What grease should I use for maintaining the DH 36DL?

Use Hitachi specified grease FG-6A. Unsuitable grease may cause malfunction. For replacement, contact an authorized service agent.

How do I store the tool and battery?

Store the hammer in a place with a temperature below 40°C, out of reach of children. Before storing the battery, remove chips and dust, and do not store it with metal objects (risk of short circuit). Use the battery cover to protect the terminals.

Can I drill metal or wood with the DH 36DL?

Yes, but only in rotation only mode (without impact). Use the drill chuck and chuck adapter (optional accessories). For wood, first drill a pilot hole for screws. Never drill wood in Save mode.

Is the 'impact only' function available on the DH 36DL?

Yes, only on the DH 36DAL model (with 'A' in the name). The DH 36DL models (without 'A') do not have this function. For the DH 36DAL, turn the lever to the 'T' symbol (impact only) to use chisels or points.

What should I do if the battery does not charge?

Check that the temperature is between 0°C and 40°C. If the charger lamp flashes quickly in red, clean the terminals or remove a foreign object. If the problem persists, the battery or charger may be defective; contact an authorized service center.

What safety protections should I wear?

Always wear hearing protection (noise level up to 103 dB), a dust mask to avoid inhaling harmful dust, and use the side handle provided to keep control of the tool. Avoid contact with the drill bit after use (hot).

USER MANUAL DH 36DL HITACHI

Line drawing of a mechanical drill bit with no visible text or symbols

Read through carefully and understand these instructions before use. Diese Anleitung vor Benutzung des Werkzeugs sorgfältig durchlesen und verstehen. Lire soigneusement et bien assimiler ces instructions avant usage. Prima dell'uso leggere attentamente e comprendere queste instruzioni. Deze gebruiksaanwijzing s.v.p. voor gebruik zorgvuldig doorlezen. Leer cuidadosamente y comprender estas instrucciones antes del uso. Antes de usar, leia com cuidado para assimilar estas instruções.

Handling instructions Bedienungsanleitung Mode d'emploi Instruzioni per l'uso Gebruiksaanwijzing Instrucciones de manejo Instruções de uso

9

(a)②5(b)②6

10

Line drawing of a hand using a drill bit gun to shoot material, with no text or symbols present

11

12

13

14

15

16

	English Deutsch Français Italiano
1	Rechargeable battery Batterie Batterie rechargeable Batterie ricaricabile
2	Latch Schnapper Loquet Fermo
3	Guide rail of battery	Führungsschiene der Batterie	Rail guide de la batterie	Binario guida della batteria
4	Push Drücken Pousser Spingere
5	Battery cover Batterieabdeckung Couvercle de pile Copperchio per la batteria
6	Terminals	Anschlüsse	Bornes	Terminali
7	Ventilation holes	Belüftungslöcher	Orifices de ventilation	Fori di ventilazione
8	Housing	Gehäuse	Boîtier	Alloggiamento
9	Pull out	Herausziehen	Tirer vers l'extérieur	Estrarre
10	Insert	Einsetzen	Insérer Inserire
11	Guide rail of housing	Führungsschiene des Gehäuses	Rail guide du logement	Binario guida dell'alloggiamento
12	Pilot lamp	Kontrollampe	Lampe témoin	Spia

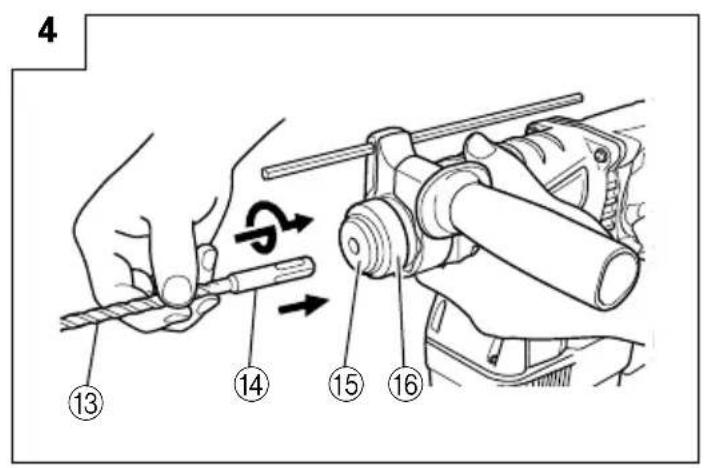

13	Drill bit	Bohrer	Foret de perçage	Punta del trapano
14	Part of SDS-plus shank	Teil des SDS-plus Schaftes	Elément de la tige SDS plus	Parte dell'asta SDS plus

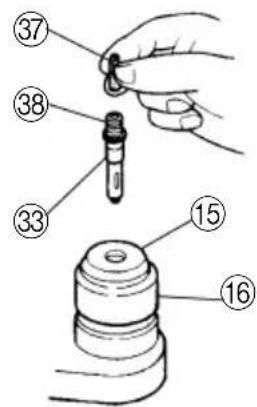

15	Front cap	Vordere Abdeckung	Capuchon avant	Protezione davanti
16	Grip	Spannbacke	Attache coulissante	Presa davanti
17	Dust cup	Staubschale	Godet a poussière	Contenitore a polvere
18	Dust collector (B)	Staubfang (B)	Collecteur à poussière (B)	Camera a polvere (B)
19	Change lever	Wechselknopf	Bouton de changement	Rotella di cambio
20	"►" mark	"►" zeichen	Repère "►"	Contrassegno "►"
21	"T" mark	"T" zeichen	Repère "T"	Contrassegno "T"
22	"IT" mark	"IT" zeichen	Repère "IT"	Contrassetgno "IT"
23	"W" mark	"W" zeichen	Repère "W"	Contrassegno "W"
24	Push button	Druckknopf	Poussoir	Tasto da premere
25	Forward rotation	Vorwärtsdrehung	Rotation avant	Rotazione in avanti
26	Reverse rotation	Rückwärtsdrehung	Rotation inverse	Rotazione indietro
27	Push the (R) side	Die (R) Seite drücken	Pousser sur le côté (R)	Spingere il lato (R)
28	Push the (L) side	Die (L) Seite drücken	Pousser sur le côté (L)	Spingere il lato (L)
29	(R) indication	(R) Anzeige	Indication (R)	Indicazione (R)
30	(L) indication	(L) Anzeige	Indication (L)	Indicazione (L)
31	Diagram seen from the handle side	Die Zeichnung ist von der Handgriffseite aus gesehen	Schéma, côté poignée	Diagramma visto dal lato della maniglia
32	Drill chuck	Bohrfutter	Mandrin porte-feret	Mandrino
33	Chuck adaptor	Bohrutteradapter	Raccord de mandrin	Adattatore per mandrino
34	Depth gauge	Tiefenmesser	Jauge de profondeur	Calibro profondità
35	Mounting hole Befestigung	söffnung Orifice de montage		Foro d'inserimento della bacchetta di arresto
36	Side handle	Handgriff	Poignée laterale	Laterale
37	Bit	Bohrerspitzen	Mèche	Punta
38	Socket	Fassung	Prise Presa
39	Taper shank adapter	Kegelschaftadapter	Raccord de queue conique	Adattatore per gambo conico
40	Cotter	Dorn Clavette	Coppiglia
41	Rest	Auflage Support	Appoggio

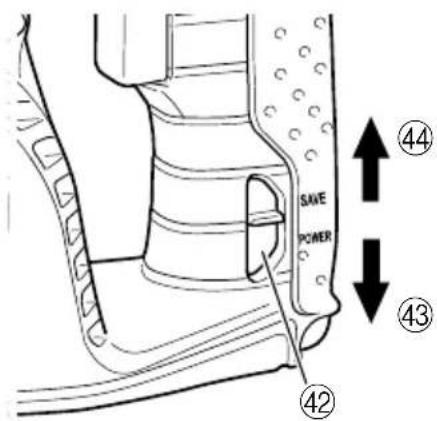

42	Shift knob	Schaltknopf	Bouton de changement	Manopola del cambio
43	"POWER" mode	„POWER"-Modus	Mode "POWER" (puissance)	Modo "POWER"
44	"SAVE" mode	„SAVE"-Modus	Mode "SAVE" (économie)	Modo "SAVE"

	Nederlands Español	Português
1	Oplaadbare batterij Bateria	recargable Bateria recarregável
2	Vergrendeling Enganche L	ngüeta
3	Geleider batterij Riel de guía	de la batería Guia da grade	da bateria
4	Drukken Presionar Apertar
5	Batterijdeksel Tapa de batería	Tampa da batería
6	Aansluitpunten Terminales	Terminais
7	Ventilatieopeningen Orificios de ventilación Orifícios de ventilação
8	Behuizing Carcasa	Cárter
9	Uittrekken	Sacar	Retirar
10	Insteken	Insertar	Inserir
11	Geleiderail behuizing	Riel de guía de la carcasa	Trilho de segurança do cárter
12	Kontrolelampje	Lámpara piloto	Lâmpada piloto
13	Boorstuk	Broca	Broca
14	Onderdeel van SDS Plus schacht	Parte del SDS más vástago	Cabo de peça SDS-plus
15	Voorkap	Cubierta frontal	Tampa da frente
16	Greep	Sujetador Mordente
17	Stofvangkap	Copa de polvo	Receptáculo para poeira
18	Stofverzamelaar (B)	Colector de polvo (B)	Coletor de poeira (B)
19	Omstelknop	Perilla de cambio	Seletor
20	“►”-markering	Marca “►”	Marca “►”
21	“T”-markering	Marca “T”	Marca “T”
22	“IT”-markering	Marca “IT”	Marca “IT”
23	“uv”-markering	Marca “uv”	Marca “uv”
24	Druktoets	Pulsador	Botão de pressão
25	Voorwaartse draairichting	Rotación hacia la derecha	Rotação para frente
26	Terugwaartse draairichting	Rotación hacia la izquierda	Rotação inversa
27	Druk aan de (R) kant	Presione el lado (R)	Apertar o lado (R)
28	Druk aan de (L) kant	Presione el lado (L)	Apertar o lado (L)
29	(R) aanduiding	Indicación (R)	Indicação (R)
30	(L) aanduiding	Indicación (L)	Indicação (L)
31	Schema, gezien vanaf de handgreep-kant	Diagrama visto desde el lado del asa	Diagrama visto pelo lado do cabo
32	Boorkop	Portabrocas	Mandril
33	Boorkopadapter	Adaptador del portabrocas	Adaptador do mandril
34	Diepte-maatlat	Calibre de profundidad	Sonda
35	Montagegat	Agujero de montaje	Orifício de montagem
36	Zijgreep Mango lateral	Empunhadura lateral
37	Boorstuk	Broca	Palhetão
38	Aansluithus	Cubo	Encaixe
39	Vernauwde schachtadaptor	Adaptador de la espiga	Adaptador de cabo cônico
40	Cotter	Chaveta	Cavilha
41	Steun	Apoyo	Suporte
42	Schakelknop	Perilla de cambio	Seletor
43	“POWER” stand	Modo “POWER”	Modo “POWER”
44	“SAVE” stand	Modo “SAVE”	Modo “SAVE”

	Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.	Symbole⚠ WARNINGDie folgenden Symbole werden für diese Maschine verwendet. Achten Sie darauf, diese vor der Verwendung zu verstehen.	Symboles⚠ AVERTISSEMENTLes symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signification avant d’utiliser l’outil.	Simboli⚠ AVVERTENZADi seguito mostriamo i simboli usati per la macchina. Assicurarsi di comprenderne il significato prima dell’uso.
	Read all safety warnings and all instructions.Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.	Lesen Sie sämtliche Sicherheitshinweise und Anweisungen durch.Wenn die Warnungen und Anweisungen nicht befolgt werden, kann es zu Stromschlag, Brand und/oder ernsthaftenVerletzungen kommen.	Lire tous les avertissements de sécurité et toutes les instructions.Tout manquement à observer ces avertissements et instructions peut engendrer des chocs électriques, des incendies et/ou des blessures graves.	Leggere tutti gli avvertimenti di sicurezza e tutte le istruzioni.La mancata osservanza degli avvertimenti e delle istruzioni potrebbe essere causa di scosse elettriche, incendi e/o gravi lesioni.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.	Nur für EU-LänderWerfen Sie Elektrowerkzeuge nicht in den Hausmüll!Gemäss Europäischer Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte und Umsetzung in nationales Recht müssen verbrauchte Elektrowerkeuge getrennt gesammelt und einer umweltgerechtenWiederververitung zugeführt werden.	Pour les pays européens uniquementNe pas jeter les appareils électriques dans les ordures ménagères!Conformément à la directive européenne 2002/96/EG relative aux déchets d’équipements électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale, les appareils électriques doivent être collectés à part et être soumis à un recyclage respectueux de l’environnement.	Solo per Paesi UENon gettare le apparecchiature elettriche tra i rifiuti domestici.Secondo la Direttiva Europea 2002/96/CE sui rifiuti di apparecchiature elettriche ed elettroniche e la sua attuazione in conformità alle norme nazionali, le apparecchiature elettriche esauste devono essere raccolte separatamente, al fine di essere reimpiegate in modo eco-compatibile.
	Symbolen⚠ WAARSCHUWINGHieronder staan symbolen afgebeeld die van toepassing zijn op deze machine. U moet de betekenis hiervan begrijpen voor gebruik.	Símbolos⚠ ADVERTENCIAA continuación se muestran los símbolos usados para la máquina. Asegúrese de comprender su significado antes del uso.	Símbolos⚠ AVISOA seguir aparecem os símbolos utilizados pela máquina. Assimile bem seus significados antes do uso.
	Lees alle waarschuwingen en instructies aandachtig door.Nalating om de waarschuwingen en instructies op te volgen kan in een elektrische schok, brand en/of ernstig letsel resulteren.	Lea todas las instrucciones y advertencias de seguridad.Si no se siguen las advertencias e instrucciones, podría producirse una descarga eléctrica, un incendio y/o daños graves.	Leia todas as instruções e avisos de segurança.Se não seguir todas as instruções e os avisos, pode provocar um choque eléctrico, incêndio e/ou ferimentos graves.
	Alleen voor EU-landen Geef elektrisch gereedschap niet met het huisvuil mee!Volgens de Europese richtlijn 2002/96/EG inzake oude elektrische en elektronische apparaten en de toepassing daarvan binnen de nationale wetgeving, dient gebruikt elektrisch gereedschap gescheiden te worden ingezameld en te worden afgevoerd naar een recycle bedrijf dat voldoet aan de geldende milieu-eisen.	Sólo para países de la Unión Europea¡No deseche los aparatos eléctricos junto con los residuos domésticos!De conformidad con la Directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y electrónicos y su aplicación de acuerdo con la legislación nacional, las herramientas eléctricas cuya vida útil haya llegado a su fin se deberán recoger por separado y trasladar a una planta de reciclaje que cumpla con las exigencias ecológicas.	Apenas para países da UE Não deite ferramentas eléctricas no lixo doméstico!De acordo com a directiva europeia 2002/96/CE sobre ferramentas eléctricas e electrónicas usadas e a transposição para as leis nacionais, as ferramentas eléctricas usadas devem ser recolhidas em separado e encaminhadas a uma instalação de reciclagem dos materiais ecológica.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

CORDLESS ROTARY HAMMER SAFETY WARNINGS

1. Wear ear protectors.

Exposure to noise can cause hearing loss.

1. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.

2. Always charge the battery at a temperature of 0 - 40°C.

A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40^ C. The most suitable temperature for charging is that of 20 – 25^ C.

1. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

1. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

2. Never disassemble the rechargeable battery and charger.

3. Never short-circuit the rechargeable battery. Short-chircuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

4. Do not dispose of the battery in fire. If the battery is burnt, it may explore

5. When using this unit continuously, the unit may overheat, leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

6. Do not insert object into the air ventilation slots of the charger.

Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

1. Using an exhausted battery will damage the charger.
2. When drilling in wall, floor or ceiling, check for buried electric power cord, etc.
3. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
4. Wear ear protections Exposure to noise can cause hearing loss.
5. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.
6. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
7. Always hold the body handle and side handle of the power tool firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.
8. Wear a dust mask Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 and 2 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out (The battery voltage drops to about 14V (DH25DL, DH25DAL) / about 20V (DH36DL, DH36DAL)), the motor stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   ○During work make sure that swarf and dust do not fall on the battery.
   ○Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.

6. Do not use the battery for a purpose other than those specified.

7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
9. Keep away from fire immediately when leakage or foul odor are detected.
10. Do not use in a location where strong static electricity generates.
11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

○Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
○Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

SPECIFICATIONS

POWER TOOL

Model DH25DL DH25DAL DH36DL DH36DAL
No-load speed Save/Power 0 - 550 min			-1/0 - 1100 min-1
Full-load impact rate Save/Power 0 - 2250 min			-1/0 - 4500 min-1
Capacity	Drilling	Concrete 26 mm
		Steel 13 mm
		Wood 30 mm
	Driving	Wood screw	6.2 mm (diameter) × 40 mm (length)
Rechargeable battery			BSL2530: Li-ion 25.2 V (3.0 Ah 14 cells)		BSL3626: Li-ion 36 V (2.6 Ah 20 cells)
Weight 3.5 kg 3.6 kg			3.9 kg	4.0 kg

☐ Do not use the "SAVE" mode when boring holes with the wood drill. There is a likelihood that the motor will burn out.

CHARGER

Model UC36YRL
Charging voltage 25.2 V 36 V
Weight 0.9 kg

STANDARD ACCESSORIES

DH25DL (2SLRK)DH25DAL (2SLRK)
	1 Side handle......12 Depth gauge......13 Charger......14 Plastic case......15 Extra battery......16 Battery cover......1
DH36DL (2SLRK)DH36DAL (2SLRK)
	1 Side handle......12 Depth gauge......13 Charger......14 Plastic case......15 Extra battery......16 Battery cover......1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (BSL2530, BSL3626)

Line drawing of a mechanical component with internal slots and mounting holes (no text or symbols)

It may be convenient to prepare some extra batteries.

2. Drilling anchor holes (rotation + hammering)

○Drill bit (taper shank) and taper shank adapter

Technical line drawing of a twist drill bit and a cylindrical tool (no text or symbols)

Drill bit (taper shank)

Drill bit

Outer diameter

11.0 mm

12.3 mm

12.7 mm

14.3 mm

14.5 mm

17.5 mm

21.5 mm

Cotter

Taper shank adapter

Taper mode	Applicable drill bit
Morse taper (No. 1) (taper)	Drill bit shank)	11.0 – 17.5 mm
Morse taper (No. 2) (taper)	Drill bit shank)	21.5 mm
A-taper	Taper shank adapter formed A-taper or B-taper is provided as an optional accessory, but drill bit for it is not provided.
B-taper

○13 mm Hammer Drill chuck and Chuck wrench

(Impact Drill Application Straight Shank Bit)

13 mm Hammer Drill Chuck (SDS plus shank)

Chuck wrench

3. Anchor setting (rotation + hammering)

○Anchor setting adapter (for rotary hammer)

Anchor size

W1/4"W5/16"W3/8"

Anchor setting adapter (for rotary hammer) (SDS plus shank)

○Anchor setting adapter (for manual hammer)

Anchor size

W1/4"

W5/16"

W3/8"

W1/2"

W5/8"

1. Bolt placing operation with Chemical Anchor. (rotation + hammering)

(Standard socket) on the market

+ (SDS-plus shank) 12.7 mm Chemical Anchor Adapter 19 mm Chemical Anchor Adapter

5. Demolishing operation (Hammering only)

Bull point (Square type) (SDS-plus shank)

6. Groove digging and edging (Hammering only)

7. Grooving (Hammering only)

8. Drilling holes and driving screws (rotation only) ○Drill chuck, chuck adapter (G) and chuck wrench

9. Drilling holes (rotation only)

○13 mm drill chuck ass'y (include chuck wrench ass'y) and chuck (for drilling in steel or wood).

10. Driving Screws (rotation only)

Bit No. Screw Size Length
No. 2 3-5 mm 25 mm
No. 3 5-8 mm 25 mm

11. Dust cup, Dust collector (B)

Optional accessories are subject to change without notice.

APPLICATIONS

Rotation and hammering function

○Drilling anchor holes

○Drilling holes in concrete

○Drilling holes in tile

Rotation only function

○Drilling in steel or wood

(with optional accessories)

○Tightening machine screws, wood screws

(with optional accessories)

○Light-duty chiselling of concrete, groove digging and edging.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latches to remove the battery (see Figs. 1 and 2).

CAUTION:

Never short-circuit the battery.

2. Battery installation

Insert the battery aligning both guide rail of battery and body. Make sure the battery is fixed firmly.

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to a receptacle When the power cord is connected, the charger's pilot lamp will blink in red (At 1-second intervals).

2. Insert the battery into the charger

Insert the battery firmly, until it contacts the bottom of the charger compartment.

CAUTION

○If the battery is inserted in the reverse direction, not only recharging will become impossible, but it may also cause problems in the charger such as deformed recharging terminal.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light up continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red (At 1-second intervals) (See Table 1).

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the lamps
Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
While charging	Lights (RED)	Lights continuously
Charging complete	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
Charging impossible	Flikers (RED)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ □□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□○□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□ □□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ ▢ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ □ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ △ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▫ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▩ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▦ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▧ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▦ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▥ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▷ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▸ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▅ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▤ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▵ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶

NOTE: When standby for cooling battery, UC36YRL cools the overheated battery by cooling fan.

(2) Regarding the temperatures of the rechargeable battery The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2 Recharging ranges of batteries

ChargerRechargeable batteries	UC36YRL
BSL2530, BSL3626 0°C – 50°C

(3) Regarding recharging time

Depending on the type of the battery, the charging time will decome as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery type Recharging time

BSL2530 Approx. 60 min.

BSL3626 Approx. 80 min.

NOTE: The charging time may vary according to ambient temperature and power source voltage.

1. Disconnect the charger's power cord from the receptacle

5. Hold the charger firmly and pull out the battery NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

CAUTION

○If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights up green. In such a case, first let the battery cool, then start charging.
When the pilot lamp flikers in red quickly (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your Authorized Service Center.
○Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC36YRL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.
(2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

PRIOR TO OPERATION

1. Mounting the drill bit (Fig. 4, 5)

CAUTION:

To prevent accidents, make sure to turn the switch off.

NOTE:

When using tools such as drill bits, etc., make sure to use the genuine parts designated by our company.

(1) Clean the shank portion of the drill bit.
(2) Insert the drill bit in a twisting manner into the tool holder until it latches itself. (Fig. 4)
(3) Check the latching by pulling on the drill bit.
(4) To remove the drill bit, fully pull the grip in the direction of the arrow and pull out the drill bit.

2. Confirm that the battery is mounted correctly.

3. Installation of dust cup or dust collector (B) (Optional accessories) (Fig. 6, Fig. 7)

When using a rotary hammer for upward drilling operations attach a dust cup or a dust collector (B) to collect dust or particles for easy operation.

○Installing the dust cup

Use the dust cup by attaching to the drill bit as shown in Fig. 6.

When using a bit which has big diameter, enlarge the center hole of the dust cup with this rotary hammer.

○Installing dust collector (B)

When using dust collector (B), insert dust collector (B) from the tip of the bit by aligning it to the groove on the grip. (Fig. 7)

CAUTION:

○The dust cup and dust collector (B) are for exclusive use of concrete drilling work. Do not use them for wood or metal drilling work.

○Insert dust collector (B) completely into the chuck part of the main unit.

When turning the rotary hammer on while dust collector (B) is detached from a concrete surface, dust collector (B) will rotate together with the drill bit. Make sure to turn on the switch after pressing dust cup on the concrete surface. When using dust collector (B) attached to a drill bit that has more than 190 mm of overall length, dust collector (B) cannot touch the concrete surface and will rotate. Therefore, please use dust collector (B) by attaching to drill bits which have 166 mm, 160 mm, and 110 mm overall length.

○Dump particles after every two or three holes when drilling.

○Please replace the drill bit after removing dust collector (B).

4. Selecting the driver bit

Screw heads or bits will be damaged unless a bit appropriate for the screw diameter is employed to drive in the screws.

5. Confirm the direction of bit rotation (Fig. 9)

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button. (Fig. 9-a) The L-side of the push button is pushed to turn the bit counterclockwise. (Fig. 9-b)

6. Continuous drilling

The number of holes that can be drilled in concrete after one recharge is shown in Table 4.

Table 4

Bit dia. (mm)	Depth (mm)	Possible continuous drilling number (holes)
		DH25DL/DH25DAL	DH36DL/DH36DAL
6.5 115	160
8.5 70	90
12.5 55	65
14.5 60	45 55
18 25 40
24 12 16
26 7 8

These data are for the referential values. The number of holes that can be drilled varies according to the sharpness of the used bit or the conditions of the concrete being drilled.

CAUTION:

When using this unit continuously, the unit may overheat, leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

HOW TO USE

CAUTION on lithium-ion battery

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

1. Switch operation

○When the switch trigger is depressed, the tool rotates.
When the switch trigger is released, the tool stops.
○The rotational speed of the rotary hammer can be controlled by varying the amount that the switch trigger is pulled. Speed is low when the switch trigger is pulled slightly and increases as the switch trigger is pulled more.
When releasing the switch trigger, the brake will be applied for immediate stopping.

2. Rotation + Hammering

Align the “▶” mark with the “T mark by rotating the change lever to set the “Rotation + Hammering” function. (Fig. 8-a, Fig. 8-b)

(1) Mount the drill bit.
(2) Pull the trigger switch after applying the drill bit tip to the drilling position. (Fig. 10)
(3) Pushing the rotary hammer forcibly is not necessary at all. Pushing slightly so that drill dust comes out gradually is just sufficient.

CAUTION:

When the drill bit touches construction iron bar, the bit will stop immediately and the rotary hammer will react to revolve. Therefore please grip the side handle and handle tightly as shown in Fig. 10.

3. Rotation only

Align the “▶” mark with the “■” mark by rotating the change lever to set the “Rotation only” function. (Fig. 8-a, Fig. 8-b)

To drill a wood or metal material using the optional drill chuck and chuck adapter, proceed as follows. Installing drill chuck and chuck adapter: (Fig. 11)

(1) Attach the drill chuck to the chuck adaptor.
(2) The part of the SDS-plus shank is the same as the drill bit. Therefore, refer to the item of "Mounting the drill bit" for attaching it.

CAUTION:

○Application of force more than necessary will not only expedite work at all, but will deteriorate the tip edge of the drill bit and reduce the service life of the rotary hammer in addition.
○Drill bit may snap off while withdrawing the rotary hammer from the drilled hole. For withdrawing, it is important to use a pushing motion.
○Do not attempt to use the rotary hammer in the rotation and striking mode with the drill chuck

and chuck adapter attached. This would seriously shorten the service life of every component of the machine.

4. When driving wood screws (Fig. 13)

(1) Selecting a suitable driver bit Employ plus-head screws, if possible, since the driver bit easily slips off the heads of slotted-head screws.
(2) Tightening wood screws Prior to tightening wood screws, make pilot holes suitable for them in the wooden board. Apply the bit to the screw head grooves and gently drive the screws in the holes.

CAUTION:

Exercise care in preparing a pilot hole suitable for the wood screw taking the hardness of the wood into consideration. Should the hole be excessively small or shallow, requiring much power to drive the screw into it, the thread of the wood screw may sometimes be damaged.

5. Hammering only

Align the “▶” mark with the “T” mark by rotating the change lever to set the “Hammering only” function. (Fig. 8-a)

(1) Mount the bull point or cold chisel.

6. Using depth gauge (Fig. 12)

(1) Loosen the knob on the side handle, and insert the depth gauge into the mounting hole on the side handle.
(2) Adjust the depth gauge position according to the depth of the hole and tighten the knob bolt securely.

7. How to use the drill bit (taper shank) and the taper shank adapter

(1) Mount the taper shank adapter to the rotary hammer. (Fig. 14)
(2) Mount the drill bit (taper shank) to the taper shank adapter. (Fig. 14)
(3) Turn the switch ON, and drill a hole to prescribed depth.
(4) To remove the drill bit (taper shank), insert the cotter into the slot of the taper shank adapter and strike the head of the cotter with a hammer supporting on the rest. (Fig. 15)

8. Switching between the "SAVE" and the "POWER" modes

The hammering force of the hammer can be increased or decreased to conform with intended usage, by operating the shift knob as per Fig. 16. Adjust the force to match the usage intended.

(1) "SAVE" mode ... decreased hammering force This can prevent thin drill bits which are less than 5 mm in diameter, from being bent or broken.
(2) "POWER" mode ... increased hammering force ○This can be used to speedily and efficiently drill holes when the drill bits which are being used are greater than 5 mm in diameter.
○This can be used to drill holes into wood or metal.

CAUTION:

Do not drill holes in wood with the "SAVE" mode. There is a likelihood that the motor will burn out because it can easily lock up due to the low power

LUBRICATION

Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Please contact the nearest service center for

grease replacement when any grease is leaking form loosened screw.

Further use of the rotary hammer despite the grease shortage causes damage to reduce the service life.

CAUTION:

A specific grease (FG-6A) is used with this machine, therefore, the normal performance of the machine may be badly affected by use of different grease. Please be sure to let one of our service centers to undertake replacement of the grease.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, as they melt plastics.

5. Storage

Store the power tool in a place in which the temperature is less than 40^ C and out of reach of children.

6. Service parts list

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

GUARANTEE

We guarantee Hitachi Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a Hitachi Authorized Service Center.

NOTE:

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT:

Correct connections of the plug

The wires of the mains lead are coloured in accordance with the following code:

Blue: -Neutral

Brown: -Live

As the colours of the wires in the mains lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black.

The wire coloured brown must be connected to the terminal marked with the letter L or coloured red.

Neither core must be connected to the earth terminal. NOTE:

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markers except United Kingdom.

Information concerning airborne noise and vibration

The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 103 dB (A) Measured A-weighted sound pressure level: 92 dB (A) Uncertainty KpA: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN60745.

[DH36DAL]

Hammer drilling into concrete:

Vibration emission value , HD = 18.6 m/s ^2

Uncertainty K = 1.5 m/s ^4

Equivalent chiselling value:

Vibration emission value ah , CHeq = 12.5 m/s²

Uncertainty K = 1.5 m/s ^4

[DH25DAL]

Hammer drilling into concrete:

Vibration emission value , HD = 16.7 m/s ^2

Uncertainty K = 1.5 m/s ^4

Equivalent chiselling value:

Vibration emission value ah,CHeq=11.9~m/s^2

Uncertainty K = 1.5 m/s ^4

WARNING

○The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used.

To identify the safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Line drawing of a mechanical component with internal slots and housing (no text or symbols)

Technical line drawing of a twist drill bit with two different end caps (no text or symbols)

Ankergröße

W1/4"

W5/16"

W3/8"

W1/2"

W5/8"

Line drawing of a mechanical component with internal slots and mounting holes (no text or symbols)

Technical line drawing of a twist drill bit with a plus button (no text or symbols)

Technical illustration of a drill bit and its corresponding mechanical component (no text or symbols)

Dimension de l'ancrage

W1/4"

W5/16"

W3/8"

W1/2"

W5/8"

Technical line drawing of a mechanical component with two views: one showing a threaded shaft and the other a pin (no text or symbols)

Mandrin porte-foret (13VLA)

Raccord de mandrin (D) (Tige SDS Plus)

Clé de mandrin

Line drawing of a mechanical component with internal slots and mounting holes (no text or symbols)

Technical line drawing of a twist drill bit with two different end caps (no text or symbols)

Simple line drawing of a cylindrical object and a plus sign (no text or symbols)

Line drawing of a mechanical component with internal slots and mounting holes (no text or symbols)

Technical illustration of a twist drill bit and a rectangular tool (no text or symbols)

Anker formaat

W1/4"W5/16"W3/8"

Ankerstellingsadapter (voor electrische boorhamer) (SDS Plus schacht)

○Ankerstellingsadapter (voor normale hamer)

Anker formaat

W1/4"

W5/16"

W3/8"

W1/2"

W5/8"

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a twist drill bit with two different end profiles (no text or symbols)

Medida de ancla

W1/4"

W5/16"

W3/8"

W1/2"

W5/8"

Three mechanical components: a threaded screw, a gear-like component with teeth, and a cylindrical pin (no text or symbols)

Tornillo especial

Portabrocas (13LVR)

Adaptador del portabrocas (G) (SDS plus vástago)

Two mechanical component diagrams: a cylindrical motor and a threaded pin, both without any text or symbols.

Portabrocas (13VLA)

Adaptador del portabrocas (D) (SDS plus vástago)

Line drawing of a mechanical component with internal slots and housing (no text or symbols)

Technical line drawing of a twist drill bit and a rectangular tool (no text or symbols)

Broca (cabo cônico)

Broca

Diâmetro externo

11,0 mm

12,3 mm

12,7 mm

14,3 mm

14,5 mm

17,5 mm

21,5 mm

Tamanho da âncora

W1/4"

W5/16"

W3/8"

W1/2"

W5/8"

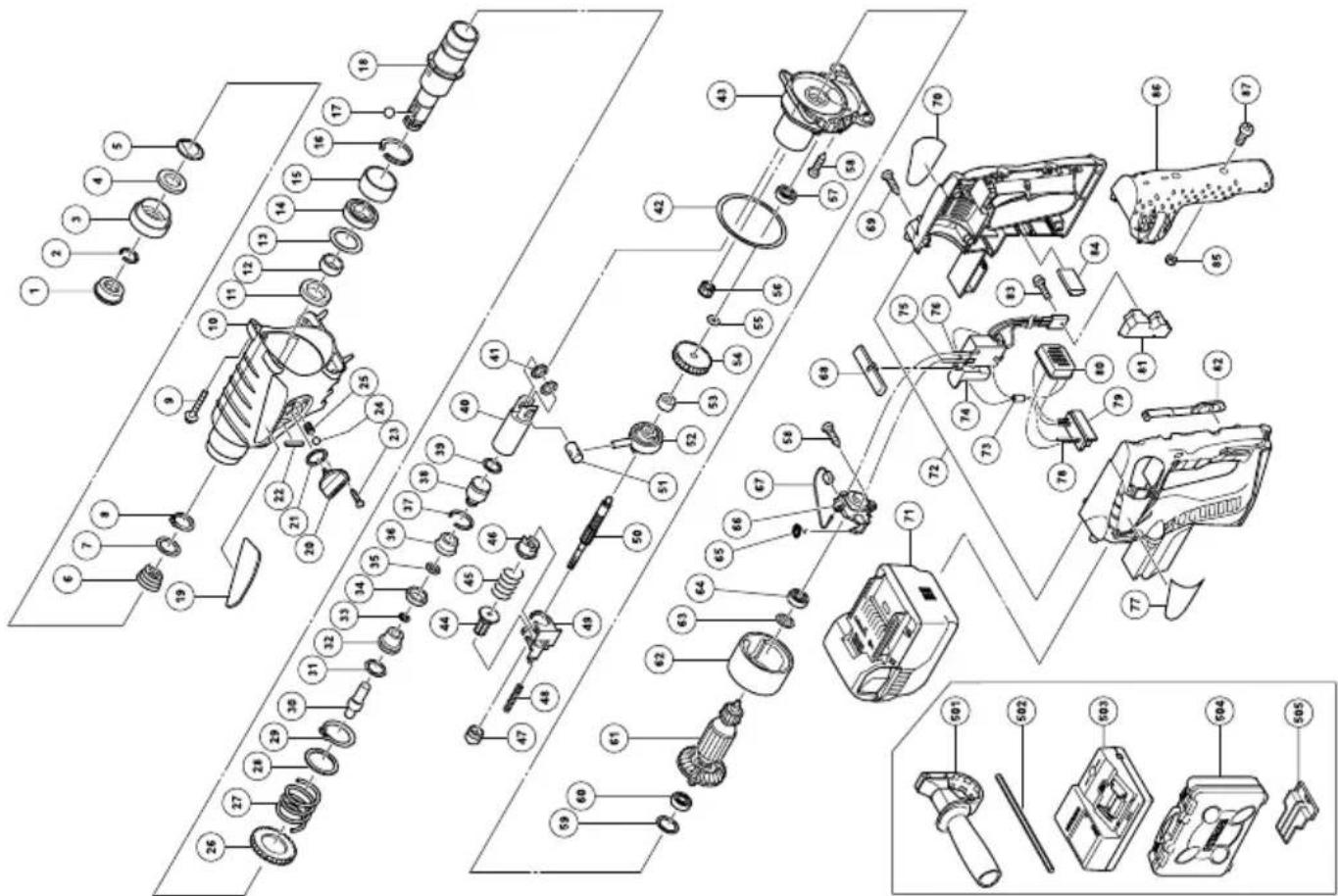

DH25DAL

Item No.	Part Name Q'TY
48 SPRING (C) 1
49 LOCK PLATE		1
50 SECOND SHAFT (A)		1
51 PISTON PIN 1
52 RECIPROCATING BEARING		1
53 COLLAR		1
54 FIRST GEAR		1
55 SPACER		1
56 PINION		1
57 BALL BEARING 626VVC2PS2L		1
58	TAPPING SCREW (W/FLANGE) D4×16	4
59 C-RING (P-22)		1
60 BALL BEARING 608DDC2PS2L		1
61	ARMATURE AND PINION ASS'Y (INCLUD.55,59,62,63)	1
62 MAGNET 1
63 WASHER (A)		1
64 BALL BEARING 608DDC2PS2L		1
65 SPRING		2
66 BRUSH HOLDER		1
67 CARBON BRUSH		2
68 PUSHING BUTTON		1
69	TAPPING SCREW (W/FLANGE) D4×20	6
70 NAME PLATE		1
71 BATTERY BSL2530		2
72 HOUSING (A).(B) SET		1
73 FERRITE CORE		1
74 DC-SPEED CONTROL SWITCH		1
75 INTERNAL WIRE (RED)		1
76 INTERNAL WIRE (BLACK)		1
77 HITACHI LABEL		1
78 INTERNAL WIRE		1
79 BATTERY TERMINAL		1
80 CONTROLLER		1
81 HEAT SINK		1
82 SHIFT KNOB 1
83	MACHINE SCREW (W/WASHERS) M3×12	1
84 RUBBER HOLDER		1
85 NUT M4		2
86 GRIP COVER 1
87 MACHINE SCREW M4 ×8		2
501	SIDE HANDLE	1
502	DEPTH GAUGE	1
503	CHARGER (MODEL UC36YRL)	1
504	CASE	1
505	BATTERY COVER	1

Item No.	Part Name Q'TY
1 FRONT CAP 1
2 STOPPER RING 1
3 GRIP 1
4 BALL HOLDER 1
5 HOLDER PLATE 1
6 HOLDER SPRING 1
7 WASHER (B) 1
8 RETAINING RING FOR D20 SHAFT 1
9 TAPPING SCREW (W/FLANGE) D5×25		4
10 GEAR COVER (A) 1
11 OIL SEAL 1
12 SLEEVE 1
13 FELT PACKING (B) 1
14 BALL BEARING 6904DDPS2L 1
15 SLEEVE (A) 1
16 RETAINING RING 37MM		1
17 STEEL BALL D7.0		1
18 CYLINDER		1
19 HITACHI PLATE		1
20 CHANGE LEVER (A)		1
21 O-RING (S-18)		1
22 FELT PACKING		1
23 TAPPING SCREW D2.6 ×10		1
24 STEEL BALL D3.97		1
25 SPRING (H)		1
26 SECOND GEAR		1
27 SPRING (A)		1
28 WASHER (A)		1
29 RETAINING RING D30		1
30 SECOND HAMMER		1
31 O-RING (1AP-20)		1
32 HAMMER HOLDER		1
33 O-RING (B)		1
34 DAMPER (A)		1
35 O-RING (C)		1
36 DAMPER HOLDER		1
37 STOPPER RING 1
38 STRIKER		1
39 O-RING (I.D. 16)		1
40 PISTON 1
41 WASHER (C) 2
42 O-RING (I.D. 72)		1
43 INNER COVER ASS'Y (INCLUD.56)		1
44 SECOND PINION		1
45 CLUTCH SPRING		1
46 CLUTCH		1
47 PINION SLEEVE		1

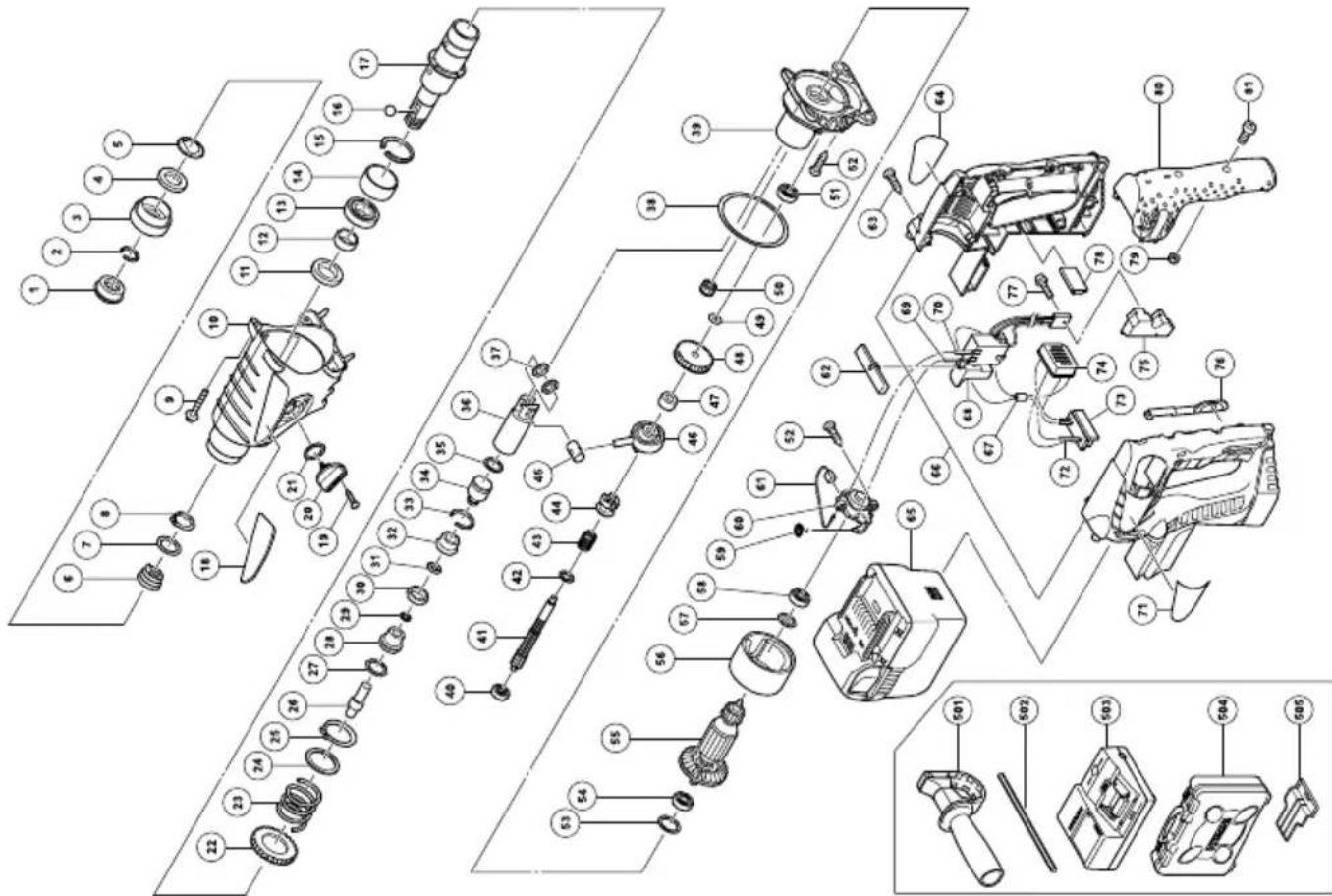

DH36DL

Item No.	Part Name Q'TY
46	RECIPROCATING BEARING	1
47	COLLAR	1
48	FIRST GEAR	1
49	SPACER	1
50	PINION	1
51	BALL BEARING 626VVC2PS2L	1
52	TAPPING SCREW (W/FLANGE) D4×16	4
53	O-RING (P-22)	1
54	BALL BEARING 608DDC2PS2L	1
55	ARMATURE AND PINION ASS'Y (INCLUD.50,54,57,58)	1
56	MAGNET	1
57	WASHER (A)	1
58	BALL BEARING 608DDC2PS2L	1
59	SPRING	2
60	BRUSH HOLDER 1
61	CARBON BRUSH	2
62	PUSHING BUTTON	1
63	TAPPING SCREW (W/FLANGE) D4×20	6
64	NAME PLATE	1
65	BATTERY BSL3626	2
66	HOUSING (A).(B) SET	1
67	FERRITE CORE	1
68	DC-SPEED CONTROL SWITCH	1
69	INTERNAL WIRE (RED)	1
70	INTERNAL WIRE (BLACK)	1
71	HITACHI LABEL	1
72	INTERNAL WIRE 1
73	BATTERY TERMINAL	1
74	CONTROLLER	1
75	HEAT SINK	1
76	SHIFT KNOB	1
77	MACHINE SCREW (W/WASHERS) M3×12	1
78	RUBBER HOLDER	1
79	NUT M4	2
80	GRIP COVER	1
81	MACHINE SCREW M4 ×8	2
501	SIDE HANDLE	1
502	DEPTH GAUGE	1
503	CHARGER (MODEL UC36YRL)	1
504	CASE	1
505	BATTERY COVER	1

Item No.	Part Name Q'TY
1 FRONT CAP 1
2 STOPPER RING 1
3 GRIP 1
4 BALL HOLDER 1
5 HOLDER PLATE 1
6 HOLDER SPRING 1
7 WASHER (B) 1
8 RETAINING RING FOR D20 SHAFT 1
9 TAPPING SCREW (W/FLANGE)D5×25		4
10 GEAR COVER (A) 1
11 OIL SEAL 1
12 SLEEVE 1
13 BALL BEARING 6904DDPS2L 1
14 SLEEVE (A) 1
15 RETAINING RING 37MM 1
16 STEEL BALL D7.0		1
17 CYLINDER		1
18 HITACHI PLATE		1
19 TAPPING SCREW D2.6 ×10		1
20 CHANGE LEVER (A)		1
21 O-RING (S-18)		1
22 SECOND GEAR		1
23 SPRING (A)		1
24 WASHER (A)		1
25 RETAINING RING D30		1
26 SECOND HAMMER		1
27 O-RING (1AP-20)		1
28 HAMMER HOLDER		1
29 O-RING (B)		1
30 DAMPER (A)		1
31 O-RING (C)		1
32 DAMPER HOLDER		1
33 STOPPER RING 1
34 STRIKER		1
35 O-RING (I.D. 16)		1
36 PISTON 1
37 WASHER (C) 2
38 O-RING (I.D. 72)		1
39 INNER COVER ASS'Y (INCLUD.51)		1
40 BALL BEARING 608DDC2PS2L		1
41 SECOND SHAFT (A)		1
42 WASHER (B) 1
43 CLUTCH SPRING		1
44 CLUTCH		1
45 PISTON PIN 1

DH36DAL

Item No.	Part Name Q'TY
48 SPRING (C) 1
49 LOCK PLATE		1
50 SECOND SHAFT (A)		1
51 FISTON PIN 1
52 RECIPROCATING BEARING		1
53 COLLAR		1
54 FIRST GEAR		1
55 SPACER		1
56 FINION		1
57 BALL BEARING 626VVC2PS2L		1
58	TAPPING SCREW (W/FLANGE) D4×16	4
59 O-RING (P-22)		1
60 B	BALL BEARING 608DDC2PS2L	1
61	ARMATURE AND PINION ASS'Y (INCLUD.55,59,62,63)	1
62 MAGNET 1
63 WASHER (A)		1
64 B	BALL BEARING 608DDC2PS2L	1
65 SPRING		2
66 BRUSH HOLDER		1
67 CARBON BRUSH		2
68 PUSHING BUTTON		1
69	TAPPING SCREW (W/FLANGE) D4×20	6
70 NAME PLATE		1
71 B	ATTERY BSL3626	2
72 HOUSING (A).(B) SET		1
73 F	ERRITE CORE	1
74 DC-SPEED CONTROL SWITCH		1
75 INTERNAL WIRE (RED)		1
76 INTERNAL WIRE (BLACK)		1
77 HITACHI LABEL		1
78 INTERNAL WIRE		1
79 B	TATTERY TERMINAL	1
80 CONTROLLER		1
81 HEAT SINK		1
82 SHIFT KNOB 1
83	MACHINE SCREW (W/WASHERS) M3×12	1
84 R	UBBER HOLDER	1
85 N	UT M4	2
86 GRIP COVER 1
87 MACHINE SCREW M4×8		2
501	SIDE HANDLE	1
502	DEPTH GAUGE	1
503	CHARGER (MODEL UC36YRL)	1
504	CASE	1
505	BATTERY COVER	1

Item No.	Part Name Q'TY
1 FRONT CAP 1
2 STOPPER RING 1
3 GRIP 1
4 BALL HOLDER 1
5 HOLDER PLATE 1
6 HOLDER SPRING 1
7 WASHER (B) 1
8 RETAINING RING FOR D20 SHAFT 1
9 TAPPING SCREW (W/FLANGE)D5×25		4
10 GEAR COVER (A) 1
11 OIL SEAL 1
12 SLEEVE 1
13 FELT PACKING (B) 1
14 BALL BEARING 6904DDPS2L 1
15 SLEEVE (A) 1
16 RETAINING RING 37MM		1
17 STEEL BALL D7.0		1
18 CYLINDER		1
19 HITACHI PLATE		1
20 CHANGE LEVER (A)		1
21 O-RING (S-18)		1
22 FELT PACKING		1
23 TAPPING SCREW D2.6×10		1
24 STEEL BALL D3.97		1
25 SPRING (H)		1
26 SECOND GEAR		1
27 SPRING (A)		1
28 WASHER (A)		1
29 RETAINING RING D30		1
30 SECOND HAMMER		1
31 O-RING (1AP-20)		1
32 HAMMER HOLDER		1
33 O-RING (B)		1
34 DAMPER (A)		1
35 O-RING (C)		1
36 DAMPER HOLDER		1
37 STOPPER RING 1
38 STRIKER		1
39 O-RING (I.D. 16)		1
40 PISTON 1
41 WASHER (C) 2
42 O-RING (I.D. 72)		1
43 INNER COVER ASS'Y (INCLUD.56)		1
44 SECOND PINION		1
45 CLUTCH SPRING		1
46 CLUTCH		1
47 PINION SLEEVE		1

Line drawing of a quill pen with inkwell, no text or symbols present

English		Nederlands
GUARANTEE CERTIFICATE1Model No.2Serial No.3Date of Purchase4Customer Name and Address5Dealer Name and Address(Please stamp dealer name and address)		GARANTIEBEWIJS1Modelnummer2Serienummer3Datum van aankoop4Naam en adres van de gebruiker5Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)
Deutsch		Español
GARANTIESCHEIN1Modell-Nr.2Serien-Nr.3Kaufdaturn4Name und Anschrift des Kunden5Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		CERTIFICADO DE GARANTIA1Número de modelo2Número de serie3Fecha de adquisición4Nombre y dirección del cliente5Nombre y dirección del distribudor(Se ruega poner el sellú del distribudor con su nombre y dirección)
Français Português
CERTIFICAT DE GARANTIE1No. de modèle2No. de série3Date d'achat4Nom et adresse du client5Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		CERTIFICADO DE GARANTIA1Número do modelo2Número do série3Data de compra4Nome e morada do cliente5Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)
Italiano
CERTIFICATO DI GARANZIA1Modello2N° di serie3Data di acquisto4Nome e indirizzo dell'acquirente5Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)

HITACHI

1
2
3
4
5

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen with inkwell, no text or symbols present

Hitachi Power Tools Europe GmbH

Siemensring 34, 47877 willich 1, F. R. Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.de

Hitachi Power Tools Netherlands B. V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.nl

Hitachi Power Tools (U. K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ, United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.co.uk

Hitachi Power Tools France S. A. S.

Prac del' Eglantier 22, rue des Crerisiers Lisses, C. E. 1541,

91015 EVRY CEDEX, France

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.fr

Hitachi Power Tools Belgium N.V. / S.A.

Koningin Astridlaan 51, 1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hitachi-powertools.be

Hitachi Fercad Power Tools Italia S.p.A

Via Retrone 49-36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.it

Hitachi Power Tools Iberica, S.A.

C / Migjorn, s/n, Poligono Norte, 08226 Terrassa, Barcelona, Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.es
