1 Introduction

1.1 Introduction

Serial number:

PIN code:

The serial number is on the product rating plate and on the product carton.

- Use the serial number to register your product on www.husqvarna.com.

1.2 Support

For support about the product, speak to your Husqvarna servicing dealer.

1.2.1 Complete Operator's Manual

A complete operator's manual is available on Husqvarna's website www.husqvarna.com. It is more in detail about e.g. instructions about installation, maintenance, troubleshooting and menu structure.

1.2.2 Product description

Note: Husqvarna regularly updates the appearance and function of the products. Refer to Support on page 2.

The product is a robotic lawn mower. The product has a battery power source and cuts the grass automatically. Collection of grass is not necessary.

The operator selects the operation settings with the buttons on the keypad. The display shows the selected and possible operation settings, and the operating mode of the product.

The boundary wire and the guide wire control the movement of the product within the work area.

1.2.2.1 Automower® Connect

Automower® Connect is a mobile application that makes it possible to select the operation settings remotely. Refer to Connectivity on page 19.

1.3 Capacity

How big an area the product can keep cut depends primarily on the condition of the blades and the type, growth and moisture of the grass. The shape of the yard is also significant. If the yard mainly consists of open lawn areas, the product can mow more per hour than if the yard consists of several small lawns separated by trees, flower beds and passages. For working capacity, refer to Technical data on page 25.

It is recommended to allow the product to mainly mow in dry weather to obtain the best possible result. The product can also mow in rain, however wet grass easily sticks on the product and there is a greater risk of slipping in steep slopes. The blades must be in good condition to obtain the best mowing result. In order to keep the blades sharp for as long as

possible it is important to keep the lawn free from branches, small stones and other objects. Replace the blades regularly. Refer to Replace the blades on page 22.

1.4 Movement pattern

The movement pattern of the product is random. This means that the lawn is mown evenly without any mowing lines.

Diagram of a mechanical or electrical component with internal geometric lines and a circular inset (no text or symbols)

1.5 Working method

Automower® 315X/430X/450X use GPS-assisted navigation to start mowing in a place in the yard where it has not been lately. For the other models you might have to set remote start settings to make sure that the lawn is cut evenly, refer to the complete Operator's Manual on Husqvarna's website.

When the product hits an obstacle or approaches the boundary wire the product reverses and selects a new direction. Sensors at the front and back will sense when the product is approaching the boundary wire. The front always passes the boundary wire by a specific distance before the product turns around. The distance can be changed to adapt to the installation if required.

Line drawing of a grassy robotic lawn mower with dashed guide lines (no text or symbols)

The STOP button on the top of the product is mainly used to stop the product when it's running. When the STOP button is pushed a hatch opens, behind which there is a control panel. The STOP button remains pushed in until the hatch is closed again. This together with the START button acts as a start inhibitor.

Line drawing of a robotic car with an arrow pointing to the side panel (no text or symbols present)

Note: Always push the START button before closing the hatch to start the product. If the START button is not pushed, a message beep is heard and the product will not start.

Note: When the product is started for the first time, a start-up sequence begins which includes a number of important basic settings, refer to To do the basic settings in the complete Operator's Manual on Husqvarna's website.

1.6 Finding the charging station

The Automower® 305/310/315/315X/420/430X/440/450X can be set to search for the charging station in up to 3 different ways. The product automatically combines these 3 search methods to locate the charging station as fast as possible, but also to avoid as much tracks forming as possible. Automower® 105 always follows the guide wire to the charging station.

1.7 Product overview Automower® 105

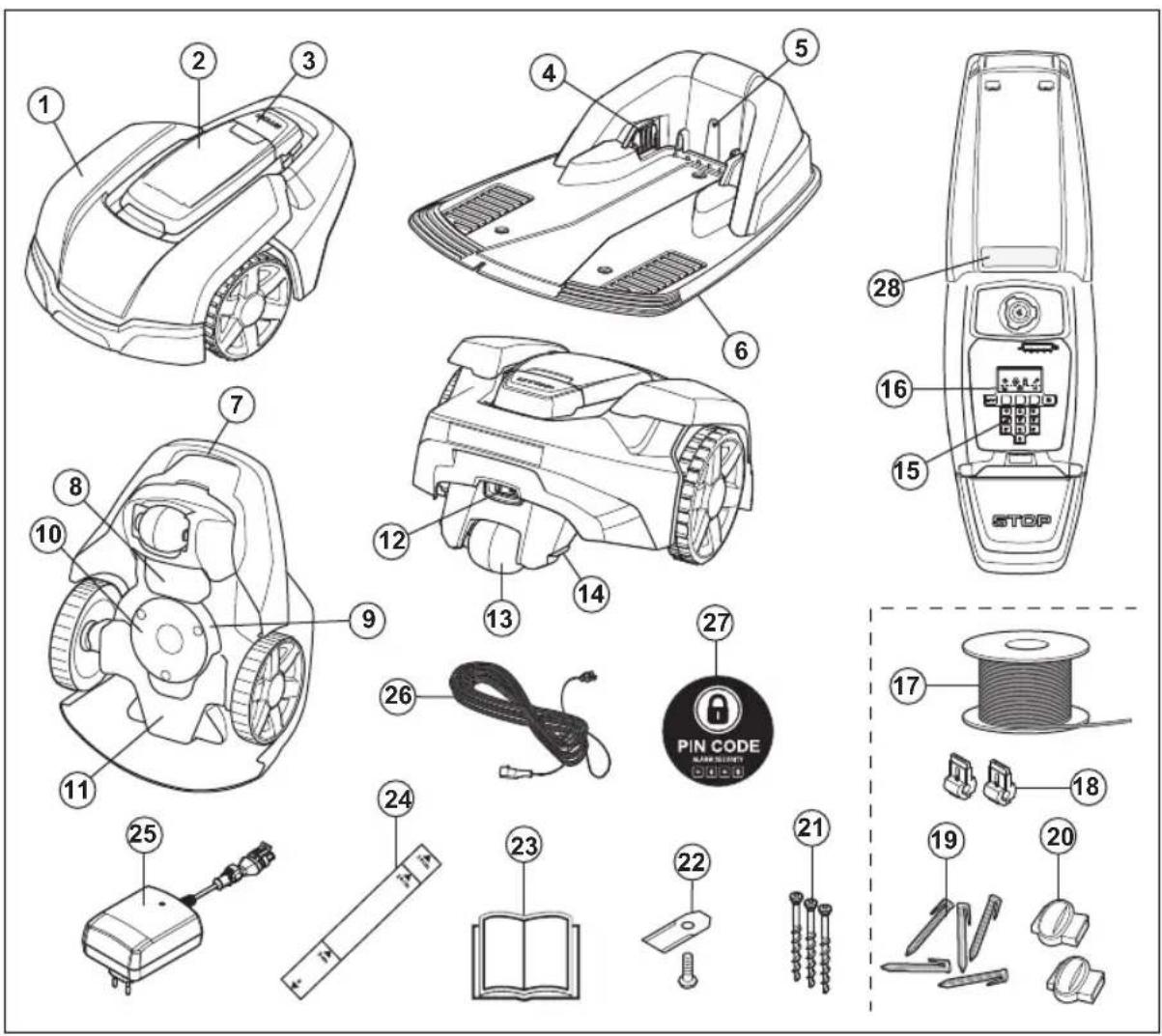

Exploded diagram of a mobile phone control system with numbered components and a 'PIN CODE' label

The numbers in the figure represent:

1. Body
2. Hatch to display, keypad and cutting height adjustment
3. Stop button
4. Contact plates
5. LED for operation check of the charging station, boundary wire and guide wire
6. Charging station
7. Handle
8. Battery cover
9. Blade disc

10. Skid plate

11. Chassis box with electronics, battery and motors

12. Main switch
13. Rear wheel
14. Charging plates
15. Keypad
16. Display
17. Loop wire for boundary loop and guide wire
18. Connectors for the loop wire
19. Stakes
20. Couplers for the loop wire

21. Screws for securing the charging station

22. Blades

23. Operator's Manual and Quick Guide
24. Measurement gauge when installing the boundary wire (the measurement gauge is broken loose from the box)

25. Power supply (the appearance may differ depending on market)

26. Low voltage cable

27. Alarm decal
28. Rating plate (incl. product identification code)

1.8 Product overview Automower® 305

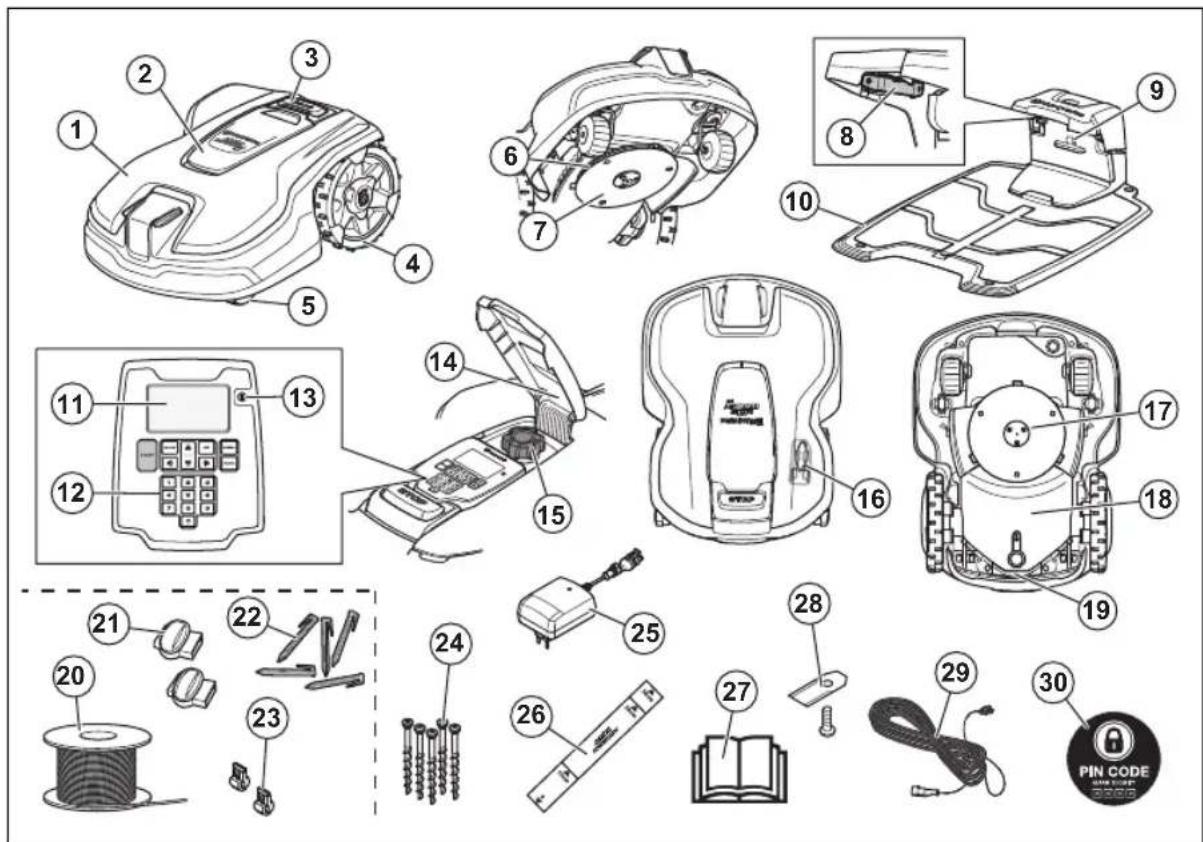

Exploded view diagram of a robotic device with numbered parts and labeled parts, including control panel, motor, and cable.

The numbers in the figure represent:

1. Body
2. Hatch to keypad, display and cutting height adjustment
3. Stop button
4. Rear wheels
5. Front wheels
6. Blade disc
7. Skid plate
8. Contact plates

9. LED for operation check of the charging station and boundary wire

10. Charging station

11. Display
12. Keypad
13. ON/OFF button
14. Rating plate (incl. product identification code)
15. Cutting height adjustment
16. Maintenance tool
17. Cutting system
18. Chassis box with electronics, battery and motors

19. Handle

20. Loop wire for boundary loop and guide wire ^1

21. Couplers for the loop wire ^2
22. Stakes 3
23. Connectors for the loop wire 4
24. Screws for securing the charging station

25. Power supply (the appearance may differ depending on market)

26. Measurement gauge when installing the boundary wire (the measurement gauge is broken loose from the box)

27. Operator's Manual and Quick Guide
28. Extra blades
29. Low voltage cable
30. Alarm decal

1.9 Product overview Automower® 310/315/315X

Exploded view diagram of a robotic device with numbered parts and a PIN CODE tag

The numbers in the figure represent:

1. Body
2. Hatch to cutting height adjustment
3. Hatch to display and keypad
4. Stop button
5. Replaceable cover

6. Rear wheels

7. Front wheels

8. Cutting height adjustment
9. Contact plates
10. LED for operation check of the charging station and boundary wire

11. Charging station

12. Rating plate (incl. product identification code)

13. Display
14. Keypad
15. Cutting system
16. Chassis box with electronics, battery and motors
17. Handle
18. Main switch
19. Blade disc
20. Skid plate
21. Power supply (the appearance may differ depending on market)

22. Loop wire for boundary loop and guide wire ^5

23. Couplers for the loop wire ^6

24. Stakes 7
25. Connectors for the loop wire 8
26. Screws for securing the charging station
27. Measurement gauge when installing the boundary wire (the measurement gauge is broken loose from the box)
28. Operator's Manual and Quick Guide
29. Extra blades
30. Low voltage cable
31. Alarm decal

1.10 Product overview Automower® 420/430X/440/450X

Automower 420/440 Automower 430X Automower 450X 1 2 3 4 5 6 7 8 9 10 11 STOP 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 30 31 32 33

The numbers in the figure represent:

1. Body
2. Hatch to display and keypad
3. Stop button
4. Front wheels
5. Rear wheels
6. Ultrasonic sensors
7. Headlights
8. Replaceable cover
9. Rating plate (incl. product identification code)
10. Display
11. Keypad
12. Cutting system

13. Chassis box with electronics, battery and motors

14. Main switch

15. Handle
16. Blade disc
17. Skid plate
18. Contact plates
19. LED for operation check of the charging station and boundary wire
20. Charging station
21. Power supply (the appearance may differ depending on market)
22. Cable markers
23. Measurement gauge when installing the boundary wire (the measurement gauge is broken loose from the box)
24. Screws for securing the charging station

25. Operator's Manual and Quick Guide

26. Alarm decal

27. Extra blades
28. Low voltage cable
29. Couplers for the loop wire 9
30. Loop wire for boundary loop and guide wire ^10
31. Stakes 11
32. Connectors for the loop wire ^12

1.11 Symbols on the product

These symbols can be found on the product. Study them carefully.

WARNING: Read the user instructions before operating the product.

WARNING: Disable the product before working on or lifting the machine.

WARNING: Keep a safe distance from the machine when operating. Keep your hands and feet away from the rotating blades.

WARNING: Do not ride on the machine. Never put your hands or feet close to or under the machine.

Never use a high-pressure washer or even running water to clean the product.

Use a detachable power supply as defined on the rating label next to the symbol.

This product conforms to the applicable EC Directives.

Noise emission to surroundings. The product's emissions are set out in Technical data on page 25 and on the rating plate.

It is not permitted to dispose this product as normal household waste. Ensure that the product is recycled in accordance with local legal requirements.

The chassis contains components which are sensitive to electrostatic discharge (ESD). The chassis must also be resealed in a professional manner. For these reasons the chassis shall only be opened by authorized service technicians. A broken seal can result in the entire or parts of the guarantee no longer being valid.

The low voltage cable must not be shortened, extended or spliced.

Do not use a trimmer nearby the low voltage cable. Be careful when trimming edges where the cables are placed.

1.12 Symbols on the battery

Read the user instructions.

Do not discard the battery into fire and do not expose the battery to a heat source.

Do not immerse the battery into water.

1.13 General manual instructions

The following system is used in the Operator's Manual to make it easier to use:

- Text written in italics is a text that is shown on the display of the product or is

a reference to another section in the Operator's Manual.

• Text written in bold is one of the buttons on the keypad of the product.

- Text written in UPPERCASE and italics refer to the different operating modes available in the product.

2 Safety

2.1 Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

2.1.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE

The operator is responsible for accidents or hazards occurring to other people or property.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Local regulations

may restrict the age of the operator. Cleaning and maintenance shall not be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is damaged. Worn or damaged cord increase the risk of electric shock.

Only charge the battery in the included charging station. Incorrect use may result in electric shock, overheating or leaking of corrosive liquid from the battery. In the event of leakage of electrolyte, flush with water/neutralizing agent. Seek medical help if it comes in contact with the eyes.

Use only original batteries recommended by the manufacturer. Product safety cannot be guaranteed with other than original batteries. Do not use non-rechargeable batteries.

The appliance must be disconnected from the supply mains when removing the battery.

WARNING: The product can be dangerous if used incorrectly.

product when the motor is running.

WARNING: Do not use the product when persons, especially children, or animals, are in the work area.

WARNING: In the event of an injury or accident seek medical help.

WARNING: Keep your hands and feet away from the rotating blades. Never put your hands or feet close to or under the

2.2 Use

• The product may only be used with the equipment recommended by the manufacturer. All other types of use are incorrect. The manufacturer's instructions with regard to operation/maintenance and repair must be followed precisely.

- Warning signs shall be placed around the work area if the product is used in public areas. The signs shall have the following text: Warning! Automatic lawn mower! Keep away from the machine! Supervise children!

I am a robotic lawnmower and I work have quickly to keep the lawn in perfect condition. I work 247 independently of weather conditions and on it without receiving any enclosed emissions. Stay at all is and enjoy my work, but please to me work in people. WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

- Use the PARK function or switch off the product when persons, especially children, or animals are in the work area. It is recommended to program the product for use during hours when the area is free from activity, e.g. at night. Consider that certain species, e.g. hedgehogs, are active at night. They can potentially be harmed by the product.

- The product may only be operated, maintained and repaired by persons that are fully conversant with its special characteristics and safety regulations. Please read the Operator's Manual carefully and make sure you understand the instructions before using the product.

- It is not permitted to modify the original design of the product. All modifications are made at your own risk.

- Check that there are no foreign objects such as stones, branches, tools or toys on the lawn. If the blades hit foreign objects the blades can be damaged. Always switch off the product with the main switch or ON/OFF button before clearing a blockage. Inspect the product for damage before staring the product again.

Line drawing of a person crouching next to a small robot, with no text or symbols present.

- If the product starts to vibrate abnormally. Always switch off the product with the main switch or ON/OFF button and inspect for damage before staring the product again.

- Start the product according to the instructions. When the product is enabled with the ON/OFF button or when the main switch is set to 1 make sure to keep your hands and feet away from the rotating blades. Never put your hands and feet under the product.

- Never touch moving hazardous parts, such as the blade disc, before it has come to a complete stop.

- Never lift up the product or carry it around when it is switched on.

- The product must never be allowed to collide with persons or other living creatures. If a person or other living creature comes in the product's way it shall be stopped immediately.

- Do not put anything on top of the product or its charging station.

- Do not allow the product to be used with a defective guard, blade disc or body. Neither should it be used with defective blades, screws, nuts or cables. Never connect a damaged cable, or touch a damaged cable before it is disconnected from the supply.

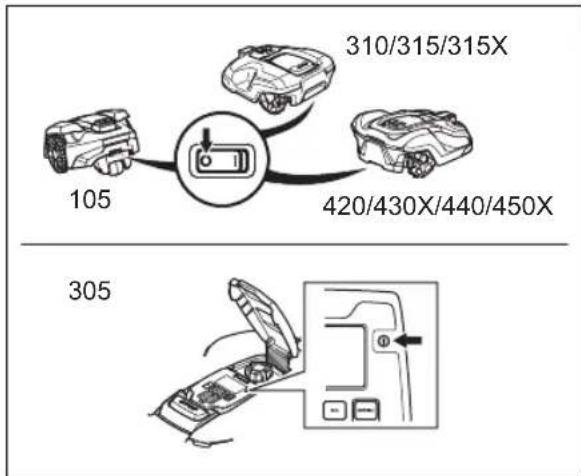

- Do not use the product if the main switch or the ON/OFF button do not work.

• Always switch off the product using the main switch or the ON/OFF button when the product is not in use. The product can only start when the main switch is set to 1, or the ON/OFF button is switched on

and the indicator lamp is lit. The correct PIN code must also be entered for the product to start.

• The product must never be used at the same time as a sprinkler. Use the Schedule function so the product and sprinkler never run simultaneously.
• Husqvarna does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.
• The built-in alarm is very loud. Be careful, especially if the product is handled indoors.
• Metal objects in the ground (for example reinforced concrete or anti-mole nets) can result in a stoppage. The metal objects can cause interference with the loop signal which then can lead to a stoppage.

• Operation and storage temperature is 0-50 °C / 32-122 °F. Temperature range for charging is 0-45 °C / 32-113 °F. Too high temperatures might cause damage to the product.

2.3 Battery safety

WARNING: Lithium-ion batteries can explode or cause fire if disassembled, short-circuited, exposed to water, fire, or high temperatures. Handle carefully, do not dismantle, open the battery or use any type of electrical/mechanical abuse. Avoid storage in direct sunlight.

For more information about the battery, refer to Battery on page 22

3 Installation

3.1 Connecting the power supply

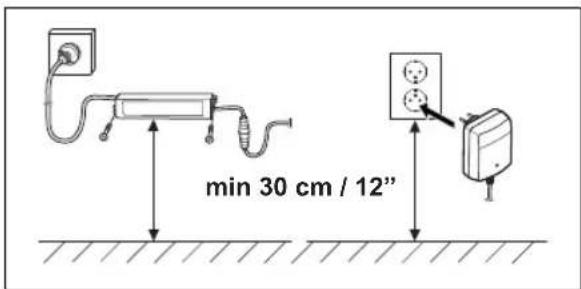

Take the following into consideration when planning where to place the power supply:

• Close to the charging station
• Protection from rain
  • Protection from direct sunlight

WARNING: The product is only to be used with a power supply unit supplied by Husqvarna.

When connecting the power supply, only use a wall socket that is connected to an earth fault-breaker (RCD).

WARNING: Risk of Electric Shock. Install only to an earth-fault breaker (RCD) when connecting the power supply to the wall socket. For USA/CANADA: Use a covered Class A GFCI receptacle (RCD) that has an enclosure that is weatherproof with

the attachment plug cap inserted or removed.

WARNING: No parts of the power supply must be changed or tampered with. The low voltage cable must not be shortened or extended.

Low-voltage cables of different lengths are available as accessories.

WARNING: The power supply cable and extension cable must be outside the work area to avoid damage to the cables.

WARNING: Do not under any circumstances mount the power supply at a height where there is a risk it can be submerged in water (at minimum 30 cm / 12" from the ground). It is not permitted to place the power supply on the ground.

min 30 cm / 12"

WARNING: Use the plug to disconnect the charging station, for instance before cleaning the charging station or repairing the loop wire.

WARNING: Place the low voltage cable and adjust the cutting height so that the blades on the blade disc can never come in contact with the cable.

WARNING: To reduce the risk of damage to electrical components, disconnect all connections to the charging station (power supply, boundary wire and guide wires) if there is a risk of a thunderstorm.

WARNING: Do not encapsulate the power supply. Condensed water can harm the power supply and increase the risk of electrical shock.

For more instructions on how to do a proper installation, refer to chapter Installation in the complete Operator's manual on Husqvarna's website www.husqvarna.com.

3.2 Control panel

All commands and settings for the product are made via the control panel. All functions are accessed via a number of menus.

The control panel consists of a display and a keypad. All information is shown on the display and all input is done using the buttons.

Note: The display texts are shown in English in the manual, but you will see the texts on the product display in the chosen language.

3.3 Display Automower® 105

When the STOP button has been pushed and the hatch is opened, the operation window appears showing the time, selected operating mode, number of mowing hours, battery status and timer setting.

AUTO 07 July | 09:26 20h | 📋 | ➕ | ⏻ MENU

• The clock shows the current time.
- Date shows the current day.
- The number of operating hours indicates the number of hours since the day of manufacture that the product has been in operation. The time that the product has spent mowing or searching for the charging station is counted as operating time.
• AUTO, MAN or HOME show which mode of operation is selected.
• The battery status shows the remaining battery charge.
• The ECO symbol is displayed if the product is set in ECO mode.
- The clock symbol indicates when the timer settings are set. The clock symbol is black when the product is not allowed to mow due to a timer setting.
- The MENU text illustrates that the main menu can be reached by pushing the

multi-choice button that is located under the text.

3.4 Keypad Automower® 105

The keypad consists of 4 groups of buttons:

• The START button is used to activate the product. This is normally the last button to be pushed before closing the hatch.
• The 3 multi-choice buttons offer various functions, depending on where in the menu structure you are.
• The number buttons are used for instance to enter the PIN code or time settings.
• The operation selection button is symbolized by a house. When the button has been pushed, the selected operation mode is shown in the display.

3.5 Display Automower®

305/310/315/315X/420/430X/440/450X

When the STOP button has been pushed and the hatch is opened, the following information is displayed:

PARKED Press start to continue 09 January | 9:26pm (私)

• Operating information, e.g. READY, MOWING, PARKED or SCHEDULE. READY is displayed if the product is not in any specific operating mode, e.g. if the product has just been switched on. If the STOP button is pushed the product displays what it did prior to the stop, e.g. MOWING or SEARCHING.
• Date and clock show the current time.

- For Automower ^ 315X/430X/450X: The satellite symbol is shown when the GPS-supported navigation is activated. Symbol (A) is shown when the symbol has made contact with a sufficient number of GPS satellites. Symbol (B) shows when the product has not made contact with a sufficient number of GPS satellites. Symbol (A) blinks during the first days the product is working, as it is collecting GPS information about the installation.

• The ECO symbol is displayed if the product is set in ECO mode.
• The black clock symbol (A) is shown when the product is not allowed to mow due to a Schedule setting. If the product is not allowed to mow due to Weather timer, symbol (B) is shown. If the operation mode Override schedule is chosen, symbol (C) is shown.

A B C

- The battery status shows the remaining battery charge. If the product is loading, a flash is also shown over the battery symbol (A). If the product is placed in the charging station without charging, (B) is shown.

A

B

• The height adjustment setting is displayed as a scale/numerical value.
• For Automower ^ Connect@Home (refer to Automower ^ Connect@Home on page 19): An icon for Bluetooth ^ wireless communication will appear in the product display when connection with your mobile device has been established.

3.6 Keypad Automower® 305/310/315/315X/420/430X/440/450X

The keypad consists of 6 groups of buttons:

• The START button is used to activate the product. This is normally the last button to be pushed before closing the hatch.
• The BACK and OK buttons are used to navigate in the menu. The OK button is also used to confirm settings.
• The arrow button are used to navigate in the menu but also to make selections in certain setting options.
• The MENU button is used to go to the main menu.
  • The PARK button is used to send the product to the charging station.
• The number buttons are used to enter settings, for example PIN code, time or exit direction.

3.7 The indicator lamp Automower® 305

The indicator lamp on the ON/OFF button is an important status indicator:

• The product is active if the indicator lamp lights continuously.
• The product is in standby if the indicator lamp flashes. This means that the operator must push the ON/OFF button to make the product active again.
• The product is disabled when the indicator lamp is not lit.

Diagram showing car interior and control panel with directional arrows and labeled buttons OK and MENU

WARNING: It is only safe to carry out inspection or maintenance on the product when the product is disabled. The product is disabled when the lamp on the ON/OFF button is not lit.

3.8 Menu structure

The main menu for Automower® 105 offers 4 options. Automower® 310 has 6 options and Automower® 305/315/315X has 7 options. The main menu for Automower® 420/430X/440/450X offers 8 options.

3.9 Submenus

There are a number of submenus under each option. You can access all the functions to set the product settings via the submenus.

Certain submenus contain options that are ticked off to the left. This means that these options are selected. Check or uncheck the box by pushing the OK button.

3.10 Browse between menus

Browse through the main menu and submenus with the help of the multi-choice buttons (Automower® 105) or the arrow buttons (Automower® 305/310/315/315X/420/430X/440/450X). Enter values and times using the number buttons and confirm each selection with the multi-choice button marked OK. Push BACK to go up a step in the menu or keep the HOME (Automower® 105) alternatively MENU (Automower® 305/310/315/315X/420/430X/440/450X)

button pushed in for 2 seconds to go directly to the main menu.

3.11 Main menu

Schedule

The lawn should not be cut too often to obtain the best mowing result. Consequently, it is important to limit the operating time using the Schedule function if the work area is less than the product's work capacity. The Schedule function is also an ideal tool to control which periods the product should not mow, for example when children are playing on the lawn.

Cutting height

Applicable for Automower® 420/430X/440/450X

The cutting height can be varied from MIN (1) to MAX (9). During the first week after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered one step every week until the desired cutting height has been reached.

Security

In this menu, settings relating to security and the connection between the product and the charging station can be made. There are 3 security levels to choose from: Low, Medium, High.

Messages

Applicable for Automower® 305/310/315/315X/420/430X/ 440/450X

Historical fault and information messages can be read in this menu. For some of the most common fault messages, there are tips and advice to help you rectify the fault.

Weather timer

Applicable for Automower® 305/315/315X/420/430X/440/450X

This function allows the product to automatically adjust its mowing times based on how much the lawn grows. When the weather is good for grass growth, the product mows more often and when grass growth is low the product automatically spends less time on the lawn.

Installation

This menu function is used to customize the installation. For many work areas there is no need to alter the factory settings, but depending on the lawn complexity the mowing result can be improved by making manual settings.

Settings

This selection allows you to make changes to the general product settings such as date and time. You can also switch on/off ECO mode and Spiral cutting, or save your settings in different Profiles (Automower® 305/315/315X/420/430X/440/450X only). Husqvarna recommends to let ECO mode be switched on to save energy and avoid interference with other equipment.

4 Operation

4.1 To switch on, stop and switch off the product

• The product can only start if it is switched on and the correct PIN code has been entered. To switch on the Automower® 305, push the ON/OFF button for 3 seconds and check that the indicator lamp is lit. To switch on all other models, set the main switch to 1.
  • To stop to product, push the STOP button on top of the product. The product stops and the blade motor stops.
• To switch off Automower ^ 305, push the ON/OFF button for 3 seconds and check that the indicator lamp is not lit. To switch off all other models, the main switch is set to 0.

4.2 Operating mode Automower® 105

Push the Operation selection button 1-3 times to select an operating mode. You can select between 3 different operating modes.

• HOME. Sends the product to the charging station. It remains here until another operation mode is selected. When the battery is fully charged, the product will not leave the charging station and begin mowing until the operation selection is altered to AUTO.
- AUTO. The standard, automatic operation mode where the product mows and charges automatically.
• MAN. When mowing secondary areas the MAN setting must be used. If MAN is selected and the product is started when it is out on the lawn, it mows until the battery runs out. It then stops and

the 'Needs manual charging' message appears. The product must then be moved manually to the charging station and then started manually after charging. If the product charges in the MANmode, it will fully charge, move about 20 cm / 8 in. out of the charging station and then stop. This indicates that it is charged and ready to start mowing.

4.3 Operating mode, START Automower® 305/310/315/315X/420/430X/440/450X

Push the START button to select one of the following operating modes:

• Main area: The standard operating mode where the product mows and charges automatically.

CLOSE HATCH TO START ◎ Main area ○ Secondary area► ○ Override schedule► ○ Spot cutting►

• Secondary area: When mowing secondary areas this setting must be chosen.

In the Secondary area mode, the operator must move the product manually between the main area and the secondary area. The product mows until the battery is empty. When the battery is charged, the product moves out of the charging station and stops. The product is now prepared to start operation, but needs confirmation from the operator first.

Note: If you want to cut the main area after the battery is charged, set the product to Main area mode before placing it in the charging station.

- Override Schedule: Any Schedule settings made can be temporarily overridden by selecting Override schedule. It is possible to override the Schedule for 24 h or 3 days.

- Spot Cutting: (Not available for Automower® 310). The product works in a spiral pattern to cut the grass where it has been mown less than in other parts of the lawn.

The Spot Cutting function is activated with the START button. You can select how the product should continue to work once mowing is finished by pushing the right arrow button and then specifying Main Area or Secondary Area.

4.4 Operating mode, PARK Automower® 305/310/315/315X/420/430X/440/450X

Push the PARK button to select one of the following operating modes:

CLOSE HATCH TO PARK in charging station

Park until further notice
○ Start again in 3 hours
○ Start w. schedule Mon 00:00

- Park until further notice: The product stays in the charging station until another operating mode is selected by pushing the START button.

- Start again in 3 hours: The product stays in the charging station for three hours and then automatically returns to normal operation. This operation mode is suitable when there is a need to pause operation, e.g. for temporary irrigation or for games on the lawn.

- Start with schedule: The product stays in the charging station until the next schedule setting permits operation. This operating mode is suitable if one wishes to cancel an ongoing mowing cycle and allow the product to stay in the charging station until the next day. This option is not displayed if there are no schedule settings.

4.5 Connectivity

You can communicate with your product through the mobile application Automower® Connect. Automower® Connect is available for your mobile device and tablet (Apple or Android). With Automower® Connect activated, new icons will be displayed on the product's display. For more detailed information, refer to complete Operator's manual.

Note: All countries do not support Automower® Connect because of legal reasons and regional specified cellular systems. The included Automower® Connect lifetime service only applies if there is a third part sub-supplier of 2G/3G/4G available in the operational area. In some countries Bluetooth® is not available due to legal reasons.

4.5.1 Automower® Connect

Automower® Connect is included in Automower® 315X/430X/450X and available as accessory for Automower® 305/310/315/420/440.

Automower® Connect brings the menu system to your mobile device, making it easy to read and change the product settings remotely. Through this application, you can receive the product's current status and send commands to the product from anywhere in the world. In case of theft, you get an alarm and are be able to track your product's position.

4.5.2 Automower® Connect@Home

Included in Automower® 305/310/315/315X/420/430X/440/450X.

Automower® Connect@Home uses a short-range Bluetooth® wireless technology. This means that you can communicate between the smartphone and the product as long as you are within communication range. An icon for Bluetooth communication will appear in the product display when connection with your smartphone has been established.

Note: Automower® Connect@Home has similar but not as extensive functionality as Automower® Connect, and uses the same app.

4.5.3 Getting started

Download the Automower® Connect app (also applicable for Automower® Connect@Home) from AppStore or GooglePlay. Once you have downloaded the app, you can specify an e-mail address and a password to create an account. You will receive a validation e-mail to the e-mail address you specified. Follow the instructions in the e-mail within 24 hours to validate your account. If not validated within 24 hours, you will have to create your account again. When the account has been created in the app you can pair the product and your smartphone.

4.5.4 Pair with Automower® Connect

Select the function Accessories > Automower Connect > Pairing > New pairing When the app prompts you to do so, enter the 6-digit code shown on the product display. Also enter your chosen name of the product into the app. Automower® Connect is always connected to your product as long as the mobile device have contact with the mobile network and the product is charged and the product is switched on.

4.5.5 Pair with Automower® Connect@Home

Activate Bluetooth® wireless communication on your smartphone. Select the function Accessories > Connect@Home> New pairing and follow the instructions in the app. After pairing your product and smartphone they will automatically connect each time you get into range. If you want to connect to the product without having an account you can still use Automower® Connect@Home by selecting Automower® Direct in the start-up screen in the app.

4.6 Adjusting the cutting height

If the grass is long, let the product start mowing at the MAX cutting height. Once the grass is shorter, you can gradually lower the cutting height.

CAUTION: During the first week after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered one step every week until the desired cutting height has been reached.

4.6.1 Automower® 105

The cutting height can be varied from MIN (2 cm / 0.8") to MAX (5 cm / 2.0"). To adjust the cutting height:

1. Push the STOP button to stop the product. Then open the hatch.
2. Turn the height adjustment knob to the required position. The selected position is indicated by the orange column on the height adjustment indicator.

Diagram of a vehicle air conditioner panel with control buttons and airflow direction indicator

4.6.2 Automower® 305/310/315/315X

The cutting height can be varied from MIN (2 cm / 0.8") to MAX (6 cm / 2.4") in 9 steps.

1. Push the STOP button to stop the product and open the cutting height adjustment hatch.

2. Turn the knob to the required position. Turn clockwise to increase and counterclockwise to decrease the cutting height. The arrow aligns with the selected position marked on the body.

310/315/315X305

4.6.3 Automower® 420/430X/440/450X The cutting height can be varied from MIN to MAX in 9 steps.

1. Push the STOP button to stop the product and open the hatch.
2. Push the MENU button to access the main menu.
3. Move the cursor using the up/down arrow buttons to select menu Cutting height.
4. Push OK.
5. Increase/Decrease the cutting height with the arrow buttons.

5 Maintenance

5.1 Cleaning

For better operation and longer service life, make sure to clean the product regularly and replace worn parts. The product does not operate satisfactorily in slopes if the wheels are blocked with grass. Use a soft brush to clean the product.

Husqvarna offers a special cleaning and maintenance kit as an accessory. Contact your local Husqvarna representative.

WARNING: Wear protective gloves.

WARNING: Switch off the product with the main switch or the ON/OFF button when you turn the product upside down.

Switch off the product during all work on the chassis of the product, such as cleaning or replacing the blades.

WARNING: Use the plug to disconnect the charging station before maintenance, or cleaning of

the charging station or power supply.

CAUTION: Push the STOP button and pull the product out of the charging station before lifting it. Do not lift the product when it is parked in the charging station. This can damage the charging station and/or the product.

5.1.1 Cleaning Automower® 105/310/315/315X/420/430X/440/450X

CAUTION: Do not use a high-pressure washer or running water to clean the product. Do not use solvents to clean the product.

5.1.2 Cleaning Automower® 305

Clean the product with a brush or running water from a water hose.

CAUTION: Do not use a high-pressure washer to clean the product. Do not use solvents to clean the product.

5.2 Battery

WARNING: Only charge the product using a charging station and power supply which is intended for it. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. In the event of leakage of electrolyte flush with water and seek medical help if it comes in contact with the eyes etc.

WARNING: Use only original batteries recommended by the manufacturer. Product safety cannot be guaranteed with other batteries. Do not use non-rechargeable batteries.

CAUTION: The battery must be charged fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless.

The charging time can vary depending on, among other factors, the ambient temperature.

Below indicates that the battery is getting old and eventually needs replacing:

• The operating time for the product is shorter than normal between charges. This leads to more charging cycles than normal, which increases the risk of tracks forming near the charging station.
• The product is found standing out on the lawn with Empty battery message. This indicates that the product does not have battery capacity enough to find the charging station.

The battery is fine as long as the product maintains a well-cut lawn.

Note: Battery life is dependent on the length of the season and how many hours a day the product is operating. A long season or many hours of use a day means that the battery must be replaced more regularly.

Contact your local Husqvarna representative to replace the battery.

5.3 Replace the blades

WARNING: Use blades and screws of the right type. Husqvarna can only guarantee safety when using original blades. Only replacing the blades and reusing the screw can result in a screw wearing during mowing. The blades can then be propelled from under the body and cause serious injury.

Replace worn or damaged parts for safety reasons. Even if the blades are intact, they should be replaced on a regular basis for the best mowing result and low energy usage. All 3 blades and screws must be replaced at the same time to obtain a balanced cutting system. Use Husqvarna original blades embossed with the crowned H-mark logotype, refer to Warranty terms on page 34.

Two technical line drawings of metal components, one with a circular hole and two small protrusions, the other with an oval cutout and two protrusions (no text or symbols)

5.4 To replace the blades

1. Switch off the product with the main switch or the ON/OFF button.
2. Turn the product upside down. Place the product on a soft and clean surface to avoid scratching the body and the hatch.
3. Rotate the skid plate so that its holes align with the screws for the blade.
4. Remove the 3 screws. Use a straight slot or cross-tip screwdriver.

5. Remove each blade and screw.

6. Fasten new blades and screws. 7. Check that the blades can pivot freely.

6 Troubleshooting

6.1 Troubleshooting

In case of malfunction, a message will appear on the display. For more detailed information on messages, refer to the complete Operator's manual on Husqvarna's website (www.husqvarna.com. If the same message appears often or if you still cannot find the reason for the fault, contact your local Husqvarna representative.

Breaks in the loop wire are usually the result of unintentional physical damage to the wire such as when gardening with a shovel. Breaks can also be due to the wire being stretched excessively during installation. A wire break can be located by gradually halving the distance of the loop where the break may have occurred, until there is only a very short section of the wire left. Refer to the complete Operator's manual on Husqvarna's website (www.husqvarna.com).

6.1.1 Indicator lamp in the charging station

For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing green light. If something else appears, follow the troubleshooting guide below.

There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna representative.

Light Cause Action
Green solid light	Good signals No action required
Green flashing light	The signals are good and ECO mode is activated.	No action required.
Blue flashing light	The boundary loop is not connected to the charging station.	Check that the boundary wire connectors are fitted properly to the charging station.
	Break in the boundary loop. Find out w	where the break is. Replace the damaged section of the loop with a new loop wire, and splice using an original coupler.
Red flashing light	Interruption in the charging station's antenna.	Contact your local Husqvarna representative.
Red solid light	Fault in the circuit board or incorrect power supply in the charging station. The fault should be rectified by an authorized service technician.	Contact your local Husqvarna representative.

7 Transportation, storage and disposal

7.1 Transportation

The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.

• Obey all applicable national regulations.
• Obey the special requirement on package and labels for commercial transportations, including by third parties and forwarding agents.

- For how to remove the battery, refer to the complete Operator's manual on www.husqvarna.com.

7.1.1 How to lift and move the product

To safely move from or within the work area:

1. Push the STOP button to stop the product. If security is set to the medium or high level the PIN code has to be entered. The PIN code contains four digits and is selected when you start the product for the first time. Refer to complete Operator's manual.
2. Switch off the product with the main switch or the ON/OFF button.

310/315/315X 420/430X/440/450X 105 305

1. Carry the product by the handle under the product with the blade disc away from the body.

105 305/310 315/315X 420/430X 440/450X

7.2 Winter storage

7.2.1 The robotic lawn mower

The product must be cleaned carefully before putting it away for the winter. Refer to Cleaning on page 21.

CAUTION: The battery must be charged fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless.

Place the product in the charging station with the hatch open until the battery icon in the display shows that the battery is fully charged. Switch off the product with the main switch or the ON/OFF button.

Check the condition of wear items such as blades and bearings in the rear wheel. Rectify if necessary to make sure the product is in good condition prior to next season.

Store the product standing on all wheels and place it in a dry, frost-free environment, preferably in the products's original packaging. You can also hang the product on a Husqvarna original wall hanger. Contact your Husqvarna representative for more information about available wall hangers.

7.2.2 The charging station

Store the charging station and power supply indoors. The boundary wire and the guide wire can be left in the ground.

1. Disconnect the charging station's power supply from the mains.

2. Release the connector lock and pull the connector out.

3. Disconnect the boundary and guide wire contacts from the charging station.

The ends of the wires should be protected from damp, for example by putting them in a container with grease.

If it is not possible to store the charging station indoors, the charging station must be connected to the mains, the boundary wire and the guide wires the entire winter.

For disassembly of the battery see the complete Operator's manual on Husqvarna's website.

For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

7.3 Environmental information

The symbol on the Husqvarna product indicates that this product cannot be treated as domestic waste. It should instead be left at a suitable recycling centre to recycle its electronic components and batteries. The battery must be removed from the product before it is scrapped.

8 Technical data

8.1 Automower® 105/305

Dimensions Automower	® 105 Automower	® 305
Length, cm / " 55 / 21.7 57 / 22.4
Width, cm / " 39 / 15.4 43 / 16.9
Height, cm / " 25 / 9.8 25 / 9.8
Weight, kg / lbs 6.9 / 15 9.4 / 21
Electrical system Automower	® 105 Automower	® 305
Battery, Lithium-Ion 18.5 V/2.1 Ah Art. No.	586 57 62-02 584 85 28-01	, 584 85 28-02
Battery, Lithium-Ion 18 V/2.0 Ah Art. No.	586 57 62-03 584 85 28-03	, 590 21 42-02, 593 11 40-01, 593 11 40-02
Battery, Lithium-Ion 18.25 V/2.0 Ah Art. No.	586 57 62-04	584 85 28-04, 590 21 42-03
Power supply, V/28 V DC 100-240 100-240
Low voltage cable length, m / ft 5 / 16.4		5 / 16.4
Mean energy consumption at maxi-mum use	5 kWh/month for a work area of 600 m^2 / 0.15 acre	5 kWh/month for a work area of 600 m^2 / 0.15 acre
Charging current, A DC 1.3 1.3
Type of Power Supply Unit FW7312, ADP-40BR ADP-40EW, ADP-40BR, FW7312
Average mowing time, min 65 60
Average charging time, min 50 60

Boundary wire antenna Automower	^ 105	Automower ^ 305
Operating Frequency Band, Hz 300-800	000 300-80000
Maximum Radio-frequency power, mW @60m ^13	<25 <25

Noise emissions measured in the environment as sound power ^14	Automower ^ 105	Automower ^ 305
Measured sound power noise level, dB (A)	58	58
Guaranteed sound power noise level, dB (A)	61	59
Sound pressure noise level at the operator's ear, dB (A) ^15	47	47
Mowing Automower	® 105 Automower	® 305
Cutting system 3 pivoted cutting blades
Blade motor speed, rpm 2900 2200
Power consumption during cutting, W +/- 20 %	20 25
Cutting height, cm / " 2-5 / 0.8-2.0 2-5 /	0.8-2.0
Cutting width, cm / " 17 / 6.7 22 / 8.7
Narrowest possible passage, cm / " 60	/ 24 60 / 24
Maximum angle for work area, % 25 40
Maximum angle for boundary wire, % 1	5 15
Maximum length boundary wire, m / ft	400 / 1300 800 / 2600
Maximum length guide loop, m / ft 200	/ 650	400 / 1300
Working capacity, m^2 / acre, +/- 20%	600 / 0.15	600 / 0.15
IP-classification	Automower® 105	Automower® 305
Robotic lawn mower	IPX4 IPX5
Charging station	IPX1 IPX1
Power supply	IPX4 IPX4

8.2 Automower ^® 310/315/315X

Dimensions	Automow-er® 310	Automow-er® 315	Automower® 315X
Length, cm / "	63 / 24.8	63 / 24.8	63 / 24.8
Width, cm / "	51 / 20.1	51 / 20.1	51 / 20.1
Height, cm / "	25 / 9.8 25 / 9.8	25 / 9.8
Weight, kg / lbs	9.2 / 20 9.2 / 20	10.1 / 22
Electrical system Automow-	er® 310	Automow-er® 315	Automower® 315X
Battery, Lithium-Ion 18.5 V/2.1 Ah Art. No. 584 85	28-01, 58485 28-02	584 8528-01, 58485 28-02	584 8528-01, 58485 28-02
Battery, Lithium-Ion 18 V/2.0 Ah Art. No. 584 85	28-03, 59021 42-02,593 1140-01, 59311 40-02	584 8528-03, 59021 42-02,593 1140-01, 59311 40-02	584 8528-03, 59021 42-02,593 1140-01, 59311 40-02
Battery, Lithium-Ion 18.25 V/2.0 Ah Art. No. 584 85	28-04, 59021 42-03	584 8528-04, 59021 42-03	584 8528-04, 59021 42-03
Power supply, V/28 V DC 100-240 100-240 100-240
Low voltage cable length, m / ft 10 / 33 10 / 33 10 / 33
Mean energy consumption at maximum use 8 kWh/	month for a work area of 1000 m^2 /0.25 acre	10 kWh/month for a work area of 1500 m^2 /0.37 acre	10 kWh/month for a work area of 1600 m^2 /0.4 acre
Charging current, A DC 1.3 1.3 1.3
Type of Power Supply Unit FW7312,	ADP-40BR	FW7312, ADP-40BR	FW7312, ADP-40BR
Average mowing time, min 70 70 70
Average charging time, min 60 60 60

Boundary wire antenna Automow-	er® 310	Automow-er® 315	Automower® 315X
Operating Frequency Band, Hz 300-80000 300-80000 300-80000
Maximum Radio-frequency power, mW @60m ^16	<25 <25 <25
Noise emissions measured in the environment as sound power17	Automow-er® 310	Automow-er® 315	Automower® 315X
Measured sound power noise level, dB (A) 58 58 58
Guaranteed sound power noise level, dB (A) 60 60 60
Sound pressure noise level at the operator's ear, dB (A) 18	47 47 47
Mowing Automow-	er® 310	Automow-er® 315	Automower® 315X
Cutting system 3 pivoted cutting blades
Blade motor speed, rpm 2300 2300 2300
Power consumption during cutting, W +/- 20 % 25 25	25
Cutting height, cm / " 2-6 / 0.8-2.4 2-6 / 0.8-2.4 2-6 / 0.8-2.4
Cutting width, cm / " 22 / 8.7 22 / 8.7 22 / 8.7
Narrowest possible passage, cm / " 60 / 24 60 / 24 60 / 24
Maximum angle for work area, % 40 40 40
Maximum angle for boundary wire, % 15 15 15
Maximum length boundary wire, m / ft	800 / 2600	800 / 2600	800 / 2600
Maximum length guide loop, m / ft	400 / 1300	400 / 1300	400 / 1300
Working capacity, m2 / acre, +/- 20%	1000 / 0.25	1500 / 0.37	1600 / 0.4
IP-classification	Automow-er® 310	Automow-er® 315	Automower® 315X
Robotic lawn mower	IPX4	IPX4	IPX4
Charging station	IPX1	IPX1	IPX1
Power supply	IPX4	IPX4	IPX4

8.3 Automower® 420/430X/440/450X

Dimensions Automow-	er® 420	Automower® 430X	Automow-er® 440	Automower® 450X
Length, cm / " 72 / 28.3 72 / 28.3 72 / 28.3 72 / 28.3
Width, cm / " 56 / 22.0 56 / 22.0 56 / 22.0 56 / 22.0
Height, cm / " 31 / 12.2 31 / 12.2 31 / 12.2 31 / 12.2
Weight, kg / lbs 11.5 / 25 13.2 / 29 12 / 27 13.9 / 31

Electrical system Automow-	er® 420	Automow-er® 430X	Automower® 440	Automower® 450X
Battery, Lithium-Ion 18.5 V/4.0 Ah Art. No.	580 6833-02
Battery, Lithium-Ion 18 V/4.0 Ah Art. No.	580 6833-03, 59311 41-02,593 1142-01
Battery, Lithium-Ion 18.25 V/4.0 Ah Art. No.	580 6833-04, 59311 41-03,593 1142-02
Battery, Lithium-Ion 18 V/5.2 Ah Art. No.			588 14 64-01(2 pcs.) 5.2Ah/battery
Battery, Lithium-Ion 18 V/5.0 Ah Art. No.		593 1184-01, 59311 85-01	588 14 64-02,593 11 84-01,593 11 85-01(2 pcs.) 5.0Ah/battery	593 1184-01, 59311 85-01(2 pcs.) 5.0Ah/battery
Battery, Lithium-Ion 18 V/4.9 Ah Art. No.		593 1184-02, 59311 85-02	588 14 64-03,593 11 84-02,593 11 85-02(2 pcs.) 4.9Ah/battery	593 1184-02, 59311 85-02(2 pcs.) 4.9Ah/battery
Power supply, V/28 V DC 100-240 100	-240 100-240	100-240
Low voltage cable length, m / ft 10 / 33	10 / 33 10 /	33 10 / 33
Mean energy consumption at maxi-mum use	17 kWh/month for a work area of 2200 m2/0.55 acre	18 kWh/month for a work area of 3200 m2/0.8 acre	20 kWh/month for a work area of 4000 m2/1 acre	23 kWh/month for a work area of 5000 m2/1.25 acres
Charging current, A DC 2.2 4.2 7 7
Type of Power Supply Unit ADP-60JR,	FW7438	FW7448, ADP-120DR	FW7458/28/D, ADP-200JR	FW7458/28/D, ADP-200JR
Average mowing time, min 75 145 290	270
Average charging time, min 50 50 60 60

Boundary wire antenna Automow-er® 420	Automower®430X	Automow-er® 440	Automower®450X
Operating Frequency Band, Hz 300-80000 300-80000	0 300-80000 300-80000
Maximum Radio-frequency power,mW @60m19	<25	<25	<25

Noise emissions measured in the environment as sound power ^20	Automower ^ 420	Automower ^ 430X	Automower ^ 440	Automower ^ 450X
Measured sound power noise level, dB (A)	57 57	56 58
Guaranteed sound power noise level	58 58	56 59
Sound pressure noise level at the operator's ear, dB (A) ^21	46 46	45 47
Mowing Automow-	er® 420	Automower® 430X	Automow-er® 440	Automower® 450X
Cutting system 3 pivoted cutting blades
Blade motor speed, rpm 2300 2300 23	00 2300
Power consumption during cutting, W +/- 20 %	30 30 30 35
Cutting height, cm / " 2-6 / 0.8-2.4 2-6	/ 0.8-2.4 2-6 /	0.8-2.4 2-6 / 0.8-2.4
Cutting width, cm / " 24 / 9.4 24 / 9.4 24	/ 9.4 24 / 9.4
Narrowest possible passage, cm / " 60	/ 24 60 / 24 60	/ 24 60 / 24
Maximum angle for work area, %	45 45 45 45
Maximum angle for boundary wire, %	15 15 15 15
Maximum length boundary wire, m / ft	800 / 2600	800 / 2600	800 / 2600	800 / 2600
Maximum length guide loop, m / ft	400 / 1300	400 / 1300	400 / 1300	400 / 1300
Working capacity, m^2 /acre(s), +/- 20%	2200 / 0.55 3	200 / 0.8	4000 / 1	5000 / 1.25

IP-classification	Automower® 420	Automower® 430X	Automower® 440	Automower® 450X
Robotic lawn mower	IPX4	IPX4	IPX4	IPX4
Charging station	IPX1	IPX1	IPX1	IPX1
Power supply	IPX4	IPX4	IPX4	IPX4

Frequency Band Support
Bluetooth® Frequency range	2400.0-2483.5 MHz
Automower® Connect 2G	GSM 850 MHz
	E-GSM 900 MHz
	DCS 1800 MHz
	PCS 1900 MHz
Automower® Connect 3G	Band 19 (800 MHz)
	Band 5 (850 MHz)
	Band 8 (900 MHz)
	Band 2 (1900 MHz)
	Band 1 (2100 MHz)
Automower® Connect 4G Band 12 (700 MHz)

Power Class
Bluetooth® Output power 8 dBM
Automower® Connect 2G Power Class	4 (for GSM/E-GSM) 33 dBm
	Power Class 1 (for DCS/PCS) 30 dBm
	Power Class E2 (for GSM/E-GSM bands)	27 dBm
	Power Class E2 (for DCS/PCS bands)	26 dBm
Automower® Connect 3G Power Class	3 24 dBm
Automower® Connect 4G Power Class	3 23 dBm

Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.

The products are made in England or the Czech Republic. See information on the rating plate. Refer to Introduction on page 2

8.4 Registered trademarks

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, inc. and any use of such marks by Husqvarna is under license.

9 Warranty

9.1 Warranty terms

Husqvarna warranty covers this product's functionality for a period of 2 years from date of purchase. The warranty covers serious faults relating to materials or manufacturing faults. Within the warranty period, we will replace the product or repair it at no charge if the following terms are met:

• The product and the charging station may only be used in compliance with the instructions in this Operator's Manual. This manufacturer's warranty does not affect warranty entitlements against the dealer/retailer.
  • End-users or non-authorized third parties must not attempt to repair the product.

Examples of faults which are not included in the warranty:

- Damage caused by water seepage from using a high-pressure washer, or from being submerged under water, for example when heavy rain forms pools of water.

• Damage caused by lightning.
- Damage caused by improper battery storage or battery handling.
- Damage caused by using a battery that is not a Husqvarna original battery.
- Damage caused by not using Husqvarna original spare parts and accessories, such as blades and installation material.
- Damage to the loop wire.
- Damage caused by non-authorized changing or tampering with the product or its power supply.

The blades and wheels are seen as disposable and are not covered by the warranty.

If an error occurs with your Husqvarna product, please contact Husqvarna customer service for further instructions. Please have the receipt and the product's serial number at hand when contacting Husqvarna customer service.

10 EC Declaration of Conformity

10.1 EC Declaration of Conformity

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the Robotic lawn mowers Husqvarna Automower® 105, Husqvarna Automower® 305, Husqvarna Automower® 310, Husqvarna Automower® 315, Husqvarna Automower® 315X, Husqvarna Automower® 420, Husqvarna Automower® 430X, Husqvarna Automower® 440 and Husqvarna Automower® 450X with serial numbers dating 2019 week 40 and onwards (the year and week is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL'S DIRECTIVE:

- Directive "relating to machinery" 2006/42/EC.

• Particular requirements for robotic battery powered electrical lawn mowers EN 50636-2-107: 2015.

• Electromagnetic fields EN 62233:2008.

- Directive on "restriction of use of certain hazardous substances" 2011/65/EU.

• The following standard is applied: EN 50581:2012

- Directive "relating to noise emissions from outdoor equipment" 2000/14/EC. See also Technical data on page 25 for information regarding noise emissions and the cutting width.

For Husqvarna Automower® 105 (certificate 01/901/176), Husqvarna Automower® 305 (certificate 01/901/322), Husqvarna Automower® 310/315 (certificate 01/901/225), Husqvarna Automower® 315X (certificate 01/901/286) and Husqvarna Automower® 420/430X/440/450X (certificate 01/901/201): The notified body RISE SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has issued a report regarding the assessment of conformity according to annex VI to the Council's Directive of May 8, 2000 "relating to noise emissions into the environment" 2000/14/EC.

- Directive “relating to radio equipment” 2014/53/EU. Type examination certificate is issued for examination to Directive 2014/53/EU. Type examination certificate number for Husqvarna Automower® 105 is SC1110-17. The following standards have been applied:

• ETSI EN 303 447 V1.1.1

Electromagnetic compatibility:

• ETSI EN 301 489-1 V2.2.0

• EN 61000-6-1:2007

• EN 61000-6-3:2007/A1:2011

For Husqvarna Automower ^® 315X, Husqvarna Automower ^® 430X and Husqvarna Automower ^® 450X equipped with the Automower ^® Connect module also:

• ETSI EN 301 489-19 V2.1.0
• ETSI EN 301 489-52 V1.1.1
• ETSI EN 301 511 V12.5.1
• ETSI EN 301 908-2 V11.1.1

For Husqvarna Automower® 305, Husqvarna Automower® 310, Husqvarna Automower® 315, Husqvarna Automower® 315X, Husqvarna Automower® 420, Husqvarna Automower® 430X, Husqvarna Automower® 440 and Husqvarna Automower® 450X equipped with Bluetooth® also:

Global R&D Director, Electric category

(Authorized representative for Husqvarna AB and responsible for technical documentation.)

Inhalt

Diagram of a mechanical or architectural layout with intersecting lines and a central circular component (no text or symbols)

11.5 Arbeitsmethode

Line drawing of a robotic lawn mower with dashed trajectory lines and no text or symbols

Line drawing of a robotic car with an arrow pointing to the side panel (no text or symbols)

Exploded diagram of a mobile phone with numbered parts and a 'PIN CODE' label, including control panel, cable, and accessories.

Exploded view diagram of a robotic device with numbered parts and labeled parts such as control panel, camera, and power cord.

Exploded view diagram of a robotic device with numbered parts and a pin code label

I was a school, automobile and I took home onto to keep the learn in period condition. I work 24/7 emergency fly of weather conditions and do it without monitoring any exhaust emissions. Stay a work until stops my work, but please let me work in place. WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

Line drawing of a person crouching next to a small robotic vacuum cleaner (no text or symbols present)

AUTO 07 July | 09:26 20h | 📋 | 📄 | + MENU

PARKED Press start to continue 09 January | 9:26pm

Diagram showing a mechanical device with labeled control buttons including OK and MENU, alongside an instructional arrow indicating motion.

Main area
○ Secondary area ▶
○ Override schedule ▶
○ Spot cutting ▶

CLOSE HATCH TO PARK in charging station

© Park until further notice
○ Start again in 3 hours
○ Start w. schedule Mon 00:00

Diagram of a mobile phone control panel with rotary dial and navigation buttons

14.6.2 Automower® 305/310/315/315X

Two technical line drawings of metal components, one with a circular hole and two small protrusions, the other with an oval cutout (no text or symbols)

Global R&D Director, Electric category

Diagram of a mechanical or architectural layout with intersecting lines and a central component (no text or symbols)

Line drawing of a robotic lawn mower with dashed trajectory lines and grass markings (no text or symbols)

Line drawing of a robotic car with an arrow pointing to the side panel (no text or symbols)

Exploded diagram of a mobile phone control system with numbered components and a 'PIN CODE' label

Exploded view diagram of a robotic device with numbered parts and labeled parts, including control panel, keypad, and accessories.

Exploded view diagram of a car's internal components with numbered parts and a PIN CODE tag

I am in particular lawnmower and I work have quality to keep the lawn in perfect condition. I work 247 in accordance of weather conditions and do it obtain weathering any bad condition. Say a bit is and enjoy my work that pleases in the work in person. WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

Line drawing of a person crouching next to a small robotic car and falling objects (no text or symbols)

AUTO 07 July | 09:26 20h | 📄 | 📁 | ⏻ MENU

PARKED Press start to continue 09 January | 9:26pm ©45

Diagram showing car gear shift mechanism with labeled buttons OK and MENU

○ Secondary area ▶
○ Override schedule ▶
○ Spot cutting ▶

CLOSE HATCH TO PARK in charging station

Park until further notice
○ 5start again in 3 hours
○ Start w. schedule Mon 00:00

Diagram of a rotary dial indicator with control panel and rotary knob, showing function keys and buttons

24.6.2 Automower® 305/310/315/315X

Two technical line drawings of metal bracket components, one with circular holes and two small protrusions (no text or symbols)

27.2.2 Station de charge

Global R&D Director, Electric category

Diagram of a mechanical or electrical component with internal lines and a circular inset (no text or symbols)

Technical line drawing of a robotic lawn mower with labeled measurement lines (no text or symbols beyond measurement annotations)

Line drawing of a robotic car with an arrow pointing to the top section (no text or symbols)

Exploded diagram of a robotic car with numbered parts and a 'PIN CODE' label, including control panel, cable, and accessories.

Exploded view diagram of a robotic device with numbered parts and labeled parts such as controller, camera, and cable.

Exploded view diagram of a robotic device with numbered parts and a PIN CODE tag

I am a robotic lawnmower and I work here carefully, to keep the room in petted condition. I work 247 successfully of medical conditions and do it without meaning any without an accident. Say cash is one okay my work, but please use the work in person. WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

Line drawing of a person crouching next to a small robotic vacuum cleaner (no text or symbols)

AUTO 07 July | 09:26 20h | 📋 | 📄 | ⏻ MENU

PARKED Press start to continue 09 January | 926pm (5)

Diagram showing a car interior with directional arrows and a control panel labeled 'ON' and 'MENU'.

305/310/315/315X/420/430X/

440/450X

○ Secondary area ▶
○ Override schedule ▶
○ Spot cutting ▶

© Park until further notice
○ Start again in 3 hours
○ Start w. schedule Mon 00:00

Line drawing of a vintage rotary dial with control panel and buttons (no text or symbols)

34.6.2 Automower® 305/310/315/315X

Technical line drawings of two mechanical components with mounting holes (no text or symbols)

Global R&D Director, Electric category

AUTOMOWER® is a trademark owned by Husqvarna AB.

Copyright ^® 2020 HUSQVARNA. All rights reserved.

www.husqvarna.com

Original instructions

Originalanweisungen

Black and white barcode image with vertical lines and a central '1' mark

2020-03-19
