USER MANUAL 24LED7105CD SALORA

Bijlage E: Software upgrade 31

Eigenschappen 32

Digitale ontvangst (DVB-C) 32

Kenmerken

Safety warning symbol showing a faucet above a monitor with crossed-out lines indicating prohibition or exclusion.

Diagram illustrating weather and heating conditions with icons for sun, rain, and a pot on a computer screen

① ② ③ ④ ⑤ ⑥ SPDIF Coax.OUT VGA ANT. SCART

HDMI 2: HDMI-ingang1.

HDMI 1: HDMI-ingang2.

USB 5Vdc Max:500mA

Close-up of a black electronic device with a white arrow pointing to a button (no visible text or symbols)

Close-up of a black plastic object with a white arrow pointing to its side (no text or symbols visible)

Close-up of a black battery pack with a cylindrical component and two metallic pins (no visible text or symbols)

Voer PIN in

14:2mm 06-05-10 13:37:52 PAL B/G

Voer PIN in

Bijlage E: Software upgrade

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Producten

Symbol of a trash bin crossed out by a diagonal line, representing no waste or discharge (no text or labels)

Batterij

PAL/SECAM B/G D/K K' I/I' L/L'

KANELEN ONTVANGEN

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

AANTAL VOORINGESTELDE KANALEN

1000

KANAALINDICATOR

CLASS 1 LASER PRODUCT

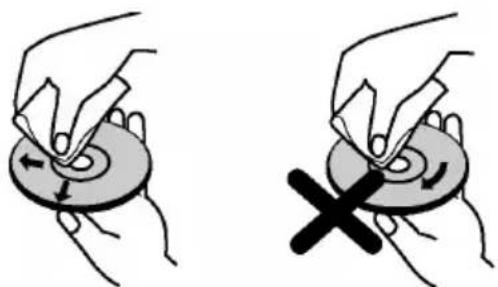

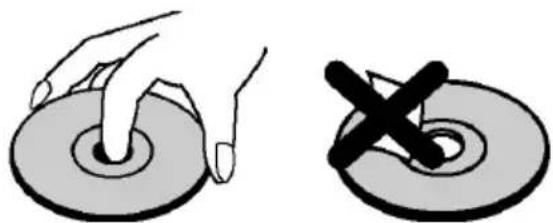

Illustration of two hand positions on a circular object, one with a cross mark and the other with a circle (no text or symbols)

Two hand-drawn diagrams showing a circular object being held by fingers, with one holding a curved arrow and the other holding a cross (no text or symbols)

Illustration of a hand holding a CD with an arrow pointing to it, next to a blank computer monitor (no text or symbols)

Safety Precautions 44

Package Contents 46

Environmental Information 46

Repair Information 46

Remote Control Buttons 47

LED TV and Operating Buttons 48

Viewing the Back side Connections 48

Viewing the Connections - Side Connectors ..... 49

Power Connection 49

Aerial Connection 49

Using Digital Multimedia Connectors.... 50

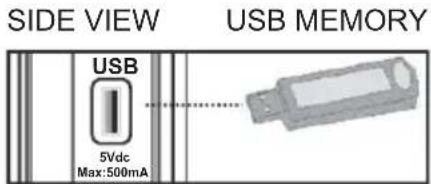

USB Memory Connection 50

Connecting the LED TV to a PC 50

Using Side AV Connectors 50

Connecting to a DVD Player via HDMI 50

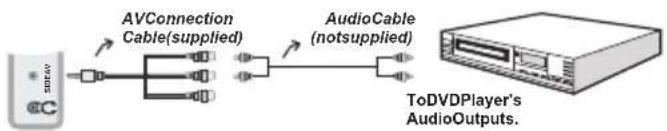

Connecting to a DVD Player via Component

Sockets (YPbPr) or Scart Cable 51

Remote Control Handset 51

Inserting Batteries 51

Switching On/Off 51

To Switch the TV On 51

To Switch the TV Off 51

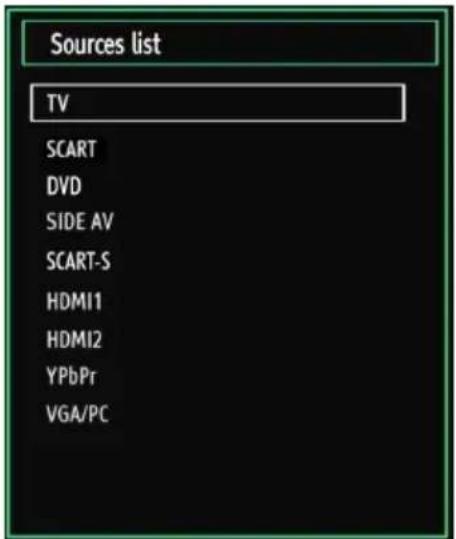

Input Selection 52

Basic Operations 52

Operation with the Buttons on the TV 52

Volume Setting 52

Programme Selection 52

AV Mode 52

Operation with the Remote Control 52

Volume Setting 52

Programme Selection (Previous or Next

Programme) 52

Programme Selection (Direct Access) ...... 52

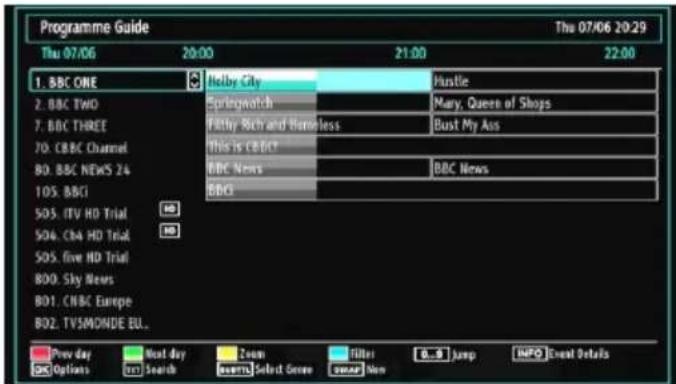

Viewing Electronic Programme Guide (EPG) ..... 52

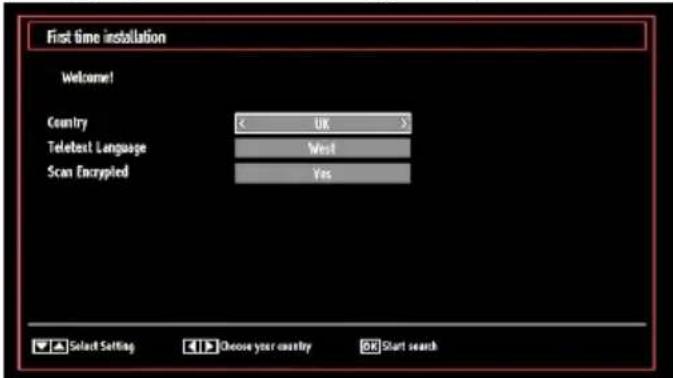

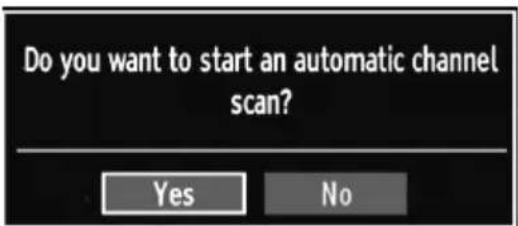

First Time Installation.... 53

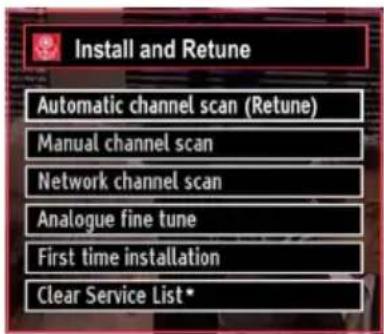

Installation 54

Auto Channel Scan Menu Operation 54

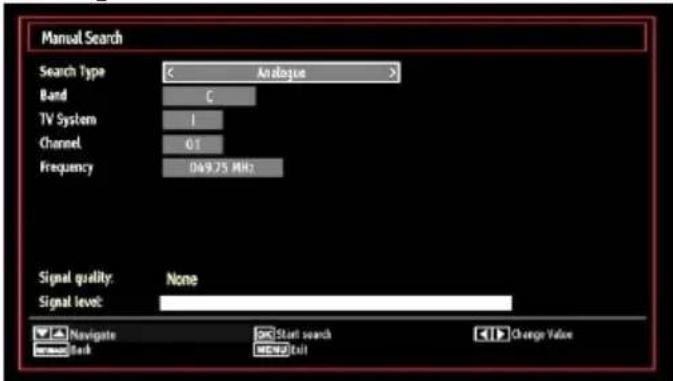

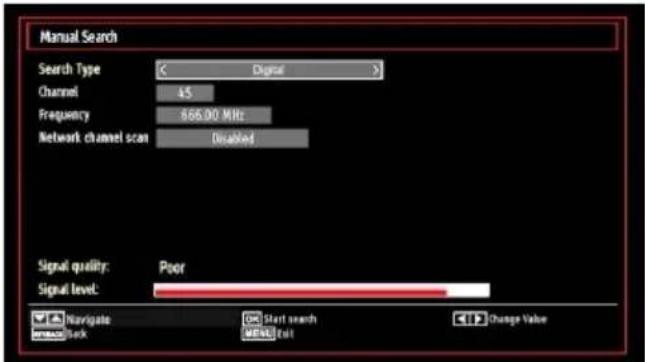

Manual Tuning 55

Digital Aerial Manual Search.... 55

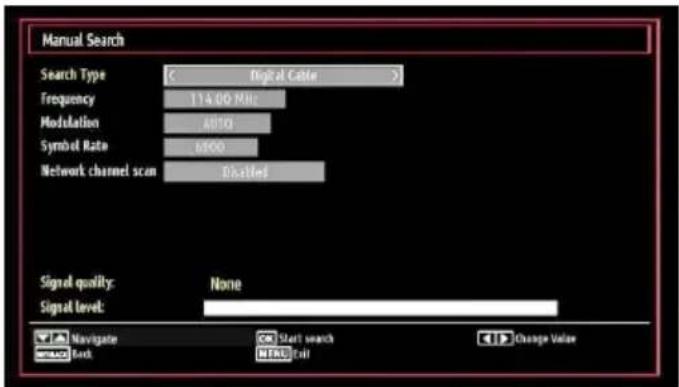

Digital Cable Manual Search 55

Analogue Manual Search 55

Analogue Fine Tune 55

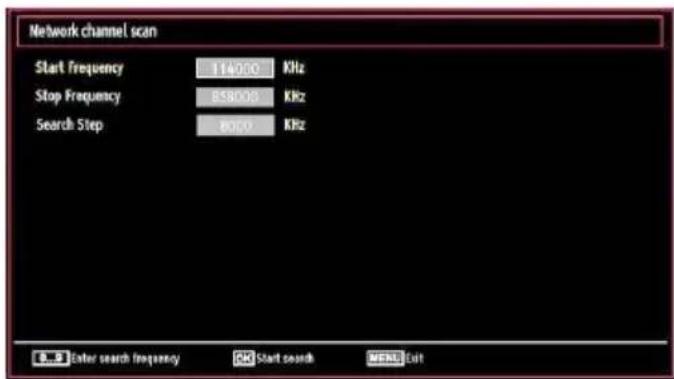

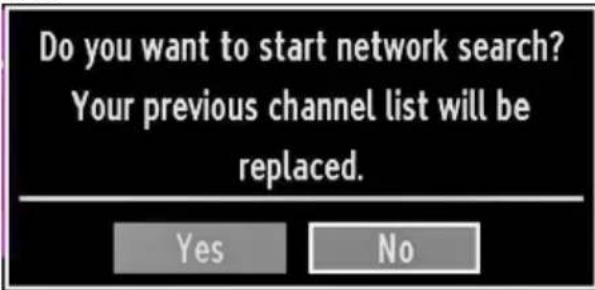

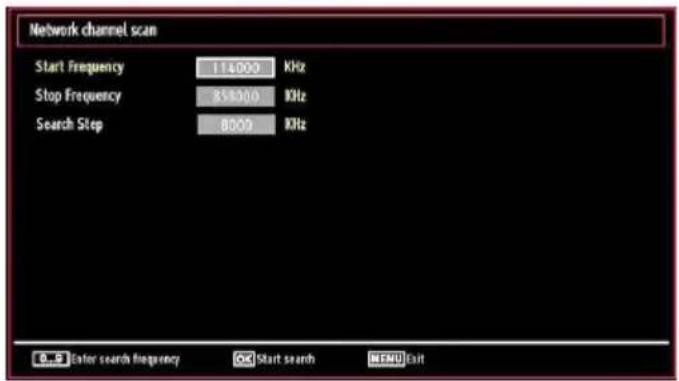

Network Channel Scan 55

Clear Service List (*) 56

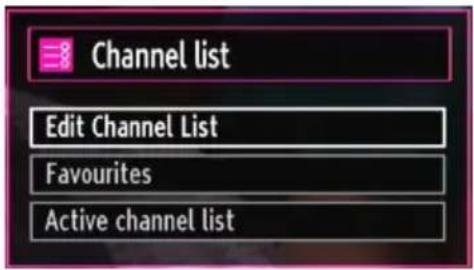

Managing Stations: Channel List 56

Operating the Channel List 56

Moving a Channel 56

Deleting a Channel 56

Renaming a Channel 56

Locking a Channel 57

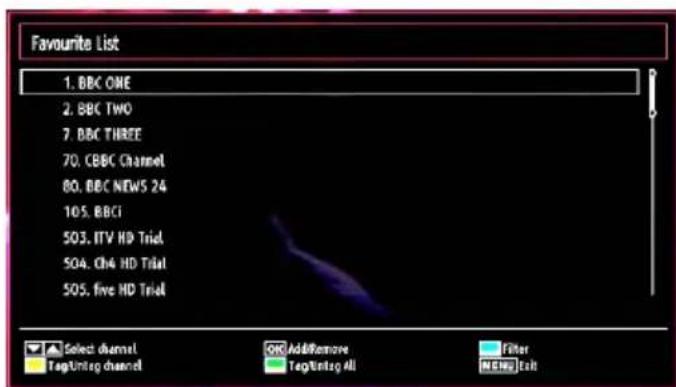

Managing Stations: Favourites 57

Button Functions 57

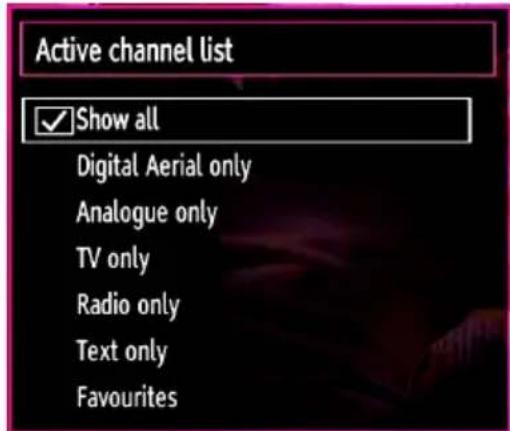

Managing Stations: Sorting Channel List 57

On-Screen Information 57

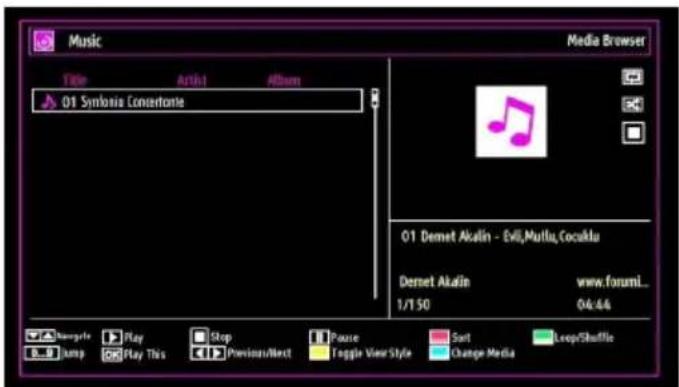

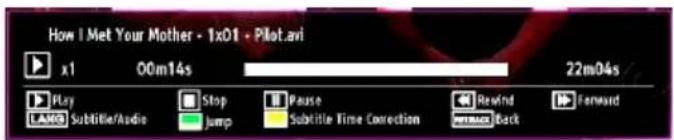

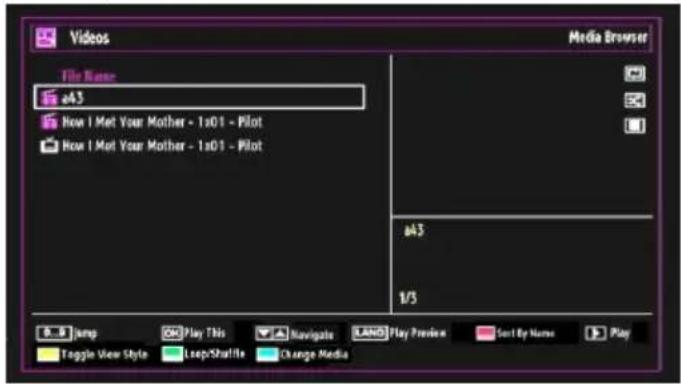

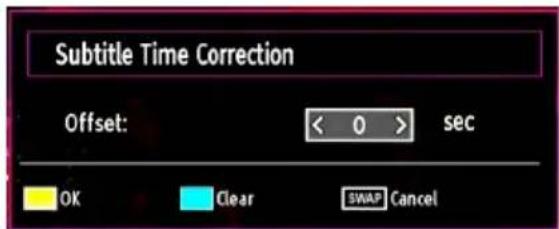

Media Playback Using Media Browser 58

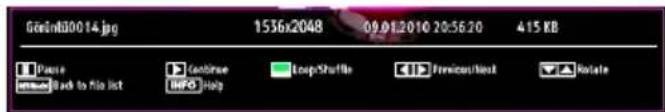

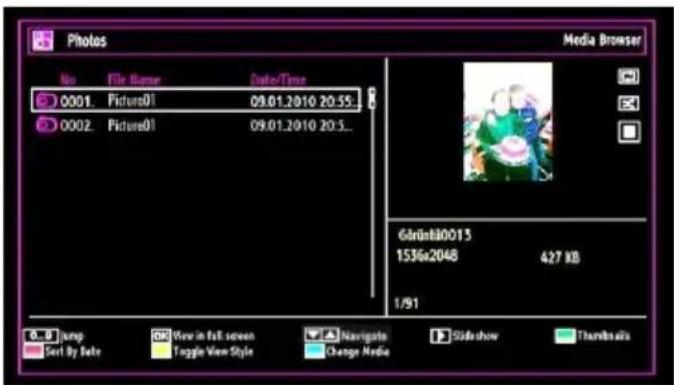

Viewing Photos via USB 58

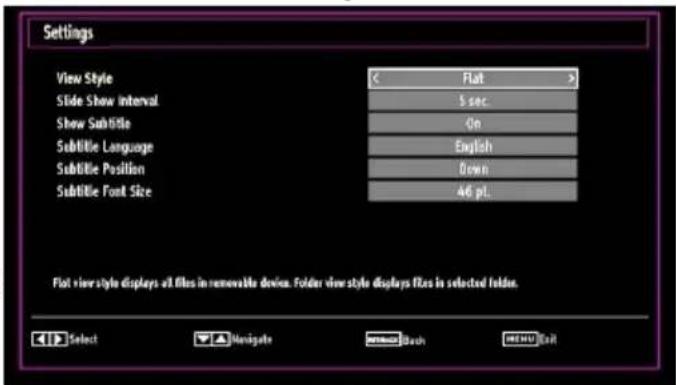

Media Browser Settings 59

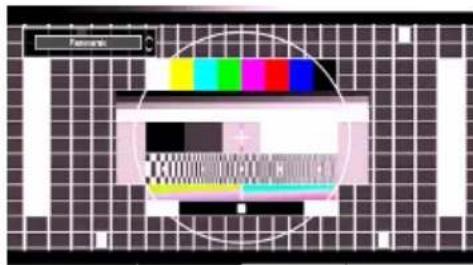

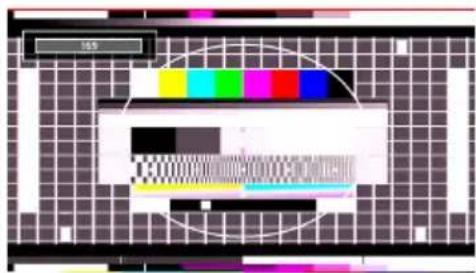

Changing Image Size: Picture Formats 59

Configuring Picture Settings 61

Operating Picture Settings Menu Items 61

Picture Settings Menu Items 61

PC Picture Settings.... 61

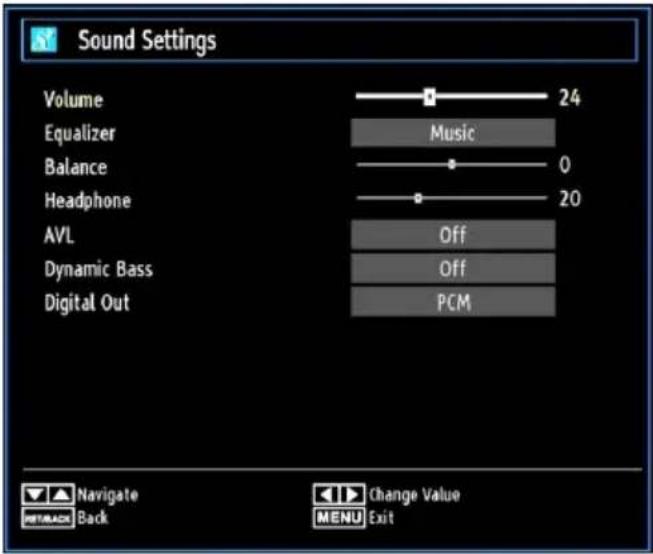

Configuring Sound Settings 62

Operating Sound Settings Menu Items 62

Sound Settings Menu Items.... 62

Configuring Your TV's Settings 62

Operating Settings Menu Items 62

Settings Menu Items 62

Using a Conditional Access Module 63

Viewing Conditional Access Menu (*) 63

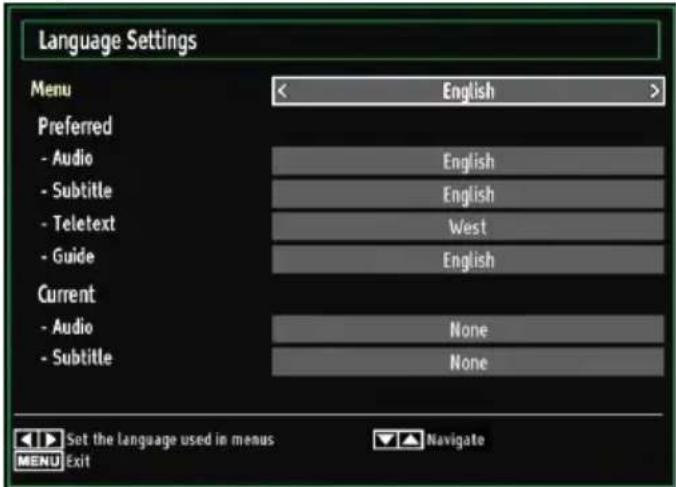

Configuring Language Preferences 63

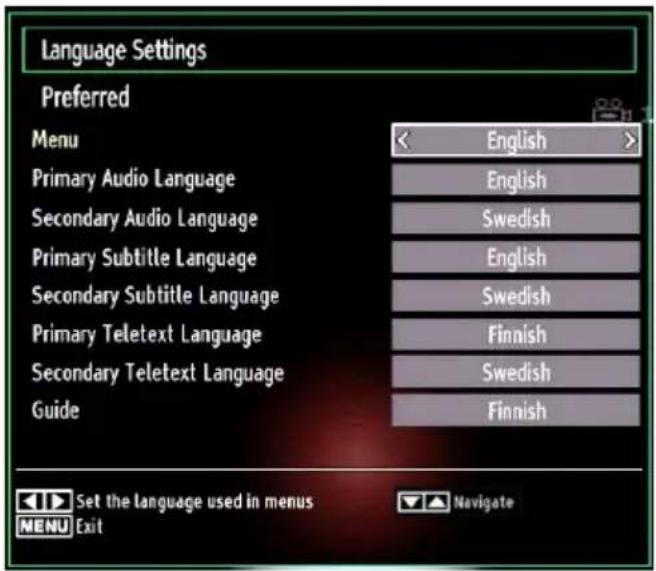

Language Settings 64

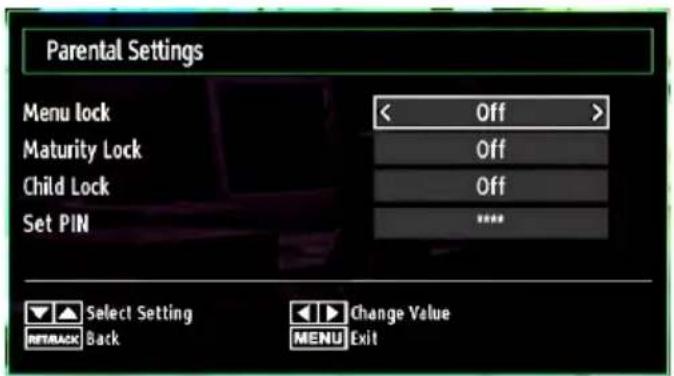

Parental Control....64

Parental Settings Menu Operation 64

Timers 64

Setting Sleep Timer 64

Setting Programme Timers 65

Adding a Timer 65

Editing a Timer 65

Deleting a Timer 65

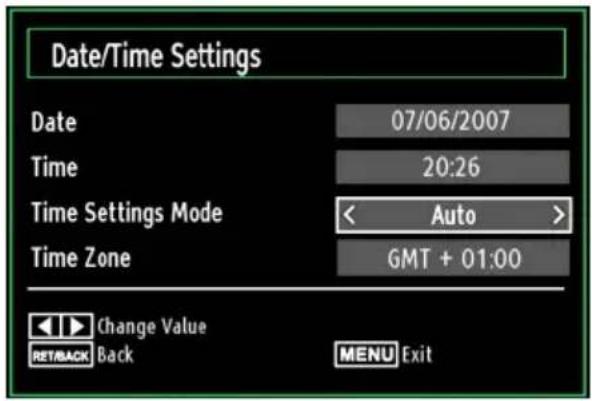

Configuring Date/Time Settings 65

Configuring Source Settings 65

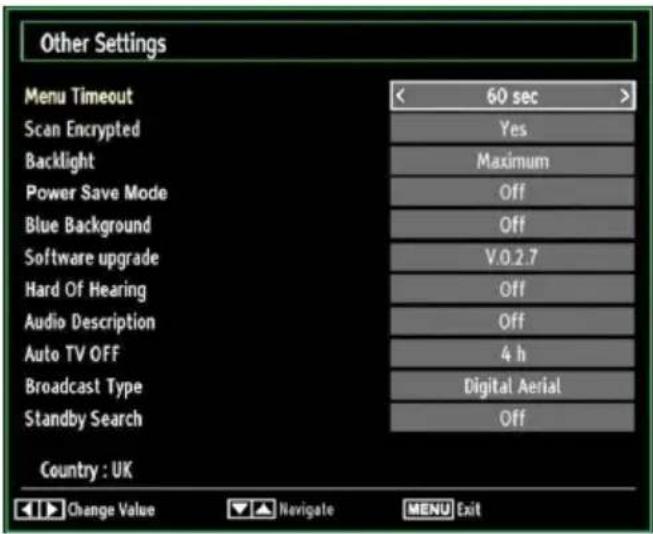

Configuring Other Settings 66

Operation 66

Other Features 67

Teletext 67

Tips 67

Appendix A: PC Input Typical Display Modes ..... 68

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) 68

Appendix C: Supported DVI Resolutions...... 69

Appendix D: Supported File Formats for USB Mode.... 69

Appendix E: Software Upgrade 70

Specifications 71

Digital Reception (DVB-C) 71

Features

Remote controlled colour LED TV.

Fully integrated Terrestrial digital-cable TV (DVB-T C-MPEG2) (DVB-T-C MPEG4).

HDMI connectors for digital video and audio. This • connection is also designed to accept high definition signals.

USB input.

1000 programmes (analogue+digital).•

OSD menu system.

Integrated tuner DVB-T-C HD, MPEG 2 / MPEG 4 • compatible.

Scart socket for external devices (such as video, • video games, audio set, etc.).

Stereo sound system. (German+Nicam)•

Teletext, fastext, TOP text.

Headphone connection.

Automatic programming system.

Forward or backward manual tuning.

Sleep timer / Child lock.

• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting).
- Auto power down.
- PLL (Frequency Search).
- PC input.

Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.

- Game Mode

Introduction

Please read the corresponding instructions of this handbook prior to the first usage of the device, even when the usage of electronic devices is familiar to you. Notice especially the chapter SAFETY PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these direction for use.

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references.

This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.

10 cm 10 cm 10 cm

Safety Precautions

Read the following recommended safety precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240V AC, 50Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.

Safety warning symbol showing a faucet above a monitor with crossed-out lines indicating prohibition or exclusion.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Bat not be exposed to excessive heat such as fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:•

Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children. Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.

Don't try to recharge batteries. Danger of explosion. Replace batteries only with the same or equivalent type.

This symbol on the product or on its packaging means

that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU. For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning! Do not leave your TV in standby or operating mode when you leave your house.

Connection to a Television Distribution System (Cable TV etc.) from Tuner

Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

Note: The HDMI connection between PC and TV may cause radio interference in which case it is recommended to use VGA(DSUB-15) connection.

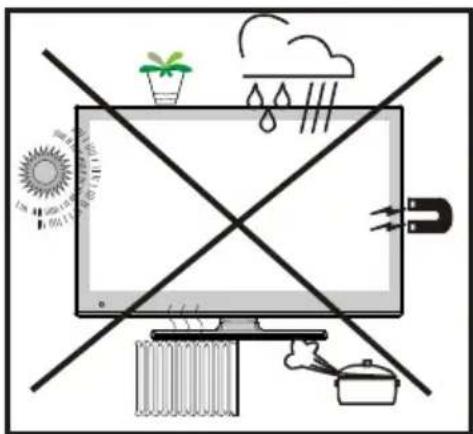

Weather and heating-related diagram showing a computer monitor with sun, rain, and cooling icons crossed out by a diagonal line.

The Standby Off/On button doesn't separate this device completely from mains. Moreover the device consumes power in the standby operation. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. To exclude the danger of fire, the power cord should principally be separated from the mains socket prior to a longer period of non-usage, i.e. during vacations.

Electrical device not in the hands of children

Never let children use electrical device unsupervised. Children can't always recognize properly the possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries unreachable for small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children. There is danger of suffocation.

Licence Notification (optional)

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY.

DIGITAL PLUS

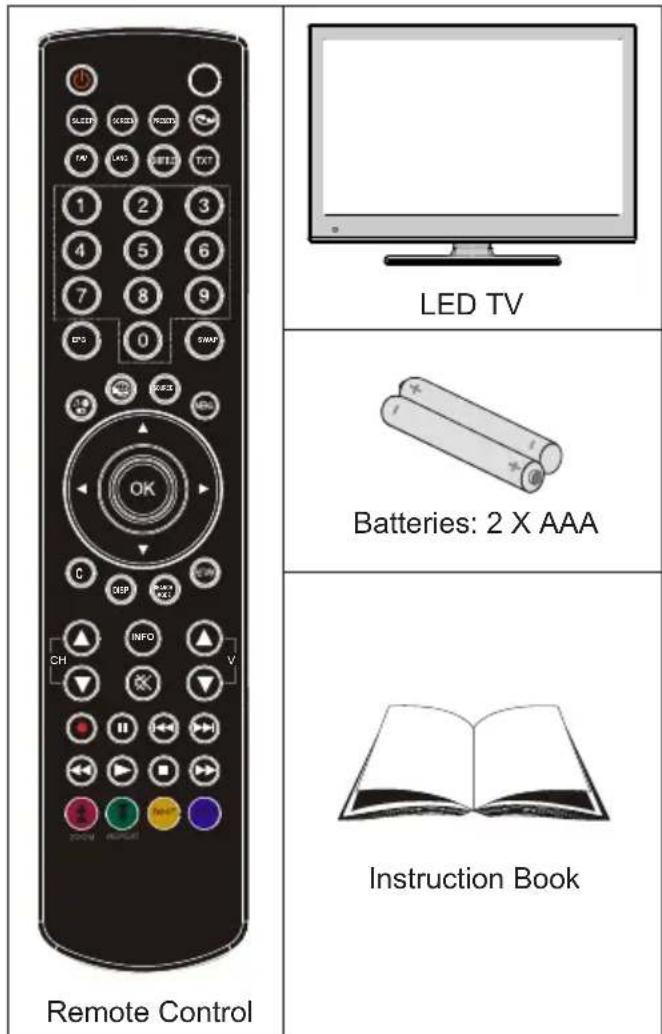

Package Contents

Remote Control LED TV Batteries: 2 X AAA Instruction Book

Coiled audio/video audio cable with black, yellow, and red connectors (no text or symbols visible)

1 X Video & Audio Connection Cable
Note: You should check the accessories after purchasing. Make sure that each accessory is included.

Environmental Information

This television is designed to consume less energy • to save environment.

You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Other Settings menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.

Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting the TV from the mains plug instead of keeping stand-by mode. Therefore it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

- Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

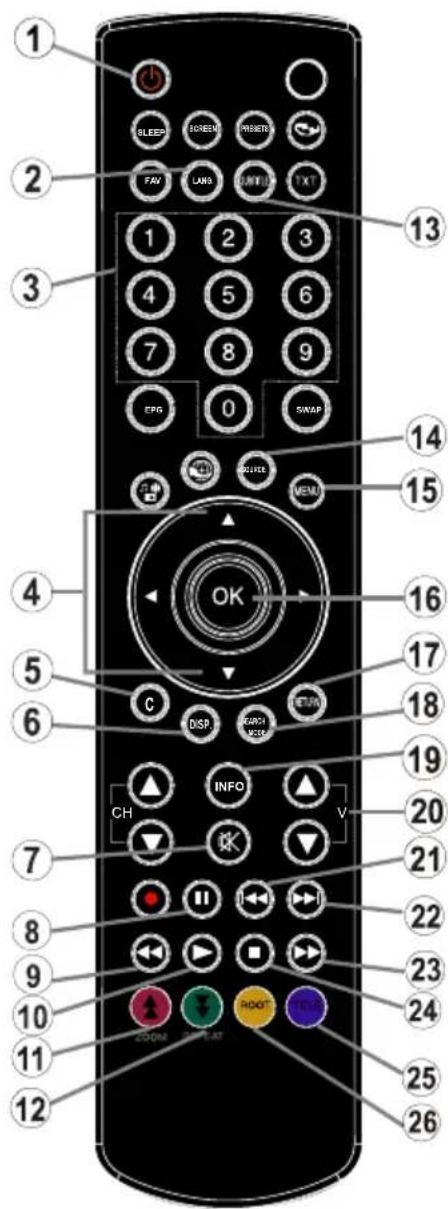

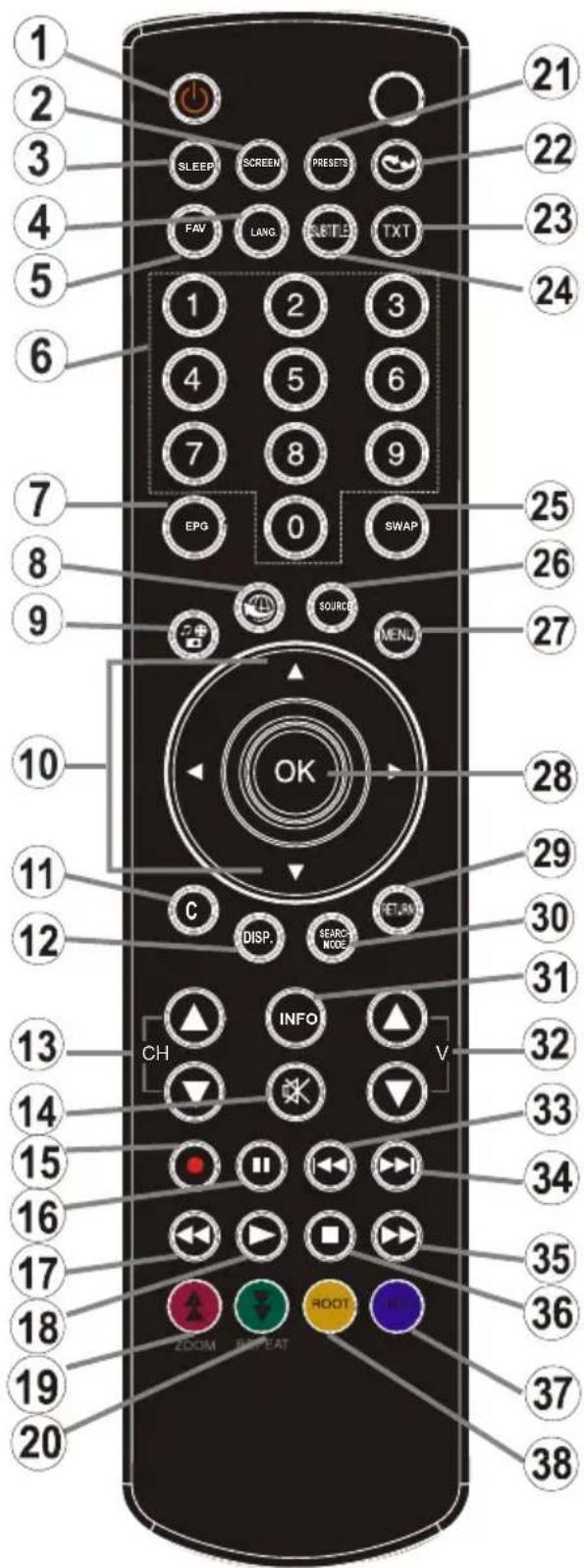

Remote Control Buttons

Standby1.

Image size / Zooms videos (in Media Browser 2. video mode)

Sleep Timer3.

Mono / Stereo - Dual I-II / Current Language (*) 4. (in DVB channels)

Favourite Mode Selection (in DVB channels)5.

Numeric buttons6.

Electronic programme guide (in DVB channels)7.

No function8.

Media Browser9.

Navigation buttons (Up/Down/Left/Right)10.

No function11.

No function12.

Programme Down / Page up - Programme Up / 13.

Page down

Mute14.

No function15.

Pause (in Media Browser mode)16.

Rapid reverse (in Media Browser mode)17.

Play (in Media Browser mode)18.

1. Red button

2. Green button / List Schedule (in EPG) / Tag / Untag All (in favourite list) / Play-Slideshow (in Media Browser) / Loop-Shuffle (in Media Browser)

3. Picture mode selection. / Changes picture mode (in Media Browser video mode)

No function22.

1. Teletext / Mix (in TXT mode)

2. Subtitle on-off (in DVB channels)

3. Previous programme

4. AV / Source selection

Menu on-off27.

1. Okay (Confirm) / Hold (in TXT mode) / Edit Channel List

Exit / Return / Index page (in TXT mode)29.

No function30.

1. Info / Reveal (in TXT mode)

2. Volume Up / Down

No function33.

No function34.

1. Rapid advance (in Media Browser mode)

2. Stop (in Media Browser mode)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SLEEP SCREEN PRESETS FAV LANG. TITLET TXT EPG 0 SWAP SOURCE MENU OK C DISP. SEARCH NODE V INFO CH ZOOM REPEAT 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

1. Blue button / Edit Channel List / Filter (In Favourite List&EPG)

2. Yellow button / Timeline Schedule (in EPG)

LED TV and Operating Buttons

FRONT and REAR VIEW	Control buttons VIEW	Control Buttons
		1. Standby Off/On button2. TV/AV button3. Programme Up/Down buttons-Volume Up/Down buttonsNote:You can use +/- buttons to change volume. If you want to change channels, press P/V AV button once and then use +/- buttons. If you hold the P/V AV button about a few seconds, source OSD will be displayed.Main menu OSD cannot be displayed via control buttons.

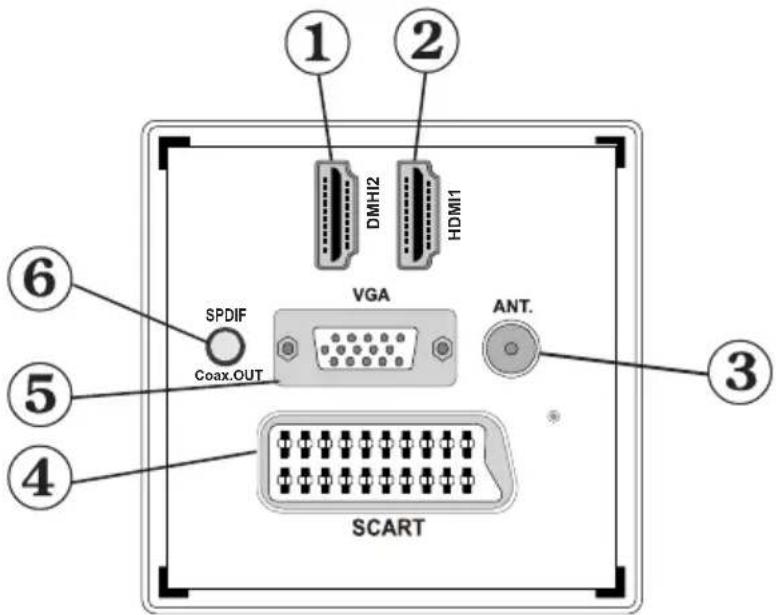

Viewing the Back side Connections

① ② DMMH2 HDMI1 SPDIF Coax.OUT VGA ANT. ③ ⑥ ⑤ ④ SCART

HDMI 2: HDMI Input1.

HDMI 1: HDMI Input2.

HDMI Inputs are for connecting a device that has an HDMI socket. Your LED TV is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i (Optional) signals. No sound connection is needed for an HDMI to HDMI connection.

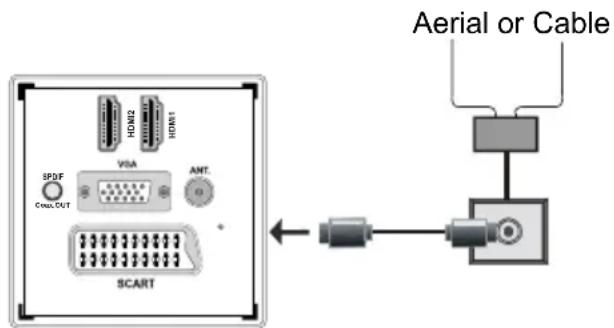

RF Input3. connects to an aerial antenna system or a cable

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

1. SCART input or output for external devices. Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

Note: S-VHS signal is supported via the scart socket.

Note: When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket.

PC Input5. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

Note: You can use YPbPr to VGA cable(not supplied) to enable YPbPr signal via PC input.

WARNING: You cannot use PC and YPbPr at the same time.

SPDIF Coaxial Out6. outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input.

Viewing the Connections - Side Connectors

1. CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see "Conditional Access" section.

Side USB input.2.

TV control buttons.3.

Side audio-video connection4. input is used for connecting video and audio signals of external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV socket. Afterwards, insert your video cable's (not supplied) connector into the YELLOW input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match.

To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device's audio cable's connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match.

Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.

Headphone jack is used for connecting an external headphone to the system. Connect to 5. the HEADPHONE jack to listen to the TV from headphones (optional).

COMMON INTERFACE USB 2 3 PV-AV 4 SIDE AW 5

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz.

- After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Aerial Connection

Connect the aerial ,cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

Aerial or Cable HDMI2 HDMI1 VISA ANT. SPDF Cmax.OUT SCART

Using Digital Multimedia Connectors

You can connect USB devices to your TV by using the USB input of the TV. This feature allows you to display/play JPG, MP3 and video files stored in a USB stick.

It is possible that certain types of USB devices (e.g. MP3 Players) may not be compatible with this TV.

You may back up your files before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or data loss.

Do not pull out USB module while playing a file.

CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

SIDE VIEW USB MEMORY USB 5Vdc Max:500mA

USB Memory Connection

IMPORTANT: The TV should be switched off while plugging or unplugging a USB device. Plug your USB devices to the USB input of the TV. You can connect a usb device to your TV by using the USB input of the TV.

Note: It is possible certain types of hard disk drives are not supported.

Connecting the LED TV to a PC

For displaying your computer's screen image on your LED TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LED TV. When the connection is made, switch to PC source. See "Input selection" section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

Using Side AV Connectors

You can connect a range of optional equipment to your LED TV using side connectors of the TV.

For connecting a camcorder or camera, you should use AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV's AV IN socket (side). Afterwards, insert your camera cable's (not supplied) connectors into the plural part of the video/ audio connection cable. Colours of the connected jacks should match. See illustration below. • Afterwards, you should switch to Side AV source. See the section Input selection in the following sections for more information.

To listen the TV sound from headphones, you should connect headphones to your TV by using the HEADPHONE jack as illustrated above.

Connecting to a DVD Player via HDMI

Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Not all cables shown in the illustration are supplied.

- If your DVD player has an HDMI socket, you can connect via HDMI for better video and audio quality.

HDMI Cable (not supplied) HDMI 2 HDMI 1 VGA ANT SPOT Cave DNT SCART External device

When you connect to DVD player as illustrated above, • switch to the connected HDMI source. See, Input Selection section for more information on changing sources.

Connecting to a DVD Player via Component Sockets (YPbPr) or Scart Cable

- Some DVD players are connected through COMPONENT SOCKETS (YPbPr). YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr cable is not supplied).

When the connection is made, switch to YPbPr• source. See, "Input selection" section.

- To enable audio connection, use the VGA/Component Audio cable. First, plug single jack of the cable to the TV. Afterwards, insert your DVD player's audio cable's connectors into the plural part of the VGA/Component audio connection cable (see illustration below). Colours of the connected jacks should match (RED & WHITE).

- When the connection is made, switch to YPbPr source. See, Input selection section.

- You may also connect through the SCART input.

SCART Cable (not supplied) External device

- Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Remote Control Handset

Inserting Batteries

Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.

- Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

Two views of a black remote control device showing internal components and a magnified view (no text or symbols visible)

Close-up of a black remote control device with a white arrow pointing to the side (no text or symbols visible)

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz. Then the standby LED lights up. (The led will blink during the standby On/Off)

To switch on the TV from standby mode either:

Press the "☐" button, CH▲or CH ▼ or a numeric button on the remote control.

Press the "💡" button, - or + button on the TV. The TV will then switch on.

Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

Press the “💡” button on the remote control or press the “💡” switch on the TV, so the TV will switch to standby mode.

- To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press "SOURCE" button on your remote control consecutively for directly changing sources.

Sources list TV SCART DVD SIDE AV SCART-S HDMI1 HDMI2 YPbPr VGA/PC

Note: YPbPr mode can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (not supplied).

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Main menu OSD cannot be displayed via control buttons. “+/-” buttons will function as volume up/down as default. Even if you set other functions for these buttons, “+/-” buttons will perform as default after a short while.

Volume Setting

- Press "P/V/AV" button once and then use "+/-" buttons to increase or decrease volume, so a volume level scale (slider) will be displayed on the screen. While Tv is on, +/- button can use as volume + or volume - as default.

Programme Selection

- Press "P/V/AV" button once and then use "+/-" buttons to change channel. By pressing "+/-" button, you can select the next or previous programme.

AV Mode

- Hold the "P/V/AV" button, source OSD will be displayed in a few second.

Operation with the Remote Control

The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Volume Setting

- Press "V▲" button to increase the volume. Press "V▼" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press "CH▼" button to select the previous programme.
• Press "CHA" button to select the next programme.

Programme Selection (Direct Access)

Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between, press the numeric buttons consecutively. When the pressing time is due for the second numeric button, only the first digit programme will be displayed. Press directly the programme number to reselect single digit programmes.

Viewing Electronic Programme Guide (EPG)

You can view the electronic programme guide (EPG) to view information about available programmes. To view the EPG menu please press EPG button on the remote control.

• Press “▼”/“▲” buttons to navigate through channels.
• Press “◀”/“▶” buttons to navigate through the programme list.

EPG menu displays available information on all channels.

Please note that event information is updated • automatically. If there are no event information data available for channels, EPG will be displayed with blanks.

Programme Guide Thu 07/06 20:29 Channels Current Event Next Event 1. BBC ONE Holly City Hostie 2. BBC TWO Springwatch Mary, Queen of Shops 7. BBC THREE Fittby Rich and Homeless Bust My Ass 70. CBBC Channel This is CBBC! This is CBBC! 80. BBC NEWS 24 BBC News BBC News 105. BBGI BBGI BBGI 503. ITV HD Trial No Information No information No information No information No information 504. CH4 HD Trial No information No information No information 505. five HD Trial No information No information No information 800. Sky News No information No information 801. CNBC Europe No information No information 802. TVSMONDE EUROPE No information No information

▼/▲/◄/►: Navigate

OK (Options): Displays programme options including "Select Channel" option.

INFO (Event Details): Displays the programmes in detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordane with timeline schedule

Blue button (Filter): Views filtering options.

Programme Guide Thu 27/07 12:57 BBC ONE Thu 27/07, 12:00-14:00 1. BBC ONE 19:00 Infra City 20:00 Hustle 2. BBC TWO BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBGI 503. ITV HD Trial 504. Ch4 HD Trial 505. Five HD Trial 800. Sky News 801. CNBC Europe 802. TV5MONIDE EUROPE Navigate Prev. Time Slice Next Time Slice Prev day Next day Next Filter Jump Options INFO Event Details

▼/▲/ .Navigate

Red button (Prev Time Slice): Displays the programmes of previous time slice.

Green button (Next Time Slice): Displays the programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes of previous day.

Blue button (Next day): Displays the programmes of the next day.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): Displays programme options including "Select Channel" option.

"TXT" (button (Filter): Views filtering options.

INFO (Details): Displays the programmes in detail.

Programme Guide Thu 07/06 20:29 Thu 07/06 20:00 21:00 22:00 1. BBC ONE BBC TWO BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BSCI 505. ITV HD Trial 506. CBA HD Trial 505. Five HD Trial 800. Sky News 801. CNBC Europe 802. TV5MONDE EU. New day Next day Zoom Filter 0...3 jump INFO Event Details Options Search Select Sense Swap New

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Views filtering options.

INFO (Details): Displays the programmes in detail.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): Displays programme options including "Select Channel" option.

"TXT" (Search): Displays "Guide Search" menu.

You can search programmes using the Guide Search screen. There are searching options located within the Guide Search Screen. You can Search By Genre or Name Match. If you select GENRE option, it lists the programmes in accordance with their genre. If you select Name Match and press Down button, the next line will be highlighted and alphanumeric numbers will be displayed at the bottom of the screen. Key in the desired programme name that you want to find. When finished, press Down button to highlight Start Search and then press OK button to proceed.

SUBTITLE: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

SWAP (Now) : Shows the current programme.

First Time Installation

IMPORTANT: Ensure that the aerial is connected before switching on the TV for the first time installation.

When the TV is operated for the first time, installation • wizard will guide you through the process. First, language selection screen will be displayed:

First time installation Welcome please select your language! English Bienvenue! Youlliez choisir une langue! Français Wabien Sie bitte ihre Sprache aus! Deutsch Selezione ate la vostrà linguët! Italiano Bienvends, selezione un idioma Españil Iloş geldiniz, lõljen dãl seqimini yapone! Türkçe Dotrodošili, izberite vals jeisk! Slovenski Valkommen, valji ditt spräkt! Svenska Udivozsijuk, kejük valassza ki a myelvet! Mogyar Bern-info, favor selecionear seu idioma Portugues Tervetatora, valitse kielesi! Suomi Select Language Set Language

• Use “▼” or “▲” buttons to select your language and press OK button to set selected language and continue.
• After selecting the language, "Welcome!" screen will be displayed, requiring you to set Country, Teletext Language and Scan Encrypted options.

First time installation Welcome! Country < UK > Teletest Language West Scan Encrypted Yes Select Setting CI Choose your country OK Start search

- By pressing “◀” or “▶” button, select the country you want to set and press “▼” button to highlight Teletext Language option. Use “▼” or “▼” button to select desired Teletext Language.

Press “▼” button after setting Teletext Language option. Scan Encrypted will be then highlighted. You can set Scan Encrypted as Yes if you want to scan coded stations. Afterwards select the desired Teletext Language.

- Press OK button on the remote control to continue and the following message will be displayed on the screen:

Do you want to start an automatic channel scan? Yes No

To select the "Yes" or "No" option, highlight the item by using "◀or "▼buttons and press OK button.

Afterwards, the following OSD will be displayed on the screen:

Please Select Digital Search Type Aerial Cable

If you select CABLE option, the following screen will be displayed:

Network channel scan Start Frequency 114000 KHz Stop Frequency B38008 KHz Search Step 8000 KHz Enter search frequency Start search WEND Exit

You can select frequency ranges from this screen. For highlighting lines you see, use ▼ or “▲button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search.

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Automatic channel scan Please wait. This will take a few minutes. Scanning digital channel: UHF 30 [MERU] Cancel scan

Note: You can press "MENU" button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN, please select "Yes" and then press "OK".

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBC 503. ITV HD Trial 504. Ch4 HD Trial 505. five HD Trial OK Move Delete Edit name Lock Function Navigate Check Page UP/DOWN MENU Exit Back Filter

- Press OK button to quit channel list and watch TV.

Installation

Press "MENU" button on the remote control and select Installation by using "◀ or " ▶button. Press OK button and the following menu screen will be displayed.

Install and Retune Automatic channel scan (Retune) Manual channel scan Network channel scan Analogue fine tune First time installation Clear Service List*

Select Automatic Channel Scan (Retune) by using▼/▲button and press OK button. Automatic Channel Scan (Retune) options will be displayed. You can select options by using "▼/▲" and OK buttons.

Auto Channel Scan Menu Operation

Digital Aerial: Searches and stores aerial DVB stations.

Digital Cable: Searches and stores cable DVB stations.

Analogue: Searches and stores analogue stations.

Digital Aerial & Analogue: Searches and stores both analogue and aerial DVB stations.

Digital Cable & Analogue: Searches and stores both analogue and cable DVB stations.

Whenever you select an automatic search type and press OK button, a confirmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using .◀" or ▶ and OK button.

After auto channel scan type is set and selected • and confirmed, installation process will start and progress bar will move along. Press "MENU" button to cancel process. In such a case, located channels are not stored.

Manual Tuning

HINT: This feature can be used for direct broadcast entry.

• Select Manual Channel Scan from the Installation menu by using “▼”/“▲and OK buttons. Manual Scan options screen will be displayed.
• Select the desired Search Type using “◀” or “▶” button. Manual search options will change accordingly. Use “▼/” ▶ button to highlight an item and then press “◀” or “▶” button to set an option. You can press “MENU” button to cancel.

Digital Aerial Manual Search

Manual Search Search Type: Digital Channel 45 Frequency 666.00 MHz Network channel scan Disabled Signal quality: Poor Signal level: Navigate Start search Change Value Enter OK MEN Exit

In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search.

Digital Cable Manual Search

Manual Search Search Type: Digital Cable Frequency: 114.00 MHz Modulation: 4850 Symbol Rate: 6900 Network channel scan: Enable Signal quality: None Signal level: Navigate Start search Change Value Bank NETNO Exit

In cable manual scan, you can enter frequency, modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.

Analogue Manual Search

Manual Search Search Type C Analogue Band C TV System I Channel 0.1 Frequency 049.75 MHz Signal quality: None Signal level: Navigate Start search Change Value Back Exit

After selecting search type as analogue, you can use "▼/” button to highlight an item and then press “◀” or “▶” button to set an option.

Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Analogue Fine Tune

• Select Analogue Fine Tune from the Installation menu by using “◀” or “▶” and OK buttons. Analogue fine tune screen will be displayed. Analogue Fine Tune feature will not be available if there are no analogue channels, digital channels and external sources stored.
• Press OK button to proceed. Use “◀” or “▶” button to set Fine Tune. When finished, press OK button again.

Network Channel Scan

Select Network Channel Scan from the installation menu by using “◀” or “▶” and OK buttons. Network Channel Scan selection screen will be displayed. Select Digital Aerial or Digital Cable and press OK button to continue. The following message will be asked. Select Yes to continue or select No to cancel.

Do you want to start network search? Your previous channel list will be replaced. Yes No

If you start Digital Aerial scan process, automatic scanning will start. You can press "MENU" button to cancel.

If you start Digital Cable scan process, the following screen will be displayed.

Network channel scan Start Frequency 114000 KHz Stop Frequency 851300 KHz Search Step 8009 KHz E.E Enter search frequency OK Start search MENU Exit

You can select frequency ranges from this screen. For highlighting lines you see, use ▼ or “ ” button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. Automatic searching screen will be displayed during the process.

Note: If you select an extended gap between Start and Stop frequency rate, automatic search duration will take a longer time.

Clear Service List (\*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press "▼" or "▲button to select Clear Service List and then press OK. The following OSD will be displayed on the screen:

Are you sure you want to delete all channels? Yes No

Select YES and press OK to continue or select NO and press OK button to cancel.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or active stations to be listed by using the Channel List options.

- Press "MENU" button to view main menu. Select Channel List item by using "◀" or "▶" button. Press OK to view menu contents.

Channel list Edit Channel List Favourites Active channel list

Select Edit Channel List to manage all stored channels. Use "◀or " ▶ and OK buttons to select Edit Channel List.

Operating the Channel List

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBG 503. ITV HD Trial 504. One HD Trial 505. Five HD Trial OK Move Delete Edit name Lock ▶ Function MENU full ▼ Navigate ■ Back OK Match ■ Filter ▶ Page 97/00N

Press “▼” or “▲” button to select the channel that will be processed. Press “◀” or “▶” button to select a function on Channel List menu.

• Use P+/P- buttons to move page up or down.
• Press BLUE button to view filtering options.
• Press "MENU" button to exit.

Moving a Channel

First select the desired channel. Select Move option in the channel list and press OK button.

Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK.

- Press OK button to process. Selected channel is now moved.

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select Delete option. Press OK button to continue.

- A warning screen will appear. Select YES to delete, select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and select Edit Name option. Press OK button to continue.

Pressing “◀” or “▶” button moves to the previous/next character. Pressing “▼” or “ ” ▲” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “▼” and ‘c’ by “▲”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

- When finished, press OK button to save. Press "MENU" to cancel.

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

Select the channel that you want to lock and select Lock option. Press OK button to continue.

You will be asked to enter parental control PIN. Default PIN is set as 0000. Enter the PIN number.

Enter PIN

- Press OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.

Managing Stations: Favourites

You can create a list of favourite programmes.

• Press "MENU" button to view main menu. Select Channel List item by using "◀" or "▶" button. Press OK to view menu contents.
• Select Favourites to manage favourite list. Use “▼”/“▲” and OK buttons to select Favourites.
• You can set various channels as favourites so that only the favourite channels are navigated.

Favourite List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBC Channel 80. BBC NEWS 24 105. BBCI 503. ITV HD Trial 504. CH4 HD Trial 505. five HD Trial Select channel Tag/Unitag channel Add/Remove Tag/Unitag All Filter MENU Exit

- Select a channel by using “▼” or “▲” button. Press OK button to add selected channel to favourites list. Press OK button again to remove.

Button Functions

- OK: Add/remove a station.

• YELLOW: Tag/untag a channel.
• GREEN: Tag/untag all channels.
- BLUE: Displays filtering options.

Managing Stations: Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting.

Select Active channel list from the Channel list menu by using “◀” or “▶” button. Press OK button to continue.

Active channel list ✓Show all Digital Aerial only Analogue only TV only Radio only Text only Favourites

You can select a broadcast type option from the list by using “▼” /“▲” and OK buttons.

On-Screen Information

You can press "INFO" button to display on-screen information. Details of the station and current programme will be displayed on the information banner.

1 BBC ONE 20:00-21:00 Next: 21:00-22:00 Holly City (Drama) Hustle (Drama)

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number. Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). "Enter PIN" will be displayed on the screen in such a case:

Media Playback Using Media Browser

If the USB stick is not recognized after power off/on or First Time Installation, first, plug the USB device out and power off/on the TV set. Plug the USB device in again.

To display Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing "◀" or "▶" button. Press OK button to continue. Media Browser menu options will be displayed.

Also, when you plug USB devices, media browser screen will be displayed automatically:

Media Browser Videos Photos Music Settings Select Exit

You can play music, picture and video files from the connected USB memory stick. Use "◀ or " ▶ button to select Videos, Photos, Music or Settings.

Viewing Videos via USB

Videos File Name: a43 How I Met Your Mother - 1s01 - Pilot How I Met Your Mother - 1s01 - Pilot Media Browser a43 1/3 Jump Play This Navigate LAND Play Preview Sort Up Name Play Toggle View Style Loop/Shuffle Change Media

When you select Videos from the main options, available video files will be filtered and listed on this screen. You can use ▼ or “▲button to select a video file and press OK button to play a video. If you select a subtitle file and press OK button, you can select or deselect that subtitle file. The following menu will be displayed while playing a video file:

Jump (Numeric buttons): The TV will jump to the file starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button): Plays the selected file.

▼/ ▲Navigate menu

Play (▶ button): Plays all media files starting with the selected one.

Lang (Play Preview): Displays the selected file in a small preview screen.

RED button: Sorts files by name.

YELLOW button: Toggles viewing style.

Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can see which functions are disabled by the change in the appearance of the icons.

BLUE button: Changes media type.

How I Met Your Mother - 1x01 - Pilot.avi x1 00m14s 22m04s Play Stop Pause Revind Forward LAMG Subtitle/Audio jump Subtitle Time Correction wntwBack

Play (▶ button): Starts the video playback.

Stop (■ button): Stops the video playback.

Pause (11 button): Pauses the video playback.

Rewind (◀◀ button): Goes backward.

Forward (▶▶ button): Goes forward.

Subtitle/Audio (LANG button): Sets subtitle/Audio.

Yellow: Opens the Subtitle Time correction menu.

Subtitle Time Correction Offset: < 0 > sec OK Clear SWAP Cancel

Press RETURN button to switch back to the previous menu.

Viewing Photos via USB

When you select Photos from the main options, available image files will be filtered and listed on this screen.

Photos Media Browser No File Name Date/Time 0001. Picture01 09.01.2010 20:55. 0002. Picture01 09.01.2010 20:5... 6drnt80013 1536x2048 427 KB 1/91 0.0 Jump View in full screen Navigate Slide show Thumbnails Sort By Date Toggle View Style Change Media

Jump (Numeric buttons): Jump to selected file using the numeric buttons.

OK: Views the selected picture in full screen.

▼/ ▲ Navigate menu

Slideshow (▶ button): Starts the slideshow using all images.

GREEN button: Views images in thumbnails.

RED button: Sorts files by date.

YELLOW button: Toggles viewing style.

BLUE button: Changes media type.

Slideshow Options

Gerdini0014.jpg 1536x2048 09.01.2010 20:56:20 415 KB Pause Continue Loop Shuffle Previous/Best Isolate Back to File list Help

Pause (■button): Pauses the slideshow.

Continue (▶ button): Continues the slideshow.

Previous/Next (Left/Right buttons): Jumps to previous or next file on slideshow.

Rotate (Up/Down buttons): Rotates the image using the Up/Down buttons.

Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can see which functions are disabled by the change in the appearance of the icons.

RETURN: Returns to the file list.

INFO: Displays the Help screen.

Viewing Music via USB

When you select Music from the main options, available audio files will be filtered and listed on this screen.

Music Media Browser Title Artist Album 01 Symbiosis Convertente Media Browser 01 Demet Akalin - Evil,Mutlu,Cocaklu Demet Akalin www.forumi... 1/1 50 04:44 #eepelle Play Stop Pause Surl Loop/Shuffle &9 jump Play This Previous/Next Teggie View Style Change Media

▼/ ▲ Navigate menu.

Play (▶ button): Plays all media files starting with the selected one.

Stop (■ button): Stops playback.

Pause (||button): Pauses the selected playback.

RED button: Sorts files by Title, Artist or Album.

Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as sorted and there is no need to sort files again by pressing RED button.

Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can see which functions are disabled by the change in the appearance of the icons.

0..9 (Numeric buttons): The TV will jump to the file starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button): Plays the selected file.

Previous/Next (Left/Right buttons): Jumps to previous or next file to play.

Yellow Button: Change viewing style

BLUE: Changes media options.

Media Browser Settings

Settings View Style < Flat > Slide Show Interval 5 sec. Show Subtitle On Subtitle Language English Subtitle Position Down Subtitle Font Size 46 pL. Flat view style displays all files in removable device. Folder view style displays files in selected folders. Select Navigate Push MENU Exit

You can set your Media Browser preferences by using the Settings dialog. Press "▼or " "▲button to highlight an item and use "◀or " "▶button to set.

View Style: Sets default browsing mode.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Language: Sets supported subtitle language.

Subtitle Position: Sets subtitle position to up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

Changing Image Size: Picture Formats

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

- Press "SCREEN" button repeatedly to change the image size. Available zoom modes are listed below.

Auto

When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source (if available).

The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signa from an external device.

Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

100 800000000000000000000000000000000000000000000000000000000000000000000000000000000

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

RGB 100% 100%

Note: You can shift to screen up or down by pressing "▼/ " " buttons while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

1:5

14:9 Zoom

10:30 Control

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

OK

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

Automatic

The top and bottom of the picture are slightly cut off.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Color test monitor with checkered pattern and a circular overlay (no readable text or symbols)

Configuring Picture Settings

You can use different picture settings in detail.

Press "MENU" button and select the Picture icon by using "◀" or "▶" button. Press OK button to view Picture Settings menu.

Picture Settings Mode - Contrast - Brightness - Sharpness - Colour - Colour Shift Colour Temp Noise Reduction Picture Zoom Reset Dynamic 63 32 24 40 R G Cool Medium Auto OK Navigate Change Value SETBACK Back MENU Exit

Operating Picture Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

Use “◀” or “▶” button to set an item.

Press • “MENU” button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.

Contrast: Sets the lightness and darkness values of the screen.

Brightness: Sets the brightness value for the screen.

Sharpness: Sets the sharpness value for the objects displayed on the screen.

Colour: Sets the colour value, adjusting the colors.

Colour Shift: Adjust the desired colour tone.

Colour Temp: Sets the desired colour tone.

Setting Cool option gives white colours a slight blue stress.

For normal colours, select Normal option.

Setting Warm option gives white colours a slight red stress.

Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

Game Mode: When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Note: When Game Mode is on, some items in the Picture Settings menu will be unavailable to be set.

Picture Zoom: Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.

Reset: Resets the picture settings to factory default settings.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PC Picture Settings

For adjusting PC picture items, do the following:

Press “◀” or “▶” button to select Picture icon. Picture menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and Picture Zoom settings in this menu are identical to settings defined in TV picture menu under "Main Menu System".

Sound, Settings and Source settings are identical to the settings explained in main menu system.

PC Position: Select this to display PC position menu items.

PC Position Autoposition OK H Position 0 V Position 0 Dot Clock 0 Phase 0

Autoposition: Automatically optimizes the display. Press OK to optimize.

H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.

V Position: This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Configuring Sound Settings

Sound settings can be configured according to your personal preferences.

Press "MENU" button and select the first icon by using "◀" or "▶" button. Press OK button to view Sound Settings menu.

Sound Settings Volume 24 Equalizer Music Balance 0 Headphone 20 AVL Off Dynamic Bass Off Digital Out PCM Navigate Back Change Value MENU Exit

Operating Sound Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

Use “◀” or “▶” button to set an item.

Press • “MENU” button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level.

Equalizer: Press OK button to view equalizer submenu.

Equalizer Settings Mode < Music > 120Hz —— □ 4 500Hz —— □ 2 1.5KHz —— □ -2 5.0KHz —— □ 3 10.0KHz —— □ 5

In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the "MENU" button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or right speaker balance.

Headphone: Sets headphone volume.

AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.

Digital Out: Sets digital out audio type.

Configuring Your TV's Settings

Detailed settings can be configured to suit your personal preferences.

Press "MENU" button and select Settings ikon by using "◀" or "▶" button. Press OK button to view Settings menu.

Settings Conditional Access Language Parental Timers Date/Time Sources Other Settings

Operating Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

Press • OK button to select an item.

Press • “MENU” button to exit.

Settings Menu Items

Conditional Access: Controls conditional access modules when available.

Language: Configures language settings.

Parental: Configures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source options.

Other Settings: Displays other setting options of the TV set.

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.

In order to watch certain digital channels, a conditional access module (CAM) can be necessary. This modu must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.

The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Commo Interface module detected” message appears on the screen.

Refer to the module instruction manual for details of the settings.

Viewing Conditional Access Menu (\*)

(*) These menu settings may change depending on the service provider.

Press "MENU" button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight Conditional Access and press OK to view menu items.

Configuring Language Preferences

You can operate the TV's language settings using this menu.

- Press "MENU" button and select the fifth icon by using le◀" or "▼" button. Press OK button to view Settings menu. Use "◀" or "▼" button to highlight Language and press OK to continue:

Language Settings Menu English Preferred - Audio English - Subtitle English - Teletext West - Guide English Current - Audio None - Subtitle None Set the language used in menus Navigate MENU Exit

Use "▼or " " button to set an item. Settings are stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

Audio• : Sets the preferred audio language.

• Subtitle: Sets the subtitle language. Selected language will be seen in subtitles.
• Teletext: Sets teletext language.

Guide• : Sets the preferred Guide language.

Current (\*)

(*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed.

Audio: Changes the audio language for the current channel.

- Subtitle: Sets the subtitle language for the current channel.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

Language Settings Preferred Menu English Primary Audio Language English Secondary Audio Language Swedish Primary Subtitle Language English Secondary Subtitle Language Swedish Primary Teletext Language Finnish Secondary Teletext Language Swedish Guide Finnish Set the language used in menus Navigate MENU Exit

In the configuration menu, highlight the Language Settings item by pressing "▼or " " Buttons. Press OK and Language Settings submenu will be displayed on the screen:

Use “▼” or “▲” buttons to highlight the menu item that will be adjusted and then press “◀” or “▶” button to set.

Notes:

System Language determines the on-screen menu language.

Audio Language is used for selecting the soundtrack of a channels.

Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

Parental Control

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Press "MENU" button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or " " " button to highlight Parental and press OK to continue:

Enter PIN

To display parental lock menu options, PIN number should be entered. Factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed:

Parental Settings Menu lock < Off > Maturity Lock Off Child Lock Off Set PIN **** Select Setting Change Value Back MENU Exit

Parental Settings Menu Operation

Select an item by using “▼” or “▲button.”

Use “◀” or “▶” button to set an item.

- Press OK button to view more options.

Menu Lock: Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.

Maturity Lock (optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock (optional): When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby Off/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby Off/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.

Set PIN: Defines a new PIN number. Use numeric buttons to enter a new pin number. You will need to code your new pin a second time for verification purposes.

IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Timers

To view Timers menu, press "MENU" button and select Channel List icon by using "◀" or "▶" button. Press OK button to view Channel List menu. Use "▼" or "▲" button to highlight Timers and press OK to continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after a certain time.

- Highlight Sleep Timer by using “▼” or “▲button. Use “◀” or ▶” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular programme using this feature.

Press “▼” button to set timers on an event. Programme timer function buttons will be displayed on the screen.

Adding a Timer

- Press YELLOW button on the remote control to add a timer. The following menu appears on the screen:

Channel: Changes network type by using “◀” or “▶”.

Timer Type: This feature is unavailable to be set.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric buttons.

End: Enter an ending time using the numeric buttons.

Duration: Displays duration between the starting and ending time.

Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use “◀” or “▶” buttons to select an option.

- Press GREEN button to save the timer. Press RED button to cancel.

Change/Delete:Controls parental settings on timers.

Editing a Timer

Select the timer you want to edit by pressing “•▼ or “▲button.

• Press GREEN button. Edit Timer menu screen will be displayed.
• When finished with editing, press GREEN button to save. You can press "MENU" button to cancel.

Deleting a Timer

- Select the timer you want to delete by pressing “▼” or “▲button.

Press • RED button.

- Select YES by using "◀" or "▶" buttons to delete the timer. Select NO to cancel.

Configuring Date/Time Settings

Select Date/Time in the Settings menu to configure Date/Time settings. Press OK button.

Date/Time Settings Date 07/06/2007 Time 20:26 Time Settings Mode < Auto > Time Zone GMT + 01:00 Change Value RETBACK Back MENU Exit

- Use “▼” or “▲” buttons to highlight Date/Time.

Date, Time, Time Settings Mode and Time Zone Setting will be available.

Use “▲” or “▼buttons to highlight the Time Settings Mode. Time Settings Mode is set using “◀” or “▶” buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

- By pressing “▲” or “▼” buttons select Time Zone.

Use “◀” or “▶” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.

- Changes are automatically stored. Press "MENU" to exit.

Configuring Source Settings

You can enable or disable selected source options. The TV will not switch to the disabled source options when "SOURCE" button is pressed.

Source Settings SCART DVD SIDE AV SCART-S HDMI1 HDMI2 YPbPr VGA/PC Enabled > Enabled Enabled Enabled Enabled Enabled Navigate Change Value MTBACK Back MENU Exit

- Select Sources in the Settings menu and press OK button.

Press▼ or "▲buttons to select a source.

Use “◀” or ▶ button to enable or disable the selected source. Changes are automatically stored.

Note: YPbPr mode can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (not supplied).

Configuring Other Settings

To view general configuration preferences, select Other Settings in the Settings menu and press OK button.

Other Settings Menu Timeout < 60 sec > Scan Encrypted Yes Backlight Maximum Power Save Mode Off Blue Background Off Software upgrade V.0.2.7 Hard Of Hearing Off Audio Description Off Auto TV OFF 4 h Broadcast Type Digital Aerial Standby Search Off Country : UK Change Value Navigate MENU Exit

Operation

Press “▼” or “▲buttons to select an item.

• Use “◀” or “▶” button to set an option.
• Press OK button to view a sub-menu.

Menu Timeout: Changes timeout duration for menu screens.

Scan Encrypted: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.

Backlight (optional): This setting controls the backlight level and it can be set to Auto, Maximum, Minimum, Medium and Eco Mode.

Power Save Mode: Use “▼” or “▲button to select Power Save Mode. Press “◀” or “▶” button to set Power Save Mode as On or Off. See the section, “Environmental Information” in this manual for further information on Power Save Mode.

Note : Backlight function will be invisible if Power Save Mode is set to on.

Blue Background: Activates or deactivates blue background system when the signal is weak or absent.

Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.

Upgrade options Automatic scanning < Enabled > Scan for upgrade OK

You can enable or disable automatic upgrade by setting Automatic Scanning option.

You can manually search for new software by selecting Scan for upgrade.

Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track.

Auto TV Off: You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time, the TV will go off.

Broadcast Type (optional):

When you set the desired broadcast type by using "or " button, the TV will display the related channel list. If the related source has does not include any stored channels, "No channels for this type have been found." message will be displayed on the screen

Standby Search (optional)

Use “▼” or “▲button to select Standby Search and then press “◀” or “▶” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On.

If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes.

Other Features

Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or "INFO" button is pressed.

Mute Function: Press "×" button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the first one is pressing the × button and the second one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural and Cinema.

Displaying Subtitles: You can enable subtitles by pressing the SUBTITLE button of the remote control. Press LANG button to select subtitle language and preSUBTITLE button to display available subtitles.

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

“TXT” Teletext / Mix : Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO" Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀”/“▶ Subcode Pages : Selects subcode pages if available when the teletext is activated.

CH▲ or CH▼ and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons (RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission

is present. Pressing “▼ or “ ” commands will request the next or previous page respectively.

Tips

Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.

Image Persistence: Please note that ghosting may occur while displaying a persistent image.LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

Sound: You can not hear any sound. Did you perhaps interrupt the sound, pressing them ✗ button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.

Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1360 x 768. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index	Resolution	Frequency
1	640x400 70	Hz
2	640x480 60	Hz
3	640x480 75	Hz
4	800x600 60	Hz
5	800x600 75	Hz
6	1024x768 60	Hz
7	1024x768 70	Hz
8	1024x768 75	Hz
9	1152x864 75	Hz
10	1280x768 60	Hz
11	1280x1024 60	Hz
12	1360x768 60	Hz

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source	Supported Signals		Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
YPbPr	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50Hz O
	1080I 60Hz O
	1080P 50Hz O
	1080P 60Hz O
HDMI1HDMI2	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 50 Hz O
	1080I 60Hz O
	1080P 50Hz O
	1080P 60Hz O
	1080P	24 Hz	O

(X: Not Available, O: Available)

In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

	24Hz	25Hz	30Hz	50Hz	60Hz
480i					☑
480p					☑
576i				☑
576p				☑
720p				☑	☑
1080i				☑	☑
1080p	☑ ☑	☑ ☑	☑

Appendix D: Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie	.mpg, .mpeg	MPEG1, 2 MPEG Layer	1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1, 2		MPEG2
	.vob MPEG2
	.mkv H.264, MPEG1,2,4 EAC3 / AC3
	.mp4	MPEG4, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM/MP3
	.avi	MPEG2, MPEG4 PCM/MP3		MAX 1920x1080 @ 30P 20Mbit/sec
		Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM
Music	.mp3 -		MPEG 1 Layer 1 / 2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG max WxH = 15360x8640 4147200bytes
		Progressive JPEG max WxH = 1024x768 6291456bytes
	.bmp - max WxH = 9600x6400 3840000bytes
Subtitle	.sub	-		-
	.srt

Appendix E: Software Upgrade

• Your TV is capable of finding and updating new software upgrades over broadcast channels.
• For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initializations. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.
- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Products

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or restriction (no text present)

Battery

Information for Users on Disposal of old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER ( W_RMS. ) (10% THD)

2 × 2,5

POWER CONSUMPTION (W)

50 W (max)

PANEL

24" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 149 x 576 x 403

Weight (Kg): 5,90

DxLxH (Without foot): 56 x 576 x 368

Weight (Kg): 5,50

Digital Reception (DVB-C)

Transmission Standards:

DVB-C, MPEG2, DVB-C, MPEG4

I. DEMODULATION

-Symbolrate: 4.0 Msymbols/s to 7.2 Msymbols/s
- Modulation: 16-QAM, 32-QAM, 64-QAM, 128-QAM and 256-QAM

II. VIDEO

• All MPEG2 MP@ML formats with up-conversion and filtering to CCIR601 format.
  -CVBS analogue output

III. AUDIO

-All MPEG1 Layer 1 and 2 modes
-Sampling frequencies supported are 32, 44.1 & 48 kHz

Digital Reception	MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profile 1	for UKObject
	Frequency range: 474-850 MHz for UK models
	170-862 MHz for EU models
	Transmission standard: DVB-T. MPEG-2 , MPEG-4
	Demodulation: COFDM with 2K/8K FFT mode
	FEC: all DVB modes
	Video: MP@ML, PAL, 4:3/16:9
	Audio: MPEG Layer I&II 32/44.148kHz.

Contents

Features 72

General Properties.... 72

Safety Information 73

Notes on Discs 73

On handling discs 73

On cleaning....73

Licence Notification 73

How to Watch a DVD 73

DVD Control Panel Buttons 74

Overview of the Remote Control 74

General Operation 75

General Playback 76

Basic Play 76

For your reference: 76

Notes on Playback: 76

Setup Menu Items 76

Video Setup Page.... 76

TV Type 76

DivX VOD 76

Language Setup 76

OSD LANG 76

AUDIO 76

DISC MENU 76

SUBTITLE 76

Preferences 77

DEFAULT 77

DOWNMIX 77

PASSWORD (Change Password): 77

SPDIF OUTPUT 77

Troubleshooting 77

The picture quality is poor (DVD).... 77

Disc does not play 77

Wrong OSD language 77

Some functions (Zoom etc) do not work 78

No picture 78

No sound 78

Distorted sound....78

No response from remote control 78

If nothing works.... 78

Definition of Terms 78

Disc Types Compatible with This Unit 79

Supported File Formats 80

Specifications 80

Features

General Properties

• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG / DivX playback.
  • NTSC/PAL playback (according to disc content)
• LPCM audio via coaxial digital audio output. (optional).
• Multi-Audio (up to 8) support (According to disc content)
• Multi-Subtitle (up to 32) support (According to disc content)
  • 8 level parental control
• Fast forward and rewind in 5 different speeds. (2x, 4x, 8x, 16x, 32x)
• Slow motion playback in 4 different speeds. (1/2x, 1/4x, 1/8x, 1/16x forward)
  • Frame by frame forward playback.
• Search Mode
• Repeat
  • Coaxial audio output (optional)
  • Copied disks may be incompatible.

Note

• This DVD player may not support some MP3 recordings due to differences in recording formats or disc type.
• Please read the owner's manual about MP3 playback.
• CD-R/CD-RW discs recorded by CD-DA method can be played. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design.
• DVD-R/RW discs recorded by DVD-Video method can be played. Some DVD-R/RW discs may be incompatible due to laser pick-up and disc design.
• Some discs may be incompatible with JPEG Viewer function due to different recording format or condition of the discs.
• For proper operation, only 12 cm discs must be used

Safety Information

CAUTION

DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed.

CLASS 1 LASER PRODUCT

RISK OF ELECTRIC SHOCK

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Notes on Discs

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• If the disc is contaminated with any substance like glue remove before using it.

Illustration of a hand pressing down on a circular object with a cross symbol (no text or symbols present)

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.
  • After playing, store the disc in its case.

On cleaning

- Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

Illustration of two hands performing a circular motion or maneuvering operation, one with an arrow indicating left turn and the other with a cross (no text or symbols)

- Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

Licence Notification

- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

How to Watch a DVD

When placing a disc into the loader, labeled side of the disc should be on the front:

Illustration of a hand holding a CD with an arrow pointing to it, next to a blank computer monitor (no text or symbols)

When TV set is turned on, first switch to DVD source by using the SOURCE button on the remote control. Press play on the remote control, or directly press play button at the front panel. If there is no disc inside the loader, place a DVD first and press play.

DVD Control Panel Buttons

A. Disc loader

B. Play / Pause

Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as "button select" (selects the highlighted item in menu) if this is not prohibited by the disc.

C. Stop / Eject

Stop playing disc / Eject or Load the disc Note:

• You cannot eject the disc via the remote control.
• While playing a file, you should press STOP button three times to eject.

ton A B C

Overview of the Remote Control

Standby1.

Language selection (Set language)2.

Numeric buttons3.

Navigation buttons (Up/Down/Left/Right)4.

Clear 5.

Display time / DVD menu6.

Mute7.

Pause8.

Rapid reverse9.

Play10.

Zoom11.

Repeat12.

Subtitle13.

AV / Source selection14.

1. Menu
2. OK
3. Return
4. Search Mode
5. Info
6. Volume Up / Down
7. Skip Previous
8. Skip Next
9. Rapid advance
10. Stop
11. Title
12. Root

Note: Buttons not indicated with a number are not functional in DVD mode.

1 2 3 4 5 6 7 8 9 10 11 12 BLEEP SCREEN PRENETR FAV LABS UNITED TXT EFG 0 SNAP 13 14 15 16 17 18 19 20 21 22 23 24 25 26 C DISP CHANGE INFO V CH OK I II III IV VOUT OPEN ROOM

General Operation

You can operate DVD, movie CD, music or picture CD's content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons.

Buttons on the Remote Control	DVD Playback	Movie Playback	Picture Playback	Music Playback
	Play Play Play Play
II	Pause Pause	Pause Pause
	Stop Stop Stop Stop
◀/Skip	backward/forward	Skip backward/forward	Previous / Next	Previous / Next
	Shifts the zoomed picture left or right (if available).
	Highlights a menu item. / Shifts the zoomed picture down or up (if available).
	Fast reverse / Fast forward
C Clears digit (if available).
DISPLAY	Displays time / Views main setup menu
INFO Time counter mode selection (during playback). Press repeatedly to switch between modes.
LANG. Audio language. X X
MENU	Displays TV menu.
OK / SELECT	Enter / View / Play
REPEAT	Displays repeat options.
RETURN	Returns back to the previous menu (if available).
ROOT	Goes back to the root folder (if available).
SEARCH MODE (*)	Direct selection of scenes or time.		Selects the desired file.	Selects the desired file.
SUBTITLE	Subtitle on-off. Press repeatedly to switch between subtitle options.		X	X
TITLE	Displays disc menu (if available).	Displays disc menu (if available).	X	X
ZOOM	Zooms picture. Press repeatedly to switch between zoom options.

Other Functions – Button Combinations(During playback)
II + ▶	Slow forward.
[II + ▶] + ◀◀ ▶	Sets slow forward speed.
▶▶ + ▶	Sets fast forward speed.
◀◀ + ◀◀	Sets fast reverse speed.
■ + ■	Confirms stop command.
II + ▶◀	Press ▶◀ repeatedly to advance manually.

(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5).

General Playback

Basic Play

Press on the power button1.

Please insert a disc to the loader.2.

The disc will be automatically loaded and play commences if the disc does not have any menus recorded on it.

A menu may appear on the TV screen after a few moments or the film may start immediately after the introduction of the Film Company. This behaviour depends on the disc content and may change.

Note: Step 3 and 4 is available only when a menu is recorded on the disc.

Press "3." / "▲/ ◀ of the number button

(s) to select the preferred title.

Press 4. OK.

Play of the selected items now starts. The played item may be a motion picture, a still picture or another submenu depending on the disc.

For your reference:

If an action corresponding to a button is prohibited the "∅" symbol appears.

Notes on Playback:

No sound will be heard during Rapid advance 1. or Rapid reverse.

No sound will be heard during Slow motion play.2. Reverse slow motion play is not available.3.

1. In some cases, the subtitle language is not changed immediately to the selected one.

2. When the preferred language is not selected even after pressing the button several times, it means that the language is not available on the disc.

3. When the player is restarted or the disc is changed, the subtitle selection is automatically changed back to the initial settings.

4. If a language is selected, not supported by the disc, the subtitle language will automatically be set to the disc's priority language.

5. Usually a circulation will happen while switching to another language, that is you can cancel the subtitle by pressing this button a number of times until "Subtitle Off" appears on the screen.

6. When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard.

7. Some DVDs may not contain root and/or title menus.

8. Reverse stepping is not available.

9. For your convenience:

If you attempt to enter a number greater than the total time of the current title, the time search box disappears and "Input Invalid" message appears on up-left corner of screen.

1. Slide Show is disabled when the ZOOM mode is on.

Setup Menu Items

Video Setup Page

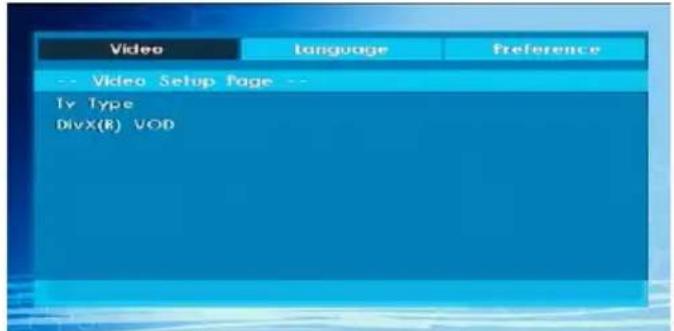

Video Language Preference -- Video Setup Page -- Iv Type DivX(R) VOD

TV Type

TV Type is only available as 'PAL'. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen.

DivX VOD

DivX VOD provides the convenience of streaming video in terms of quality and performance.

Language Setup

Video Language Preference -- Language Setup Page -- Osd Lang Audio Disc Menu Subtitle

OSD LANG

You can select the default OSD language of the player menus

AUDIO

You can select the default audio language if supported by the DVD disc.

DISC MENU

You can select the DVD's disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc.

SUBTITLE

You can select the default subtitle language if supported by the DVD disc.

Preferences

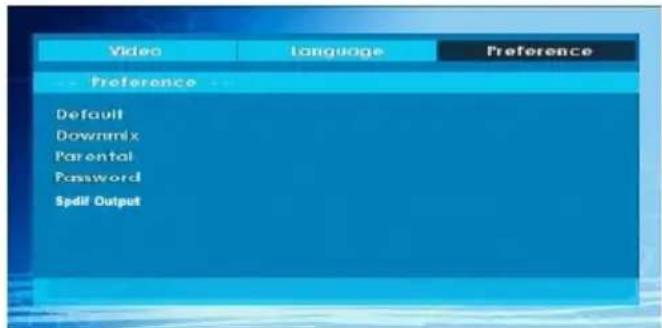

Video Language Preference Preference Default Downmix Parental Password Spill Output

DEFAULT

If you choose RESET and press OK, the factory-presets are loaded. Parental level and parental password does not change.

DOWNMIX

This mode can be selected when the digital audio output of the TV is used.

SURROUND: Surround sound output.

STEREO: Two channels stereo.

PARENTAL (Parental Level)

Video Language Preference Preference Default 1 KID SATE Downmix 2 G Parental 3 PG Password 4 PG 13 Split Output 5 PGR 6 R 7 NC 17 8 Adult

Playing some DVDs can be limited depending on the age of users. The “Parental Control” function allows playback limitation level to be set by the parent.

Parental Level can be adjusted to one of the eight levels. Level "8 ADULT" adjustment let you watch all of the DVD titles ignoring the DVD disc's parental level. You can watch the DVD discs, which has the same or lower parental level than the player's level only.

PASSWORD (Change Password):

Using this item you can change the current password.

To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password.

You can use C key to delete the incorrect entry.

Note: Factory preset of the password is "0000". You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service.

SPDIF OUTPUT

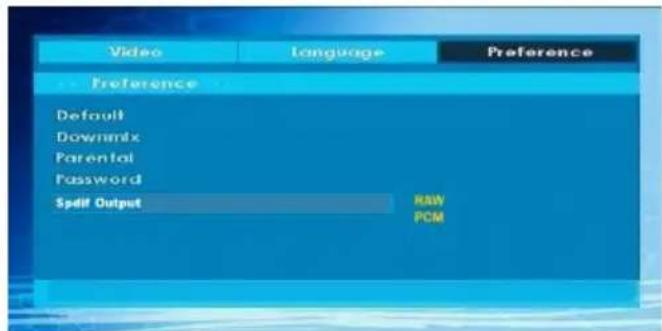

Video Language Preference Preference Default Downmix Parental Password Split Output RAW PCM

You can set Spdif Output as PCM or RAW. If you select PCM from SPDIF Output in DVD menu and play DVD with Dolby audio, you can get audio output with two channels via the speakers and the SPDIF Out. If you select RAW from SPDIF Output in DVD menu and play DVD with Dolby audio, speakers will be muted and you can get 5+1 Dolby audio via the SPDIF Out.

Troubleshooting

The picture quality is poor (DVD)

• Make sure the DVD disc surface is not damaged. (Scratch, fingerprint etc.)
• Clean the DVD disc and try again.

See instructions described in "Notes on Discs" to clean your disc properly.

• Ensure that the DVD disc is in the drawer with the label uppermost.
• A damp DVD disc or condensation may effect the equipment. Wait for 1 to 2 hours in Stand-by to dry the equipment.

Disc does not play

• No disc in the machine.
  Place a disc into the loader.
  • Disc incorrectly loaded.

Ensure that the DVD disc is in the drawer with the label uppermost.

• Wrong type of disc. The machine cannot play CD-ROMS etc.
• The region code of the DVD must match the player.

Wrong OSD language

• Select the language in the set-up menu.
• The language for the sound or subtitles on a DVD cannot be changed.
• Multilingual sound and/or subtitles not recorded on the DVD.
• Try to change the sound or subtitles using DVD's title menu. Some DVD's do not allow the user to change these settings without using the disc's menu

Some functions (Zoom etc) do not work

• These functions are not available on the DVD.

No picture

- Have you pressed the correct buttons on the remote control? Try once more.

No sound

- Check the volume is set to an audible level.

- Make sure you have not switched the sound off accidentally.

Distorted sound

- Check that the appropriate listening mode setting is correct.

No response from remote control

• Make sure the remote control is in the correct mode.
• Check batteries are fitted correctly.
• Change the batteries.

If nothing works

If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself.

Definition of Terms

Chapter Number

These numbers are recorded on DVD discs. A title is subdivided into many sections, each of which are numbered, and specific parts of video presentations can be searched quickly using these numbers.

DVD

This refers to a high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG II) and high-density recording technology. DVD enables aesthetically pleasing full-motion video to be recorded over long periods of time (for instance, a whole movie can be recorded).

DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the thinner the disc, the higher the density at which the information can be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the two thin discs are adhered to each other, there is the potential to achieve double-sided play sometime in the future for even longer duration play.

Subtitles

These are printed lines appearing at the bottom of the screen, which translate or transcribe the dialogue. They are recorded on the DVD discs.

Time Number

This indicates the playtime, which has elapsed from the start of a disc or a title. It can be used to find a specific scene quickly. (Not all discs permit the time search feature to be used. Availability is determined by the disc's manufacturer.)

Title Number

These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc.

Track Number

These numbers are assigned to the tracks, which are recorded on AudioCDs. They enable specific tracks to be located quickly.

LPCM

LPCM stands for Pulse Code Modulation and is digital audio.

MPEG

Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs digital audio has been compressed and recorded in this format.

DivX

DivX is a digital video compression technology based on MPEG-4 and developed by DivX Networks Inc.

DiscTypes (Logos)	Recording Types	DiscSizeMax.	Playing Time	Characteristics
DVD	Audio + Video	12cm	Single-sided;240minDouble-sided;480min	DVDcontainsexcellentsoundandvideo duetoDolbyDigitalandMPEG-2System.Variousscreenandaudiofunctionscanbe easilyselectedthroughtheonscreen menu.
AUDIO-CD	Audio	12cm	74min.	AnLPisrecordedasanalogsignalwith moredistortion.CDisrecordedasa DigitalSignalwithbetteraudioquality, lessdistortionandlessdeteriorationof audioqualityovertime.
MP3-CD	Audio (xxxx.mp3)	12cm	It depends on MP3 quality.	MP3isrecordedasaDigitalSignalwith betteraudioquality,lessdistortionand lessdeteriorationofaudioquality overtime.
PICTURE-CDJPEGREADABLE	Video (stillpicture)	12cm	It depends on JPEG quality.	JPEGisrecordedasaDigitalSignalwith betterpicturequalityovertime.
DivX	Audio + Video	12cm	It depends on DivX quality	Video&AudiowithMPEG-4Compression technology.

Supported File Formats

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie (optional)	.mpg/.dat/.vob	MPEG1	MPEG Layer 1/2/3
		MPEG2	MPEG2
	.avi	XviD/ 3ivx	PCM/MP3 XviD	Verson up to: 1.1.2 / DivX 3.1.x, 4.x, 5.x
		MPEG4	PCM/MP3
		MS ISO MPEG4	PCM/MP3 Support SP and ASP
Music	-- PCM	Sample Rate: 8K ~ 48KHz
	.mp3 -		MPEG 1/2 Layer 1/2/3 (MP3)	Sample Rate: 8K ~ 48KHz, Bit Rate: 64K~320Kbps
Photo	.jpg	Baseline JPEG		WxH = 8902x8902 up to 77Mega-pixelSupport format: 444/ 440/ 422/ 420/ Grayscale
		Progressive JPEG		Up to 4 Mega-pixelSupport format: 444/ 440/ 422/ 420/ Grayscale
External Subtitles (optional)	.srt			Support Text File Format, but do not support Picture File Format
	.smi
	.sub
	.ssa
	.ass

Note: It is not guaranteed that all DivX formats are supported.

Specifications

Types of Discs Supported	DVD: SS/SL 4.7" (DVD-5)SS/DL 4.7" (DVD-9)DS/SL 4.7" (DVD-10)DS/DL 4.7" (DVD-18)	CD-DACD-RCD-RWMP-3/JPEG
Video Type	MPEG-2 Video Standard Decoding (MPEG-1 supported)Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels50 and 60 Hz frame refresh rates (PAL & NTSC)Digital bit-stream processing rate up to 108Mbits/secLine resolution more than 500 lines
Audio Type	MPEG Multichannel DecodingLPCM
Audio Output	Analog Outputs:24 bit /48, 44.1kHz down-sampling DAC

Table des matières

Safety warning symbol showing a faucet above a monitor with crossed-out lines indicating prohibition or exclusion.

Diagram illustrating weather and heating conditions with icons for sun, rain, water, and a computer monitor

Close-up of a black and yellow audio jack with three red connectors (no text or symbols visible)

① ② ③ ④ ⑤ ⑥ SPDIF Coax.OUT VGA ANT. SCART

USB 5Vdc Max:500mA

Two black electronic devices with batteries, one showing a white arrow and the other showing a battery labeled '1' and '2' (no text or symbols on main body)

Close-up of a black rubber or plastic device with a white arrow pointing to its side (no text or symbols visible)

Avancer (Touche▶): Avance.

5mm-9mm 100% CHINA

Screenshot of a software interface showing a color calibration tool with a grid and a color swatch, likely from an image processing application.

Panoramique

Facilitated 100% 100% 100%

Color test monitor with grid background and a circular overlay showing a spectrum (no readable text or symbols)

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text or labels)

Produits

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or restriction (no text present)

Batterie

PAL/SECAM B/G D/K K' I/I' L/L'

RÉCEPTION DE CANAUX

VHF (BANDE I/III)

UHF (BANDE U)

HYPERBANDE

NOMBRE DE CANAUX PRÉRÉGLÉS

1000

INDICATEUR DE CHAÎNE

Affichage à l'écran

ENTRÉE D'ANTENNE RF

German + Nicam Stereo

PUISSANCE DE SORTIE AUDIO (W _RMS. ) (10% THD)

2 × 2,5

CONSOMMATION ÉLECTRIQUE (W)

50 W (max)

PANNEAU

CLASS 1 LASER PRODUCT

RISQUE D'ELECTROCUTION

Illustration of two hand positions on a circular object, one with a cross mark and the other with a circle (no text or symbols)

Illustration of two hand positions: one with a circular arrow and arrow, the other with a cross and arrow (no text or symbols)

Illustration of a hand holding a CD with an arrow pointing to it, next to a blank computer monitor (no text or symbols)
