Dear Customers

Thank you for purchasing this JVC product.

Before use, please read the Safety Precautions and Cautions on P.2 and P.29 to ensure safe use of this product.

Some features explained in this manual only apply to the specific camera model identified.

This product comes with a "Basic User Guide" (this manual) and a "Detailed User Guide".

Detailed User Guide

Explains the ways of shooting in various situations and the useful features.

■ Access the following website on your PC

For Future Reference:

Enter the Model No. (located on the bottom of the camera) and Serial No.

(located on the battery pack mount of the camera) below.

Model No.

Serial No.

HDD

DOLBY

DIGITAL STEREO CREATOR

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

AVCHD

TM

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

NOTES:

• The rating plate and safety caution are on the bottom and/or the back of the main unit.
• The serial number plate is on the battery pack mount.
• The rating information and safety caution of the AC adapter are on its upper and lower sides.

Caution on Replaceable lithium battery

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate.

Replace battery with Panasonic, Sanyo, Sony or Maxell CR2025.

Danger of explosion or Risk of fire if the battery is incorrectly replaced.

• Dispose of used battery promptly.
• Keep away from children.
• Do not disassemble and do not dispose of in fire.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear). Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to this unit and to the user.

Carrying or holding this unit by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to this unit and leaving it on top of the TV is not recommended, as tripping on the cables will cause the unit to fall, resulting in damage.

CAUTION:

The mains plug shall remain readily operable.

- Remove the mains plug immediately if this unit functions abnormally.

WARNING:

The battery pack, this unit with battery installed, and the remote control with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. Only use attachments/accessories specified by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-o

Symbolic icon of a person lifting a ladder inside a circle (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If this symbol is shown, it is only valid in the European Union.

Remember that this unit is intended for private consumer use only.

Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

Trademarks

● AVCHD and AVCHD logotype are trademarks of Panasonic Corporation and Sony Corporation.
- x.v.Color™ is a trademark of S o ny Corporation.
- HDMI is a trademark of HDMI L i censing, LLC.
● Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
- Windows® is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• Macintosh is a registered trademark of Apple Inc.
- iTunes, iMovie, iPhoto are trademarks of Apple Inc., registered in the U.S. and other countries.
- YouTube™ and the YouTube logo are trademarks and/or registered trademarks of YouTube LLC.
- Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective holders.

CAUTION:

• Fire or injury may result if batteries NOT approved by JVC are used.
  Only use the batteries specified on page 24.
• Please do not pull or bend the AC adapter plug and cable. This may damage the AC adapter.

Make a backup of important recorded data

JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to a disc or other recording media for storage.

Contents

Safety Precautions ...... 2

Contents 4

Verifying the Accessories 4

Names of Parts and Functions .... 5

▶ Getting Started ...... 6

Charging the Battery Pack 6

Grip Adjustment 7

Attaching the Lens Cap (GZ-HD500) 7

Clock Setting 8

▶ Recording 10

Video Recording 10

Still Image Recording 11

Recording on a microSD card ..... 12

▶Playback 14

Playing Back/Deleting Files on this Unit 14

Playing Back on TV 15

▶ Copying ...... 17

Copying Files 17

Dubbing Files by Connecting to a DVD

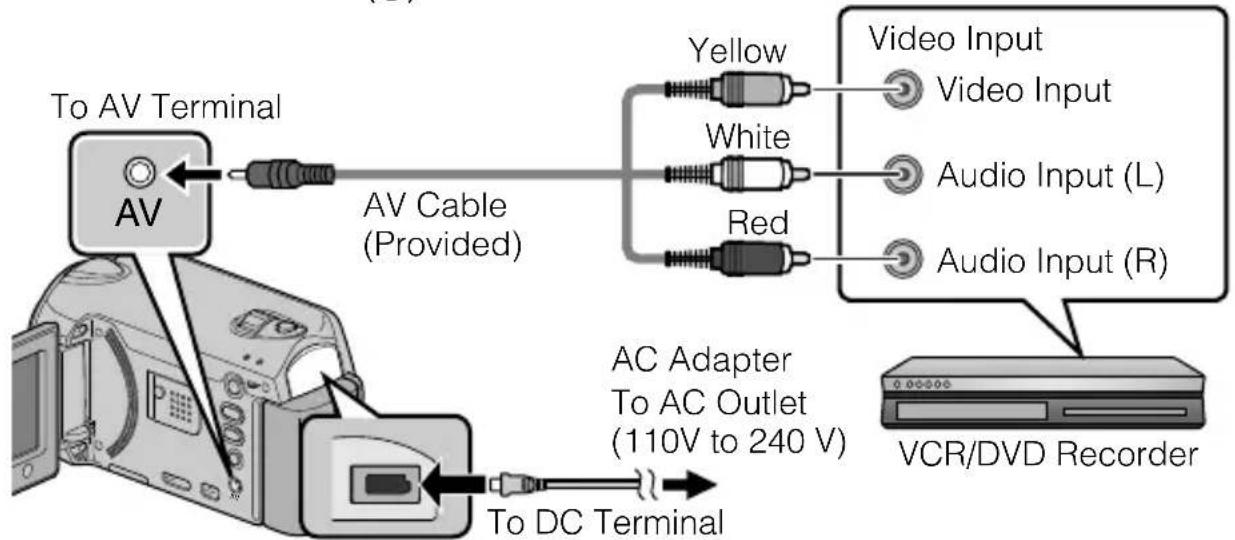

Recorder or VCR 18

Copying to Computer 19

▶ Others 23

Using the Menu 23

Recordable Time/Number of Images 24

Troubleshooting 25

Cautions 29

Specifications 31

▶ Learning About Advanced Operations

Use the “Detailed User Guide” on your PC to find out more about the advanced operations.

■ Access the following address on your PC

Verifying the Accessories

AC Adapter

AP-V30U *1

Battery Pack

BN-VG114US

USB Cable

(Type A - Mini Type B)

AV Cable

Coiled cable or hose with two connectors (no text or symbols visible)

Illustration of a coiled cable with three connectors (no text or symbols)

CD-ROM

Basic User Guide

(this manual)

- Remote Control *2 RM-V760

- Lithium Battery *2 (Pre-installed in the remote control)

- Component Cable *2

- Lens Cap (GZ-HD500)

- microSD cards are sold separately.

For details on the types of cards that can be used on this unit, refer to P.12.

*1 When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.

*2 Supplied for GZ-HD620 only.

For more information, refer to the Detailed User Guide

Names of Parts and Functions

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a device with numbered parts, showing internal components and exploded view

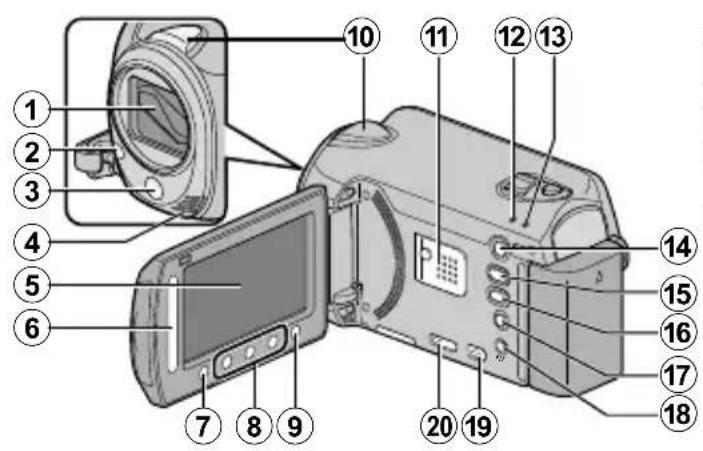

① Lens/Lens Cover *

② Light *

③ Remote Sensor *

④ Stereo Microphone

⑤ LCD Monitor Turns the power on/off by opening and closing.

⑥ Slider Selects an image or item.

⑦ OK Button Confirms the selected image or item.

⑧ Operation Buttons Functions differently according to the operation.

⑨ MENU (menu) Button (P.23)

⑩ Camera Sensor

⑪ Speaker

⑫ ACCESS (Access) Lamp Lights up/blinks during recording or playback.

⑬ POWER/CHARGE (Power/Charge) Lamp (P.6)

⑭ ▶ (Play/Record Mode) Button Switches between recording and playback modes.

⑮ 📋/☐ (Video/Still Image) Button Switches between video and still image modes.

⑯ UPLOAD/EXPORT* (Upload/Export to iTunes*) Button Recording : Takes videos in YouTube™ or iTunes* format.

Playback : Changes the video to YouTube™ or iTunes* format.

⑰ (Power/Information) Button

Recording : Displays the remaining time as well as the battery power during continuous recording. Playback : Displays file information. Press and hold to turn the power on/off while the LCD monitor is opened.

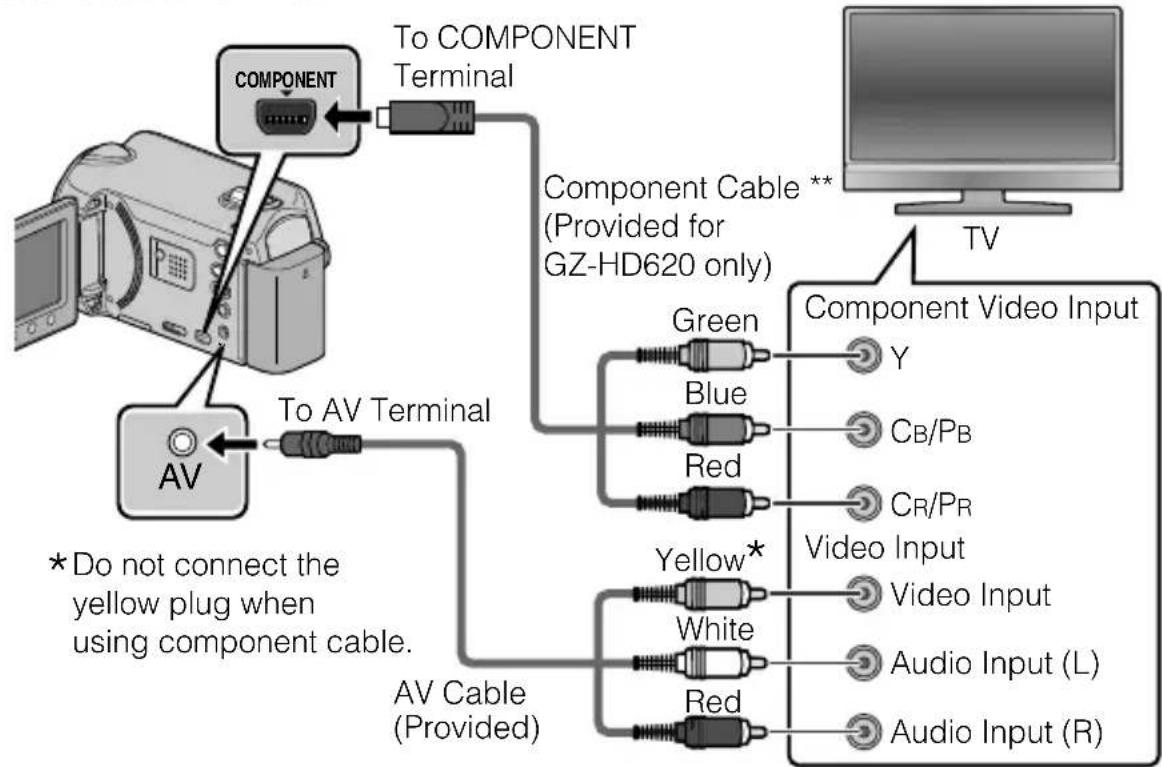

⑱ AV Terminal (P.15, P.18)

⑲ COMPONENT (Component) Connector (P.15)

⑳ HDMI Mini Connector ( P.15)

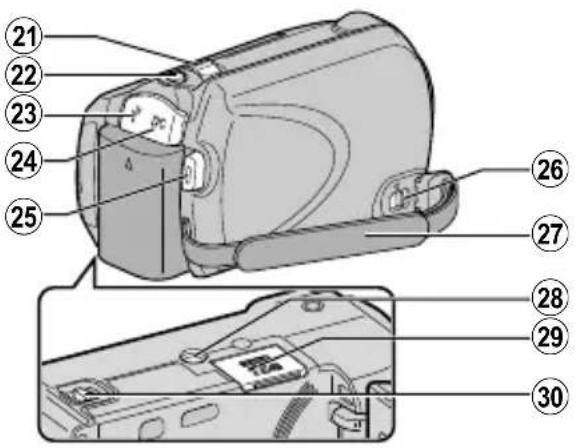

② Zoom/Volume Lever (P.10, P.14)

②2 SNAPSHOT (Still Image Recording) Button (P.11)

②3 USB Terminal (P.22)

⑳ DC Terminal (P.6)

⑲ START/STOP (Video Recording) Button (P.10)

⑳ Grip Belt Release Lever

⑳ Grip Belt (P.7)

⑳ Tripod Mounting Hole

⑲ microSD Card Slot ( P.12)

③0 Battery Release Lever (P.6)

* For GZ-HD620 only.

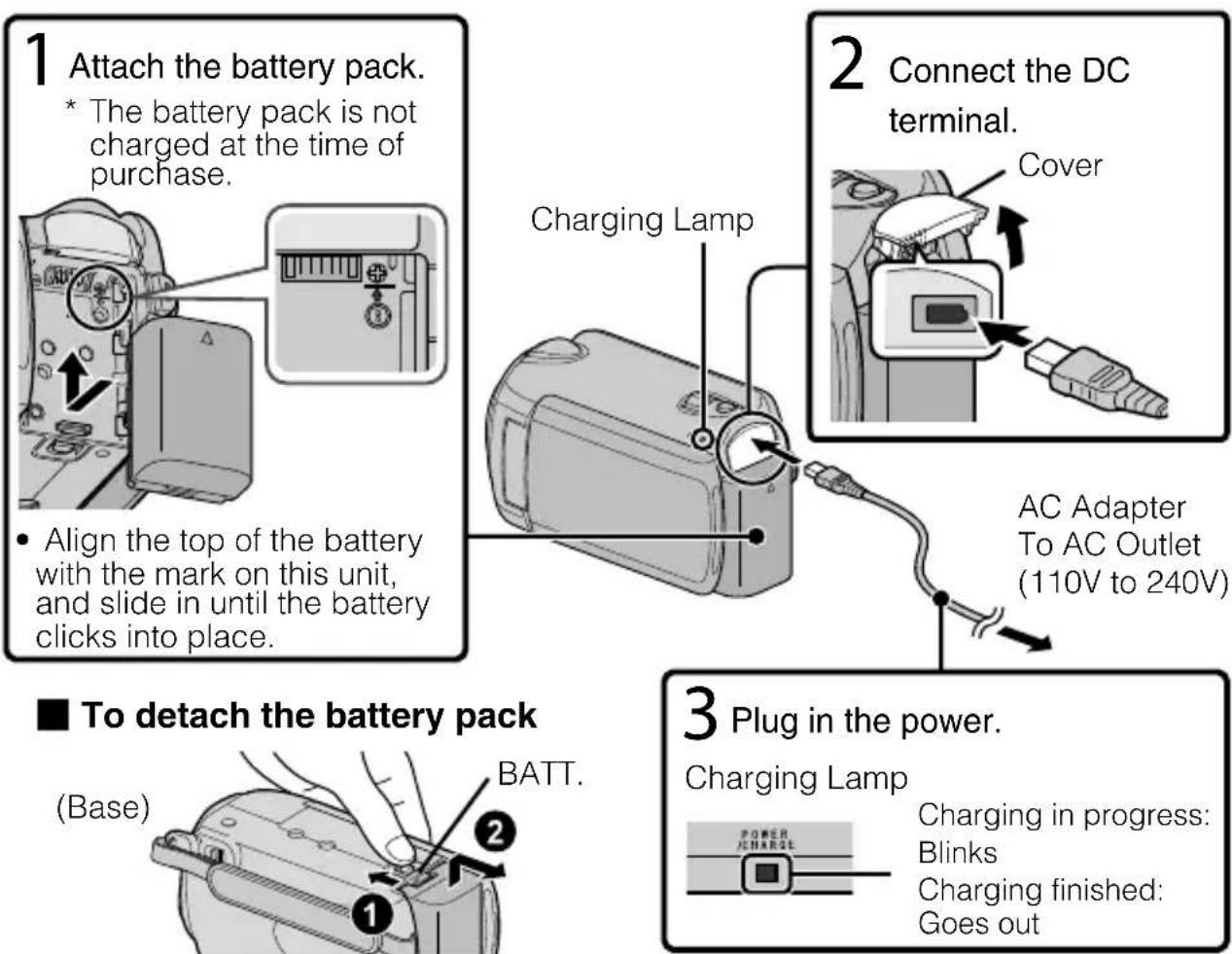

Charging the Battery Pack

1 Attach the battery pack.

* The battery pack is not charged at the time of purchase.

- Align the top of the battery with the mark on this unit, and slide in until the battery clicks into place.

2 Connect the DC terminal.

AC Adapter

To AC Outlet

(110V to 240V)

■ To detach the battery pack

3 Plug in the power.

Charging Lamp

Charging in progress:

Blinks

Charging finished:

Goes out

CAUTION

Be sure to use JVC battery packs.

• If you use any other battery packs besides JVC battery packs, safety and performance cannot be guaranteed.
• Charging time: Approx. 2 h 30 m (using supplied battery pack)
  * The charging time is when the unit is used at 25^ C ( 77^ F). If the battery pack is charged outside the room temperature range of 10^ C - 35^ C ( 50^ F - 95^ F), charging may take a longer time or it may not start. The recordable and playable time may also be shortened under some usage conditions such as at low temperature.

Grip Adjustment

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

① Pull back the belt

Illustration of a hand holding a wristband with a strap (no text or symbols)

② Adjust the length

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

③ Attach the belt

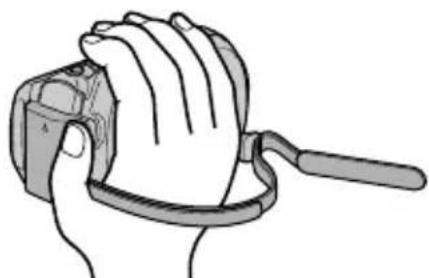

Using as a Hand Strap

Remove the strap and loop it around your wrist. While pressing ①, pull ② and remove the strap.

Diagram showing a cable buckle with labeled parts 1 and 2, indicating assembly or repair instructions.

Press and hold

Diagram showing a device's cable buckle adjustment with labeled component 3

Line drawing of a person holding a medical device (no text or symbols)

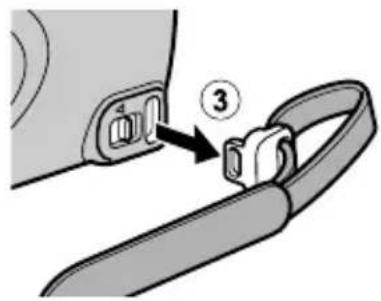

- When attaching the hand strap, insert ③ until it clicks into place.

Attaching the Lens Cap (GZ-HD500)

Damage may occur to the lens if this unit is stored without the lens cap attached.

Close-up of a mechanical component with a black arrow indicating direction (no text or symbols)

CAUTION

- Please be careful not to lose the lens cap.

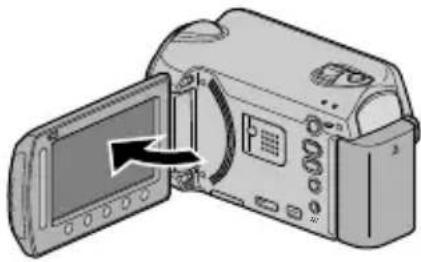

1 Open the LCD monitor.

Diagram of a digital camera with an open screen and scroll, showing the camera's internal mechanism (no text or symbols present)

- The unit turns on. When the LCD monitor is closed, the unit turns off.

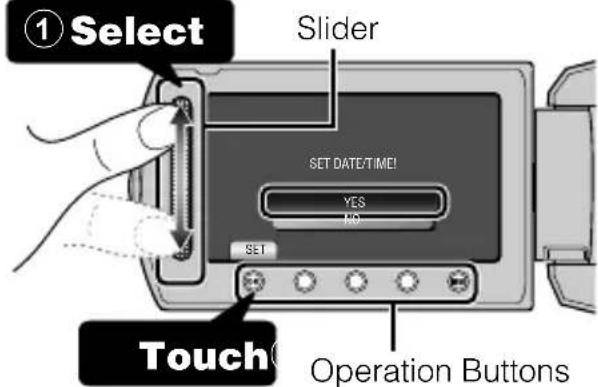

2 Select "YES" and touch Ⓞ when "SET DATE/TIME!" is displayed.

① Select Slider SET DATE/TIME! YES NO SET Touch Operation Buttons

- Slide along the slider to select, then touch the operation buttons to set.

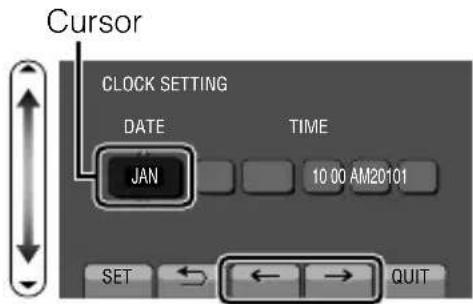

3 Set the date and time.

Cursor CLOCK SETTING DATE TIME JAN 10 00 AM20101 SET ← ← → QUIT

• Use the slider to adjust the year, month, day, hour and minute.
• Touch the operation buttons “←” / “→” to move the cursor.

4 After setting the date and time, touch ⓄK.

5 Select the region where you live and touch Ⓞ.

- The city name and time difference is displayed.

CLOCK/AREA SETTING GMT JAN. 1. 2010 10:00 AM SAVE QUIT

NOTE

• Touch the slider and buttons around the screen with your fingers.
• The slider and buttons do not function if you touch them with your fingernails or with gloves on.
• The displays on the screen do not work even if you touch them.
• "SET DATE/TIME!" is displayed when you turn on this unit after it has not been used for a prolonged period.
  Charge this unit for more than 24 hours before setting the clock. (P.6)

■ To reset the clock

Set the clock with "CLOCK ADJUST" from the menu.

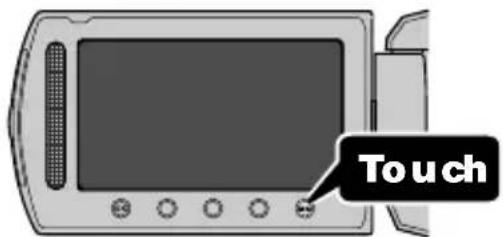

① Display the menu.

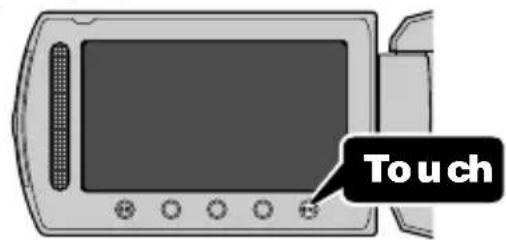

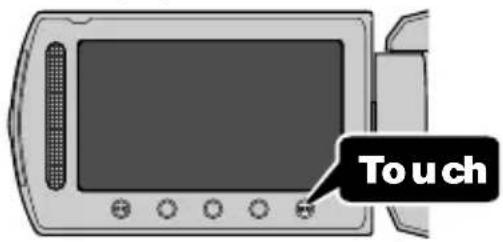

Touch

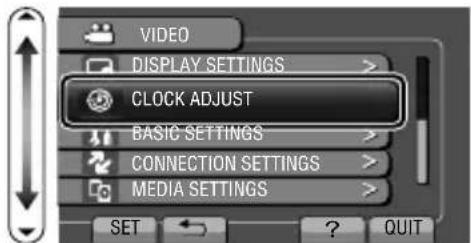

② Select "CLOCK ADJUST" and touch Ⓞ.

VIDEO DISPLAY SETTINGS > CLOCK ADJUST BASIC SETTINGS > CONNECTION SETTINGS > MEDIA SETTINGS > SET ? QUIT

③ Select "CLOCK SETTING" and touch OK.

CLOCK ADJUST CLOCK SETTING AREA SETTING SET FOR DAYLIGHT SAVING TIME SET QUIT ?

- The subsequent setting operations are the same as steps 3 - 5 on the previous page.

■ To change the display language

The language on the display can be changed.

① Display the menu.

Touch

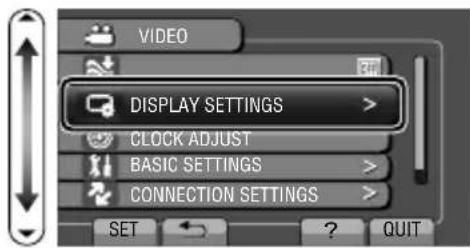

② Select "DISPLAY SETTINGS" and touch Ⓞ.

VIDEO DISPLAY SETTINGS > CLOCK ADJUST BASIC SETTINGS > CONNECTION SETTINGS > SET ? QUIT

③ Select “LANGUAGE” and touch OK.

DISPLAY SETTINGS LANGUAGE DATE DISPLAY STYLE MONITOR BRIGHTNESS LCD BACKLIGHT A FOCUS ASSIST COLOR B SET ? QUIT

④ Select the desired language and touch Ⓞ.

⑤ Touch Ⓜ to exit.

Video Recording

You can record without worrying about the setting details by using the auto mode. Before recording an important scene, it is recommended to conduct a trial recording.


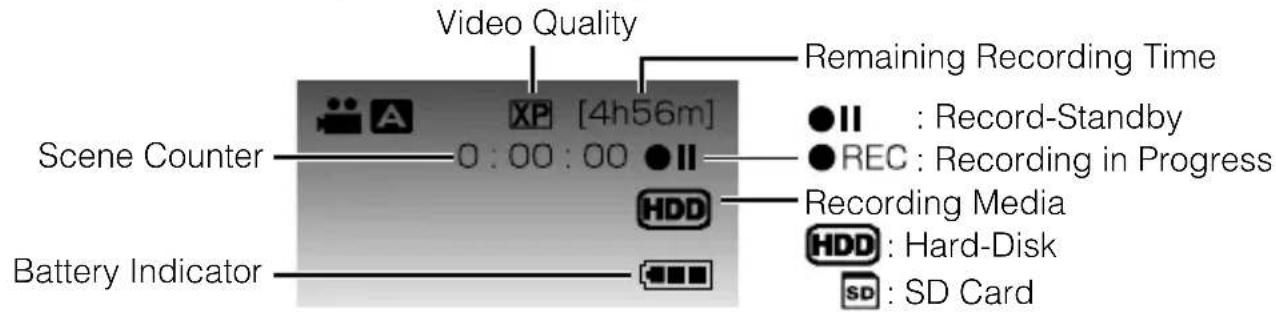

■ Indications during video recording

Video Quality Remaining Recording Time Scene Counter XP [4h56m] 0:00:00 ●II : Record-Standby ●REC : Recording in Progress HDD Recording Media HDD : Hard-Disk SD : SD Card Battery Indicator

NOTE

- The estimated recording time of the supplied battery pack is approximately 45 minutes. (P.24)

Reducing Camera Shake (Video Recording)

When the image stabilizer is set, camera shake during recording can be effectively reduced.

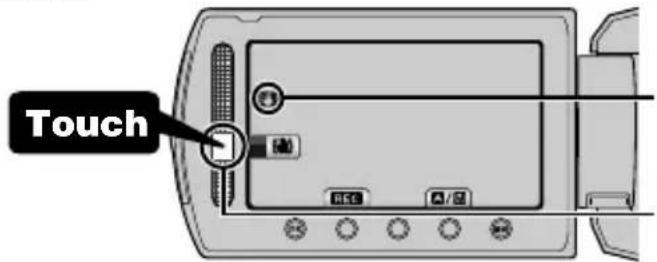

Touch

(White): Image stabilizer ①
(Green): Image stabilizer ②
(White): OFF

The setting switches with every touch.

①: Reduces camera shake under normal shooting conditions.
② : More effectively reduces camera shake during wide angle shooting. It is also more effective for recording while walking.

NOTE

• It is recommended to set the image stabilizer to off when shooting a subject of little movement with the unit on a tripod.
• Complete stabilization may not be possible if camera shake is excessive.

Still Image Recording

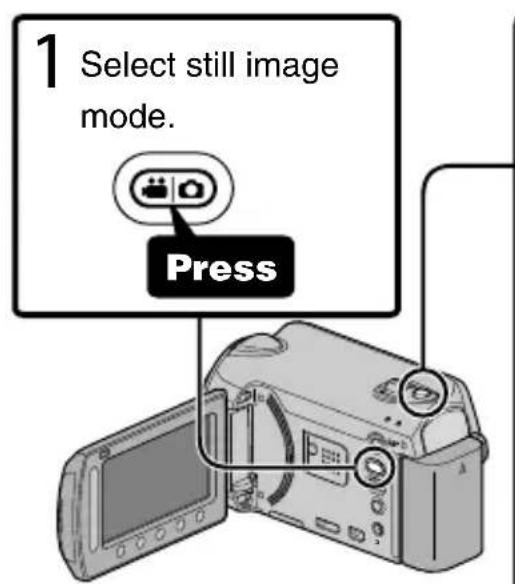

1 Select still image mode. Press

2 Set the focus on the subject.

SNAPSHOT Press halfway Lights up in when focus

3 Take a still image.

SNAPSHOT Press fully PHOTO Lights image

■ Indications during still image recording

Image Size 1920 FINE [ 8] Shutter Speed 1/250 PHOTO Focus Battery Indicator Image Quality Remaining Number of Shots Recording in Progress Recording Media HDD: Hard-Disk SD: SD Card

Recording on a microSD card

When a commercially available microSD card is inserted, recordings can be made to the card.

* To record to the microSD card it is necessary to adjust the media settings. (P.13) When no card is available, set media settings to "HDD" for recording.

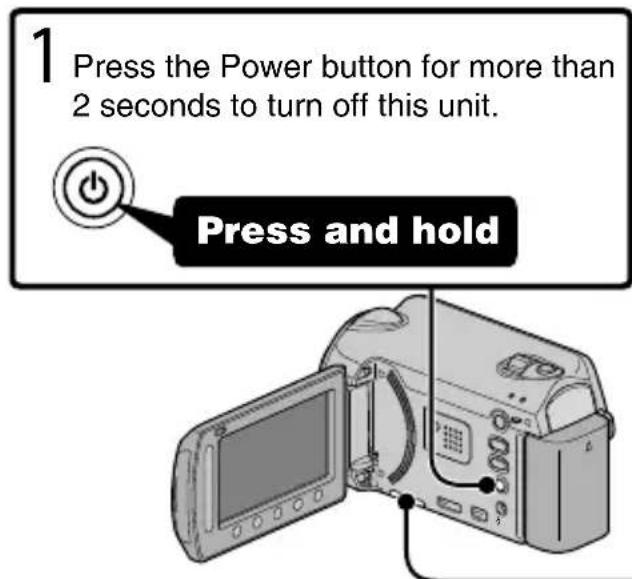

1 Press the Power button for more than 2 seconds to turn off this unit. Press and hold

*Turn off the power of this unit before inserting or removing a card.

2 Open the cover. 3 Insert a microSD card. (Base)

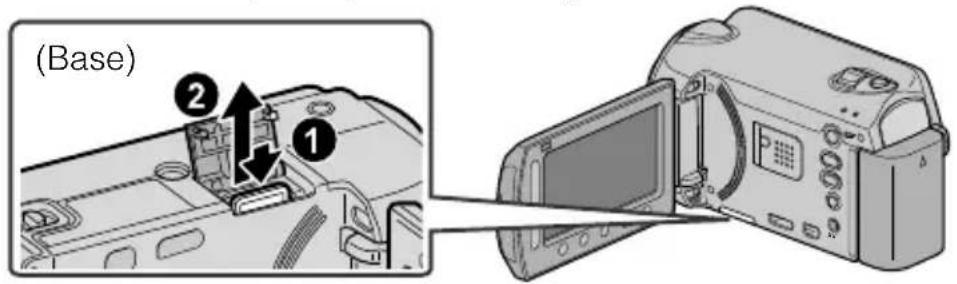

■ To remove the microSD card

Push the card inward once, then pull it out straight.

(Base) ② ①

NOTE

Operations are confirmed on the following microSD cards.

Manufacturer Panasonic, TOSHIBA, SanDisk, ATP

Video Class 4 or higher compatible microSDHC card (4 GB to 8 GB)

Still Image microSD card (256 MB to 2 GB), microSDHC card (4 GB to 8 GB)

- Using microSD or microSDHC cards other than those specified above may result in recording failure or data loss.

■ To use a microSD card

Recording and playback can be performed on a card when “REC MEDIA FOR VIDEO” or “REC MEDIA FOR IMAGE” of media settings is set to “SD”.

① Display the menu.

Touch

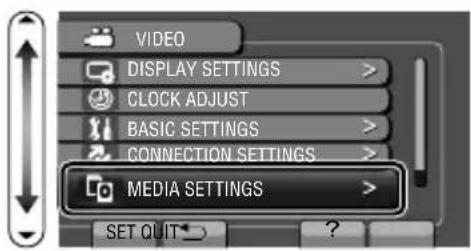

② Select "MEDIA SETTINGS" and touch OK.

VIDEO DISPLAY SETTINGS > CLOCK ADJUST > BASIC SETTINGS > CONNECTION SETTINGS > MEDIA SETTINGS > SET QUIT ?

③ Select “REC MEDIA FOR VIDEO” or “REC MEDIA FOR IMAGE”, and touch Ⓞk.

MEDIA SETTINGS REC MEDIA FOR VIDEO REC MEDIA FOR IMAGE FORMAT HDD FORMAT SD CARD DELETE DATA ON HDD SET QUIT ?

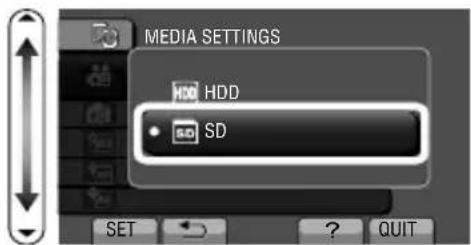

④ Select "SD" and touch Ⓞ.

MEDIA SETTINGS HDD SD SET ? QUIT

■ To use microSD cards that have been used on other devices

Format (initialize) the card using "FORMAT SD CARD" from media settings.

All data on the card will be deleted when it is formatted. Copy all files on the card to a PC before formatting.

① Touch Ⓜ to display the menu.
② Select "MEDIA SETTINGS" with the slider and touch Ⓞ.

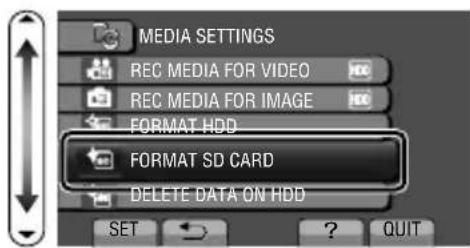

③ Select "FORMAT SD CARD" and touch OK.

MEDIA SETTINGS REC MEDIA FOR VIDEO REC MEDIA FOR IMAGE FORMAT HDD FORMAT SD CARD DELETE DATA ON HDD SET ? QUIT

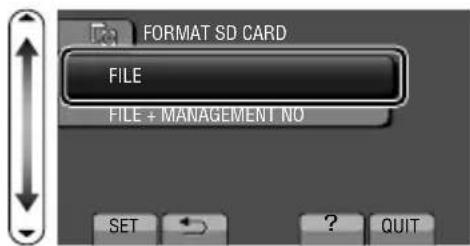

④ Select "FILE" and touch Ⓞ.

FORMAT SD CARD FILE FILE + MANAGEMENT NO SET ↔ ? QUIT

⑤ Select "YES" and touch Ⓞ.
⑥ After formatting, touch Ⓞ.

Playing Back/Deleting Files on this Unit

Select and play back the recorded videos or still images from an index screen (thumbnail display). The contents of the media selected in media settings (P.13) are displayed on the index screen.

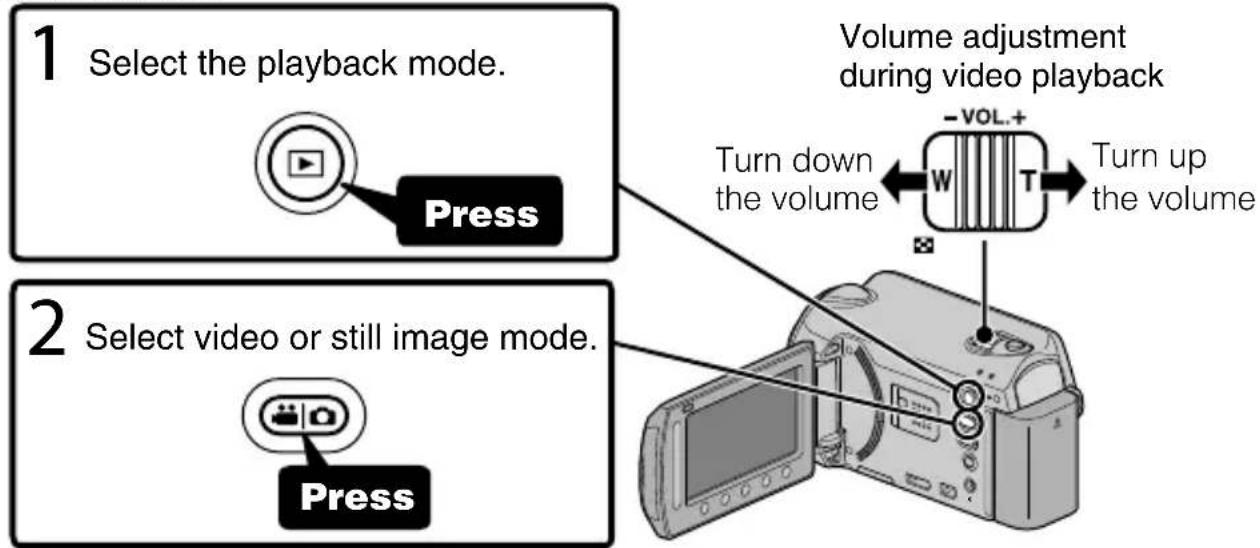

1 Select the playback mode. Press Volume adjustment during video playback Turn down the volume - VOL.+ W T Turn up the volume 2 Select video or still image mode. Press

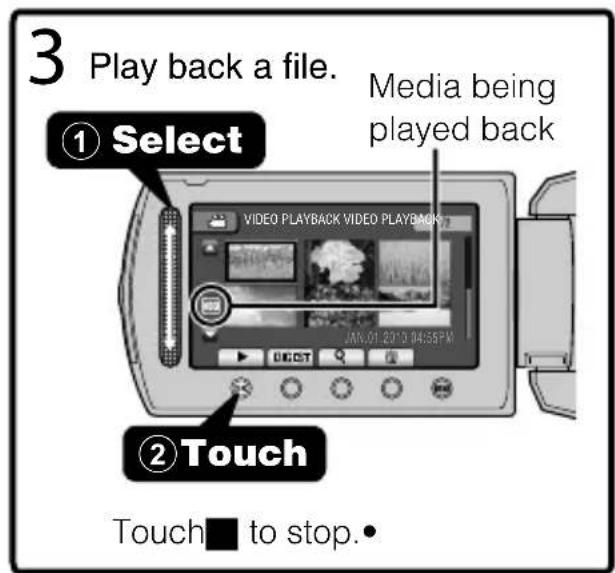

3 Play back a file. ① Select Media being played back VIDEO PLAYBACK VIDEO PLAYBACK JAN.01.2010 04:55 PM ② Touch Touch ■ to stop.

To delete unwanted files ① Select UKN 01.2010 04:55PM ② Touch

• Select"YES" when the confirmation message appears and touch OK.

■ To capture a still image during playback

Pause the playback and press the SNAPSHOT button.

■ Usable operation buttons during playback

Display	During video playback During still image playback
▶/■	Playback/pause Start/pause slideshow
■	Stop (returns to thumbnail display) Stop (returns to thumbnail display)
▶▶	Advances to the next video Advances to the next still image
◀◀	Returns to the beginning of the scene Returns to the previous still image
▶▶	Forward search -
◀◀	Reverse search -
▶	Forward slow-motion -
◀I	Reverse slow-motion -

1 Connect to a TV.

Refer also to the instruction manual of the TV.

** The component cable recommended is QAM1266-001.

- Press the Power button (⏻) for more than 2 seconds to turn off this unit.

To connect using the HDMI mini connector

If you are using an HDTV, you can play back in HD quality by connecting to the HDMI terminal.

To HDMI (HDMI mini) Terminal HDMI Cable (Optional) HDMI Terminal Input TV

To connect using the COMPONENT/AV connector

If you are using an HDTV, you can play back in HD quality by connecting to the COMPONENT terminal.

2 Connect the AC adapter. (P.6)

- This unit powers on automatically when the AC adapter is connected.

3 Select the TV input switch.

4 Play back a file. (P.14)

■ To play back with date/time display

Set "DISPLAY ON TV" in the connection settings menu to "ON".

Set "ON-SCREEN DISPLAY" in the playback menu to "DISPLAY DATE ONLY".

■ When images look unnatural on the TV

Images do not appear on the TV properly.	Disconnect the cable and connect again.Restart this unit by turning off and on.
The color of images looks strange.	When the video was recorded with “x.v.Color” set to “ON”, set the x.v.Color setting of the TV to on.Adjust the TV's screen accordingly.

NOTE

• Please contact the TV manufacturer on questions or problems with setting the TV to the correct mode.
• We recommend using the Category 2 HDMI cable (High Speed cable) for viewing in higher picture quality.

Copying Files

You can create discs or copy the files on this unit by connecting it to various devices.

Devices	Standard Quality HD Quality					Page
	VHS	DVD	AVCHD DVD	Blu-ray Disc	HDD
DVD Writer (*1)	-	√	√	---
External Blu-ray Drive(*1)	-	√ √	√		-	-
Blu-ray Recorder (*1)	-*2 *2 *2 *2 -
DVD Recorder	*2	√	-- *2 18
VCR	√	---- 18
External Hard Disk	----				√	-
PC	-*3 *3 *3				√	19

*1 Applicable to GZ-HD620 only.

*2 The way of copying files or creating discs varies according to the device in use. For details, refer to the instruction manual of the device.

*3 For details on how to create a disc using a computer, refer to the Detailed User Guide.

Dubbing Files by Connecting to a DVD Recorder or VCR

You can dub videos in standard quality by connecting to a DVD recorder or VCR. Refer also to the instruction manual of the TV, DVD recorder, VCR, etc.

1 Connect to a VCR/DVD recorder.

- Press the Power button (⏻) for more than 2 seconds to turn off this unit.

- This unit powers on automatically when the AC adapter is connected.

2 Select the playback mode.

- Turn on this unit.

Press

3 Prepare to record.

Preparation on TV and VCR/DVD recorder

• Switch to a compatible external input.
• Insert compatible blank DVD or VHS to dub.

Preparation on this unit

• Set "VIDEO OUTPUT" in the connection settings menu to the aspect ratio ("4:3" or "16:9") of the connecting TV.
• To include the date during dubbing, set "DISPLAY ON TV" in the "CONNECTION SETTINGS" menu to "ON". Set "ON-SCREEN DISPLAY" in the playback menu to "DISPLAY DATE ONLY".

Illustration of a CD and DVD disc connected to a computer monitor (no text or symbols)

4 Start recording.

• Start playback on this unit (P.14) and press the record button on the recorder.
  • After playback is complete, stop the recording.

Copying to Computer

Verifying System Requirements (Guideline)

Windows PC

You can copy files to a PC using the provided software.

Right-click on "Computer" (or "My Computer") in the "Start" menu and select "Properties" to check the following items.

■ Windows Vista/Windows 7

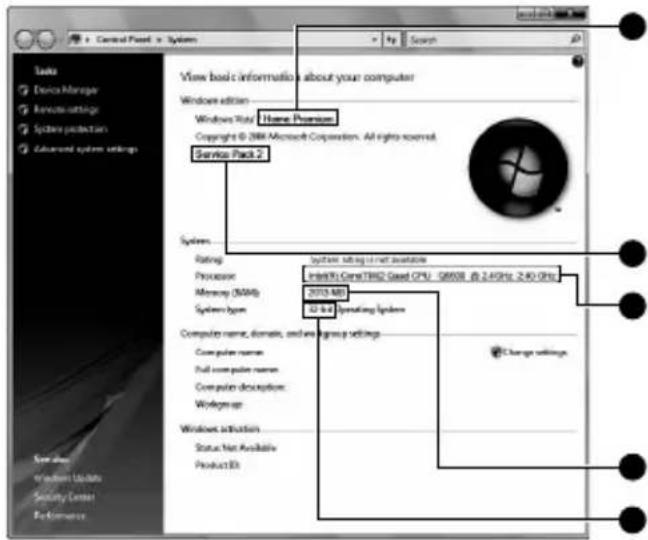

Control Panel > System View load information about your computer Windows edition Windows Rate: Home Provider Copyright © 2006 Microsoft Corporation. All rights reserved. Service Pack 2 System Rating system setting or not available Processor Intel® CoreTM32 Seed CPU - S8908 ( @ 2.4GHz, 2.4G GHz) Memory (500M) 2013 MB System type 52.4 GB Operating System Computer name, domain, and view group settings Computer name Full computer name Computer description Workgroup Windows instructions Status Not Available Product Kit Change settings

Windows Vista

Home Basic or Home Premium (Pre-installed versions only)

Windows 7

Home Premium (Pre-installed versions only)

Service Pack 2 (Windows Vista only)

Processor:

Intel Core Duo CPU 1.66 GHz or higher Intel Core 2 Duo CPU 2.13 GHz or higher recommended

Memory: At least 2 GB

System type: 32-bit / 64-bit

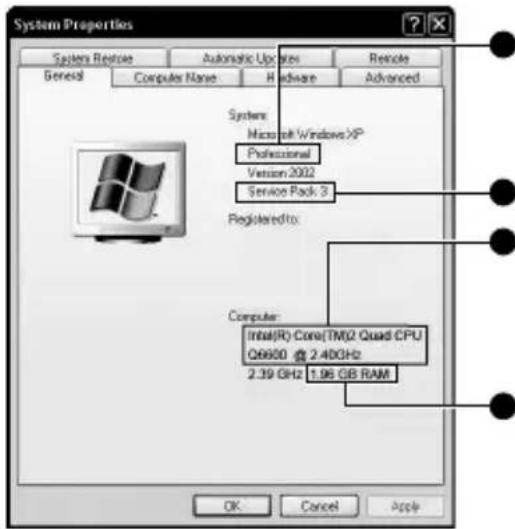

Windows XP

System Properties System Restore Automatic Updates Remote General Computer Name Hardware Advanced Systems Microsoft Windows XP Professional Version 2002 Service Pack 3 RegisteredBox Computer Initial(R) Core(TM)2 Quad CPU Q6600 @ 2.48GHz 2.39 GHz 1.96 GB RAM OK Cancel Apply

Windows XP

Home Edition or Professional (Pre-installed versions only)

Service Pack 3

Processor:

Intel Core Duo CPU 1.66 GHz or higher Intel Core 2 Duo CPU 2.13 GHz or higher recommended

Memory: At least 1 GB

NOTE

• If your PC does not meet the above system requirements, the provided software cannot be used. It is recommended to use a BD/DVD writer* (optional).
  * Applicable to GZ-HD620 only.
• Still images cannot be recorded to discs using the provided software.
• For more information, contact your PC's manufacturer.
  • Mac users may use the software provided with the Mac computer.

Mac

Copy the video and still image files to a computer using the following method.

① Close the LCD monitor and connect to a PC. (P.22)
② Open the LCD monitor and display the USB menu.
③ Select "PLAYBACK ON PC" and touch OK.
④ Double-click on the "EVERIO_HDD" or "EVERIO_SD" icon on the desktop.
⑤ Click on the column display icon.
⑥ Copy the files to any folder in the PC (desktop, etc).

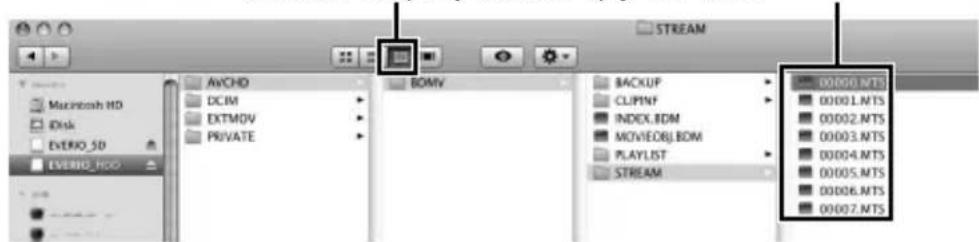

column display icon Copy the files

Mucintosh HD Disk EVERIO_SD EVERIO_HCO AVCHD DCIM EXTMOV PRIVATE BOMV BACKUP CLIPINF INDEX.BDM MOVIEOBJ.BDM PLAYLIST STREAM 00000.NTS 00001.NTS 00002.NTS 00003.NTS 00004.NTS 00005.NTS 00006.NTS 00007.NTS

• When the folders or files are deleted/moved/renamed in the computer, they cannot be played back on this unit anymore.
• When removing this unit from the computer, drag & drop the "EVERIO_HDD" or "EVERIO_SD" icon on the desktop to the trash bin.

Installing the Provided Software

You can display the recorded images in calendar format and perform simple editing using the provided software.

1 Windows Vista/Windows 7 only

Load the provided CD-ROM into your PC.

① Click "Run INSTALL.EXE" in the auto play dialog box.
② Click “Continue” on the user account control screen.
- "Software Setup" appears after a while.
- If it doesn't appear, double-click the CD-ROM icon in "My Computer".

2 Click "Easy Installation".

Everio Software Setup Easy installation All provided software are installed on the optimal setting by minimum steps. Custom installation For preferred installation by choosing the desired software, destination location and other settings. Read Detailed User Guide

- Follow the on-screen instructions.

NOTE

Viewing the Detailed User Guide

- Connect to the internet and click "Read Detailed User Guide".

3 Click "Finish".

4 Click "Quit".

Everio

MediaBro...

Everio

MediaBro...

- Exits installation of Everio MediaBrowser and icons are created on the desktop.

Backing Up All Files

Before making backup, make sure that there is enough free space in the PC's HDD.

1 Connect the USB cable and AC adapter.

2 Open the LCD monitor.

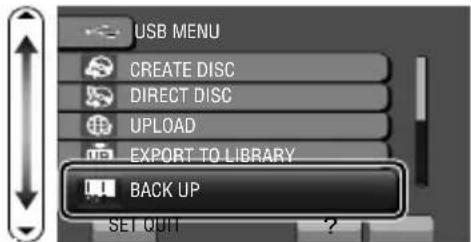

3 Select "BACK UP" and touch Ⓞ.

USB MENU CREATE DISC DIRECT DISC UPLOAD EXPORT TO LIBRARY BACK UP SET QUT

- The provided software Everio MediaBrowser starts up on the PC. The subsequent operations are to be performed on the PC.

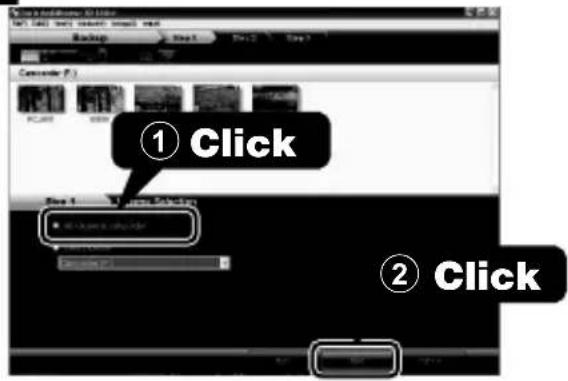

4 Select the volume.

① Click ② Click

5 Start backup.

Saving destination (PC)

Step 2 Click Click

6 After backup is complete, click "OK".

If you encounter any problems with the provided software Everio MediaBrowser, please consult the "Pixela User Support Center".

■ To disconnect this unit from the PC

① Click "Safely Remove Hardware".

Safely Remove Hardware EN 4:50 PM

② Click "Safely Remove USB Mass Storage Device".
③ (For Windows Vista/Windows 7) Click "OK".
④ Disconnect the USB cable and close the LCD monitor.

Using the Menu

You can configure various settings using the menu.

1 Display the menu.

Touch

- The menu differs according to the mode in use.

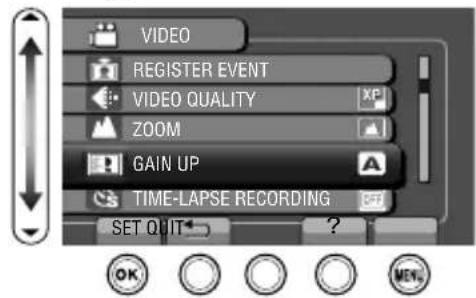

2 Select the desired menu and touch Ⓞ.

VIDEO REGISTER EVENT VIDEO QUALITY ZOOM GAIN UP TIME-LAPSE RECORDING SET QUIT ?

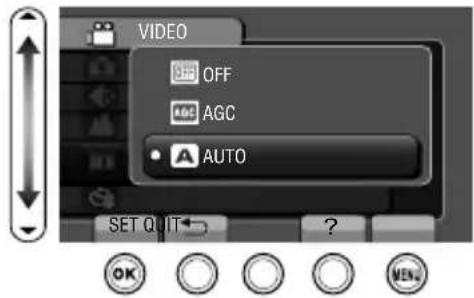

3 Select the desired setting and touch OK.

VIDEO OFF AGC AUTO SET Q 1T ?

■ To exit the screen

Touch Ⓜ (quit).

■ To return to the previous screen

Touch "⊃".

■ To display the help file

Touch “?”.

- For more information on the settings, refer to the Detailed User Guide.

Customer Support Information

Use of this software is authorized according to the terms of the software license.

JVC (for inquires regarding this unit)

When contacting the nearest JVC office or agency in your country (refer to the JVC Worldwide Service Network at http://www.jvc-victor.co.jp/english/worldmap/index-e.html) about this software, please have the following information ready.

• Product Name, Model, Serial Number, Problem, Error Message
  • PC (Manufacturer, Model (Desktop/Laptop), CPU, OS, Memory (MB/GB), Available Hard Disk Space (GB))

Please note that it may take some time to respond to your questions, depending on their subject matter. JVC cannot answer questions regarding basic operation of your PC, or questions regarding specifications or performance of the OS, other applications or drivers.

Pixela (for inquires regarding the provided software)

Region	Language	Phone #
USA and Canada	English	[phone] (toll-free)
Europe (UK, Germany, France, and Spain)	English/German/French/Spanish	[phone] (toll-free)
Other Countries in Europe	English/German/French/Spanish	[phone]
Asia (Philippines)	English	[phone]
China	Chinese	10800-163-0014 (toll-free)

Homepage: http://www.pixela.co.jp/oem/jvc/mediabrowser/e/

Please check our website for latest information and downloading.

Recordable Time/Number of Images

You can check the video recording time by pressing the ⏻ (Power/Information) button.

Approximate Video Recording Time

Quality	HDD microSD Card
	GZ-HD620 GZ	-HD500 4 GB 8 GB	B
UXP 11 h 7	h 20 m 22 m 44 m
XP 15 h 10	h 31 m 1 h 3 m
SP 21 h 14	h 44 m 1 h 29 m
EP 50 h 33	h 1 h 51 m 3 h 43 m

- The approximate recording time is only a guide. The actual recording time may shorten depending on the shooting environment.

Approximate Number of Still Images (Unit: Number of Shots)

Image size / Quality		microSD Card				microSDHC Card
		256 MB	512 MB	1 GB 2	GB 4 GB	8 GB
16:9	1920 × 1080 / FINE	260	510	1030	2100	4200	8420
	1920 × 1080 / STANDARD	410	810	1620	3210	6410	9999
4:3	1440 × 1080 / FINE	350	680	1360	2770	5540	9999
	1440 × 1080 / STANDARD	550	1070	2150	4360	8700	9999
	640 × 480 / FINE	1710	3330	6680	9999	9999	9999
	640 × 480 / STANDARD	3090	5990	9999	9999	9999	9999

- Up to 9999 still images may be recorded on the HDD (regardless of image size and quality).

Approximate Recording Time (Using Battery)

Battery Pack	Approximate Charging Time	Actual Recording Time	Continuous Recording Time
BN-VG114US	2 h 30 m 45 m	1 h 20 m
BN-VG121US	3 h 30 m 1 h 10 m 2 h	5 m

• The above are values when "LIGHT" is set to "OFF" and "LCD BACKLIGHT" is set to "STANDARD".
• The actual recording time may be shorter if zooming is used or if recording is stopped repeatedly. (It is recommended to prepare battery packs ready for three times the expected recording time.)
• When the battery life is reached, the recording time becomes shorter even if the battery pack is fully charged. (Replace the battery pack with a new one.)

Troubleshooting

Before requesting service, consult the following chart or the “Troubleshooting” section in the Detailed User Guide.

If the solutions indicated in the chart do not solve the problem, consult your nearest JVC dealer or JVC service center for instructions. Refer also to the FAQ of new products on JVC's website.

Refer also to the Q&A information of new products on JVC's website (http://www.jvc.com).

This unit is a microcomputer-controlled device. Electrostatic discharge, external noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such a case, reset this unit.

■ Reset this unit when it does not function properly or when “... Error” appears on the screen.

① Turn off the power. (Close the LCD monitor.)
② Remove the AC adapter and battery pack from this unit, reattach them, and turn on the power again.

Troubleshooting

Trouble Action Page
Power	POWER/CHARGE lamp starts blinking when the monitor is closed.	The battery pack is being charged.	6
Recording	Recording/snapshot cannot be performed.	Check the / mode.Set to the recording mode with the ▶ button.	514
	Recording stops by itself.	Turn off this unit, wait for a while, and turn it on again. (This unit stops automatically to protect the HDD when the temperature rises.)Move this unit away from loud or shaky places.Insert a commercially available microSD card, and set “REC MEDIA FOR VIDEO” and “REC MEDIA FOR IMAGE” in the media settings menu to “SD”. (There may be a malfunction with the HDD.)Recording stops automatically after 12 hours of non-stop recording.	- - 13
Playback	No date/time display.	Set “ON-SCREEN DISPLAY” in the playback menu accordingly.	-
	Sound or video is interrupted.	Sometimes playback is interrupted at the connecting section between two scenes. This is not a malfunction.	-
	Cannot find a recorded video.	Select “PLAYBACK OTHER FILE” then search the video on the index screen. (Video files that have damaged management information can be played back.)Cancel group display and date search functions.Change the setting in “REC MEDIA FOR VIDEO” or “REC MEDIA FOR IMAGE”. (Files on other media are not displayed.)	-
	The color of images looks strange.	When recording the white balance was not correctly adjusted.When the video was recorded with “x.v.Color” set to “ON”, change the setting as desired on TV.Set “EFFECT” to “OFF”.	-
Other problems	The lamp does not flash during battery pack charging.	Check the remaining battery power. (When the battery pack is fully charged, the lamp does not flash.)When charging in either a hot or cold environment, ensure that battery is being charged within the permitted temperature range. (Otherwise, charging may stop to protect the battery pack.)	106
	The slider and operation buttons do not work.	Remove any gloves.Touch the slider and buttons with your fingers to operate. (They do not function if you touch them with your fingernails or pen tips.)	-
	This unit heats up.	This is not a malfunction. (This unit may become warm when used for a long time.)	-
	Some functions cannot be used when playing a backup BD/DVD through a BD/DVD burner connected to this unit.	The following functions cannot be used for a backup BD/DVD.When playing back video:- Search index by date- Playback effectsWhen playing back still image:- Playback effects	-

When connecting to the HDMI cable, the image or sound does not appear on the TV properly.

HDMI-CEC functions do not work properly and the TV does not work in conjunction with this unit.

• The image or sound may not appear on the TV properly depending on the TV connected. In such cases, perform the following operations.
  ① Disconnect and reconnect the HDMI cable. ② Turn off and on this unit again.

- Some TVs may operate differently depending on the specifications even if they are HDMI-CEC compliant. Therefore, the HDMI-CEC function of this unit cannot be guaranteed to operate in combination with all TVs. In such cases, set "HDMI CONTROL" to "OFF".

Warning Indications

Warning Indications Actio	ge
RECORDING CANCELLED/ RECORDING FAILURE	Turn off and on this unit again.Set “REC MEDIA FOR VIDEO” in the media settings menu to “SD”. (Records on the microSD card.)Do not subject this unit to any strong impact or vibration.	-13-
THIS CARD CANNOT BE USED FOR RECORDING OR EDITING ON THIS CAMERA / UNSUPPORTED FILE!	Make use of a file recorded with this unit. (Files recorded with other devices may not be playable. If the file was recorded with this unit, then it is corrupted.)	-
DATA RECORDED IS TOO LITTLE UNABLE TO SAVE	If a video recording is stopped with the actual recording time displayed at “0:00:00:17” and below, the video cannot be saved.	-
HDD ERROR !	Turn off and on this unit again.Format the HDD by executing “FORMAT HDD” in the media settings menu. (All data is deleted.)	- -
MEMORY CARD ERROR!	Turn off and on this unit again.Remove the AC adapter and battery pack, then remove and re-insert the microSD card.Remove any dirt from the microSD card terminals.Format the microSD card by executing “FORMAT SD CARD” in the media settings menu. (All data is deleted.)	- - - -
CHECK LENS COVER	Appears for 5 seconds after power is turned on if the lens cap is attached or when it is dark.	-

AC Adapter

When using the AC adapter in areas other than the USA

The provided AC adapter features automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit's power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a "Siemens Plug", as shown. For this AC plug adapter, consult your nearest JVC dealer.

Plug Adapter

Diagram of a two-pin electrical plug and its corresponding terminal socket (no text or symbols)

Battery Pack

The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

Terminals

Illustration of a battery pack with internal components and a cable (no text or symbols)

• To avoid hazards

... do not burn.
... do not short-circuit the terminals. Keep it away from metallic objects when not in use. When transporting, carry the battery in a plastic bag.
... do not modify or disassemble.
... do not expose the battery to temperatures exceeding 60°C (140°F), as this may cause the battery to overheat, explode or catch fire.
... use only specified chargers.

• To prevent damage and prolong service life

... do not subject to unnecessary shock.
... charge within the temperature range of 10^ C to 35^ C ( 50^ F to 95^ F). Cooler temperatures require longer charging time, or in some cases stop charging at all.

Warmer temperatures prevent complete charging, or in some cases stop charging at all.

... store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.
... fully charge and then fully discharge the battery every 6 months when storing the battery pack over a long period of time.
... remove from charger or powered unit when not in use, as some machines use current even when switched off.

ATTENTION:

Valid in USA

The product you have purchased is powered by a rechargeable battery that is recyclable.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

Recording Medium

- Be sure to follow the guidelines below to prevent corruption or damage to your recorded data.

• Do not bend or drop the recording medium, or subject it to strong pressure, jolts or vibrations.
• Do not splash the recording medium with water.
• Do not use, replace, or store the recording medium in locations that are exposed to strong static electricity or electrical noise.
• Do not turn off this unit's power or remove the battery or AC adapter during shooting, playback, or when otherwise accessing the recording medium.
• Do not bring the recording medium near objects that have a strong magnetic field or that emit strong electromagnetic waves.
• Do not store the recording medium in locations with high temperature or high humidity.
• Do not touch the metal parts.

- When formatting or erasing data using this unit, only the file administration information is changed. The data is not completely erased from the hard disk. If you want to completely erase all of the data, we recommend either using commercially available software that is specially designed for that purpose, or by physically destroying the unit with a hammer etc.

Hard Disk

• Do not use the unit where it is subject to vibrations or loud sounds.
• If you move the unit suddenly, the drop detection function may operate and the power may be turned off.

LCD Monitor

• To prevent damage to the LCD monitor, DO NOT

... push it strongly or apply any shocks.
... place this unit with LCD monitor on the bottom.

• To prolong service life

... avoid rubbing it with coarse cloth.

Main Unit

- For safety, DO NOT

... open the unit's chassis.

... disassemble or modify the unit.

... allow inflammables, water or metallic objects to enter the unit.

... remove the battery pack or disconnect the power supply while the power is on.

... leave the battery pack attached when the unit is not in use.

... place naked flame sources, such as lighted candles, on the apparatus.

... expose the apparatus to dripping or splashing.

... leave dust or metal objects adhered to the power plug or an AC wall outlet.

... insert any objects in the unit.

- Avoid using the unit

... in places subject to excessive humidity or dust.

... in places subject to soot or steam such as near a cooking stove.

... in places subject to excessive shock or vibration.

... near a television set.

... near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.).

... in places subject to extremely high (over 40^ C or 104^ F) or extremely low (under 0^ C or 32^ F) temperatures.

... in places where air pressure is low (more than 3000 m (9870 ft) above the sea level).

• DO NOT leave the unit

... in places of over 50°C (122°F).

... in places where humidity is extremely low (below 35%) or extremely high (above 80%).

... in direct sunlight.

... in a closed car in summer.

... near a heater.

... in high places such as on a TV. Leaving the unit in high places while a cable is connected may result in a malfunction if the cable is caught and the unit falls onto the floor.

- To protect the unit, DO NOT

... allow it to become wet.

... drop the unit or strike it against hard objects.

... subject it to shock or excessive vibration during transportation.

... keep the lens directed at extremely bright objects for long periods.

... expose the lens to direct sunlight.

... swing it excessively when using the hand strap.

... swing the soft camcorder case excessively when the unit is inside it.

... place the unit in dusty or sandy areas, such as on a beach.

- To prevent the unit from dropping,

● Fasten the grip belt securely.

- When using the unit with a tripod, attach the unit to the tripod securely. If the unit drops, you may be injured and the unit may be damaged.

When a child uses the unit, there must be parental guidance.

Declaration of Conformity

Model Number : GZ-HD620U/GZ-HD500U

Trade Name : JVC

Responsible party : JVC AMERICAS CORP.

Address : 1700 Valley Road Wayne, N. J. 07470

Telephone Number : 973-317-5000

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by JVC could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Model name GZ-HD620 GZ-HD500
Power supply Using AC adapter: DC 5.2 V,Using battery pack: DC 3.6 V
Power consumption 3.3 W (when “LIGHT” is set to“OFF” and “LCD BACKLIGHT”is set to “STANDARD”)3.6 W (when “LIGHT” is set to“ON” and “LCD BACKLIGHT”is set to “BRIGHTER”)		3.2 W (when “LCDBACKLIGHT” is set to“STANDARD”)3.4 W (when “LCDBACKLIGHT” is set to“BRIGHTER”)
		Rated Current Consumption: 1A
Dimensions (W x H x D) 53 mm x 63 mm x 110 mm (2-1/8" x 2-1/2" x 4-3/8")(excluding grip belt)
Mass Approx. 270 g (0.60 lbs)		(camera only),Approx. 310 g (0.68 lbs)(including supplied batterypack)	Approx. 265 g (0.58 lbs)(camera only),Approx. 305 g (0.67 lbs)(including supplied batterypack)
Operating environment Allowable operating temperature:0°C to 40°C (32°F to 104°F)Allowable storage temperature:-20°C to 50°C (-4°F to 122°F)Allowable operating humidity: 35 % to 80 %
Image pickup device 1/4" 3,320,000 pixels(progressive CMOS)			1/5.8" 1,370,000 pixels(progressive CMOS)
Recording area (Video)		(16:9) 1,160,000 to 1,380,000pixels (optical zoom)	(16:9) 750,000 to 1,090,000pixels (optical zoom)
Recording area (Still image) (4:3) 870,000 to 1,040,000pixels(16:9) 1,160,000 to 1,380,000pixels			(4:3) 560,000 to 820,000pixels(16:9) 750,000 to 1,090,000pixels
Lens		F1.8 - 4.7, f= 3.0 mm to90.0 mm(35 mm conversion: 43.7 mm to1311 mm)	F1.8 - 3.5, f= 3.0 mm to60.0 mm(35 mm conversion: 46.4 mm to928 mm)
Zoom (Video) Optical zoom: Up to 30xDigital zoom: Up to 200x			Optical zoom: Up to 20xDigital zoom: Up to 200x
Zoom (Still image) Optical zoom: Up to 30x Optical zoom: Up to 20x
Video recording format		AVCHD standard, Video: AVC/H.264, Audio: Dolby Digital (2ch)
Still image recording format JPEG standard
Recording media Internal HDD (120 GB) Internal HDD (80 GB)
Clock battery Rechargeable battery
Connectors	HDMI	HDMITM Mini Connector (V.1.3 with x.v.ColorTM)
	Component output	Y, Pb, Pr component outputY: 1.0 V (p-p), 75 Ω Pb/Pr: 0.7 V (p-p), 75 Ω
	AV output Video output: 1.0 V(p-p), 75 ΩAudio output: 300 mV (rms), 1 kΩ
	USB	Mini USB type AB, USB 2.0 compliant	Mini USB type B, USB 2.0 compliant

AC Adapter (AP-V30U)*

Power supply AC 110 V to 240 V, 50 Hz/60 Hz
Output DC 5.2 V, 1.8 A
Allowable operating temperature	0°C to 40°C (32°F to 104°F),10°C to 35°C (50°F to 95°F) during charging
Dimensions (W x H x D) 78	mm x 34 mm x 46 mm (3-1/8" x 1-3/8" x 1-13/16")(excluding cord and AC plug)
Mass Approx. 107 g (0.24 lbs)

* When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.

- The specifications and appearance of this product are subject to changes for further improvement without prior notice.

Index

A AC Adapter 6, 29 AV Connection 15, 18

B Battery Pack 6,29

C CD-ROM .... 21 Clock Adjust .... 9 Copy (Back Up) .... 17, 22

D Date/Time Setting .... 8 Deleting Files .... 14 Dubbing .... 18

F Format SD Card 13

I Installation 21

L Language Setting 9

LCD Monitor 29

M Mac 20 Menu Settings 23

N Number of Images 24

R Recordable Time .... 24 Recording Media for Image .... 13

S SD Card 12, 24 Software 19

U USB Cable 22

V Viewing Files on TV 15

W Windows 19

Z Zoom 10

JVC

CÁMARA CON DISCO DURO HD

GZ-HD620U/GZ-HD500U

Illustration of a cylindrical device with a transparent lens and mounting bracket (no text or symbols)

Everio

Estimado cliente:

Symbolic icon of a person lifting a ladder inside a circle (no text or symbols)

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a device rear panel with numbered parts and exploded view

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

①

hacia atrás

Illustration of a hand holding a small object with a ring, no text or symbols present

② Regule la longitud

Illustration of a hand gripping a device with a curved arrow indicating rotation (no text or symbols)

Deslice la Ajursteala correa

Diagram showing a cable buckle with labeled parts 1 and 2, indicating mechanical assembly or repair instructions.

Mantenga presionado

Diagram showing a cable clamp or connector with labeled parts and a numbered step indicator

Illustration of a person holding a medical device (no text or symbols visible)

Diagram of a mechanical component with a circular opening and directional arrow (no text or symbols)

PRECAUCIÓN

Diagram of a digital camera with an open screen and scroll, showing the camera's internal mechanism (no text or symbols present)

(base) ② ①

NOTA

Illustration of a CD and DVD disc on a computer monitor (no text or symbols)

Home Edition o Professional

(solo versiones preinstaladas)

Service Pack 3

Procesador :

Intel Core Duo CPU 1,66 GHz o superior

Se recomienda Intel Core 2 Duo CPU

2.13 GHz o superior

Everio Software Setup Easy installation Custom installation Read Detailed User Guide

User interface screenshot showing a menu with icons and a button labeled '计算机' (Computer) in a dropdown box.

① Clic ② Clic

Illustration of a mechanical component with a central connector and internal structure (no text or symbols)

Illustration of a cylindrical device with a transparent lens and mounting feet (no text or symbols)

Everio

Chers clients,

Symbolic icon of a person lifting a large object, enclosed in a circle with no text or symbols

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a device rear panel with numbered parts and internal components, likely for assembly or labeling.

(Alimentation/Recharge) (P.6)

⑭ Touche ▶ (Lecture/Enregistrement)

⑰ Touche ⏻ (Alimentation/Information)

Illustration of a handheld device with a curved arrow indicating rotation or movement (no text or symbols)

① Tirez la dragonne

Illustration of a hand holding a device with a strap (no text or symbols)

Illustration of a hand holding a camera lens with an arrow indicating rotation (no text or symbols)

③ Attachez la dragonne

Diagram showing a cable buckle with labeled parts 1 and 2, indicating assembly or repair instructions.

Diagram showing a cable clamp with labeled component 3, indicating assembly or repair step

Illustration of a person holding a medical device (no text or symbols visible)

Close-up of a camera lens component with an arrow indicating rotation (no text or symbols)

ATTENTION

Diagram of a digital camera with an open screen and scroll, showing internal components (no text or symbols)

Diagram of a digital camera with two circular adjustment knobs and a screen, no text or symbols present

Illustration of a CD and DVD disc connected to a computer monitor (no text or symbols)

Excrip Software Setup Easy installation Custom installation For preferred installation by observing the selected software, destination location and other settings. Read Detailed User Guide

Screenshot of a software interface with menu options and a highlighted button, likely for file or system management.

Cliquez ① Cliquez ② Cliquez

5 Lancez la sauvegarde.

Step 2 Confirm Cllquez

m = 311

[Non-Text]

[Non-Text]

m = 311

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

-

-

-

[Non-Text]

-

Adaptateur secteur

UTILISATION DE L'ADAPTATEUR DE PRISE DE SECTEUR

Diagram of a two-pin electrical plug and its corresponding terminal socket (no text or symbols)

Batteries

Illustration of a mechanical component with a central screw and housing (no text or symbols)
