USER MANUAL 88911 RBI MEDISANA

GB Shiatsu massage seat cover RBI

FR Matelas de massage Shiatsu RBI
IT Supporto per massaggio shiatsu RBI
ES Respaldo de masaje Shiatsu RBI

Close-up of a dark blue textured surface with two concentric circular light patterns on the right side (no text or symbols)

Gebrauchsanweisung

Instruction Manual

Mode d'emploi

Please read carefully!

MEDISANA® home of wellness

Please fold out this page and leave it folded out for quick reference.

MEDISANA® home of wellness

Diagram of a portable air conditioner with labeled parts including buttons, thermal sensors, and electrical plug

MEDISANA® home of wellness

DE

1 Massage seat cover
2 Cable
3 4 rotating massage heads
4 2 vibrating massage motors in the upper thigh area
5 Pocket for control unit
6 Button/LED for "Upper Back" massage
⑦ Button/LED for "Lower Back" massage
8 Button/LED for vibration massage
9 Button/LED for infrared heat
10 Control unit
11 Button/LED for "Full Back" massage
12 On/Off button

FR

MEDISANA® home of wellness

PT

MEDISANA® home of wellness

ACHTUNG

siehe Seite 3

1 Safety Instructions Before using the unit

ATTENTION

Cf. page 19

Warning symbol image with exclamation mark inside triangle

1.

2.

Diagram showing a screw and nut with crossed lines indicating rotation or movement (no text or symbols)

MEDISANA® home of wellness

MEDISANA® home of wellness

MEDISANA® home of wellness

MEDISANA® home of wellness

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observance of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation or operation.

Protection category II

Lot number

Manufacturer

GB 1 Safety Instructions

MEDISANA® home of wellness

Safety Instructions

about the power supply

• Before connecting the device to your power supply, make sure that it is switched off and that the electrical voltage specified on the device's type label matches that of your mains power.
• Only connect the mains adapter whilst the unit is switched off.
• Do not operate this unit near high frequency electromagnetic sources.
• Keep the power cord and the device itself away from heat, hot surfaces, damp and liquids. Avoid touching the plug or power switch with wet or even damp hands, or when you are standing in water.
• Parts that conduct electricity on the device must not come into contact with liquid.
• If the device falls into water, do not try to pick it up. Instead pull the plug out immediately.
• Always make sure that the plug is easily accessible when the device is connected.
• Disconnect the plug from the socket immediately after using the device.
• Never pull on the power cord to disconnect the appliance from the mains. Always pull out the mains plug!
• Do not carry, pull or rotate the device by its power cord.

specific groups of people

• This device is not designed to be used by persons (including children) with limited physical, sensory or mental abilities, or by persons with insufficient experience and/or knowledge, unless under observation by a person responsible for their safety, or unless they have been instructed in the use of the device.
  • Children must be supervised to ensure that they do not play with the device.
• Do not use this unit to supplement or replace medical treatment. Chronic complaints and symptoms may be made worse.
• You should refrain from using the Shiatsu massage seat cover RBI, or should consult your doctor before using it, if
• you are pregnant,
• you have a cardiac pacemaker, artificial joints or electronic implants,
• you suffer from one or more of the following illnesses and complaints: Circulation disorders, varicose veins, open wounds, bruises, broken skin inflammation of the veins.
• If you experience any pain or discomfort during the massage, stop immediately and consult your doctor.

before using the unit

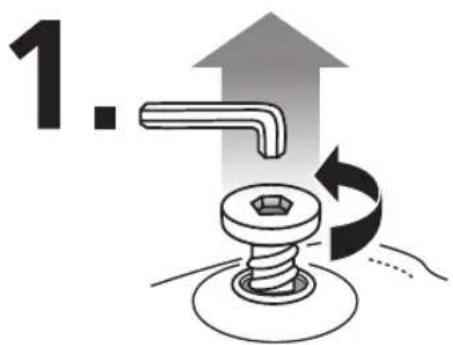

The transport lock which is located on the rear of the backrest at the base, must be removed before the device is first used (see illustration at the front of the Instruction Manual).

1. Turn the screw anti-clockwise using the Allen-key provided, and remove. (1)

2. Dispose of the screw properly. (2) On no account should the screw be refitted. Such action could damage the device. (2)

3. Always carefully inspect the cable, the control unit and the massage cushion for damage before use. Do not attempt to use a defective unit.

4. Do not use the unit if there are visible signs of damage on the unit or the cable components, the unit does not work properly or the seat or the control unit have been dropped or become damp. In order to prevent hazards, always send the unit in to the service centre.

operating the unit

• The seat massager must only be used for its intended purpose as described in the instruction manual.
  • Using the mat for any other purpose invalidates the warranty.
• Never leave the unit unattended if it is connected to the power supply.
• Do not allow the massage cushion to come into contact with pointed or sharp objects.
• Never put the unit down next to an electric stove or other sources of heat.
• Do not stand on the unit.
• If you feel unwell or experience pain when using the unit, stop the treatment immediately.

The device is only intended for household use and must not be used for commercial or medical purposes. If you have health concerns, consult your doctor before using the massage cushion.

The seat massager must only be used in enclosed spaces!

Do not use the seat massager in damp rooms (e.g. when bathing or showering).

GB

1 Safety instructions / 2 Useful Information

maintenance and cleaning

• The unit is maintenance free.
• Do not attempt to repair the unit yourself in the event of any defects. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.

Do not wash!

Do not dry clean!

2 Useful Information

Thank you very much

Thank you for your confidence in us and congratulations!

You have acquired a MEDISANA quality product with this Shiatsu massage seat cover RBI. This unit is designed for massaging the back and upper thigh areas.

We recommend that you carefully read the following information on use and care of the product so that you experience its benefits and enjoy using your MEDISANA Shiatsu massage seat cover RBI for many years.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your dealer or your service centre.

The following parts are included:

• 1 MEDISANA Shiatsu massage seat cover RBI with control unit
• 1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required.

If you notice any transport damage during unpacking, please contact your dealer without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2 Useful Information / 3 Operating

GB

2.2 What is Shiatsu massage?

Shiatsu is a form of finger pressure massage and one of the most important massaging techniques along with manual lymphatic drainage and reflexology. This form of physical therapy was developed in Japan but stems from traditional Chinese massage. Gentle stroking and beneficial pressure application techniques are used to awaken life forces and encourage them to flow through the body. The object of the massage is not just to ease tension, but also to optimise the flow of life force and harmonise body and soul.

2.3 How does the MEDISANA Shiatsu massage seat cover work?

In the MEDISANA Shiatsu massage seat cover RBI you have a modern device for genuine Shiatsu style back massages.

The MEDISANA Shiatsu massage seat cover RBI has four rotating massage heads for Shiatsu massage of the three zones "Upper Back", "Lower Back" and "Full Back". The device is equipped with an additional 3-level vibration function and an infrared heat function in the massage heads. The unique combination of intensive Shiatsu and vibration massage with radiated heat makes the massage seat cover an effective and relaxing treatment. Their settings can be comfortably adjusted by means of the easy-to-handle control unit 10.

3 Operating

3.1 Usage

The use of the Shiatsu massage seat cover will improve your wellbeing after a stressful day. The massage effect is particularly useful for treating tense muscles and tired tissue. The unit provides pleasant relaxation for overcoming everyday stress. The massaging can improve your well-being, and is also useful in the sport and fitness areas.

3.2 Operation

Start-up

• The transport lock which is located on the rear of the backrest at the base, must be removed before the device is first used (see illustration at the front of the Instruction Manual). Be sure to observe the safety information (see chapter 1 Safety instruction, sub-heading before using the device and the according illustration at the front of the Instruction Manual).
• Insert plug ② into the mains socket. Ensure that the power supply is easily accessible.
• Take a seat on the Shiatsu massage seat cover and familiarise yourself with the functions.

Operating the unit

The RBI shiatsu seat cover has three functions for an effective massage: fingertip massage, vibration massage and heat. The heat function can only be used together with the shiatsu massage, during which the vibration massage can also be activated. Do not use the unit for more than 15 minutes at a time. After approx. 15 minutes, the unit will switch off automatically. The unit is fitted with an overheat cut-off, which also switches the unit off automatically if there is any risk of it overheating. Always allow the unit to cool down fully before you use it again.

GB

3 Operating

MEDISANA® home of wellness

Use the buttons on control pad 10 to operate the massage seat cover:

- Switch on the device by pressing On/Off button 12. The blue power LED illuminates.

- When the "Upper Back" massage button ⑥ is pressed, the green LED next to the button illuminates and the Shiatsu massage heads ③ move from the "Park" position at the base of the backrest, up to the shoulder area, massaging the back in a circular motion whilst doing so. Once the uppermost position has been reached, the direction of rotation of the massaging heads is reversed. The heads then travel down to the centre of the back. Once the heads reach this point, the direction of rotation is reversed again and then travel up the back again. If you press button ⑥ during the massage, this function is switched off and the massage heads remain stationary in their current position.

- If you press the "Lower Back" massage button ⑦, the green LED next to the button illuminates. The Shiatsu massage heads ③ travel up and down the lower half of the back in a circular motion. The reversal of the direction of rotation takes place when the respective end positions are reached. Pressing button ⑦ during the massage, switches off this function and the massage heads remain stationary in their current position.

- If you press the "Full Back" massage button 11 the function procedure is similar to pressing buttons 6 and 7, except that it is for the entire back.

- You can enhance the shiatsu massage at any time with a vibration massage for your thighs by pressing the vibration massage button 8.

- The vibration massage in the upper thigh area can be operated separately by pressing vibration massage button ⑧. The green LED next to the button illuminates and both vibration massage motors ④ are switched on. They begin with a gentle massage. Press button ⑧ again and the vibration level increases (medium intensity massage). Press button ⑧ a third time and the vibration level increases (highest intensity massage). After button ⑧ is pressed a fourth time, the vibration massage is switched off and the green LED next to the button extinguishes.

- The heat function can be activated at any time with the shiatsu massage, during which the vibration massage can also be activated. Press the infrared heat button ⑨ to activate the function; the red LED lights up. The heat is radiated through the massage heads ③. Press the button ⑨ again to deactivate the heat function; the red LED goes out.

- To switch off the device: Press the On/Off button 12. The blue power LED begins to flash and the massage heads travel back down to the "Park" position. When this position is reached, the blue LED extinguishes. If you press the On/Off button 12 when one of the massage functions is switched on, the vibration motors just stop immediately. First the massage heads travel downwards to the "Park" position. The blue LED flashes meanwhile and then extinguishes.

- After each use, switch the device off using the On/Off switch 12 and remove the plug 2 from the mains socket. Always store control pad 10 in its bag 5.

4.1 Cleaning and maintenance

• Before cleaning the device, make sure that it is turned off and the mains plug is removed from the socket. Allow the unit to cool down.
• Only clean the Shiatsu massage seat cover with a soft cloth slightly dampened with a mild detergent (e.g. soap suds). Under no circumstances should you use aggressive detergents, strong brushes, solvents or alcohol.
• When cleaning, never immerse the unit in water and make sure that no water gets into the unit.
• Wait until the device is completely dry before using it again.
• Undo any kinks in the cable.
• You should ideally store the device in its original packaging and keep it in a clean, dry place.

4.2 Disposal

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

4.3 Technical Data

Name and model : MEDISANA Shiatsu massage seat cover RBI

Voltage supply : 230 V\~ 50Hz

Power consumption : approx. 36 W

Autom. switch off : after approx. 15 mins

Operating conditions : only use in dry rooms

Storage conditions : in a cool, dry place

Storage temperature 0 °C - max. 40 °C

Dimensions : approx. 105 x 45 x 9 cm

approx. 65 x 45 x 13 cm (folded up)

Weight : approx. 4,2

Power cable length : approx. 3 m

Article No. : 88911

EAN Code : 40 15588 88911 0

CE

In accordance with our policy of continual product improvement, we reserve the right to make technical and optical changes without notice.

GB 5 Warranty

MEDISANA® home of wellness

Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.
