USER MANUAL GHD 140 GUDE

Icon of an open book inside a black circle (no text or symbols)

Deutsch D 7

Translation of original operating instructions HIGH PRESSURE CLEANER / -SET

Français F

Three different industrial pressure water heaters with numbered labels (15, 22, 30, 37) shown in separate views.

44

51
58
65

Two industrial water purifier units: a gray and white cleaner and a black and white cleaning tool (no visible text or symbols)

A

1

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

5

Diagram showing a tool being processed from a firearm, with no visible text or symbols

Technical line drawing of a firearm with internal components and a labeled part (7), no text or symbols present.

8

Technical line drawing of a handheld gun with attached trigger and barrel (no text or symbols)

B

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a device with numbered parts, including front, side, and exploded views with labeled parts.

C

Line drawing of a handheld device with a mechanical component and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a spring and handle (no text or symbols)

Mechanical assembly diagram showing a vehicle's wheel assembly with a bolt and screwdriver inserted (no text or labels)

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or assembly (no text or symbols)

IN 7

Technical line drawing of a spray gun with attached tool and handle (no text or symbols)

D

E

4 5 11 8 1 2 7

Technical line drawing of a tracked vehicle with visible wheels and structural components (no text or symbols)

10 6 9

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Technical line drawing of a mechanical device with a handle and spring, no visible text or symbols

Line drawing of a handheld device with a handle and connector (no text or symbols)

Line drawing of a hand holding a device with a curved handle and attached lever (no text or symbols)

Line drawing of a handheld tool with a handle and lever (no text or symbols)

Line drawing of a handheld device with a handle and lever (no text or symbols)

Einleitung

To take delight in your newly purchased high-pressure cleaner so long as possible, please read carefully through this owner's manual and safety instructions prior to putting the device into operation. Further, we recommend for you to keep the manual in case you need to recall some of the device's functionality in the future.

Within the frame of continuous development of the device, we reserve the right to implement technical modifications for the purpose of improving the product.

This document represents an original owner's manual.

Delivery Content

Take the device out of the shipping container and check the presence of these items:

• 1 high-pressure cleaner GHD 100 or GHD 140 or GHD 180
- 1 spray gun with a high-pressure hose

86009 3m

86011, #71121 5m

86013 6m

• 1 spray lancet with a Vario nozzle
- 1 detergent container (external with #86009, integrated with #86011, #71121 and #86013)
• 1 Terraces cleaner with #71121
• 1 original owner's manual

If any of these items is missing or damaged, please turn to your dealer.

Device Description

A robust, compact high-pressure cleaner, suitable for cleaning courtyards, gardens, workshops, saunas and sanitary facilities. Fitted with the Autostop system, a high-pressure hose, a spray lancet with a Vario nozzle, a detergent container, accessories holder and a hose holder, or eventually a hose reel.

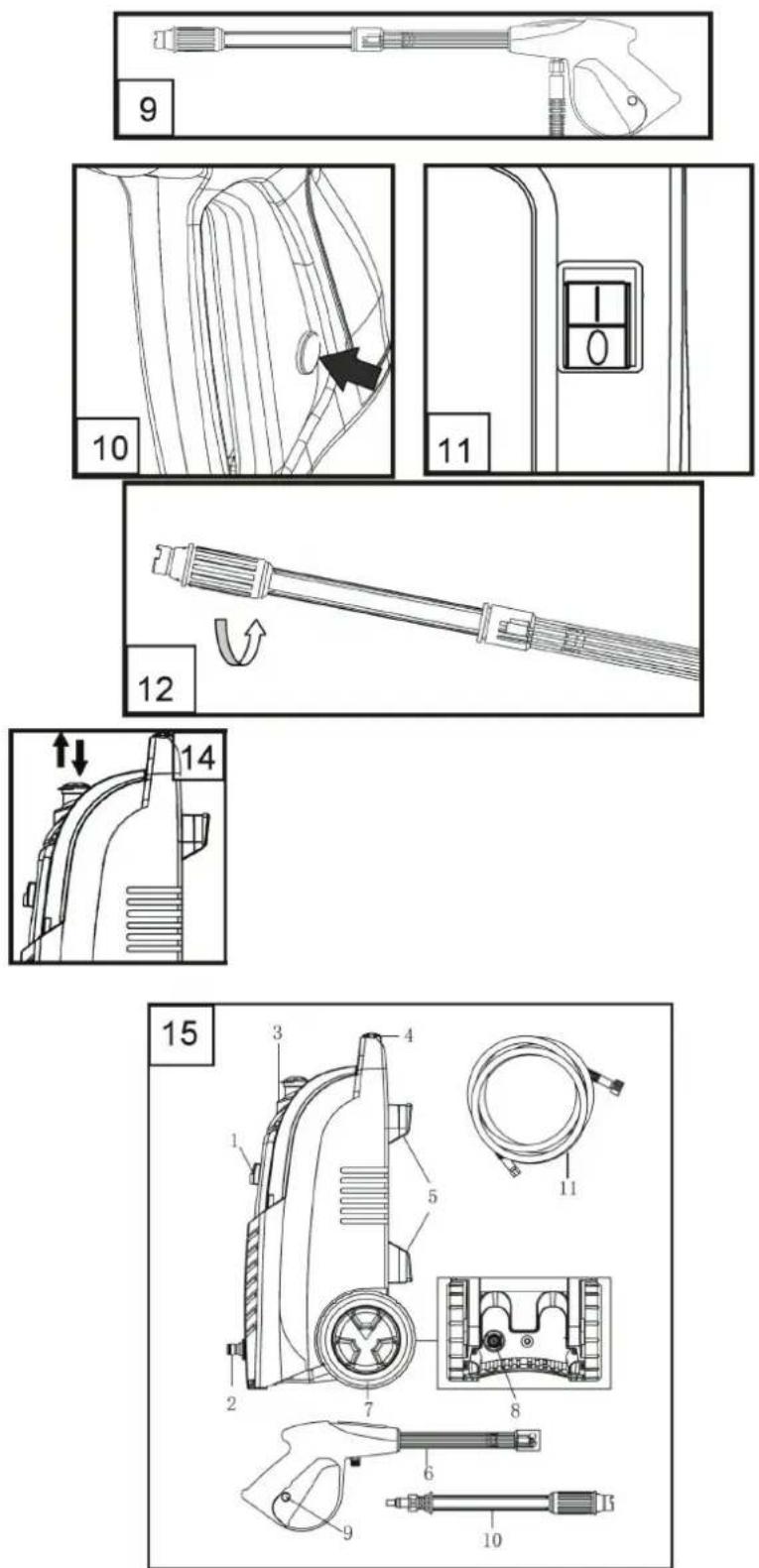

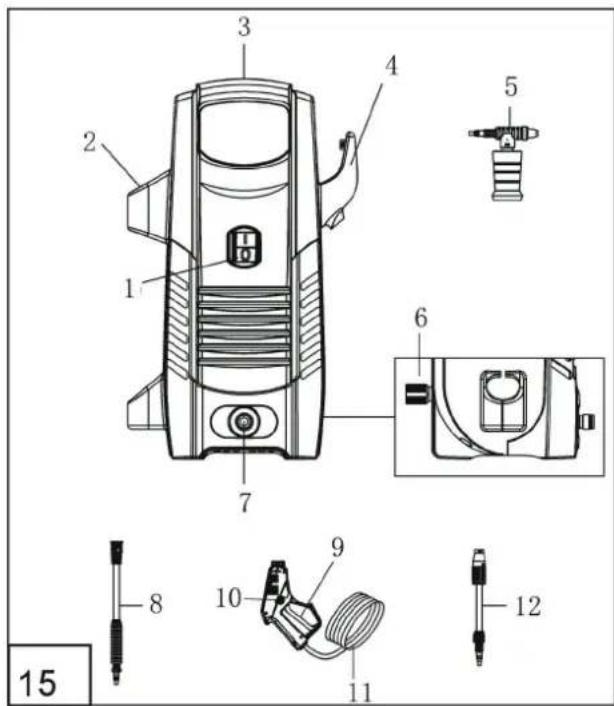

High-Pressure Cleaner GHD 100 #86009 (picture B/15)

1. On/off button
2. Spray lancet holder
3. Transport handle
4. Hose holder
5. Detergent bottle with a nozzle
6. High-pressure hose connector
7. Water connector
8. Part 1 of the spray lancet
9. Spray gun
10. Safety lock for transportation
11. High-pressure hose
12. Part 2 of the spray lancet

High-Pressure Cleaner GHD 140 #86011 #71121 (picture D/15)

1. On/off button
2. Water connector
3. Integrated detergent container
4. Pull handle for carrying
5. Cable and hose holder
6. Spray gun
7. Transport wheel
8. High-pressure hose connector
9. Safety lock for transportation
10. Spray lancet
11. High-pressure hose

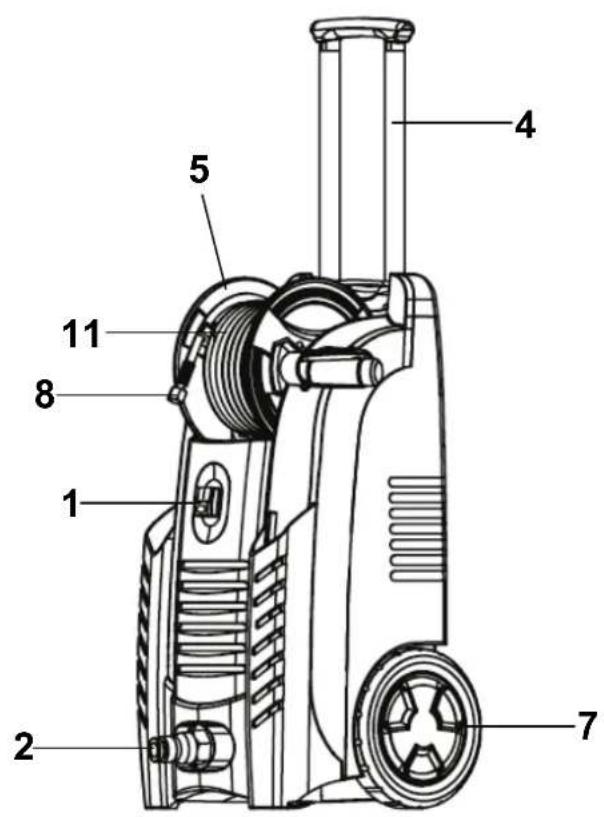

High-Pressure Cleaner GHD 180 #86013 (picture E)

1. On/off button
2. Water connector
3. Integrated detergent container
4. Pull handle for carrying
5. Hose reel
6. Spray gun
7. Transport wheel
8. High-pressure hose connector
9. Safety lock for transportation
10. Spray lancet
11. High-pressure hose

Technical Specifications

High-pressure cleaner GHD 100 #86009

Voltage/frequency: 230V\~50Hz

Engine performance: 1600 W

Pump: aluminum pump

Water Output: 5l /min

Working Pressure: 65 bar

IP coverage: II

Protection type: IPX5

Max. pressure: 105 bar

Noise level*: L WA 95dB L_PA 85dB

Max. inlet water pressure: 4bar

Max. water temperature: 40^ C

Dimensions (LxWxH in mm): 270x160x430

Weight: 6,1kg

High-pressure cleaner GHD 140 #86011, #71121

Voltage/frequency: 230V\~50Hz

Engine performance: 2000 W

Pump: aluminum pump

Water Output: 5,5 l/min.

Working Pressure: 95 bar

IP coverage: II

Protection type: IPX5

Max. pressure: 135 bar

Noise level*: L WA 95dB LPA 85dB

Max. inlet water pressure: 4bar

Max. water temperature: 40^ C

Dimensions (LxWxH in mm): 230x270x880

Weight: 8,2kg

High-pressure cleaner GHD 180 #86013

Voltage/frequency: 230V\~50Hz

Engine performance: 2400 W

Pump: aluminum pump

Water Output: 6 l/min.

Working Pressure: 110 bar

IP coverage: II

Protection type: IPX5

Max. pressure: 180 bar

Noise level*: L WA 95 dB LPA 85 dB

Max. inlet water pressure: 4bar

Max. water temperature: 40°C

Dimensions (LxWxH in mm): 360x320x930

Weight: 19,5kg

\*Information on noise

Measured values ascertained in accordance with

2000/14/EG (height of 1.60m, distance of 1m) –

measurement tolerance +-3dB

Hand/arm vibrations are under 2,5m/s²

General Safety Instructions

Read carefully through these safety instructions.

Familiarize yourself with the control elements and the

correct ways to use the device. Store the owner's manual safely for later use. Warning and information signs on the device provide important instructions for safe operation.

Safe Work

Use the device on a connection with a residual-current device (RCD) safety switch.

Keep your workplace in good order!

Disorder at the workplace may result in injuries.

Heed to environmental factors

Do not expose the device to rain.

Do not use the device in a damp or wet environment.

Secure good lighting.

Do not use the device near combustible liquids or gases.

Keep other persons at a safe distance!

Do not let other persons, especially children, touch the device or the cables. Keep them at a safe distance from your workplace.

Store your device safely!

You should store a device you are not currently using in a dry, locked place outside of children's reach.

Do not overload your device!

Work within the performance range stipulated in this owner's manual.

Use the proper device!

Do not use the device for purposes other than those for which it was intended.

Take care of your device!

Adhere to the maintenance regulations and instructions. Check the device's cable on a regular basis, and in case of damage have it replaced by an authorized specialist. Check the extension cord on a regular basis, and in case of damage replace it. Keep the handles dry and clear of oil and fat.

Be careful!

Pay attention to what you're doing. Approach work in a reasonable fashion. Do not use the device when you're tired.

CAUTION!

The usage of other accessories than those which have been approved may pose a risk of serious injury to you.

Have your device repaired only by an electrician!

This device complies with the respective safety provisions. Repairs can be conducted solely by an electrician using original replacement parts; otherwise it can pose a risk of serious injury to the user.

Children and persons who have not been familiarized with the device and persons with limited physical, sensory and mental abilities must not be allowed to operate the device.

Device-Specific Safety Instructions

ATTENTION

Do not touch either the plug or the socket with wet or moist hands.

Do not put the device into operation when the feed cable or important device parts, such as the high-pressure hose, the manual spray gun or the safety equipment, are damaged.

Check the feed cable and its connector plug with respect to damage prior to each use. A damaged feed cable has to be replaced immediately by a qualified electrician.

Check the high-pressure hose with respect to damage prior to each use. A damaged high-pressure hose has to be replaced immediately.

It is forbidden to use the device in areas threatened by possible explosions!

When using the device in dangerous areas (such as gas stations), it is necessary to unconditionally abide by all the respective safety regulations!

High-pressure sprays generated by gerous in case of unqualified use.

Do not ever aim the water flow at people, animals, the very device, electrical components or yourself with the intention to clean clothes or footwear.

Do not use the device to clean objects which contain potentially harmful substances (e.g. asbestos).

Vehicle tires/tire vents can be damaged and break by a high-pressure spray. The first sign is the change in the color of the tire. Damaged tires/tire vents are life-threatening. While cleaning, keep the minimum distance of 30 cm of the spray!

Explosion danger! Do not spray combustible. Never suck in liquids containing solvents or red acids and solvents! Among these belong for ice gasoline, diluters and heating oil. Mist is highly stable, explosive and poisonous. Do not use acetone, red acids and solvents because they corrode the salts the device is made of.

The plug and the extension cord joint must be water-proof and must not lie in water. Use only water-proof extension cords, plugs and joints approved for outdoor use.

Inappropriate extension cords can be dangerous. Outdoors, use exclusively extension cords approved for this type of use and properly labeled, which possess a sufficient cross section:

1-10m: 1.5mm ^4

10-30m: 2.5mm²

Always completely reel off the extension cords.

High-pressure hoses, armatures and connectors are very important in terms of device safety. Only use high-pressure hoses, armatures and connectors offered and recommended by the manufacturer.

This device must not be used by persons with limited physical, sensory or mental abilities.

The device must not be used by children or untrained persons.

Children must be supervised to make sure that they do not play with the device.

Keep the packaging materials away from children. There is a risk of suffocation!

The user has to use the device in accordance with its purpose. They have to take into account the local conditions and exercise caution with regard to bystanders.

Do not use the device in case other persons are situated in its reach.

Wear safety goggles and firm footwear. In case of need wear a protective suit which shields you from the reflected water.

ATTENTION

During extensive operational pauses, turn the device's main power switch off and unplug it.

Do not use the device in temperatures under 0^ C. Frost can destroy a device which is not completely emptied. The device has to be stored during the winter time in a frost-proof room.

To prevent damage, keep the minimum spray distance of 30 cm while cleaning varnished surfaces.

Do not ever leave the device unattended while in operation.

Do not ever drive over or clamp the feed and extension cords, nor tug at it or pull it. Protect the cable from excessive temperatures, oil and sharp edges.

All conductive parts in the work area must be protected from the sprayed water.

The device must be connected exclusively to an electric socket manufactured by an electrical fitter in accordance with IEC 60364.

Connect the device to alternating current only. Voltage must correspond to the specifications on the type label.

For safety reasons, we recommend always using the device with an RCD safety switch (max. 30mA).

Cleaning which generates waste water containing oil (e.g. engine cleaning or undercarriage cleaning) can only be performed in cleaning stations with oil separators.

If the feed cable is cut or damaged during operation, do not touch it under any circumstances. Instead, deactivate the safety fuse of the respective electrical circuit.

Do not ever expose the device to rain or dampness. Store the device in a dry place.

The device has to be assembled according to the attached owner's manual before it's switched on.

Use an FI switch and check it prior to each use. When in operation, the device has to be surrounded by a 3-meter radius within which no persons or animals are located. The attending staff in responsible toward third parties.

Use only original accessories.

Use the device in free places with a level and solid ground or floor surface.

In advance of putting into operation, check all the screws and nuts and other fastening components with regard to their constriction and all the safety equipment with regard to their proper location. Replace damaged or illegible warning and information signs.

Keep your face and body out of reach of the high-pressure spray.

Never attempt to repair the device, not even if you are properly trained to do so.

Check whether all the covers and protective equipment is undamaged and properly fixed. Conduct the necessary maintenance or repairs prior to each use.

Never attempt to change the rotation speed settings of the engine. If you are experiencing troubles in this respect, approach a qualified professional.

Always keep the air vents free of residue or other sediments to prevent engine damage and potential fire. Never lift or carry the device while the engine is running.

Turn the device off and unplug the cord whenever you are leaving the workplace.

Never tilt the device while in operation.

Before adjusting the device settings, always release the residual pressure first.

Labelling

Product safety:

The product complies with the respective EU standards	II class of protection

Restrictions:

Prohibition of tugging the plug!		Protect from rain and dampness!
Never point the water spray toward persons, animals, the very device and electrical components.		Caution! According to effective regulations, the device must not ever be used without a system disconnector in the drinking water network. It is necessary to install an appropriate system disconnector according to EN 12729 type BA. Water which runs through the system disconnector is no longer drinkable.

Warning:

Warning/attention		Warning – dangerous electrical voltage
Warning – flung-away objects		Keep bystanders at a safe distance from the device

Commands:

General command sign			Read the manual prior to operating the device
Use protective goggles			Attention! Observe unconditionally the order of connection and never use the device without the water inlet connected – danger of damage!

Environmental protection:

Dispose of waste in a qualified fashion so that you do not harm the environment.			The packaging material made of cardboard can be submitted for recycling to a recycling plant.
Defective and/or liquidated electric and electronic devices must be submitted to the respective disposal plants.

Package:

Protect from dampness.	The package must point upward.
Interseroh-Recycling

Technical specifications:

Connector			Weight
			IPX5
Engine performance Protection type
Maximum pressure			Maximum temperature of the inlet water
Flow volume in liters

Engine performance Protection type

Maximum pressure		Maximum temperature of the inlet water
Flow volume in liters

Purpose-Consistent Usage

Use this high-pressure cleaner exclusively for private purposes:

- To clean machines, vehicles, buildings, instruments, façades, terraces, garden machines, etc., by a spray of high-pressure

water (in case of need, the product #86009 provides cleaning with a detergent admixture).

- With accessories and spare parts approved by the company Güde GmbH & Co. KG. (adhere to the usage instructions which are appended to detergents).

Any other type of usage constitutes an act of purpose violation. The producer cannot be held accountable for any subsequent damage or injury resulting from inappropriate use. Please take heed to the fact that our devices are not constructed for commercial purposes (industry, craft, business).

Assembly

Attention! Prior to maintenance, cleaning and assembly, it is necessary to switch the device off and unplug it. The same has to be done in the event that the feed cable is damaged, incised or tangled.

Observe the system voltage: the power supply voltage must correspond to the specifications on the type label of the device.

The extension cord with a small conductor cross section significantly reduces the performance of the device. Cables up to 25 meters of length should have at least 3 × 1.5 ~mm^2 ; longer cables should have at least 2,5 ~mm^2 . Attention! Unapproved extension cables must not be used. The extension cord, the plug and the joint must be waterproof and approved for outdoor usage.

Cable joints must be dry and must not lie on the ground.

If a cable drum is used, it is necessary to reel it off.

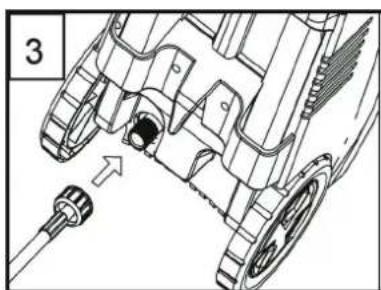

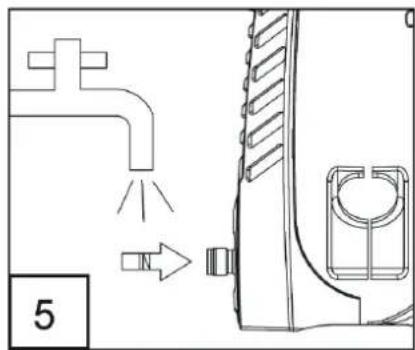

Water Connection (picture A5) (picture C7)

• Adhere to your local waterworks' directives.
• Screw joints on all connecting hoses must be tight.
• Damaged high-pressure hoses must not be used (danger of rupture).

The following accessories are necessary to connect the high-pressure cleaner to water supply and are not part of the delivery:

• A textile hose with the minimum diameter of 13mm;
• A commonly marketed hose connector.

Connect the textile hose to the connecting component of the high-pressure cleaner and screw this on the high-pressure cleaner itself.

Now connect the second piece of the hose to the common hose connector and subsequently to the water supply.

Caution! According to the effective regulations, the device must not ever be used without a system disconnector in the drinking water network. It is necessary to install an appropriate system disconnector in accordance with EN 12729 type BA. Water which runs through the system disconnector is no longer drinkable.

Assembly of high-pressure cleaner GHD 100 #86009

Assemble the spray lancet and the spray gun. Proceed in the following fashion:

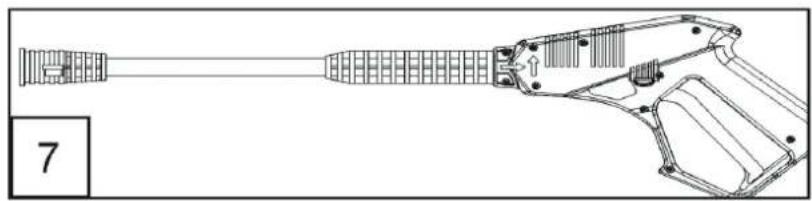

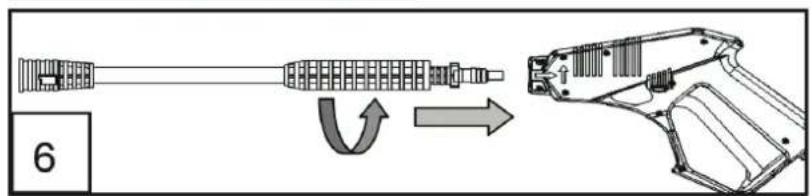

Screw part 1 of the spray lancet (picture B15/8) onto the spray gun (picture B15/9) (picture A6+A7).

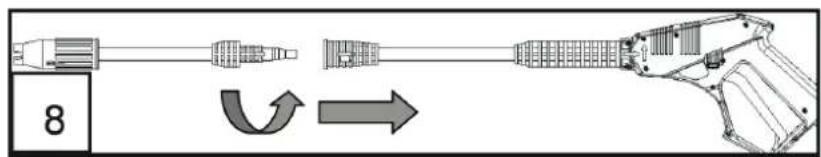

Now screw part 2 of the spray lancet (picture B15/12) onto part 1 of the spray lancet (picture B15/8) (picture A8+A9).

In phase two, connect the high-pressure hose (picture B15/11) to the hose connector (picture B15/6) on the high-pressure cleaner (picture A/1+2).

Screw joints on all connecting hoses must be tight.

Assembly of high-pressure cleaner GHD 140 #86011, #71121

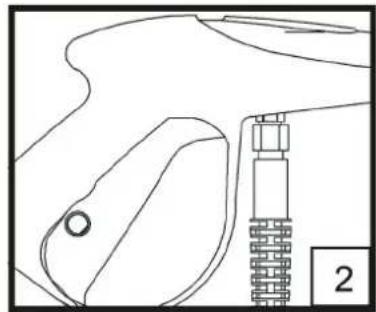

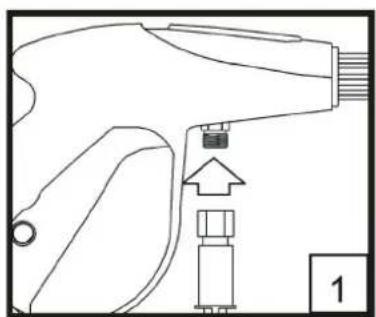

Mount the high-pressure hose (picture D15/11) on the spray gun (picture C1+C2). Now connect the spray gun to the lancet (picture C8+D9).

Now connect the high-pressure hose (picture D15/11) to the hose connector (picture B15/6) on the high-pressure cleaner (picture C/3+4).

Screw joints on all connecting hoses must be tight.

Assembly of high-pressure cleaner GHD 180 #86013

Mount the high-pressure hose (picture E8) on the spray gun (picture E6) (picture E15/E16). Now connect the spray gun to the lancet (picture E14)

Screw joints on all connecting hoses must be tight.

Operation

Always position the device onto a firm and level surface. Never either tilt the device or move it while the engine is running.

High-pressure cleaner GHD 100 #86009 operation

Startup

• Open the water faucet
• Plug the device into the grid
• To switch the high-pressure cleaner on, press the on/off button (picture B15/1) (picture B11)

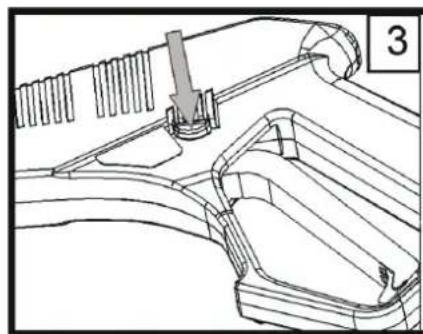

• Release the safety lock for transportation (picture B15/9) and pull the trigger (picture A3)

Halt

• Release the trigger and put the safety lock in place (picture A4)
• To switch the high-pressure cleaner off, press the on/off button (picture B15/1) (picture B11)
• Close the water tap
• Upon the completion of the work or before extensive pauses, unplug the feed cable from the grid

Water spray adjustment

- The spray lancet has various operating modes which can be changed by rotating the nozzle (picture B12)

Adjust the device settings only in the off-state!

Detergent usage (picture B13 + B14)

Only use detergents which are suitable for high-pressure cleaners.

• Turn the high-pressure cleaner off
• Pour the detergent into the detergent container and attach it to the spray gun according to pictures B13+B14

High-pressure cleaner GHD 140 #86011, #71121 operation

Startup

• Open the water faucet
• Plug the device into the grid
• To switch the high-pressure cleaner on, press the on/off button (picture D15/1) (picture D11)
• Release the safety lock for transportation (picture D15/9) and pull the trigger (picture C5+C6)

Halt

• Release the trigger and put the safety lock in place (picture D15/9) (picture C5+C6)
• To switch the high-pressure cleaner off, press the on/off button (picture D15/1) (picture D11)
• Close the water tap
• Upon the completion of the work or before extensive pauses, unplug the feed cable from the grid

Water spray adjustment

- The spray lancet has various operating modes which can be changed by rotating the nozzle (picture D12)

Adjust the device settings only in the off-state!

Detergent usage (picture D13)

The detergent reservoir works only when combined with the washing brushes.

Only use detergents which are suitable for high-pressure cleaners.

• Turn the high-pressure cleaner off
• Pour the detergent into the detergent container (picture D13)

High-pressure cleaner GHD 180 #86013 operation

Startup

• Open the water faucet
• Plug the device into the grid
• To switch the high-pressure cleaner on, press the on/off button (picture E1)
• Release the safety lock for transportation (picture E17+E18) and pull the trigger

Halt

• Release the trigger and put the safety lock in place (picture E17+E18)
• To switch the high-pressure cleaner off, press the on/off button (picture E1)
• Close the water tap
• Upon the completion of the work or before extensive pauses, unplug the feed cable from the grid

Water spray adjustment

- The spray lancet has various operating modes which can be changed by rotating the nozzle (picture D12)

Adjust the device settings only in the off-state!

Detergent usage

The detergent reservoir works only when combined with the washing brushes.

Only use detergents which are suitable for high-pressure cleaners.

• Turn the high-pressure cleaner off

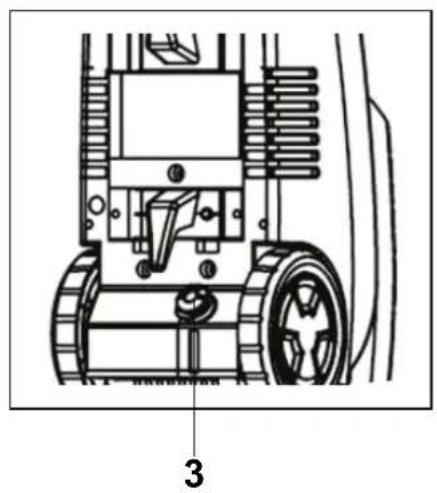

• Pour the detergent into the detergent container (picture E3)

Warranty

The warranty applies exclusively to material defects or manufacturing defects. When enforcing a complaint during the warranty period, attach the original purchase document showing the purchase date. Excluded from warranty is unqualified use such as device overloading, forcible use, damage inflicted by a third party or a third party object. Non-adherence to the operational instructions and assembly instructions and normal wear and tear are also excluded from warranty.

Residual Danger and Protective Measures

Electric residual danger:

Threat	Description	Protective	measure(s)
Direct electrical contact	Electric shock	RCD safety switch
Indirect electrical contact	Electric shock through a medium	RCD safety switch

Other threats:

Threat	Description	Protective measure(s)
Flung-away objects	Dirt, foreign objects and so forth can be flung away and inflict injuries	Wear protective goggles
		You as well as bystanders should observe a sufficient safe distance
Slipping, tripping, or falling	The very feed cable and device can constitute the cause of tripping	According to the installation type, take respective measures (appropriate installation site, marking the installation site, etc.)

Emergency Behavior

Perform an injury-appropriate first-aid treatment and call a qualified emergency medical service as soon as possible. Protect the injured person from other injuries and calm them. On account of possible accidents, the workplace must be equipped with a first-aid kit in accordance with DIN 13164. The material which you take from the first-aid kit must be immediately replenished. If you seek help, state the following information:

1. Accident site
2. Accident type
3. Number of wounded persons
4. Injury type

Disposal

Disposal instructions follow from the pictograms placed on the device and its package. The description of their particular meanings can be found in the chapter titled "Labeling".

Package disposal

The packaging protects the device from damage during transportation. The packaging materials are chosen essentially based on their environmental friendliness and disposal methods and can be therefore recycled.

Returning the packaging into material circulation saves raw materials and reduces the costs of waste disposal. Parts of the packaging (e.g. the foil, styropor) can be dangerous for children.

There's a danger of suffocation!

Keep these parts of the packaging away from children's reach and dispose of them as quickly as possible.

Attendance Requirements

The attending personnel must read carefully through the operational instructions.

Qualification

Apart from getting thorough instructions from a specialist, there is no special qualification required to operate the device.

Minimum Age

The device can be operated only by persons who have reached 16 years of age. An exemption from this rule represents the case when the youth operate the device within the frame of professional education for the purpose of acquiring skills under the supervision of a trainer.

Training

Operating the device only requires getting adequate instructions from a specialist or reading through this owner's manual. No special training is necessary.

Servicing

Do you have technical questions? Complaint? Do you need spare parts or a copy of the owner's manual? At our Internet website (www.guede.com), in the Service section, we will help you quickly and in a non-bureaucratic way. Please help us help you. In order to identify your device in case of a complaint, we need the serial number, order number and the year of manufacture. All these pieces of information can be found on the type label. To have these pieces of information at disposal at all times, please write them in below.

Serial number:

Order number:

Year of manufacture:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Maintenance and Storing

Keep the air vent and body clear of dust and dirt.

For cleaning, use a soft duster and a mild soap water solution. Prevent direct contact of the device with aggressive detergents. You must not use aggressive, volatile or caustic detergents.

Have your high-pressure cleaner checked once a year by a qualified, authorized specialist.

The device has to be protected from dampness and dust.

If you are not going to use the device for longer periods of time, store it covered in a dry, safe place inaccessible by children.

At any rate, protect the device from frost!

Filter Cleaning/Checks – Vario Nozzle Cleaning

Unscrew the adapter on the water supply connection and pull out the filter sieve by narrow, flat pliers. Rinse the filter sieve with water and insert it back in. A damaged sieve needs to be replaced.

ATTENTION! Under no circumstances put the high-pressure cleaner into operation if the filter sieve is damaged or missing.

Use a thin wire to clean the Vario nozzle or to remove potential obstructions. See below.

Defect Detection

The following table shows possible defects, their potential causes and means of their remedies. If you are unable to solve the problem nonetheless, approach a qualified specialist.

Prior to maintenance and cleaning, turn the device unplug it.

Danger of electric shock.

Symptom	Possible cause	Remedy
The engine doesn't start	The device is not plugged into the grid	Plug the device into the grid
	The socket is defective	Use another socket
	The fuse has blown	Replace the fuse
	The extension cord is damaged	Try to use the device without the extension cord
The engine stops	The fuse has blown	Replace the fuse
	The network voltage is not right	Check the network voltage, it has to correspond to the type label specifications
The fuse has blown	Too weak a fuse Connect to an electric circuit which is properly protected with respect to the high-pressure cleaner performance
Excessive effective pressure	The nozzle is partly clogged	Clean the nozzle
Pulsing pressure	There's air in the water hose or in the pump	Turn the high-pressure cleaner off and let it run with an open spray gun and open water faucet long enough to reach an even effective pressure
	The water supply is incorrect	Check whether the water supply

		connection corresponds to the technical specifications. The smallest water hose allowed has the diameter of 12 or 13mm
	Clogged water filter	Clean the water filter
	The water hose is clamped or broken	Straighten the water hose
The pressure is stable yet too low	Worn-out nozzle Replace the nozzle
	Worn-out Start/Stop valve	Pull the trigger 5 times in a quick succession
The engine is running, yet there is no effective pressure	The water supply is not connected	Connect to the water supply
	The filter is clogged	Clean the filter
The high-pressure cleaner turns on spontaneously	The pump or the spray gun leaks	Turn to an authorized specialist
The device is not pressure-tight	The pump is not pressure-tight	6 drops per minute are acceptable. In cases of abnormal leakage, it is necessary to consult the problem with a specialist

Introduction

Interseroh-Recycling

Afmetingen (LxBxH in mm) 360x320x930

Gewicht: 19,5 kg

Dimensioni (LxLxH in mm): 270x160x430

Peso: 6,1 kg

Depuratore ad alta pressione GHD 140 #86011, #71121

Tensione/frequenza: 230V\~50Hz

Dimensioni (LxLxH in mm): 360x320x930

Peso: 19,5 kg

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

GB *The device complies with the requirements established by EN 61000-3-11 and is subject to special connection conditions. This means that the use on any, arbitrarily chosen point is inadmissible. The device can cause, in unfavorable grid conditions, temporary fluctuations in voltage. The device is intended exclusively for use on connection points which do not exceed the maximum permissible network impedance of Z_ = 0,233 . As the user, you have to make sure, if need be by an agreement with your power supply company, that the connection point which you want to use to power your device complies with the stipulated requirement.
