USER MANUAL GE4PG748GRN GEAR4

U30: 1516.42 Version V1.1 - 1122 ATTAGE DATA: 0299@2012-000

Height: 124 mm
Width: 12.5 mm

StreetParty ^® Wireless

User Manual

Thank you for buying the GEAR4 StreetParty Wireless, wireless portable speaker for any Smartphone, Tablet, MP3 Player, PC or Mac with Bluetooth. Please read this manual before use and retain it for future reference.

Made in China V1.1 - 1128 EUK

OPEN

PG748EUK SpeedParty Wireless Manual V1.1 Incd 125052012 10:11

2

6

11

16

21

26

31

36

40

44

StreetParty Wireless

Please read before use.

Product features:

■ Wireless portable speaker
■ Rechargeable lithium-ion battery
■ Speaker phone
■ Line-in port for use with other music players
■ Up to 8 hours' battery life (at maximum volume)

Bluetooth 3.0 with A2DP / HFP / HSP

■ Using StreetParty Wireless with devices supporting Bluetooth 3.0 allows you to stream music wirelessly and to use it as a speaker phone.
■ Please check that your device supports Bluetooth 3.0 (A2DP).
■ Non-A2DP and other non-Bluetooth devices can be connected using the 3.5mm audio cable supplied.

Note: When connecting any device using the 3.5mm cable, the speaker phone functions do not operate.

■ A2DP - Advanced Audio Distribution Profile
■ HSP - Headset Profile

■ HFP - Handsfree Profile

Getting started:

CHARGING:

• Plug the mini USB cable into the DC IN port.
  ■ Now plug the USB charge cable into an available USB port on your PC or Mac or into a USB power adapter.

Note: When the speaker is charging, the LED indicator at the back of the speaker is blue and red together. Once fully charged, the LED indicator will change colour from blue and red together to red.

ACTIVATION:

■ To activate the speaker, turn the power switch ON. This is located on the back of the speaker.
■ For the speaker to work wirelessly with your Bluetooth device, they must be paired.

To pair your electronic device:

■ Activate Bluetooth on your device.
■ Ensure that your StreetParty Wireless is fully

charged or is connected to a power source and is switched ON.

■ Press and hold the button until the LED at the front of the speaker starts flashing. (The speaker will have 10 minutes to connect/pair with your device.)
- 'Gear4 SPW' will appear on your Bluetooth device.
■ Select 'Gear4 SPW' and enter the password '0000' if necessary.
■ The LED will stop flashing when your device has successfully paired.

Note: StreetParty Wireless can only be paired to one electronic device at any given time.

For use with other audio devices:

- Plug one end of the 3.5mm audio cable (supplied) into your personal electronic device and connect the other end into the AUX IN port at the back of the speaker.

Note: Speaker volume cannot be adjusted by the speaker volume controls.

Speaker phone functions:

■ To answer a call – press the button
- To reject a call – press and hold the button for 1 second.
■ To end a call - press the button.

■ To switch call signal between speaker and phone - press the Audio Source icon displayed on the iPhone screen (when a call has been initiated).

LED Status:

LED SYNC INDICATOR (FRONT):

■ Power OFF – LED OFF
■ Power ON – LED ON (blue)
■ Pairing Mode – LED FLASHING (blue/red)

LED CHARGING INDICATOR (BACK):

■ Fully Charged – LED ON (red)
■ When Charging – LED ON (blue and red together)

Register your StreetParty Wireless to activate your warranty and receive product updates at www.gear4.com/register

Copyright © 2012 Disruptive Limited. All rights reserved. Reproduction in part or in whole is prohibited. GEAR4 and StreetParty are trade marks of Disruptive Limited. iPhone and iPod touch are trade marks of Apple Inc., registered in the U.S. and other countries. iPad is a trade mark of Apple Inc. App Store is a service mark of Apple Inc.

The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc.

warNING

To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apptaratus.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

CaUTION

Use of controls or adjustments of performance or procedures other than those specified may result in hazardous radiation exposure.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

UNPaCKING aND INSTaLLaTION

Unpack your unit carefully. We recommend that you save the packaging in case you ever need to store your unit. To avoid damage, never place the unit or its batteries near radiators, in front of heating vents, under direct sunlight or near water.

FOR yOUr SaFETy

• Never handle the unit with wet hands, as this could cause fire or electric shock.
  – Refer servicing to qualified personnel only.
• Do not open the housing.

– Unplug the unit during lightning storms and when unused for extended periods of time.

DISPOSaL

According to the European Directive 2002 / 96 / EC all electrical and electronic products must be collected separately by a local collection system. Please act according to your local rules and do not dispose of your old products with your normal household waste.

Do not dispose of batteries with your normal household waste. Follow local regulations for safe disposal.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the

presence of uninsulated ‘Dangerous Voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to person.

The exclamation point within an equilateral triangle is intended to alert user to the presence of

important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

CAUTION RISK OF ELECTRIC SHOCK • DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

FCC rULES

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

INDUSTry CaNaDa

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

StreetParty Wireless

StreetParty Wireless

Controles de StreetParty Wireless:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the

presence of uninsulated ‘Dangerous Voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to person.

StreetParty Wireless

Leia antes de usar.

Controlos do StreetParty Wireless:

Bediening StreetParty Wireless:

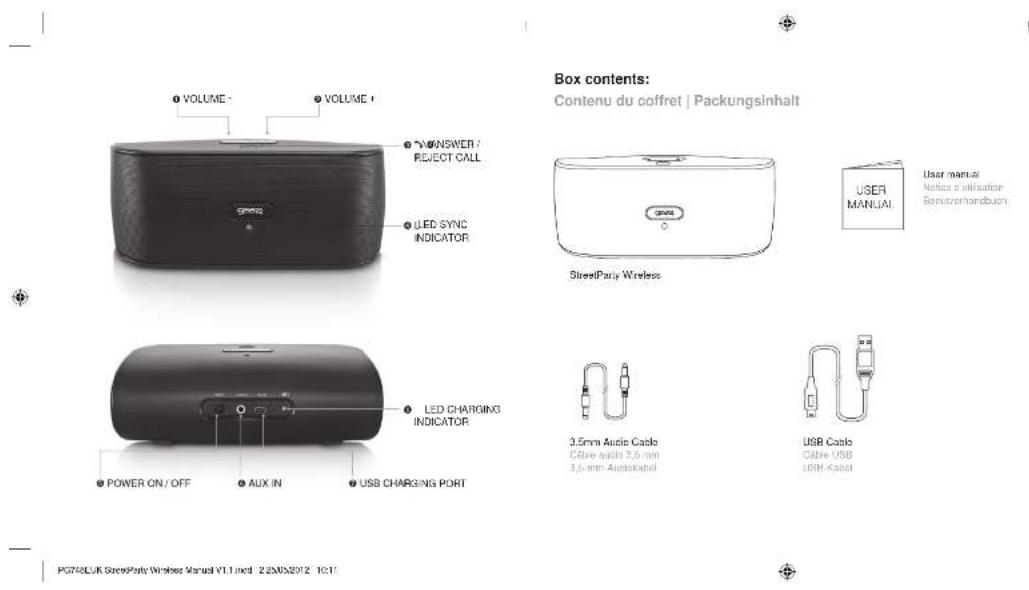

① VOLUME -
② VOLUME +
③ ANTWOORDEN / NEGEREN
4 LED-SYNCHRONISATIE-INDICATOR
⑤ AAN / UIT
⑥LINEIN (VOOR ANDERE MUZIEKSPELERS)
⑦ USB-OPLAADPOORT
⑧ LED-OPLAADINDICATOR

Productkenmerken:

StreetParty Wireless

StreetParty Wireless

GEAR4 One-Year Warranty

Disruptive Limited, trading as GEAR4, warrants this product to be free from defects in workmanship and materials at the point of sale. Subject to this product being used in accordance with its instructions for use, the product shall continue to be free from defects, for a period of one (1) year from the date of original purchase.

Any damage or defects caused by a failure to follow the instructions which relate to this product or as the result of an accident, abuse, misuse, misapplication, product modification, faulty ancillary equipment, improper voltage or current, lightning or other acts of God, commercial non-home use, normal wear and tear, shipping damage or loss, damage to digital media players or damage caused by the actions of anyone other than Disruptive Limited are expressly excluded from the warranty stated above.

Disruptive Limited will, at its sole election, repair or replace any product that proves to be defective in either or both of workmanship or materials and as covered by this warranty. If the product is no longer manufactured or is out of stock at or after the time Disruptive Limited learns of the warranty claim, Disruptive Limited may, at its sole election, replace your product with a similar product.

Disruptive Limited's liability is limited to the repair or replacement, of any defective product under warranty and any incidental or consequential damages are expressly excluded to the fullest extent permitted by law. This warranty is not transferable and does not extend to users other than the person who originally purchased the product.

Nothing in this manual shall limit or exclude liability of Disruptive Limited for death or personal injury resulting from Disruptive Limited's negligence, for fraud or fraudulent misrepresentation or breach of the terms implied by Section 12 of the Sale of Goods Act 1979.

This warranty gives you specific legal rights in addition to the ones afforded you by the laws of your country and nor is this warranty intended nor does it operate to limit such legal rights. For example, in Australia, the Trade Practices (Australian Consumer Law) Amendment Regulations 2010 (No. 1) apply, therefore our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Under these Regulations, you are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

GEAR4 | One-Year Warranty

Return Policy / Warranty Service

Warranty claims will only be valid when proof of purchase is supplied to Disruptive Limited to evidence that the product was purchased from an authorised Disruptive Limited dealer and that the claim is within one (1) year of purchase. To make a warranty claim you must first contact Disruptive Limited by email to [e-mail] stating your name, full postal address, contact telephone number, the name of the product and its serial number, date and place of purchase and a detailed description of the problem you are experiencing.

If the defect is covered by this warranty then you will be provided with an authorisation number and instructions for return shipment. Where possible, you must send to Disruptive Limited the damaged or defective product. The returned product MUST be accompanied by the original proof of purchase. We highly recommend that you retain a copy of this proof of purchase for your records. Disruptive Limited shall not be responsible for lost or damaged products during shipment. Any product returned without the original proof of purchase will be returned without being examined or tested and such return shall be at the customer's expense.

To avoid any additional charges, all returns and exchanges must include the original packing materials, product box, all included accessories which may include, but not necessarily be limited to, power adapters or power cords, connecting cables, remote controls, adapters, inserts, cards and instruction manuals. The absence of any of the aforementioned items may mean that you incur a charge for their replacement. Disruptive Limited shall not be liable for any indirect or direct consequential loss.
