USER MANUAL StreetParty 4 GEAR4

Black portable electronic device with a smartphone displaying a music player interface, mounted on a black frame (no visible text or symbols on the device body)

StreetParty ^® 4
User Manual
Notice d'utilisation | Benulzerhandbuch

Thank you for buying the StreetParty 4, portable speaker for iPod and iPhone. Please read over this manual before use and retain it for future reference.

Revened and The Makers

© 2009 Wall of Sound © 2009 Wall of Scand

Made in China V1.4

2

5

9

13 17

21

25

29 32

35

Features:

■ Slim design, folds flat for storage
■ Powered by 4 AA batteries (not included) or power supply (included)
■ Dock for iPod / iPhone
■ Charges iPod / iPhone (when powered by mains)
■ Line-in port for use with other music players
■ On / off light indicator
■ Optimized frequency response

Getting started:

To set up the StreetParty 4, follow these steps:

• Plug the power cable firstly into the back of the unit and then into the main supply. Alternatively insert 4 AA batteries into the back of the speaker.
  ■ Turn the POWER switch to ON.

For use with iPod / iPhone:

■ Carefully pull out the dock platform allowing the StreetParty 4 to sit firmly upright.

■ Carefully insert your iPod / iPhone into the dock.

N.B. Your iPod / iPhone will only charge when the StreetParty 4 is plugged in via the power supply.

For use with other audio devices:

• Plug a 3.5mm audio cable (not included) into your MP3 or MP4 player and connect the other end into the AUX port at the back of the unit.
  ■ Select the track and press play on your music source.

Register your StreetParty 4 to activate your warranty and receive product updates at www.gear4.com/register

Please ensure that your iPod / iPhone is using the latest software version. To update the software, connect your iPod / iPhone to iTunes. If there is a newer software version available you will be prompted to upgrade.

Copyright © 2011 Disruptive Limited. All rights reserved. Reproduction in part or in

whole is prohibited. GEAR4 and StreetParty are registered trade marks of Disruptive Limited. iPhone, iPod, iPod nano, iPod classic and iPod touch are trade marks of Apple Inc., registered in the U.S. and other countries.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone respectively and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Warning

To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

Do not expose to dripping or splashing and ensure that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Caution

Use of controls or adjustments of performance or procedures other than those specified may result in hazardous radiation exposure.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Ensure batteries are inserted as indicated inside the battery compartment.

unPaCkinG and inStallation

Unpack your unit carefully. We recommend that you save the packaging in case you ever need to store your unit. To avoid damage, never place the unit or its batteries near radiators, in front of heating vents, under direct sunlight or near water.

For your SaFety

• When disconnecting the power cable, pull the power plug first. Do not pull the cord by itself.
• Never handle the power plug with wet hands, as this could cause fire or electric shock.
  – Refer servicing to qualified personnel only.
• Do not open the housing.
• Do not twist or pinch the power cable. If the plug or power cable needs to be replaced, ensure that it complies with the manufacturer's recommendation.
  – Unplug the unit during lightning storms and when unused for extended periods of time
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

diSPoSal

According to the European Directive 2002/96/EC all electrical and electronic products must be collected separately by a local collection system. Please act according to

your local rules and do not dispose of your old products with your normal household waste.

Do not dispose of batteries with your normal household waste. Follow local regulations for safe disposal.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the presence of uninsulated ‘Dangerous Voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to person.

The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

CAUTION RISK OF ELECTRIC SHOCK • DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

FCC ruleS

You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.

Operation is subject to the following two conditions:

1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device.

"Made for iPod" y "Made for iPhone" indican

GEAR4 One-Year Warranty

Disruptive Limited, who owns the GEAR4 brand, warrants this product to be free from defects in workmanship and materials at the point of sale and that when this product is used in accordance with the instructions for its use it shall continue to be free from defects, for a period of one (1) year from the date of original purchase.

Any damage or defects caused by a failure to follow the instructions which relate to this product or as the result of an accident, abuse, misuse, misapplication, product modification, faulty ancillary equipment, improper voltage or current, lightning or other acts of God, commercial non-home use, normal wear and tear, shipping damage or loss, damage to digital media players or damage caused by service performed by anyone other than Disruptive Limited are expressly excluded from the warranty stated above.

Disruptive Limited will, at its sole election, repair or replace any product that proves to be defective in either or both of workmanship or materials and which is covered by this warranty. If the product is no longer current or is out of stock, at its sole election, Disruptive Limited may replace your product with a similar product. Disruptive Limited's liability is limited to the repair or replacement, of any defective product under warranty and any incidental or consequential damages are expressly excluded to the fullest extent permitted by law. This warranty is not transferable and does not extend to users other than the person who originally purchased the product.

This warranty gives you specific legal rights in addition to the ones afforded you by the laws of your country and nor is this warranty intended nor does it operate to limit such legal rights.

Return Policy / Warranty Service

Warranty claims will only be valid when accompanied with proof of purchase to evidence that the product was purchased from an authorised dealer and that the claim is within allowed period. To make a warranty claim you must first contact Disruptive Limited by email to [e-mail] stating your name, full postal address, telephone number, date and place of purchase and a detailed description of the problem you are experiencing and don't forget to include the name of the product and its serial number.

If the defect is covered by this warranty then you will be provided with a Return to Manufacturer Authorisation number and instructions for return shipment. Sending the product back to us under this warranty shall be at your expense, and the return MUST be accompanied by the original proof of purchase whilst we highly recommend that you retain a copy of this. Disruptive Limited shall not be responsible for lost or damaged products during shipment. Any product returned without the original proof of purchase will be returned without being examined or tested and such return shall be at the customer's expense.

To avoid any additional charges, all returns and exchanges must include the original packing materials, product box, all included accessories which may include, but not necessarily be limited to, power adapters or power cords, connecting cables, remote controls, adapters, insert cards and instruction manuals. The absence of any of the aforementioned items may mean that you incur a charge for their replacement. Disruptive Limited shall not be liable for any inconvenience, or loss of time, loss of use of the product.

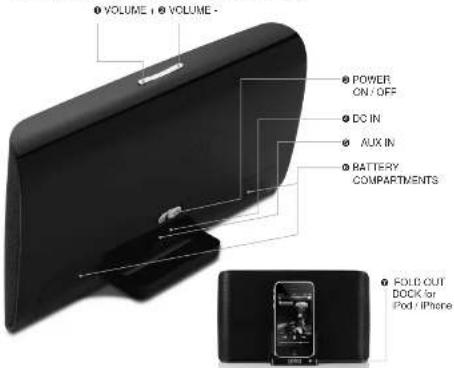

StreetParty 4 controls: Box contents:

• VOLUME - • VOLUME - • POWER ON / OFF • DC IN • AUX IN • BATTERY COMPARTMENTS • FOLD OUT DOCK for iPod / iPhone

Made for iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod nano (1st, 2nd, 3rd, 4th, 5th and 6th generation), iPod mini, iPod with video. Made for iPhone 3GS, iPhone 3G and iPhone.

Contenu du coffret | Packungsinhalt

StreetParty 4

User manual Notice d'affination Bonutsmandbuch

Power supply (UK & EU) Alimentation (GB & EU) Neutral (GB & EU)
