Notice SONY KV-36FQ80K - page 62
62 / 172
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Trinitron Colour Television (CRT)
Model KV-36FQ80K
Brand Sony
Screen Size (Diagonal) Approx. 91 cm (36 inches)
Picture Tube FD Trinitron
Dimensions (W x H x D) Approx. 1010 x 645 x 607 mm
Weight Approx. 87 kg
Power Supply 220-240 V AC, 50 Hz
Power Consumption 143 W
Audio Output (Main Speakers) 2 x 20 W (music power), 2 x 10 W (RMS)
Audio Output (Subwoofer) 1 x 30 W (music power), 1 x 15 W (RMS)
TV System B/G/H, D/K; PAL, NTSC 3.58/4.43 (Video In)
Channel Coverage VHF E2-E12, UHF E21-E69, CATV S1-S20, HYPER S21-S41, D/K R1-R12, R21-R69
Key Features Multi PIP (13 channels), Picture and Picture (PAP), NexTView EPG, Teletext with Fastext, Memory Stick viewer (JPEG), DRC modes, Dolby Virtual, BBE Sound, Auto Format, Sleep Timer
Rear Connections SCART AV1 (RGB/Smartlink), AV2, AV3 (S-video, selectable output), AV4, RF In, Audio Out (phono)
Front Connections Video In (phono), Audio In (phono, L/R), S-Video In (4-pin DIN), Headphones Out (minijack)
Remote Control RM-936 (multi-brand control for VCR/DVD)
Accessories Supplied Remote control, 2 x AA batteries
Cleaning Instructions Use a soft, lightly dampened cloth; do not use benzine, thinner, or chemicals
Safety Precautions Do not cover ventilation, keep away from moisture, unplug during storms, use designated stand

Frequently Asked Questions - KV-36FQ80K SONY

How do I perform the initial setup and auto-tuning on my Sony KV-36FQ80K?
When you first switch on the TV, the Language/Country menu appears. Select your language and country using the arrow buttons and press OK. Then the picture rotation prompt appears; adjust if needed. Finally, the autotune prompt appears; select Yes to automatically scan for all available channels. After tuning, you can rearrange channel order in the Programme Sorting menu.
What is the Multi PIP feature and how do I use it?
Multi PIP (Picture In Picture) displays 13 different channels simultaneously on screen. Press the Multi PIP button on the remote. Use PROG+/- to scroll through groups of 12 channels, use arrow keys to select a framed channel, then press OK to view it in the centre. Press OK again or the TV button to exit.
How do I set up the remote control to operate my VCR or DVD player?
Find the 3-digit code for your brand from the list in the manual. Press the MODE button to select VCR or DVD (green light). Press and hold the YELLOW button for about 6 seconds until the green light flashes. Enter the 3-digit code using the numbered buttons. If successful, all lights illuminate briefly. Test the remote; if it doesn't work, try the next code.
What should I do if the TV has no picture but sound is working?
Go to the Picture Adjustment menu via the MENU button. Adjust the Brightness and Colour settings. If needed, select Reset to restore factory defaults. Also ensure the Picture Mode is not set too low.
Can I view photos from a Memory Stick on this TV?
Yes, insert a Memory Stick into the front slot (label facing forward). The Memory Stick menu appears automatically. Select Index to view thumbnails, then choose a picture to display full screen. Use Slideshow for automatic playback. You can adjust picture settings (contrast, brightness, etc.) via the MENU button while viewing.
How do I connect external equipment like a DVD player or game console?
Connect the equipment to the appropriate SCART socket on the rear (e.g., AV1 for RGB). Press the Input Select button repeatedly until the correct on-screen symbol (1, 2, 3, etc.) appears. Switch on the connected device; its picture should appear. Press TV to return to normal TV operation.
What is the correct way to clean the TV screen and cabinet?
Unplug the TV before cleaning. Use a soft, lightly dampened cloth to wipe the screen and cabinet. Do not use benzine, thinner, or any chemical cleaners. Avoid scratching the screen.
How can I adjust the picture rotation if the screen appears tilted?
Due to Earth's magnetism, the picture may slant. Press the MENU button, go to Manual Set Up, then Picture Rotation. Use the arrow buttons to rotate the picture from -5 to +5 until level, then press OK to store.
What are the DRC modes and how do they improve picture quality?
DRC (Digital Reality Creation) modes enhance picture resolution. In the Picture Adjustment menu, select DRC Mode. Options: Off (basic 100Hz), DRC 50 (improved resolution), DRC 100 (optimum resolution). Choose the best setting for your viewing.
Why is the standby indicator flashing and what should I do?
If the standby indicator (red light on front panel) flashes, it indicates a potential issue. Contact your nearest Sony service centre for assistance. Do not attempt to open the TV cabinet yourself.

User questions about KV-36FQ80K SONY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Television in PDF format for free! Find your manual KV-36FQ80K - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KV-36FQ80K by SONY.

USER MANUAL KV-36FQ80K SONY

Trinitron Colour Television

Operating Instructions ____ GB

© 2002 Sony Corporation

SONY KV-36FQ80K - Trinitron Colour Television - 1

SONY KV-36FQ80K - Trinitron Colour Television - 2

SONY KV-36FQ80K - Trinitron Colour Television - 3

SONY KV-36FQ80K - Trinitron Colour Television - 4

SONY KV-36FQ80K - Trinitron Colour Television - 5

SONY KV-36FQ80K - Trinitron Colour Television - 6

SONY KV-36FQ80K - Trinitron Colour Television - 7

SONY KV-36FQ80K - Trinitron Colour Television - 8

Sony Spain S. A.

Pol. Ind. Can Mitjans s/n

08232 Viladecavalls (Barcelona)

Spain Printed in Spain

FQ80 B5 Part 1 BG.lm Page 1 Tuesday, May 28, 2002 4:18 PM

SONY KV-36FQ80K - Trinitron Colour Television - 9

SONY KV-36FQ80K - Trinitron Colour Television - 10

SONY KV-36FQ80K - Trinitron Colour Television - 11

SONY KV-36FQ80K - Trinitron Colour Television - 12
BG

SONY KV-36FQ80K - Trinitron Colour Television - 13

SONY KV-36FQ80K - Trinitron Colour Television - 14

SONY KV-36FQ80K - Trinitron Colour Television - 15

SONY KV-36FQ80K - Trinitron Colour Television - 16

1
SONY KV-36FQ80K - Trinitron Colour Television - 17

SONY KV-36FQ80K - Trinitron Colour Television - 18

Diagram showing battery internal structure change from left to right, with labeled components 'ICL10' and 'SONY'

natural_image Back view of a Sony TV set with antenna wiring (no text or symbols on main subject)
natural_image Computer monitor with a hand pointing at the front panel (no visible text or symbols on screen)

VCR TV DVD + - ACOSI 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

natural_image Front view of a white Sony TV remote control with keypad and function buttons (no readable text or symbols beyond branding)
natural_image Close-up of a white remote control with black circular buttons and indicator lights (no readable text or symbols)
  1. Натиснете бутона 🚗а да влезете в режим Мулти КВК.

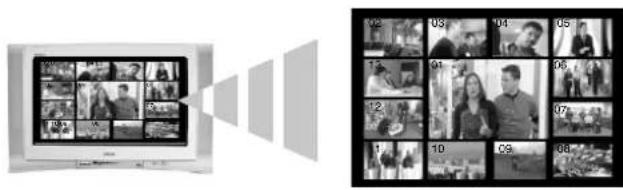

Image showing a video player on screen and a grid of black-and-white photos with numbered labels, likely illustrating a media or video sharing system.

natural_image Side-by-side comparison of a flat-screen TV and a multi-view photo of a man in a studio setting (no visible text or symbols)
natural_image Close-up of a white remote control with circular buttons and a dial indicator (no readable text or symbols)
natural_image Close-up of a remote control knob with no visible text or symbols on the dial (pure graphical design)
natural_image White Sony remote control with black circular dial and playback buttons (no readable text or symbols beyond branding)

Address Marketing The user can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can access to the website. You can use a local or local service (e.g., email, phone, email address). You can use a local or local service (e.g., email, phone, email address). You can use a local or local service (e.g., email, phone, email address). You can use a local or local service (e.g., email, phone, email address). You can use a local or local service (e.g., email, phone, email address). You can use a local or local service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g. email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, email address). You can use a localized or localized service (e.g., email, phone, Email address). You can use a localized or localized service (e.g., email, phone, Email address). You can use a localized or localized service (e.g., email, phone, Email address). You can use a localized or localized service (e.g., email, phone, Email address). You can use a localized or localized service (e.g., email, phone, Email address). You can use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also uses a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also use a localized or localized service (e.g., email, phone, Email address). You can also uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can also uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can only uses a localized or localized service (e.g., email, phone, Email address). You can only use a localized or localized service (e.g., email, phone, Email address). You can onlyuses a localized or localized service (e.g., email, phone, Email address), you must use it as an online platform. Please note that this is not available in this image.

natural_image Close-up of a white remote control with black buttons and a central play button (no readable text or symbols)
natural_image Front view of a white Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image White Sony remote control with black circular dial and 'OK' button (no readable text or symbols beyond basic design)
natural_image Close-up of a white remote control with four rotary buttons and a play button (no readable text or symbols)
natural_image White Sony TV remote control with black circular dial and control buttons (no readable text or symbols beyond branding)
natural_image White Sony TV remote control with black circular dial and control buttons (no readable text or symbols beyond branding)

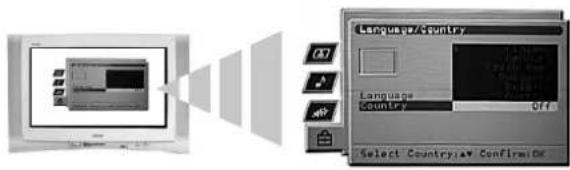

Език/Държава

natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond control buttons)
natural_image Close-up of a remote control panel with no visible text or symbols on the dial (black and white photo)

SONY KV-36FQ80K - Trinitron Colour Television - 23

natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond branding)

Scanned image showing a computer monitor displaying an embedded image and a dialog box with Chinese text, alongside a background photo of a road scene.

natural_image Close-up of a gray electronic component with ventilation slots and mounting holes (no visible text or symbols)
natural_image Front view of a white Sony TV remote control with keypad and control buttons (no readable text or symbols beyond branding)

FQ80 B5 Part I CZ.fm Page 1 Tuesday, May 28, 2002 4:37 PM

SONY KV-36FQ80K - Trinitron Colour Television - 25

SONY KV-36FQ80K - Trinitron Colour Television - 26

SONY KV-36FQ80K - Trinitron Colour Television - 27

SONY KV-36FQ80K - Trinitron Colour Television - 28

SONY KV-36FQ80K - Trinitron Colour Television - 29

CZ
SONY KV-36FQ80K - Trinitron Colour Television - 30

SONY KV-36FQ80K - Trinitron Colour Television - 31

SONY KV-36FQ80K - Trinitron Colour Television - 32

SONY KV-36FQ80K - Trinitron Colour Television - 33

1
SONY KV-36FQ80K - Trinitron Colour Television - 34

SONY KV-36FQ80K - Trinitron Colour Television - 35

SONY KV-36FQ80K - Trinitron Colour Television - 36

natural_image Close-up of a metallic mechanical component with an arrow pointing to a section (no visible text or symbols)

SONY KV-36FQ80K - Trinitron Colour Television - 37

SONY DAI

SONY KV-36FQ80K - Trinitron Colour Television - 39

SONY KV-36FQ80K - Trinitron Colour Television - 40

natural_image Close-up of a metallic mechanical component with an arrow pointing to a feature (no visible text or symbols)

Nikdy nezapomeňte:

natural_image White CRT television monitor with a black screen, showing no visible text or symbols on its screen.

VCR TV DVD MODE OK MENU SONY TV

natural_image Front view of a Sony TV remote control with no visible text or symbols on the device itself.
natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)
natural_image Side-by-side comparison of a flat-screen TV and a multi-person black-and-white photo collage (no visible text or symbols)

▲ 9 ▶ C21 10 C37 11 C41 12 C47 13 C54 14 C58 15 C62 ▼ 16 C66

natural_image Close-up of a white remote control with circular buttons and a play button (no readable text or symbols)
natural_image Close-up of a white remote control with black buttons and a central 'OK' button (no text or symbols beyond basic design)
natural_image Front view of a white Sony TV remote control with black circular dial and control buttons (no readable text or symbols beyond branding)
natural_image Close-up of a remote control with no visible text or symbols on the device surface
natural_image White Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image Front view of a white Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond basic design)
natural_image Close-up of a white remote control with four rotary buttons and a central play button (no text or symbols visible)
natural_image White Sony remote control with black circular dial and 'OK' button (no readable text or symbols beyond branding)
natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond control buttons)

Jazyk/Země

natural_image Front view of a Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image Close-up of a white remote control with black buttons and a central 'OK' button (no readable text or symbols beyond basic design)

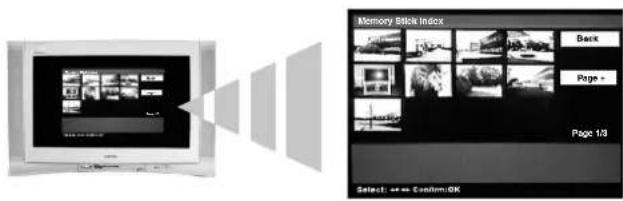

Memory Stick Index Prezentace snisku Nastaveni Vyberte:++ Potvrdte:OK

SONY KV-36FQ80K - Jazyk/Země - 2

natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)
natural_image Close-up of a mechanical component with ventilation slots and mounting holes (no visible text or symbols)
natural_image Front view of a white Sony TV remote control with keypad and function buttons (no readable text or symbols beyond branding)
natural_image White Sony TV remote control with keypad and buttons (no readable text or symbols beyond branding)

32FQ80 B5 Part 1.fm Page 1 Wednesday, May 29, 2002 9:53 AM

SONY KV-36FQ80K - Jazyk/Země - 3

SONY KV-36FQ80K - Jazyk/Země - 4

SONY KV-36FQ80K - Jazyk/Země - 5

SONY KV-36FQ80K - Jazyk/Země - 6

SONY KV-36FQ80K - Jazyk/Země - 7

GB

SONY KV-36FQ80K - Jazyk/Země - 8

SONY KV-36FQ80K - Jazyk/Země - 9

SONY KV-36FQ80K - Jazyk/Země - 10

SONY KV-36FQ80K - Jazyk/Země - 11

1 1

SONY KV-36FQ80K - Jazyk/Země - 12

SONY KV-36FQ80K - Jazyk/Země - 13

SONY KV-36FQ80K - Jazyk/Země - 14

SONY KV-36FQ80K - Jazyk/Země - 15

SONY KV-36FQ80K - Jazyk/Země - 16This set is to operate on a 220-240V AC supply only. Take care not to connect too many appliances to the same power socket as this could result in fire or electric shock.SONY KV-36FQ80K - Jazyk/Země - 17For environmental and safety reasons, it is recommended that the TV set is not left in standby mode when not in use. Disconnect from the mains.SONY KV-36FQ80K - Jazyk/Země - 18Never push objects of any kind into the set as this could result in a fire or electric shock. Never spill liquid of any kind on the set. If any liquid or solid object does fall through, do not operate the TV. Have it checked immediately by qualified personnel.
SONY KV-36FQ80K - Jazyk/Země - 19Do not open the cabinet and the rear cover of the TV. Refer to qualified service personnel only.SONY KV-36FQ80K - Jazyk/Země - 20For your own safety, do not touch any part of the TV, power lead or aerial lead during lightning storms.SONY KV-36FQ80K - Jazyk/Země - 21To prevent fire or shock hazard, do not expose the TV to rain or moisture.

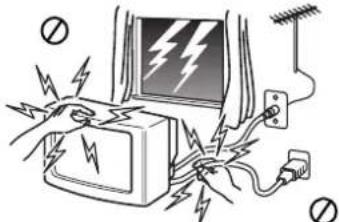

SONY KV-36FQ80K - Jazyk/Země - 22Do not cover the ventilation openings of the TV. For ventilation, leave a space of at least 10cm all around the set.SONY KV-36FQ80K - Jazyk/Země - 23Never place the TV in hot, humid or excessively dusty places. Do not install the TV where it may be exposed to mechanical vibrations.∅SONY KV-36FQ80K - Jazyk/Země - 24To prevent fire, keep inflammable objects or naked lights (eg candles) away from the TV.
SONY KV-36FQ80K - Jazyk/Země - 25Clean the TV with a soft, lightly dampened cloth. Do not use benzine, thinner or any other chemicals to clean the TV. Do not scratch the TV screen. As a safety precaution, unplug the TV before cleaning it.SONY KV-36FQ80K - Jazyk/Země - 26Pull out the power lead by the plug. Do not pull on the power lead itself.∅SONY KV-36FQ80K - Jazyk/Země - 27Take care not to place heavy objects on the power lead as this could result in damage. We recommend you wind any excess lead around the holders provided on the rear of the TV.
SONY KV-36FQ80K - Jazyk/Země - 28Place the TV on a secure stable stand. Do not allow children to climb on to it. Do not place the TV on its side or face up.SONY KV-36FQ80K - Jazyk/Země - 29Unplug the power lead before moving the TV. Avoid uneven surfaces, quick steps or excessive force. If the set has been dropped or damaged, have it checked immediately by qualified service personnel.∅SONY KV-36FQ80K - Jazyk/Země - 30Do not cover the ventilation openings of the TV with items such as curtains or newspapers etc.

Note: Due to the unique floating design of this TV, Sony highly recommend you use their designated stand SU/32FQ2 for KV-32FQ80 and SU/36FQ2 for KV-36FQ80.

2 Safety Information

Thank you for choosing this Sony Trinitron Television.

Before operating this TV, please read this instruction manual thoroughly and retain it for future reference.

Throughout this instruction manual there are illustrations of the remote control with certain buttons shaded white.

This shading indicates the buttons you will need to press when following the instructions.

For example, the illustration on the right shows that the MENU, ↑, ↓, → and OK buttons will need to be pressed.

OK button-

↑, ↓ and → buttons

MENU button

OK OK/AI

Getting Started

Checking the supplied accessories....4

Inserting batteries into the remote control. 4

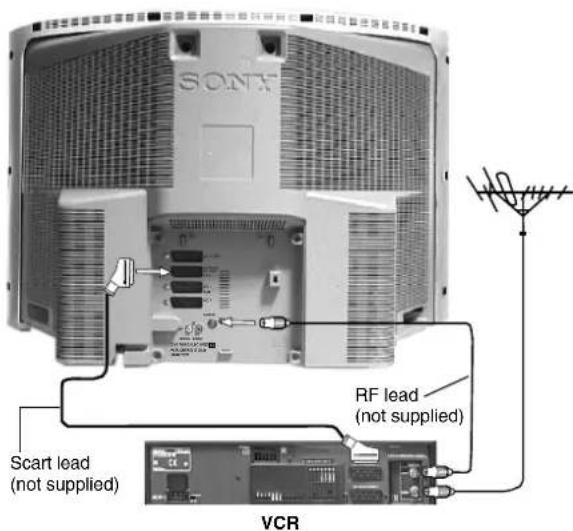

Connecting an aerial and VCR 5

Switching on the TV 5

Automatically tuning the TV 6

Basic Operation

Overview of the remote control 7

Overview of the TV buttons....8

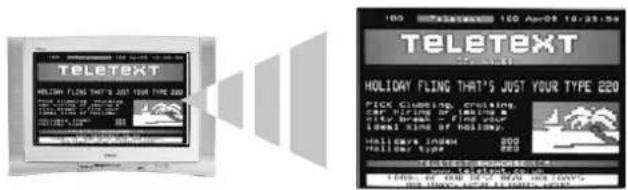

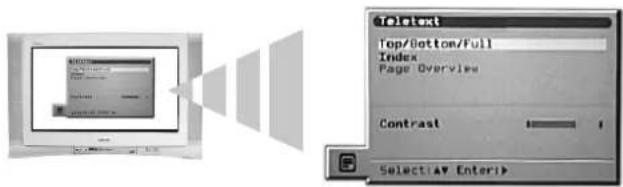

Text 9

Multi Picture In Picture (Multi PIP) 11

Picture And Picture (PAP)....11

The Programme Index Table 12

Screen Mode....12

NexTView Electronic Programme Guide (EPG) 13

Advanced Operation

Using the TV menu system....15

Picture Adjustment menu 15

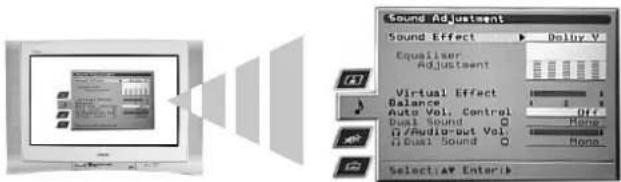

Sound Adjustment menu 16

Features menu 17

Set Up menu 17

Manual Set Up menu....18

Manual Programme Preset menu 19

Further Programme Preset menu 20

Viewing Memory Stick pictures 21

Additional Information

Connecting other equipment to the TV 25

Remote control of other equipment....27

Specifications 28

Troubleshooting 28

Follow steps 1 - 5 to install the TV and view programmes.

SONY KV-36FQ80K - Follow steps 1 - 5 to install the TV and view programmes. - 1

Checking the supplied accessories

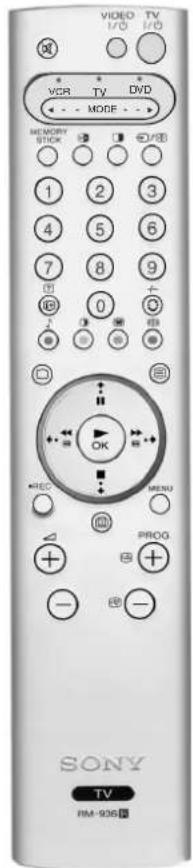

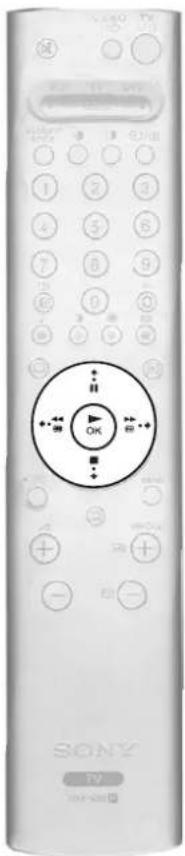

VIDEO I/O TV I/O VCR TV DVD MODE MEMORY STICK 1 2 3 4 5 6 7 8 9 0 + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Remote control

SONY KV-36FQ80K - Checking the supplied accessories - 2
Batteries

SONY KV-36FQ80K - Checking the supplied accessories - 3

Inserting batteries into the remote control

SONY KV-36FQ80K - Inserting batteries into the remote control - 1

natural_image Close-up of a metallic cylindrical component with an arrow pointing to a feature (no text or symbols visible)

SONY KV-36FQ80K - Inserting batteries into the remote control - 2

GIMI SONY

SONY KV-36FQ80K - Inserting batteries into the remote control - 4

SONY KV-36FQ80K - Inserting batteries into the remote control - 5

natural_image Close-up of a mechanical component with an arrow pointing to a detail (no visible text or symbols)

Always remember to:

  • observe the correct polarity when inserting batteries,
  • dispose of batteries in an environmentally friendly way.

4 Getting Started

SONY KV-36FQ80K - Getting Started - 1

Connecting an aerial and VCR

Connecting an aerial only
SONY KV-36FQ80K - Connecting an aerial and VCR - 1

natural_image Back view of a Sony TV remote control unit with antenna wiring (no text or symbols visible)
  1. Connect your aerial lead to the aerial socket labelled 75n the rear of the TV.

Connecting an aerial and VCR
SONY RF lead (not supplied) Scart lead (not supplied) VCR

  1. Connect your aerial lead to the IN* socket on your VCR.
  2. Connect an RF lead from the OUT* socket on your VCR to the aerial socket labelled 75 on the rear of the TV.
  3. Connect a fully wired 21-pin scart lead from the scart socket marked on the fear of the TV to a scart socket on your VCR**

Notes: *Socket names may vary depending on make and model of VCR. Refer to your VCR instruction manual for details.

**If your VCR does not have a scart socket follow the connecting instructions above ignoring the scart lead connection.

You will also need to manually tune the VCR to a spare TV channel (ideally channel 0, refer to the 'Manual Programme Preset menu' section of this instruction manual).

SONY KV-36FQ80K - Connecting an aerial and VCR - 3

Switching on the TV

SONY KV-36FQ80K - Switching on the TV - 1

natural_image Computer monitor with a hand pointing at it, no visible text or symbols on the screen or surroundings.
  1. Connect the TV plug to your mains socket (220 - 240V AC, 50 Hz).
  2. The TV is usually switched on. If not, push in the On/Off button on the front of the TV.

If the red standby mode indicator on the front of the TV is lit, press the TV I/Button on the remote control to switch on the TV set. Please be patient as the picture may take a few moments to appear on the TV screen.

5

Automatically tuning the TV

VCR TV DVD VCCR 1 2 3 4 5 6 7 8 9 0 1 2 3 3 4 5 6 OK MENU SONY TV SUNI

  1. When you switch on the TV for the first time the Sony logo appears on the TV screen, followed by the Memory Stick logo, and then by the Language/Country menu with the word 'English' highlighted. Press the or buttons on the remote control to highlight your required language. Press the OK button to confirm your choice. From now on all menus appear in your chosen language.

Language/Country Language English Country Off SelectView Enter

  1. The word 'Country' is now highlighted. Press the ♦ or ♦ buttons to highlight the country in which you are using the TV. It is important to select the correct country to ensure correct Teletext displays. Press the OK button to confirm your choice.

Language/Country Language Country Off Select Country,AV ConfirmOk

  1. The picture rotation prompt appears. Sometimes the Earth's natural magnetism can cause the screen to look tilted.

IF picture statics, please or print picture resolution. Not necessary to Adjust how to

a) If no correction is required, press the ◀ button on the remote control.

b) If some correction is required, press the OK button on the remote control. Press the or buttons to rotate the picture over a range of -5 to +5. Press the OK button to store.

  1. The autotune prompt screen appears. Press the OK button to select Yes. The autotune procedure begins, tuning in all the available channels.

Do you want to start automatic tuning? Yes: OK No:

A display appears on the TV screen to inform you of the tuning progress.

If no channels are found, a display appears on the TV screen asking you to confirm your aerial is connected. Check the aerial has been connected correctly then press the OK button to repeat the tuning process.

  1. Once all available channels have been tuned in, the 'Programme Sorting' menu appears. This menu allows you to rearrange the order of the channels on the TV.

a) If you do not wish to rearrange the order, press the MENU button to remove the 'Programme Sorting' menu from the TV screen.

b) If you wish to rearrange the order, press the or buttons to select the channel you wish to move, then press the button. Press the or buttons to select the new position for your selected channel. Press the OK button to confirm. The selected channel moves to its new position. Repeat this procedure if you wish to move other channels. Press the MENU button to remove the 'Programme Sorting' menu from the TV screen when you have finished rearranging the channel order.

The TV has now tuned in all the available channels and is ready for use.

Overview of the remote control

1 2 3 4 VIBEO TV DVD MCR TV DVD MODE 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SONY TV RM-836

①Mute button

Press to mute the TV sound. Press again to restore the sound.

② VIDEO Standby button

Press to switch off your VCR or DVD temporarily.

③ TV Standby button

Press to switch off your TV temporarily. The standby indicator on the front of the TV is lit. Press again to return to normal operation.

4 ◀ MODE ▶ button

This remote can also operate other equipment. Refer to 'Remote control of other equipment' for details.

⑤PAP Swap button

Press to swap screens in Picture And Picture (PAP) mode. Refer to 'Picture And Picture (PAP)' for details.

6 MEMORY STICK button

Press to display the 'Memory Stick' menu. Refer to the 'Viewing Memory Stick pictures' section of this manual for details.

7 Numbered buttons

When the ◀ MODE ▶ button is set to VCR or TV, press to input the required channel number. For two digit channel numbers, enter the second digit within two seconds.

8 Info/Reveal button

In TV Mode: Press to reveal on screen information such as channel number etc. In Text Mode: Press to reveal concealed information (e.g. answers to a quiz). Press again to cancel.

9 Picture Mode button

Press repeatedly to change the 'Picture Mode' then press the OK button to confirm your selection. Refer to the 'Picture Adjustment' menu for details.

10 Sound Mode button

Press to repeatedly change the 'Sound Mode' then press the OK button to confirm. Refer to the 'Sound Adjustment' menu.

⑪ TV button

Press to return to normal TV operation from Text or Video Input mode.

12 Control Pad and OK button

When in the TV menu system, press the control pad buttons to move through the options in each display. Press the OK button to confirm a selection.

Note: When the ◀ MODE ▶ button is set to VCR or DVD the control pad and OK buttons operate the main functions of your VCR or DVD.

13REC button

When the ◀ MODE ▶ button is set to VCR, press this button to begin recording.

14 Volume buttons

Press to increase (+) or decrease (-) the volume.

15 EPG button

Press to display the Electronic Programme Guide. Refer to 'NexTView Electronic Programme Guide (EPG)' for details.

16PAP button

Press to enter Picture And Picture (PAP) mode. Refer to 'Picture And Picture (PAP)' for details.

⑰ Input Select/Hold button

In TV Mode: Press to select signals from equipment connected to the TV sockets (refer to 'Connecting additional equipment' for details).

In Text Mode: Press to hold the current page. Press again to cancel.

18 Channel Return button

Press to return to the previous channel you were watching (provided you watched it for at least 5 seconds).

Note: If the ◀ MODE ▶ button is set to VCR you can use this button to select double digit channel numbers, e.g. press the ○ button then press 2 and 3 for channel 23.

19 Multi PIP button

Press to enter Multi Picture In Picture (Multi PIP) mode. Refer to 'Multi Picture In Picture (Multi PIP)' for details.

20 Screen Mode button

Press repeatedly to change the screen mode. Refer to 'Screen Mode' for details.

21 Text button

Press to switch Text on or off. Refer to the 'Text' section for details.

22Menu button

Press to enter the menu system of this TV. Refer to 'Using the TV menu system' for details.

23Programme buttons

In TV Mode: Press to display the next (+) or previous (-) channel.

In Text Mode: Press to select the next (+) or previous (-) Text page.

Coloured buttons

The 'Picture Mode', 'Sound Mode', 'Multi Picture In Picture (Multi PIP)' and 'Screen Mode' buttons can also be used as Fastext buttons. Refer to the 'Text' section for details.

SONY KV-36FQ80K - Coloured buttons - 1

SONY KV-36FQ80K - Coloured buttons - 2

SONY KV-36FQ80K - Coloured buttons - 3

SONY KV-36FQ80K - Coloured buttons - 4

SONY KV-36FQ80K - Coloured buttons - 5

SONY KV-36FQ80K - Coloured buttons - 6

Overview of the TV buttons

Accessing the control panel

The TV buttons can be found on the control panel on the front of the TV.

Auto Start up button Press to start the auto start up sequence. Video input button Press to select signals from equipment connected to the TV sockets (refer to 'Connecting other equipment to the TV' for details). Volume buttons Press to increase (+) or decrease (-) the volume. Programme buttons Press to display the next (+) or previous (-) channel.

Note: For information on the front panel connectors, refer to 'Connecting other equipment to the TV'.

Text

Most TV channels provide a Text service. Please ensure you are receiving a good signal or some Text errors may occur.

Viewing Text

1 2 3 4 5 6 7 8 9 0 OK SCN TV

  1. Select the TV channel which carries the Text service you want to view.

  2. Press the button on the remote control to enter Picture and Text (P&T) mode. The screen is divided in two with the Text display on the left and the TV channel in the right corner.

Note: In P&T mode press the 📋 button followed by PROG+/- to change the channel on the TV screen. Press the 📋 button again to resume normal text reception.

Press the ☐ button a second time to enter full screen Text mode.

Press the button a third time to enter Mix mode.

  1. Press the numbered buttons on the remote control to enter the three digits of the page number you wish to view. Alternatively, press the @ buttons to view the previous or next page. After a short time the page appears on screen.

TELETEXT HOLIDARY FLING THAT'S JUST YOUR TYPE 220 105 100 Apr-03 10:35:59 TELETEXT HOLIDARY FLING THAT'S JUST YOUR TYPE 220 PICK CLUBING, CROSSING, CAR HIRING OF LIVING . LIFE ON THE FLIGHT LOOK THE SIDE OF HOLIDARY. HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARY FLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLIDARYFLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLDARY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT HOLLY FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT NATURAL FLIGHT

  1. Enter more 3 digit page numbers as required.

  2. Press the □ button on the remote control at any time to exit Text mode.

How to use Text features

Feature How to use
Sub-pageSome pages contain sub-pages which follow on automatically. This feature allows you to directly access the required sub-page.Press the ➕ or ➕ buttons to select the required sub-page.
HoldThis feature allows you to hold the current page until you are ready to proceed.Press the 🔊 button to hold the page currently being displayed. Press again to cancel.
FastextFastext allows you to access pages quickly and easily. When Fastext is available, four coloured items appear at the bottom of the screen.Press the corresponding coloured button on the remote control to access the required page.
Page CatchingThis feature allows you to jump quickly from one page to another.When viewing a page that contains several page numbers (e.g. the index page), press the OK button. Press the ➕ or ➕ buttons to highlight the page number required. Press the OK button to confirm. Your chosen page appears on the TV screen.

Text menu

The Text menu gives you access to more Text features.

M 1 2 3 4 5 6 7 8 9 0 1 2 3 OK K/PALU SONY TV nut-son

  1. Select the TV channel which carries the Text service you want to view.
  2. Press the button on the remote control to enter Text mode.
  3. With Text displayed on the TV screen, press the MENU button to display the 'Teletext' menu.

Top/Bottom/Full Index Page Overview Contrast Select:▼ Enter!

  1. Press the or buttons to highlight the feature you require. Press the button to select.
  2. Press the MENU button to remove the 'Teletext' menu from the TV screen.
  3. Press the button to exit Text.

The following table explains each feature:

Feature How to use
Top/Bottom/FullThis feature allows you to enlarge sections of the displayed Text page.Press the ◆ button to enlarge the top part of the page. Press the ◆ button to enlarge the bottom part of the page. Press the OK button to return the page to normal size. Press the MENU button to return to the 'Teletext' menu.
IndexMost Text services contain an index page which lists all the available pages and their 3 digit page number. This feature automatically displays the index page.Press the ◆ button to display the index page.
Page Overview(only for TOPText broadcasts)TOPText offers an alternative version of Text where the pages are divided into two columns. The first column shows 'blocks' of pages and the second column shows 'groups' of pages.Press the ◆ or ◆ button to select the required column. Press the ◆ or ◆ button to select the required 'block' or 'group' of pages. Press the OK button to display the chosen page.
ContrastThis feature allows you to adjust the contrast of Text pages.Press the ◆ or ◆ button to increase or decrease the contrast. Press the OK button to confirm your choice.

Multi Picture In Picture ( Multi PIP)

This feature displays 13 different channels simultaneously on screen. From this display you can select which channel you wish to view.

SONY KV-36FQ80K - Multi Picture In Picture ( Multi PIP) - 1

natural_image Close-up of a white remote control with black circular buttons and indicator lights (no readable text or symbols)
  1. Press the button to enter Multi PIP mode.

Screenshot of a video recording system showing a monitor displaying multiple video thumbnails and a grid of 12 individual photos with timestamps.

  1. Press the PROG +/- buttons repeatedly to select the next or preceding 12 channels.
  2. Press the , , , or buttons to move around the 13 displayed channels.
  3. Press the OK button to select the framed channel. This channel now moves to the centre.
  4. Press the OK button again to view the selected channel or press the ☑ button to exit Multi PIP mode.

Picture And Picture (PAP)

This feature divides the screen in two for watching two channels simultaneously. The sound of the left screen comes through the TV loudspeakers while the sound from the right screen is selectable via headphones.

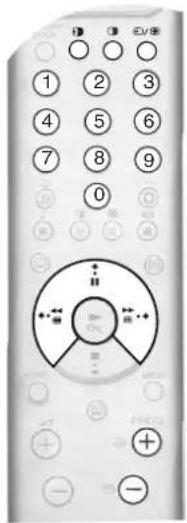

1 2 3 4 5 6 7 8 9 0 + -

  1. Press the button to enter PAP mode.

SONY KV-36FQ80K - Picture And Picture (PAP) - 2

natural_image Side-by-side comparison of a flat-screen TV and a multi-view still from multiple scenes (no visible text or symbols)
  1. Refer to the table below for explanations of each option.
  2. Press the ☐ button to exit PAP mode.
Option How to use
Selecting sound for the headphonesWith the TV in PAP mode set the ‘○ Dual Sound’ feature to ‘PAP’ (Refer to ‘Sound Adjustment menu’ section for more information.)
Changing the channel of the left screenPress thenumberedbuttons orPROG+/-buttons to select the required channel. Alternatively, press the ➕ button to view pictures from equipment connected to the AV sockets of the TV.
Changing the channel of the right screenPress the♦ button. The♦ symbol appears in the right screen. Press thenumberedbuttons orPROG+/-buttons to select the required channel. Alternatively, press the ➕ button to view pictures from equipment connected to the AV sockets of the TV.
Swapping screens Press the button ➕ swap the screens.
Zooming the screensPress the♦ or ➕ buttons to change the size of the two screens.

The Programme Index table

The 'Programme Index table' is a quick and easy way to search for a channel you wish to view.

OK

  1. Press the OK button to display the 'Programme Index table' on screen.

Diagram showing a monitor displaying a grid of numbers and a corresponding keyboard layout with letter mappings.

  1. Press the ↓ or ↑ button to highlight the channel you wish to view.

  2. Press the ➤ button to display your chosen channel on the TV screen or press the OK button to return to normal TV operation.

Screen Mode

The pictures that the TV receives may be in one of several formats (eg conventional 4:3 format, 16:9 widescreen format). You can alter the TV screen mode manually to suit the broadcast you are watching.

SONY KV-36FQ80K - Screen Mode - 1

natural_image Close-up of a white remote control with buttons and dials (no readable text or symbols)
  1. Press the Button repeatedly to select one of the following modes:

SONY KV-36FQ80K - Screen Mode - 2

Wide: for 16:9 broadcasts

SONY KV-36FQ80K - Screen Mode - 3

4:3: for conventional 4:3 broadcasts

SONY KV-36FQ80K - Screen Mode - 4

Smart: imitation of wide screen effect for 4:3 broadcasts.

SONY KV-36FQ80K - Screen Mode - 5

14:9: compromise between 4:3 and 16:9 picture size.

SONY KV-36FQ80K - Screen Mode - 6

Zoom: widescreen format for letterbox movies

Note: In Smart, Zoom and 14:9 modes parts of the top and bottom of the screen are cut off. Press ↓ or ↑ to adjust the position of the image on screen (eg to read subtitles) then press the OK button to confirm.

  1. Press the OK button to confirm your selection.

12 Basic Operation

NexTView Electronic Programme Guide (EPG)

The NexTView Electronic Programme Guide (EPG) provides you with programming information from different broadcasters, depending on availability of service.

Selecting your NexTView provider

Your TV automatically selects the best NexTView provider for you. This service is available about 30 minutes after you automatically tune the TV. You can however change this selection if you wish.

OK HUAU

  1. Press the MENU button on the remote control to display the menu on the TV screen.
  2. Press the or buttons to select the symbol. Press the button to enter the 'Set Up' menu.
  3. Press the or buttons to highlight 'Select NexTView' then press to confirm. A list is displayed containing all available NexTView providers.
  4. Press the or buttons to highlight the desired NexTView provider*.
  5. Press the OK button to confirm and store your selection.
  6. Press the MENU button to return to normal TV operation.

Notes: *Select the '----' option to receive the EPG service provided by the current TV channel. When you change the TV channel the EPG from the new channel is automatically loaded (if an EPG service is available).

SONY KV-36FQ80K - Selecting your NexTView provider - 2

natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)

Displaying and using NexTView

  1. Press the button on the remote control to display NexTView on the TV screen. In some cases you may also need to press the ◆ button to display the Sony electronic programme guide.

Screenshot of a software interface showing audio waveform display and control panel with settings for 20Hz, 10Hz, and 5Hz.

  1. Press the , , and buttons to move the cursor around the screen.
  2. Press the OK button to confirm a selection.

a) If you press the OK button in date, time or icon (themes) columns the programme list changes according to the selection.
b) If you press the OK button in the programme list the selected programme is displayed. If, however, the programme is not currently being broadcast, the 'Long Info' menu is displayed (see next page).

  1. Press the button on the remote control to exit NexTView.

OK

Using the 'Individual Setting' menu

You can set this menu so that only the programme types you wish to view are displayed in the programme list column.

  1. Select the 😊 icon in the NexTView menu. Press the ➤ button to display the 'Individual Setting' menu.
  2. Press the or buttons to select the programme type you require. Press the OK button to confirm your choice.
  3. Repeat Step 2 for all the programme types you wish to have in your list.
  4. Press the ➤ button to select the ➤ icon on the menu. Press the OK button to return to the previous menu.
  5. Press the or buttons to select the icon again. Press the OK button to activate your 'Individual Setting' choices.

Using the 'Long Info' menu

This feature allows you to set timers and record selected programmes.

  1. Press the or buttons to select a future programme from the programme list.
  2. Press the OK button to display the 'Long Info' menu.

Computer screen displaying a text input prompt and speaker icons, with Chinese text visible on the screen.

My application to Process to Manage Help Help My Settings My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important My Software is the most important

  1. Press the ↑ or ↓ buttons to highlight the option you require.
  2. Press the ➤ button to select the ➤ icon. Press the OK button to return to the previous menu.

The following table explains each option:

Option How to use
To set the timerPress the ← or → button to highlight the 🔒 symbol. Press the OK button to set the timer.Once the timer is set a clock symbol appears by the programme in the NexTView menu.Shortly before the programme starts, a message appears asking whether you still wish to view the programme.
To view the timer tablePress the ← or → button to highlight the 🔒 symbol. Press the OK button to switch the timer table On or Off. This table can display up to 5 timed programmes you have set.
To record a programme(only for Smartlink VCRs)Press the ← or → button to highlight the 🔒 symbol. Press the OK button to download the programme information to the VCR. You can then set up the following options:VPS/PDC Press the ← button to select VPS/PDC. Press the OK button to select On or Off. When set to On you will not miss any of the recording should there be a change in the TV programme schedule. This only works if the selected channel broadcasts a VPS/PDC signal.Speed Press the ← button to select Speed. Press the OK button to select SP for standard play or LP for long play. With long play you can record twice as much on a videotape. The picture quality however may suffer.VCR Setup Press the ← button to select VCR Setup. Press the OK button to select which VCR you wish to programme. Choose between VCR1 and VCR2.

Using the TV menu system

This TV contains a menu system which is based on a series of on screen displays. These displays help you get the most from your TV, from customising the picture and sound to accessing advanced features. Use the following buttons on the remote control to operate the TV menu system.

SONY KV-36FQ80K - Using the TV menu system - 1

natural_image Close-up of a remote control knob with directional arrows and buttons (no readable text or symbols beyond basic design)
  1. Press the MENU button to display the main menu.

  2. Use the following buttons to operate the menu:

  3. Press the ↓ or ↑ buttons to highlight the required menu or option.

  4. Press the → button to enter the required menu or option.
  5. Press the ◀ button to return to the last menu or option.
  6. Press the ↓, ↑, ← or → buttons to alter the settings of the selected option.

  7. Press the OK button to confirm and store your selection.

  8. Press the MENU button to remove the menu from the TV screen.

Picture Adjustment menu

Picture Adjustment Picture Mode Live Contrast Brightness Colour Sharpness Reset AI On Noise Reduction Auto DRC Mode ORC 100 Colour Tone Normal Select:AV Enter(B)

This menu allows you to customise the picture. Highlight the required option and press to select. The table below explains each option and how to use it.

SONY KV-36FQ80K - Picture Adjustment menu - 2

natural_image White Sony remote control with circular keypad and central button (no visible text or symbols)
Option How to use
Picture ModeThis option allows you to select one of four picture modes. The Live, Movie and Game modes are preset and only Contrast can be adjusted. The Personal mode, however, also allows you to adjust the Brightness, Colour and Sharpness options.Press ◆ or ◆ to select Live, Personal, Movie or Game. Press OK to confirm.
Contrast, Brightness, Colour, SharpnessThese options allow you to adjust the contrast, brightness, colour and sharpness.Note: Brightness, Colour and Sharpness can only be adjusted when Picture Mode is set to Personal.Press ◆ or ◆ to set the levels. Press OK to confirm.
ResetThis option resets all picture settings to the factory preset levels.Press ◆ to restore default picture settings.
AI (Artificial Intelligence)This option monitors the picture and limits any sudden increases in Brightness and Contrast.Press ◆ or ◆ to select On or Off. Press OK to confirm.
Noise ReductionSometimes a weak signal can produce a snowy picture (called Picture Noise). This option can help to reduce this effect.Press ◆ or ◆ to select High, Mid, Low, Auto or Off. Press OK to confirm.
DRC ModeDRC (Digital Reality Creation) Mode allows you to enjoy higher quality pictures on your TV. The settings available are:Off: Basic 100Hz picture quality.DRC 50: Improved picture resolution.DRC 100: Optimum picture resolution.Press ◆ or ◆ to select Off, DRC 50 or DRC 100. Press OK to confirm.
Colour ToneThis option allows you to alter the tint of the picture. The settings available are:Warm: Gives the white colours a red tint.Normal: Gives the white colours a neutral tint.Cool: Gives the white colours a blue tint.Press ◆ or ◆ to select Warm, Normal or Cool. Press OK to confirm.

Sound Adjustment menu

Sound Adjustment Sound Effect Dally V Equalizer Adjustment Virtual Effect Balance Auto Vol. Control Dual Sound Audio-out Vol. Dual Sound Select: A5 Enterik

SONY KV-36FQ80K - Sound Adjustment menu - 2

natural_image Front view of a white Sony TV remote control with black circular dial and 'OK' button (no readable text beyond branding)

This menu allows you to customise the sound. Highlight the required option and press to select. The table below explains each option and how to use it.

Option How to use
Sound EffectThis option allows you to select one of four sound modes.Press♦ or♦ to select Personal, Dolby V*, Dynamic** or Natural**. Press OK to confirm.
Equaliser AdjustmentThis option allows you to customise the sound by adjusting five frequency bands.Note: This feature is only available when Sound Effect is set to Personal.Press♦ or♦ to select the required band. Press♦ or♦ to adjust the frequency level. Press OK to confirm.
Virtual EffectThis option allows you to adjust the level of the surround sound effect when listening to a Dolby surround sound broadcast.Note: This option is only available when Sound Effect is set to Dolby V.Press♦ or♦ to set the level of effect. Press OK to confirm.
BalanceThis option allows you to set the balance of sound between the left and right speakers.Press♦ or♦ to set the balance. Press OK to confirm.
Auto Vol. ControlSometimes the broadcast volume level changes (e.g. adverts tend to be louder than programmes). This option allows you to cancel this effect, giving a constant volume level.Press♦ or♦ to select Off or On. Press OK to confirm.
Dual SoundWhen receiving a bilingual broadcast: This option allows you to choose which language to listen to.When receiving a stereo broadcast: This option allows you to choose between mono or stereo sound.When receiving a bilingual broadcast: Press♦ or♦ to select A to listen to the first language or B to listen to the second language. Press OK to confirm.When receiving a stereo broadcast: Press♦ or♦ to select Mono or Stereo. Press OK to confirm.
Audio-out Vol.This option allows you to simultaneously set the volume level for the headphone socket and the volume level of the Audio output sockets on the rear of the TV.Press♦ or♦ to set the volume for the headphone and Audio output sockets. Press OK to confirm.
Dual SoundThis option allows you to alter the sound settings when the TV is in PAP mode. The settings available are:Stereo: The sound from one screen is output to both the TV loudspeakers and the headphones.PAP: The sound from the left screen is output to the TV loudspeakers and the sound from the right screen is output to the headphones.Press♦ or♦ to select Stereo or PAP. Press OK to confirm.

Notes:

*

When 'Dolby V' is selected, the TV simulates the full effects of Dolby Pro Logic Surround sound without the need for additional speakers. Manufactured under license from Dolby Laboratories. 'Dolby', 'Pro Logic' and the double D symbol are trademarks of Dolby Laboratories.

**

'Natural' and 'Dynamic' are functions of the 'BBE High Definition Sound System'. This system enhances clarity, detail, presence of sound and increases musical realism.

Features menu

This menu allows you to set the sleep timer and to set a signal to be output from the AV3 socket. The table below explains each option and how to use it:

SONY KV-36FQ80K - Features menu - 1

natural_image Close-up of a white remote control with a circular dial and playback buttons (no readable text or symbols)
Auto FormatWith this option switched on, the TV can automatically adjust the picture size to suit the broadcast.Press ◆ or ◆ to select 'On' or 'Off'. Press OK to confirm.
Format Correction*("only if 'Auto Format' is switched on)When viewing 4:3 or 14:9 broadcasts there will be dark areas visible at the edge of the screen. The settings available are: Off: Dark areas remain on the TV screen.On: The TV automatically switches to Smart mode, eliminating any dark areas on the TV screen.Press ◆ or ◆ to select 'On' or 'Off'. Press OK to confirm.
Sleep TimerThis option allows you to set a period of time after which the TV switches itself into standby mode. This can be in 10 minute intervals up to a maximum of 90 minutes.Press ◆ or ◆ to select the period of time required. Press OK to confirm.
AV3 OutputThis option allows you to set which signal source is output from the AV3 scart socket (labelled ☐or ☐the 3ear of the TV. If you connect a VCR to this socket you can record from equipment connected to the other sockets of the TV. The settings available are:TV: Outputs the TV signal.AV1: Outputs the signal from equipment connected to the ☐-1 socket on the rear of the TV.AV2: Outputs the signal from equipment connected to the ☐-2 socket on the rear of the TV.AV3: Outputs the signal from equipment connected to the ☐-3/☐3 socket on the rear of the TV.AV4: Outputs the signal from equipment connected to the ☐-4/☐4 socket on the rear of the TV.AV5: Outputs the signal from equipment connected to the ☐-5/☐5 socket on the front of the TV.Press ◆ or ◆ to select TV, AV1, AV2, AV3, AV4 or AV5. Press OK to confirm.

SONY KV-36FQ80K - Features menu - 2

natural_image White Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)

Set Up menu

This menu contains advanced features that allow you to customise the TV. The options are:

Auto Tuning

All the available channels were tuned in when the TV was first installed. The 'Auto Tuning' option in the 'Set Up' menu allows you to repeat that process (e.g. to re-install the TV at an alternative location or search for new channels that have been launched by broadcasters). With the 'Auto Tuning' option highlighted, press to select. The autotune prompt appears on screen. Press OK to start the auto tuning process. When all available channels have been tuned the TV returns to normal operation.

Programme Sorting

The 'Programme Sorting' option in the 'Set Up' menu allows you to change the order in which the channels are stored on the TV. With the 'Programme Sorting' option highlighted, press to enter the 'Programme Sorting' menu. Press or to highlight the channel you wish to move to a new position, then press to select. Press or to highlight the new position for your channel, then press OK. Your chosen channel has now moved to the new position. Repeat to move other channels if required.

Select NexTView

With the 'Select NexTView' option highlighted, press ➤ to enter the 'Select NexTView' menu. Refer to 'NexTView Electronic Programme Guide (EPG)' for details.

AV Preset

The 'AV Preset' option in the 'Set Up' menu allows you to assign a name to any equipment connected to the AV sockets of the TV. The name is displayed briefly on screen when the equipment is selected. With the 'AV Preset' option highlighted, press to enter the 'AV Preset' menu. Press or to highlight the socket you wish to name. Press to select the AUTO FORMAT column. Press or to select 'Off' or 'On'. (For more details on Auto Format', refer to 'Features menu'). Press to select the LABEL column. Press or to select the first character. Press to confirm this character. Select the other characters in the same way (up to a maximum of five characters). After selecting all required characters, press OK to store.

Manual Set Up

With the 'Manual Set Up' option highlighted, press to enter the 'Manual Set Up' menu. The 'Manual Set Up' menu is explained on the following page.

Manual Set Up menu

Manual Set Up Language/Country Manual Programme Preset Further Programme Preset RGB Set Up Picture Rotation 1 Personal 10 Select(▲ Enter)

SONY KV-36FQ80K - Manual Set Up menu - 2

natural_image White Sony TV remote control with black circular dial and playback buttons (no readable text or symbols beyond branding)

This menu gives you access to more advanced features. The options are:

Language/Country

When you first installed the TV you were asked to select your language and country. The 'Language/Country' option in the 'Manual Set Up' menu allows you to change these settings. With the 'Language/Country' option highlighted, press to enter the 'Language/Country' menu. Press or to select 'Language' or 'Country'. Press to select. Press or to highlight the required setting. Press OK to confirm.

Manual Programme Preset

With the 'Manual Programme Preset' option highlighted, press → to enter the 'Manual Programme Preset' menu. The 'Manual Programme Preset' menu is explained on the following page.

Further Programme Preset

With the 'Further Programme Preset' option highlighted, press ➤ to enter the 'Further Programme Preset' menu. The 'Further Programme Preset' menu is explained on page 20.

RGB Set Up

When viewing signals from RGB equipment connected to the AV1 or AV2 sockets (e.g. DVD player, PlayStation) the picture may need adjusting. The 'RGB Set Up' option in the 'Manual Set Up' menu allows you to adjust the size and horizontal picture position of signals from RGB equipment. With the 'RGB Set Up' option highlighted, press ➔ to enter the 'RGB Set Up' menu. Press ➔ to select H Centre. Press ➔ or ➔ to centralise the picture over a range of -10 to +10. Press OK to store. Press ➔ to select H Size. Press ➔ or ➔ to adjust the picture size over a range of -10 to +10. Press OK to store.

Note: If there is no RGB equipment connected to either the AV1 or AV2 scart sockets the 'RGB Set Up' option will not be available.

Picture Rotation

Due to the Earth's natural magnetism the picture might slant slightly. The 'Picture Rotation' option in the 'Manual Set Up' menu allows you to cancel out this effect. With the 'Picture Rotation' option highlighted, press to select. Press or to rotate the picture over a range of -5 to +5. Press OK to store.

Personal ID

The 'Personal ID' option in the 'Manual Set Up' menu allows you to enter a code which could help to trace you should the TV be stolen and recovered. This code can only be entered once - please make a note of it and keep it safe. With the 'Personal ID' option highlighted, press to select. Press or to display the first character of the code you wish to use. Press to select. Repeat until all characters have been entered. Press OK to store. A confirmation screen is displayed. Press OK to confirm.

Manual Programme Preset menu

Manual Programme Preset PROC SKIP SYS CH LABEL 95 OFF I C61 JTX 10 OFF I C62 BBC1 11 OFF I C67 SBC 12 OFF I C61 BBC2 13 OFF B/2 C64 14 OFF I C66 15 OFF B/2 C67 16 OFF I C68 17 OFF I C69 18 OFF B/2 S17 19 OFF B/2 S32 Select: A Enter:

SONY KV-36FQ80K - Manual Programme Preset menu - 2

natural_image White Sony TV remote control with black circular dial and control buttons (no readable text or symbols beyond branding)

The 'Manual Programme Preset' option in the 'Manual Set Up' menu allows you to manually tune in channels. With the 'Manual Programme Preset' option highlighted, press to enter the 'Manual Programme Preset' menu. Press or to highlight the channel you wish to tune. Press twice to select the SYS column. Press or to select the TV broadcast system (B/G for western European countries, D/K for eastern European countries or EXT for an external input source). Press to confirm and select the CH column. Press or to select the channel tuning (C for terrestrial channels, S for cable channels or F for direct frequency input). Press to confirm. You now need to tune the channel by one of the following methods:

(a) If you know the channel number of the TV broadcast, the VCR test signal or the frequency: Press the numbered buttons on the remote control to enter the channel number. Press OK to store.
(b) If you do not know the channel number: Press ↓ to select SEARCH. The TV set automatically searches for the next available TV broadcast channel or the VCR test signal. When a channel has been found press either OK to store or ↓ to continue searching.
(c) For external input sources (EXT): Press ↓ to select AV1, AV2, AV3, AV4 or AV5 depending on which socket you have connected your equipment to. Press OK to store.

Labelling a channel

Names for channels are usually taken automatically from Teletext (if available). This name will be displayed briefly on screen when the channel is selected. The 'LABEL' option in the 'Manual Programme Preset' menu allows you to assign a name of your choice up to 5 characters or numbers. With the 'Manual Programme Preset' option highlighted, press to enter the 'Manual Programme Preset' menu. Press or to highlight the channel number you require. Press repeatedly to select the LABEL column. Press or to select the first character. Press to confirm this character. Select the other characters in the same way. After selecting all required characters, press OK to store.

Skipping a channel

The 'SKIP' option in the 'Manual Programme Preset' menu allows you to skip unused channel positions when selecting channels with the PROG+/- buttons. However, you can still select skipped channels by using the numbered buttons on the remote control. With the 'Manual Programme Preset' option highlighted, press to enter the 'Manual Programme Preset' menu. Press or to highlight the channel number you require. Press to select the SKIP column. Press to select On (select Off to remove the SKIP feature). Press OK to store.

Further Programme Preset menu

Further Programs Preset PROG ATT VOL AFT DECOER ▲ 97 OFF B On Off 10 00 F 0 On Off 11 00 F 0 On Off 12 00 F 0 On Off 13 00 F 0 On Off 14 00 F 0 On Off 15 00 F 0 On Off 16 00 F 0 On Off 17 00 F 0 On Off 18 00 F 0 On Off 19 00 F 0 On Off Select at Enterix

SONY KV-36FQ80K - Further Programme Preset menu - 2

natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)

The 'Further Programme Preset' option in the 'Manual Set Up' menu allows you to obtain a better picture if there is interference, set the volume level of an individual channel, fine tune the TV and set up a channel for viewing signals from a Decoder. With the 'Further Programme Preset' option highlighted, press to enter the 'Further Programme Preset' menu. Press or to highlight the channel number you require. Press repeatedly to select one of the following options:

(a) ATT (RF Attenuator). This allows you to improve the picture if there is interference from other channels. Press ↓ to select On. Press OK to store.
(b) VOL (Volume Level Offset). This allows you to set the volume level for an individual channel. Press ↓ or ↑ to adjust the volume level over a range of -7 to +7. Press OK to store.
(c) AFT (Automatic Fine Tune). This allows you to fine tune a channel. Press ↓ or ↑ to select On. Alternatively, press ↓ or ↑ to manually adjust the tuning frequency over a range of -15 to +15. Press OK to store.
(d) DECODER. This allows you to set a channel for viewing scrambled signals (e.g. from a pay TV decoder). Press ↓ or ↑ to select AV1 or AV3 depending on which socket the equipment is connected to. Press OK to store. The unscrambled signal now appears on the selected channel.

Viewing Memory Stick pictures

A 'Memory Stick'* is a new recording medium with a data capacity that exceeds a floppy disk. It is specially designed for exchanging and sharing digital data among 'Memory Stick' compatible products. Use 'Memory Stick' to display JPEG pictures (DCF version 1.0 format)** individually or as a slideshow presentation on the TV screen. Because it is removable, 'Memory Stick' can also be used for external data storage.

Inserting 'Memory Stick'

SONY 8.0

Insert a memory stick into the front control panel of the TV set until it clicks into the connector. The ▲ symbol must be facing forwards. The red light flashes indicating that the memory stick contents are being read.

Removing 'Memory Stick'

SONY®

Confirm that the red light is off. Push the memory stick and then release, the memory stick will spring out. Remove the memory stick.

The 'Memory Stick' menu

MOCKY STRIK

Computer monitor screen displaying a dialog box with Chinese text and speaker icons, likely from an older software interface.

Memory Stick Index Slidoshow Setup Select:++ Confirm:OK

The 'Memory Stick' menu is displayed automatically when you insert the memory stick into your TV set. Alternatively, if there is a memory stick already inserted, press the MEMORY STICK button on the remote control to display the menu screen. There are 3 options available, namely 'Index', 'Slideshow' and 'Setup'.

Notes:

* Memory Stick' and the logo are trademarks of Sony Corporation.

** DCF (Design rules for Camera File systems) is a standard file name format for digital still cameras, DV camcorders etc. It is supported by SONY and other manufacturers.

MENKTFY QUICK 1 2 3 4 5 6 7 8 9 0 1 2 3 + - + - + - + - + - + - + - + - + - + -

Index

This feature enables you to view on screen the JPEG DCF format pictures from your memory stick.

  1. Press the MEMORY STICK button on the remote control to display the 'Memory Stick' menu on the TV screen.

Memory Block Index Back Page + Page 1/3 Select: →→ Confirm:OK

  1. Press the or button to highlight 'Index' then press the OK button to display the 'Memory Stick Index' screen.

  2. Press the ↓, ↑, ← or → buttons to highlight the required picture, then press the OK button to display the picture fully on the TV screen.

Note: Only a limited number of pictures can be displayed on the Index screen at one time. If your required picture is not visible, highlight 'Page +' then press the OK button to view the next set of pictures. Press the ♦, ♦, or ➕ buttons to select your desired picture then press the OK button to view.

  1. Use the ↓, ↑, ← or → buttons to highlight 'Back'. Press the OK button to return to the 'Memory Stick' menu or press the □ button at any time to return to normal TV operation.

Slideshow

This feature allows you to display all the memory stick pictures as a slideshow presentation on the TV screen.

KEYNOTE SLICK OK

  1. Press the MEMORY STICK button on your remote control to display the 'Memory Stick' menu on the TV screen.

Memory Stick Index S11deshow Setup Select:++ Confirm:OK

  1. Press the or button to highlight Slideshow.

  2. Press the OK button to start the slideshow. (To change the length of time an image is displayed refer to the 'Setup' section on the following page.)

  3. Press the OK button during the slideshow to return to the 'Memory Stick' menu. Press the Button to return to normal TV operation.

Setup

This feature allows you to (1) set the length of time for a picture to be displayed during a slideshow, (2) set a slideshow to continuously repeat, (3) display file information and (4) rotate a picture on screen.

MORROWY RITCH OK SONY TV

  1. Press the MEMORY STICK button on the remote control to display the 'Memory Stick' menu on the TV screen.

  2. Press the ♦ or ♦ button to highlight 'Setup' then press the OK button to display the 'Memory Stick Setup' menu.

Slideshow - Interval: 5 sec Slideshow - Repeat: On File Information: Off Rotate Picture Select: *+ + Confirm: OK

  1. Press the ↓ or ↑ button to highlight the option you require. The table below explains each option and its function.

  2. Press the button to return to normal TV operation.

Option How to use
BackUse this option to return to the 'Memory Stick' menu.With 'Back' highlighted, press the OK button to return to the 'Memory Stick' menu.
Slideshow - IntervalThis option allows you to set the length of time a picture is displayed during a slideshow.With 'Slideshow - Interval' highlighted, press the OK button to adjust. Press the ↓ or ↑ button to select 5 sec, 10 sec, 1 min, 5 min or 15 min, then press the OK button to confirm your choice.
Slideshow - RepeatThis option allows you to set a slideshow to continuously repeat.With 'Slideshow - Repeat' highlighted, press the OK button to adjust. Press the ↓ or ↑ button to select 'On' or 'Off' then press the OK button to confirm.
File InformationThis option enables you to display information about the picture during a slideshow.Highlight 'File Information' then press the OK button to adjust. Press the ↓ or ↑ button to select 'On' or 'Off' then press the OK button to confirm your choice.
Rotate PictureThis option allows you to rotate the picture on screen.Highlight 'Rotate Picture' then press the OK button to display the 'Rotate Picture' screen. Press the ↓, ↓, ↓ or ↑ buttons to highlight the required image. Press the OK button to rotate the picture. When ready, press the ↓, ↓, ↓ or ↑ buttons to highlight 'Back' then press the OK button to return to the 'Memory Stick Setup' menu.

OK MP30

Adjusting settings of Memory Stick pictures

You can adjust the contrast, brightness, colour and sharpness settings of memory stick pictures when displaying them on the TV screen.

  1. Display a memory stick picture on screen (see 'Index' section on page 22).

Scanned image showing a computer screen displaying a photo and a dialog box with Chinese text, alongside a street scene with trees and buildings.

  1. Press the MENU button to display the 'Picture Adjustment' menu.

  2. Press the ➤ button to enter the 'Picture Adjustment' menu. Press the ♦ or ♦ button to highlight the option you require*. Press the ➤ button to select.

Note: *Only the 'Contrast' 'Sharpness', 'Brightness' and 'Colour' options are available when accessing the 'Picture Adjustment' menu whilst in Memory Stick mode.

  1. Press the or button to set the level. Press the OK button to confirm.

  2. Press the MENU button to remove the 'Picture Adjustment' menu from the TV screen.

  3. Press the button to return to normal TV operation.

Note: All the picture settings return to their normal levels when you press the □ button.

'Memory Stick' precautions

SONY 128µm Label

Erasure prevention switch

  • Do not remove the 'Memory Stick' while it is reading or writing data.
    • We recommend that you make a backup copy of important data that you record on the 'Memory Stick'.
  • When you set the 'Memory Stick' erasure prevention switch to 'LOCK', data cannot be recorded, edited, or erased.

- Data may become damaged if: - you remove the 'Memory Stick' or turn off the TV while it is reading or writing data. - you use the 'Memory Stick' in a location subject to the effects of static electricity or electric noise.

- Do not attach anything other than the supplied label to the 'Memory Stick' labelling position.

- Attach the label so that it does not stick out beyond the labelling position.

- Carry and store the 'Memory Stick' in its case.

- Do not touch the connector of the 'Memory Stick' with your finger or any metallic object.

• Do not strike, bend, or drop the 'Memory Stick'.

- Do not disassemble or modify the 'Memory Stick'.

- Do not allow the 'Memory Stick' to get wet.

- Do not use or store the 'Memory Stick' in a location that is:

  • extremely hot, such as in a car parked in the sun.
  • under direct sunlight.
  • very humid or subject to corrosive substances.

- 'Memory Stick' supports JPEG DCF formatted files only. Any files not recognised as DCF format will be displayed as "----". JPEG DCF formatted files that have been created or modified on a PC may not appear correctly on the TV screen.

Connecting other equipment to the TV

The following illustration explains how to connect a wide range of audio and video equipment to the rear of the TV.

PS2 PlayStation/PSOne/PlayStation 2 VCR DVD Decoder D C B A E Hi-Fi Notes: Connecting cables are not supplied. PlayStation 2 used for illustration purposes

SONY KV-36FQ80K - Connecting other equipment to the TV - 2

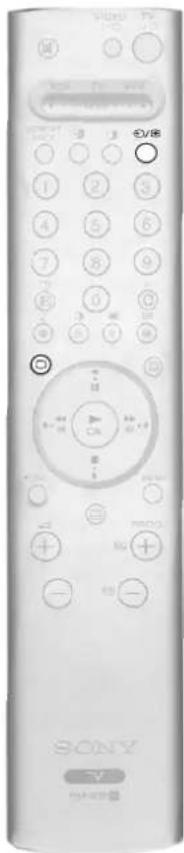

natural_image White Sony remote control with keypad and buttons (no readable text or symbols beyond branding)
  1. Connect your equipment as shown in the above illustration.
  2. Press the ⏻ button on the remote control until the correct symbol for your equipment appears on the TV screen (see table below).
On Screen Symbol Input Signals
1For equipment connected to socket A.
2 For equipment connected to socket B.
3For equipment connected to socket C.
4For equipment connected to socket D.
  1. Switch on the connected equipment. The picture (if any) from this equipment appears on the TV screen.
  2. Press the button to return to normal TV operation.

Smartlink is a direct link between the TV and VCR. For more information on Smartlink, please refer to your VCR instruction manual. Ensure that your Smartlink VCR is connected to the C socket, using a fully-wired 21 pin Scart lead.

Connecting external audio equipment

Connect your Hi-Fi system to the E sockets on the rear of the TV. Use the 'Ω/Audio-out Vol.' option in the 'Sound Adjustment' menu to adjust the volume level.

The following illustration explains how to connect equipment to the front control panel of the TV.

S-VHS/Hi8 camcorder MEMORY STICK G I F H 8mm/Hi8 camcorder

Note: Connecting cables are not supplied.

SONY KV-36FQ80K - Connecting external audio equipment - 2

natural_image Front view of a white Sony TV remote control with keypad and buttons (no readable text or symbols beyond branding)
  1. Connect your equipment as shown in the above illustration.
  2. Press the ⏻ Button on the remote control until the correct symbol for your equipment appears on the TV screen (see table below)
On Screen Symbol Input Signals
5For equipment connected to socket H and I.
5For equipment connected to socket G and I.
  1. Switch on the connected equipment. The picture (if any) from this equipment appears on the TV screen.
  2. Press the button to return to normal TV operation.

Note: To avoid picture distortion do not connect equipment to the G and H sockets at the same time.

Connecting headphones

Connect your headphones to the F socket. Use the 'Audio-out Vol.' option in the 'Sound Adjustment' menu to adjust the volume level.

Remote control of other equipment

The remote control supplied with your TV operates not only Sony VCRs and DVD players, but also those made by other manufacturers. The following instructions guide you through the set up procedure.

VCR TV DVD MOCE ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ 0 SONY TV

  1. Find the 3 digit code for your brand from the list below.

  2. Press the ◀ MODE ▶ button on the remote control until either the green VCR light or the green DVD light illuminates.

  3. With the required green light illuminated, press and hold down the YELLOW button for approximately 6 seconds, until this light starts to flash.

  4. Use the numbered buttons to enter the 3 digit code for your VCR or DVD. Once a correct number has been entered, all the green VCR, TV and DVD lights illuminate together momentarily.

  5. Turn on your VCR or DVD and check that the remote control operates the main functions. If not, repeat steps 2 - 4 and enter the next 3 digit code allocated to your brand of VCR or DVD.

  6. When you wish to use the remote control to operate the TV again, press the ◀ MODE ▶ button until the TV green light illuminates. Don't forget to select VCR or DVD using the ◀ MODE ▶ button every time you wish to operate that equipment with this remote control.

Note: The brand codes you set may be lost if weak batteries are not replaced immediately. Should this happen, use the above procedure to re-enter the code. A small label has been attached to the inside of the battery cover for you to make a note of your brand codes. Not all brands and models of VCRs and DVDs are covered in this list, however, Sony will endeavour to update the software periodically. Please refer to the code table provided with your remote control.

VCR Brand List DVD Brand List
Brand CodeBrand Code
SONY (VHS) 001SONY 001
SONY (BETA) 021AIWA 021
SONY (DVD) 018027, 020, 002 DENON 018, 027, 029002
AIWA 009, 028023, 024, 016, 003 GRUNDIG009, 028, 023, 024016, 003
AKAI025, 026, 015, 004HITACHI025, 026, 015, 004
DAEWOO006, 017JVC006, 017
GRUNDIG008KENWOOD008
HITACHI015, 014LG015, 014
JVC009, 028, 023, 024, 016, 003LOEWE009, 028, 023, 024, 016, 003
LG013, 016MATSUI013, 016
LOEWE 022DNKYO 022
MATSUI018, 027, 020, 002PANASONIC018, 027, 020, 002
ORION009, 028, 023, 024, 016, 003PHILIPS009, 028, 023, 024, 016, 003
PANASONIC 004PIONEER 004
PHILIPS011, 014SAMSUNG011, 014
SAMSUNG007SANYO007
SANYO019, 027SHARP019, 027
SHARP012THOMSON012
THOMSON003TOSHIBA003
TOSHIBA018, 027, 020, 002YAMAHA018, 027, 020, 002

Specifications

TV SystemB/G/H, D/KColour SystemPALNTSC 3.58, 4.43 (only Video In)Channel CoverageVHF: E2 - E12UHF: E21 - E69CATV: S1 - S20HYPER: S21 - S41D/K: R1 - R12, R21 - R69Picture TubeKV-32FQ80 FD Trinitron Approx. 82cmKV-36FQ80 FD Trinitron Approx. 91cmSound OutputLeft/Right: 2x20W (music power)2x10W (RMS)Subwoofer: 1x30W (music power)1x15W (RMS)Power ConsumptionKV-32FQ80: 112WKV-36FQ80: 143WWeightKV-32FQ80: Approx. 67kgKV-36FQ80: Approx. 87kgRear Terminals -1 -2 dvd21-pin Euro connector (CENELEC standard) including audio/ (SMARTLINK) -3/-3 VCR -4/-4 ? ? ? ? ? ? ? ? ? ? ? 21-pin Euro connector (CENELEC standard) including audio/ video input, RGB input, TV audio/video output.21-pin Euro connector (CENELEC standard) including audio/ video input, S-video input, selectable audio/video output.21-pin Euro connector (CENELEC standard) including audio/ video input, S-video input.RF InAudio output - phono jacks
Front Terminals -5 -5 -35 ? Video input - phono jackAudio inputs - phono jacksS video input - 4 pin DINHeadphones jack - minijack stereo
Accessories SuppliedRM-936 remote control (1)IEC designated size AA (R6) battery (2)

Dimensions (w x h x d)

KV-32FQ80: Approx. 910 x 445.5 x 590mm

KV-36FQ80: Approx. 1010 x 645 x 607mm

Design and specifications are subject to change without notice.

Troubleshooting

Here are some simple solutions to problems which may affect the picture and sound.

Problem Suggested Remedy
No picture (screen is dark), no sound.Plug the TV in.Press the 1 button on the front of the TV.If the ◊ indicator on the TV is lit press the TV I/◇ button or a numbered button on the remote control.Check the aerial connection.Turn the TV off for 3 or 4 seconds and then turn it on again using the 1 button on the front of the TV.
Poor or no picture (screen is dark), but good sound.Using the MENU system, select the Picture Adjustment menu. Adjust the brightness, picture and colour balance levels.From the Picture Adjustment menu select RESET to return to the factory settings.
Good picture, no sound.Press the button on the remote control.If is displayed on the screen, press the button on the remote control.
No colour on colour programmes.Using the MENU system, select the Picture Adjustment menu and adjust the colour setting.From the Picture Adjustment menu select RESET to return to the factory settings.
Distorted picture when changing channels or selecting Text.Turn off any equipment connected to the scart connectors on the rear of the TV.
Remote control does not function.Check that the ◀ MODE ▶ Selector button on the remote control is set according to the device you are using (VCR, DVD or TV).If the remote control does not operate your VCR or DVD even when the ◀ MODE ▶ Selector button has been set correctly, refer to the ‘Remote control of other equipment’ section of this instruction manual and enter the correct code.Replace the batteries.
Interference on picture from connected equipment.Reduce sharpness level.
The standby indicator ◊ on the TV flashes.Contact your nearest Sony service centre.

• If you continue to have these problems, have your TV serviced by qualified personnel.
• NEVER open the casing yourself.

28 Additional Information

SONY KV-36FQ80K - Troubleshooting - 1

SONY KV-36FQ80K - Troubleshooting - 2

FQ80 B5 Part I HU.fm Page 1 Wednesday, May 29, 2002 10:12 AM

SONY KV-36FQ80K - Troubleshooting - 3

SONY KV-36FQ80K - Troubleshooting - 4

SONY KV-36FQ80K - Troubleshooting - 5

SONY KV-36FQ80K - Troubleshooting - 6

SONY KV-36FQ80K - Troubleshooting - 7

SONY KV-36FQ80K - Troubleshooting - 8

HU

SONY KV-36FQ80K - Troubleshooting - 9

SONY KV-36FQ80K - Troubleshooting - 10

SONY KV-36FQ80K - Troubleshooting - 11

1

SONY KV-36FQ80K - Troubleshooting - 12

SONY KV-36FQ80K - Troubleshooting - 13

SONY KV-36FQ80K - Troubleshooting - 14

SONY KV-36FQ80K - Troubleshooting - 15

Teletext menü ....10

natural_image Hand pointing at a blank CRT monitor displaying the screen (no visible text or symbols on the screen)
natural_image Front view of a Sony TV remote control with open buttons and a central 'OK' button (no readable text or symbols beyond the button)
natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)
natural_image Side-by-side comparison of a video player on screen and a group of people in a studio setting (no visible text or symbols)
natural_image Close-up of a white remote control with buttons and dials (no readable text or symbols)
natural_image Close-up of a white remote control with black buttons and a central 'OK' button (no readable text or symbols beyond basic design)
natural_image Front view of a white Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)

Product Information Products Setup Product Name: Product1000 Description: Product 1000 Product 2000 Product 3000 Product 4000 Product 5000 Product 6000 Product 7000 Product 8000 Product 9000 Product 10000 Product 11000 Product 12000 Product 13000 Product 14000 Product 15000 Product 16000 Product 17000 Product 18000 Product 19000 Product 20000 Product 21000 Product 22000 Product 23000 Product 24000 Product 25000 Product 26000 Product 27000 Product 28000 Product 29000 Product 30000 Product 31000 Product 32000 Product 33000 Product 34000 Product 35000 Product 36000 Product 37000 Product 38000 Product 39000 Product 40000 Product 41000 Product 42000 Product 43000 Product 44000 Product 45000 Product 46000 Product 47000 Product 48000 Product 49000 Product 50000 Product 51000 Product 52000 Product 53000 Product 54000 Product 55000 Product 56000 Product 57000 Product 58000 Product 59000 Product 60000 Product 61000 Product 62000 Product 63000 Product 64000 Product 65000 Product 66000 Product 67000 Product 68000 Product 69000 Product 70000 Product 71000 Product 72000 Product 73000 Product 74000 Product 75000 Product 76000 Product 77000 Product 78000 Product 79000 Product 80000 Product 81000 Product 82000 Product 83000 Product 84000 Product 85000 Product 86000 Product 87000 Product 88000 Product 89000 Product 9000

natural_image Close-up of a white remote control with black buttons and indicator lights (no readable text or symbols)
natural_image Front view of a white Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image Front view of a white Sony TV remote control with no visible text or symbols on the device itself.
natural_image Close-up of a white remote control with black and white buttons and a central 'OK' button (no readable text or symbols beyond the 'OK')
natural_image Front view of a white Sony TV remote control with black circular dial and control buttons (no readable text or symbols beyond branding)
natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond branding)

Nyelv/Ország

natural_image White Sony TV remote control with black circular dial and control buttons (no readable text or symbols beyond branding)

SONY KV-36FQ80K - Nyelv/Ország - 1

natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)

SONY KV-36FQ80K - Nyelv/Ország - 2

natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond branding)
natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)

Címke

SONY KV-36FQ80K - Nyelv/Ország - 3

natural_image Close-up of a mechanical component with ribbed and mounting holes (no visible text or symbols)

Törlésvédő kapcsoló

natural_image White Sony TV remote control with keypad and control buttons (no readable text or symbols beyond branding)

FQ80 B5 Part 1 PL.fm Page 1 Wednesday, May 29, 2002 10:54 AM

SONY KV-36FQ80K - Nyelv/Ország - 4

SONY KV-36FQ80K - Nyelv/Ország - 5

SONY KV-36FQ80K - Nyelv/Ország - 6

SONY KV-36FQ80K - Nyelv/Ország - 7

SONY KV-36FQ80K - Nyelv/Ország - 8

SONY KV-36FQ80K - Nyelv/Ország - 9

PL

SONY KV-36FQ80K - Nyelv/Ország - 10

SONY KV-36FQ80K - Nyelv/Ország - 11

SONY KV-36FQ80K - Nyelv/Ország - 12

1

SONY KV-36FQ80K - Nyelv/Ország - 13

SONY KV-36FQ80K - Nyelv/Ország - 14

SONY KV-36FQ80K - Nyelv/Ország - 15

SONY KV-36FQ80K - Nyelv/Ország - 16

Multi Picture In Picture (Multi PIP) 11

Picture And Picture (PAP) 11

natural_image Close-up of a metallic mechanical component with a black arrow pointing to a feature (no text or symbols visible)

SONY KV-36FQ80K - Nyelv/Ország - 17

INTO SONY

SONY KV-36FQ80K - Nyelv/Ország - 19

SONY KV-36FQ80K - Nyelv/Ország - 20

natural_image Close-up of a metallic cylindrical component with a black arrow pointing to a small feature (no text or symbols visible)
natural_image Back view of a Sony TV remote control unit with antenna wiring (no text or symbols visible)
natural_image Front view of a CRT television displaying a black screen, with a hand pointing at it (no visible text or symbols on the screen or background)

Multi Picture In Picture (Multi PIP)

natural_image Close-up of a white remote control with black circular buttons and a central 'OK' button (no readable text or symbols beyond basic icons)
natural_image Side-by-side comparison of a flat-screen TV and a black-and-white photo collage (no visible text or symbols)
natural_image Close-up of a white remote control with buttons and dials (no readable text or symbols)
natural_image Close-up of a white remote control with black buttons and a central 'OK' button (no readable text or symbols beyond basic icons)
natural_image Circular device with a central indicator and control buttons, no visible text or symbols

File Operations & Settings Help OK Cancel Help Save Young Show to 3x100% to 50% Show to 3x100% to 50% Show to 3x100% to 50% Show to 3x100% to 50% Show to 3x100% to 50% Show to 3x100% to 50% Show to 3x100% to 50% Show to 3x100% to 50% Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next step in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session Show the next steps in the session

natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)
natural_image White Sony remote control with black circular dial and play button (no readable text or symbols)
natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond branding)
natural_image Close-up of a white remote control with black play button and 'OK' button (no readable text or symbols beyond basic icons)
natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond UI icons)

Automat. strojenie

natural_image Front view of a white Sony TV remote control with black and white buttons (no readable text or symbols beyond branding)

Język/Kraj

natural_image White Sony TV remote control with black circular dial and control buttons (no readable text or symbols)
natural_image Close-up of a remote control interface with no visible text or symbols on the device itself.

KENSIP STICK

Two-panel image showing a computer monitor displaying a webpage and a software interface with menu options in Chinese.

natural_image Close-up of a metallic electronic component with ventilation slots and mounting holes (no visible text or symbols)

FQ80 B5 Part I RU. fm Page 1 Wednesday, May 29, 2002 11:14 AM

SONY KV-36FQ80K - Język/Kraj - 3

SONY KV-36FQ80K - Język/Kraj - 4

SONY KV-36FQ80K - Język/Kraj - 5

SONY KV-36FQ80K - Język/Kraj - 6

SONY KV-36FQ80K - Język/Kraj - 7

SONY KV-36FQ80K - Język/Kraj - 8

RU

SONY KV-36FQ80K - Język/Kraj - 9

SONY KV-36FQ80K - Język/Kraj - 10

SONY KV-36FQ80K - Język/Kraj - 11

1

SONY KV-36FQ80K - Język/Kraj - 12

SONY KV-36FQ80K - Język/Kraj - 13

SONY KV-36FQ80K - Język/Kraj - 14

SONY KV-36FQ80K - Język/Kraj - 15

natural_image Back view of a Sony TV tower with visible internal components and antenna wiring (no text or symbols)
natural_image Computer monitor with a hand pointing at the front panel (no visible text or symbols on screen)
natural_image Front view of a white Sony remote control with black buttons and a central 'OK' button (no readable text beyond control labels)
natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)
natural_image Side-by-side comparison of a flat-screen TV and a multi-view still from the right (no text or symbols visible)

▲ 9 ▶ C21 10 C37 11 C41 12 C47 13 C54 14 C58 15 C62 ▼ 16 C66

natural_image Close-up of a white remote control with black buttons and a circular dial (no readable text or symbols)
natural_image Close-up of a white remote control with black circular dial and indicator lights (no readable text or symbols)
natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond control buttons)

SONY KV-36FQ80K - Język/Kraj - 17

natural_image Close-up of a remote control with directional arrows and 'OK' button (no readable text or symbols beyond basic design)
natural_image Front view of a white Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image White Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image Close-up of a remote control interface with no visible text or symbols on the device itself.
natural_image Front view of a white Sony remote control with circular dial and play buttons (no readable text or symbols beyond basic design)
natural_image White Sony TV remote control with keypad and two rotary buttons (no visible text or symbols on main body)

Язык/Страна

natural_image Front view of a white Sony TV remote control with black circular dial and plus/minus buttons (no readable text or symbols beyond branding)
natural_image Close-up of a remote control panel with no visible text or symbols on the dial (black and white photo)

Properties Memory Block Head Copy - Clip 1/3 Build-in-see: https://homepage_footnote.org

natural_image White Sony TV remote control with black circular dial and 'OK' button (no readable text or symbols beyond control buttons)

OK HP I/O

natural_image Close-up of a black electronic component with visible pins and a metallic connector (no readable text or symbols)
natural_image White Sony TV remote control with keypad and function buttons (no readable text or symbols beyond branding)
natural_image Front view of a white Sony TV remote control with keypad and buttons (no readable text or symbols beyond branding)

32FQ80 B5 K(00) Cover. fm Page 3 Thursday, May 9, 2002 12:58 PM

SONY KV-36FQ80K - Язык/Страна - 3

SONY KV-36FQ80K - Язык/Страна - 4

SONY KV-36FQ80K - Язык/Страна - 5

SONY KV-36FQ80K - Язык/Страна - 6

SONY KV-36FQ80K - Язык/Страна - 7

SONY KV-36FQ80K - Язык/Страна - 8

SONY KV-36FQ80K - Язык/Страна - 9

SONY KV-36FQ80K - Язык/Страна - 10

SONY KV-36FQ80K - Язык/Страна - 11

SONY KV-36FQ80K - Язык/Страна - 12

SONY KV-36FQ80K - Язык/Страна - 13

SONY KV-36FQ80K - Язык/Страна - 14

SONY KV-36FQ80K - Язык/Страна - 15

KV-36FQ80
SONY KV-36FQ80K - Язык/Страна - 16

http://www.world.sony.com/
Sony Corporation Printed in Spain

Ecological Paper - Totally Chlorine Free
SONY KV-36FQ80K - Язык/Страна - 17

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SONY

Model : KV-36FQ80K

Category : Television
