| Product Type | Circular Saw |
| Brand | Hitachi |
| Model | C7SS |
| Voltage | 230 V |
| Power Input | 1050 W |
| No-Load Speed | 5500 min-1 |
| Blade Diameter Range | 185 mm – 190 mm |
| Cutting Depth at 90° | 68 mm |
| Cutting Depth at 45° | 46 mm |
| Max Bevel Angle | 45° |
| Weight (without cord) | 3.4 kg |
| Blade Arbor | 20 mm or 30 mm (with supplied washer) |
| Base Material | Aluminum |
| Guard Type | Pendulum lower guard with retraction mechanism |
| Depth Adjustment | Lever (A) for quick adjustment |
| Bevel Adjustment | Wing bolt at scale, with front scale indication |
| Dust Collection | Optional dust collector set (D) connects to vacuum |
| Safety Features | Lock lever, spindle lock, lower guard spring, kickback protection |
| Maintenance | Regular blade inspection, carbon brush replacement by authorized service, cord replacement by manufacturer |
| Standard Accessories | Saw blade (190 mm), hex. bar wrench |
| Optional Accessories | Dust collector set, different washer (A) for 20/30 mm arbor, guide with wing-bolt |
Frequently Asked Questions - C7SS HITACHI
User questions about C7SS HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual C7SS - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. C7SS by HITACHI.
USER MANUAL C7SS HITACHI
2
3
4
5
6
7
8
| 1 | Lumber Schnittholz Ξυλεία | Drewno | ||

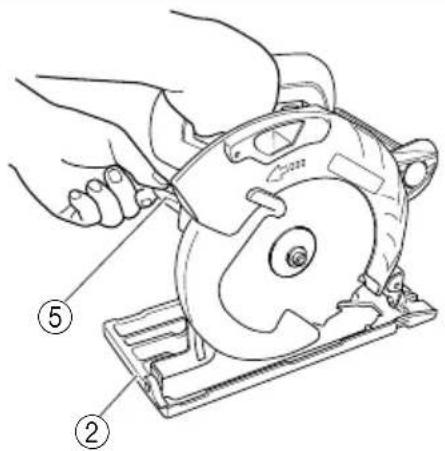

| 2 | Base Grundplatte Báση | Podstawa | ||
| 3 | Workbench Werkbank Πάγκος εργασίας | Stół roboczy | ||
| 4 | Saw blade Sägeblatt Πριανωτή λεπίδα | Ostrze piły | ||
| 5 | Lever (A) Hebel (A) Μοχλός (A) | Dźwignia (A) | ||

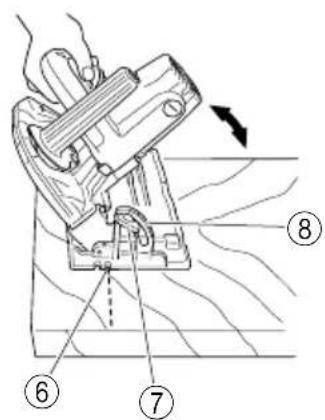

| 6 | Cutting position at 45° Schnittposition bei 45° Θέση κοπής στις 45° | Pozycja cięcia pod kątem 45 stopni | ||
| 7 | Wing-bolt Fügelschraube Φτερωτό μπουλόνι | Śruba skrzydełkowa | ||
| 8 | Scale Skala Κλίμακα | Podziałka | ||
| 9 | Marking-off-line | Markierung - versetzt | Ένδειξη εκτός γραμμής | Linia trasowania |
| 10 | Front scale at 45° incline | Frontskala bei 45°-Neigung | Μπροστινή κλίμακα με κλίση 45° | Podziałka przednia ze 45-stopniowym nachleniem |
| 11 | Front scale when not inclined geneigt | Frontskala wenn nicht δεν βρίσκεται σε | Μπροστινή κλίμακα όταν κλίση | Podziałka przednia bez nachylenia |

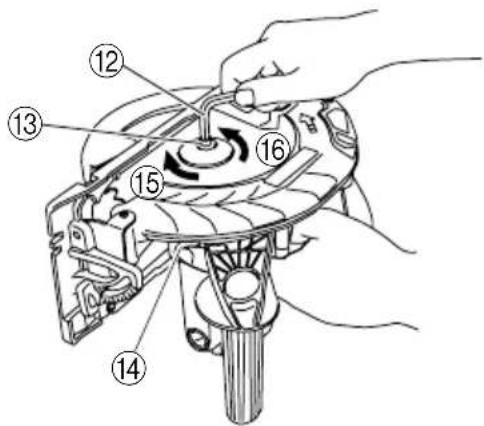

| 12 | Hex. bar wrench | Sechskantschlüssel | Εξαγωνικό ραβδωτό κλειδί | Klucz do śrub z gniazdem sześciokątnym |
| 13 | Hexagonal-socket bolt Sechskantschraube Εξαγωνική-βίδα πρίζας | Śruba z gniazdem sześciokątnym | ||
| 14 | Depress the lock lever | Sperrhebel niederdrücken | Πατήστε το μοχλό ασφάλισης | Zwolnić dźwignię blokady |
| 15 | Tighten | Anziehen | Σφίξτε | Zacisnąć |
| 16 | Loosen | Lösen | Χαλαρώστε | Poluzować |
| 17 | Washer (B) | Unterlegscheibe (B) | Ροδέλα (B) | Podkładka (B) |
| 18 | Washer (A) Unterlegscheibe (A) Ροδέλα (A) | Podkładka (A) | ||
| 19 | Spindle | Achse | Άξονας | Wrzeciono |

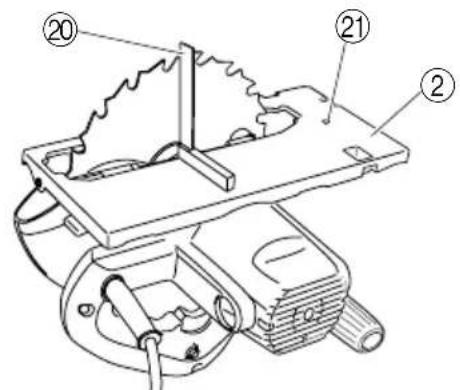

| 20 | Square | Winkel | Γνώμονας | Kątownik |
| 21 | Slotted set screw | Schaftschraube | Βίδα με εγκοπή | Szczelinowa śruba mocująca |
| 22 | Dust collector | Staubsauger | Συλλογέας σκόνης | Odpylacz |
| Magyar Čeština Türkçe Română | ||||
| 1 | Faanyag Dřevěné prkno | Kereste | Scândură | |
| 2 | Alap Základová deska | Taban/Alt kısım | Bază | |
| 3 | Munkaasztal Pracovní stůl | Çalışma tezgahı | Banc de lucru | |
| 4 | Fűrészlap Pilový kotouč | Testere bıçağı | Lamă fierăstrău | |
| 5 | Kar (A) Páka (A) | Kol (A) | Manetă (A) | |
| 6 | Vágási helyzet 45° Poloha řezání při 45° (foknál) (stupeň) | 45° derecede kesme pozisyonu | Pozitie de tăiere la 45° | |
| 7 | Szárnyascasavar Křídlový šroub | Kelebek cívata | Şurub cu cap fluture | |
| 8 | Skála Stupnice | Ölçek | Scară | |
| 9 | Csavar Rovnoběžné polohy | Hat dışını işaretleme | Linie de demarcație | |
| 10 | Elülső skála 45°-os Přední stupnice skloněná v dőlésszögnél úhlu 45° | 45° eğimde ön ölçek | Scară frontală la încinare 45° | |
| 11 | Elülső skála megdöntés nélkül | Přední stupnice neskloněná | Eğimsiz ön ölçek | Scară frontală poziție ne-înclinată |
| 12 | Imbuszkulcs Klíč na vnitřní šestihrany | Altıgen çubuk anahtarı | Cheie hexagonal | |
| 13 | Hatlapú csavar | Śroub s vnitřním šestihranem | Altıgen başlı cívata | Pana de fixare a şurubului hexagonal |
| 14 | Rözítőkar megnyomása Stiskněte pojistnou páčku | Kilit koluna bas | De-apăsarea manetei de închidere | |
| 15 | Megszorítás | Dotáhnout | Sıkıştır | Strîngere |
| 16 | Meglazítás | Uvolnit | Gevşet | Slăbire |
| 17 | Alátét (B) | Podložka (B) | Pul (B) | Şaibă (B) |
| 18 | Alátét (A) | Podložka (A) | Pul (A) | Şaibă (A) |
| 19 | Orsó | Vřeteno | Mil | Ax |
| 20 | Négyzet | Čtyřhranný tvar | Kare | Echer |
| 21 | Hasított hernyócsavar | Závitový šroub s drážkou v hlavě | Düz başlı vida | Şurub obișnuit |
| 22 | Porgyűjtő | Sběrač prachu | Toz toplayıcı | Colector de praf |
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of children and infirm persons.
SAFETY INSTRUCTIONS FOR ALL SAWS
a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing.
If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece.
The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece.
Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.
f) When ripping always use a rip fence or straight edge guide.
This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes.
Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt.
The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
Causes and operator prevention of kickback:
- kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
- when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
- if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade.
Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.
Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.
Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material.
If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback.
Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades.
Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut.
If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when making a "plunge cut" into existing walls or other blind areas.
The protruding blade may cut objects that can cause kickback.
SAFETY INSTRUCTIONS FOR SAWS WITH PENDULUM GUARD OR TOW GUARD
a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position.
If saw is accidentally dropped, lower guard may be bent.
Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use.
Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released.
For all other sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor.
An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.
PRECAUTIONS ON USING CIRCULAR SAW
- Do not use saw blades which are deformed or cracked.
- Do not use saw blades made of high speed steel.
- Do not use saw blades which do not comply with the characteristics specified in these instructions.
- Do not stop the saw blades by lateral pressure on the disc.
- Always keep the saw blades sharp.
- Ensure that the lower guard moves smoothly and freely.
- Never use the circular saw with its lower guard fixed in the open position.
-
Ensure that the retraction mechanism of the guard system operates correctly.
-
Never operate the circular saw with the saw blade turned upward or to the side.
- Ensure that the material is free of foreign matters such as nails.
- For model C6SS, the saw blades range should be from 165 mm to 160 mm. For model C7SS, the saw blades range should be from 190 mm to 185 mm.
- Disconnect the plug from the receptacle before carrying out any adjustment, servicing or maintenance.
SPECIFICATIONS
| Model C6SS C7SS | |||
| Voltage 230 V | |||
| Cutting Depth | 90° 57 mm 68 mm | ||
| 45° 38 mm 46 mm | |||
| Power Input 1050 W | |||
| No-Load Speed 5500 min | -1 | ||
| Weight (without cord) 3.2 kg 3.4 kg | |||
STANDARD ACCESSORIES
(1) Saw Blade (mounted on tool) 1
(Dia. 165 mm ...... C6SS)
Dia. 190 mm ...... C7SS)
(2) Hex. Bar wrench 1
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES (sold separately)
(1) Dust Collector Set (D)
Connect the suction hose to collect saw dust with the vacuum cleaner (see Fig. 9).
(2) Washer (A)
for 20 mm (Hole dia. of saw blade) for 30 mm (Hole dia. of saw blade)
(3) Guide (with wing-balt)
Optional accessories are subject to change without notice.
APPLICATION
Cutting various types of wood.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
2. Power switch
Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.
3. Extension cord
When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
4. Prepare a wooden workbench (Fig. 1)
Since the saw blade will extend beyond the lower surface of the lumber, place the lumber on a workbench when cutting. If a square block is utilized as a workbench, select level ground to ensure it is properly stabilized. An unstable workbench will result in hazardous operation.
CAUTION
To avoid possible accident, always ensure that the portion of lumber remaining after cutting is securely anchored or held in position.
5. How to store the hex. bar wrench (Fig. 8)
The hex. bar wrench used for attaching and detaching the saw blade can be stored in the handle.
ADJUSTING THE POWER TOOL PRIOR TO USE
1. Adjusting the cutting depth
The cutting depth can be adjusted by moving the base after loosening its lever (A) (Fig. 2).
CAUTION
Should this lever (A) remain loosened, it will create a very hazardous situation. Always thoroughly clamp it.
2. Adjusting the angle of inclination
By loosening the wing bolt at the scale, the saw blade can be titled up to maximum angle of 45^ against the base (Fig. 3).
The angle of inclination can also be regulated by loosening the wing bolt at the scale (Fig. 3).
CAUTION
It is very hazardous to allow this wing bolt to remain loosened. Always thoroughly clamp it.
3. Regulating the guide (Optional accessory)
The cutting position can be regulated by moving the guide to the left or right after loosening its wing bolt.
The guide can be mounted on either the left or the right side.
CUTTING PROCEDURES
-
Place the saw body (base) on the lumber, and align the cutting line with the saw blade at the front scale (Fig. 4).
-
Turn ON the switch before the saw blade contacts the lumber. The switch is turned ON when the trigger is squeezed, and turned OFF when the trigger is released.
CAUTIONS
Prior to cutting operation, make sure the material you are going to cut. If the material to be cut is expected to generate harmful/toxic dusts, make sure the dust bag or appropriate dust extraction system is connected with dust outlet tightly.
Wear the dust mask additionally, if available.
Before starting to saw, confirm that the saw blade has attained full-speed revolution.
○Should the saw blade stop or make an abnormal noise while operating, promptly turn OFF the switch.
○Always take care in preventing the power cord from coming near to the revolving saw blade.
○Using the circular saw with the saw blade facing upwards or sideways is very hazardous. Such uncommon applications should be avoided.
○When cutting materials, always wear protective glasses.
○When finished with a job, pull out the plug from the receptacle.
MOUNTING AND DISMOUNTING THE SAW BLADE
CAUTION
To avoid serious accident, ensure the switch is in the OFF position, and the power source is disconnected.
1. Dismounting the saw blade
(1) Set the cutting volume at maximum, and place the Circular Saw as shown in Fig. 5.
(2) Depress the lock lever, lock the spindle, and remove the hexagonal-socket bolt with the hex. bar wrench.
(3) While holding the lower guard lever to keep the lower guard fully retracted into the saw cover, remove the saw blade.
2. Mounting the Saw Blade
(1) Thoroughly remove any sawdust which has accumulated on the spindle, bolt and washers.
(2) As shown in Fig. 6, the side of Washer (A) with a projected center the same diameter as the inner diameter of the saw blade and the concave side of Washer (B) must be fitted to the saw blade sides.
* Washer (A) is supplied for 2 types of saw blades with the hole diameters of 20 mm and 30 mm. (When buying the Circular Saw, one type of washer (A) is supplied.)
In case the hole diameter of your saw blade does not correspond to that of washer (A), please contact the shop where you purchased the Circular Saw.
(3) To assure proper rotation direction of the saw blade, the arrow direction on the saw blade must coincide with the arrow direction on the saw cover.
(4) Using the fingers, tighten the hexagonal-socket bolt retaining the saw blade as much as possible. Then depress the lock lever, lock the spindle, and thoroughly tighten the hexagonal-socket bolt.
CAUTION
After having attached the saw blade, reconfirm that the lock lever is firmly secured in the prescribed position.
MAINTENANCE AND INSPECTION
1. Inspecting the saw blade
Since use of a dull saw blade will degrade efficiency and cause possible motor malfunction, sharpen or replace the saw blade as soon as abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very "heart" of the power tool.
Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
4. Inspecting the carbon brushes
For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a Hitachi Authorized Service Center.
5. Replacing supply cord
If the replacement of the supply cord is necessary, this has to be done by the manufacturer of this agent in order to avoid a safety hazard.
6. Adjusting the base and saw blade to maintain perpendicularity
The angle between the base and the saw blade has been adjusted to 90^ , however should this perpendicularity be lost for some reason, adjust in the following manner:
(1) Turn the base face up (Fig. 7) and loosen the wing-bolt (Fig. 3).
(2) Apply a square to the base and the saw blade and turning the slotted set screw with a slotted-head screwdriver, shift the position of the base to produce the desired right angle.

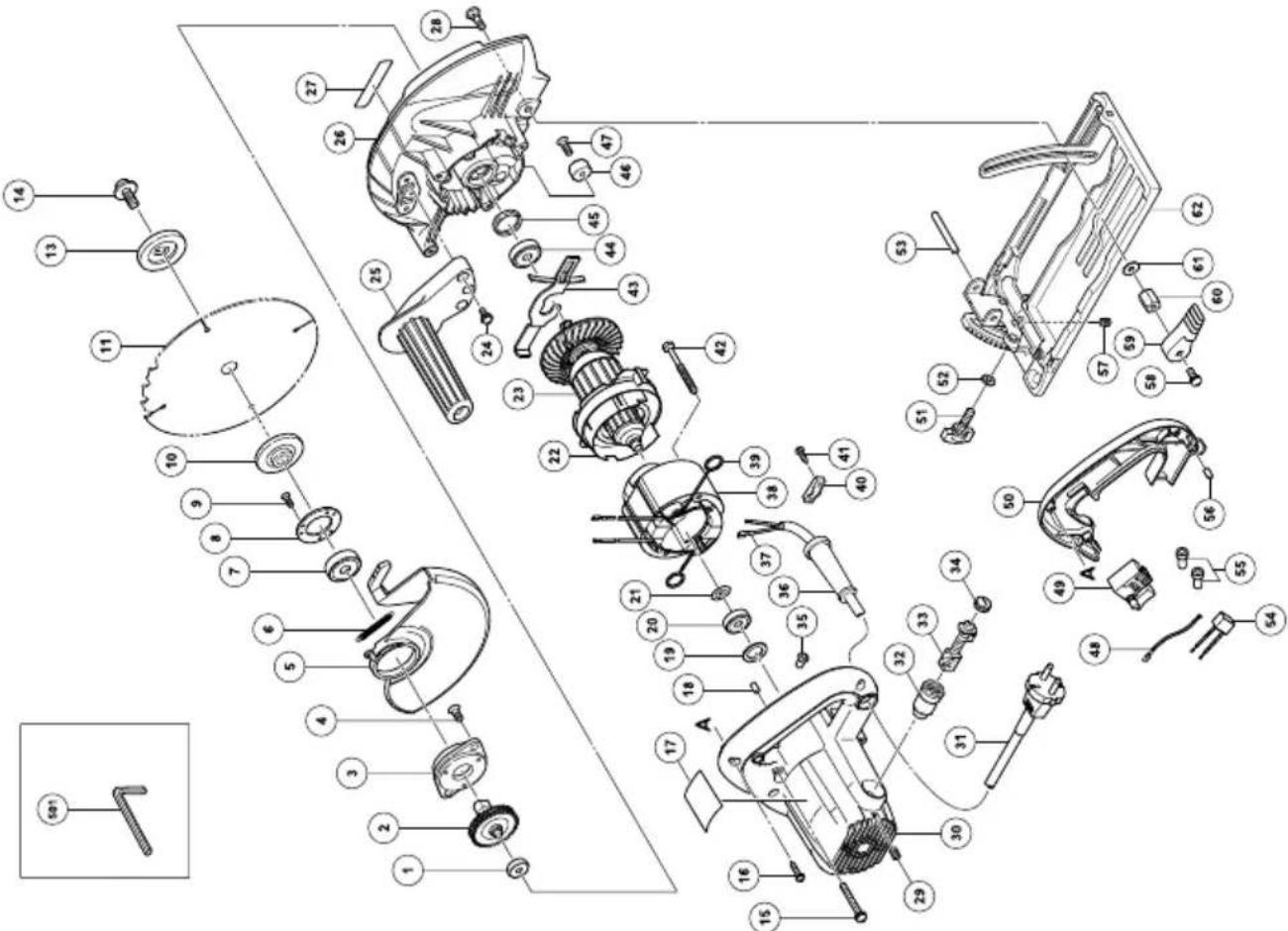

7. Service parts list
CAUTION
Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts may be changed without prior notice.
GUARANTEE
We guarantee Hitachi Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a Hitachi Authorized Service Center.
NOTE
Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.
Information concerning airborne noise and vibration The measured values were determined according to EN 60745 and declared in accordance with ISO 4871.
C6SS
Measured A-weighted sound power level: 104 dB(A) Measured A-weighted sound pressure level: 93 dB(A) Uncertainty KpA: 3 dB(A)
C7SS
Measured A-weighted sound power level: 103 dB(A) Measured A-weighted sound pressure level: 92 dB(A) Uncertainty KpA: 3 dB(A)
Wear ear protection.
The typical weighted root mean square acceleration value does not exceed 2.5 m/s ^4 .
C7SS
| Item No. | Part Name Q'TY | |
| 42 | HEX. HD. TAPPING SCREW D5 × 55 | 2 |
| 43 | LOCK LEVER | 1 |
| 44 | BALL BEARING 6000VVCM 1 | |
| 45 | RUBBER RING | 1 |
| 46 | CUSHION | 1 |
| 47 | FLAT HD. SCREW M6 × 20 | 1 |
| 48 | INTERNAL WIRE | 1 |
| 49 | SWITCH(BRAKE) | 1 |
| 50 | HANDLE COVER | 1 |
| 51 | WING BOLT (A) | 1 |
| 52 | SUPER LOCK WASHER M6 1 | |
| 53 | ROLL PIN D6 × 50 | 1 |
| 54 | NOISE SUPPRESSOR | 1 |
| 55 | CONNECTOR 50092 | 2 |
| 56 | BEARING LOCK 1 | |
| 57 | SLOTTED HD. SET SCREW (SEAL LOCK) M6 × 8 | 1 |
| 58 | SEAL LOCK SCREW (W/SP. WASHERS) M6 × 14 | 1 |
| 59 | LEVER(A) | 1 |
| 60 | LOCK NUT | 1 |
| 61 | WASHER | 1 |
| 62 | BASE ASS'Y | 1 |
| 501 | HEX. BAR WRENCH 5MM | 1 |
| Item No. | Part Name Q'TY | |
| 1 | M ETAL 1 | |
| 2 SPINDLE GEAR SET 1 | ||
| 3 BEARING HOLDER 1 | ||
| 4 | SEAL LOCK FLAT HD. SCREW M5 × 12 | 2 |
| 5 LOWER GUARD 1 | ||
| 6 RETURN SPRING 1 | ||
| 7 BALL BEARING 6002VVCM 1 | ||
| 8 BEARING COVER 1 | ||
| 9 | SEAL LOCK FLAT HD. SCREW M3 × 12 | 3 |
| 10 WASHER(A) 1 | ||
| 11 CARBIDE TIPPED SAW BLADE 1 | ||
| 13 WASHER(B) 1 | ||
| 14 HEX.SOCKET BOLT(W/WASHER) 1 | ||
| 15 | MACHINE SCREW (W/WASHERS) M5 × 45 | 3 |
| 16 | TAPPING SCREW (W/FLANGE) D4 × 20 | 3 |
| 17 NAME PLATE 1 | ||
| 18 BEARING LOCK 1 | ||
| 19 THRUST WASHER | 1 | |
| 20 BALL BEARING 608VVC2 | 1 | |
| 21 WASHER(A) 1 | ||
| 22 FAN GUIDE | 1 | |
| 23 ARMATURE 1 | ||
| 24 | MACHINE SCREW (W/WASHERS) M5 × 16 | 3 |
| 25 SIDE HANDLE | 1 | |
| 26 GEAR COVER 1 | ||
| 27 HITACHI LABEL | 1 | |
| 28 BOLT (SQUARE) M6 × 20 | 1 | |
| 29 HEX. SOCKET SET SCREW M5 × 82 | ||
| 30 HOUSING ASS'Y | 1 | |
| 31 CORD | 1 | |
| 32 BRUSH HOLDER | 2 | |
| 33 CARBON BRUSH | 2 | |
| 34 BRUSH CAP 2 | ||
| 35 CONNECTOR | 1 | |
| 36 CORD ARMOR | 1 | |
| 37 FASTON | 1 | |
| 38 STATOR ASS'Y | 1 | |
| 39 BRUSH TERMIMAL | 2 | |
| 40 CORD CLIIP | 1 | |
| 41 | TAPPING SCREW (W/FLANGE) D4 × 16 | 2 |
| GUARANTEE CERTIFICATE1Model No.2Serial No.3Date of Purchase4Customer Name and Address5Dealer Name and Address(Please stamp dealer name and address) | ZÁRUČNÍ LIST1Model č.2Série č.3Datum nákupu4Jméno a adresa zákazníka5Jméno a adresa prodejce(Prosíme o razítko se jménem a adresou prodejce) | ||
| Deutsch | Türkçe | ||
| GARANTIESCHEIN1Modell-Nr.2Serien-Nr.3Kaufdaturn4Name und Anschrift des Kunden5Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln) | GARANTI SERTÍFÍKASI1Model No.2Seri No.3Satın Alma Tarihi4Müşteri Adı ve Adresi5Bayi Adı ve Adresi(Lütfen bayi adını ve adresini kaşe olarak basın) | ||
| Ελληνικά Română | |||
| ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΕΓΓΥΗΣΗΣ1Ap. Movtėlou2Aùξων Ap.3Ημερομηνία αγοράς4Όνομα και διεύθυνση πελάτη5Όνομα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα) | CERTIFICAT DE GARANTIE1Model nr.2Nr. de serie3Data cumpărării4Numele și adresa clientului5Numele și adresa distribuitorului(Vă rugăm aplicați štampila cu numele și adresa distribuitorului) | ||
| Polski Slovenščina | |||
| GWARANCJA1Model2Numer seryjny3Data zakupu4Nazwa klienta i adres5Nazwa dealera i adres(Pieczęć punktu sprzedaży) | GARANCIJSKO POTRDILO1Št. modela2Serijska št.3Datum nakupa4Ime in naslov kupca5Ime in naslov prodajalca(Prosimo vtisnite žig z imenom in naslovom prodajalca) | ||
| Magyar | Русский | ||
| GARANCIA BIZONYLAT1T ipusszám2Sorozatszám3A vásárlás dátuma4A Vásárló neve és c íme5A Kereskedő neve és címe(Kérjük ide elhelyezni a Kereskedő nevének és címének pecsétjét) | ГАРАНТИЙНЫЙ СЕРТИФИКАТ1Модель No2Серийный No3Дата покупки4Название и адрес заказчика5Название и адрес дилера(Пожалуйста, внесите название и адрес дилера) | ||
HITACHI
| 1 | |
| 2 | |
| 3 | |
| 4 | |
| 5 |
Kashirskoye Shosse Dom 65, 4F
115583 Moscow, Russia
Tel: +7 495 727 4460 or 4462
Fax: +7 495 727 4461
URL: http://www.hitachi-pt.ru
Hitachi Power Tools Romania
Str Sf. Gheorghe nr 20-Ferma, Pantelimon, Jud. Llfov
Tel: +031 805 25 77
Fax: +031 805 27 19
| English | EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN60745, EN55014 and EN61000 in accordance with Council Directives 2004/108/EC and 98/37/EC. This product also complies with the essential requirements of 2006/42/EC to be applied from 29 December 2009.This declaration is applicable to the product affixed CE marking. | Čeština | PROHLÁŠENÍ O SHODĚ S CEProhlašujeme na svoji zodpovědnost, že tento výrobek odpovídá normám EN60745, EN55014 a EN61000 v souladu se směnicemi 2004/108/EC a 98/37/EC. Tento výrobek rovněž vyhovuje základním požadavkům 2006/42/EC platných od 29. prosince 2009.Toto prohlášení platí pro výrobek označený značkou CE. |
| Deutsch | ERKLÄRUNG ZUR KONFORMITÄT MIT CE-REGELNWir erklären mit alleiniger Verantwortung, daß dieses Produkt den Standards oder standardisierten Dokumenten EN60745, EN55014 und EN61000 in Übereinstimmung mit den Direktiven des Europarats 2004/108/CE und 98/37/CE entspricht. Dieses Produkt hält auch die wesentlichen Anforderungen von 2006/42/CE ein, die ab 29. Dezember 2009 gelten werden.Diese Erklärung gilt für Produkte, die die CE-Markierung tragen. | Türkçe | AB UYGUNLUK BEYANIBu ürünün, 2004/108/EC ve 98/37/EC sayíli Konsey Direktiflerine uygun olarak, EN60745, EN55014 ve EN61000 sayíli standartlara ve standartlaştırılmış belgelere uygun olduğunu, tamamen kendi sorumluluğumuz altinda beyan ederiz. Bu ürün, aynı zamanda 29 Aralık 2009 tarihinden itibaren uygulanacak olan 2006/42/EC No’lu Konsey Direktifinin temel şartlarına da uygundur.Bu beyan, üzerinde CE işareti bulunan ürünler için geçerlidir. |
| Ελληνικά | EK ΔΗΛΩΣΗ ΕΝΑΡΜΟΝΙΣΜΟΥΔηλώνουμε με απόλυτη υπευθυνότητα ότι αυτό το προϊόν είναι εναρμονισμένο με τα πρότυπα ή τα έγραφα προτύπων EN60745, EN55014 και EN61000 σε συμφωνία με τις Οδηγίες του Συμβουλίου 2004/108/ΕΚ και 98/37/ΕΚ. Αυτό το προϊόν είναι επίσης συμφωνο με τις βασικές απαιτήσεις του 2006/42/ΕΚ που εφαρμόζονται από τις 29 Δεκεμβρίου 2009.Aυτή η δήλωση ισχύει στο προϊόν με το σημάδι CE. | Română | DECLARAȚIE DE CONFORMITATE CEDeclarăm pe propria răspundere că acest produs este conform cu standardele sau documentele de standardizare EN60745, EN55014 și EN61000 și cu Directivele Consiliului 2004/108/CE și 98/37/CE. Acest produs se conformează, de asemenea, cerințelor de bază ale 2006/42/CE, care urmează a fi aplicate începînd cu 29 decembrie 2009.Prezenta declarație se referă la produsul pe care este aplicat semnul CE. |
| Polski | DEKLARACJA ZGODNOŚCI Z ECOznajmiamy z całkowitą odpowiedzialnością, że produkt ten pozostaje w zgodzie ze standardami lub standardową formą dokumentów EN60745, EN55014 i EN61000 w zgodzie z Zasadami Rady 2004/108/EC i 98/37/EC. Ten produkt spełnia także wymogi Dyrektywy 2006/42/EC, które wchodzą w życie z dniem 29 grudnia 2009 r.To oświadczenie odnosi się do załączonego produktu z oznaczeniami CE. | Slovensčina | EC DEKLARACIJA O SKLADNOSTIPo lastni odgovornosti objavljamo, da je izdelek v skladu s standardi ali standardiziranimi dokumenti EN60745, EN55014 in EN61000 v skladu z direktivami Sveta 2004/108/EC in 98/37/EC. Ta proizvod je izdelan v skladu tudi z osnovnimi zahtevami standarda 2006/42/EC, ki se začne uporabljati 29. decembra 2009.Deklaracija je označena na izdelku s pritrjeno CE označbo. |
| Magyar | EU MEGFELELŐSÉGI NYILATKOZATTeljes felelősségünk tudatában kijelentjük, hogy ez a termék megfelel az EN60745, EN55014, és EN 61000 szabványoknak illetve szabványosított dokumentumoknak, az Európa Tanács 2004/108/EC, és 98/37/EC Tanácsi Direktiváival összhangban. A termék ezen kívül megfelel a 2006/42/EC követelményeinek, melyeket 2009. December 29.-étől kell alkalmazni.Jelen nyilatkozat a terméken feltüntetett CE jelzésre vonatkozik. | Русский | ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ЕСМы с полной ответственностью заявляем, что данное изделие соответствует стандартам или стандартизованным документам EN60745, EN55014 и EN61000 согласно Директивам Совета 2004/108/EC и 98/37/EC. Этот продукт соответствует главным требованиям 2006/42/EC от 29 декабря 2009 г.Данная декларация относится к изделиям, на которых имается маркировка CE. |
| Representative office in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyHead office in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan | |||
- SAFETY INSTRUCTIONS FOR ALL SAWS
- FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
- SAFETY INSTRUCTIONS FOR SAWS WITH PENDULUM GUARD OR TOW GUARD
- PRECAUTIONS ON USING CIRCULAR SAW
- STANDARD ACCESSORIES
- OPTIONAL ACCESSORIES (sold separately)
- APPLICATION
- PRIOR TO OPERATION
- Power source
- Power switch
- Extension cord
- Prepare a wooden workbench (Fig. 1)
- CAUTION
- How to store the hex. bar wrench (Fig. 8)
- ADJUSTING THE POWER TOOL PRIOR TO USE
- Adjusting the cutting depth
- Adjusting the angle of inclination
- Regulating the guide (Optional accessory)
- CUTTING PROCEDURES
- CAUTIONS
- MOUNTING AND DISMOUNTING THE SAW BLADE
- Dismounting the saw blade
- Mounting the Saw Blade
- MAINTENANCE AND INSPECTION
- Inspecting the saw blade
- Inspecting the mounting screws
- Maintenance of the motor
- Inspecting the carbon brushes
- Replacing supply cord
- Adjusting the base and saw blade to maintain perpendicularity
- Service parts list
- MODIFICATIONS
- GUARANTEE
- NOTE
- C6SS
- C7SS
- Hitachi Power Tools Netherlands B.V. Moscow Branch
- Hitachi Power Tools Romania
Brand : HITACHI
Model : C7SS
Category : Saw
