Nokia 203 User Guide

Keys and parts

1 Headset connector (3.5 mm)
2 Micro-USB connector
3 Charger connector
4 Ear piece
5 End / Power key

6 K e y p a d
7 Microphone
8 Call key
9 Screen

10 14 NOKIA 11 + - 12 13

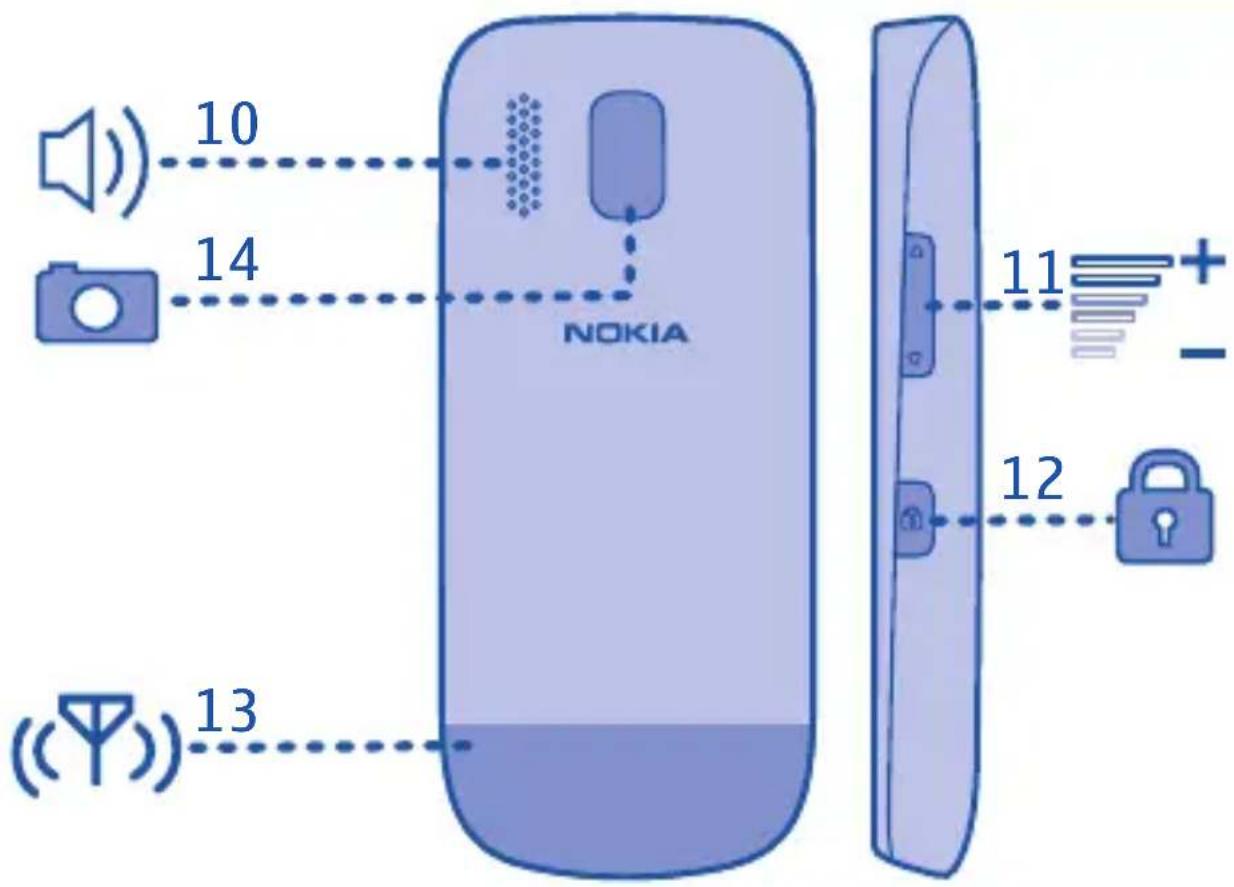

10 Loudspeaker
11 Volume keys
12 Key lock button
13 Antenna area (highlighted). See

1 in "Feature specific instructions".

14 Camera lens. Before using the camera, remove the protective tape from the lens.

Insert a SIM card and battery

Illustration of hands holding a smartphone with a close button, no text or symbols present

Switch the phone off, then remove the back cover.

Illustration of hands holding a smartphone with a blue arrow on screen (no text or symbols)

Line up the battery contacts, then push the battery in.

Illustration of hands installing or adjusting a device on a smartphone (no text or symbols visible)

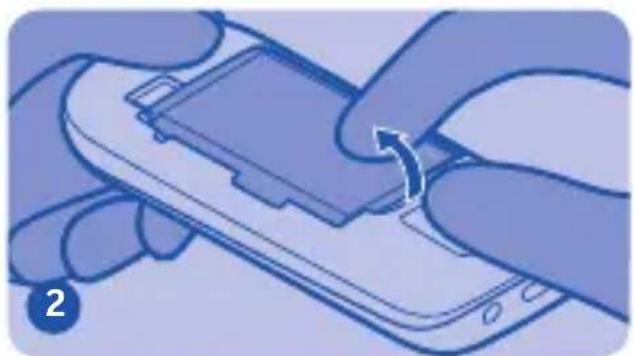

If the battery is in the phone, lift it out.

Illustration of hands installing or adjusting a smartphone into a socket (no text or symbols visible)

Press the back cover down until it locks into place.

Illustration of hands holding a SIM computer controller (no text or symbols on the device itself)

Open the holder, then put the SIM in with the contact area face down. See

NOKIA 6

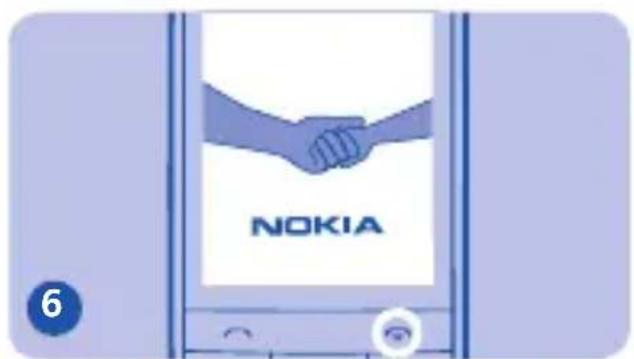

To switch on, press and hold until the phone vibrates.

Insert a memory card

Illustration of hands holding a smartphone with a close button, no text or symbols present

Switch the phone off, then remove the back cover.

Illustration of hands holding a smartphone with a small object on the screen (no text or symbols visible)

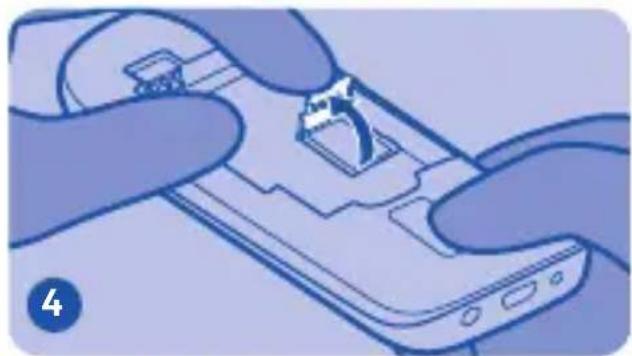

Lift the holder.

Illustration of hands holding a smartphone with a scroll wheel (no text or symbols)

If the battery is in the phone, lift it out.

Illustration of hands installing or adjusting a smartphone screen with a clip (no text or symbols visible)

Put a compatible memory card in with the contact area face down.

Illustration of hands holding a smartphone with a small car icon on the screen (no text or symbols)

Slide the memory card holder towards the bottom of the phone.

Illustration of hands assembling a smartphone with a downward arrow (no text or symbols)

Lower the holder.

Solid blue rectangular image with no visible text, symbols, or features.

Charge the battery

Illustration of hands holding a smartphone with a small electronic device on top (no text or symbols visible)

Illustration of a hand holding a rectangular object with a curved line and arrow, no text or symbols present

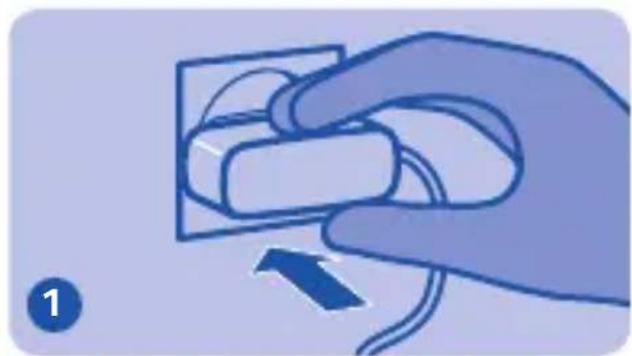

Plug the charger into a wall outlet.

Slide the holder to its original position.

Illustration of hands holding a smartphone with a blue arrow on screen (no text or symbols)

Illustration of a hand inserting a small plug into a smartphone (no text or symbols visible)

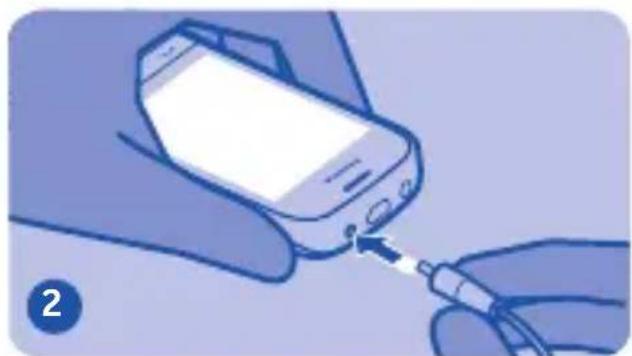

Connect the charger to the phone.

Line up the battery contacts, then push the battery in.

Illustration of hands installing or adjusting a smartphone component (no text or symbols visible)

Simple diagram showing a battery icon inside a rectangular frame with blue vertical lines (no text or symbols)

Press the back cover down until it locks into place. See ➕ 2.
Battery full? Unplug from the phone, then from the wall outlet.

Lock or unlock the keys and screen

Illustration of a person holding a briefcase next to a mobile phone icon, with a tree and cloud in the background (no text or symbols)

Lock the keys and screen when not using your phone.

Explore your phone

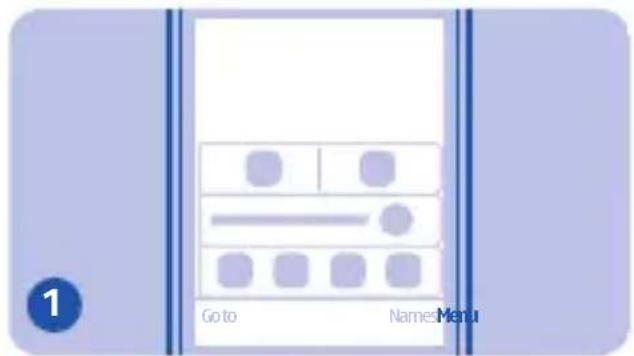

1 Go to Name Menu

To see the features and apps in your phone, press Menu.

Illustration of a window with a ladder and a small object on the right side (no text or symbols)

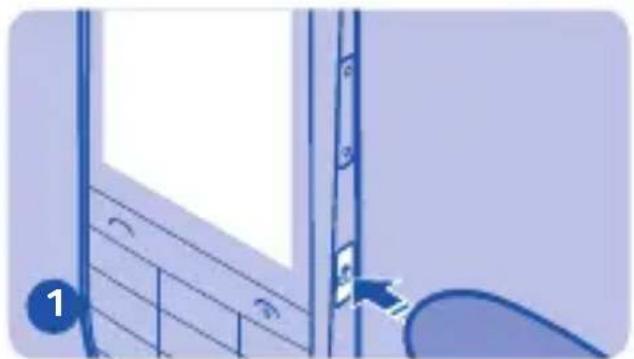

Press the key lock button.

2 Back

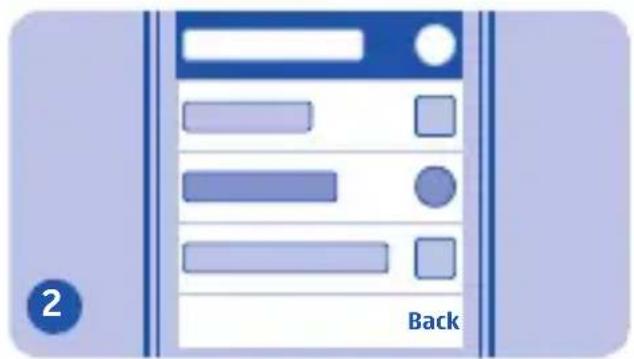

To go back to the previous view, press Back.

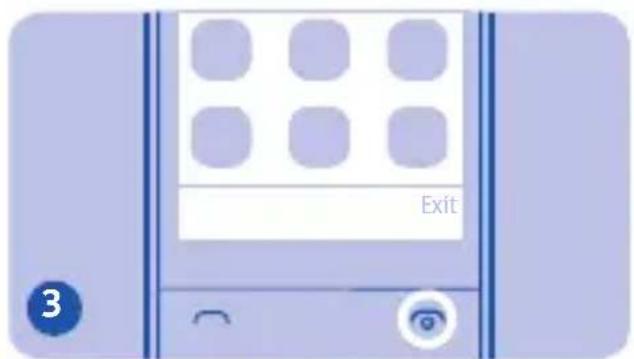

Exit 3

To go back to the home screen, press 📞.

Solid blue rectangular shape with no text, symbols, or discernible features.

4 Options

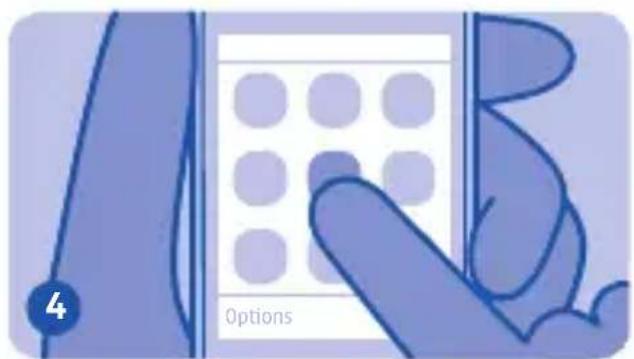

Tap an app or other item to open it.

7 Options

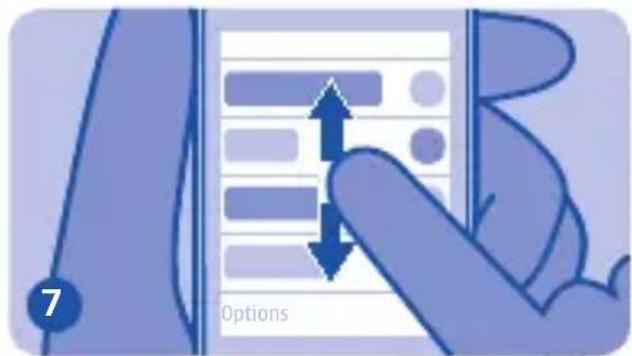

To scroll, slide your finger quickly up or down, then lift your finger. See ➕ 3.

5 Go to Names

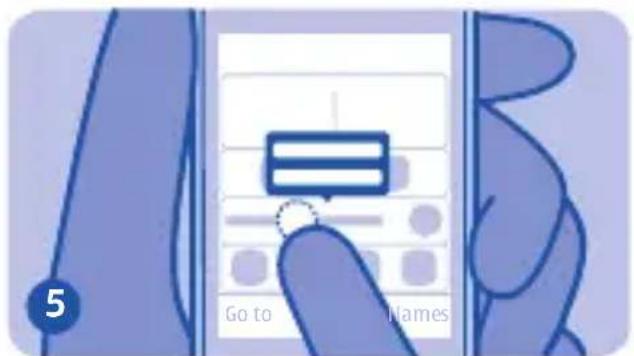

Tap and hold an item to see more options.

6 Options

To swipe, steadily slide your finger to the desired direction.

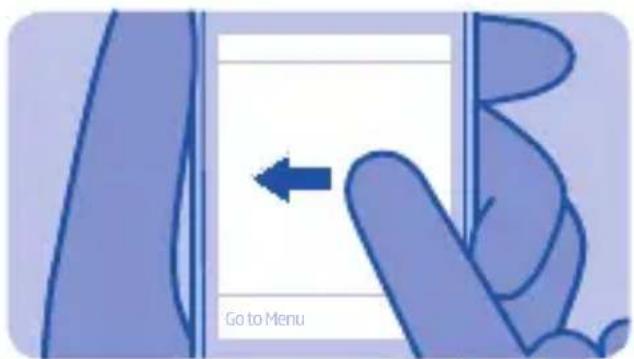

Swipe to open applications

Go to Menu

Open your favourite app with a single swipe on the home screen.

Favours Apps and games Call divert Camera Change outg. Countd. timer Create message Back

Select which app to open when you swipe left.

1 Options Back

Select Menu > Settings.

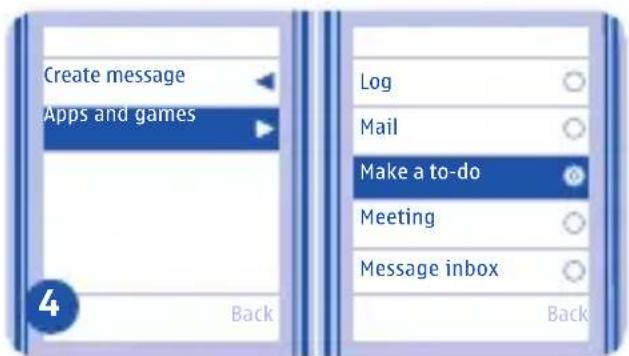

Create message Apps and games Log Mail Make a to-do Meeting Message inbox Back

Select which app to open when you swipe right.

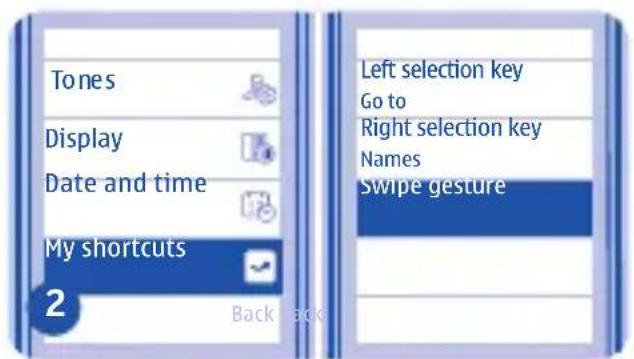

Tones Display Date and time My shortcuts 2 Back back Left selection key Go to Right selection key Names Swipe gesture

Select My shortcuts > Swipe gesture.

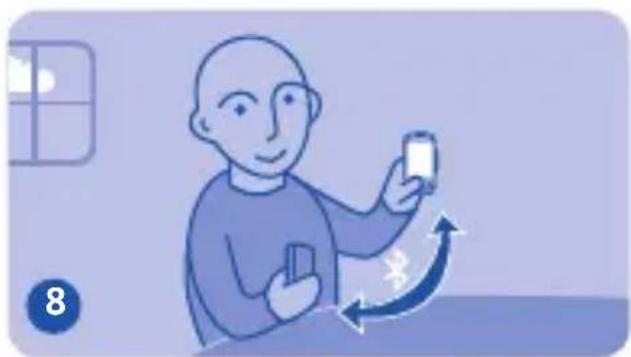

Copy content from your old phone

Illustration of a person using a smartphone with an arrow indicating download or upload (no text or symbols present)

Easily get your contacts, calendar, and other stuff to your new phone.

Date and time My shortcuts Connectivity 3 Back Sync with server Phone switch Create backup Restore backup

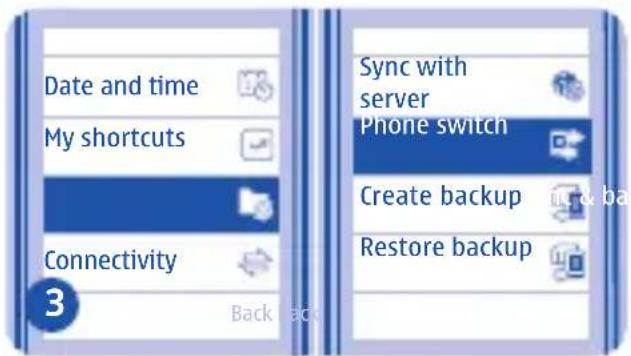

Select Sync & backup > Phone switch.

1 Back

Switch Bluetooth on in both phones.

Synchronise Copy to this Copy from this Contacts Calendar Text messages Multimedia msg. Notes Options Done

Select Copy to this and what you want to copy, then select Done.

Options Back

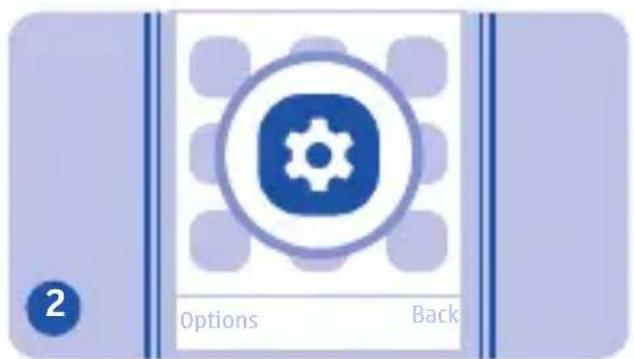

Select Menu > Settings.

New search Nokia XX Options Back

Select your old phone from the list of found devices.

Solid blue rectangular image with no visible text, symbols, or features.

Enter passcode : 123 *****

If asked, create a one-time passcode (such as 123), then select OK.

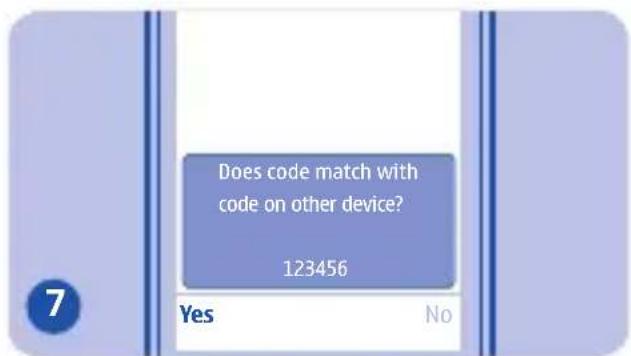

Does code match with code on other device? 123456 Yes No

Check that the codes match on both phones.

Illustration of a person holding a smartphone and card, with a blue upward arrow indicating growth (no text or symbols)

Follow the instructions on both phones.

Indicators

— You have unread messages.

— You have unsent, cancelled, or failed messages.

— The touch screen and keys are locked.

— The phone doesn't ring when somebody calls or sends a message.

— An alarm is set.

G/E—The phone is connected to a GPRS or EGPRS network.

G/ E A GPRS or EGPRS connection is open.

G / The GPRS or EGPRS connection is on hold.

* — Bluetooth is on.

All incoming calls are forwarded to another number.

— The profile in use is timed. After a set amount of time, the phone changes back to the previously used profile.

— A headset is connected to the phone.

— The phone is connected to a device, such as a PC, with a USB cable.

Make or answer a call

03234 56789

Call your friend. See 15.

Incoming call 9876543210 Options Silence

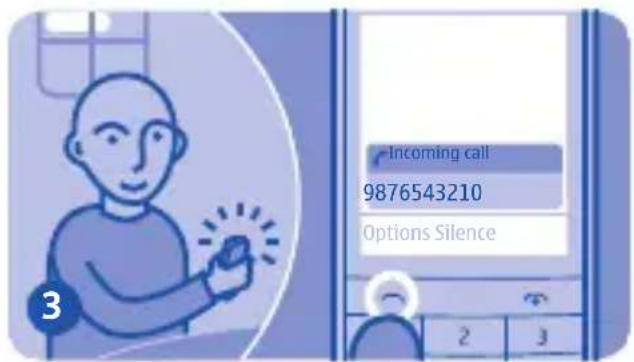

When your phone rings, press to answer. See → 16.

1 2 3 4 5 6 7 8 9 # 1 01 23456789 Options Save Clear

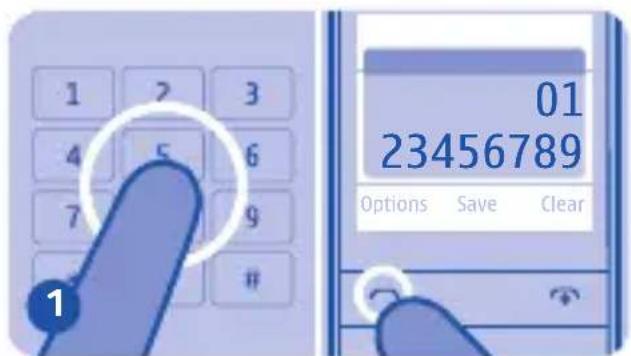

Type in the phone number, then press

In call 0123456789 Mute Loudsp. Options Contact

To end the call, press 📞

View your missed calls

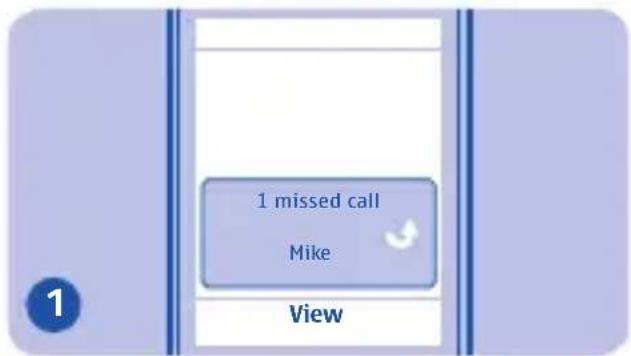

1 missed call Mike View

On the home screen, select View. See 5.

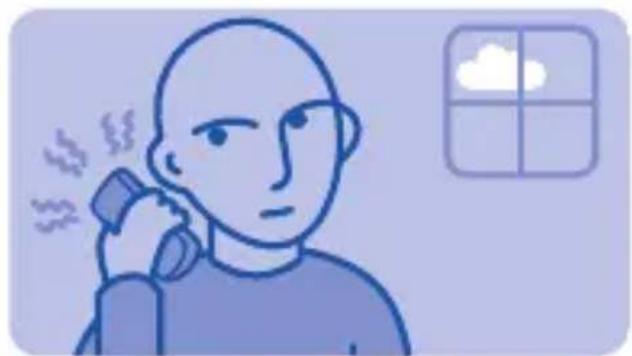

Change the volume

Illustration of a person using a phone to call, with a cloud and grid window in the background (no text or symbols)

Is the volume too loud during a call or when listening to the radio?

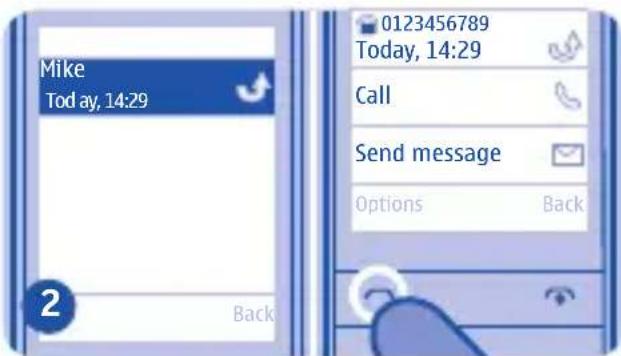

Mike Tod ay, 14:29 0123456789 Today, 14:29 Call Send message Options Back

To call back, select the number, then press ↻.

NOKLA 1 +

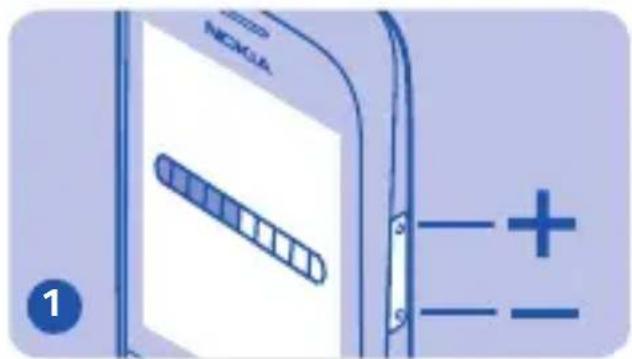

Use the volume keys.

Options Exit Names Add new Log Synchronise all Back

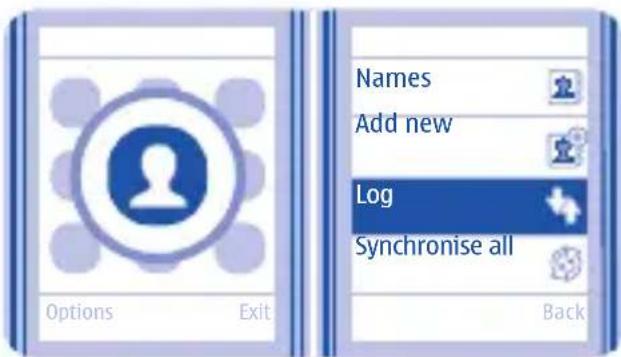

Tip: To view missed calls later, select Menu > Contacts > Log.

Illustration of a person talking on a phone with a cloud icon in the corner (no text or symbols)

Better.

Save a name and phone number

Illustration showing two people at a table with cards and a smartphone, alongside a thought bubble of a person with a plus sign (no text or symbols present)

Add new contacts to your phone.

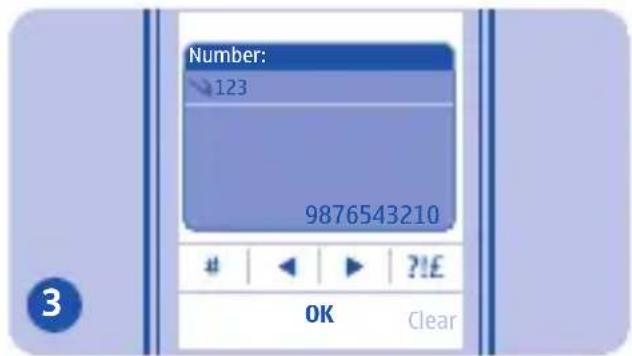

Number: 123 9876543210

| ◀ | ▶ | ?!£

OK Clear

Type in the phone number, then select OK.

1 Options Back

Select Menu > Contacts.

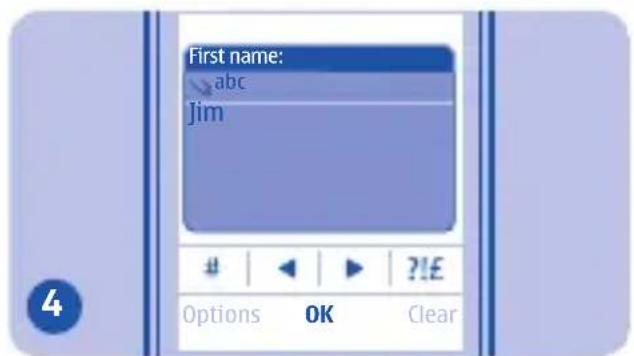

First name: abc Jim

| ◀ | ▶ | ?!£

Options OK Clear

Write the first name, then select OK.

Names Add new Log Synchronise all Back

Select Add new.

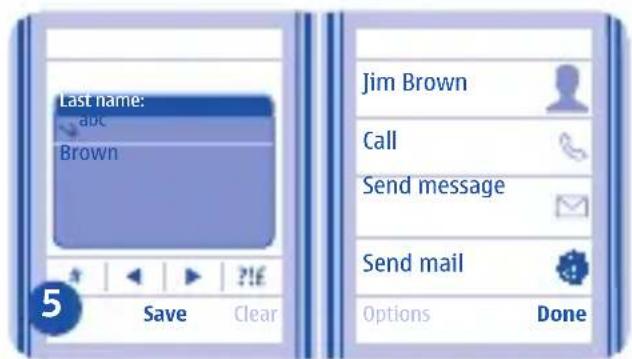

Last name: abc Brown Save Clear Jim Brown Call Send message Send mail Options Done

Write the last name, then select Save > Done.

Solid blue rectangular shape with no text, symbols, or patterns

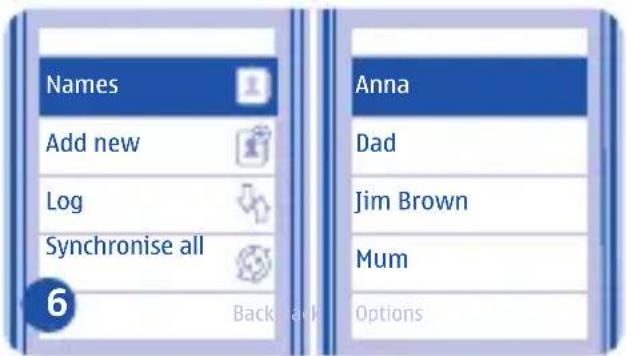

Names Add new Log Synchronise all Back Back Anna Dad Jim Brown Mum Options

To edit details, select Names and a contact.

Send a message

Hi Mke!

Keep in touch with people through messages. See ➕ 7.

Jim Brown Call Send message Send mail 7 Options Back Back View conversat. Add detail Add image Delete contact

Select Options > Add detail.

1 Options Back

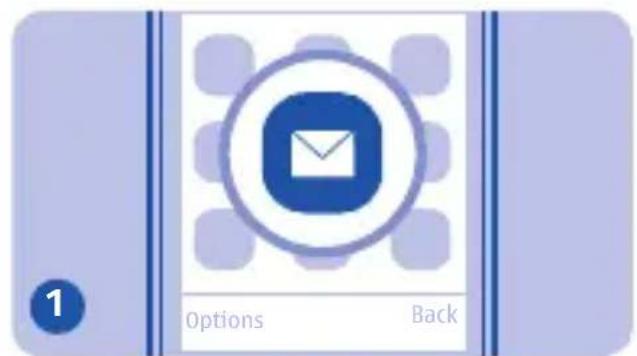

Select Menu > Messaging.

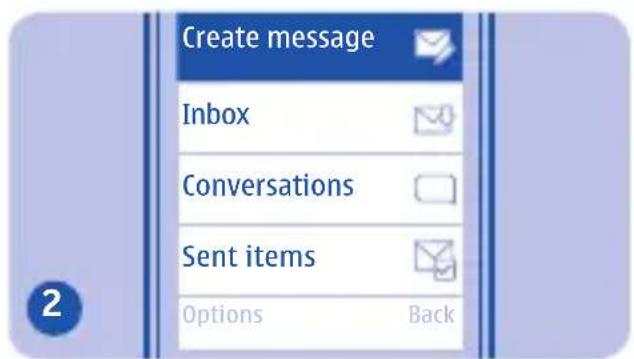

Create message Inbox Conversations Sent items Options Back

Select Create message.

Solid blue rectangular shape with no text, symbols, or discernible features.

Hi Anna, how are you? Continue

Write your message and select Continue.

abc abc Hi Anna, how are you? Edit text Insert object Save as draft More Options Back Back

Tip: To add an attachment, select Options > Insert object. See ➔ 8, 9, 10.

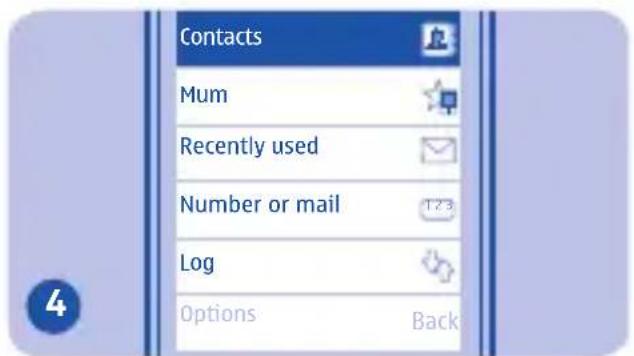

Contacts Mum Recently used Number or mail Log Options Back

To add a recipient, select Contacts.

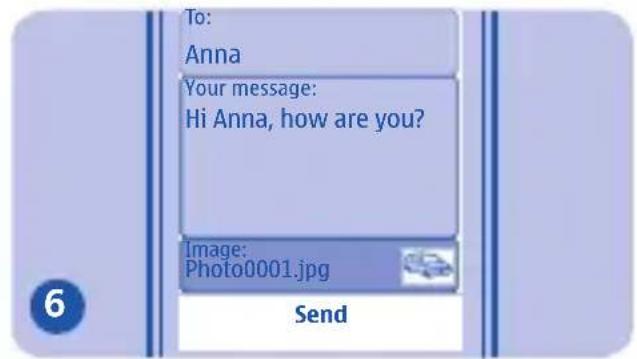

To: Anna Your message: Hi Anna, how are you? Image: Photo0001.jpg Send

Select Send.

Contacts Mum Recently used Number or mail 125 Log Options Back

To type in a number or mail address, select Number or mail.

Write text

Press a key repeatedly until the letter is shown.

To type in a punctuation mark, press 1 repeatedly.

To type in a special character, press *, then select the character.

To switch between character cases, press #.

To use number mode, press and hold #, then select Number mode. To go back to letter mode, press and hold #.

If you want to quickly type in a single number, just press and hold the number key.

To switch predictive text on or off, select Options > Prediction > Prediction on or Prediction off. Not all languages are supported.

To change the writing language, select Options > Writing language.

Personalise your home screen

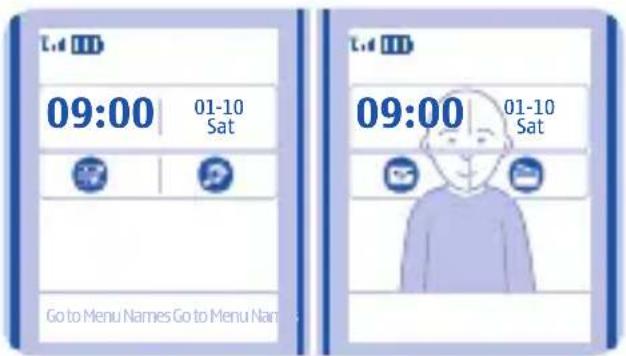

L.4 09:00 | 01-10 Sat Go to Menu Names Go to Menu Nam L.4 09:00 | 01-10 Sat

You can change the wallpaper, and rearrange items on the home screen.

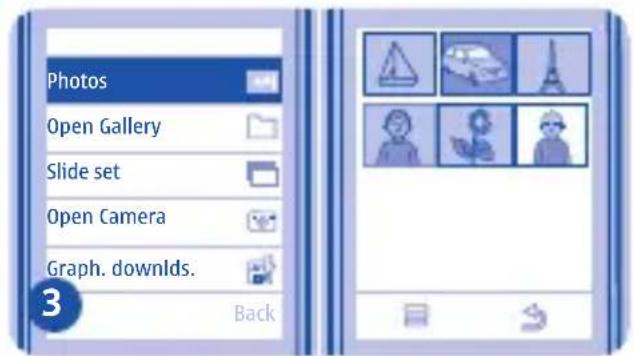

Photos Open Gallery Slide set Open Camera Graph. downIds. Back

Select a folder and a photo.

1 Options Back

Select Menu > Settings.

NOKIA Go to NamesMenu

Tip: You can also take a photo on your phone camera, and use that.

Profiles Themes Tones Display 2 Back Back Wallpaper Set by theme Home screen Main menu view Font size

Select Display > Wallpaper.

Change your ringtone

Illustration of a person holding a small device with musical notes, next to a window and cloud icon (no text or symbols)

Set a different ringtone for each profile.

Alablaster.aac 01-01-11 192kB Mystique.aac 01-01-11 115kB Nokia tune.aac 01-01-11 148kB Ring ring.aac 01-01-11 10.0kB

Browse to a ringtone.

1 Options Back

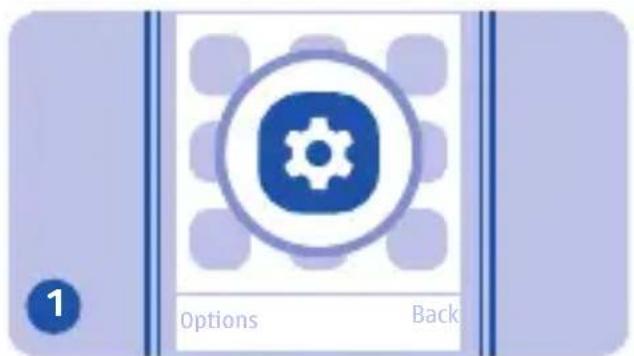

Select Menu > Settings.

Alablaster.aac 01-01-11 192kB Mystique.aac 01-01-11 115kB Nokia tune.aac 01-01-11 148kB Ring ring.aac 01-01-11 10.0kB Select Stop

Select the ringtone.

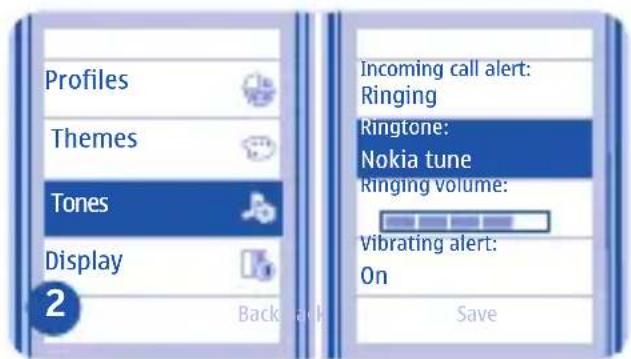

Profiles Themes Tones Display 2 Back Back Incoming call alert: Ringing Ringtone: Nokia tune Ringing volume: Vibrating alert: On Save

Select Tones > Ringtone:.

1 2 3 4 5 6 7 8 9 0 4

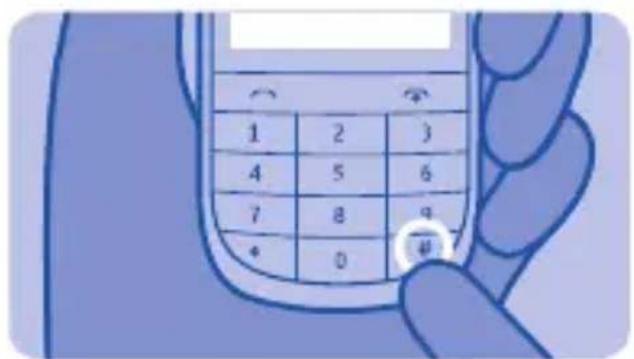

Tip: To switch between the silent and normal profile, press and hold #.

Set a song as your ringtone

Illustration of two people interacting with music notes, one holding a phone and the other looking at a glowing device (no text or symbols present)

You can set a song from the music player as your ringtone.

Song 1 00:42.6 02:30.1 Play Done

Drag and to the start and end points, then select Done.

Tone downlo a d s Open Gallery Nokia tune 1 Back Song 1 01-10-11 1.9MB Song 2 01-10-11 2.8MB Song 3 01-10-11 3.2MB Select Stop

When setting a ringtone, select Open Gallery, then browse to the song.

Incoming call alert: Ringing Ringtone: Song 1 Ringing volume: Vibrating alert: On Save Cancel

Select Save. See 11.

Incoming call alert: Ringing Ringtone: Song 1 Do you want to adjust start and end points of the tone? Yes No

You can mark a section of a song to use as a ringtone. Select Yes.

Set an alarm

Illustration of a person sitting on a bed with one hand pointing forward, no text or symbols present

Use your phone as an alarm clock.

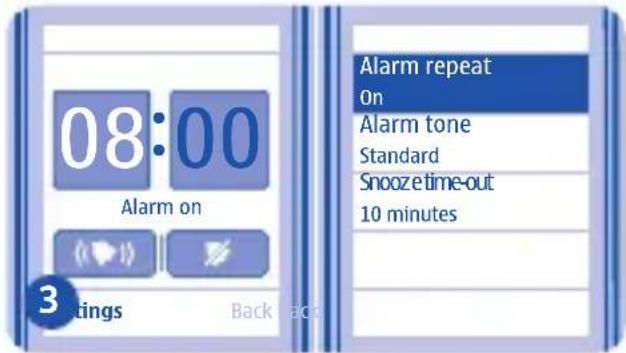

08:00 Alarm on 3 Settings Back Back Alarm repeat On Alarm tone Standard Snoozetime-out 10 minutes

To repeat the alarm, select Settings > On and the days.

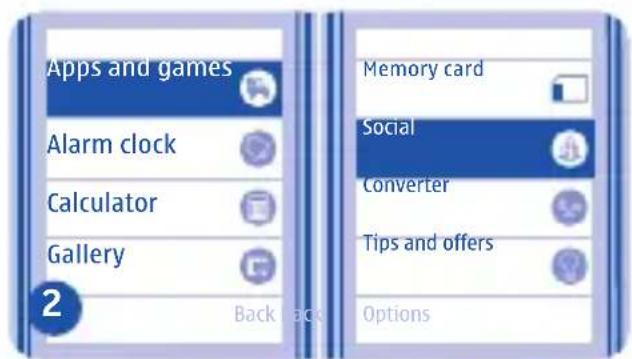

1 Applications Exit Apps and games Alarm clock Calculator Gallery Back

Select Menu > Apps > Alarm clock.

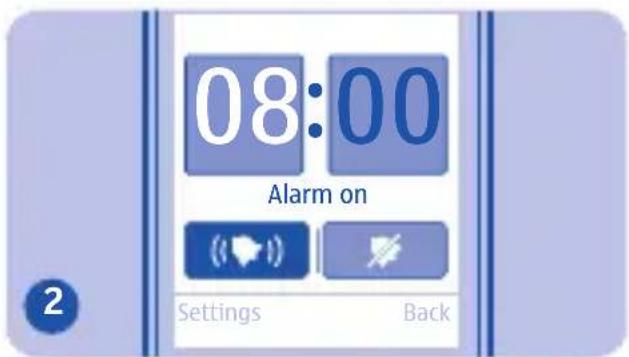

08:00 Alarm on Settings Back

Set the alarm time, then select ( ).

Add an appointment

12 Options Back

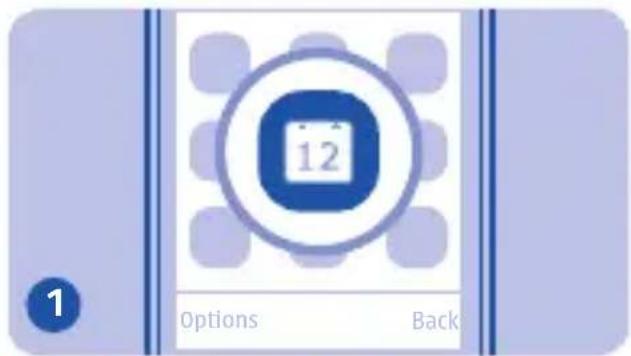

Select Menu > Calendar.

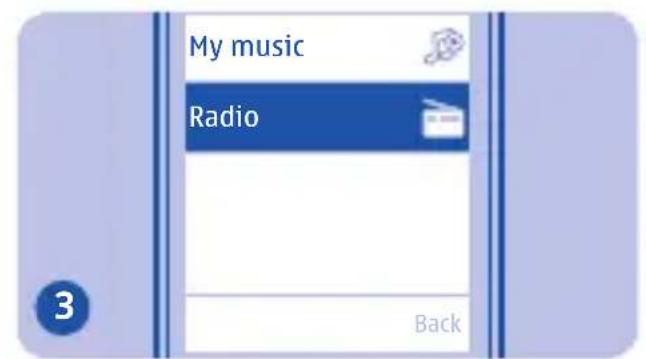

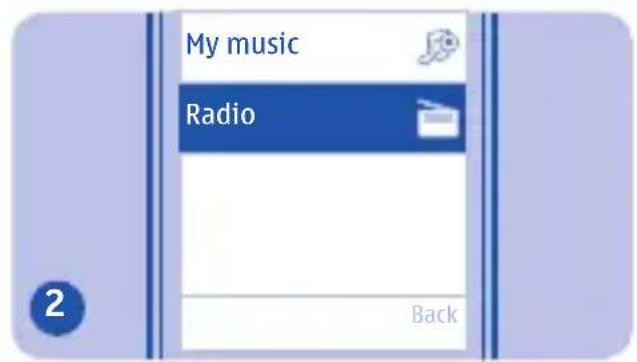

Listen to the radio

Illustration of a person using a microphone and earphones, with a thought bubble showing a radio tower and cloud window (no text or symbols present)

Listen to your favourite radio stations on your phone.

October Mo Tu W Th Fr Sa Su 1 226 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 27 28 29 24 25 26 31 1 2 3 4 5 6 BackView

Select a date and View > Add.

Illustration of a hand using a dropper to apply liquid into a smartphone (no text or symbols visible)

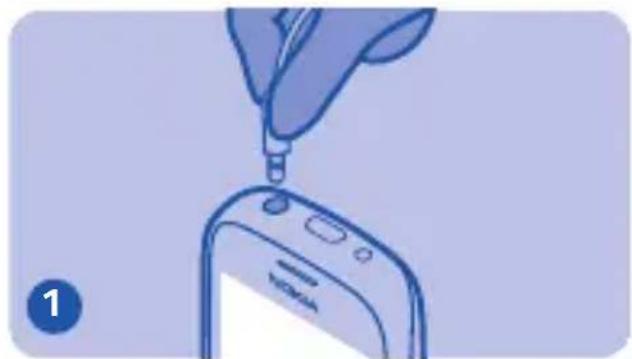

Connect a compatible headset. It acts as an antenna.

Reminder Meeting Call Birthday Anniversary Back Subject: Meet Mike Location: Start date: 31-10-2011 Start time: 10:03 Save Cancel

Select Meeting, fill in the fields, then select Save.

Options Back

Select Menu > Music.

Solid blue rectangular shape with no text, symbols, or patterns

My music Radio Back

Select Radio.

Find and save radio stations

X2 F M

Search for your favourite radio stations

87.50 MHz 87.50 108.00 Options Back

To change the volume, use the volume keys.

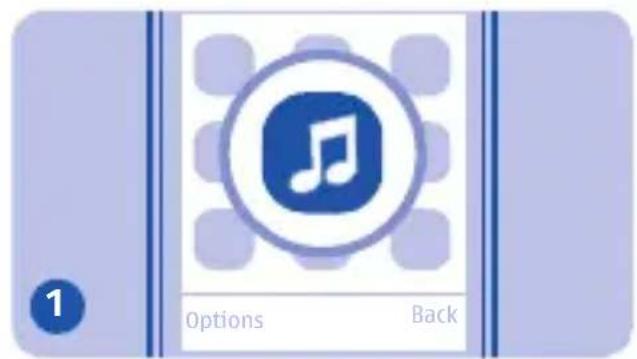

1 Options Back

Select Menu > Music.

98.00 MHz 87.80 108.00 Options Back

To close the radio, press and hold 📞.

My music Radio Back

Select Radio.

Solid blue rectangular shape with no text, symbols, or discernible features.

87.50 MHz 87.50 108.00 3 Stations Back Switch off Play in backgr. Stations Search all stat. Back

To search for all available stations, select Options > Search all stat..

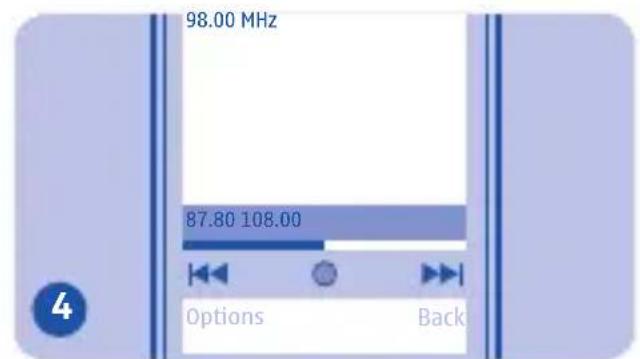

98.00 MHz 87.80 108.00 Options Back

To switch to a saved station, select

98.00 MHz 87.80 108.00 Options Back

To search manually, select and hold or

101.80 MHz 2 87.80 108.00 Options Back

Tip: To switch to a saved station, you can also press a number key.

101.80 MHz 87.50 108.00 Switch off Play in backgr. Save station Stations Back Back

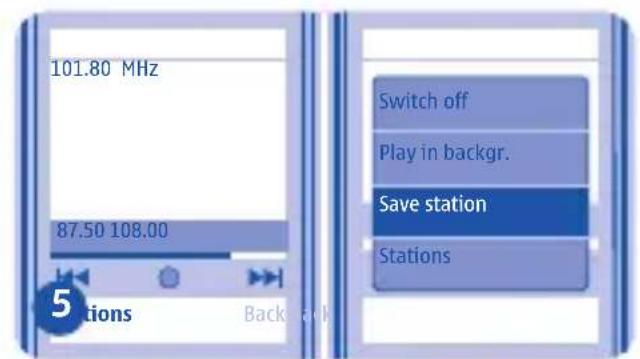

To save a station, select Options > Save station.

01. 88.5 MHz 02. 101.8 MHz 03. 106.6 MHz 04. 107.3 MHz Back 01. 88.5 MHz 02. 101.8 MHz Delete station Rename 1 Back

Tip: To rename a station, select and hold it, then select Rename.

Play a song

Illustration of a person holding a smartphone with musical notes and a tree in the background (no text or symbols)

Listen to your favourite music on your phone.

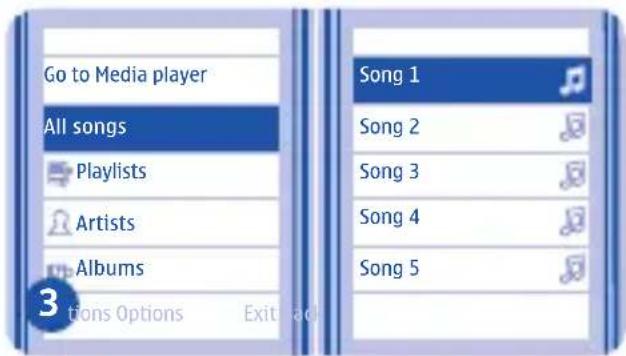

Go to Media player All songs Playlists Artists Albums 3 tions Options Exit Back Song 1 Song 2 Song 3 Song 4 Song 5

Select the song you want to play.

1 Options Back

Select Menu > Music.

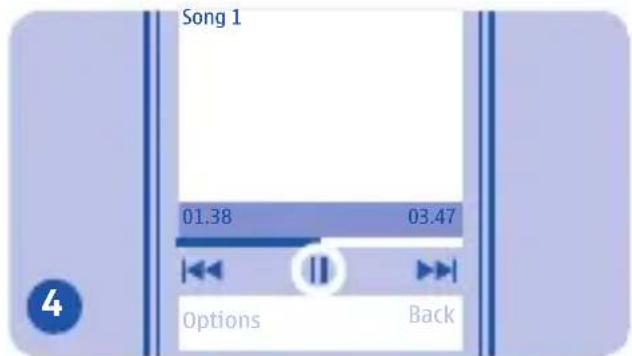

Song 1 01.38 03.47 Options Back

To pause or resume playing, select || or ▶.

My music Radio Back

Select My music.

Song 1 00:29 03:47 Options Back

To close the music player, press 📞

Take a photo

Illustration of a man taking a selfie with the Eiffel Tower in the background, alongside a close-up of the Eiffel Tower (no text or symbols)

There's a camera in your phone — just aim and snap!

Illustration of the Eiffel Tower in Paris, no text or symbols present

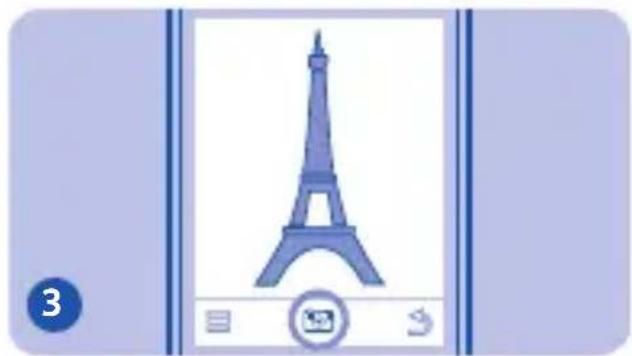

Select

The photos are saved in My photos.

Camera My photos Timeline My albums Back

To open the camera, select Menu > Photos > Camera.

Illustration of a hand holding a Eiffel Tower with app icons, no text or symbols present

Use the volume keys to zoom in or out.

Record a video

Illustration of a smartphone displaying cars on a road with trees in the background (no text or symbols)

Besides taking photos, you can also record videos with your phone.

00:30:00 3

Use the volume keys to zoom in or out.

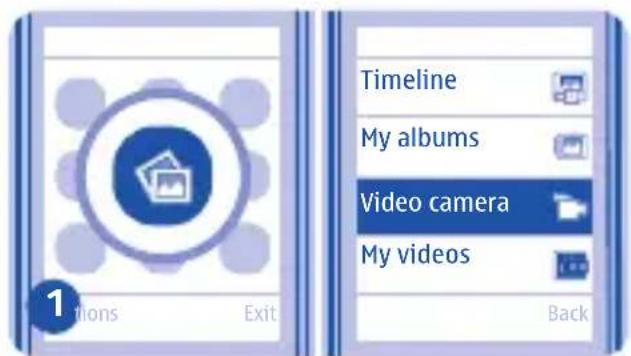

Timeline My albums Video camera My videos Back

To open the camera, select Menu > Photos > Video camera.

00:28:08 4

To stop recording, select 📋 Videos are saved in My videos.

Illustration of a car inside a mobile phone interface (no text or symbols on the car or phone)

To start recording, select

Browse the web

Illustration of two people in a meeting, one using a tablet and the other using a smartphone, with a Paris app interface visible (no text or symbols on the main subjects)

Catch up on the news, and visit your favourite websites.

www.nokia.com www.nokia.com 3

To zoom in, tap the section of the web page you want to see better.

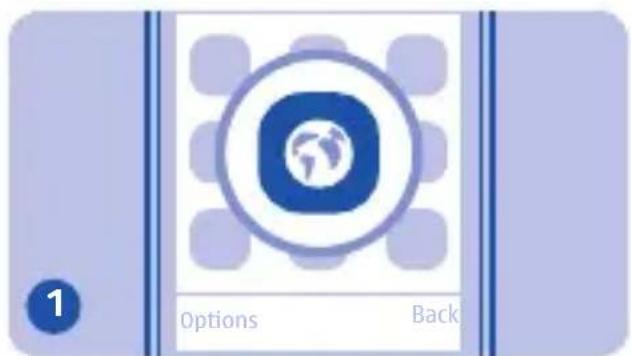

1 Options Back

Select Menu > Internet.

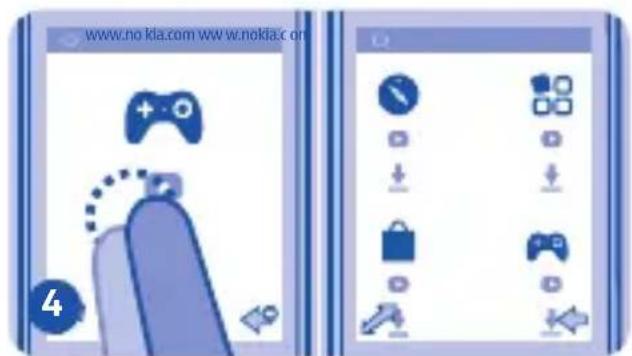

www.no kla.com www.w.noldac.cn 4

To zoom out, double-tap the screen.

abc www.nokia.com OK Clear

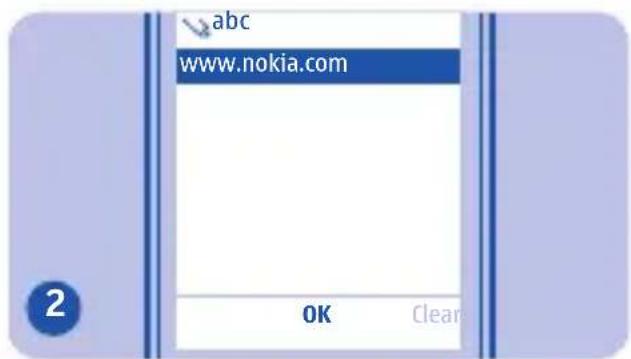

To go to a website, write the web address in the address bar.

Start page History www.nokia.com Start page Clear history Edit favourites Tools > Settings > Feedback Exit

Tip: In the Favourites view, you can select ≡ > Clear history.

Add a bookmark

If you visit the same websites often, add them as bookmarks.

Get social

Illustration of people interacting with a device and using mobile devices, no text or symbols present

The Social app is your gateway to social networking services.

1 Options Back

Select Menu > Internet.

1 Options Back

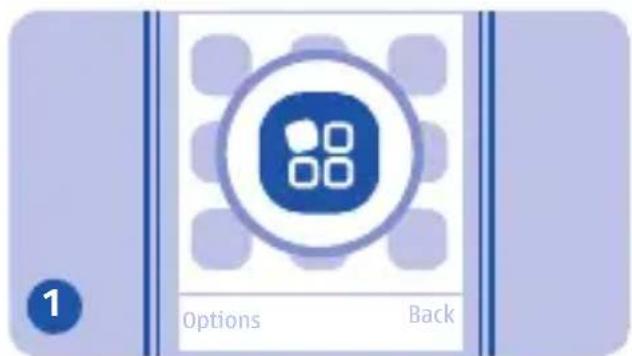

Select Menu > Apps.

Start page Add to favourites Tools > Settings > Feedback Exit

While browsing, select ➕ Add to favourites.

Apps and games Alarm clock Calculator Gallery Back Back Memory card Social Converter Tips and offers Options

Select Apps and games > Social. See 12.

Solid blue rectangular shape with no text, symbols, or patterns

Select community Service 1 Service 2 About Exit

Select a service, then sign in. See 12, 13.

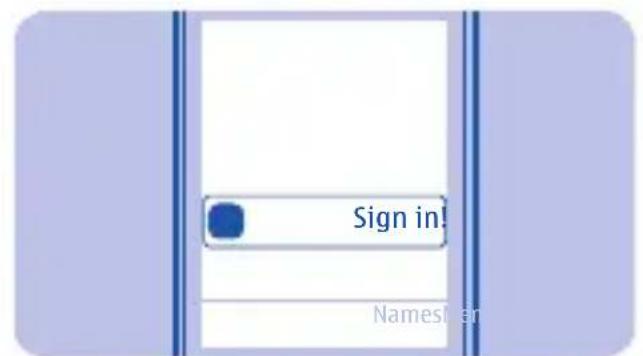

Sign in! Namest en

Tip: Add Social to your home screen to see the latest updates.

Set up your mail account

Mail

Want to mail, but have no computer at hand? Set up mail in your phone.

1 Options Back

Select Menu > Messaging.

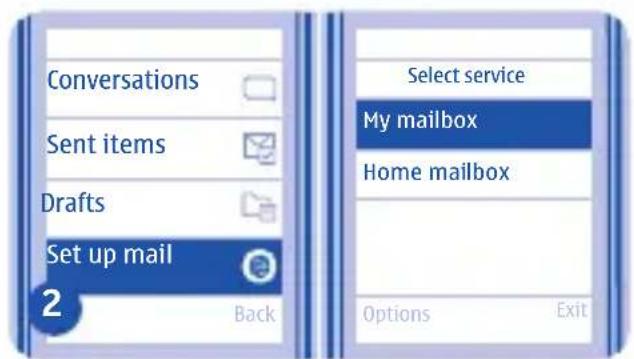

Conversations Sent items Drafts Set up mail 2 Back Select service My mailbox Home mailbox Options Exit

Select Set up mail and a mail service, then follow the instructions.

Send a mail

NOKIA Mike Hello Anna! Anna Hi Mike! Options Back

You can read and send mail while on the move.

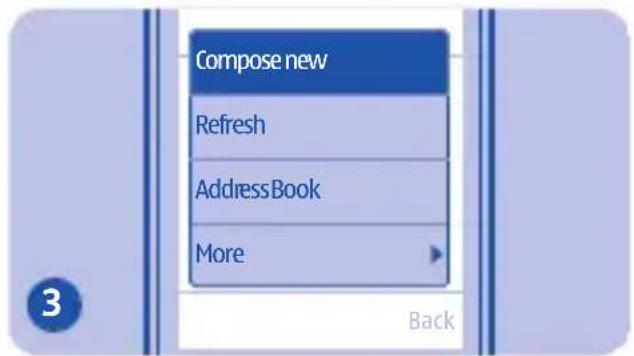

Compose new Refresh AddressBook More Back

In the mailbox, select Options >Compose new.

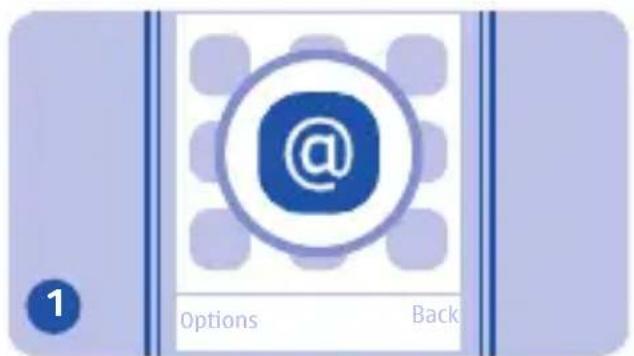

1 Options Back

Select Menu > Mail.

To: Subject: Message: Add Address Book Recently contacted Recent senders My contacts Back

To add a recipient, select Add, or manually write the address.

Select account [e-mail] Add account + Options Exit

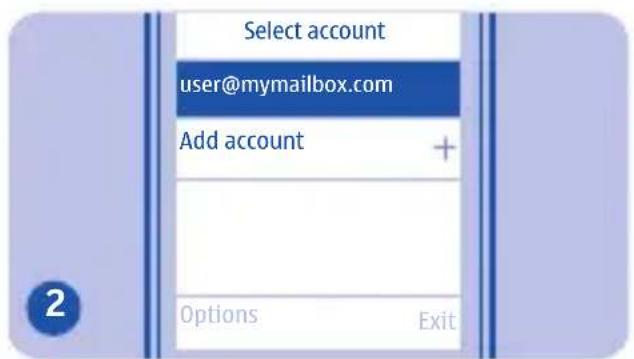

Select a mail account.

Subject: Thanks Message: abc Hi, how are you? Options Clear

Write the subject and your message.

Solid blue rectangular shape with no text, symbols, or patterns

Subject: Writing options Quick text Attach Save to Drafts Back

Tip: To attach a file, select Options > Attach.

Chat with your friends

Hi Mike!

You can chat with your friends online while on the move.

To: Anna Subject: Thanks Message: abc Hi, how are you? Send

Select Send.

Abstract icon with a speech bubble inside a circle, no text or symbols present

Select Menu > Chat.

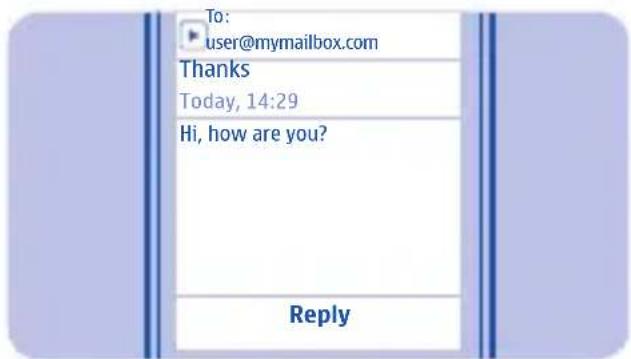

To: [e-mail] Thanks Today, 14:29 Hi, how are you? Reply

Tip: To reply to a mail, open the mail, then select Reply.

Select account [e-mail] [e-mail] Add new account Options Exit

Select a service, then sign in.

Solid blue rectangular shape with no text, symbols, or discernible features.

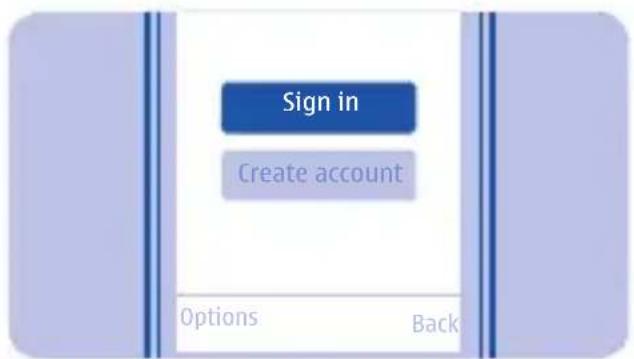

Sign in Create account Options Back

Tip: If you don't have a chat account, you can sign in to Nokia Chat.

[e-mail] Available Conversations [e-mail] Hello! Options Hide

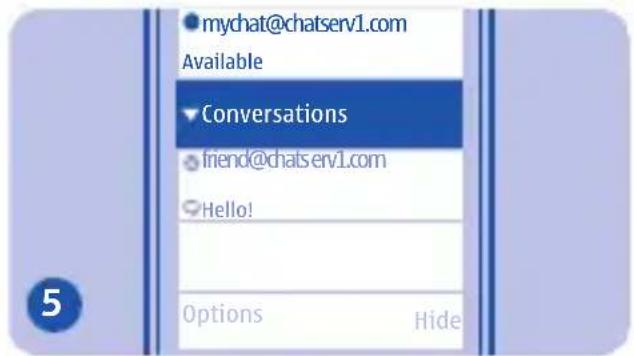

When you want to continue a conversation, select the thread.

[e-mail] Add friend Refresh entire list Collapse all Send IM to... Back

Select Send IM to... and a contact.

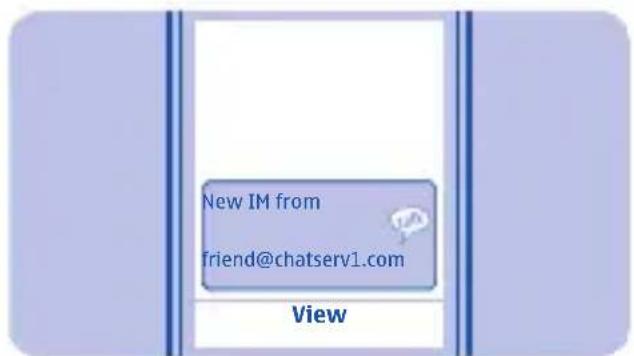

New IM from [e-mail] View

Tip: To see a message when Chat is open in the background, select View.

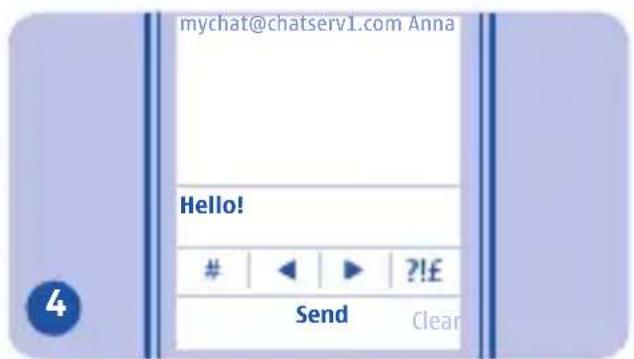

[e-mail] Anna Hello! # ◄►►?! ?! Send Clear

Write your message in the text box, then select Send. See → 6.

Send a photo using Bluetooth

Illustration of a person sitting at a desk with a laptop and a Bluetooth symbol (no text or symbols present)

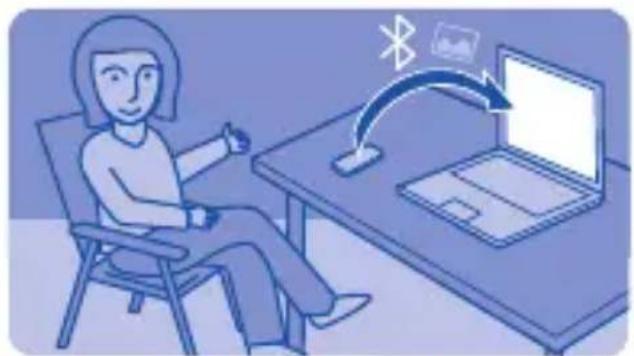

Send a photo you have taken to your PC.

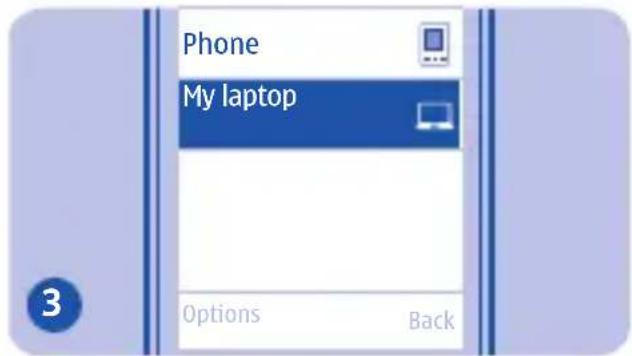

Phone My laptop Options Back

Select the device to connect to. If asked, type in the passcode. See 14.

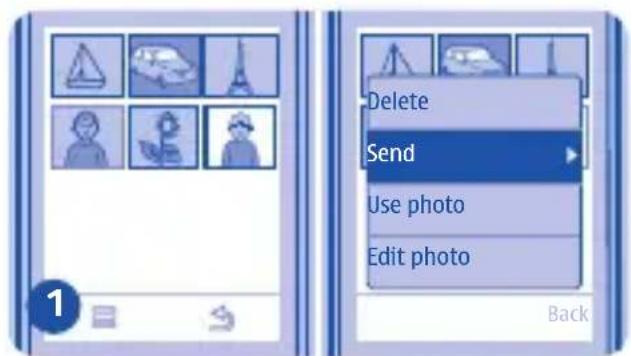

Delete Send Use photo Edit photo Back

Select and hold the photo, then select Send.

Illustration of a person sitting at a desk using a device, with a laptop displaying a person and a Bluetooth symbol above (no text or symbols present)

The photo is sent to your PC.

Delete Message Use Mail Via Bluetooth Edit Back

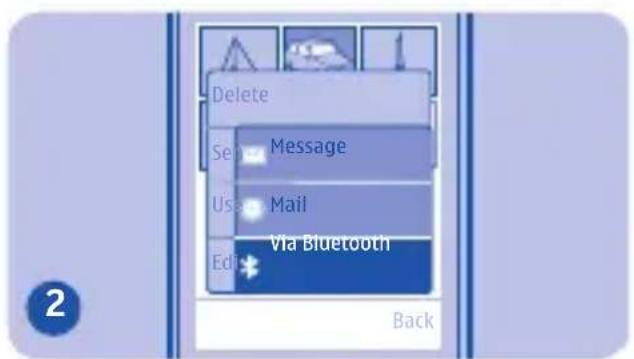

Select Via Bluetooth.

Copy between your phone and PC

Illustration of a person sitting at a desk using a laptop with a landscape icon on screen (no text or symbols)

Copy content between your phone and a compatible computer.

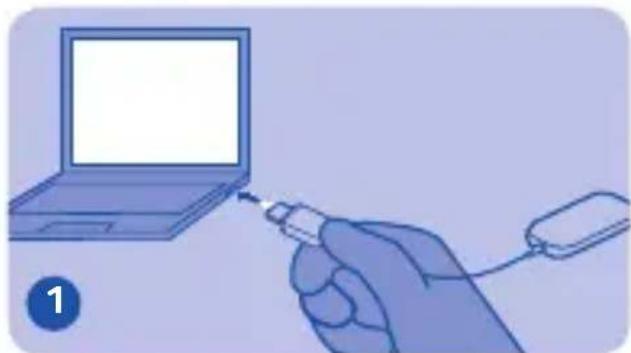

Illustration of a hand inserting a cable into a laptop (no text or symbols)

Connect your phone to a computer with a compatible USB cable.

USB mode: Nokia Ovi Suite Media transfer Mass storage Cancel

Select Nokia Ovi Suite, then copy the content.

Update phone software using your PC

Illustration of a person sitting at a desk using a computer (no text or symbols visible)

Update your phone software with the Nokia Suite PC app. You can also back up the photos and other stuff in your phone to your computer.

You need a compatible PC, a high-speed internet connection, and a compatible USB cable to connect your phone to the PC.

To get more info and to download the app, go to www.nokia.com/support.

Update phone software using your phone

NOKIA NOKIA

You can update your phone software wirelessly. You can also set your phone to automatically check for updates.

Select Menu > Settings and Device > Device updates.

1. To check if there is an update, select Current sw details.
2. To download and install an update, select Downl. device sw, then follow the instructions shown on the phone.

The update may take several minutes. If you encounter problems, contact your network service provider.

Check for updates automatically

Select Automatic SW update, then set how often to check.

Your network service provider may send updates over the air directly to your phone. For more info on this network service, contact your network service provider.

Back up content to a memory card

NOKIA Messages Bookmarks Calendar Gallery files Apps and games Options Done

Want to make sure you won't lose any important files? You can back up your phone memory to a compatible memory card.

1. Select Menu > Settings > Sync & backup.
2. Select Create backup.
3. Select what you want to back up, then select Done.

Restore a backup

Select Restore backup.

Access codes

PIN or PIN2 code(4-8 digits)	You can set your phone to ask for the PIN code when you switch it on.If not supplied with your card or you forget the codes, contact your service provider.If you type in the code incorrectly three times in a row, you need to unblock the code with the PUK or PUK2 code.
PUK or PUK2 code(8 digits)	These are required to unblock a PIN or PIN2 code.
IMEI number(15 digits)	This is used to identify valid phones in the network. The number can also be used to block, for example, stolen phones. You may also need to give the number to Nokia Care services.To view your IMEI number, dial *#06#.
Lock code(security code)(min. 5 digits)	This helps you protect your phone against unauthorised use.You can set your phone to ask for the lock code that you define. The default lock code is 12345.Keep the code secret and in a safe place, separate from your phone.If you forget the code and your phone is locked, your phone will require service. Additional charges may apply, and all the personal data in your phone may be deleted.
	For more information, contact Nokia Care or your phone dealer.

Support

WWW.mokia.com/support

When you want to learn more about how to use your phone, or if you're unsure how your phone should work, go to www.nokia.com/support.

Your questions may have been asked before. On the support web pages, select Frequently asked questions.

From the support pages, you can also find news on apps, downloads, and other useful info, such as:

• User guides
- Software update info
• Further details about features and technologies, and the compatibility of devices and accessories

If you have an issue, do the following:

- Reboot your phone. Switch the phone off, then remove the battery. After about a minute, put the battery back in, then switch the phone on again.

• Update your phone software
• Restore the original factory settings

If your issue remains unsolved, contact Nokia for repair options. Go to www.nokia.com/repair. Before sending your phone for repair, always back up your data, as all personal data in your phone may be deleted.

Protect the environment

Save energy

You do not need to charge your battery so often if you do the following:

• Close applications and data connections, such as your Bluetooth connection, when not in use.
• Deactivate unnecessary sounds, such as touch screen and key tones.

Recycle

we:

When this phone has reached the end of its working life, all of its materials can be recovered as materials and energy. To guarantee the correct disposal and reuse, Nokia co-operates with its partners through a program called We:recycle. For information on how to recycle your old Nokia products and where to find collection sites, go to www.nokia.com/werecycle, or call the Nokia Care contact centre.

Recycle packaging and user guides at your local recycling scheme.

The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not dispose of these products as unsorted municipal waste. For more information on the environmental attributes of your phone, go to www.nokia.com/ecoprofile.

General information

Read these simple guidelines. Not following them may be dangerous or illegal. For further information, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

BATTERIES, CHARGERS, AND OTHER ACCESSORIES

Use only batteries, chargers, and other accessories approved by Nokia for use with this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

GLASS PARTS

The device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel.

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use.

Product and safety information

Feature specific instructions

1 Avoid touching the antenna area while the antenna is in use. Contact with antennasects the communication quality and may induce battery life due to higher power level ing operation.

2 Use only compatible memory cards proved by Nokia for use with this device. Compatible cards may damage the card and device and corrupt data stored on the d.

3 Important: Avoid scratching the ch screen. Never use an actual pen, pencil, other sharp object on the touch screen.

4 Important: This device is designed be used with a standard SIM card (see

figure) only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. Please consult your mobile operator for the use of a SIM card that has a mini-UICC cutout.

5 Missed and received calls are logged only if supported by the network, and the phone is switched on and within the network service area.

6 Using services or downloading content may cause transfer of large amounts of data, which may result in data traffic costs.

7 You can send text messages that are longer than the character limit for a single message. Longer messages are sent as two or more messages. Your service provider may charge accordingly.

Characters with accents, other marks, or some language options, take more space, limiting the number of characters that can be sent in a single message.

8 If the item you insert in a multimedia message is too large for the network, the device may automatically reduce the size.

9 Only compatible devices can receive and display multimedia messages. Messages may look different in different devices.

10 Sending a message with an attachment may be more expensive than sending a normal text message. For more information, contact your service provider.

11 The edited ringtone does not replace the original ringtone or sound clip. Preset ringtones cannot be modified, and not all formats of ringtones are supported.

12 Only those features that are supported by the social networking service are available.

Using social networking services requires network support. This may involve the transmission of large amounts of data and related data traffic costs. For information about data transmission charges, contact your service provider.

13 The social networking services are third party services and not provided by Nokia. Check the privacy settings of the social networking service you are using as you may share information with a large group of people. The terms of use of the social networking service apply to sharing information on that service. Familiarise yourself with the terms of use and the privacy practices of that service.

14 Operating the device in hidden mode is a safer way to avoid malicious software. Do not accept Bluetooth connection requests from sources you do not trust. You can also deactivate Bluetooth function when you are not using it.

15 To enter the + character, used for international calls, select * twice.

16 Warning: When the flight profile is activated, you cannot make or receive any calls, including emergency calls, or use other features that require network coverage. To make a call, activate another profile.

Network services and costs

Your device is approved for use on the (E)GSM 900 and 1800 MHz networks. To use the device, you need a subscription with a service provider.

Using network services and downloading content to your device requires a network connection and may result in data traffic costs. Some product features require support from the network, and you may need to subscribe to them.

Take care of your device

Handle your device, battery, charger and accessories with care. The following suggestions help you protect your warranty coverage.

- Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits. If your device gets wet, remove the battery, and allow the device to dry.

• Do not use or store the device in dusty or dirty areas. Moving parts and electronic components can be damaged.
• Do not store the device in high temperatures. High temperatures can shorten the life of the device, damage the battery, and warp or melt plastics.
• Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside the device and damage electronic circuits.
• Do not attempt to open the device other than as instructed in the user guide.
• Unauthorised modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and mechanics.
• Only use a soft, clean, dry cloth to clean the surface of the device.
• Do not paint the device. Paint can clog moving parts and prevent proper operation.
• Switch off the device and remove the battery from time to time for optimum performance.
• Keep your device away from magnets or magnetic fields.
• To keep your important data safe, store it in at least two separate places, such as your device, memory card, or computer, or write down important information.

Recycle

Always return your used electronic products, batteries, and packaging materials to

dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. Check how to recycle your Nokia products at www.nokia.com/recycling.

Batteries and chargers Battery and charger information

Your device is intended for use with a BL-5C rechargeable battery. Nokia may make additional battery models available for this device. Always use original Nokia batteries.

This device is intended for use when supplied with power from the following chargers: AC-11. The exact Nokia charger model number may vary depending on the plug type, identified by E, X, AR, U, A, C, K, or B.

The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby times are noticeably shorter than normal, replace the battery.

Battery safety

Always switch the device off and disconnect the charger before removing the battery. When you unplug a charger or an accessory, hold and pull the plug, not the cord.

When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery connected to a charger, as overcharging may shorten the battery's lifetime. If left unused, a fully charged battery will lose its charge over time. Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily.

Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery, for example, if you carry a spare battery in your pocket. Short-circuiting may damage the battery or the connecting object.

Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when possible. Do not dispose as household waste.

Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a battery leaks, do not let battery liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help.

Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.

Use the battery and charger for their intended purposes only. Improper use, or use of unapproved batteries or incompatible chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the battery or charger is damaged, take it to a service centre for inspection before continuing to use it. Never use a

damaged battery or charger. Only use the charger indoors.

Additional safety information

Make an emergency call

1. Make sure the device is switched on.
2. Check for adequate signal strength. You may also need to do the following:

• In insert a SIM

• Deactivate call restrictions you have activated for your device, such as call barring, fixed dialling, or closed user group.
• Make sure the flight profile is not activated.
• If the device screen and keys are locked, unlock them.
• Press the end key repeatedly, until the home screen is displayed.
• Enter the official emergency number for your present location. Emergency call numbers vary by location.
• Press the call key.
• Give the necessary information as accurately as possible. Do not end the call until given permission to do so.

Important: Activate both cellular and internet calls, if your device supports internet calls. The device may attempt to make emergency calls both through cellular networks and through your internet call service provider. Connections in all conditions cannot be guaranteed. Never rely solely on any wireless device for essential communications like medical emergencies.

Small children

Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.

Medical devices

Operation of radio transmitting equipment, including wireless phones, may interfere with the function of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine whether they are adequately shielded from external radio frequency energy.

Implanted medical devices

Manufacturers of medical devices recommend a minimum separation of 15.3 centimetres (6 inches) between a wireless device and an implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential interference with the medical device. Persons who have such devices should:

• Always keep the wireless device more than 15.3 centimetres (6 inches) from the medical device.
- Not carry the wireless device in a breast pocket.
- Hold the wireless device to the ear opposite the medical device.
- Turn the wireless device off if there is any reason to suspect that interference is taking place.
- Follow the manufacturer directions for the implanted medical device.

If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.

Hearing

Warning: When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger your safety.

Some wireless devices may interfere with some hearing aids.

Operating environment

This device meets radio frequency exposure guidelines in the normal use position at the ear or at least 1.5 centimetres (5/8 inch) away from the body. Any carry case, belt clip, or holder for body-worn operation should not contain metal and should position the device the above-stated distance from your body.

To send data files or messages requires a quality connection to the network. Data files or messages may be delayed until such a connection is available. Follow the separation distance instructions until the transmission is completed.

Vehicles

Radio signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection, electronic antilock braking, electronic speed control, and air bag systems. For more information, check with the manufacturer of your vehicle or its equipment.

Only qualified personnel should install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories. Remember that air bags inflate with great force. Do not place your device or accessories in the air bag deployment area.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere, for example near gas pumps at service stations. Sparks in such areas could cause an explosion or fire resulting in bodily injury or death. Observe restrictions in fuel service stations, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include areas where you would be advised to turn off your vehicle engine, below deck on boats, chemical transfer or storage facilities and where the air contains chemicals or particles such as grain, dust, or metal powders. You should check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) to determine if this device can be safely used in their vicinity.

Certification information (SAR) This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The actual SAR level of an operating device can be below the maximum value because the device is designed to use only the power required to reach the network. That amount changes depending on a number of factors such as how close you are to a network base station.

The highest SAR value under the ICNIRP guidelines for use of the device at the ear is 0.90 W/kg.

Use of device accessories may result in different SAR values. SAR values may vary depending on national reporting and testing requirements and the network band. Additional SAR information may be provided under product information at www.nokia.com.

DECLARATION OF CONFORMITY

C€0168

Hereby, NOKIA CORPORATION declares that this RM-832 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/global/declaration.

© 2012 Nokia. All rights reserved.

Nokia, Nokia Connecting People, and WE: logo are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Includes RSA BSAFE cryptographic

or security protocol software from RSA Security.

POWERED Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nokia is under license.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

Reverse engineering of software in the device is prohibited to the extent permitted by applicable law. Insofar as this user guide contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall likewise limit any representations, warranties, damages and liabilities of Nokia's licensors.

The availability of products, features, applications and services may vary by region. For more information, contact your Nokia dealer or your service provider. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

Nokia does not provide a warranty for or take any responsibility for the functionality, content, or end-user support of third-party applications provided with your device. By

using an application, you acknowledge that the application is provided as is. Nokia does not make any representations, provide a warranty, or take any responsibility for the functionality, content, or end-user support of third-party applications provided with your device.

Some operations and features are SIM card and/or network dependent, MMS dependent, or dependent on the compatibility of devices and the content formats supported. Some services are subject to a separate charge.
