Product type	Portable CD player
Brand	JVC
Model	XL-PM400SE
Dimensions (W × H × D)	133.2 mm × 30.8 mm × 146.8 mm
Weight (with strap, without batteries)	250 g
Power supply	DC 3 V (2 R6/LR6 batteries) or DC 4.5 V AC adapter (not included)
Battery life (Anti-Shock off)	Approximately 30 hours with LR6 alkaline batteries
Readable formats	Audio CD, MP3 (ISO 9660 compatible)
Frequency response	20 Hz - 20 kHz
Headphone output	3.5 mm stereo jack, 9 mW/channel (10% THD, 16 Ω)
Anti-shock protection	Up to 175 s (Audio CD) / 426 s (MP3 128 kbps)
Playback functions	Normal, random, programmed, repeat, intro, MP3 group skip
Sound effect	Hyper-Bass (enhanced bass)
Key lock	Yes (HOLD switch)
Low battery indicator	Yes
Included accessories	Stereo headphones, strap
Maintenance	Clean with a soft cloth; lens: camera lens blower brush
Laser safety	Class 1 laser product – Do not open the casing
Standby power consumption	Low consumption even when off if adapter is plugged in

Frequently Asked Questions - XL-PM400SE JVC

What types of CDs can I play on the JVC XL-PM400SE?

This player plays standard audio CDs and CD-R/RW discs recorded in audio CD format. It also plays MP3 files burned on CD-R/RW discs compliant with ISO 9660.

How can I prevent the player from accidentally turning on in my bag?

Use the HOLD switch on the side of the player. Set it to ON to disable all buttons. In standby mode, the indicator stays on.

What is the actual battery life?

With new LR6 alkaline batteries and anti-shock protection turned off, you can get about 30 hours of playback. Enabling anti-shock reduces this battery life.

How do I use the EX anti-shock protection?

Anti-shock protection is enabled by default. To turn it off (audio CD only), press A.S.P./GROUP UP until the ANTI SHOCK indicator turns off. To turn it back on, press again. It buffers up to 175 s of music.

Why does the display show 'dISC' when a CD is inserted?

This can happen if the CD is misaligned, damaged, or inserted upside down (printed side down). Check the disc placement and condition.

Can I use an AC adapter?

Yes, you can use the AA-R4514 AC adapter (not included). Plug it into the DC IN 4.5 V jack. Even when off, there is a small power draw, so unplug it if not in use for a long time.

How do I program the track playback order?

In stop mode, press PROGRAM to enter programming mode. For MP3, first select the group (e.g., 02) with the skip buttons, then the track. Confirm with PROGRAM. You can program up to 64 tracks.

What if the CD does not close properly?

Make sure the CD is placed correctly on the center spindle. If the lid doesn't close, do not force it. Check that nothing is obstructing and that the disc is not warped.

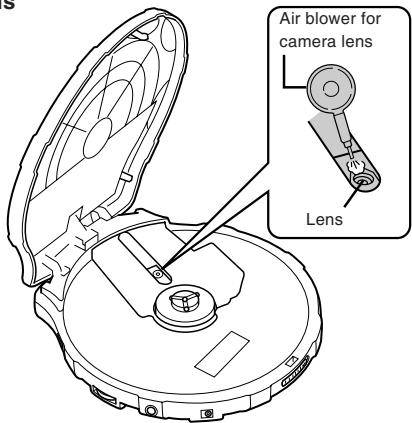

How do I clean the laser lens?

Use a camera lens blower brush to remove dust. Never use cotton swabs or chemicals. If the problem persists, consult a qualified technician.

Can I use rechargeable batteries?

Yes, rechargeable R6 (AA) batteries can be used, but they must be charged with a suitable charger (not included). Battery life will be lower than with alkaline batteries.

USER MANUAL XL-PM400SE JVC

Technical line drawing of a mechanical device with circular components and mounting holes (no text or symbols)

Warnings, Cautions and Others

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

¡ADVERTENCIA!

ESTE APARATO UTILIZA UN LÁSER.

• Do not block the ventilation opening or holes. (If the ventilation openings of holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted candles, on the apparatus.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

PRECAUCIÓN:

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

BELANGRIJK VOOR LASERPRODUKTEN

CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

Thank you for purchasing this JVC product. Please read these instructions carefully before starting operation to be sure to obtain optimum performance and a longer service life from the unit.

Table of Contents

Put the grip band on your hand ....1

Power Supply Preparations 2

About MP3 files 4

Basic Play 5

Other Play Methods 8

Concerning Compact Discs 12

Cautions 13

Troubleshooting 15

Specifications 16

Maintenance 16

Put the grip band on your hand

Adjust the grip band to your hand size.

Line drawing of a hand holding a belt buckle with an arrow indicating rotation (no text or symbols)

Supplied Accessories

Stereo headphone 1 pc.

Power Supply Preparations

The illustration of the grip band is omitted.

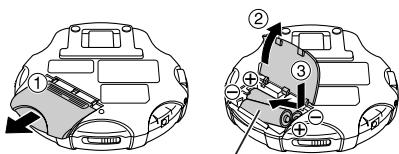

Using dry-cell batteries (not supplied)

Technical diagram showing two views of a mechanical component with numbered parts and directional arrows indicating movement or assembly.

Two "R6" (LR6) alkaline batteries.

Caution:

Do not forcibly open the battery lid too wide.

Battery indicator

Simple curved line drawing with a small square marker at the top-right corner (no text or symbols)

Battery indicator

This indicator appears when the batteries are almost out of power. Power will be cut off a short while later.

Note:

Turning off the Anti-Shock Protection EX will save the battery power more or less. For details, see “Anti-shock Protection EX” on page 11. (Available for an Audio CD only)

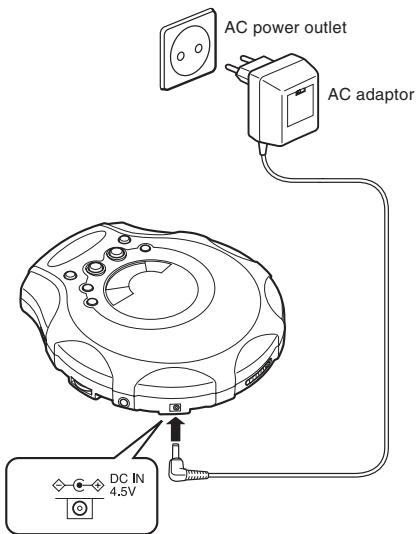

Using the AC adaptor (not supplied)

AC power outlet AC adaptor DC IN 4.5V

Notes:

• Even if the unit is turned off, small power is consumed as long as the AC adaptor is connected to the AC power outlet.
• When you want to purchase the AC adaptor, see page 14.

Preventing Accidental Operation (Hold mode)

This function causes the unit to ignore, accidental button presses.

Hold mode prevents the following:

• Powering on the unit accidentally (which can cause the batteries to go dead).
• Play being cut off unexpectedly.

To use the Hold mode

• To prevent the unit from powering on accidentally, set the HOLD switch to the ON position while the unit is turned off.
• To prevent the unit from unexpected operation during play, set the HOLD switch to the ON position after you starts playing the disc.
• When the unit is in Hold mode, "HOLd" and "☐" lights as follows.

Power on : “ 🔒 ” stays lit.

Power off : "HOLd" and "●-■" lights up for a few seconds when ▶/Ⅱ is pressed.

Note:

If the HOLD switch is set to the ON position, you cannot turn on the unit.

About MP3 files

MP3 File Compatibility

• This player can read MP3 files that are recorded in the format that is compliant with ISO 9660.
• The player can read or play an MP3 file with the extension code —“.mp3”.

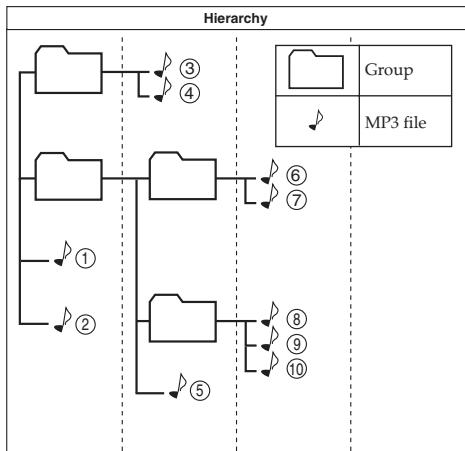

Playing order of MP3 files

The illustration below shows the normal playing order of the MP3 files. You will see that the MP3 files are played back in the order from the higher hierarchy to the lower one.

Basic Play

The illustration of the grip band is omitted.

5 3 4, 6 1 2

1

R L Firmly connect

2

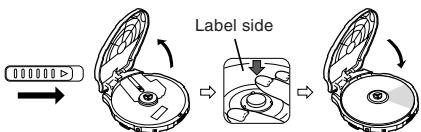

Label side

3
4

HOLD OFF ON

VOLUME →

(To be continued on the next page)

5

For Audio CD

Track number in play 01.02:53 Elapsed playing time of each track

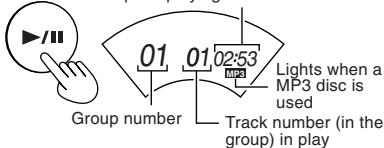

For MP3
Elapsed playing time of each track

01 01 02:53 Group number Lights when a MP3 disc is used Track number (in the group) in play

Play stops automatically when all the track have been played.

6

VOLUME

For your reference:

"dISC"

This indication appears if ▶/Ⅲ is pressed when no disc is loaded or if the disc is not properly seated.

Preparation period before playing the track

Flashes for several seconds after pressing ▶/Ⅱ to play.

"OPEN"

This indication appears when the lid is open.

Removing discs

Turn off the unit and, after the disc has stopped rotating, remove the disc as shown below:

Illustration of hands operating a mechanical device with a knob and pointer (no text or symbols)

Auto power off

If the unit is left in stop mode for 30 seconds, the unit turns itself off automatically to prevent the batteries from running down.

Disc rotation noise

The portable CD player uses a power-saving operation method so that disc rotation noise will intermittently be emitted. But, it is not a failure.

To pause

During play,

For Audio CD

0700:18-

For MP3

01 0400:07-

Press again to restart play.

To stop

During play,

For Audio CD

Total number of tracks

Total playing time

For MP3

Total number of groups

10 35 Total number of tracks

To turn off the unit

While stopped,

No indication

Fast forward/reverse

Skip function

During play,

Forward Reverse

Search function

Keep depressed during play.

• To skip back to the previous track, quickly press ◀◀ twice.
• During Program play, the button is used to fast forward or back through the programmed sequence of tracks.
• During Random play, the skip button cannot be used to skip back to tracks that were played previously in the random sequence.

Group skip (MP3 only)

During play or while stopped,

Group number

Other Play Methods

Intro play

You can successively play the first 10 seconds of every track.

1 While stopped,

(Repeatedly)

INTRO

2

To cancel

Press MODE repeatedly until "INTRO" goes out.

Notes:

• You can also select Intro play during playback.
  In this case, Intro play will start from the next track after the current track has finished.
• You can also select Intro play during Program play mode.

Random play

During playback,

MODE (Repeatedly) RND

After playing all tracks, the unit stops.

To cancel

Press MODE until "RND" goes out, or press ■ to stop the disc.

Notes:

• You can also select Random play in stop mode.
• During Program play, you can not select Random play.

Program play

You can program up to 64 tracks in any desired order including the same tracks.

For Audio CD, go to step 3.

Though the display differs a little, operation is the same.

1 (MP3 only) While stopped,

PROGRAM -00-00 P-01 Program sequence number

2 (MP3 only) Select the desired group number. (e.g.02)

-02-01 P-01 Group number

3

PROGRAM 02-01 P-01

4 Select the desired track.

02-03 P-01 Track number

5

PROGRAM -00-00 PROG P-02

The track is registered.

(To be continued on the next page)

6 For MP3, repeat steps 2-5 to select other tracks. For Audio CD, repeat steps 4 and 5.

When you program exceeding 64 tracks, the program sequence number returns to "01" and will overwrite the previous setting.

7

• To confirm the program

While stopped, press PROGRAM repeatedly. At this time, you can add and change the program, if required.

• To delete the entire program

While stopped, press STOP. Or turn off the unit.

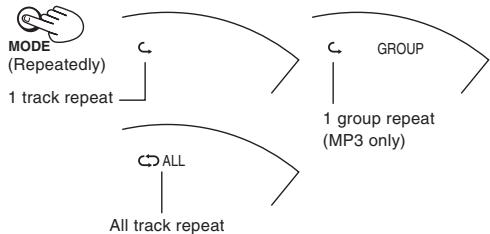

Repeat play

During playback,

To cancel

Press MODE repeatedly until the repeat indicator goes out.

Notes:

• You can also select Repeat play during Program play.
• You can also select Repeat play while stopped.

Hyper-Bass Sound effect

You can enjoy powerful bass sound.

HBS OFF 1 2

Anti-Shock Protection EX

This function achieves excellent performance against sound interruption caused by vibrations. You will be able to enjoy listening to music during (not vigorous) jogging. By utilizing the high-performance servo circuit, audio data will be stored in the memory ahead of time.

For Audio CD: Up to 175 seconds worth (Anti-Shock Protection on/off selectable)

For MP3: Up to 426 seconds worth at 128 kbps (Anti-Shock Protection is fixed to on.)

Normally, this function is in effect.

ASP ANTI SHOCK indicator

As the audio data is gradually stored, the indicator changes as follows:

-ASP- → ASP [Fully stored]

(Audio CD only) To cancel

The "ANTI SHOCK" indicator goes out.

(Audio CD only) To activate again

Press A.S.P./GROUP UP.

Notes:

• During this operation, the disc rotates at a higher rate than usual in order to collect extra audio data. This may cause the batteries to run out faster and could result in a slight increase in disc rotation noise.
• This function can be switched ON and OFF during playback. However, this may cause a slight interruption in the sound because the disc's rotational speed changes.

Concerning Compact Discs

Only compact discs bearing this mark can be used with this unit. However, continued use of irregular shape CDs (heart-shape, octagonal, etc.) can damage the unit.

CD-R and CD-RW discs recorded with the audio CD format can be played back, though some may not be played back because of the disc characteristics or recording condition.

How to remove a disc from its case

Illustration of hands operating a circular device with a pointer (no text or symbols visible)

How to store the disc in its case

Label side up

de up

How to hold a disc

If the disc surface is dirty

Wipe it with a damp cloth and then wipe dry.

Wipe from the center toward the outer edge.

Play surface (shiny surface)

O × I

If moisture has formed on a disc

When moisture has formed because the disc was brought suddenly into a warm room from a cold environment, wipe off the moisture using a soft dry cloth.

When storing discs

Avoid locations which are

• Exposed to direct sunlight.
• Susceptible to high levels of humidity or dust.
• Directly exposed to heat from a heating appliance.
• On top of a car dashboard or near the rear window.

Handling precautions

• On the label side (the side with writing)
  Do not write anything using a pencil, ball-point pen, etc. Do not use adhesive paper or labels.
• On the disc (shiny) side
  Handle this side carefully to keep it free from fingerprints or scratches. Do not use record cleaners, solvents, etc.
• Do not attach labels or stickers to CDs.
  Do not use CDs with exposed adhesive from tape or left over peeled off stickers.
• Do not use scratch-proof protectors or covers other than those specified for use with this unit.

Cautions

Listening Precautions

• Do not play your headphones at a high volume. Hearing experts advise against continuous extended play.
• If you experience a ringing in your ears, reduce volume or discontinue use.
• Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.
• You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
• Even if your headphones is an open-air type designed to let you hear outside sounds, don't turn up the volume so high that you can't hear what's around you.

Rechargeable batteries

• Rechargeable batteries (not supplied) can be used.
• To use the rechargeable batteries, follow the instruction manual attached to the rechargeable batteries and charger (not supplied).

Dry cell batteries

To prevent damage to the batteries and electrolyte leakage, heed the following points.

• Align the and polarities properly when inserting the batteries.
• Do not mix different types or makers of batteries or old and new batteries.
• Remove the batteries if you do not plan to use the unit for a long period of time.
• Do not throw batteries into a fire, and do not short-circuit, disassemble or subject them to excessive heat.
• Do not attempt to recharge dry cell batteries.

Carrying dry cell batteries around

When putting dry cell batteries in a pocket or bag, ensure that no other metal objects such as a necklace are placed together with them. Contact with metal may cause short-circuiting which, in turn, may cause a fire.

AC adaptor

• Handle the AC adaptor carefully. Improper handling is dangerous.
• Do not touch it with wet hands.
• Do not place heavy objects on top of it.
• Do not forcibly bend it.
• Be sure to connect only the specified AC adaptor with the unit.
• Disconnect the AC adaptor from the power outlet if the unit is not going to be used for a long time.

Unit

No altering or remodeling

This can cause malfunctioning.

No dropping or strong impacts

This may damage the unit.

Locations to be avoided

Avoid using the unit in the following locations since they can cause malfunctioning.

1. Bathrooms and other moisture-prone places.
2. Warehouses and other dusty places
3. Very hot places near heating appliances, etc.

Do not leave the unit exposed to direct sunlight for long periods of time

This may deform or discolor the cabinet and may also cause malfunctioning.

When purchasing AC adaptor

Be absolutely sure to purchase the AC adaptor designed especially for this unit.

AC adaptor: AA-R4514

For details, check with your dealer.

Troubleshooting

Problem	Check this
Does not turn on.	Is the AC adaptor securely connected?Is the HOLD switch set to OFF position?
Cannot close the lid.	Is the disc properly secured in place?
Cannot play discs.	Is the disc properly secured in place?Is there moisture condensation on the lens?(Wait for about an hour and then try again.)Are MP3 files recorded on the disc?Do MP3 files have the extension code—.mp3?Are MP3 files recorded in the format compliant with ISO 9660?
Cannot hear music—too noisy.	Is the headphone plug inserted all the way?Is the plug dirty? (Wipe away dirt on the plug.)Are you playing a compatible disc? While playing a non-MP3 file, you will hear a noise. (Note it may not be an MP3 file although it has the extension code—.mp3.)
TV picture is distorted.Radio reception is noisy.	Are you using the unit too near a TV or tuner? (If the TV or tuner is connected to a simple indoor antenna, connect it to an outdoor antenna.)
“dISC” or “Er” is displayed when a disc is in the player.	Is the disc damaged?Is the disc playable on this player?Has the disc been inserted upside down?

If the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.

Specifications

Portable CD player

Type	: Compact disc player
Signal detection system	: Non-contact optical pickup (semiconductor laser)
Pickup system	: 3 beam laser
Number of channels	: 2 channels (stereo)
Frequency response	: 20 Hz to 20 kHz
Wow & flutter	: Unmeasurable
Output	: Headphones (3.5 mm dia. stereo × 1)9 mW/ch at 10 % THD/16 Ω matching impedance (16 Ω to 1 kΩ)
Duration of battery(with Anti-Shock Protection EX OFF)	: Approx. 30 hours when using two alkaline batteries (LR6)
Power requirements	: DC 3 V (“R6” size battery × 2)DC 2.4V (rechargeable battery × 2)DC IN 4.5 V
Dimensions (W×H×D)	: 133.2 mm × 30.8 mm × 146.8 mm(Excluding buttons and controls)
Mass	: 250 g(with grip band, without batteries)

AC adaptor (not supplied)

Input power source	: AC 230 V, 50 Hz
Output voltage	: DC 4.5 V, 600 mA

* Design and specifications are subject to change without notice.

Maintenance

Unit

Wipe the unit with a soft cloth. Remove stubborn dirt using a cloth which has been dipped in water or soapy water and wrung out, and then wipe dry.

• If you intend to use a chemically treated cleaning cloth, read its directions first.
• Do not use alcohol or paint thinners.

Lens

Air blower for camera lens Lens

Line drawing of a hand holding a belt buckle with an arrow indicating rotation (no text or symbols)

Technical diagram showing two views of a mechanical component with numbered parts and directional arrows indicating movement or assembly.

Simple curved line drawing with a small square marker at the top center (no text or symbols)

Indicador de pilas

HOLD OFF ON

VOLUME

Illustration of hands operating a mechanical device with a knob and arrow indicator (no text or symbols)

Two hand icons interacting with circular buttons, one pointing at a play button and the other with a question mark (no text or symbols)

-02-01 P-01

Número de grupo

3

02-01 P-01

Two circular icons with triangular play button symbols connected by a finger, one dotted and one solid (no text or labels)

02-03 P-01

Número de melodía

5

-00-00 PROG P-02

-ASP- → ASP [Memoria completa]

Hand operating a circular device with a knob, no visible text or symbols

Illustration of hands operating a CD or DVD disc (no text or symbols visible)

Line drawing of a hand holding a belt buckle with an arrow indicating rotation (no text or symbols)

Technical diagram showing two views of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

Twee "R6" (LR6) alkalinebatterijen.

Voorzichtig:

Simple curved line drawing with a small square marker at the top center (no text or symbols)

Batterij-indicator

Illustration of hands operating a mechanical device with a knob and pointer (no text or symbols)

Two hand icons interacting with a circular button, one pointing at a triangular button and the other with a question mark and dotted outline (no text or symbols)

-02-01 P-01

Groepsnummer

3

02-01 P-01

Two circular icons with triangular play button symbols, one pointing at a finger and the other with a question mark and dotted line (no text or symbols)

02-03 P-01

Muziekstuknummer

5

-00-00 PROG P-02

Anti-schok-beveiliging EX

Hand operating a circular device with a knob, no visible text or symbols
