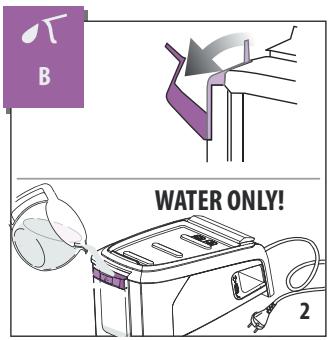

B WATER ONLY! 2

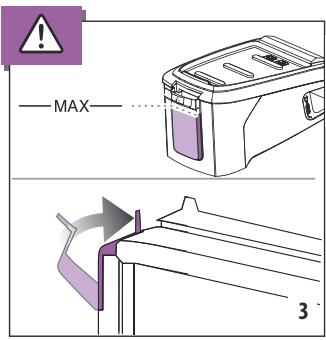

MAX 3

Uso - Use - Utilisation - Gebrauch - Gebruik - Uso - Utilização - Xρήση -

Illustration of a hand inserting a plug into a wall socket (no text or symbols)

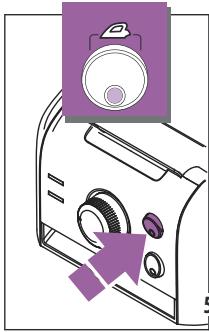

Illustration of a camera with a purple arrow pointing to the camera's side panel (no text or symbols present)

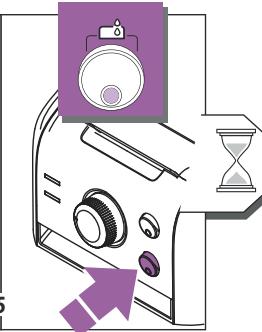

Illustration of a vintage camera with a purple camera and an hourglass, no text or symbols present

OK STEAM! 6

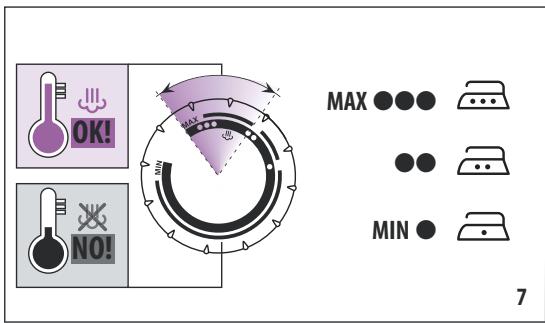

OK! NO! MAX ●●● ●● MIN ● 7

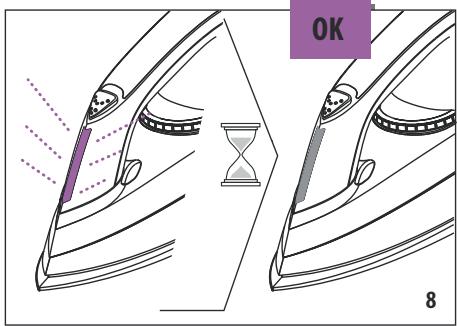

OK 8

Line drawing of an iron (£) with a purple arrow indicating motion, and cloud shapes below (no text or symbols)

Dua 1 10

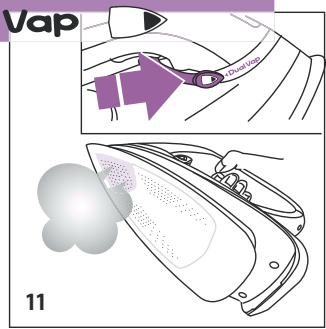

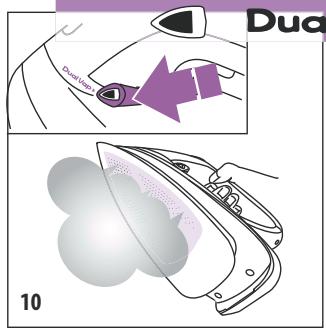

Vap 11

Caratteristiche - Features - Caractéristiques - Eigenschaften - Kenmerken - Características -

Характнріστικά - Особенности - Jellemzók - Parametry - Vlastnosti - Charakterystyki - Özellikler

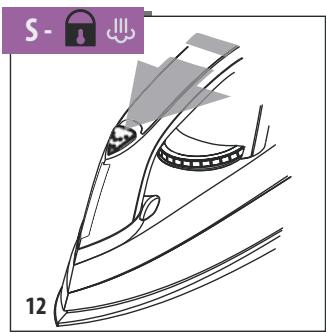

S - lock 12

L* 13

OF 14 fig. 1-3

Illustration of a toaster oven with purple arrows indicating motion or operation (no text or symbols)

OK 16

NO 17

NO!

Diagram of a device with a purple and gray hose and a magnified inset showing a device (no text or symbols)

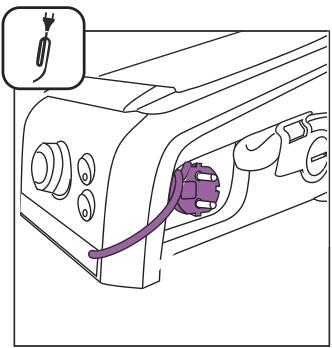

Diagram of a device's cable connector with purple cable and connector (no text or symbols)

Diagram showing a hair iron being placed on a machine, with labeled parts and directional arrows indicating movement.

Diagram of a toaster oven with labeled parts and directional arrow indicating rotation

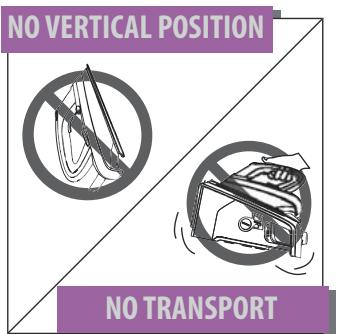

NO VERTICAL POSITION NO TRANSPORT

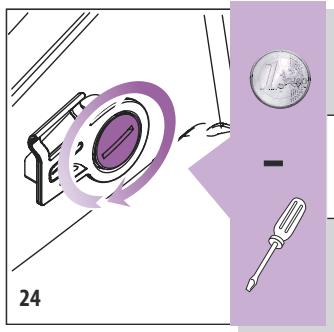

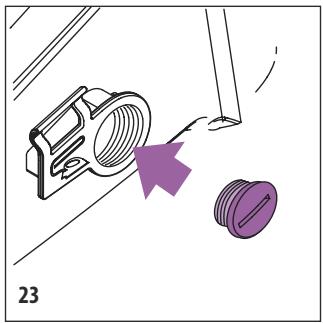

Anticalc System

IT Assicurarsi che l'apparecchio sia spento e scollegato dalla rete elettrica e completamente freddo.
EN Make sure the appliance is turned off, unplugged from the mains and completely cold.
FR Assurez-vous que l'appareil est éteint, débranché et complètement froid.
DE Stellen Sie sicher, dass das Gerät ausgeschaltet, vom Stromnetz getrennt und vollständig abgekühlt ist.
NL Controleer of het apparaat is uitgeschakeld en is afgekoppeld van het elektriciteitsnet en volledig is afgekoeld.
ES Asegúrese de que el aparato esté apagado, desenchufado de la corriente y totalmente enfriado.
PT Certifique-se de que o aparelho está desactivado, desligado da corrente eléctrica e totalmente frio.

EL Βεβαιωθείτε ότι η συσκευή είναι σβηστή, αποσυνδεδεμένη από το ηλεκτρικό δίκτυο και εντελώς κρύα.
RU Убедитесь, что прибор выключен, отключен от сети электропитания и полностью остыл.
HU Győződjön meg, hogy a készülék ki van kapcsolva, teljesen hideg és le van választva az elektromos hálózatról.
CS Ujistěte se, že je spotřebič vypnutý a odpojený z elektrické sítě a zcela chladný.
SK Uistite sa, že je prístroj vypnutý, odpojený od elektrickej siete a úplne vychladnutý.
PL Upewnić się, że urządzenie jest wyłączone, odłączone od sieci elektrycznej i całkowicie zimne.
TR Cihazın kapalı, prizden çıkarılmış ve tamamen soğumuş olduğundan emin olun.

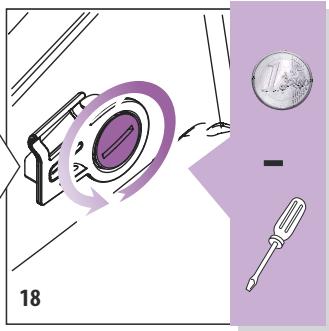

18 -

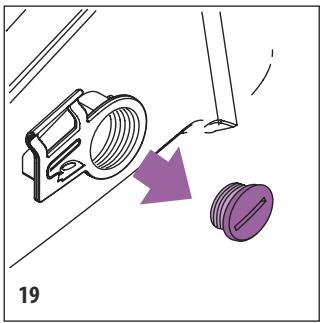

Diagram showing a mechanical component with a purple arrow pointing to a circular component, labeled '19' (no text or symbols on the diagram itself)

WATER ONLY! MAX 0,7L 20

Illustration of a portable kitchen appliance with motion arrows indicating rotation (no text or symbols)

(fig. 20, 21, 22) x2

Diagram showing a mechanical component with a purple arrow pointing to a purple threaded component, labeled '23' (no text or symbols on the diagram itself)

Illustration of a camera with a purple lens and a screwdriver, alongside a coin and a gear (no text or symbols)

fig. 1-3

Description - Important safeguards

en

Description

A Removable iron rest
B Iron "Safe Transport" housing
C Heat resistant base
D Water tank
E Appliance case

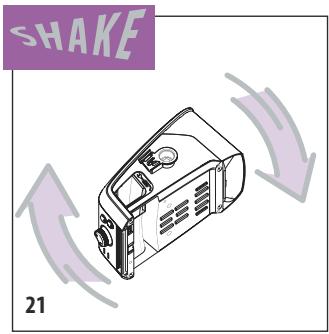

F Limescale prevention system (steam generator rinse)

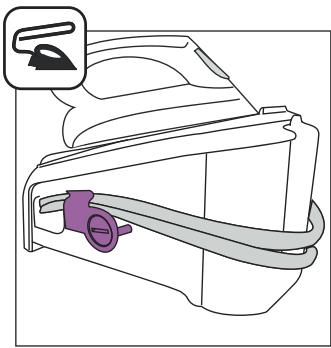

G Hook for steam/cable tube
H Power cable recess
I Control panel
J "Safe Transport" lock/release

I Control panel

K "Steam ready" light

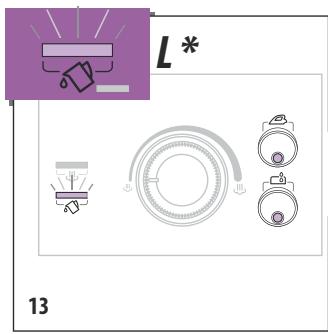

L "No water" light ✱
M Steam regulation dial
N Steam generator on button with power on light
0 Iron on button with power on light

Description of iron

P Iron at temperature light
Q Continuous steam lock

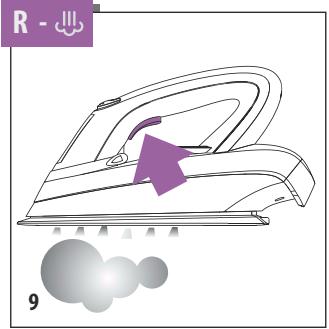

R Steam button
S Thermostat dial
T Steam selector (tip or whole plate)

\* Important:

• When the water in the tank has run out, the pump becomes noisier. This is part of normal operation and is not a cause for concern. However, you are recommended to top up the water in the tank immediately.
• When the "no water" light comes on, you should top up the water in the tank as rapidly as possible. This will enable you to continue ironing after a short interruption.
• When the "no water" light comes on, you should not continue steam ironing with the pump vibrating. If this practice is continued, in the long run it could irreparably damage internal components.

Symbols used in these instructions

Important warnings are identified by these symbols.

It is vital to respect these warnings.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

! Important!

Failure to observe the warning could result in injury or damage to the appliance.

i Nota Bene:

This symbol identifies important advice or information for the user.

Fundamental safety warnings

Danger of electric shock!

This is an electrical appliance and may cause electric shock.

You should therefore respect the following safety warnings:

• Never touch the appliance with damp hands.
• Never use the appliance with bare or wet feet.
• Never immerse the appliance in water.
- Never unplug the appliance by pulling the power cable or the appliance itself.
- If the socket and power cable plug are incompatible, the socket should be changed for a suitable type by a qualified professional.
Adapters, multiple sockets or extensions should not be used.
- To fill or top up with water, turn the ironing system off using the switch, then unplug from the mains. Never fill the appliance under running water.
• Always unplug the appliance from the mains socket before filling the tank with water.
- If the power cable is damaged, it must be replaced by the manufacturer or the manufacturer's Customer Services in order to avoid all risk.
- Before cleaning or servicing, disconnect the appliance by unplugging from the mains.
• In the event of malfunction and/or faulty operation, switch off the appliance and take it to Customer Services.
- Before using the appliance, check that the mains supply voltage corresponds to the voltage indicated on the rating plate. Connect the appliance to an efficiently earthed power supply and sockets with a minimum current rating of 10 A only.

Danger of burns!

• Never aim the steam at persons or animals.
- The user must never leave the iron unattended when plugged in.
• During use, the steam generator should not be moved.
- IMPORTANT: the tube connecting the iron and steam generator may become hot.
- All contact between the hot base and cables must be rigorously avoided.

Attention!

• After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only.
- Dispose of the plastic bag with care as it represents a hazard for children.
- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure they do not play with the appliance.
- NEVER mix the water in the tank with stain removers, additives or perfumed oils. This reduces the safety of the appliance and irreparably damages the steam generator which would have to be replaced.

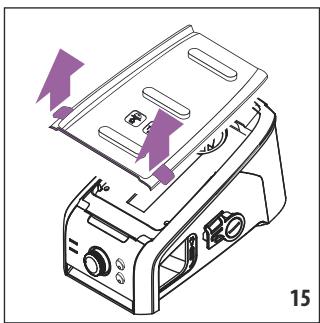

NEVER rest the iron on the case of the appliance when the iron rest is removed.

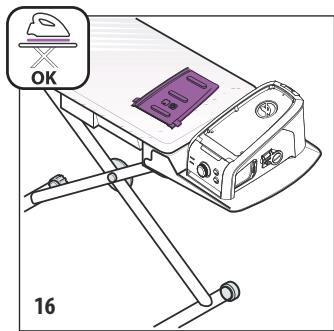

Use the removable iron rest on an ironing board.

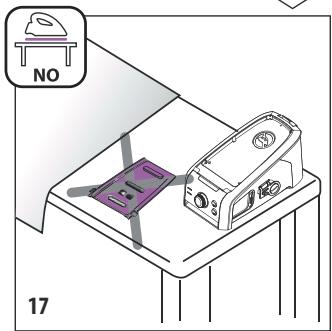

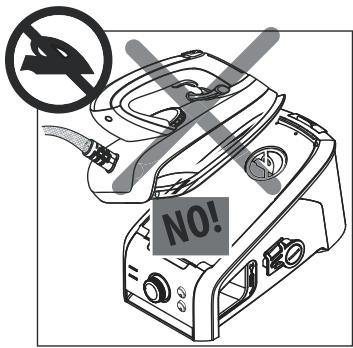

NEVER use the iron rest on a table. The heat could ruin the surface of the table!

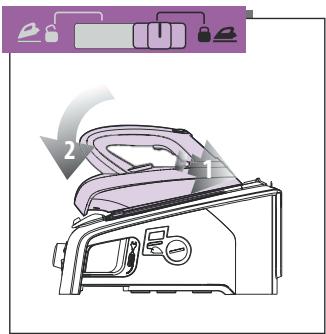

"Safe transport": certain models are fitted with a locking system which locks the iron in position during transport.

When the iron is locked in position, it must not be used as a carrying handle to transport the appliance! To position the iron correctly, insert the tip of the plate into the housing B, rest the iron in position and move the lock J to the locking position.

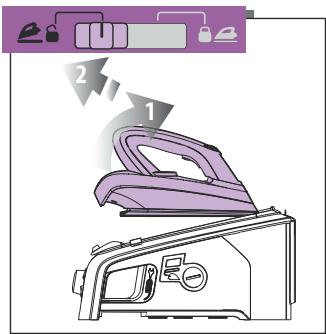

To release the iron, move the lock J into the release position and remove the iron from its housing. While ironing, if the iron rest has not been removed from the appliance, you can rest the tip of the iron on the heat resistant base C above the housing B.

• The appliance must be used and rested on a stable heat resistant surface.
• When placing the iron on the iron rest, make sure the appliance is resting on a stable surface. NEVER store the iron in a vertical position!

- Do not use the appliance if it has been dropped and there are visible signs of damage or leaks. If the ironing system is dropped causing visible damage to the appliance (steam generator or iron), do not use. Take to Customer Services.

Designated use

• This appliance must be used exclusively for the purpose for which it was expressly conceived. Any other use is considered improper and thus dangerous.
• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use or for damage resulting from repairs carried out by unqualified personnel.

What water to use

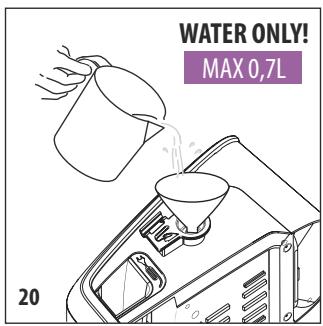

The appliance works with normal tap water.

In case of very hard water (hardness above 27^ F) we suggest using demineralised water diluted with 50% tap water. Never use demineralised water on its own.

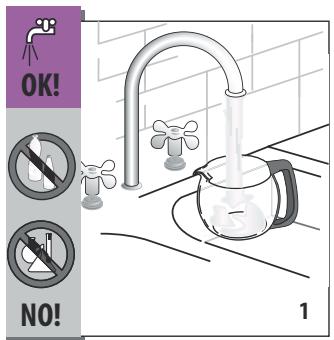

Never use chemical substances or detergents (e.g. perfumed water, essences, descaling solution, etc).

Do not use mineral or other types of water (such as rainwater or water for batteries or air conditioners etc.).

If you use filtering devices, make sure the water obtained has a neutral pH.

Using the appliance for the first time

• The first time you use the appliance, the steam generator is empty. When filling the steam generator for the first time, it will take longer to heat up as the air must be eliminated from the steam generator and replaced by the water. During filling/heating it is normal for the pump to make a noise.
  The appliance will also run out of water much more quickly than with subsequent fills.
• When used for the first time, the appliance may give off smoke and an odour for several minutes. This is caused by heating and subsequent drying of the sealers used in assembling the steam generator and iron. You are recommended to ventilate the room.
• Each time the iron is used (including for the first time) or if you have not used steam for several minutes, press the steam delivery button a number of times away from the

Rinsing the steam generator - Disposal

en

ironing board. This will eliminate condensation from the steam circuit.

Rinsing the steam generator

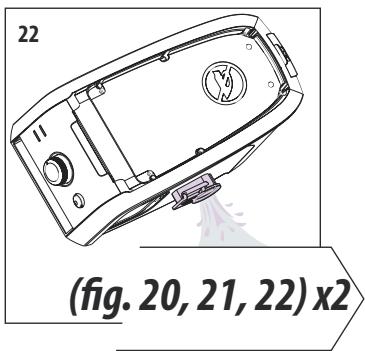

After every 10 ironing sessions, proceed as described on page 6.

Disposal

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

Troubleshooting

en

PROBLEM	CAUSE	REMEDY
The appliance does not come on.	The appliance is not plugged into a mains socket.	Make sure the appliance is correctly connected and press the iron and steam generator buttons.
Steam comes out of the bottom of the appliance	The maximum pressure safety system has tripped.	Turn the appliance off immediately and contact an authorised De’Longhi Customer Services.
Water leaks out from the holes in the bottom of the sole plate.	The thermostat dial on the iron is not in the sector shown in fig. 7.	Position the thermostat dial on the iron in the steam sector shown in fig. 7.
	Water has condensed inside the tubes because steam is being used for the first time, or has not been used for some time.	Press the steam button several times away from the ironing board. This will eliminate cold water from the steam circuit.
	The ironing system is positioned on an unstable and/or sloping surface.	Rest the ironing system on a stable flat surface.
Brown coloured fluid leaks from the sole plate.	Chemical water softeners or additives have been poured into the water tank or steam generator.	Never pour products into the water tank (see our tips in the quick guide). Clean the sole plate with a damp cloth.
The first time the appliance is turned on, you notice smoke	Some parts have been treated with sealer/lubricant which evaporates the first time the iron heats up.	This is normal and will stop when you have used the iron a few times.
The appliance emits an intermittent noise associated with vibrations.	Water is being pumped into the steam generator.	This is completely normal.
The appliance emits a continuous noise associated with vibrations.		Unplug the system from the mains and contact an authorised De’Longhi Customer Services.
