USER MANUAL GISF12DB GREE

Original Instructions

Split Air Conditioner

CONTENTS

Safety precautions 01

Parts name 05

Operation and introduction of remote contr oller 06

Clean and maintenance 13

Checked items before maintenance 14

Installation notice 15

Installation of indoor unit 17

Installation of outdoor unit 20

Test and operation 22

Configuration of connection pipe 23

Thank you for choosing our product.

Please read this Owner's Manual carefully before operation and retain it for future reference.

If you have lost the Owner's Manual, please contact the local agent or visit www.gree.com or send an email to [e-mail] for the electronic version.

NOTE:

Actual product may be different from graphics, please refer to actual products.

GICF09DBE/C	GISF09DBE/C
GICF12DBE/C	GISF12DBE/C
GICF18DBE/C	GISF18DBE/C
GICF24DBE/C	GISF24DBE/C

Explanation of Symbols

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to property.

Indicates important but not hazard-related information, used to indicate risk of property damage.

Exception Clauses

Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons.

1. Damage the product due to improper use or misuse of the product;
2. Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer;
3. After verification, the defect of product is directly caused by corrosive gas;
4. After verification, the defects are due to improper operation during transportation of product;
5. Operate, repair, maintain the unit without abiding by instruction manual or related regulations;
6. After verification, the problem or dispute is caused by the quality specification or performance of parts and components that produced by other manufacturers;
7. The damage is caused by natural calamities, bad using environment or force majeure.

If it needs to install, move or maintain the air conditioner, please contact dealer or local service center to conduct it at first. Air conditioner must be installed, moved or maintained by appointed unit. Otherwise, it may cause serious damage or personal injury or death.

When refrigerant leaks or requires discharge during installation, maintenance, or disassembly, it should be handled by certified professionals or otherwise in compliance with local laws and regulations.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

WARNING

Installation

• Installation or maintenance must be performed by qualified professionals.
- The appliance shall be installed in accordance with national wiring regulations.
- According to the local safety regulations, use qualified power supply circuit and circuit breaker.
- All wires of indoor unit and outdoor unit should be connected by a professional.
- Be sure to cut off the power supply before proceeding any work related to electricity and safety.
- Make sure the power supply matches with the requirement of air conditioner.
- Unstable power supply or incorrect wiring may result in electric shock, fire hazard or malfunction. Please install proper power supply cables before using the air conditioner.

• The grounding resistance should comply with national electric safety regulations.
  • Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.
• Do not put through the power before finishing installation.
• Do install the circuit breaker. If not, it may cause malfunction.
• An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
• Circuit breaker should be included magnet buckle and heating buckle function. It can protect the overload and circuit-short.

CAUTION

Installation

• Instructions for installation and use of this product are provided by the manufacturer.
• Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.
• The indoor unit should be installed close to the wall.
• Don't use unqualified power cord.
• If the length of power connection wire is insufficient, please contact the supplier for a new one.
• The appliance must be positioned so that the plug is accessible.

• For the air conditioner with plug, the plug should be reachable after finishing installation.

• For the air conditioner without plug, a circuit breaker must be installed in the line.

• The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.
• The air conditioner is the first class electric appliance. It must be properly grounder with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.

WARNING

Operation and Maintenance

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not connect air condi-

tioner to multi-purpose socket. Otherwise, it may cause fire hazard.

• Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause electric shock.
• Do not wash the air conditioner with water to avoid electric shock.
• Do not spray water on indoor unit. It may cause electric shock or malfunction.
• Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner.
  • After removing the filter, do not touch fins to avoid injury.
• Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage.

CAUTION

Operation and Maintenance

• Do not spill water on the remote controller, otherwise the remote controller may be broken.
• Do not use fire or hair dry-er to dry the filter to avoid deformation or fire hazard.
• Do not block air outlet or air inlet. It may cause malfunction.
• Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.

• When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.

• Power cord is overheating or damaged.

• There's abnormal sound during operation.
• Circuit breaker trips off

frequently.

• Air conditioner gives off burning smell.
- Indoor unit is leaking.

Indoor Unit

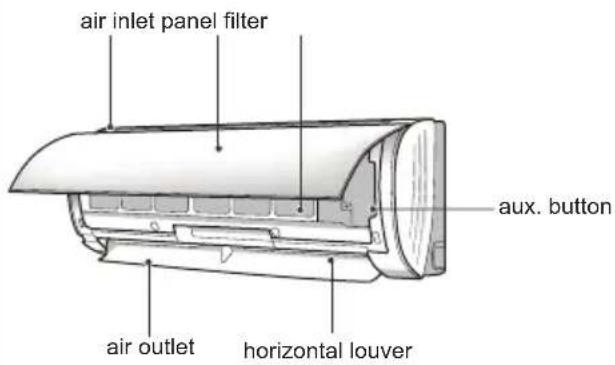

air inlet panel filter aux. button air outlet horizontal louver

■If remote controller is lost or damaged, please use aux.button to turn on or turn off the air conditioner. The operation in details is as below: As shown in the figure, open panel and press aux.button to turn off the air conditioner. When the air conditioner is turned on, it will operate under auto mode.

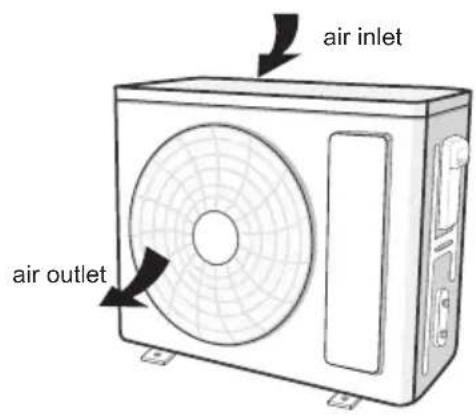

Outdoor Unit

air inlet air outlet

NOTE

• Actual product may be different from above graphics, please refer to actual product.

Display

Temp. indicator	26
Power indicator	(1)

NOTE

• This is the general introduction and the color of indicator is only for reference. Please refer to the actual display.
• Display content may be different from the actual. Please refer to the actual display.

Buttons on remote controller

FAN AUTO OPER AUTO 88°F WiFi °C 88:88 HOUR ONOFF MODE FAN TURBO SLEEP I FEEL TIMER ON TIMER OFF CLOCK 9/10 QUIET WiFi TEMP LIGHT

Introduction for icons on display screen

		I feel
FANAUTO		Set fan speed
		Turbo mode
		Send signal
Operation mode		Auto mode
		Cool mode
		Dry mode
		Fan mode
		Heat mode
		Sleep mode
		8°C heating function
		Health mode
		Scavenging function
		Quiet
		X-FAN function
Temp. display type
		Indoor ambient temp.
		Outdoor ambient temp.
		Clock
		Set temperature
WiFi		WIFI function
88:88		Set time
ONOFF		TIMER ON / TIMER OFF
		Light
		Left & right swing
		Up & down swing
		Child lock

Introduction for buttons on remote controller

NOTE

• This is a general use remote controller. It could be used for the air conditioner with multifunction. For the functions which the model doesn't have, if press the corresponding button on the remote controller, the unit will keep the original running status.
• After putting through the power, the air conditioner will give out a sound. Power indicator " ∪" is ON. After that, you can operate the air conditioner by using remote controller.
• Under on status, pressing the button on the remote controller, the signal icon " 🔍" on the display of remote controller will blink once and the air conditioner will give out a "di" sound, which means the signal has been sent to the air conditioner.

button

Press this button to turn on the unit. Press this button again to turn off the unit.

button

Press this button to select your required operation mode. (Heat Mode for Cool/Heat Model Only)

• When selecting auto mode, air conditioner will operate automatically according to the sensed temperature. Set temperature can't be adjusted and will not be displayed as well. Press "FAN" button can adjust fan speed. Press "☐" / "☐" button can adjust fan blowing angle.
• After selecting cool mode, air conditioner will operate under cool mode. Press "▲" or "▼" button to adjust set temperature. Press "FAN" button to adjust fan speed. Press "■" / "■" button to adjust fan blowing angle.
• When selecting dry mode, the air conditioner operates at low speed under dry mode. Under dry mode, fan speed can't be adjusted.
  Press " &=" / " &=" button to adjust fan blowing angle.
• When selecting fan mode, the air conditioner will only blow fan, no cooling and no heating. Press "FAN" button to adjust fan speed. Press " ■ " /

" ➗ " button to adjust fan blowing angle.

- When selecting heat mode, the air conditioner operates under heat mode. Press "▲" or "▼" button to adjust set temperature. Press "FAN" button to adjust fan speed. Press "→" / "→" button to adjust fan blowing angle.

NOTE

• For preventing cold air, after starting up heat mode, indoor unit will delay 1\~5 minutes to blow air (Actual delay time depends on indoor ambient temperature).
• Set temperature range from remote controller: 16\~30°C(61-86°F).
• This mode indicator is not available for some models.
• Cooling only unit won't receive heat mode signal. If setting heat mode with remote controller, press "⚡" button can't start up the unit.

button

This button is used for setting Fan Speed in the sequence that goes from AUTO, -, -, -, to -, then back to Auto.

Low speed Low-Medium speed Medium speed Medium-High speed High speed

NOTE

• It's low fan speed under dry mode.
• X-FAN function Hold fan speed button for 2s in cool or dry mode, the icon "💡" is displayed and the indoor fan will continue operation for a few minutes in order to dry the indoor unit even though you have turned off the unit. After energization, X-FAN OFF is defaulted. X-FAN is not available in auto, fan or heat mode.
  This function indicates that moisture on evaporator of indoor unit will be blown after the unit is stopped to avoid mould.
• Having set X-FAN function on: After turning off the unit by pressing "☐" button indoor fan will continue running for a few minutes. at low speed. In this period, Hold fan speed button for 2s to stop indoor fan directly.
• Having set X-FAN function off: After turning off the unit by pressing "↓" button, the complete unit will be off directly.

button

Under cool or heat mode, press this button to turn to quick cool or quick heat mode. " 🔊" icon is displayed on remote controller. Press this button again to exit turbo function and " 🔊" icon will disappear.

If start this function, the unit will run at super-high fan speed to cool or heat quickly so that the ambient temperature approaches the preset temperature as soon as possible.

button

Press "▲" or "▼" button once increase or decrease set temperature 1°C(°F). Holding "▲" or "▼" button, 2s later, set temperature on remote controller will change quickly. On releasing button after setting is finished, temperature indicator on indoor unit will change accordingly. (Temperature can't be adjusted under auto mode)

When setting TIMER ON, TIMER OFF or CLOCK, press "▲" or "▼" button to adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons).

button

Not Suitable for (GISF09DBE/GICF09DBE)

Press this button can select left & right swing angle. Fan blow angle can be selected circularly as below:

NOTE

• Press this button continuously more than 2s, the main unit will swing back and forth from left to right, and then loosen the button, the unit will stop swinging and present position of guide louver will be kept immediately.
• Under left and right swing mode, when the status is switched from off to 📄, if press this button again 2s later, 📋 status will switch to off status directly; if press this button again within 2s, the change of swing status will also depend on the circulation sequence stated above.
• The function is only available for some models.

button

Press this button can select up & down swing angle. Fan blow angle can be selected circularly as below:
    note right of A: 'no display (horizontal louvers stops at current position)'

• When selecting "⇒I", air conditioner is blowing fan automatically. Horizontal louver will automatically swing up & down at maximum angle.
• When selecting "1, 1, -1, 1", air conditioner is blowing fan at fixed position. Horizontal louver will stop at the fixed position.
• When selecting " ≥slant I, ≥slant I, ≥slant I", air conditioner is blowing fan at fixed angle. Horizontal louver will send air at the fixed angle.
• Hold "">I" button above 2s to set your required swing angle. When reaching your required angle, release the button.

NOTE

• "1, 2, 3" may not be available. When air conditioner receives this signal, the air conditioner will blow fan automatically.
• Press this button continuously for more than 2s, the main unit will swing back and forth from up to down, and then loosen the button, the unit present position of guide louver will be kept immediately.
• Under up and down swing mode, when the status is switched from off to , if press this button again 2s later, status will switch to off status directly; if press this button again within 2s, the change of swing status will also depend on the circulation sequence stated above.

SLEEP

button

Press this button, can select Sleep 1 (1), Sleep 2 (2), Sleep 3 (3) and cancel the Sleep, circulate between these, after electrified, Sleep Cancel is defaulted.

• Sleep 1 is Sleep mode 1, in Cool modes; sleep status after run for one hour, the main unit setting temperature will increase 1, two hours, setting temperature increased 2, then the unit will run at this setting temperature; In Heat mode: sleep status after run for one hour, the setting temperature will decrease 1, two hours, setting temperature will decrease 2, then the unit will run at this setting temperature.
• Sleep 2 is sleep mode 2, that is air conditioner will run according to the presetting a group of sleep temperature curve.

- Sleep 3 the sleep curve setting under Sleep mode by DIY;

(1) Under Sleep 3 mode, press "Turbo" button for a long time, remote controller enters into user individuation sleep setting status, at this time, the time of remote controller will display "1hour", the setting temperature "88" will display the corresponding temperature of last setting sleep curve and blink (The first entering will display according to the initial curve setting value of original factory);

(2) Adjust "▲" and "▼" button, could change the corresponding setting temperature, after adjusted, press "Turbo" button for confirmation;

(3) At this time, 1hour will be automatically increased at the timer position on the remote control, (that are "2hours" or "3hours" or "8hours"), the place of setting temperature "88" will display the corresponding temperature of last setting sleep curve and blink;

(4) Repeat the above step (2)\~(3) operation, until 8 hours temperature setting finished, sleep, curve setting finished, at this time, the remote controller will resume the original timer display; temperature display will resume to original setting temperature.

- Sleep 3 the sleep curve setting under Sleep mode by DIY could be inquired:

The user could accord to sleep curve setting method to inquire the presetting sleep curve, enter into user individuation sleep setting status, but do not change the temperature, press "Turbo" button directly for confirmation. Note: In the above presetting or enquiry procedure, if continuously within 10s, there is no button pressed, the sleep curve setting within 10s, there is no button pressed, the sleep curve setting status will be automatically quit and resume to display the original displaying. In the presetting or enquiry procedure, press "☐" button, "Mode" button, "Timer" button or "Sleep" button, the sleep curve setting or enquiry status will quit similarly.

I FEEL

button

Press this button to start I FEEL function and "F" will be displayed on the remote controller. After this function is set, the remote controller will send the detected ambient temperature to the controller and the unit will automatically adjust the indoor temperature according to the detected temperature. Press this button again to close I FEEL function and "F" will disappear.

Please put the remote controller near user when this function is set. Do not put the remote controller near the object of high temperature or low temperature in order to avoid detecting inaccurate ambient temperature. When I FEEL function is turned on, the remote controller should be put within the area where indoor unit can receive the signal sent by the remote controller.

TIMER ON

TIMER OFF

button/

- TIMER ON button

"TIMER ON" button can set the time for timer on. After pressing this button, "💡" icon disappears and the word "ON" on remote controller blinks. Press "▲" or "▼" button to adjust TIMER ON setting. After each pressing "▲" or "▼" button. TIMER ON setting will increase or decrease 1min. Holding "▲" or "▼" button, 2s later, the time will change quickly until reaching your required time.

Press "TIMER ON" to confirm it. The word "ON" will stop blinking. "💡" icon resumes displaying. Cancel TIMER ON: Under the condition that TIMER ON is started up, press "TIMER ON" button to cancel it.

- TIMER OFF button

"TIMER OFF" button can set the time for timer off. After pressing this button, " 🔉" icon disappears and the word "OFF" on remote controller blinks. Press "▲" or "▼" button to adjust TIMER OFF setting. After each pressing "▲" or "▼" button, TIMER OFF setting will increase or decrease 1min. Holding "▲" or "▼" button, 2s later, the time will change quickly until reaching your required time.

Press "TIMER OFF" and the word "OFF" will stop blinking. " 🔵" icon resumes displaying. Under the condition that TIMER OFF is started up, press "TIMER OFF" button to cancel it.

NOTE

- Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.

- Before setting TIMER ON or TIMER OFF, please adjust the clock time.

- When turning on TIMER ON or TIMER OFF function, set this function valid all the time and the air conditioner will be turned on or turned off at set temperature every day. "⚡" button has no affect to setting. If this function is not required, use the remote controller to cancel it.

button

Press this button to set clock time. "icon on remote controller will blink. Press "▲" or "▼" button within 5s to set clock time. Each pressing of "▲" or "▼" button, clock time will increase or decrease 1 minute. If hold "▲" or "▼" button, 2s later, time will change quickly. Release this button when reaching your required time. Press "CLOCK" button to confirm the time. "icon stops blinking."

NOTE

• Clock time adopts 24-hour mode.
• The interval between two operations can't exceed 5s. Otherwise, remote controller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.

button

Press this button, the Quiet status is under the Auto Quiet mode (display " 🔍" and "AUTO" signal) and Quiet mode (display " 🔍" signal) and Quiet OFF (there is no signal of " 🔍" displayed). After powered on, the Quiet OFF is defaulted.

NOTE

• The quiet function can be set up in all modes; Under the quiet mode, the fan speed is not available.
• When quiet function is selected:

Under cooling mode: indoor fan operates at notch 4 speed. 10 minutes later or when indoor ambient temperature≤28°C, indoor fan will operate at notch 2 speed or quiet mode according to the comparison between indoor ambient temperature and set temperature.

Under heating mode: indoor fan operates at notch 3 speed or quiet mode according to the comparison between indoor ambient temperature and set temperature.

Under dry, fan mode: indoor fan operates at quiet mode. Under auto mode: the indoor fan operates at the auto quiet mode according to actual cooling, heating or fan mode.

- The quiet function is only available for some models.

button

Press "WIFI" button to turn on WIFI function, "WIFI" icon will be displayed on the remote controller; Hold "WIFI" button for 5s to turn off WIFI function and "WIFI" icon will disappear.

Under off status, press "MODE" and "WIFI" buttons simultaneously for 1s, WIFI module will restore factory settings.

NOTE

• This function is only available for some models.

button

Press this button to turn off display light on indoor unit. "💡" icon on remote controller disappears. Press this button again to turn on display light. "💡" icon is displayed.

button

Press this button to turn on or turn off the health and scavenging functions in operation status. Press this button for the first time to start scavenging function; LCD displays "☐". Press the button for the second time to start health and scavenging functions simultaneously; LCD displays "☐" and "♠". Press this button for the third time to quit health and scavenging functions simultaneously. Press the button for the fourth time to start health function; LCD display "♠".

Press this button again to repeat the operation above.

NOTE

• This function is only available for some models.

button

By pressing this button, you can see indoor set temperature, indoor ambient temperature or outdoor ambient temperature on indoor unit's display. The setting on remote controller is selected circularly as below:

• When selecting "☐" or no display with remote controller, temperature indicator on indoor unit displays set temperature.
• When selecting " 🔊" with remote controller, temperature indicator on indoor unit displays indoor ambient temperature.
• When selecting " 🔊!" with remote controller, temperature indicator on indoor unit displays outdoor ambient temperature.

NOTE

• Outdoor temperature display is not available for some models. At that time, indoor unit receives " 🔊" signal, while it displays indoor set temperature.
• It's defaulted to display set temperature when turning on the unit. There is no display in the remote controller.
• Only for the models whose indoor unit has dual-8 display.
• When selecting displaying of indoor or outdoor ambient temperature, indoor temperature indicator displays corresponding temperature and automatically turn to display set temperature after three or five seconds.

Function introduction for combination buttons

Energy-saving function

Under cooling mode, press "TEMP" and "CLOCK" buttons simultaneously to start up or turn off energy-saving function. When energy-saving function is started up, "SE" will be shown on remote controller, and air conditioner will adjust the set temperature automatically according to ex-factory setting to reach to the best energy-saving effect. Press "TEMP" and "CLOCK" buttons simultaneously again to exit energy-saving function.

NOTE

• Under energy-saving function, fan speed is defaulted at auto speed and it can't be adjusted.
• Under energy-saving function, set temperature can't be adjusted. Press "TURBO" button and the remote controller won't send signal.
• Sleep function and energy-saving function can't operate at the same time. If energy-saving function has been set under cool mode, press "SLEEP" button will cancel energy-saving function. If sleep function has been set under cool mode, start up the energy-saving function will cancel sleep function.

8°C heating function

Under heat mode, press "TEMP" and "CLOCK" buttons simultaneously to start up or turn off 8°C heating function. When this function is started up, " \$ " and "8°C" will be shown on remote controller, and the air conditioner keep the heating status at 8°C. Press "TEMP" and "CLOCK" buttons simultaneously again to exit 8°C heating function.

NOTE

• Under 8°C heating function, fan speed is defaulted at auto speed and it can't be adjusted.
• Under 8°C heating function, set temperature can't be adjusted. Press "TURBO" button and the remote controller won't send signal.
• Sleep function and 8°C heating function can't operate at the same time. If 8°C heating function has been set under heat mode, press "SLEEP" button will cancel 8°C heating function. If sleep function has been set under heat mode, start up the 8°C heating function will cancel sleep function.
• Under °F temperature display, the remote controller will display 46°F heating.

Child lock function

Press "▲" and "▼" simultaneously to turn on or turn off child lock function. When child lock function is on, "☐" icon is displayed on remote controller. If you operate the remote controller, the "☐" icon will blink three times without sending signal to the unit.

Temperature display switchover function

Under OFF status, press "▼" and "MODE" buttons simultaneously to switch temperature display between °C and °F.

Auto clean function

Under unit off status, hold "MODE" and "FAN" buttons simultaneously for 5s to turn on or turn off the auto clean function. When the auto clean function is turned on, indoor unit displays "CL". During the auto clean process of evaporator, the unit will perform fast cooling or fast heating. There may be some noise, which is the sound of flowing liquid or thermal expansion or cold shrinkage. The air conditioner may blow cool or warm air, which is a

normal phenomenon. During cleaning process, please make sure the room is well ventilated to avoid affecting the comfort.

NOTE

• The auto clean function can only work under normal ambient temperature. If the room is dusty, clean it once a month; if not, clean it once every three months. After the auto clean function is turned on, you can leave the room. When auto clean is finished, the air conditioner will enter standby status.
• This function is only available for some models.

Replacement of batteries in remote controller

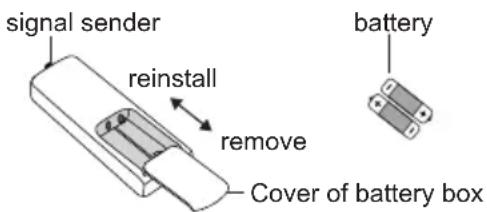

signal sender reinstall remove battery Cover of battery box

1. Press the back side of remote controller marked with "☐", as shown in the fig, and then push out the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and make sure the position of "+" polar and "-" polar are correct.
3. Reinstall the cover of battery box.

NOTICE

• During operation, point the remote control signal sender at the receiving window on indoor unit.
• The distance between signal sender and receiving window should be no more than 8m, and there should be no obstacles between them.
• Signal may be interfered easily in the room where there is fluorescent lamp or wireless telephone; remote controller should be close to indoor unit during operation.
• Replace new batteries of the same model when replacement is required.
• When you don't use remote controller for a long time, please take out the batteries.
• If the display on remote controller is fuzzy or there's no display, please replace batteries.

Clean and maintenance

WARNING

■ Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
■ Do not use liquid or corrosive detergent to clean the appliance and do not splash water or other liquid onto it, otherwise, it may damage the plastic components, even cause electric shock.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.

NOTICE

- Do not remove the panel when cleaning it.

Clean filter

1. Open panel

Pull out the panel to a certain angle as shown in the fig.

Illustration of hands holding a rectangular object with an arrow indicating upward motion (no text or symbols)

2. Remove filter

Remove the filter as indicated in the fig.

Hand placing a grid on a surface with an arrow indicating downward motion (no text or symbols)

3. Clean filter

• Use dust catcher or water to clean the filter.
• When the filter is very dirty, use the water (below 45°C) to clean it, and then put it in a shady and cool place to dry.

Illustration of hands cutting a rectangular panel with diagonal hatching (no text or symbols)

4. Install filter

Install the filter and then close the panel cover tightly.

Line drawing of a hand pressing down on a wall-mounted air conditioner (no text or symbols)

WARNING

■ The filter should be cleaned every three months. If there is much dust in the operation environment, clean frequency can be increased.
■ After removing the filter, do not touch fins to avoid injury.
■ Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.

NOTICE: Checking before use-season

1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether filter is clean.
4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
5. Check whether drainage pipe is damaged.

NOTICE: Checking after use-season

1. Disconnect power supply.
2. Clean filter and indoor unit's panel.
3. Check whether mounting bracket t for outdo or unit is damaged or corroded. If yes, please contact dealer.

Notice for recovery

1. Many packing materials are recyclable materials. Please dispose them in appropriate e recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant service center for the correct disposal method.

Error Code

When air conditioner status is abnor mal, temperature indicator on indoor uni t will blink to display corresponding error code. Please refer to below list for identification of error code.

Error code	Troubleshooting
U8, H6, H3, E1, E5, E6, E8	It can be eliminated after restarting the unit. If not, please contact qualified professionals for service.
C5, F0, F1, F2	Please contact qualified professionals for service.

NOTE

- If there're other error codes, please contact qualified professionals for service.

Checked items before maintenance

General phenomenon analysis

Please check below items before asking for maintenance. If the malfunction still can't be eliminated, please contact local dealer or qualified professionals.

Phenomenon	Check items	Solution
Indoor unit can't receive remote controller's signal or remote controller has no action.	Whether it's interfered severely (such as static electricity, stable voltage?)	Pull out the plug. Reinsert the plug after about 3min, and then turn on the unit again.
	Whether remote controller is within the signal receiving range?	Signal receiving range is 8m.
	Whether there are obstacles?	Remove obstacles.
	Whether remote controller is pointing at the receiving window?	Select proper angle and point the remote controller at the receiving window on indoor unit.
	Is sensitivity of remote controller low; fuzzy display or no display?	Check the batteries. is too low, please replace them.
	No display when operating remote controller?	Check whether remote controller appears to be damaged. If yes, replace it.
	Fluorescent lamp in room?	Take the remote controller close to indoor unit. Turn off the fluorescent lamp and then try it again.
No air emitted from indoor unit	Air inlet or air outlet of indoor unit is blocked?	Eliminate obstacles.
	Under heating mode, indoor temperature is reached to set temperature?	After reaching to set temperature, indoor unit will stop blowing out air.
	Heating mode is turned on just now?	In order to prevent blowing out cold air, indoor unit will be started after delaying for several minutes, which is a normal phenomenon.
Air conditioner can't operate	Power failure?	Wait until power recovery.
	Is plug loose?	Reinsert the plug.
	Air switch trips off or fuse is burnt out?	Ask professional to replace air switch or fuse.
	Wiring has malfunction?	Ask professional to replace it.
	Unit has restarted immediately after stopping operation?	Wait for 3min, and then turn on the unit again.
	Whether the function setting for remote controller is correct?	Reset the function.
Mist is emitted from indoor unit's air outlet	Indoor temperature and humidity is high?	Because indoor air is cooled rapidly. After a while, indoor temperature and humidity will be decrease and mist will disappear.

Phenomenon	Check items	Solution
Odours are emitted	Whether there's od- our source, such as furniture and cigarette, etc.	Eliminate the odour source. Clean the filter.
Set temper- rature can't be adjusted	Unit is operating un- der auto mode?	Temperature can't be adjusted under auto mode. Please switch the operation mode if you need to adjust temperature.
	Your required temp- erature exceeds the set temperature range?	Set temperature range: 16°C~30°C.
Cooling (heating) effect is not good.	Voltage is too low?	Wait until the voltage resumes normal.
	Filter is dirty? Clean the filter.
	Set temperature is in proper range?	Adjust temperature to proper range.
	Door and window are open?	Close door and window.
Air conditi- oner operates abnormally	Whether there's inter- rference, such as thunder, wireless devices, etc.	Disconnect power, put back power, and then turn on the unit again.
Outdoor unit has vapor	Heating mode is turned on?	During defrosting under heating mode, it may generate vapor, which is a normal phenomenon.
"Water flowing" noise	Air conditioner is turned on or turned off just now?	The noise is the sound of refrigerant flowing inside the unit, which is a normal phenomenon.
Cracking noise	Air conditioner is turned on or turned off just now?	This is the sound of friction caused by expansion and or contraction of panel or other parts due to the change of temp- erature.

WARNING

■ When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.
- Power cord is overheating or damaged.
- There's abnormal sound during operation.
• Air switch trips off frequently.
● Air conditioner gives off burning smell.
- Indoor unit is leaking.
■ Do not repair or refit the air conditioner by yourself.
■ If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.

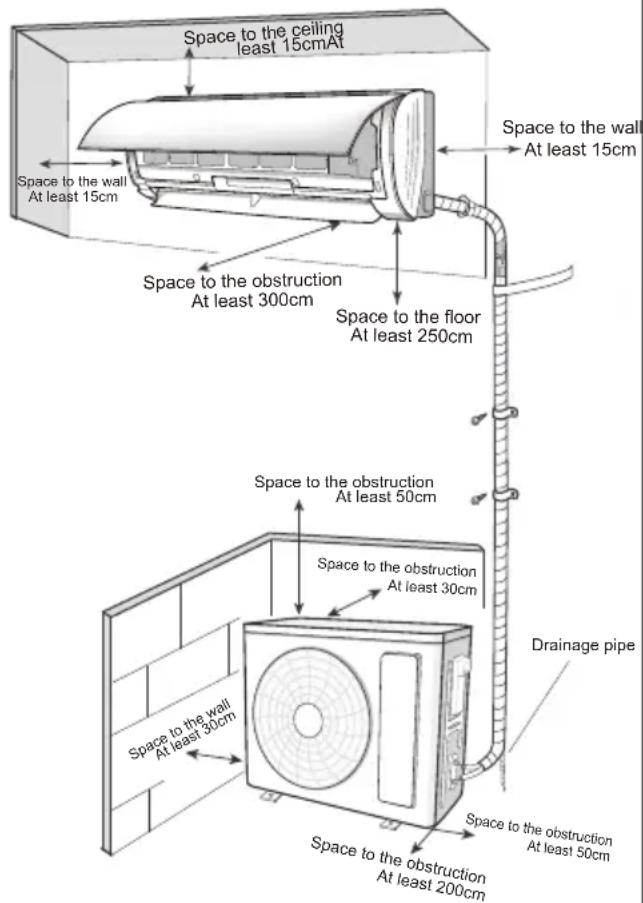

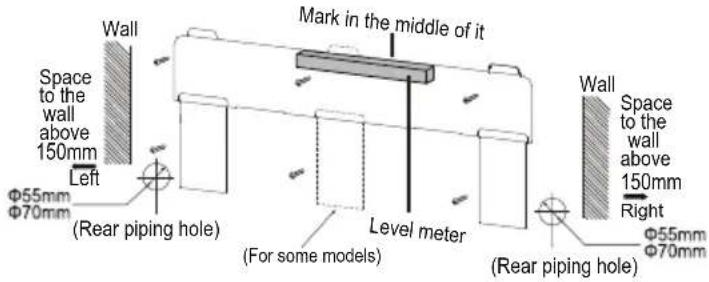

Space to the ceiling least 15cmAt Space to the wall At least 15cm Space to the wall At least 15cm Space to the obstruction At least 300cm Space to the floor At least 250cm Space to the obstruction At least 50cm Space to the obstruction At least 30cm Drainage pipe Space to the wall At least 30cm Space to the obstruction At least 50cm Space to the obstruction At least 200cm

Safety precautions for installing and relocating the unit

To ensure safety, please be mindful of the following precautions.

WARNING

■ When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant.

Any presence of air or other foreign substance in the refrigerant circuit will cause system pressure rise or compressor rupture, resulting in injury.

- When installing or moving this unit, do not charge the refrigerant which is not comply with that on the nameplate or unqualified refrigerant.

Otherwise, it may cause abnormal operation, wrong action, mechanical malfunction or even serious safety accident.

■ When refrigerant needs to be recovered during relocating or repairing the unit, be

WARNING

sure that the unit is running in cooling mode. Then, fully close the valve at high pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power. Please note that the time for refrigerant recovery should not exceed 1 minute.

If refrigerant recovery takes too much time, air may be sucked in and cause pressure rise or compressor rupture, resulting in injury.

■ During refrigerant recovery, make sure that liquid valve and gas valve are fully closed and power is disconnected before detaching the connection pipe.

If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.

- When installing the unit, make sure that connection pipe is securely connected before the compressor starts running.

If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.

■ Prohibit installing the unit at the place where there may be leaked corrosive gas or flammable gas.

If there is leaked gas around the unit, it may cause explosion and other accidents.

■ Do not use extension cords for electrical connections. If the electric wire is not long enough, please contact a local service center authorized and ask for a proper electric wire. Poor connections may lead to electric shock or fire.

■ Use the specified types of wires for electrical connections between the indoor and outdoor units. Firmly clamp the wires so that their terminals receive no external stresses.

Electric wires with insufficient capacity, wrong wire connections and insecure wire terminals may cause electric shock or fire.

Tools for installation

1 Level meter

2 Screw driver

3 Impact drill

4 Drill head

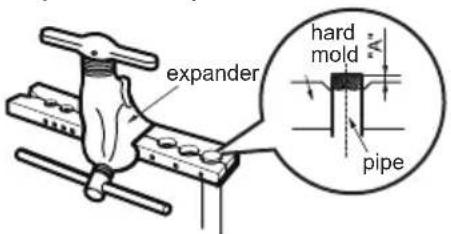

⑤ Pipe expander

6 Torque wrench

7 Open-end wrench

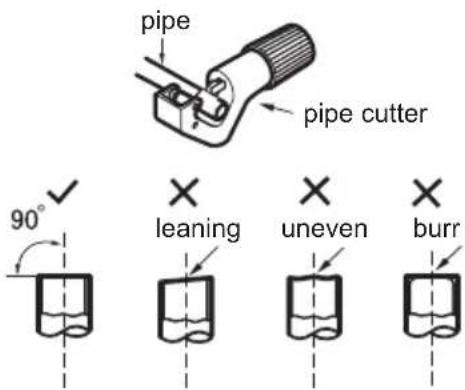

8 Pipe cutter

9 Leakage detector

10 Vacuum pump

11 Pressure meter

12 Universal meter

13 Inner hexagon spanner

14 Measuring tape

NOTICE

• Please contact the local agent for installation.
• Don't use unqualified power cold.

Basic requirement

Installing the unit in the following places may cause malfunction. If it is unavoidable, please consult the local dealer:

1. The place with strong heat sources, vapors, flammable or explosive gas, or volatile objects spread in the air.

2. The place with high-frequency devices (such as welding machine, medical equipment).

3. The place near coast area.

4.The place with oil or fumes in the air.

5.The place with sulfureted gas.

1. Other places with special circumstances.

2. The appliance shall not be installed in the laundry.

8It's not allowed to be installed on the unstable or motive base structure (such as truck) or in the corrosive environment (such as chemical factory).

Indoor unit

1. There should be no obstruction near air inlet and air outlet.
2. Select a location where the condensation water can be dispersed easily and won't affect other people.
3. Select a location which is convenient to connect the outdoor unit and near the power socket.
4. Select a location which is out of reach for children.
5. The location should be able to withstand the weight of indoor unit and won't increase noise and vibration.
6. The appliance must be installed 2.5m above floor.
7. Don't install the indoor unit right above the electric appliance.
8. Please try your best to keep way from fluorescent lamp.

Outdoor unit

1. Select a location where the noise and outflow air emitted by the outdoor unit will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation dimension diagram.
5. Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.

Safety precaution

1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit and air switch.

Requirements for electric connection

1. Make sure the power supply matches with the requirement of air conditioner. Unstable power
   supply or incorrect wiring
   ease install proper power supply cables before using the air conditioner.
2. Properly connect the live wire, neutral wire and grounding wire of power socket.
   5.Be sure to cut off the power supply before proceeding any work related to electricity and safety
3. Do not put through the power before finishing installation.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
6. The appliance shall be installed in accordance with national wiring regulations.

Grounding requirement

1. The air conditioner is the first class electric appliance. It must be properly grounded with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can 't be used for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

Air switch capacity

Including an air switch with suitable capacity, please note the following table. Air switch should be included magne t buckle and heating buckle function, i t can protect the circuit-short and overload. (Caution: please do no t use the fuse only for protecting the circuit)

Air-conditioner Air switch capacity
09K, 12K	10A
18K 16A
24K 25A

Installation of indoor unit

Step 1:

Choose installation location

Recommend the installation location to the client and then confirm it with the client.

Step 2:

Install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level meter and then point out the screw fixing holes on the wall.
2. Drill the screw fixing holes on the wall with impact drill (the specification of drill head should be the same as the plastic expansion particle) and then fill the plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws and then check if the frame is firmly installed by pulling the frame. If the plastic expansion particle is loose, please drill another fixing hole nearby.

Wall Space to the wall above 150mm Left (φ55mm φ70mm) (Rear piping hole) Mark in the middle of it Level meter (For some models) (Rear piping hole) Wall Space to the wall above 150mm Right (φ55mm φ70mm)

Step 3:

Open piping hole

1. Choose the position of piping hole according to the direction of outlet pipe. The position of piping hole should be a little lower than the wall-mounted frame, shown as below.

NOTE

• The wall panel is for illustrative purposes only, please refer to the actual installation.

• Please refer to the actual circumstances for the number of screws and the position of screws.

• When installation is finished, pull the mounting plate with hand to confirm whether it is fixed tightly. The force distribution for all screws should be uniform.

• Open a piping hole with the diameter of 55 or 70 on the selected outlet pipe position. In order to drain smoothly, slant the piping hole on the wall slightly downward to the outdoor side with the gradient of 5 - 10^ .

NOTE

- Pay attention to dust prevention and take relevant safety measures when opening the hole.

Indoor outdoor 5-10° Φ55 Φ70

Step 4:

Outlet pipe

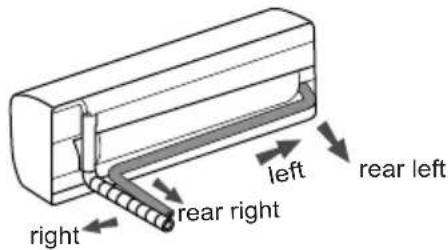

1. The pipe can be led out in the direction of right, rear right, left or rear left.

right rear right left rear left

1. When select leading out the pipe from left or right, please cut off the corresponding hole on the bottom case.

left right cut off the hole

Step 5:

Connect the pipe of indoor unit

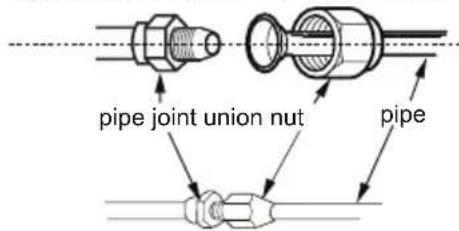

1. Aim the pipe joint at the corresponding bellmouth.
2. Pretighten the union nut with hand.

pipe joint union nut pipe

1. Adjust the torque force by referring to the following sheet. Place the open-end wrench on the pipe joint and place the torque wrench on the union nut. Tighten the union nut with torque wrench.

open-end wrench union nut torque wrench pipe indoor pipe

Hex nut diameter	Tightening torque (N·m)
1/4"	15~20
3/8"	30~40
1/2"	45~55
5/8"	60~65
3/4"	70~75

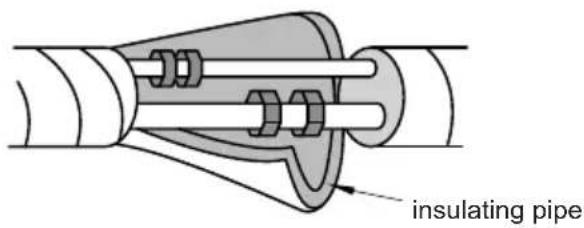

1. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and then wrap it with tape.

insulating pipe

Step 6: Install drain hose

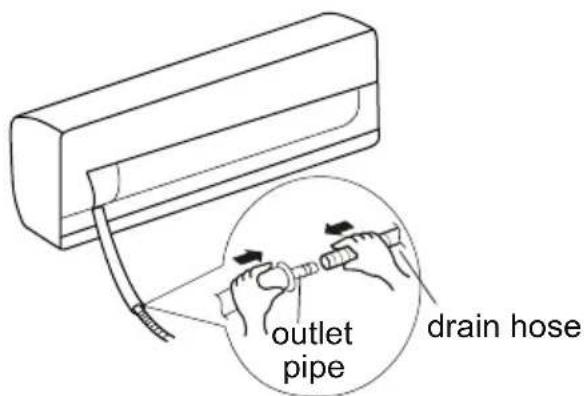

1. Connect the drain hose to the outlet pipe of indoor unit.

outlet pipe drain hose

1. Bind the joint with tape.

outlet pipe drain hose tape

drain hose insulating pipe

NOTE

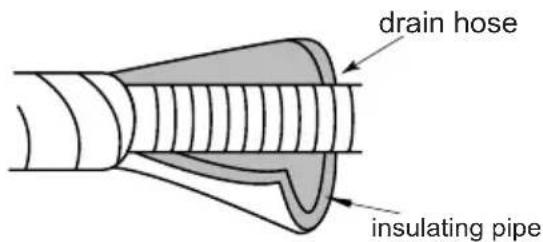

• Add insulating pipe in the indoor drain hose in order to prevent condensation.
  • The plastic expansion particles are not provided.

Step 7: Connect wire of indoor unit

NOTICE

• All wires of indoor unit and outdoor unit should be connected by a professional.
• If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.
• For the air conditioner with plug, the plug should be reachable after finishing installation.

• For the air conditioner without plug, an air switch must be installed in the line. The air switch should be all-pole parting and the contact parting distance should be more than 3mm.

• Open the panel, remove the screw on the wiring cover and then take down the cover.

panel screw wiring cover

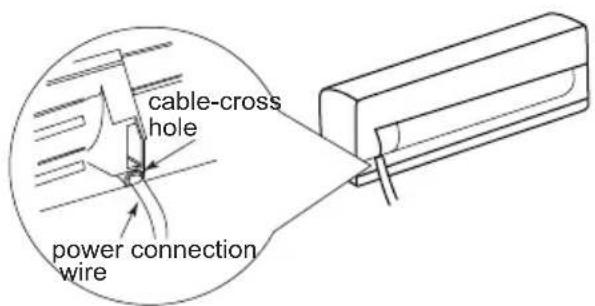

1. Make the power connection wire go through the cable-cross hole at the back of indoor unit and then pull it out from the front side.

cable-cross hole power connection wire

1. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color; tighten the screw and then fix the power connection wire with wire clip.

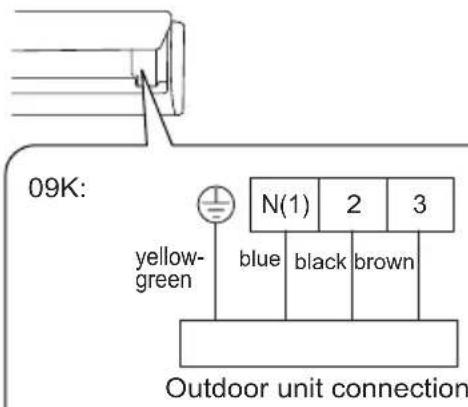

09K: N(1) 2 3 yellow- green blue black brown Outdoor unit connection

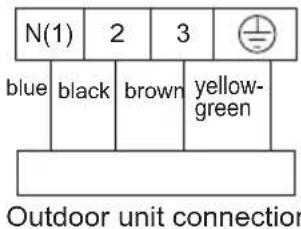

12K, 18K, 24K:

N(1) 2 3 blue black brown yellow- green Outdoor unit connection

NOTICE

- The wiring board is for reference only, please refer to the actual one.

1. Put wiring cover back and then tighten the screw.
2. Close the panel.

Step 8:

Bind up pipe

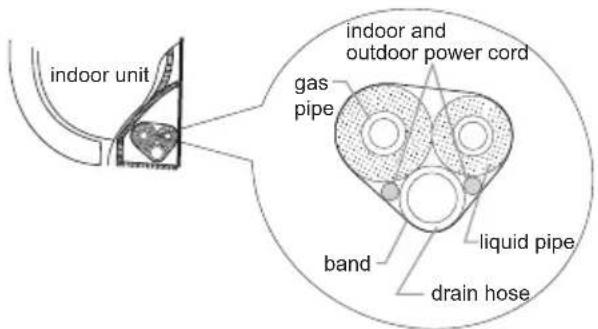

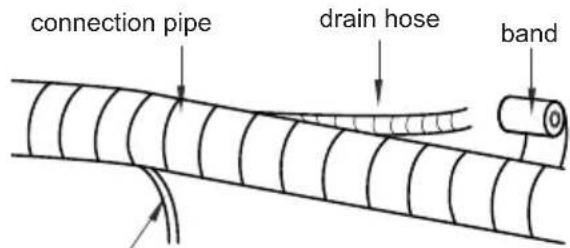

1. Bind up the connection pipe, power cord and drain hose with the band.

indoor unit gas pipe indoor and outdoor power cord liquid pipe band drain hose

1. Reserve a certain length of drain hose and power cord for installation when binding them. When binding to a certain degree, separate the indoor power and then separate the drain hose.

connection pipe drain hose band

indoor power cord

1. Bind them evenly.
2. The liquid pipe and gas pipe should be bound separately at the end.

NOTICE

• The power cord and control wire can't be crossed or winding.
  • The drain hose should be bound at the bottom.

Step 9:

Hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
   4.Fix the wall pipe.
4. Check if the indoor unit is installed firmly and closed to the wall.

indoor outdoor wall pipe sealing gum upper hook lower hook of wall-mounting frame

NOTICE

- Do not bend the drain hose too excessively in order to prevent blocking.

Installation of outdoor unit

Step 1:

Fix the support of outdoor unit (select it according to the actual installation situation)

1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.

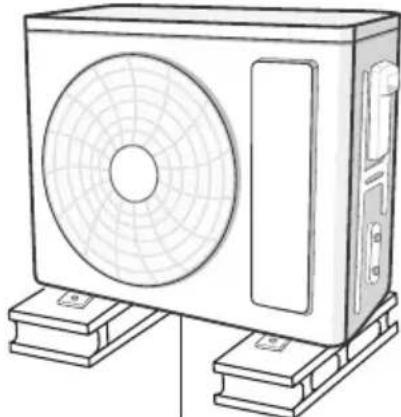

Line drawing of a front-mounted air conditioner unit with fan and base (no text or symbols)

at least 3cm above the floor

NOTICE

• Take sufficient protective measures when installing the outdoor unit.
- Make sure the support can withstand at least four times of the unit weight.
- The outdoor unit should be installed at least 3cm above the floor in order to install drain joint. (for the model with heating tube, the installation height should be no less than 20cm.)
- For the unit with cooling capacity of 2300W \~ 5000W, 6 expansion screws are needed; for the unit with cooling capacity of 6000W\~8000W, 8 expansion screws are needed; for the unit with cooling capacity of 10000W\~16000W, 10 expansion screws are needed.

Step 2:

Install drain joint (only for some models)

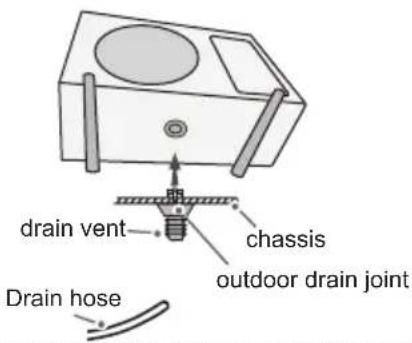

1. Connect the outdoor drain joint into the hole on the chassis, as shown in the picture below.
2. Connect the drain hose into the drain vent.

NOTICE

- As for the shape of drainage joint, please refer to the current product. Do not install the drainage joint in the severe cold area. Otherwise, it will be frosted and then cause malfunction.

drain vent chassis outdoor drain joint Drain hose

Step 3:

Fix outdoor unit

1. Place the outdoor unit on the support.
2. Fix the foot holes of outdoor unit with bolts.

foot holes foot holes

Step 4:

Connect indoor and outdoor pipes

1. Remove the screw on the right handle of outdoor unit and then remove the handle.

handle screw

1. Remove the screw cap of valve and aim the pipe joint at the bellmouth of pipe.

liquid valve liquid pipe gas pipe gas valve

1. Pretighten the union nut with hand.

pipe joint union nut

1. Tighten the union nu t with torque wrench by referring to the sheet below.

Hex nut diameter	Tightening torque(N·m)
1/4"	15~20
3/8"	30~40
1/2"	45~55
5/8"	60~65
3/4"	70~75

Step 5:

Connect outdoor electric wire

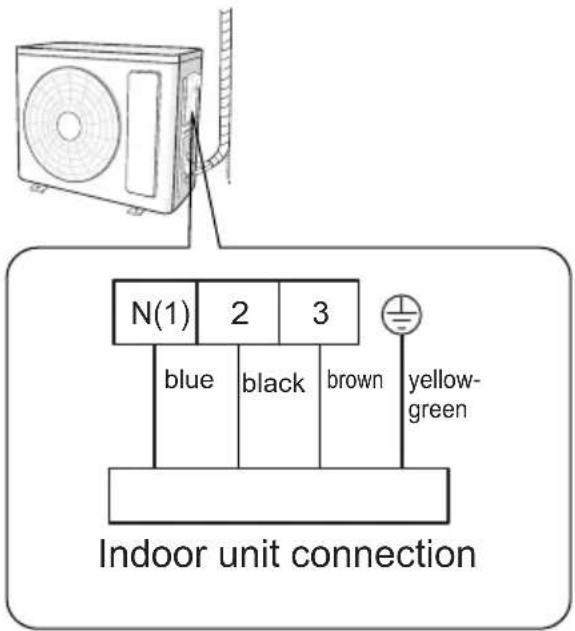

1. Remove the wire clip; connect the power connection wire and signal control wire (only for cooling and heating unit) to the wiring terminal according to the color; fix them with screws.

N(1) 2 3 blue black brown yellow- green Indoor unit connection

NOTICE

- The wiring board is for reference only, please refer to the actual one.

1. Fix the power connection wire and signal control wire with wire clip (only for cooling and heating unit).

NOTICE

• After tighten the screw, pull the power cord slightly to check if it is firm.
• Never cut the power connection wire to prolong or shorten the distance.

Step 6:

Neaten the pipes

1. The pipes should be placed along the wall, bent reasonably and hidden possibly. Min. semidiameter of bending the pipe is 10cm.
2. If the outdoor unit is higher than the wall hole, you must set a U-shaped curve in the pipe before pipe goes into the room, in order to prevent rain from getting into the room.

U-shaped curve drain hose wall

NOTICE

- The through-wall height of drain hose should not be higher than the outlet pipe hole of indoor unit.

the drain hose can't raise upwards.

- The water outlet can't be placed in water in order to drain smoothly.

The water outlet can't be placed in water

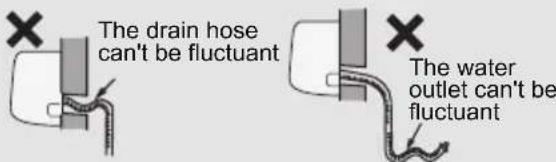

- Slant the drain hose slightly downwards. The drain hose can't be curved, raised and fluctuant, etc.

Simple line drawing of a rectangular object with a checkmark and a measuring tape (no text or symbols)

✗ The drain hose can't be fluctuant

The drain hose can't be fluctuant The water outlet can't be fluctuant

Test and operation

Use vacuum pump

1. Remove the valve caps on the liquid valve and gas valve and the nut of refrigerant charging vent.
2. Connect the charging hose of piezometer to the refrigerant charging vent of gas valve and then connect the other charging hose to the vacuum pump.
3. Open the piezometer completely and operate for 10-15min to check if the pressure of piezometer remains in -0.1MPa.
4. Close the vacuum pump and maintain this status for 1-2min to check if the pressure of piezometer remains in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.

Reinstall the handle.7.

liquid valve gas valve refrigerant charging vent nut of refrigerant charging vent piezometer valve cap vacuum pump inner hexagon spanner close open

Leakage detection

1. With leakage detector:
   Check if there is leakage with leakage detector.
2. With soap water:
   If leakage detector is not available, please use soap water for leakage detection. Apply soap water at the suspected position and keep the soap water for more than 3min. If there are air bubbles coming out of this position, there's a leakage.

Check after installation

- Check according to the following requirement after finishing installation.

Items to be checked	Possible malfunction
Has the unit been installed firmly?	The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test?	It may cause insufficient cooling(heating) capacity.
Is heat insulation of pipeline sufficient?	It may cause condensation and water dripping.
Is water drained well?	It may cause condensation and water dripping.
Is the voltage of power supply according to the voltage marked on the nameplate?	It may cause malfunction or damage the parts.
Is electric wiring and pipeline installed correctly?	It may cause malfunction or damage the parts.
Is the unit grounded securely?	It may cause electric leakage.
Does the power cord follow the specification?	It may cause malfunction or damage the parts.
Is there any obstruction in the air inlet and outlet?	It may cause insufficient cooling(heating) capacity.
The dust and sundries caused during installation are removed?	It may cause malfunction or damage the parts.
The gas valve and liquid valve of connection pipe are open completely?	It may cause insufficient cooling (heating) capacity.
Is the inlet and outlet of piping hole been covered?	It may cause insufficient cooling (heating) capacity or waste electricity.

Test operation

1. Preparation of test operation

• The client approves the air conditioner.
• Specify the important notes for air conditioner to the client.

2. Method of test operation

• Put through the power, press ON/OFF button on the remote controller to start operation.
• Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check whether the operation is normal or not.
• If the ambient temperature is lower than 16^ , the air conditioner can't start cooling.

Configuration of connection pipe

1. Standard length of connection pipe: 5m, 7.5m, 8m.

2. Min. length of connection pipe is 3m.

3. Max. length of connection pipe is shown as below.

Max. length of connection pipe

Cooling capacity	Max. length of connection pipe(m)
5000Btu/h (1465W)	15
7000Btu/h (2051W)	15
9000Btu/h (2637W)	15
12000Btu/h (3516W)	20
18000Btu/h (5274W)	25
24000Btu/h (7032W)	25
28000Btu/h (8204W)	30
36000Btu/h (10548W)	30
42000Btu/h (12306W)	30
48000Btu/h (14064W)	30

1. The additional refrigerant oil and refrigerant charging required after prolonging connection pipe.

- After the length of connection pipe is prolonged for 10m at the basis of standard length, you should add 5ml of refrigerant oil for each additional 5m of connection pipe.

- The calculation method of additional refrigerant charging amount(on the basis of liquid pipe): Additional refrigerant charging amount = prolonged length of liquid pipe × additional refrigerant charging amount per meter

- Basing on the length of standard pipe, add refrigerant according to the requirement as shown in the table. The additional refrigerant charging amount per meter is different according to the diameter of liquid pipe. See the following sheet.

Additional refrigerant charging amount for R410A

Piping size		Outdoor unit throttle
Liquid pipe	Gas pipe	Cooling only(g/m)	Cooling and heating(g/m)
1/4"	3/8" or 1/2"	15	20
1/4" or 3/8"	5/8" or 3/4"	15	50
1/2"	3/4" or 7/8"	30	120
5/8"	1" or 1 1/4"	60	120
3/4"	-	250 250
7/8"	-	350 350

Pipe expanding method

NOTICE

Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps:

A: Cut the pipe

• Confirm the pipe length according to the distance of indoor unit and outdoor unit.
• Cut the required pipe with pipe cutter.

pipe pipe cutter 90° × leaning × uneven × burr

B: Remove the burrs

- Remove the burrs with shaper and prevent the burrs from getting into the pipe.

pipe shaper downwards

C: Put on suitable insulating pipe

D: Put on the union nut

- Remove the union nut on the indoor connection

pipe and outdoor valve; install the union nut on the pipe.

union pipe pipe

E: Expand the port

- Expand the port with expander.

expander hard mold pipe

NOTICE

- "A" is different according to the diameter, please refer to the sheet below:

Outer diameter (mm)	A(mm)
	Max Min
Φ6 - 6.35(1/4")	1.3 0.7
Φ9 - 9.52(3/8") 1.6 1.0
Φ12-12.7(1/2")	1.8 1.0
Φ15.8-16(5/8")	2.4 2.2

F: Inspection

- Check the quality of expanding port. If there is any blemish, expand the port again according to the steps above.

smooth surface improper expanding the length is equal leaning damaged surface crack uneven thickness

Working temperature range

9K

	Indoor side DB/WB(°C)	Outdoor side DB/WB(°C)
Maximum cooling		43/2632/23
Maximum heating		24/1827/-

NOTE

- The operating temperature range (outdoor temperature) for cooling only unit is -15°C\~43°C; for heat pump unit is -15°C\~43°C.

12K, 18K, 24K

	Indoor side DB/WB(°C)	Outdoor side DB/WB(°C)
Maximum cooling		43/2632/23
Maximum heating		24/1827/-

NOTE

- The operating temperature range (outdoor temperature) for cooling only unit is -7°C\~43°C; for heat pump unit is -7°C\~43°C.

請記錄下列產品資料

型號 Model No.:

機身編號 Serial No.:

經銷商名稱 Dealer:

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version, the English version shall prevail.

QR code image containing encoded data, no visible human-readable text

保養登記

Warranty Registration

於網上登記新產品保養 Register your product online

www.dchtoolbox.com

Black and white barcode image with vertical lines on both sides

66139907719

Gilman

since 1841

DCHToolBox

大昌行電器維修中心

4/F, DCH Building, 20 Kai Cheung Road, Kowloon Bay, Hong Kong

客戶服務熱線 Customer Service Hotline: [phone]
