Product Type	DDR5 Memory Module
Brand	Crucial
Model	CP16G56C46U5
Capacity	16 GB
Speed	5600 MHz
Form Factor	SODIMM (Unbuffered)
Memory Configuration	1Rx8 or 2Rx8 (typical)
Voltage	1.1 V
CAS Latency	46 (CL46)
Dimensions (L x W)	67.6 x 30.0 mm (approx.)
Weight	10 g (approx.)
Pin Count	262 pins
Operating Temperature	0°C to 85°C
Storage Temperature	-40°C to 85°C
Key Features	Lower power consumption, improved performance, plug-and-play installation
Compatibility	Laptops with DDR5 SODIMM slots
Installation	Requires static-safe environment; align notch and press firmly until clips snap
Maintenance	None; avoid physical contact with gold contacts
Safety	Handle with care to avoid ESD; do not use tools
Spare Parts / Repairability	Non-repairable; replace with compatible module
Warranty	Limited lifetime warranty (check manufacturer)

Frequently Asked Questions - CP16G56C46U5 Crucial

What is the difference between DIMM and SODIMM?

DIMM (Dual In-line Memory Module) is used in desktop computers, while SODIMM (Small Outline DIMM) is used in laptops. The CP16G56C46U5 is a SODIMM module designed for laptops.

How do I install this memory module?

First, ensure a static-safe environment. Shut down and unplug your laptop, remove the battery, and discharge residual power. Insert the module at a 45-degree angle and push down until the clips snap into place. Refer to the Install Guide for details.

What if my system does not boot after installation?

Check if the module is fully seated by removing and reinstalling it. Verify all internal connections. If you hear beeps, the memory may not be recognized. Contact Crucial Technical Support for assistance.

Is this memory compatible with my laptop?

This module is a DDR5-5600 SODIMM. It is compatible with laptops that have DDR5 SODIMM slots. Check your laptop's specifications to ensure support for 5600 MHz speed and 16 GB capacity.

What voltage does this memory require?

This DDR5 module operates at 1.1V, which is standard for DDR5 memory, offering lower power consumption compared to previous generations.

Can I mix this module with other memory modules?

For best performance, use identical modules in matched pairs. Mixing with other speeds or capacities may result in the system running at the lowest common denominator or causing instability.

How much pressure is needed to install the memory?

It typically takes 20 to 30 pounds of pressure to fully seat the module. Apply firm, even pressure until the retention clips snap into place.

What does the model number CP16G56C46U5 mean?

CP stands for Crucial product, 16G means 16 GB capacity, 56 indicates 5600 MHz speed, C46 is CAS latency 46, and U5 likely refers to the generation or revision. It is a DDR5 SODIMM.

How do I clean or maintain this memory module?

Memory modules require no routine maintenance. Avoid touching the gold contacts. If cleaning is necessary, use isopropyl alcohol and a lint-free cloth. Store in an anti-static bag when not in use.

What should I do if I receive a memory mismatch message?

If you see a memory mismatch message, enter the Setup menu (usually by pressing F2 or Del during boot) and select 'Save and Exit'. This is often normal and updates the system configuration.

USER MANUAL CP16G56C46U5 Crucial

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

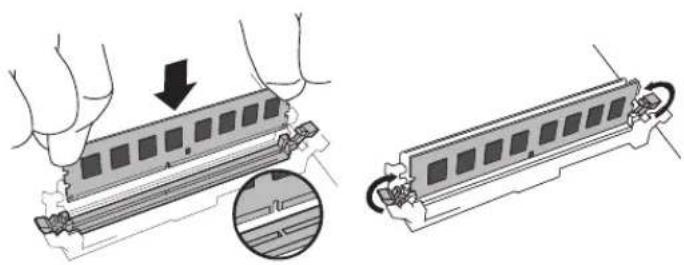

DIMM installation

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

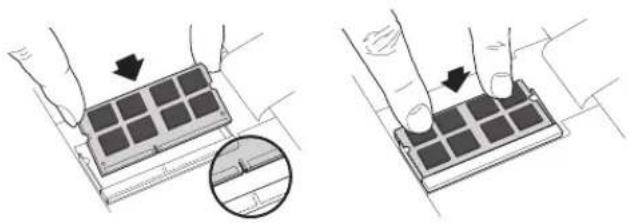

SODIMM installation

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory

www.crucial.com/support/memory
