Product Type	Memory Module (RAM)
Brand	Crucial
Model	32GB Kit (2x16GB) DDR3L 1866MT/s
Capacity	32 GB (2 x 16 GB)
Memory Type	DDR3L UDIMM
Speed	1866 MT/s
Voltage	1.35 V
Latency	CL13
Form Factor	DIMM (240-pin)
ECC	Non-ECC
Compatibility	Systems supporting DDR3L memory modules
Operating Temperature	0°C to 85°C
Storage Temperature	-20°C to 85°C
Dimensions	133.35 mm x 31.25 mm
Weight	Approx. 50 g (2 modules)
Power Consumption	Low-power 1.35 V design
Main Functions	Increases system memory capacity for smoother multitasking and faster application loading
Maintenance	Handle modules by edges; keep contacts clean; avoid touching gold pins
Cleaning	Use a soft, dry cloth; do not use liquids or solvents
Safety Precautions	Install in anti-static environment; power off system before installation
Spare Parts and Repairability	Non-user-serviceable; no internal parts for repair; replace module if faulty
General Information	Backed by Crucial limited lifetime warranty

Frequently Asked Questions - 32GB KIT 16GBX2 DDR3L 1866MT/S Crucial

Is this DDR3L memory kit compatible with my desktop computer?

This kit uses 240-pin DIMM modules designed for desktops. Check your motherboard specifications to ensure it supports DDR3L (1.35V) memory and has two or four free slots for dual-channel operation. It is not compatible with laptops or SODIMM slots.

What is the difference between DDR3 and DDR3L?

DDR3L operates at a lower voltage of 1.35V compared to standard DDR3's 1.5V. This makes it more energy-efficient and compatible with both 1.5V and 1.35V systems, although it runs best on systems designed for low-voltage memory.

Can I mix this with existing DDR3 modules?

Mixing memory modules is possible but may result in the system running at the lowest common speed and voltage. For optimal dual-channel performance, use an identical matched pair like this kit. Always consult your motherboard's compatibility list.

How do I install the memory modules?

Power off your PC, unplug it, and open the case. Locate the DIMM slots, push the ejection clips open, align the notch on the module with the slot key, and press down firmly until the clips click. Ensure the module is fully seated for proper contact.

Does this memory support overclocking profiles like XMP?

This is a JEDEC-standard module running at 1866 MT/s with CL13 latency. It does not include XMP profiles, but it will run at its rated speed when the motherboard supports DDR3L-1866. You can manually set timings if desired.

What warranty does Crucial provide for this memory?

Crucial backs this memory with a limited lifetime warranty, covering defects in materials and workmanship for as long as you own the product. Warranty terms may vary by region; check Crucial's official warranty page.

How should I clean and maintain my memory modules?

Handle modules by their edges and avoid touching the gold contacts. Use a soft, lint-free cloth to wipe the surface. If contacts are dirty, lightly clean with isopropyl alcohol and allow them to dry completely before reinstallation.

Is this memory ECC or non-ECC?

This kit is Non-ECC, meaning it does not support error correction. It is designed for standard consumer desktops and workstations. Server motherboards requiring ECC memory will not recognize it.

What does '32GB KIT 16GBX2' mean?

The kit contains two 16 GB modules for a total of 32 GB. Having two modules enables dual-channel memory, which can improve system performance by increasing memory bandwidth.

How do I verify that my new memory is working correctly?

After installation, enter the BIOS/UEFI to check if the full capacity is detected. For advanced testing, use built-in tools like Windows Memory Diagnostic or third-party software like Memtest86 to verify stability and detect errors.

USER MANUAL 32GB KIT 16GBX2 DDR3L 1866MT/S Crucial

Install Guide

General Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Discharge residual power by pressing the power button.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

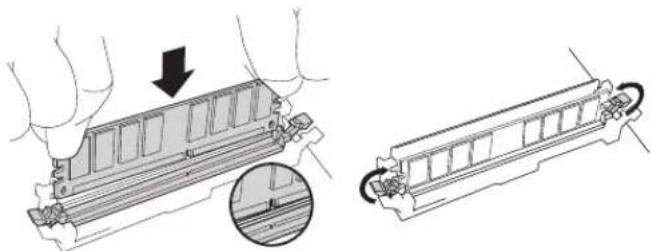

Desktop, server, and printer memory installation (DIMM modules)

Using firm, even pressure, push DIMM into socket until clips snap into place. Do not assist clips.

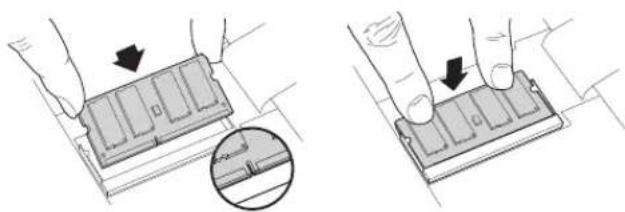

Laptop memory installation (SODIMM modules)

Firmly push SODIMM in at 45° angle, and then push down until clips snap into place.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the sockets.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you encounter any of the following problems, please contact Crucial Technical Support:

1. Your module doesn't seem to fit; do not force it into the socket.
2. Your system is recognizing only half of the new module's memory.

Customer Service and Technical Support

For technical support, customer service or returns, contact us using your preferred method below.

North and South America

Email: [e-mail]

Phone: [phone]

Toll free phone: [phone] (US and Canada only)

Europe

Email: [e-mail]

Phone: [phone]

Freephone: 0800 013 0330 (UK only)

Phone: [phone] (France only)

Freephone: 0805 10 29 63 (France only)

Asia, Australia, and New Zealand

Email: [e-mail]

Phone: [phone]

Freephone: 1 (800) 142982 (Australia and New Zealand only)

www.crucial.com/support/memory

©2013 Micron Technology, Inc. All rights reserved. Information is subject to change without notice. Crucial and the Crucial logo are trademarks or registered trademarks of Micron Technology, Inc. All other trademarks and service marks are property of their respective owners. Products and specifications are subject to change without notice. Neither Crucial nor Micron Technology is responsible for omissions or errors in typography or photography.
