Product Type	DDR4 Memory Module
Brand	Crucial
Model	BLM16G44C19U4BL
Capacity	16 GB
Memory Technology	DDR4
Speed	3200 MHz
CAS Latency	CL19
Voltage	1.2 V
Form Factor	UDIMM (Unbuffered)
Pin Configuration	288-pin
Color	Black
Dimensions (L x W x H)	133.35 x 30 x 1.5 mm
Weight	10 g
Compatibility	Desktop motherboards with DDR4 DIMM slots
XMP Support	Yes, Intel XMP 2.0
Heat Spreader	Integrated aluminum heat spreader
Warranty	Limited Lifetime Warranty
Maintenance	Handle by edges; avoid static electricity; clean with dry cloth
Safety Precautions	Keep away from moisture and extreme temperatures; install in a static-safe environment
Repairability	Not user serviceable; no replaceable parts

Frequently Asked Questions - BLM16G44C19U4BL Crucial

What is the capacity of the Crucial BLM16G44C19U4BL?

It has a capacity of 16 GB.

Is this RAM compatible with AMD Ryzen processors?

Yes, it is compatible with both Intel and AMD platforms that support DDR4 UDIMM modules. For optimal performance, enable XMP/DOCP in the BIOS.

What speed does this memory run at?

The default speed is 3200 MHz. It can be overclocked using Intel XMP 2.0 or AMD DOCP profiles.

Can I mix this module with other RAM sticks?

It is recommended to use identical modules for dual-channel performance. Mixing may cause instability or reduced speeds.

What is the voltage requirement?

The standard operating voltage is 1.2 V. Under XMP profiles, voltage may increase to 1.35 V.

Does this RAM come with a heat spreader?

Yes, it features an aluminum heat spreader for improved thermal dissipation.

How do I install this memory module?

Power down the computer, ground yourself, open the DIMM slot clips, align the notch, and press firmly until the clips snap. Avoid touching the gold contacts.

What is the CAS latency?

The CAS latency is CL19 (19-19-19-39 at 3200 MHz).

Is this memory ECC or registered?

No, this is non-ECC unbuffered (UDIMM) memory, designed for standard desktop use.

What is the warranty period?

Crucial offers a Limited Lifetime Warranty for this product.

USER MANUAL BLM16G44C19U4BL Crucial

3D technical illustration of a dual-chamber RAM module with multiple square slots and mounting holes (no text or symbols)

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
• Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system’s owner’s manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.
2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.
3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.
7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).
8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

DIMM installation

Illustration of hands installing a rack frame with a magnified inset showing the mechanism (no text or symbols present)

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

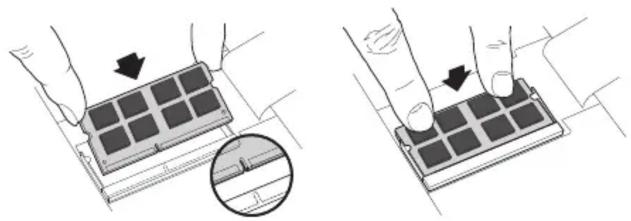

SODIMM installation

Illustration of two hands holding a grid device with arrows indicating movement, no text or symbols present

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory

www.crucial.com/support/memory
