CT8G48C40U5 - Memory Card Crucial - Free user manual and instructions

Product Type	DDR4 SDRAM Memory Module
Capacity	8 GB
Speed	4800 MHz
CAS Latency	CL40
Form Factor	Unbuffered DIMM (UDIMM)
Voltage	1.2 V
Pin Count	288-pin
Memory Channels	Dual Channel Support
Dimensions (Approx.)	133.35 mm x 31.25 mm
Weight (Approx.)	10 g
Power Consumption	Typical < 2 W
Main Functions	System memory for OS, applications, and games; improves multitasking and responsiveness
Maintenance & Cleaning	Keep contacts clean; avoid dust; use compressed air for dust removal; do not use liquids
Safety Precautions	Handle with anti-static precautions; avoid touching gold contacts; power off system before installation
Spare Parts & Repairability	No user-serviceable parts; replace module if faulty
General Information	Manufacturer: Crucial; Model: CT8G48C40U5; Warranty: Limited Lifetime; Support: www.crucial.com/support

Frequently Asked Questions - CT8G48C40U5 Crucial

How do I install the Crucial CT8G48C40U5 memory module?

First, power off your computer, unplug it, and ground yourself. Locate the memory slots on your motherboard. Align the notch on the module with the slot and press firmly until the clips snap into place. Refer to your system's manual for specific slot configuration.

Is this memory compatible with my laptop?

No, the CT8G48C40U5 is a desktop DIMM (288-pin) and is not compatible with laptops which typically use SODIMM modules. Please check your system's memory type before purchasing.

What is the speed and latency of this module?

It runs at 4800 MHz with a CAS latency of CL40, operating at 1.2V standard DDR4 voltage.

Can I mix this module with other RAM sticks?

While it may work, for best stability and performance, use identical modules (same speed, latency, and capacity). Mixing different specs may cause the system to run at the lowest common denominator.

My computer doesn't boot after installing the memory. What should I do?

Reseat the module to ensure it's fully inserted. Check for any dislodged cables. If it still fails, try booting with one module at a time to identify a faulty module. Contact Crucial support if issues persist.

Do I need to update my BIOS for this memory?

Most modern systems automatically detect the memory. However, if you experience instability, check your motherboard manufacturer's website for BIOS updates that improve memory compatibility.

How can I verify that the memory is installed correctly?

After booting, go to your system's BIOS/UEFI and check the total memory amount. You can also use operating system tools like Task Manager (Windows) or 'free -h' (Linux) to confirm the installed RAM.

What is the warranty for this product?

Crucial offers a Limited Lifetime Warranty for this memory module, subject to terms and conditions. For more details, visit their support page.

Can I overclock this memory?

XMP (Extreme Memory Profile) profiles may be supported on compatible motherboards, allowing you to run at higher speeds. Enable XMP in BIOS for optimal performance, but stability depends on your system.

Where can I find the user manual for this product?

The manual is available for download on notice-facile.com and Crucial's official support site. It includes installation instructions and troubleshooting tips.

USER MANUAL CT8G48C40U5 Crucial

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
• Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system’s owner’s manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.
2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.
3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.
7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).
8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

DIMM installation

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

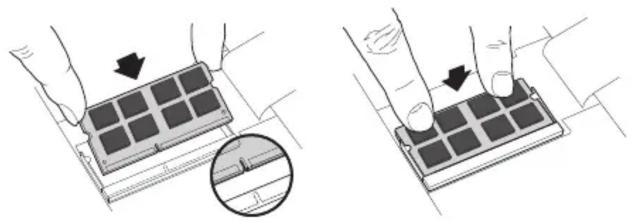

SODIMM installation

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory

www.crucial.com/support/memory
