1. INTRODUCTION

Congratulations on your purchase of a DMA series digital matrix amplifier. The DMA's flexible deisgn will provide you with up to eight channels of audio matrixing and processing. A single DMA amplifier offers eight-in, eight-out support (or eight-in, four-out), and the entire system can be controlled through standard potentiometers, remote controls or flexible remote software. Internal processing is accomplished through a high quality 40-bit floating point processor, with internal signal processors and matrix routing all handled with ease.

DMA digital matrix amplifiers offer easy, effective means for injecting signal processors directly into your input and output path, with clear, easy-to-use software both onboard and on your Windows computer. The software offers full performance monitoring for each processor, giving real-time information on the load placed upon DSPs.

2. FEATURES

• 8 input channels available via 3-pin Euroblock connections and stereo RCA inputs
  • Full control possible through onboard software accessed with VGA display and USB mouse connected
• Built-in multi-channel amplifier for low-impedance or line distribution application*
• For power output levels for individual models, please consult the Specifications on page 17
• 40-bit floating point processor with internal sampling selectable between 44.1 and 48 kHz
• Optional 4x4 or 8x8 networking capabilities through audio streaming LAN card
  • Digital AES/EBU input and output connectors
  • Auto shutdown mode for reduced power consumption
• Ethernet connectivity for network and internet control application
  • Automatic DHCP network IP configuration
• Easy and intuitive control software from Asystems
  • Event scheduling and user-accounts
  • 4-band parametric EQs and 31-band graphic equalizers
• Adjustable compressors and limiters built-in
  • Feedback silencing technology seeks and destroys feedback
• User-defined crossovers available on output channels
  • Autoleveler (Loudness Control)
  • Level ducking with trigger control

3. CONTROLS AND I/O

FRONT PANEL

① ② ④ ⑤ POWER DISABLE STANDBY/UNLOCK PROTECT ③ ⑦ ⑥ DMA8825 / DMA8813 SYSTEMS POWER DOUBLE STANDARD/UNLOCK PROTECT ⑧ ② ① ② ③ ④ ⑤ ⑥ DMA8825 / DMA8813 ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶

1. Mounting Holes

These holes are for mounting the DMA device in a standard 19" rack.

2. Output Level Control Knobs

Every output channel is equipped with a rotary knob for adjusting the final output level. These controls can be deactivated within the DMA software.

3. OUT LED

Every output channel is equipped with a 4-segment IN LED level meter, including a CLIP/PROTECT indicator.

4. BRIDGE LED

This LED lights when the two corresponding channels are bridged with one another.

NOTE: Every input channel is equipped with one output level control knob, one IN LED and 1 level meter. Each channel pair features a BRIDGE LED.

5. Cooling Inlet Vents

Cool air is drawn in here. Please do not cover these vents for any reason as you risk overheating the DMA.

6. Reset Button

A pinhole button is included for resetting the DMA series matrix amplifier to the factory default settings.

7. Indicators

POWER: Lights when the device is on.

DISABLE: Lights when the power switch is disabled.

STANDBY/UNLOCK: Lights when DMA device is in the Standby mode.

PROTECT: Lights when the protect circuitry is active.

8. Power Switch

Flick this switch to turn the unit on and enter it into STANDBY mode. Please note that this switch can be disabled through the onboard software. If the power switch becomes unresponsive, check your power settings.

WARNING: The DMA requires up to 2 minutes to be fully discharged after the power is turned off. During this time the system cannot be powered on properly.

REAR PANEL

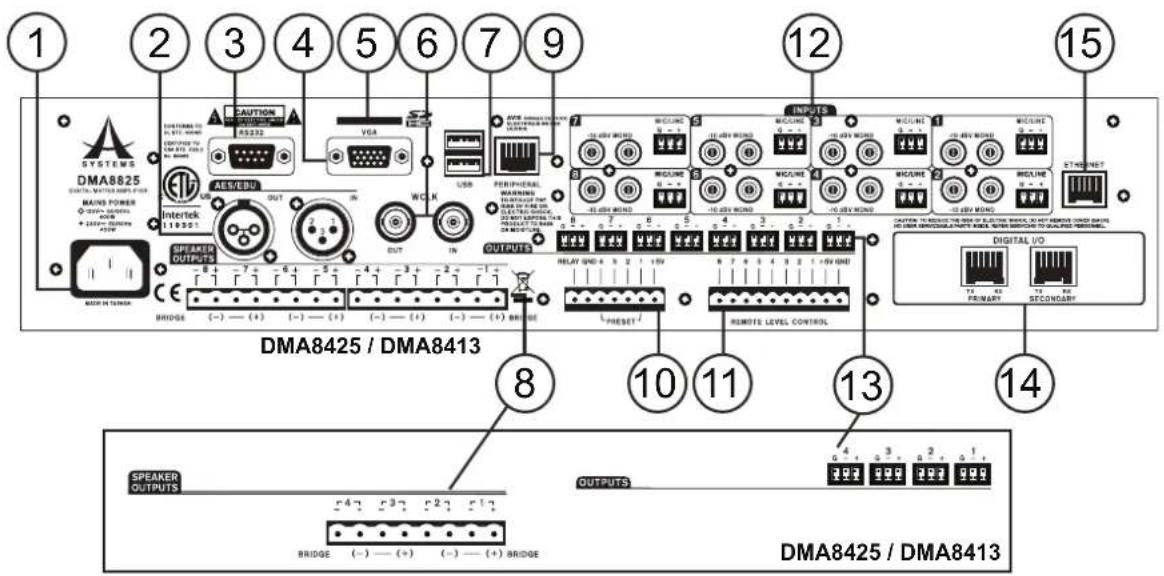

The Asystems DMA8825, DMA8813, DMA8425 and DMA8413 share the same basic I/O design and layout. The major difference is that the DMA8825 and DMA8813 have 8 speaker output connectors and 8 line-out connectors, while the DMA8425 and DMA8413 have 4 speaker output connectors and 4 line-out connectors (as shown below).

SYSTEMS DMA8425 DIGITAL METERING POWER MAINS POWER POWER + 20V AC/DC + 20V AC/DC INTERTEK 119301 SPEAKED OUTPUTS CE BRIDGE (-) — (+) (-) — (+) (-) — (+) BRIDGE CAUTION R5232 VGA USB PERIPHERAL MAXIMUM TOLERANCE FOR INJ. OF THE ELECTRIC ORDER. OUTPUTS RELAY SPED 4 5 2 1 + 5V PRESET INPUTS MCCLINE -10.6V BOUND MCCLINE -10.6V BOUND MCCLINE -10.6V BOUND MCCLINE -10.6V BOUND STANDARD DIGITAL I/O PRIMARY SECONDARY COUNTER TO REJECT THE NAME OF ELECTRIC ORDER, DO NOT REMOVE ORDER FROM NO OWNER PROCESSED IN PARTS, WHEN SWITCH TO QOLUPTER PERFORMAL. 8 10 11 13 14 SPEAKER OUTPUTS BRIDGE (-) — (+) (-) — (+) BRIDGE OUTPUTS 4 3 2 1 BRIDGE - (-) — (+) (-) — (+) BRIDGE DMA8425 / DMA8413

1. AC Power Connector

This power inlet is for connecting a standard IEC power cable. Under no circumstances should the user remove the grounding pin on the power cable.

2. AES/EBU Connector

For connecting AES/EBU-enabled devices.

3. RS-232 Connector

For remote control through non-Ethernet based hardware that utilizes a RS-232 control data protocol. This feature is only found on the DMA8825. A detailed protocol document can be found on the Asystems website.

4. VGA Connector

Connect this port to an appropriate video screen to view the DMA's internal software. This can be controlled by any connected wired or wireless mouse.

5. SD Card Slot

Insert an SD card here to play digital audio files.

6. WCLK Connector

This port is for connection of a master clock, enabling multiple digital audio devices to be perfectly synchronized.

7. USB Ports

These USB ports are for connection of a standard wired or wireless USB mouse for stand-alone control of the internal software. The second USB port can be used when performing firmware updates.

8. SPEAKER OUTPUTS (Amplified Output)

For connecting passive loudspeakers.

9. PERIPHERAL Connector

For connecting the Asystems RM-6E programmable remote control (sold separately).

10. PRESET RECALL Connector

For connecting Asystems' RM-4 series remote preset recall control (sold separately).

11. REMOTE LEVEL CONTROL Connector

For connecting Asystems' RM-2VR series remote level control (sold separately).

12. INPUT Connectors

Two types of input connectors are offered - Euroblock and unbalanced RCA.

13. OUTPUT Connectors

DMA matrix amplifiers adopt 3-pin Euroblock output connectors for line-level output. These can be used as balanced or unbalanced connections (see section "Audio Output" on page 6 for more).

14. DIGITAL I/O Expansion Card Slot

This slot is for installing Asystems' DT44 or DT88 Dante Networking card to enable the DMA as a networking portal to other Dante-enabled devices.

15. ETHERNET Connector

RJ-45 connector for connecting the DMA8825, DMA8813, DMA8425 or DMA8413 to a PC or local area network.

4. INSTALLATION AND SETUP

4.1 RACK MOUNTING

DMA8825, DMA8813, DMA8425 and DMA8413 are compatible with standard 19" audio equipment racks. Slide the DMA in to the rack and secure it with four Phillips screws and appropriate square nuts. The DMA matrix amplifiers all take up 2 standard units of rack space.

Front view of a server rack with indicator lights and a warning symbol (no readable text or labels)

4.2 CONNECTIONS

Connect all necessary input and output devices.

To Monitor Display USB Mouse Audio In To PC/Internet/ Intranet Speaker OUTLATS SPEED OUT AMPLIFIED OUT AUX Out Speaker OUTLATS SPEED OUT AUX Out DMA8425/DMA8413

AUDIO INPUT

Input can be achieved through correctly wiring the Euroblock connectors and RCA connectors

Euroblock Connectors RCA Connectors

Balanced

PIN 1: Shield/Ground

PIN 2: Cold (-)

PIN 3: Hot (+)

Unbalanced

PIN 1: Shield/Ground

PIN 2: Link to PIN 1

PIN 3: Hot (+)

AUDIO OUTPUT

AMPLIFIED OUTPUTS

These euroblock outputs are used to connect speakers, either in low-impedance or distributed lines depending on your model. Amplified outputs are wired like so:

PIN 1: Cold (-)

PIN 2: Hot (+)

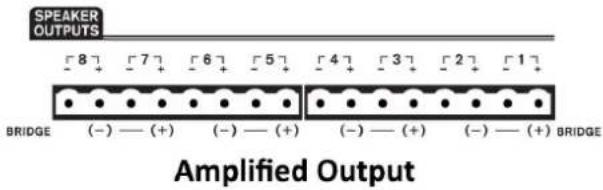

Each pair of amplified output channels can be bridged into one channel. This combines the output power of both channels creating a single channel with twice as much power.

To bridge channels, just wire the "+" pin of an odd-numbered channel to the "+" pin of the next even channel. When bridged, the "+" pin of the even channel becomes the "-" pin of the bridged new output.

When activating bridge mode, be sure to go into the Control Panel menu of the DMA software and click the corresponding "Bridged" button.

AUX OUTPUTS

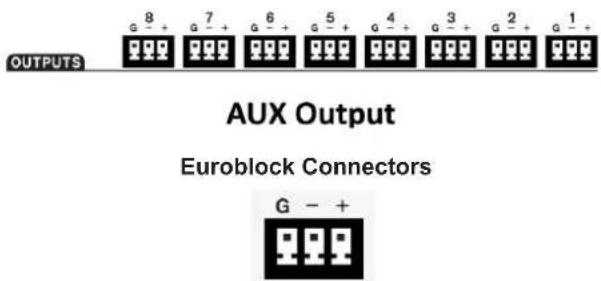

Offering line-level signals, AUX OUTPUT connectors can be wired as either as balanced or unbalanced connections.

SPEAKER OUTPUTS BRIDGE (-) — (+) (-) — (+) (-) — (+) (-) — (+) BRIDGE Amplified Output

OUTPUTS G 8 + G 7 + G 6 + G 5 + G 4 + G 3 + G 2 + G 1 + AUX Output Euroblock Connectors G - +

Balanced

PIN 1: Shield/Ground

PIN 2: Cold (-)

PIN 3: Hot (+)

Unbalanced

PIN 1: Shield/Ground

PIN 2: Link to PIN 1

PIN 3: Hot (+)

DIGITAL I/O EXPANSION CARD

1. Loosen the two screws and remove the cover plate.

e cover plate.

1. Connect the DT44 or DT88 Dante Networking card.

working card.

1. Tighten the two screws back to secure the cover plate.

e cover plate.

ONBOARD CONTROL

DMA8825, DMA8813, DMA8425 and DMA8413 include built-in control software. You can get full control over the DMA matrix amplifier via the control software by plugging in a standard VGA display and a USB mouse to the ports shown below.

SYSTEMS DMA8825 DIGITAL METER CONTROL MAINS POWER ○ 12V~ 600W ● 250V~ 400W AES/EBU Intertek 113301 SPEAKER OUTPUTS BRIDGE (-) — (+) (-) — (+) (-) — (+) (-) — (+) BRIDGE CAUTION RS323 USB WCLK IN OUT IN OUTPUTS L-PRESET / REMOATE LEVEL CONTROL INPUTS MICA/LINE (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 -1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (0 - 1) (5) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) — (0.5V) EITHERNET CAPTUS TO REJECT THE RANK OF ELECTRIC SERVICE, DO NOT REMOVE POINTS BACK. NO ORNIER/WHOLE/THY/SMROR, ETR SERVOME TO QUALIFERS PREADS. DIGITAL I/D 7 MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) MICA/LINE (0 - 1) + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

REMOTE CONTROL

1. RM-2VR REMOTE LEVEL CONTROL

Please connect Asystems' RM-2VR Remote Control to the REMOTE LEVEL CONTROL connectors of the DMA matrix amplifier. The channels controlled by the VR is determined by the wiring of the control. Please note, the ground for channel 2 is internally wired to channel 1. Only one grounding pin needs to be connected to the DMA.

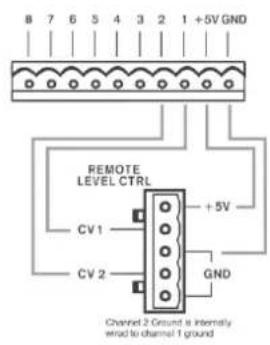

In the example found to the right, channels one and two can be remotely controlled using the RM-2VR.

A MIN MAX MIN MAX

8 7 6 5 4 3 2 1 +5V GND REMOTE LEVEL CTRL +5V CV1 CV2 GND Channel 2 Ground is internally wind to channel 1 ground

2. RM-4 REMOTE PRESET RECALL CONTROL

With Asystems' RM-4 Remote Preset Recall connected to the PRESET connector and some configurations within the control software, 4 presets can be accessed via pressing a button. See page 15 for more information on setting presets.

A □□ □□ □□ □□

RELAY GND 4 3 2 1 +5V -GND 4 3 2 1 -PF ESI T

3. RM-6E PROGRAMMABLE REMOTE CONTROL

The Asystems RM-6E Programmable Remote Control can be connected to the PERIPHERAL connector on the rear of the DMA. The DIP switch on the RM-6E determines which communication port the remote will use (see configurations below). Up to 6 functions can be programmed to be controlled remotely using the RM-6E. See page 16 for more information.

PORT 1 2 3 4 5 6 7 8 DIP ON ON ON ON ON ON ON ON 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3

A 28

4. WINDOWS-BASED PC

DMA8825, DMA8813, DMA8425 and DMA8413 can be controlled via a connected Windows-based PC.

1. Connect the Ethernet port of the DMA to the Ethernet port of your computer with a CAT5 RJ-45 Ethernet cable.

Diagram showing network connection between a laptop and an electronic device with ports, cables, and connectors

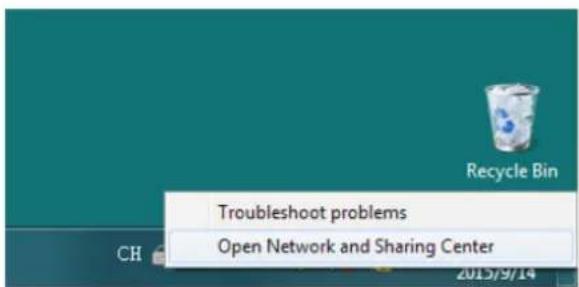

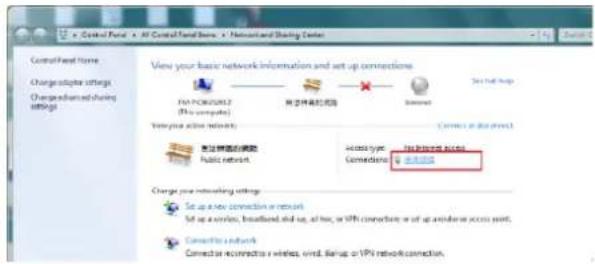

1. On your PC, right click your network icon and select "Open Network and Sharing Center".

Troubleshoot problems Open Network and Sharing Center 2015/9/14

1. Double click your main connection located next to the "Connections".

Control Panel Home Change adapter settings Change adapter sharing Settings View your basic network information and set up connections FIA-PC02012 (No compute) Remove the network Remove the active network Connect to this project Active network configuration Connected to a network Access type Connected to a network Connect to a network Connect to a network connection to wireless, virtual, base or VPN network connection.

1. Click "Properties" Properties button.

区域连接 Status General Connection IPv4 Connectivity: No Internet access IPv6 Connectivity: No network access Media State: Enabled Duration: 0:30:17 Speeds: 100.0 Mbps Details... Activity Sent —— Received Bytes: 5.363.430 | 7,359.624 Properties Disable Diagnose Close

1. Select "Internet Protocol Version 4 (TCP/IPv4)" and then click the "Properties" button.

百风通信 Properties Networking Connect using: Broadcom NetXhome 57w Gigabit Controller Configure... This connection uses the following items: Client for Microsoft Networks GoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPV6) Internet Protocol Version 4 (TCP/IPV4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Responder Install... Uninstall... Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

1. Change the field "IP address" to "192.168.10.3", and then click "OK".

Internet Protocol Version 4 (TCP/IPv6) Properties General You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 552 . 368 . 10 . 3 Submit mask: 255 . 255 . 255 . 0 Default gateways: Obtain DVD server address automatically Use the following DVD server addresses: Preferred DVD server: Alternate DVD server: Validate settings upon exit Advanced... OK Cancel

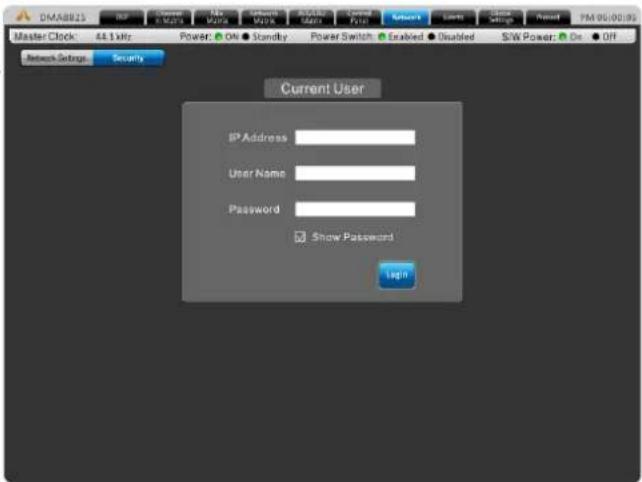

1. Within the Login box of the DMA software, enter the following:

IP Address: 192.168.10.200

User Name: USER 1

Password: ASYSTEMS

Login IP Address 192.168.10 200 User Name USER_1 Password ******** Login

Hint: In the event you are unable to log in using any of the main user accounts, connect a monitor and mouse to the DMA digital matrix amplifier. This will allow you to view network settings while in stand-alone mode and reset all accounts.

1. Launch the control software by double clicking the executable file. The latest version of the DMA software can always be found on the Asystems website.

2. Click

5. CONTROL SOFTWARE

DSP

The DSP page will give you an overall profile of input and output mixes as well as assigned signal processors.

Name Cell: The white boxes at the left and right of each row will display the name of each input and output channel. Users can edit the name for each channel by double-clicking on the white box.

ON/OFF: This button will allow the user to switch the corresponding input channel on and off.

Signal Processor Cells: Every input/output channel has a row of four arrow shape cells. Assign any of the internal DSP functions by right-clicking any of these cells.

Channel In: Clicking the blue bar to the left of the screen will jump directly to the "Channel In Matrix" tab.

Mix In/Mix Out: Clicking this red bar allows the user to jump directly to the "Mix Matrix" tab.

Channel Out: Clicking this green bar allows the user direct access to the "Control Panel" tab.

Clear: Clicking this button resets all DSP configurations.

Channel In Matrix

In this page, you can assign any input source to any input channel by clicking the corresponding cell in the cell matrix.

Example:

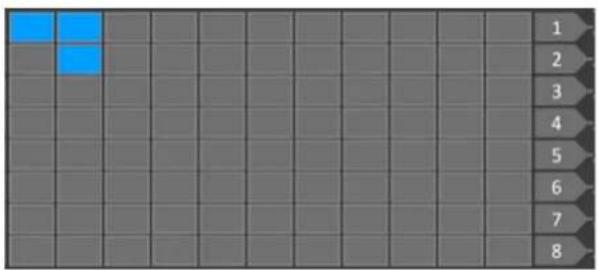

The image below shows how to assign input source 1 and 2 to Channel In 1, and Input source 2 to Channel In 2.

Grid background with eight numbered rows and two highlighted blue squares (no text or symbols)

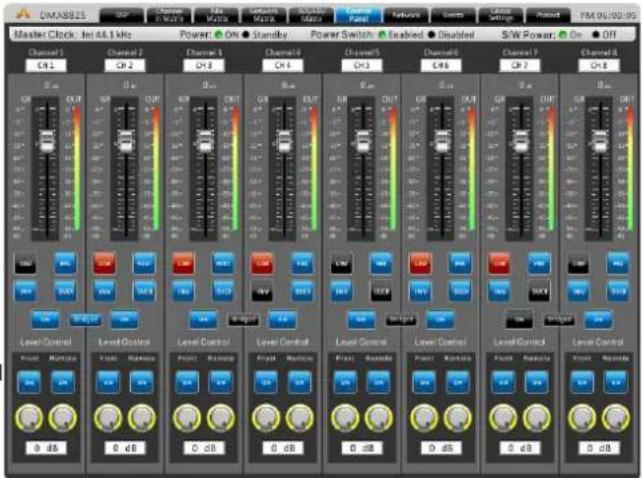

DMA825 Master Clock: 44.1 kHz Power: ON Sundry Power Switch: Enabled Disabled S/W Power: On OFF Power Shift: 10 Afs Rate: 10 Channel In: Power AFC BUCK ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON On

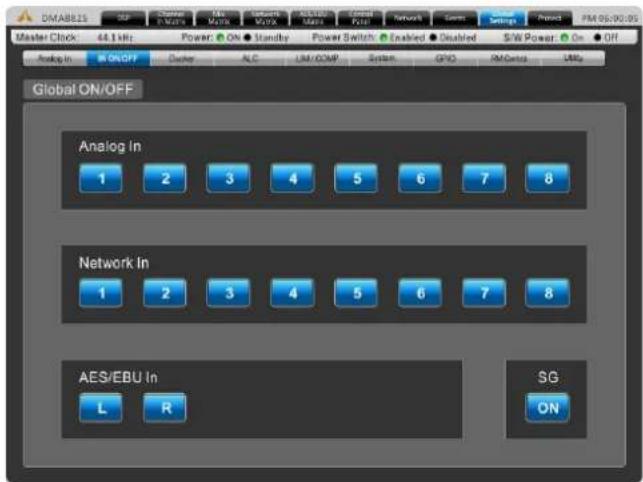

Meter Pre/Meter Post: This buttons sets all input sources to pre/post, determining whether or not they are affected by on-screen faders or not.

Analog In and Network In: Use these two buttons to view analog input sources connected via rear panel, as well as digital input sources from the Dante card.

PAN: This sliding control is used to adjust the left/right mix of the input signals.

ALC: Select this button to enable Automatic Level Control on the corresponding channel.

DUCK: Select this button to enable the ducking function on the corresponding channel.

INV: Select this button to invert the phase of the corresponding channel.

ON: Select this button to turn the corresponding signal on and off.

CLEAR: Clicking this button erases all assigned input/output routing.

Mix Matrix

In this page, you can assign which input sources are sent to the main mix outputs. All controls within the Mix Matrix are as the same as those found under the Channel In Matrix tab (page 10), except:

Analog In, Network In and Mix In: Use these three buttons to view analog input sources connected via rear panel, digital input sources from the Dante card and input signal processed in the Channel In Matrix tab.

Auto Mixer: When this function is enabled, ALC and DUCK work simultaneously.

DMA825 Master Clock: 44.1 kHz Power On Standby Power Switch Enabled Disabled S/W Power On Off Power Shift Control Pairs Network Assets Software Settings Reset PM-06-09:05 AFL-Ru in 50% Mn Out Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Control S/W Power On Off Power Total Power Control S/W Power On Off

Network Matrix

In this page, you can assign which kind of input source to be output via the connected Dante card. All controls are as same as controls under the Channel In Matrix tab (page 10), except:

Channel Out: To view output channel (the last output control in the signal path) effected by the Control Panel tab.

LIM: To enable/disable the built-in Limiter.

DMA8825 Master Clock: 44.1 kHz Power ON Standby Power Switch Enabled Disabled S/W Power On Off Power Vpp Amp in Network Out Winning Min Dissipation Out 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 R/W ALC DACK VDD CA 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 PWM Ump BUCK Vpp ON 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

AES/EBU Matrix

Within the AES/EBU Matrix page, you can assign which input sources are sent to the AES/EBU output mix. All controls are as same as those under the Channel In Matrix tab (page 10) and Network Matrix tab (above).

AES/EBU signals can be synced using the WORD CLOCK input. For system clock settings, see page 15.

DANA815 2PF Channel In-Matrix Air Matrix Ground Matrix DC Matrix Control Power Network Search Control Settings Project FM 05:00:05 Master Clock: 44.1 MHz Power On Standby Power Switch Enabled Disabled S/W Power On Off Audio In 1 2 3 4 5 6 7 8 400 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz 100 Hz LIM 2CKS JJKV ON 1 2

Control Panel

The control panel menu offers complete control of input channels. This menu includes level and gain controls, metering, and a host of other parameters that can be edited.

Channel Name: A pre-selected channel name can be viewed or edited in this screen.

Fader: The input level can be adjusted using this onscreen fader.

OUT: The input and output signal level of the channel can be viewed through these meters. They can be adjusted between pre- and post-fader meters.

GR: The gain reduction meter will provide a real-time indication of any reduction in gain applied by the internal DSP processes (including compressors-limiters, equalizers, etcetera).

DMAB825 Master Clock: Init 44.1 MHz Power: On Standby Power Switch: Enabled Disabled S/W Power: On Off Channel1 Channel2 Channel3 Channel4 Channel5 Channel6 Channel7 Channel8 Channel9 Channel10 CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 Level Control Level Control Level Control Level Control Level Control Level Control Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Remake Front Retr 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 5A W/0/0/0/05 Power Switch: Enabled Disabled S/W Power: On Off

Limiter: This button will activate the internal limiter function for the corresponding channel.

Pre/Post: This button allows you to adjust the output meter between a pre-fader and post-fader meter.

Duck: Activate the 'ducking' feature by pushing this button. The duck function can be activated as ducker 1, ducker 2, or off, the settings of which are decided by their respective menus.

INV: This button will invert the phase of the corresponding signal.

ON/OFF: This button will turn the corresponding channel on and off.

Bridged: When the speaker outputs are wired for bridge mode, users must push this button to bridge the outputs of the two channels.

Network

There are two pages under this tab.

Security

The menus found under this page may vary depending on the method of control being used.

Onboard Control

User Account Profile

You can create user accounts within this tab. Once a User Name and Password are defined, click "SAVE" to store.

User Account Profile User Name Password USER_1 ******** USER_2 ******** USER_3 ******** USER_4 ******** USER_5 ******** USER_6 ******** USER_7 ******** USER_8 ******** Show Password

Remote Control From PC

Enter necessary information to log in. Default values are:

IP Address: 192.168.10.200

User Name: USER 1

Password: ASYSTÉMS

DMA8825 Master Clock: 44.1 kHz Power: On Standby Power Switch: Enabled Disabled S/W Power: On Off Network Settings Security Current User IP Address User Name Password Show Password Login

Events

In the Events menu you will be able to set up a number of events to occur at a particular time of day. Events can range from simply powering on and off the device to activating audio files at a particular time.

Current Time & Current Date: Here users can set the current date and time. Click the Save button to set these settings. The date and time will be maintained within the DMA amplifier provided power is supplied to the device, whether active or in standby mode.

Time Format: Set the time format to 12/24 Hour time.

Schedule: Any Events already set will be displayed here.

Number: Assign a number to the event you're currently setting.

DMA8825 Power: On Standbar Power Switch Enabled Disabled S/W Power: On Off Master Clock: 44.1 kHz Current Date 2013-06-24 Current Time 16:20:10 SAMS CHECKS Time Format AM/PM 24 Hour Schedule No Switch Location Type Action Date Time Period Run Wash Jul 2013 S M T W T F S 1 2 3 4 5 8 9 10 11 12 15 16 17 18 19 22 23 24 25 26 29 30 31 1 2 Number: Subject: Date: Type: Power Change Location: Time: Action: ON Period: Weekly SUN MON TUE WED THU FRI SAT

Subject: Provide a name or description to your event.

Location: Describe the location of where the event will occur.

Date: Set the date to begin your event.

Time: Set the time the event should occur, down to the very second.

Type: Select the type of event you are setting here. Available types include power change, channel mute, relay and SD card (typically for initiating audio playback).

Action: The action can be selected between on and standby.

Period: In the period section you will be able to set whether to set your event to occur once, weekly, daily, etc. You can also pick the days of the week for it to occur.

Global Settings

Analog In

Each of the analog inputs can have +48V of phantom power applied to it, ideal for condenser microphones. This menu also allows the user to trim the signal slightly if levels are too excessive.

A high-pass filter can also be added to each of the analog inputs to help remove stage rumble and other unwanted noise.

DMA8215 Master Clock: 44.1 kHz Power On Standby Power Switch Enabled Disabled S/W Power On Off Analog In: BON/OFF Duffer ALC LM/COMP System GPIO IM/Ctrl LNR Mic/Line In 1 +48V TRIM 0 dB 2 +28V TRIM 0 dB 3 +48V TRIM 0 dB 4 +48V TRIM 0 dB 5 +48V TRIM 0 dB 6 +48V TRIM 0 dB 7 +48V TRIM 0 dB 8 +48V TRIM 0 dB Analog In HPF 70 Hz HPF 70 Hz HPF 70 Hz HPF 70 Hz HPF 70 Hz HPF 70 Hz HPF 70 Hz

Global In On/Off

This menu provides each individual button input, including the analog inputs, network inputs, AES/EBU inputs and signal generator.

DMABEIS Stop Channel P-Matrix Max Matrix Network Matrix Matrix AC/DC Power Control Power Switch Enabled Disabled S/W Power On Off Master Clock: 44.1 kHz Power On Standby Power Switch Enabled Disabled S/W Power On Off Analog In ON/OFF Duxer ALC LM/COMP System GPIO RM/DNA UMHz Global ON/OFF Analog In 1 2 3 4 5 6 7 8 Network In 1 2 3 4 5 6 7 8 AES/EBU In L R SG ON

Ducker

The ducker allows a signal to temporarily attenuate below another signal when said signal activates the ducking feature. This is useful when making announcements and other such times when a signal needs to be heard clearly. The ducker can be activated on input and output channels by pushing the 'Duck' buttons found in the individual Matrix control pages. There are two of these 'duckers' total on the DMA.

Source: This is used to select the source of the duck function; i.e. the trigger signal. When the selected source's signal rises to a user-selected level, the currently selected 'duck' signals will attenuate at the selected level.

Threshold: This determines the level that the source signal needs to be before the ducking function will be activated.

Depth: This determines how much the selected 'duck' signals will be attenuated.

DUMAR25 Master Clock: 44.1 bits Power ON Standley Power Switch Enabled Disabled S/W Power On Off Analog In ON/OFF Drop ALC LM/COMP Source GPIO RM Control LRF DUCKER 1 SOURCE 1 OFF 3 OFF 2 OFF 4 OFF THRESHOLD DEPTH -40 dB -40 dB ATTACK RELEASE 1.69 1.69 DUCKER 2 SOURCE 1 OFF 3 OFF 2 OFF 4 OFF THRESHOLD DEPTH -40 dB -40 dB ATTACK RELEASE 1.69 1.69

Attack: The attack time is the time it takes for the ducking feature to kick in after the source signal passes the selected threshold.

Release: The release time control will determine the time the 'duck' feature will remain active as the source signal drops back below the set threshold.

ALC – Auto Level Control

An autoleveler will allow users to dynamically change the level of an input or output signal to match a predefined level set by the user. The autolevel function can be activated for each individual mix in the matrix pages. The settings for these autolevelers can be found within this ALC menu.

In Target: The target level setting allows users to select the desired signal level for their autoleveler. All signals that are processed by the autoleveler will essentially aim for the target level.

Below Target: The below target threshold of the autoleveler is the point at which the autoleveler will kick in. Signals below the threshold will not be affected, but signals above will be have their gain increased.

Ratio: The ratio is the input level change in decibels to the output level change in decibels.

Increase Gain: The increase gain determines the amount that the signal can be increased to meet the target level. This helps prevent sudden, alarming changes in audio level.

Decrease Gain: The decrease gain works the same as the decrease gain, but in reverse. It determines the amount a signal can be cut.

Hold Time: This determines the time the ALC will remain engaged after the signal falls back below the determined threshold.

LIM/COMP - Limiter/Compressor

This menu allows compressors and limiters to be applied to channel outputs, network outputs or AES/EBU outputs.

Limiter Threshold: This control determines the threshold for the limiter function. This means that no signal will surpass the selected threshold, being 'compressed' at a ratio of infinity:1.

Compressor Threshold: Use this control to set the threshold of the compressor function. Any signals that surpass the selected threshold will be compressed at the selected ratio.

Compressor Ratio: This control can be used to set the ratio for the compressor. The ratio is expressed as :

.

Compressor Attack: This control adjusts the attack time of the compressor, essentially determining the time taken for the compressor to kick in after it passes the selected threshold.

Compressor Release: The release control determines the time the DMA will wait before disengaging the compressor when the signal bypasses the selected threshold.

Side Chain HPF: This allows users to set a high pass filter on these channels to essentially help rid these channels of low-frequency noise.

System

System Clock: This menu allows you to select a master clock source for digital devices. Selecting 44.1 or 48 kHz will set the DMA as the master clock source and determine the sampling rate. Selecting AES/EBU, Network, or Word Clock will set these as the master clock. Whenever a new clock source is selected, the ENTER button must be pushed to confirm.

Power Settings: There are three power settings on the DMA. The software power can be turned on and off, essentially enabling the DMA to be turned on and off via the software – including event scheduling. The hardware power can be selected on and off, essentially allow the unit to be activated and deactivated using the hardwired switch on the front of the DMA.

DMA8825 Master Clock: 44.1kHz Power On Standby Power Switch Enabled Disabled S/W Power On Off Analog In B ON/OFF Duster ALC LSR/COMP System GPIO NM Control USB SystemClock Set 44.1 MHz Set 48 kHz AES/EBU Network Word Clock Sample Rate: 44.1kHz Locked ENTER DSP Usage DSP 1 DSP 2 Power Settings Power: • ON • Standby Power Switch: Enabled Disabled S/W Power: • ON OFF

Relay (GPIO)

The GPI – or General Purpose Interface – output is used to remotely control the DMA digital matrix amplifier. The relay page itself is used to setup the GPIs, including any and all remote controls connected to the unit.

The Preset panel is for use with the RM-4 remote preset controllers. The numbers in the "Port" field correspond with the ports on the rear of the DMA amplifier. The "No" field is the "Scene" number found in the utility tab. Any of your pre-saved scenes can be assigned to the available ports.

DMAB25 Master Clock: 44.1 MHz Power OK Standby Power Switch Enabled Disabled S/W Power On Off Analog In In ON/OFF Duster ALC LM/COMP System GPIO RM/Cross LIMs Preset Port Scere No Subject 1 1 2 1 3 1 4 1 Event GPIO Out Port Function Source Threshold Output Type Status Reset 1 No assign Open exit

RM Control

This page offers a number of assignment options for the Asystems RM remote controls, specifically the RM-6E (sold separately). Each of the "Keys" listed in this page will correspond with a button on the RM-6E. Beside each key users will be able to select the function. This may be gain control, input/output mute, matrix mixing, etc. The last field will allow users to select a 'source' related to their selected function. For example, if "Gain Control" is selected, users will be able to select which input channel's gain is adjusted when that key is selected on the remote.

Up to 8 RM-6E remotes can be used at any one time. Each should be set to a different port to help identify it. Individual remotes can be locked using the corresponding buttons within the RM Control menu. Port settings for the RM-6E can be found on page 8.

DMA8E25 Master Clock: 44.1 kHz Power OK Standby Power Switch Enabled Disabled S/W Power On Off Analog In In ON/OFF Docker ALD LIM-COMP System GPIO NM Control LNR Port 1 2 3 4 5 6 7 8 Lock 1 2 3 4 5 6 7 8 Key Function Source 1 Channel Mate CH 1 2 Channel Mate CH 1 3 Channel Mate CH 1 4 Channel Mate CH 1 5 Channel Mate CH 1 6 Channel Mate CH 1

Utility

All of the DSP processes can have their settings saved for later use. While there are a number of factory presets available, users are always encouraged to find their own settings and save them for later use. The DMA has onboard storage for a number of settings to be saved, or users can connect USB flash drives to save settings.

Also available in the Utility menu is a firmware update button. When a new version of firmware is available it can be installed using the "Update" button. Place the firmware update file on a formatted USB flash drive and insert it into a USB port. The "Update" button should take care of the rest. After the firmware is updated, the initialize button can be selected to reset the device. Save any settings (or "scenes") before initializing the system.

DMA8825 Master Clock: 44.1 MHz Power On Standby Power Switch Enabled Disabled S/W Power: On Off Analog In IN ON/OFF Docker ALC LIM/COMP SPAIN GPIO R/M Control Utility Scene LOCAL PERIPHERAL No Subject Description No: 1 Subject: Description: SAVE LOAD SELECT Firmware Package version: 2.03.75 Initialize UPDATE INIT

Protect

The protect menu gives real-time updates on the system performance. Everything from the system temperature to the output wattage is represented on this page. If the Protect LED on the front of the DMA amplifier lights up, this menu can be viewed to better understand the issue.

Power Amp Out Voltage(V) Current(A) Watt(W) Power Supply Voltage(V) Protect Reduce Level(D) Temperature(°C) DC Offset Amp Shutdown Fan Speed 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 10V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.0V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1.5V 1. 2 3 4 5 6 7 8

SPECIFICATIONS

DMA8413 DMA8425 DMA8813 DMA8825
Low Z, Stereo Mode, all channels driven	RMS Power Output Per Channel
8Ω, 20Hz-20kHz 1% THD	80W 150W 80W	150W
4Ω, 20Hz-20kHz 1% THD	130W 250W 130W	250W
Low Z, Bridge Mode, all channels driven	RMS Power Output
8Ω, 20Hz-20kHz 1%THD	260W 500W 260W	500W
70.7V, 100V distributed output RMS	Power Output Per Channel
20Hz-20kHz 1%THD, per channel	130W 250W 130W	250W
Models Available	4Ω and 8Ω70.7 / 100V Constant Voltage	4Ω and 8Ω70.7 / 100V Constant Voltage	4Ω and 8Ω70.7 / 100V Constant Voltage	4Ω and 8Ω70.7 / 100V Constant Voltage
Line Current Draw(all channels driven)
Line Current, Standby mode	190mA 190mA	190mA 190mA
Line Current, Idle (no signal)	540mA 540mA	540mA 540mA
Line Current, Typical(1/8 power pink noise)	2.85A 2.85A	2.85A 2.85A
Line Current, Maximum(1/3 power sine wave)	6.00A 6.00A	6.00A
Signal to Noise(20Hz-20KHz, unweighted)	>110dB >110dB	>110dB >110dB
Distortion (SMPTE, typical) - 8 ohm load, 10dB below rated power	<0.5% <0.5% <0.5%	<0.5%
Distortion (THD-N, typical) -8 ohm load, 10dB below rated power, 20Hz-20kHz	<0.5% <0.5% <0.5%	<0.5%
Frequency Response	20Hz-20kHz, +/-1dB 20Hz-20kHz, +/-1dB 20Hz-20kHz, +/-1dB 20Hz-20kHz, +/-1dB
Damping Factor (8 ohm load,<1kHz)	>250 >250 >250	>250
Input Impedance	20K Ohm, balanced 20K Ohm, balanced 20K Ohm, balanced 20K Ohm, balanced
Maximum Input Level	+24dB +24dB +24dB +24dB
Cooling	Temperature dependent speed-controlled axial fan
Control Network	Onboard, compatible with standard 100MB Ethernet hardware
Front Panel Indicators	8 x Clip, -10dB, -20dB, Signal, Bridge (per pair) Power, Standby, Protect, Power Disable
Attenuators	8 x front panel, software, and remote
Input Connections	Euroblock & Stereo RCA	Euroblock & Stereo RCA	Euroblock & Stereo RCA	Euroblock & Stereo RCA
Output Connections	Euroblock	Euroblock	Euroblock	Euroblock
Amplifier Protection	Inrush current limitation, temperature monitoring, output over-current protection, mains fuses
Power Supply (Region Dependent)	120VAC, 230VAC, 50/60Hz,15A Edison cable
Dimensions (W x H x D)	483 x 89 x 394 mm(19" x 3.5" x 15.5")	483 x 89 x 394 mm(19" x 3.5" x 15.5")	483 x 89 x 394 mm(19" x 3.5" x 15.5")	483 x 89 x 394 mm(19" x 3.5" x 15.5")
Weight	9.53 kg (21 lbs)	9.53 kg (21 lbs)	9.53 kg (21 lbs)	9.53 kg (21 lbs)

PARAMETERS

Function Parameter Range
Compressor / Limiter	Compressor Threshold -50 dB to 0 dB
	Ratio 1:1 to 20:1
	Limiter Threshold -50 dB to 0 dB
	Output Gain 0 dB to 18 dB
	Attack / Release 1 ms to 8 seconds
Gate	Threshold -50 dB to 0 dB
	Range -90 dB to 0 dB
	Attack / Hold / Release 1 ms to 8 seconds
Expander	Threshold -50 dB to 0 dB
	Ratio 1:1 to 20:1
	Attack / Release 1 ms to 8 seconds
Delay	Delay Time (mS) 0.0 to 680.0 ms
	Delay Time (meters) 0.0 to 245.5
	Delay Time (feet) 0.0 to 805.4
	Temperature (C) 0° to 50°
	Temperature (F) 32° to 122°
4-band Equalizer	Type	BPF, Notch, Peak, HPF, LPF, High Shelf, Low Shelf
	Gain	-18 dB to +18 dB
	Frequency	20 Hz to 20 kHz
	Q	0.1 to 10
31-band Graphic EQ	Frequencies	20 Hz to 20 kHz
	Range	-12dB to +12dB
	Q	1.6 to 10
Filters	Type	HPF (6 dB, 12 dB, 18dB, 24dB), LPF (6 dB, 12 dB, 18dB, 24dB), High Shelf, Low Shelf, Peak, APF, BPF, Notch
	Gain	-18 dB to +18 dB
	Frequency	20 Hz to 20 kHz
	Q	0.1 to 10
Feedback Silencer	Threshold -50 dB to 0 dB
	Release Time	10 sec/dB to 300 sec/dB
	Gain	-20 dB to 0 dB
	Frequency	20 Hz to 20 kHz
	Q	4.5 to 10
VCA	Gain	-∞ to 6 dB
Automatic Level Control	In Target 0 dB to -50 dB
	Below Target -30 dB to 0 dB
	Ratio	1:5~20:1
	Increase Gain	40ms/dB to 1000ms/dB
	Decrease Gain	1000ms/dB to 40ms/dB
	Hold Time	0s to 10s
Ducker	Source	Analog 1 to 8, Network 1 to 8, AES/EBU
	Threshold -50 dB to 0 dB
	Depth	-80 dB to 0 dB
	Attack / Release	0.2s to 20s
Crossover	HPF / LPF Type	Butterworth 12dB, 18dB, 24dB
	HPF / LPF Frequency	20 Hz to 20 kHz
Signal Generator	Sine Wave Frequencies	20Hz to 20KHz
	Sweep Wave Start/End Frequencies	20Hz / 20KHz
	Sweep Wave Hold Time	50ms to 2000ms
	Signal Level Range -60dB to -10dB

ÍNDICE

INTRODUCCIÓN....21

CARACTERÍSTICAS....21

Front view of a server rack with indicator lights and a logo, mounted on two side rails (no text or symbols visible)

4.2 CONEXIÓN

A MIN MAX MIN MAX

8 7 6 5 4 3 2 1 +5V GND REMOTE LEVEL CTRL +5V CV1 CV2 GND Channel 2 Ground is internally wind to channel 1 ground

A □□ □□ □□ □□

RELAY GND 4 3 2 1 +5V -GND -PFESLT 1 2 3 4 GND

3. CONTROL REMOTO PROGRAMABLE RM-6E

Diagram showing connections between a laptop, an audio equipment interface, and connected cables with USB cable to a device.

Troubleshoot problems Open Network and Sharing Center 2015/9/14

Control Panel Change adopt settings Change advanced sharing Settings View your basic network information and set up connections F50 PC02012 (Pro compu) New switch controls Internet View your active network: Active network connection Nokia network Access type: No network ports Comedians: 9.86.0000 Change our networking settings: Set up a new connection to network Set up a wireless, broadband, split-up, all hot, or WiFi converting or off-bandband access port. Connect via network Connector in connection to wireless, virtual, banking or VPN network connection.

区域连接 Status General Connection IPv4 Connectivity: No Internet access IPv6 Connectivity: No network access Media State: Enabled Duration: 0:30:17 Speed: 100.0 Mbps Details... Activity Sent —— Received Bytes: 5,363,430 | 7,359,624 Properties Disable Diagnose Close

网络连接 Properties Networking Connect using: Broadcom NetXhome 57xx Gigabit Controller Configure... This connection uses the following items: Client for Microsoft Networks GoS Packet Scheduler File and Printer Sharing for Microsoft Networks Internet Protocol Version 6 (TCP/IPv8) Internet Protocol Version 4 (TCP/IPv4) Link-Layer Topology Discovery Mapper I/O Driver Link-Layer Topology Discovery Reponder Install Uninstall Properties Description Transmission Control Protocol/Internet Protocol: The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

Internet Protocol Version 4 (TCP/IPoS) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 302 . 368 . 10 . 3 Submit mask: 255 . 255 . 255 . 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: Alternate DNS server: Validate settings upon exit Advanced... OK Cancel

Grid-based diagram with numbered rows and columns, highlighting blue cells in specific cells.

DMA8825 Master Clock: 44.1 kHz Power On Standby Power Switch Enabled Disabled S/W Power On Off Audio in AUX/R/C in Channel in 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

DAMA8125 Master Clock: Int 44.1 kHz Power: On Standby Power Switch: Enabled Disabled SVM Power: On Off Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 0 ns 1 Level Control Level Control Level Control Level Control Level Control Level Control Level Control Level Control Play Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Front Remote Field 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 1

DMA8825 Master Clock: 44.1 kHz Power: On Standby Power Switch: Enabled Disabled S/W Power: On Off Network Settings Security Current User IP Address User Name Password Show Password Right

Eventos/Events

DMAB215 Master Clock: 48.1 MHz Power On Standby Power Switch Enabled Disabled S/W Power On OFF Current Date Current Time Time Format AM/PM 24 Hour Schedule No Subject Location Trip Action Data Time Period Run Week Number Subject Date Type: Power Change Location: Time: Action: ON Period Weekly SUN MON TUE WED THU FRI SAT

DMABBJS Master Clock: 44.1 kHz Analog In Analog In Network In AES/EBU In SG ON Global ON/OFF Analog In 1 2 3 4 5 6 7 8 Network In 1 2 3 4 5 6 7 8 L R

DUMBRJ5 Master Clock: 48.1 kHz Power ON Standby Power Switch Enabled Studible S/W Power On Off Analog In PN ON/OFF Locker ALC LM/COMF System GND PM Open LWP DUCKER 1 SOURCE 1 OFF 3 OFF 2 OFF 4 OFF THRESHOLD DEPTH -40 dB -46 dB ATTACK RELEASE 1.68 1.58 DUCKER 2 SOURCE 1 OFF 3 OFF 2 OFF 4 OFF THRESHOLD DEPTH -40 dB -46 dB ATTACK RELEASE 1.68 1.58

ALC – Auto Level Control

DMAB825 Power Channel Mates Max Matrix Channel Matrix Power Switch Control Port Network System Options Settings Project PM 05:00:05 Master Clock: 44.1 kHz Power On Standby Power Switch Enabled Disabled SW Power On Off Analog In ON/OFF Docker ALC LIM/COMP System GPIO NM Control MHz Port 1 2 3 4 5 6 7 8 Lock 1 2 3 4 5 6 7 8 Key Function Source 1 Channel Mate CH 1 2 Channel Mate CH 1 3 Channel Mate CH 1 4 Channel Mate CH 1 5 Channel Mate CH 1 6 Channel Mate CH 1

Utility

Abstract black geometric logo resembling the letter 'A' with a stylized triangular shape and curved extensions (no text or symbols)

SYSTEMS

www.asystems-sys.com
