USER MANUAL VM-2HDxl Kramer

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

VM-2HDxl 3G HD/SD - SDI DA

1 Power supply (12V DC)

1 Quick Start sheet

4 Rubber feet

Illustration of a cardboard box with lid and front panel (no text or symbols)

Save the original box and packaging in case your product needs to be returned to the factory for service.

Step 2: Install the VM-2HDxl

Mount the machine in a rack (using the RK-4PT rack adapter) or place on a table.

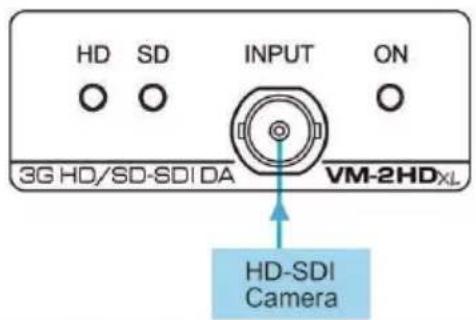

Step 3: Connect the inputs and outputs

Always switch off the power on each device before connecting it to your VM-2HDxl.

HD SD INPUT ON 3G HD/SD-SDI DA VM-2HDXL HD-SDI Camera

OUT 1 OUT 2 12V DC HD-SDI Display HD-SDI Display

Always use Kramer high-performance cables for connecting AV equipment to the VM-2HDxl.

Step 4: Connect the power

Connect the power adapter to the VM-2HDxl and plug the adapter into the mains electricity.

Contents

1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
3 Overview 3
3.1 Defining the VM-2HDxl 3
4 Connecting the VM-2HDxl 5
5 Technical Specifications 6

Figures

Figure 1: VM-2HDxl 3G HD/SD – SDI DA 4

Figure 2: Connecting to the VM-2HDxl 5

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products.

Congratulations on purchasing your Kramer VM-2HDxl 3G HD/SD – SDI DA, which is ideal for the following typical applications:

• SDI production studios for signal distribution and equalizations
- Broadcast studios for on-air operation and SDI field production
• Using with SDI video sources such as professional digital cameras

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high-performance, high-resolution cables

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer VM-2HDxl away from moisture, excessive sunlight and dust

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

3 Overview

The VM-2HDxl is a high-performance distribution amplifier for 3G HD-SDI signals. The unit takes one input, provides reclocking and equalization and distributes the signal to two identical outputs.

In particular, the VM-2HDxl features:

• Cable equalization up to 300m
300m for SD signals; 200m for 1.5GHz HD signals; 100m for 3GHz HD signals (measured with Kramer BC-1X 1 Coax RG-6 Super High-Resolution Cable).
• One input and two identical outputs on BNC connectors
- A data rate of up to 3Gbps, that enables it to be used for standard definition, high definition and the 3G high definition serial digital video signals (SDI, HD-SDI and 3G HD-SDI)
- HDTV compatibility
- Passing of digital information (embedded audio, Teletext, time code and so on) during the blanking period
- SMPTE 292M, 259M, 344M and 424M compliant with data rates of 270Mbps, 540Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps
- Automatic, multi-rate, equalization and reclocking for losses typical with long runs of 75Ω co-axial cable up to 300m
• LEDs indicating the SDI resolution (SD or HD)

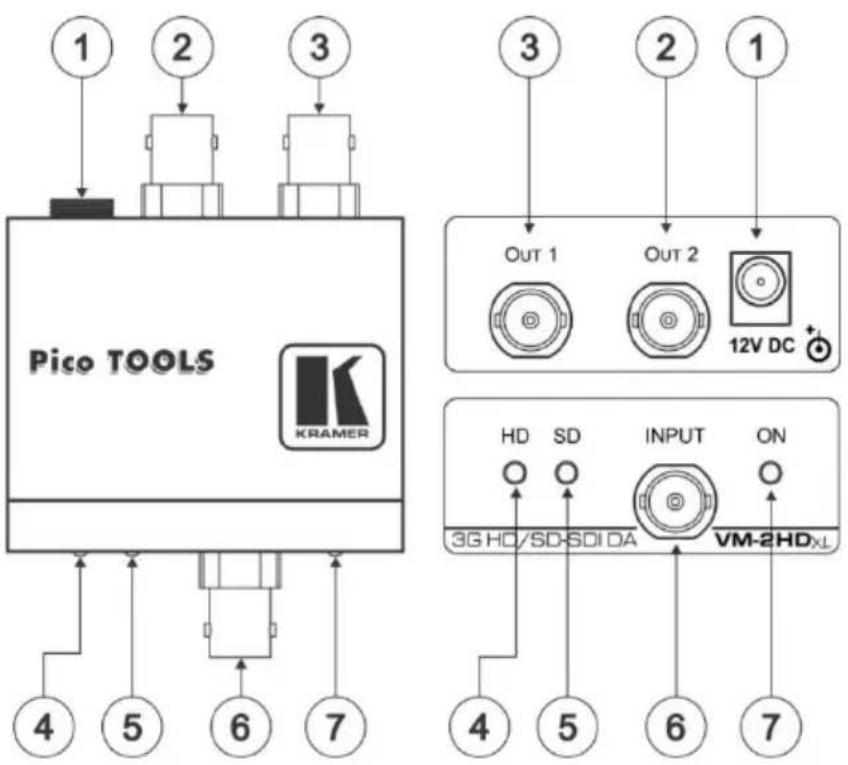

3.1 Defining the VM-2HDxl

This section defines the VM-2HDxl.

Pico TOOLS KRAMER 1 2 3 4 5 6 7 3 2 1 OUT 1 OUT 2 12V DC + HD SD INPUT ON 3G HD/SD-SDI DA VM-2HDxL 4 5 6 7

Figure 1: VM-2HDxl 3G HD/SD – SDI DA

#	Feature	Function
1	12V DC	+12V DC connector for powering the unit
2	OUT 2 BNC connector	Connects to the SDI acceptor 2
3	OUT 1 BNC connector	Connects to the SDI acceptor 1
4	HD LED	Lights when the SDI signal is HD
5	SD LED	Lights when the SDI signal is SD
6	INPUT BNC connector	Connects to the SDI source
7	ON LED	Lights when receiving power

High Definition (HD) means a video format, consisting of 720 active lines of progressive video or 1080 lines of progressive or interlaced video.

Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL) lines of interlaced video.

4 Connecting the VM-2HDxl

Always switch off the power to each device before connecting it to your VM-2HDxl. After connecting your VM-2HDxl, connect its power and then switch on the power to each device.

To connect the VM-2HDxl, as the example in Figure 2 illustrates, do the following:

1. Connect an HD-SDI video source (for example, a camera) to the INPUT BNC connector.

2. Connect up to two video OUT BNC connectors to the appropriate HD-SDI video acceptors (for example, displays). You do not have to connect both outputs.

3. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 2).

Figure 2: Connecting to the VM-2HDxI

5 Technical Specifications

INPUT:	1 SMPTE-259M / 292M / 344M / 424M serial video, 75Ω on a BNC connector
OUTPUTS:	2 equalized and reclocked SMPTE-259M / 292M / 344M / 424M outputs 75Ω on BNC connectors
MAXIMUM DATA RATE (-3dB):	2.97Gbps
MAX. OUTPUT LEVEL:	800mVpp /75Ω
COUPLING:	AC
POWER CONSUMPTION:	12V, 160mA. (Up to 25V may be used to power the machine). A 12V power supply is provided with the VM-2HDxl
DIMENSIONS:	6.22cm x 5.24cm x 2.41 cm (2.45" x 2.06" x 0.95") W, D, H.
WEIGHT:	0.14kg (0.31lbs) approx.
ACCESSORIES:	Power supply, mounting bracket
OPTIONS:	RK-4PT 19" rack adapter, BC-1X cable
Specifications are subject to change without notice at http://www.kramerelectronics.com
