Breeza Video/Film Camera Dolly Slider with Track Ends (DL-BRZA-01)

Assembly Manual

Collection of mechanical components including a black frame plate, multiple levers, and a circular component (no text or symbols visible)

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

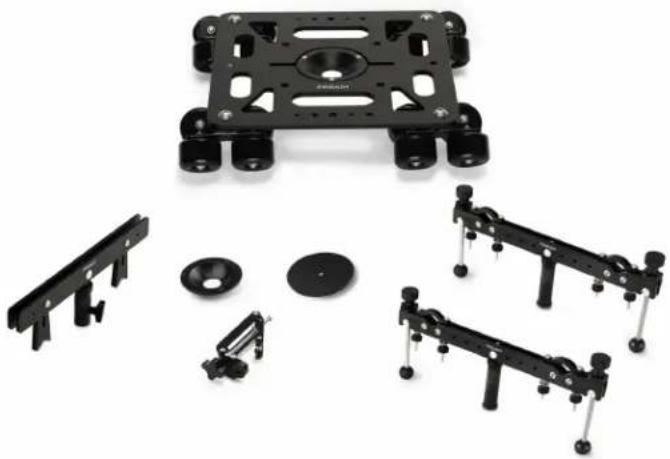

4 x Double Wheels Heavy Duty Sled 100mm Bowl Adapter Proaim Breeza Dolly 2 x End Spacers Flat Mount Plate Anti-Tilt Safety Brake 1 x Low-Profile Middle Support Spacer 75mm Bowl Adapter 3 x Type Allen Keys Sizes: 2.5, 4mm & 5mm 2 x Wrench Sizes: 17 & 13mm 3 x Bolts Sizes: (6 x 12 mm) Bag Packing

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

End Spacers Assembly

• To insert a track in the end spacers, first loosen the knobs of the clamp and then slide up the clamp to easily fit the track.
• Insert a 4ft track into the clamp. Once the track is properly fitted into the clamp, tightly secure it with the knob, as shown in the image.
• The same process is to be followed for the other track.

NOTE: It comes with track-ends for overall secure and smooth track running.

• The height of the end feet of the end spacers can be adjusted according to your setup requirement with the help of a knob.
• The end feet can be used in both, Hi-Hat and Low-Hat mode accordingly.

Breeza Dolly Setup

- Now place the breeze dolly onto the 4ft track. The handles part of the dolly platform should be inside of the track as shown. Make sure all wheels are aligned correctly on the track and dolly runs smoothly.

NOTE: Proaim Breeze Compact Portable Slider Dolly integrates the latest technology with supreme quality to maximize your creative potential.

Close-up of a hand holding a black mechanical lever with a red circle highlighting a specific point (no text or symbols visible)

Hand holding a black mechanical lever with multiple supports and mounting holes (no text or symbols visible)

Hand operating a black mechanical lever with multiple sensors and a metallic rod (no text or symbols visible)

Close-up of a hand holding a black mechanical lever with a red circle highlighting a point on the lever (no text or symbols visible)

Mechanical linkage device with articulated arms and mounting feet (no visible text or symbols)

Close-up of a hand adjusting a metal rod with a camera mount (no visible text or symbols)

Close-up of a black adjustable camera frame with four vertical supports and a hand adjusting the blade (no text or symbols visible)

Mechanical linkage assembly diagrams showing two views of a mechanical component (no text or symbols)

Pure mechanical linkage diagram with no text, numbers, or symbols

Close-up of hands holding a black mechanical platform with four wheels, against a plain background (no text or symbols visible)

Mechanical assembly with a central frame and articulated arms (no visible text or symbols)

Anti-Tilt Safety Brake Assembly

- Loosen the knob to properly open the safety brake.

Close-up of hands assembling a mechanical clamp or bracket (no text or symbols visible)

Hand holding a black mechanical linkage component against a white background (no text or symbols visible)

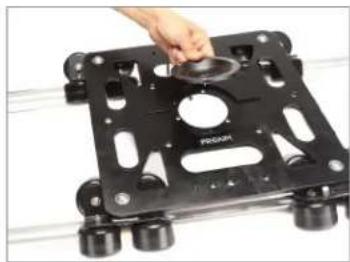

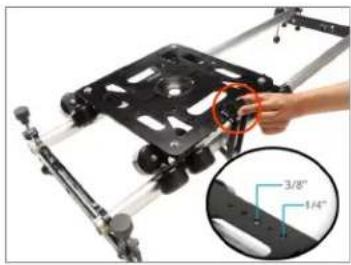

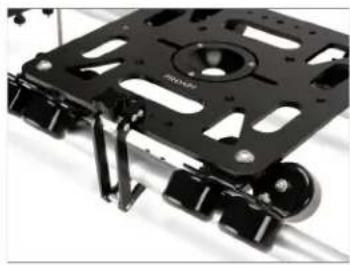

- Mount the Safety Brake on side of the Breeza dolly platform. Adjust the position of the bracket so it goes under the track to prevent the platform from tilting out.

Hand operating a black wheeled platform with wheels and a central hub (no visible text or symbols)

Hand holding a black mechanical slide with wheels and a metallic lever (no visible text or symbols)

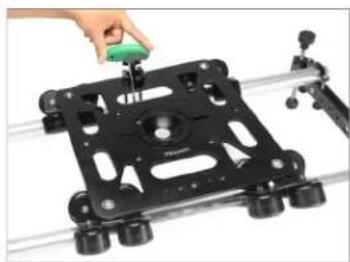

- Properly secure with a knob after mounting the safety brake. Follow the same process on the other side.

Close-up of a mechanical device with a hand adjusting a component, showing a close-up inset of angular measurements (3/8" and 1/4") without any readable text or symbols.

Close-up of a black mechanical device with mounting holes and levers (no visible text or symbols)

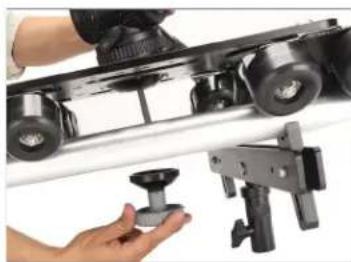

- The dolly platform already has a 100mm bowl adapter mount. To mount a 75mm bowl, first loosen the screws using an Allen key and remove the 100mm bowl.

Hand placing a green sensor on a black mechanical platform (no text or symbols visible)

Hand placing a circular component onto a black mechanical platform with multiple wheels (no visible text or symbols)

NOTE: The Breeze dolly platform is designed with a Bowl mount 75mm, 100mm, and an flat base mount.

- Now mount a 75mm bowl adapter, insert the screws and properly secure the adapter with the help of an Allen key.

Hand operating a black mechanical platform with a mounted tool, no visible text or symbols

Close-up of a black mechanical frame with green tool, mounted on a silver rail (no visible text or symbols)

- The 75mm bowl adapter is mounted on the dolly platform, as shown in the image.

NOTE: It has a 16-wheel design with floating trucks that gives smooth, squeak-free move on a straight or curved track.

Mechanical assembly with a central frame and four vertical supports (no visible text or symbols)

Mount Fluid Head on the Bowl Adapter

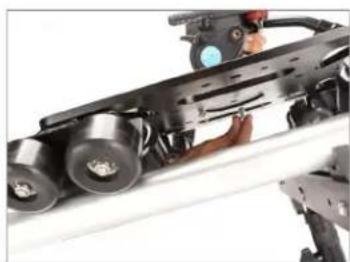

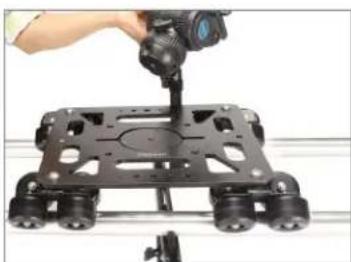

- Insert the fluid head (Not Included) into the bowl through a screw.

- After mounting the fluid head on the bowl, secure it properly by inserting the locking knob from the bottom side.

• After properly securing the fluid head (Not Included), mount a camera (Not Included) on it.

NOTE: Breeza Dolly Slider is sturdy enough to take a massive payload. And the end-clamps mount tripods and light stand in seconds. It also includes soft-grip rubber ball feet, support bracket, and safety wheels that give overall secure, leveled & greater performance.

- To mount the flat plate, first remove the 75mm bowl adapter from the dolly platform. For this, use an Allen key, loosen all the screws and then take out the 75mm bowl adapter.

- Mount the flat plate on the dolly platform, then insert the screws by aligning to the bottom and properly tighten.

- Mount the fluid head (Not Included) onto the flat plate and to properly secure, insert a bolt from the middle/centre of the bottom, as shown in the image.

Close-up of a hand using a power tool to lift a black mechanical component (no visible text or symbols)

Close-up of a black mechanical device with a hand adjusting its top component (no visible text or symbols)

Close-up of hands operating a car chassis with a mechanical clamp (no visible text or symbols)

Close-up of a black wheeled vehicle chassis with wheels and a hand operating the wheel (no visible text or symbols)

Mechanical device with mounted camera and articulated arm (no visible text or symbols)

Hand operating a black mechanical device with a pointer, mounted on a rail (no visible text or symbols)

Hand placing a small component into a black square mechanical platform with wheels (no text or symbols visible)

Hand placing a circular component onto a black mechanical platform with visible wheels and mounting holes (no text or symbols)

Close-up of a mechanical roller or pulley system with two black wheels and a red handle (no visible text or symbols)

Close-up of a black wheeled camera module with a camera crew and a tripod-mounted sensor (no visible text or symbols)

Close-up of a mechanical assembly with visible gears and a hand adjusting components (no text or symbols)

• After properly securing the fluid head (Not Included), mount a camera on it.

Two views of a black mechanical device with mounted sensors and a camera module, shown from different angles (no text or symbols visible)

8ft Track Setup

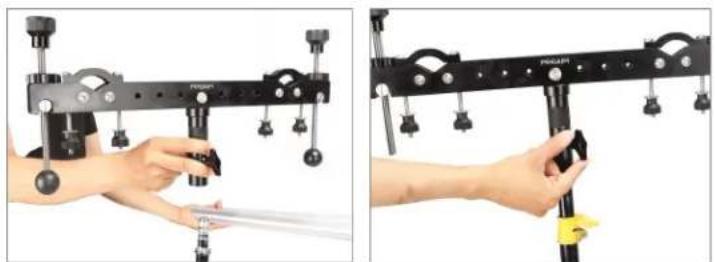

- Mount the end spacers onto the stand (Not Included) and tighten with the help of a knob.

NOTE: If you need higher level shots, then you can put end spacers on Stands.

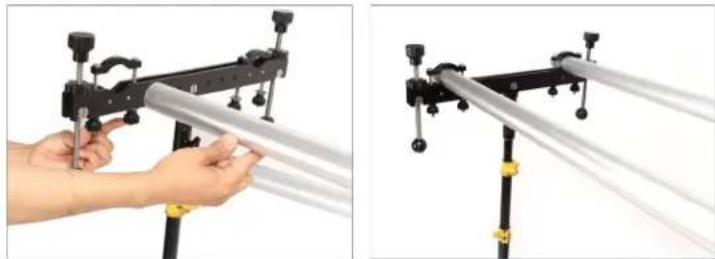

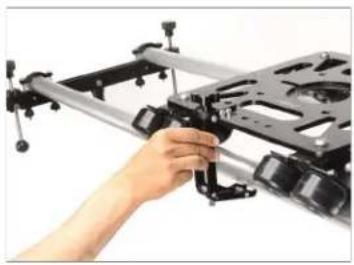

- Insert an 8ft track into the clamp. Once the track is properly fitted into the clamp, secure it with the help of a knob, as shown in the image. Follow the same process on the other side.

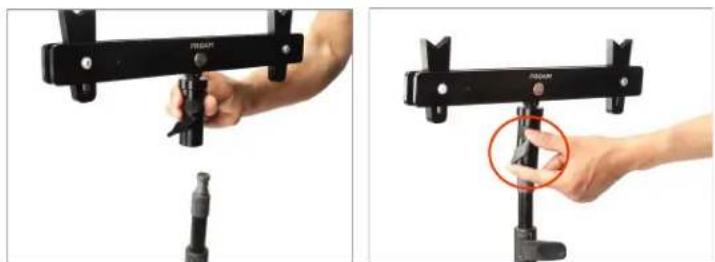

- Mount the Centre Support Spacer onto the stand. After mounting the spacer onto the stand (Not Included), properly secure it with a knob.

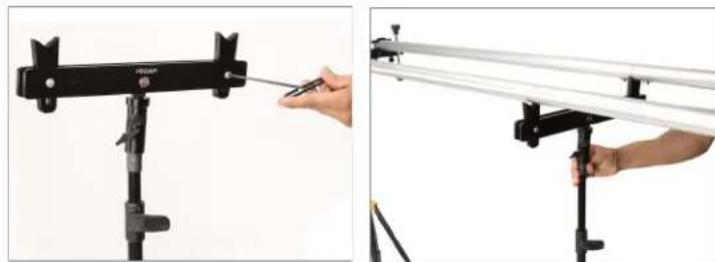

- Attach the Centre Support spacer under the centre of the track system help of a Support stand (Not Included).

- The 8ft track is now mounted on the centre support spacer.

Two-panel image showing a hand operating a mechanical device with a tool, no visible text or symbols.

Two-panel image showing a hand holding a long cylindrical object with a transparent rod, mounted on a black tripod stand (no text or symbols visible)

Two-step photo showing a hand holding a black mechanical clamp device, with a red circle highlighting the handle (no text or symbols visible)

Two-panel image showing a camera setup with a tripod and a rail-mounted frame, both being held by a tool (no visible text or symbols)

Close-up of a black metal frame with attached bracket against white background (no text or symbols)

• Now place the breeze dolly onto the 8ft track. The handles part of the dolly platform should be inside of the track as shown. Make sure all wheels are aligned correctly on the track and dolly runs smoothly.

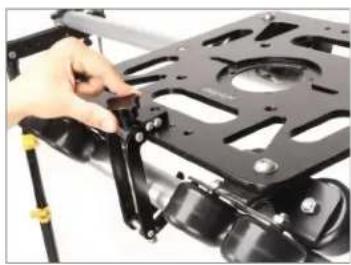

• Mount the Safety Brake on side of the Breeza dolly platform. Adjust the position of the bracket so it goes under the track to prevent the platform from tilting out.

Close-up of a black mechanical device with wheels and a mounted platform, no visible text or symbols

Hand holding a black wheeled platform with a tripod-mounted support (no visible text or symbols)

Close-up of a hand operating a mounted camera frame with no visible text or symbols

Close-up of a hand adjusting a black mechanical frame with a handle (no visible text or symbols)

Underslung Camera Setup

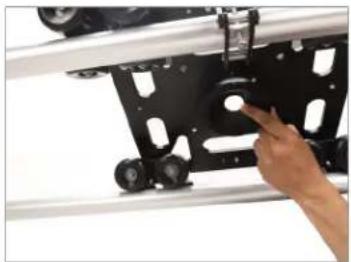

• To mount the camera (Not Included) under-slung, attach the bowl adapter aligning the bottom threads, then insert the screws and properly tighten using an Allen key.
• Then attach the fluid head (Not Included) to the bowl adapter, as shown in the image.

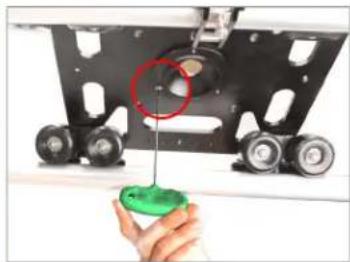

• To secure the fluid head (Not Included) from the bottom, insert the locking knob from the top and secure it properly.

Close-up of a hand interacting with a black mechanical frame and rail, no visible text or symbols

Close-up of a hand holding a green plastic component with a red circle highlighting a small object, next to a black mechanical frame (no text or symbols visible)

Mechanical vehicle chassis with wheels and a mounted platform (no visible text or symbols)

Close-up of a hand holding a black mechanical device with wheels, next to a white industrial machine (no visible text or symbols)

Close-up of a black tracked vehicle with multiple wheels and a small sensor on top (no visible text or symbols)

Close-up of a hand operating a black wheeled motion platform with wheels and a control knob (no visible text or symbols)

NOTE: The whole dolly system is Quick & Easy to Set up for a steady workflow. It saves a lot of your valuable production time.

Mechanical setup with a mounted camera and overhead monitor (no visible text or symbols)

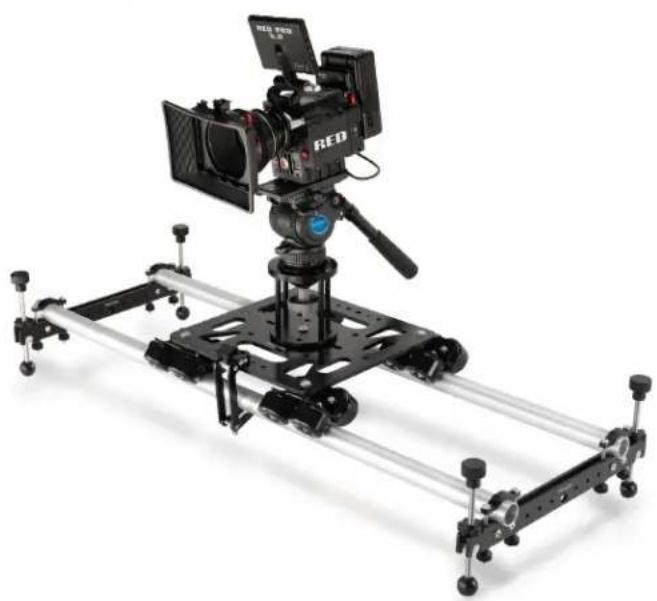

YOUR PROAIM BREEZA VIDEO/FILM CAMERA DOLLY SLIDER WITH TRACK ENDS ALL DRESSED UP AND READY TO GO!

Professional video camera setup on a black-and-white rail-mounted platform (no visible text or symbols)

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
