USER MANUAL FPM-8151H-R3BE Advantech

Illustration of three kitchen appliances in green outline style (no text or symbols)

FPM-8151H-R3BE /

FPM-8151S-R3BE

15" XGA Industrial Monitor for Hazardous Location

顯示器

User Manual

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: 顯示器 型號(型式): FPM-8151H-R3BE(系列型Equipment name Type designation (Type) 號參見說明書)
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^+6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenyl ethers(PBDE)
電路板	—	○	○	○	○	○
面板	—	○	○	○	○	○
內外殼(外殼、內部框架⋯等)	○	○	○	○	○	○
其它固定組件(螺絲、夾具、卡筍)	—	○	○	○	○	○
配件	○	○	○	○	○	○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

Copyright

The documentation and the software included with this product are copyrighted 2016 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

This Manual Covers the Following Models.

- FPM-8151H-R3BE

FPM8151HR3B1601E-T, FPM8151HR3B1602E-T, FPM8151HR3B1701E-T, FPM8151HR3B1702E-T, FPM8151HR3B1703E-T, FPM8151HR3B1704E-T, FPM8151HR3B1705E-T, FPM8151HR3B1801E-T, FPM8151HR3B1802E-T, FPM8151HR3B1803E-T, FPM8151HR3B1804E-T, FPM8151HR3B1805E-T, FPM8151HR3B1806E-T, FPM8151HR3B1901E-T, FPM8151HR3B1902E-T, FPM8151HR3B1903E-T, FPM8151HR3B1904E-T, FPM8151HR3B1905E-T, FPM8151HR3B2001E-T, FPM8151HR3B2002E-T, FPM8151HR3B2003E-T, FPM8151HR3B2004E-T, FPM8151HR3B2005E-T, FPM8151HR3B2101E-T, FPM8151HR3B2102E-T, FPM8151HR3B2103E-T, FPM8151HR3B2104E-T, FPM8151HR3B2105E-T

- FPM-8151S-R3BE

FPM8151SR3B1701E-T, FPM8151SR3B1702E-T, FPM8151SR3B1703E-T, FPM8151SR3B1704E-T, FPM8151SR3B1705E-T, FPM8151SR3B1801E-T, FPM8151SR3B1802E-T, FPM8151SR3B1803E-T, FPM8151SR3B1804E-T, FPM8151SR3B1805E-T, FPM8151SR3B1901E-T, FPM8151SR3B1902E-T, FPM8151SR3B1903E-T, FPM8151SR3B1904E-T, FPM8151SR3B1905E-T, FPM8151SR3B2001E-T, FPM8151SR3B2002E-T, FPM8151SR3B2003E-T, FPM8151SR3B2004E-T, FPM8151SR3B2005E-T, FPM8151SR3B2101E-T, FPM8151SR3B2102E-T, FPM8151SR3B2103E-T, FPM8151SR3B2104E-T, FPM8151SR3B2105E-T

Part No. TBD Edition 1

Printed in China December 2016

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Declaration of Conformity

This device complies with part 15 of the FCC rules: Operation is subject to the following two condition:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Class A

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Technical Support and Assistance

1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:

– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software, etc.)
– A complete description of the problem
– The exact wording of any error messages

Safety Instructions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:

■ The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
■ The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
■ The equipment has been dropped and damaged.
■ The equipment has obvious signs of breakage.

1. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -20°C (-4°F) OR ABOVE 60°C (140°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

2. The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

安全指示

Chapter 1 General Information ....1

1.1 Introduction 2
1.2 Specifications .... 2 1.2.1 General .... 2 1.2.2 Touchscreen .... 2
1.3 LCD Specifications.... 3 1.4 Power Consumption.... 4
1.5 Connectors....4
1.6 Dimensions .... 5 Figure 1.1 FPM-8151H/8151S Dimensions .... 5
1.7 IO View....6

Chapter 2 Mounting ....7

2.1 Mounting the Monitor 7

2.1.1 Wall Mounting with FPM-1000T-SMKE ....7 Figure 2.1 Wall Mounting for FPM-8151H/8151S ....7
2.1.2 Panel Mounting....8 Figure 2.2 Panel Mounting (392 x 292 mm)....8
2.1.3 VESA Mount for FPM-8151H/8151S....9 Figure 2.3 Desktop Stand for FPM-8151H/8151S....9 Figure 2.4 VESA mount for FPM-8151H/8151S....9

Appendix A OSD Operation Keypad....11

A.1 OSD Board Overview (FPM-31xxG) 12

A.1.1 OSD Button Description.... 12
A.1.2 LED Functions 12

A.2 OSD Key Functions.... 13

A.2.1 Menu Start 13
A.2.2 Input Source Select....14
A.2.3 Contrast/ Brightness Setting 15
A.2.4 Geometry Menu – For DVI Input.... 16
A.2.5 Color Temperature Menu....17
A.2.6 RGB Color Menu....18
A.2.7 Language Menu....20
A.2.8 OSD Manager 21
A.2.9 Auto Configuration Menu 22
A.2.10 Mode Information Menu 23
A.2.11 Memory Recall Menu 24

A.2.12 Exit Menu.... 25

A.2.13 Hot Keys 26

Appendix B Setting Serial Data for Expansion ... 27

B.1 Setting Serial Data for Expansion 28
B.2 Touch screen RS232 Connector Pin Definition 29

Chapter 1

General Information

Sections include:

Introduction
Specifications
LCD Specification
Power Consumption
Connectors
Dimensions

1.1 Introduction

The FPM-8151H is a particularly rugged and reliable 15" XGA wide temperature industrial monitor for a variety of industry applications.

Equipped with a 316L Stainless Steel front panel, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications, especially for hazardous locations.

This model also features a strong capacitor, and enhanced 5-wire resistive touch and system isolation to enhance the reliability.

1.2 Specifications

1.2.1 General

• Button Controls: OSD control pad on front side with lockable function
  ■ Certification: CE, FCC, UL C1D2, CB, BSMI, CCC
  ■ Dimension (W x H x D): 422 x 338 x 68 mm (16.61" x 13.31" x 2.68")
• Cut-Out (W x H): 392x292mm(15.43"X11.49")
  ■ Enclosure: Front panel: 316L Stainless Steel
  ■ Rear cover: Stainless steel
  ■ Mounting: Panel, VESA, Wall, Desktop
  ■ Power Input: Phoenix Jack - 19 \~ 30 VDC input
  ■ Power Consumption: 12W
  ■ Video Port: VGA & DVI-D Port
  ■ Weight (Net): 8.5 kg (18.74 lbs)

1.2.2 Touchscreen

■ Type: 5-wire Resistive Touch
■ Controller: USB & RS-232 (Combo)
OS Support: Windows Vista,7,8,XPe,CE, 10 and Linux

1.3 LCD Specifications

FPM-8151H/8151S

■ Display Type: XGA TFT LCD
■ Display Size: 15"
■ Max. Colors: 16.2 M
■ Max. Resolution: 1024 x 768
■ Viewing Angle: 140(V), 160(H)
■ Luminance: 400 cd/m2
■ Storage Temperature: -40 \~ 85°C
- Operating Temperature: -30 \~ 80°C
■ Safety Operation Temperature: -20 \~ 60°C
■ Contrast Ratio: 700:1 (typical)
■ Lamp Life Time (MTBF): 50,000 hrs.

Note! There might be several bright or dark pixels on the LCD. This phenome-

non is normal in today's LCD manufacturing. Inspection criteria are following specifications defined by LCD vendor.

Note! Section 1.3 specifications are for LCD only.

Please refer to system specification for operating & storage temperatures

1.4 Power Consumption

• Max Power consumption: FPM-8151H/8151S: 12 W ± 20%
  ■ Power input: Phoenix Jack: 24 VDC ± 20%
  ■ Safety Standards: BSMI, CE, FCC, CCC, UL

1.5 Connectors

The following connectors are situated on FPM-8151 Series:

• VGA Port (DB-15)
  This DB-15 connector can be connected to the system via the external 15-pin DB-15 connector located on the left side of the system unit.
  DVI-D port
  Connected with a standard DVI connector thru I/O port of this unit. Only supports digital signals.
  ■ Touchscreen Connector (DB-9)
  This connector will be present only if a touchscreen is installed. It must be connected to the RS-232 port of the PC. The touchscreen cable is included with all orders which include the touchscreen option.
• Touchscreen Connector (USB)
  This connector will be present only if a touchscreen is installed. It must be connected to the USB port of the PC. The touchscreen cable is included with all orders which include the USB touchscreen option.
  ■ Touchscreen Connector (USB)
  This connector will be present only if a touchscreen is installed. It must be connected to the USB port of the PC. The touchscreen cable is included with all orders which include the USB touchscreen option.

Note!RS-232 & USB touchscreen interface allow connection into the system at the same time, but USB interface has higher priority. Also be noted that when using USB touch interface and switch to RS-232 interface, it need to restart your industrial PCs or workstation.

• Plug-In Block 3P Male (ME050-50803) DC 24 V
  This block connector can be connected _3 via the external plug-in block 3P with flanges Female MC211-F103 connector.
• For supply connections, use wires suitable for at least 75°C.

1.6 Dimensions

Panel Cut-out Dimensions: 392 x 292mm (15.43" x 11.49")

Pure architectural or structural line drawing without any text, numbers, or symbols

Back panel of a computer interface showing multiple connected ports (no text or labels visible)

338[13.31] 422[16.61]

60[2.36] 36[1.42]

68[2.68] 8[0.31]

290[1.42] 390[15.35] 100[3.94] 75[2.95] 100[3.94]

Unit:mm[inch]
Figure 1.1 FPM-8151H/8151S Dimensions

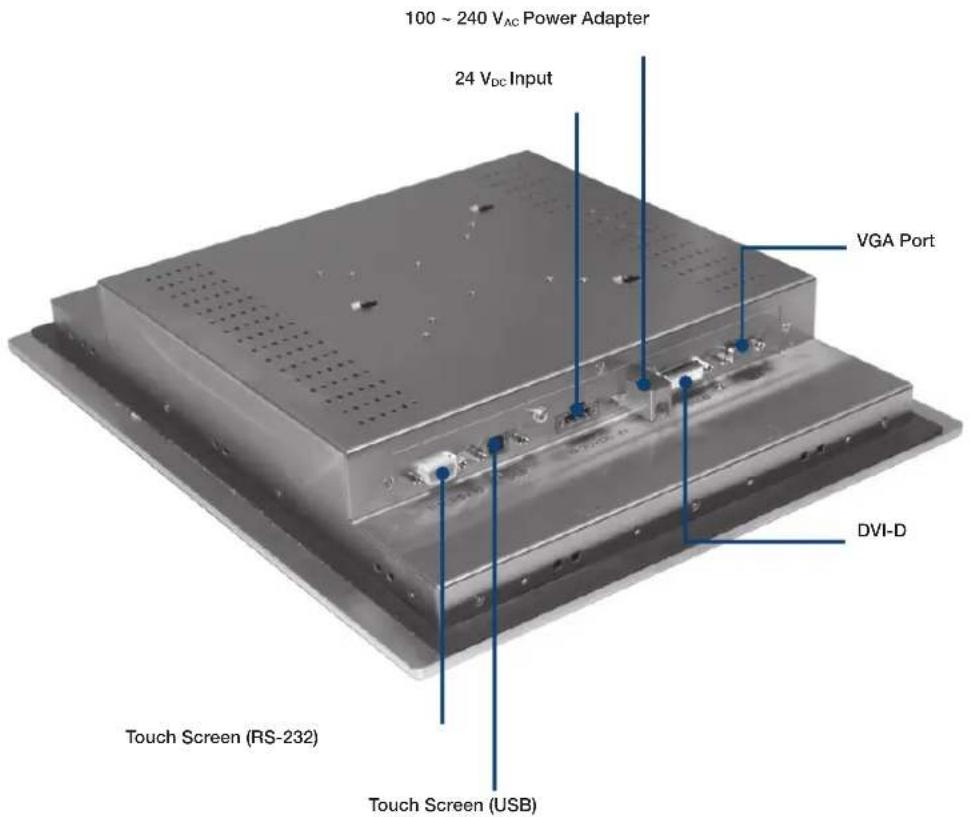

1.7 IO View

100 ~ 240 VAC Power Adapter 24 VDC Input VGA Port DVI-D Touch Screen (RS-232) Touch Screen (USB)

Chapter 2

Mounting

Wall Mounting
Panel Mounting
■ Desktop Mounting
■ Swing Arm Mounting

2.1 Mounting the Monitor

The FPM-8151 Series can be mounted in many different ways. The versatility of the FPM-8151 enable it to be mounted on your desk or anywhere else.

2.1.1 Wall Mounting with FPM-1000T-SMKE

The FPM-8151 can be mounted directly on a wall with panel mounting brackets. Please refer to Figure 2.1 and follow the following steps to mount FPM-8151 series on a wall:

Technical line drawing of a mechanical enclosure or panel with perforated walls and central circular component (no text or symbols)

Technical line drawing of a multi-panel server rack with perforated panels and mounting holes (no text or symbols)

Figure 2.1 Wall Mounting for FPM-8151 Series

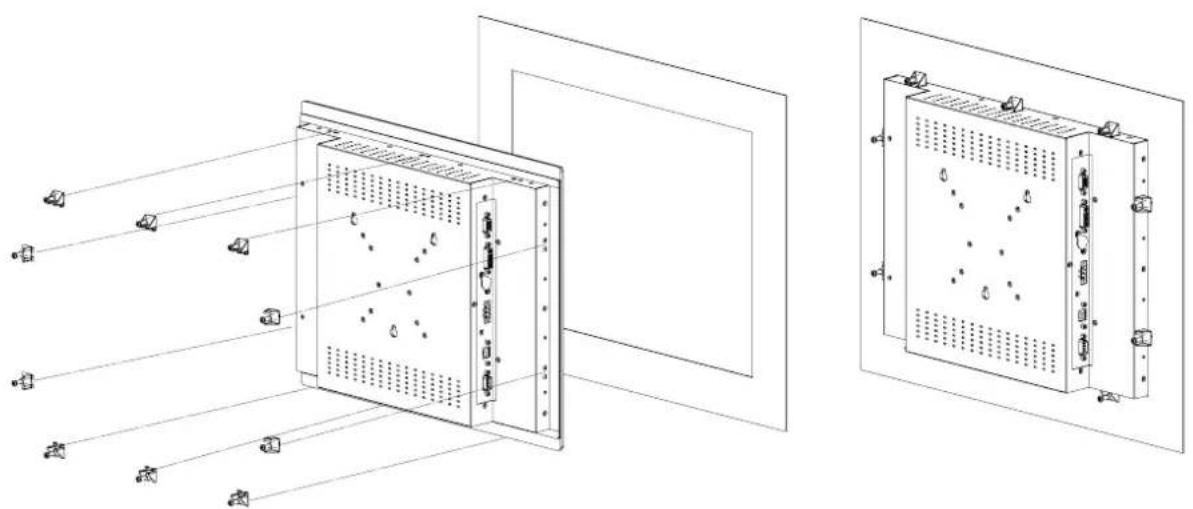

2.1.2 Panel Mounting

If you need to install the FPM-8151 Series in a panel, release the mounting brackets by detaching four screws on rear side and fix them on the top and bottom with screws.

Technical line drawing of a modular electronic device with mounting holes and internal components (no text or symbols)

Figure 2.2 Panel Mounting (392 x 292 mm)

2.1.3 VESA Mount for FPM-8151H/8151S

2.1.3.1 Desk top stand with FPM-1000T-SMKE Kit

Technical line drawing of a metal enclosure with ventilation grilles and a separate open panel (no text or symbols)

Figure 2.3 Desktop Mounting

2.1.3.2 VESA Mount

FPM-8151 Series has been designed with support for the VESA mount standard.

Warning! Use suitable mounting apparatus to avoid risk of injury.

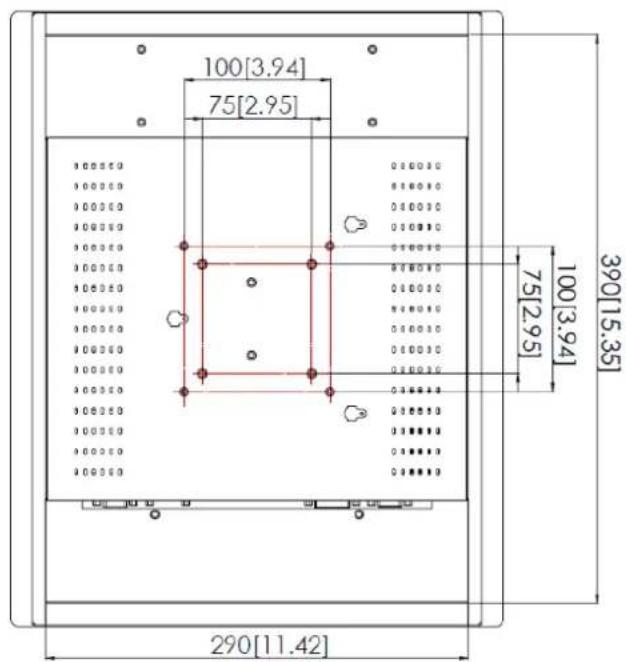

100mm 75mm 75mm 100mm

Figure 2.4 VESA mount for FPM-8151H/8151S

Appendix A

OSD Operation Keypad

A.1 OSD Board Overview (FPM-31xxG)

The OSD keypad, including six keys and a two color indicator, is designed as the OSD operation interface.

Source Sel Auto Exit

A.1.1 OSD Button Description

Buttons Descriptions
Power Turn the monitor power ON or OFF.
Auto/Exit	Automatically adjust the clock, phase, H-position and V-position.Exit menu.
Down/Right/ Increase	Activate the volume control.Move the selector to the next option.Increase the gauge value of the selected option.Increases brightness
Up/Left/ Decrease	Active volume control.Move the selector to the previous option.Decrease the gauge value of the selected option.Decreases brightness
Menu/Sel	Activate the OSD menu.Enter/confirm the selected option.
Source Changes Input video source

A.1.2 LED Functions

On Green

StandBy/Off Green Blinking

No Signals Orange

A.2 OSD Key Functions

Each selected value is stored into LCD memory after SEL signal input or time out. The stored values are not affected if the power is turned off. But the selected value is not available in case a selected mode is changed before time out or power is turned off before time out. TIME OUT .. 5-6 seconds ( Can be set in OSD Manager) The default definition of input keys is shown as following:

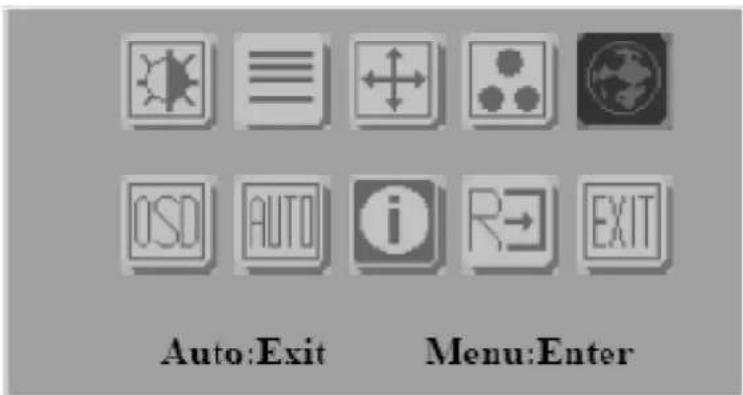

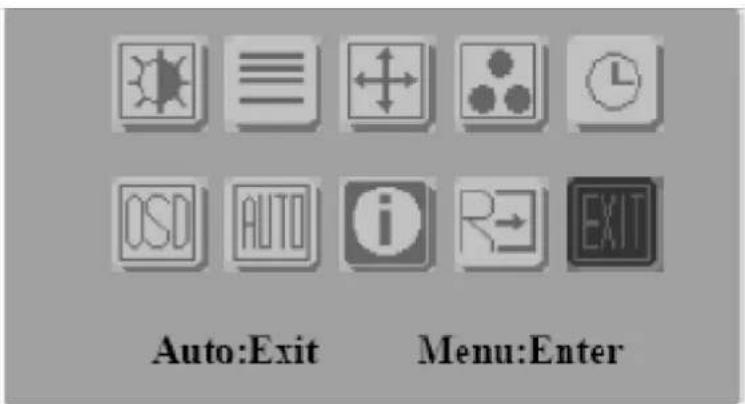

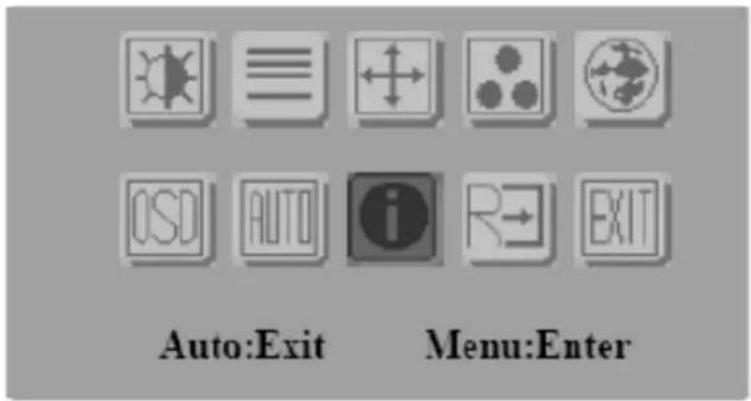

A.2.1 Menu Start

Generate Main Menu

Press MENU Button in OSD function key

Ma in Menu

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN
■ Available Key Functions

	N/A N/A
	Select to exit menu or wait for timeout N,
	N/A N/A

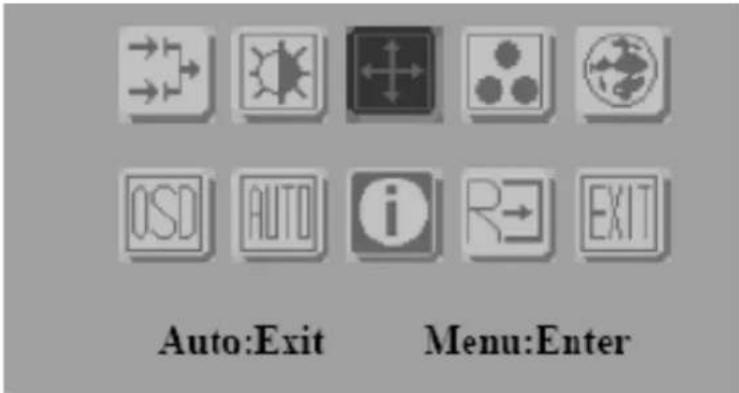

A.2.2 Input Source Select

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

0

Auto:Exit Menu:Enter

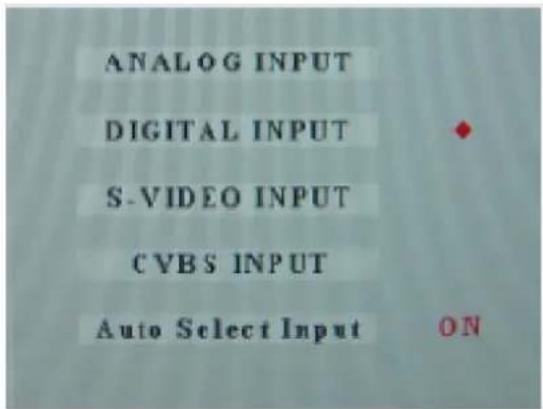

Sub-Menu – DISPLAY IN SCREEN

ANALOG INPUT DIGITAL INPUT S-VIDEO INPUT CVBS INPUT Auto Select Input ON

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

Auto Select Input

- ON> start from default setting and scan the inputs by following sequence from ANALOG INPUT, DIGITAL INPUT, S-VIDEO INPUT, and CVBS INPUT.

- OFF>. start from default setting

A.2.3 Contrast/ Brightness Setting

Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

CONTRAST DIM BRIGHTNESS BRIGHTNESS SHARPNESS 0 RECALL VAULE Recall Rec1 Rec2 CONTRAST DIM BRIGHTNESS BRIGHTNESS SHARPNESS 0 RECALL VAULE Recall Rec1 Rec2

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

RECALL VALUE – User Define

• Rec1> Pressed to record 1st setting as recall value followed by current screen setting
• Rec2> Pressed to record 2nd setting as recall value followed by current screen setting
• Recall> Switch the setting change by Rec1 and Rec2 while pressed

A.2.4 Geometry Menu – For DVI Input

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

FOCUS 0~100 CLOCK 0~100 H.POSITION 0~100 V.POSITION 0~100

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.5 Color Temperature Menu

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

WARM COOL USER

■ Available Key Functions

OnOff	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
AutoExit	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.6 RGB Color Menu

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

by Left and Right Button, Press Menu Button for

selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

WARM COOL USER

Sub-Menu – DISPLAY IN SCREEN

RED 0~100 GREEN 0~100 BLUE 0~100

■ Available Key Functions

Power Off the LCD Monitor

Decrease the gauge value of the selected option.

Return to last menu Select to confirm

Increase the gauge value of the selected option.

N/A

Customization setting for RGB colors

A.2.7 Language Menu

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

ENGLISH	繁體中文
DEUTSCH	FRANCAIS
ESPANOL	ITALIANO
簡体中文	日本語

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.8 OSD Manager

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

H. POSITION 0~100 V. POSITION 0~100 TIMEOUT 0~100

■ Available Key Functions

On Off	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
Auto Exit	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.9 Auto Configuration Menu

Select 📄 by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit

Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

AUTO CONFIG

■ Available Key Functions

Power Off the LCD Monitor

Decrease the gauge value of the selected option.

Return to last menu Select to confirm

N/A

Increase the gauge value of the selected option.

Auto configuration can be set in menu and also can press the without any menu indication.

A.2.10 Mode Information Menu

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

1024 X 768 H: 60HZ V:75HZ

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.11 Memory Recall Menu

■ Generate Main Menu

Select by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

MEMORY RECALL

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.12 Exit Menu

■ Generate Main Menu

Select EXIT by Left and Right Button, press Menu Button for selection confirmation.

■ Main Menu -- DISPLAY IN SCREEN

Auto:Exit Menu:Enter

Sub-Menu – DISPLAY IN SCREEN

EXIT

■ Available Key Functions

	Power Off the LCD Monitor		Decrease the gauge value of the selected option.
	Return to last menu Select to confirm
	Increase the gauge value of the selected option.		N/A

A.2.13Hot Keys

OSD LOCK/UNLOCK

HOT KEYS

Press first then press for change this setting, Followed

this sequence for the button press so that you can have OSD LOCK and

UNLOCK setting

Enter OSD LOCK MODE

Press HOT KEY, the screen will show this action first

DO OSD LOCK

- Don't remove the HOT KEY until the screen indicated this task is finished.

OSD LOCK

Entry OSD UNLOCK MODE

■ Press HOT KEY, the screen will show this action first

DO OSD UNLOCK

- Don't remove the HOT KEY until the screen indicated this task is finished.

OSD UNLOCK

Appendix B

Setting Serial Data for Expansion

B.1 Setting Serial Data for Expansion

The several timings below are already programmed in this module.

The input synchronous signals are automatically recognize

FPM-8151H-R3BE/ FPM-8151S-R3BE

Resolution HSYNC /KHz (+/-) VSYNC /Hz (+/-) PIXEL RATE /MHz

IBM, 720 * 400 31.469 70.087 28.322

VESA 640 * 480 31.469 59.940 25.175

VESA 640 * 480 37.861 72.809 31.500

VESA 640 * 480 37.500 75.000 31.500

VESA 800 * 600 35.156 56.250 36.000

VESA 800 * 600 37.879 60.317 40.000

VESA 800 * 600 48.077 72.188 50.000

VESA 800 * 600 46.875 75.000 49.500

VESA 1024*768 48.363 60.004 65.000

VESA 1024*768 56.476 70.069 75.000

VESA 1024*768 60.023 75.029 78.750

Note! Even if the preset timing is entered, a little adjustment of the functions such as Horizontal period, CLK-delay and display position, are required. The adjusted values are memorized in every preset number.

Note! This module recognizes the synchronous signals with near preset timing of the frequency of the HS and Vsync, even in the case that the signals other than the preset timing that were entered.

Note! Because adjustments may not fit, such as differing magnifying ratios or, in the case that you use it except for the display timing that was preset. Recommend best resolution as 1920*1080.

B.2 Touch screen RS232 Connector Pin Definition

Pin RS232

1	-
2	TXD
3	RXD
4	DTR
5	GND
6	DSR
7	RTS
8	-
9	-

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2016
