INTRODUCTION

Thank you for choosing a Vello Lens Adapter. Vello Lens Adapters allow you to mount a camera body to a telescope, spotting scope, microscope, or certain lenses. You must also have an SLR camera adapter that fits your telescope. You'll also need to minimize shutter release vibrations that can cause blurring during the long exposures typical with these optics. Vello makes a wide range of remotes and shutter release cables to control your shutter. Telescopes and microscopes are not built to support heavy SLRs. Make certain your setup is secure. Please follow the instructions below to mount and remove your Vello Lens Adapter.

Automatic diaphragm (AE metering), and other functions dependent on communication between the camera body and lens, will be disrupted by a lens adapter. You must set exposures manually or meter in aperture priority (stop-down) mode. If the lens does not have a manual aperture collar, the aperture will be stopped to its smallest f/stop. Focusing to infinity is retained.

All images are for illustrative purposes only.

TO MOUNT THE LENS ADAPTER

Close-up of hands holding a black cylindrical device with metallic components (no visible text or symbols)

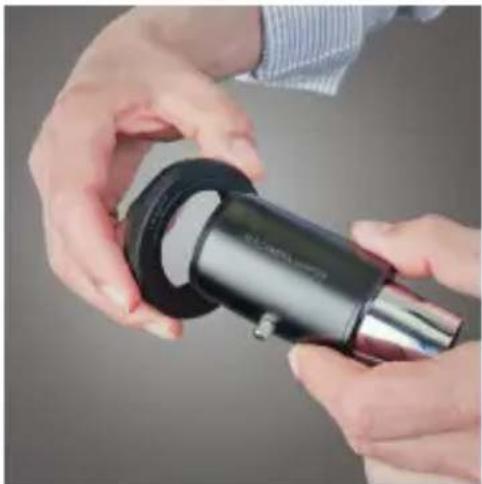

1. You must have an SLR camera adapter. Screw the lens adapter onto the SLR adapter.

Close-up of a hand holding a black DSLR camera with lens assembly (no visible text or symbols)

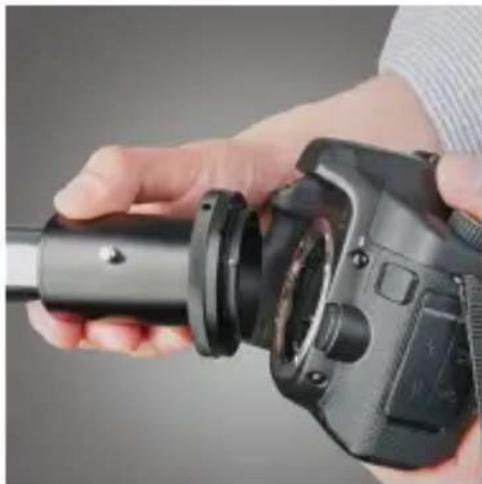

1. Line up the alignment dots on the lens adapter and camera. Rotate the assembly until it locks.

Close-up of hands assembling a mechanical component (no visible text or symbols)

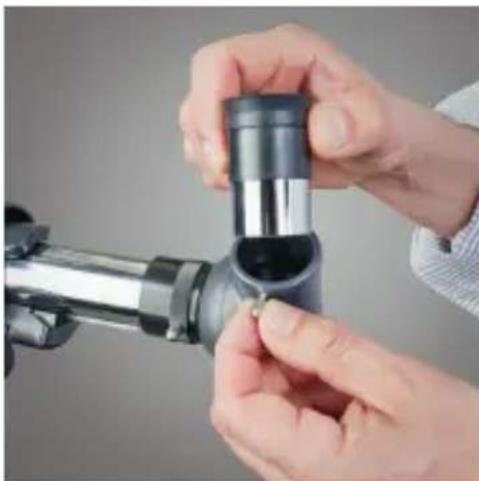

1. Remove the eyepiece from your telescope, spotting scope, or microscope.

Close-up of a hand using a digital camera to adjust a pipe fitting (no text or symbols visible)

1. Mount the camera/adapter assemblies to your optic device. Make certain the setup is stable.

Close-up of a hand adjusting a black DSLR camera module with orange arrows pointing to the adjustment area (no text or symbols visible)

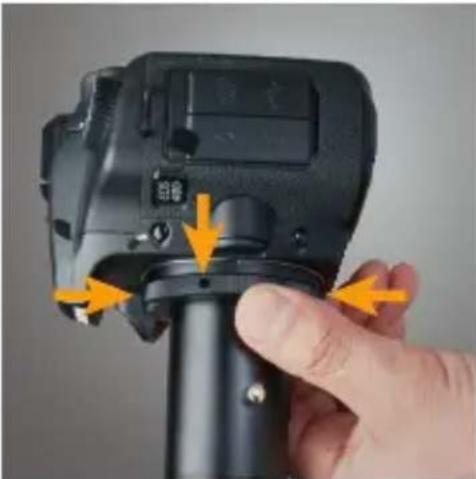

1. If desired, you can re-align the lens to a specific position. To re-align the lens, use a 2 mm flat-head screwdriver to loosen the three screws on the lens mount. Rotate the lens to the desired position, and tighten the three screws.

TO REMOVE THE LENS ADAPTER

Close-up of hands adjusting a mechanical component with a camera module (no visible text or symbols)

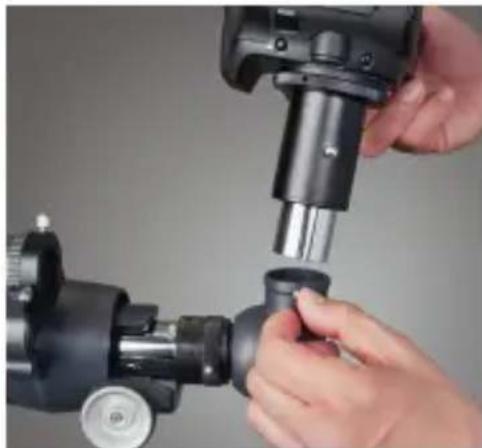

1. If you prefer, you can leave the lens adapter attached to your SLR adapter. Release the camera/adapter assemblies from the telescope.

Close-up of hands holding a black cylindrical mechanical component with a metallic shaft (no visible text or symbols)

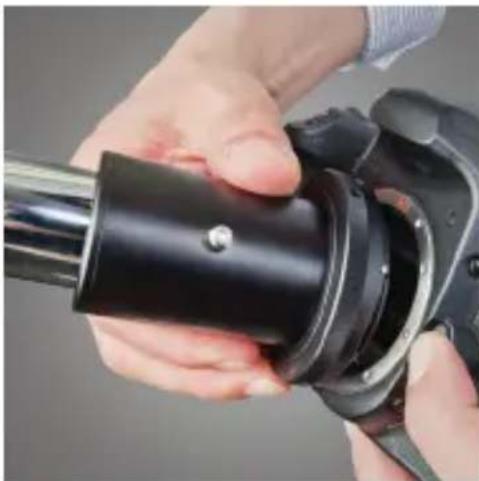

1. Press the lens release on the camera, and rotate the adapter assembly to release and remove.

Close-up of hands holding a black cylindrical object with a ring, no visible text or symbols

1. Unscrew the SLR camera adapter from the lens adapter. Replace all protective covers.
