Product Type	VGA Video Extender over CAT5 Transmitter
Brand	StarTech.com
Model	STUTPTXWAL
Video Connector	15-pin D-Sub (DE-15) female
Rear Connectors	RJ45 female, Terminal Block for power
Maximum Resolution	1920x1200 @ 60Hz
Maximum Distance	Up to 300 m (at 800x600 resolution)
Cable Type	CAT5, CAT5e, CAT6
Power Adapter Output	12 V DC, 600 mA
Material	Metal
Color	White
Weight (Transmitter)	165 g
Dimensions	78.2 mm x 41.2 mm x 52.8 mm
Features	H/V sync inversion switches, Power LED, Wall plate mountable
Package Contents	Transmitter unit, Power adapter, Terminal block adapter, User manual
Warranty	1 year
Cleaning and Maintenance	Wipe with dry cloth; avoid moisture and solvents
Safety	Use only included power adapter; do not expose to liquids
Repairability	No user-serviceable parts; contact technical support

Frequently Asked Questions - STUTPTXWAL StarTech.com

How do I install the STUTPTXWAL transmitter?

Connect the DE-15 female input to your PC's VGA output using a male-to-male VGA cable. Then link the transmitter to the receiver (STUTPRXWAL) via a CAT5 cable. Finally, connect the power adapter to the transmitter.

What is the maximum resolution supported?

The maximum resolution is 1920x1200 at 60 Hz over short distances (e.g., 50 m on CAT5e).

What is the maximum transmission distance?

Up to 300 meters at 800x600 resolution using CAT5 cable. Higher resolutions reduce the distance.

What type of cable is required?

Standard CAT5, CAT5e, or CAT6 Ethernet cable with RJ45 connectors is required.

What power adapter does the transmitter use?

A 12 V DC, 600 mA power adapter is required. The package includes a terminal block adapter for connection.

How do I adjust for sync issues or noise?

Use the H-INV and V-INV switches on both transmitter and receiver. Set them to 'ON' if you experience horizontal or vertical sync issues. Both units must have matching settings.

What is included in the package?

The package includes the transmitter unit, one power adapter, a terminal block adapter for power, and a user manual.

Can I use this transmitter with any VGA monitor?

Yes, as long as the monitor has a VGA input. The receiver unit outputs standard VGA signal.

How do I clean the device?

Disconnect power and wipe with a soft, dry cloth. Do not use liquids or abrasive cleaners.

Is there any warranty?

Yes, the product comes with a 1-year warranty covering defects in materials and workmanship.

USER MANUAL STUTPTXWAL StarTech.com

STUTPRXWAL STUTPTXWAL STUTPWALL

Instruction Manual

VGA Video Extender over CAT5

VGA Wall Plate Video Extender over CAT5 Receiver

VGA Wall Plate Video Extender over CAT5 Transmitter

StarTech.com Making hard-to-find easy!®

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ...... 1

Packaging Contents....1

System Requirements ....1

Installation 2

Transmitter Unit (STUTPTXWAL) 2

Receiver Unit (STUTPRXWAL) 3

Hardware Installation ....4

Wiring Information and Coding 5

Distances and Resolutions ...... 6

Adapter Output Polarity 6

Specifications 7

Technical Support 8

Warranty Information 8

Introduction

Packaging Contents

1 x STUTPTXWAL (transmitter) or STUTPRXWAL (receiver) •

* both units included in STUTPWALL kit

1 x Power Adapter •

* 2 included in STUTPWALL kit

1 x User Manual•

1 x Terminal Block adapter for power adapter •

* 2 included in STUTPWALL kit

System Requirements

Open wall receptacle for unit installation•

Available power outlet•

Both Transmitter (STUTPTXWAL) and Receiver (STUTPRXWAL) • units

Installation

Transmitter Unit (STUTPTXWAL)

Front View

* picture may vary from actual product

DE-15 Female Connector•

Power LED•

Control H/V signal inverting switch•

The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the receiver must also be set to "ON".

The default setting of V-INV is "OFF". If V-INV is set to "ON", the vertical signal output is adjusted. V-INV on the receiver must also be set to "ON".

Use this setting when noise or sync issues are detected in the signal transfer.

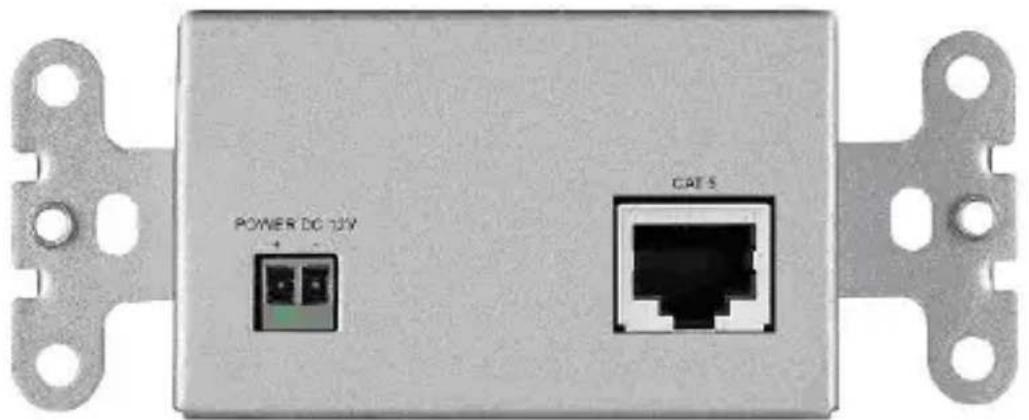

Rear View

* picture may vary from actual product

Power Connector•

RJ-45Female Connector•

Receiver Unit (STUTPRXWAL)

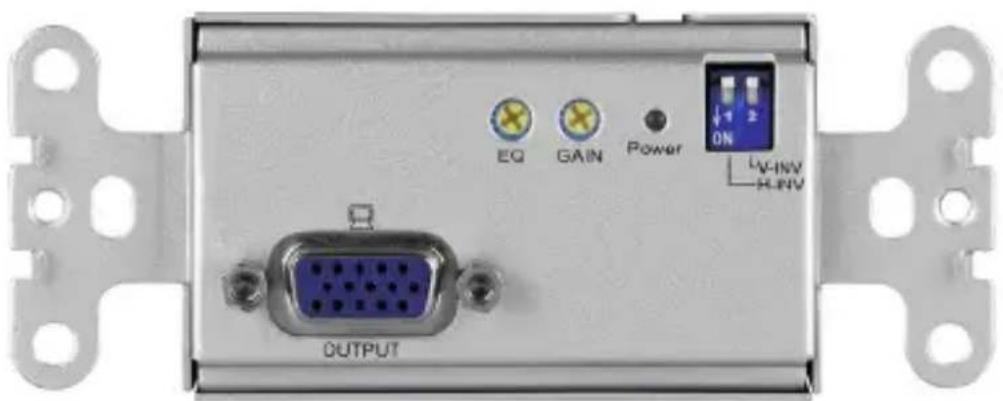

Front View

* picture may vary from actual product

DE-15 Female Connetor•

EQ – Equalization length adjust (Adjust sharpness)•

GAIN – Adjust brightness •

Power LED•

Control H/V signal inverting switch•

The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the transmitter must also be set to "ON".

The default setting of V-INV is “OFF”. If V-INV is set to “ON”, the vertical signal output is adjusted. V-INV on the transmitter must also be set to “ON”.

Use this setting when noise or sync issues are detected in the • signal transfer.

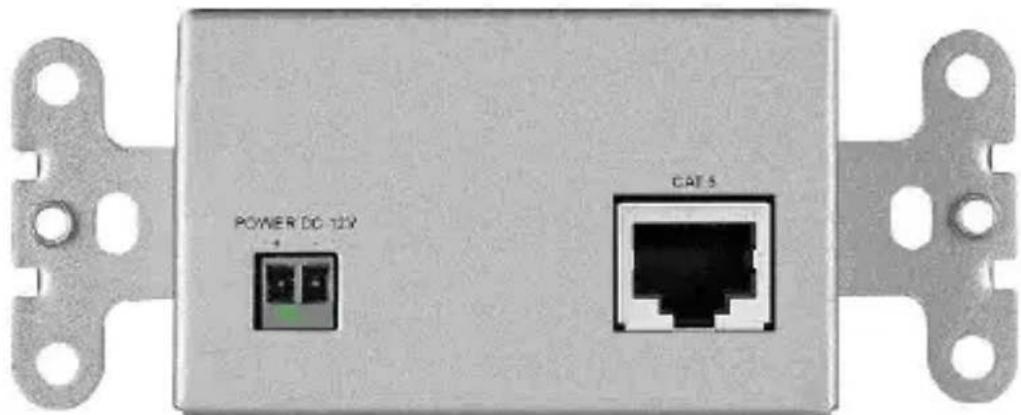

Rear View

* picture may vary from actual product

Power Connector•

RJ-45Female Connector•

Hardware Installation

Turn off the PC and remote monitor.1.

Connect STUTPTXWAL Transmitter unit DE-15 female input 2. connector with DE-15 male to male cable to PC video card.

Connect STUTPTXWAL Transmitter and STUTPRXWAL Receiver 3. unit together with CAT5 cable.

Connect STUTPRXWAL Receiver unit DE-15 female connector with 4. DE-15 male to male cable to monitor.

Connect the power adapter on each unit.5.

Turn on the monitor and PC.6.

Wiring Information and Coding

Conductor RJ45 Pin	Conductor Colour Code
Pair 1	5 White-Blue
	4 Blue
Pair 2	1 White-Orange
	2 Orange
Pair 3	3 White-Green
	6 Green
Pair 4	7 White-Brown
	8 Brown

Distances and Resolutions

CAT5/CAT5e	50m 1920x1200
	100m 1600x1200
	180m 1280x1024
	200m 1024x768
	300m 800x600
CAT6	30m 1920x1440
	50m 1280x1024
	100m 800x600

Adapter Output Polarity

Pin Output Level	Conductor Colour
1 +12V Black-White
2 RTN (-) Black

Specifications

Video Connector	15-pin D-Sub (DE-15)
Rear Connectors	RJ45Terminal Block
Maximum Resolution	1920x1200 at 60Hz
Maximum Distance	300 meters at 800x600
Power Adapter Output	12VDC, 600mA
Material	Metal
Color	White
Weight	165 g (transmitter)170 g (receiver)
Dimensions	78.2 mm x 41.2 mm x 52.8 mm

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
