USER MANUAL STUTPTXWLA StarTech.com
STUTPRXWLA STUTPTXWLA STUTPWALLA
Instruction Manual
VGA Video Extender over CAT5
VGA Wall Plate Video and Audio Extender over CAT5 Receiver
VGA Wall Plate Video and Audio Extender over CAT5 Transmitter
StarTech.com Making hard-to-find easy!®
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Table of Contents
Introduction ...... 1
Packaging Contents....1
System Requirements ....1
Installation 2
Transmitter Unit (STUTPTXWLA) 2
Receiver Unit (STUTPRXWLA) 3
Hardware Installation ....4
Wiring Information and Coding 5
Distances and Resolutions ...... 6
Adapter Output Polarity 6
Specifications 7
Technical Support 8
Warranty Information 8
Introduction
Packaging Contents
1 x STUTPTXWLA (transmitter) or STUTPRXWLA (receiver) •
* both units included in STUTPWALLA kit
1 x Power Adapter •
* 2 included in STUTPWALLA kit
1 x User Manual•
1 x Terminal Block adapter for power adapter •
* 2 included in STUTPWALLA kit
System Requirements
Open wall receptacle for Transmitter/Receiver unit installation•
Available power outlet•
Both Transmitter (STUTPTXWLA) and Receiver (STUTPRXWLA) • units
VGA video source•
VGA enabled display device•
Installation
Transmitter Unit (STUTPTXWLA)

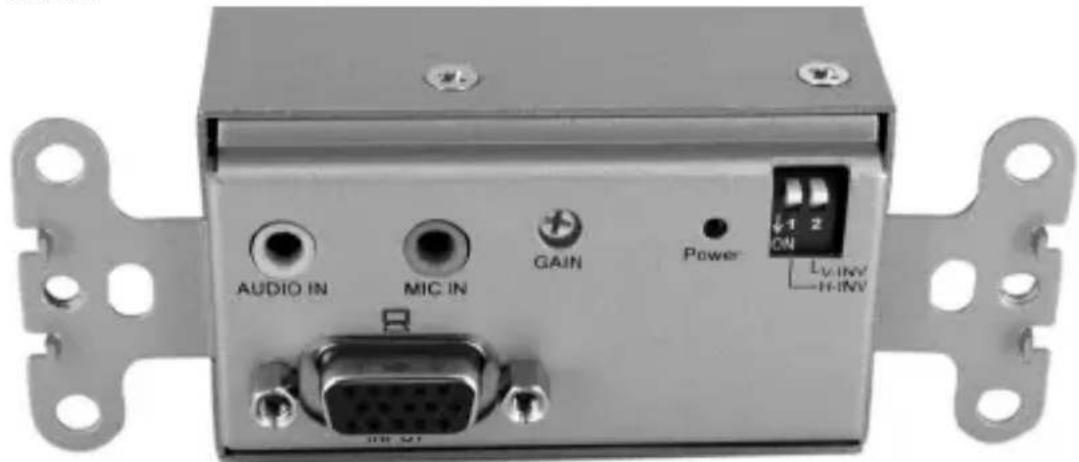

Front View
DE-15 VGA Female Connector•
3.5mm Mini-Jack Audio Input•
3.5mm Mini-Jack Microphone Input•
GAIN – Adjust brightness•
Power LED•
Control H/V signal inverting switch•
The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the receiver must also be set to "ON".
The default setting of V-INV is "OFF". If V-INV is set to "ON", the vertical signal output is adjusted. V-INV on the receiver must also be set to "ON".
Use this setting when noise or sync issues are detected in the signal transfer.

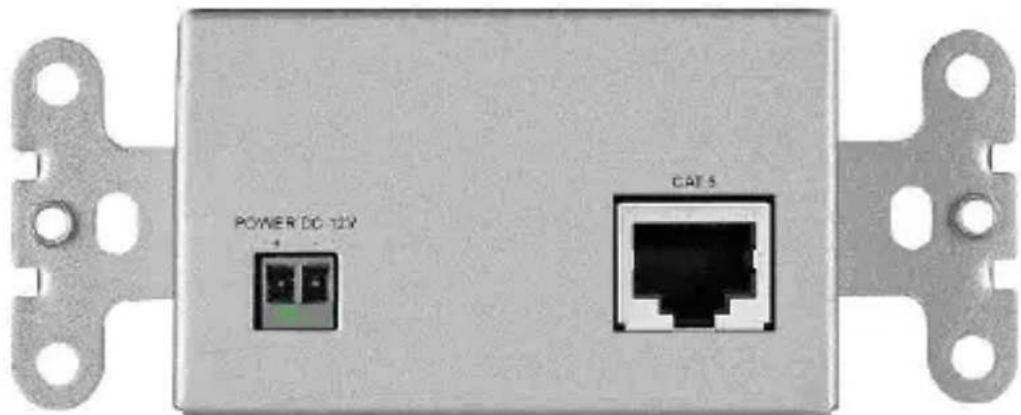

Rear View
Power Terminal Block Connector•
RJ-45 Female Connector•
Receiver Unit (STUTPRXWLA)

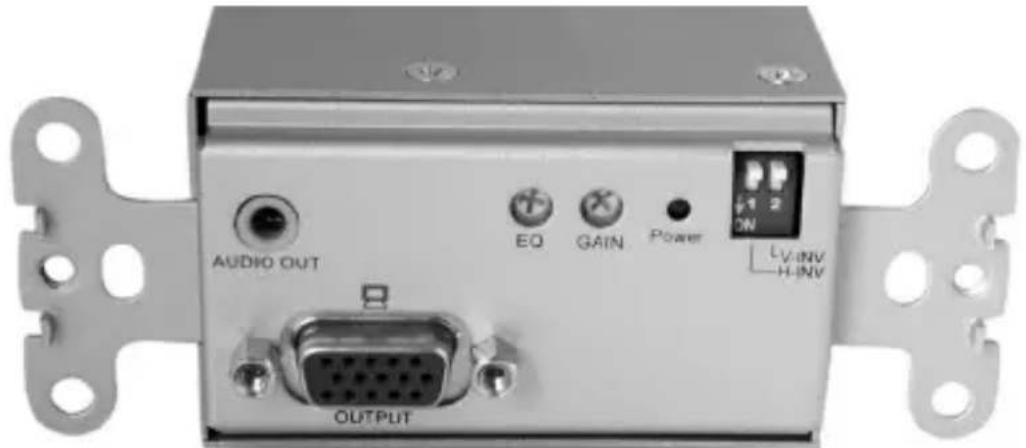

Front View
DE-15 VGA Female Connetor•
3.5mm Mini-Jack Audio Output•
EQ – Equalization length adjust (Adjust sharpness)•
GAIN – Adjust brightness •
Power LED•
Control H/V signal inverting switch•
The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the transmitter must also be set to "ON".
The default setting of V-INV is “OFF”. If V-INV is set to “ON”, the vertical signal output is adjusted. V-INV on the transmitter must also be set to “ON”.
Use this setting when noise or sync issues are detected in the • signal transfer.
Rear View
Power Terminal Block Connector•
RJ-45 Female Connector•
Hardware Installation
Turn off the PC and remote monitor.1.
Connect STUTPTXWLA Transmitter unit DE-15 VGA female 2. connector with a DE-15 VGA male to male cable to PC video card.
Connect STUTPTXWLA Transmitter and STUTPRXWLA Receiver 3. units together with CAT5 UTP cable.
Connect STUTPRXWLA Receiver unit DE-15 VGA female connector 4. with a DE-15 VGA male to male cable to the monitor/display.
Connect the power adapter on each unit.5.
Turn on the monitor and PC.6.

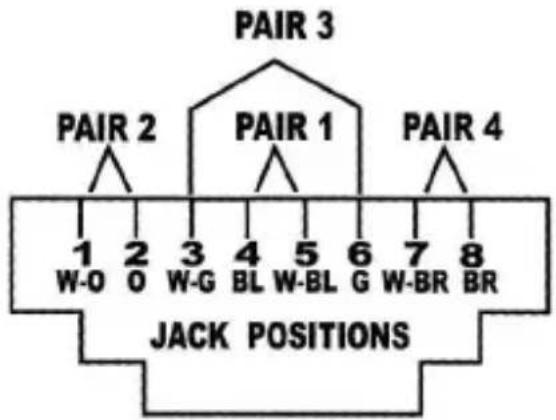

Wiring Information and Coding
| Pair 1 | 5 White-Blue | |
| 4 Blue | ||
| Pair 2 | 1 White-Orange | |
| 2 Orange | ||
| Pair 3 | 3 White-Green | |
| 6 Green | ||
| Pair 4 | 7 White-Brown | |
| 8 Brown |
Distances and Resolutions
| CAT5/CAT5e | 50m 1920x1200 | |
| 100m 1600x1200 | ||
| 180m 1280x1024 | ||
| 200m 1024x768 | ||
| 300m 800x600 | ||
| CAT6 | 30m 1920x1440 | |
| 50m 1280x1024 | ||
| 100m 800x600 |

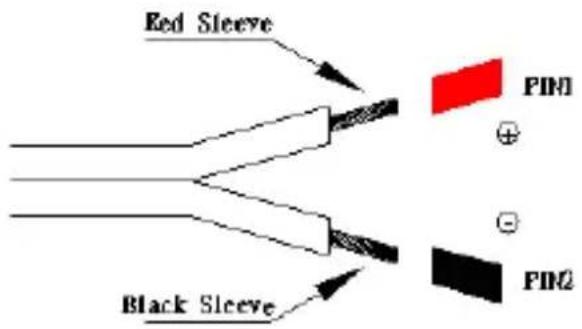

Adapter Output Polarity
| 1 +12V Black-White | ||
| 2 RTN (-) Black |
Specifications
| Video Connector | 15-pin VGA (DE-15) |
| Audio Connector | 3.5mm stereo Mini-Jack |
| Rear Connectors | RJ45Terminal Block |
| Maximum Resolution | 1920x1200@60Hz (at 50 m) |
| Maximum Distance | 300 meters (at 800x600) |
| Power Adapter Output | 12VDC, 600mA |
| Material | Metal |
| Color | White |
| Weight | 136 g (transmitter)136 g (receiver) |
| Dimensions | 105.0 mm x 42.0 mm x 38.0 mm |
Technical Support
StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
