STUTPRXWLA - AV Transmitter StarTech.com - Free user manual and instructions

Product Type	VGA Video Extender Receiver (Wall Plate)
Model	STUTPRXWLA
Brand	StarTech.com
Video Connector	1 x DE-15 VGA Female
Audio Connector	1 x 3.5mm Stereo Mini-Jack Output
Network Connector	1 x RJ-45 Female
Power Connector	Terminal Block (12VDC Input)
Maximum Resolution	1920 x 1200 @ 60Hz (at 50m)
Maximum Distance	300 m (at 800x600 resolution)
Supported Cable Types	CAT5, CAT5e, CAT6 UTP
Adjustment Controls	EQ (sharpness), GAIN (brightness), H-INV and V-INV switches
Power Adapter Output	12VDC, 600mA
Material	Metal
Color	White
Dimensions (L x W x H)	105.0 mm x 42.0 mm x 38.0 mm
Weight	136 g
Compliance	FCC Class B
Warranty	1 Year
Included Accessories	Power adapter, terminal block adapter, user manual
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquids or solvents.
Safety Precautions	Use only the supplied power adapter. Avoid exposure to moisture or extreme temperatures.

Frequently Asked Questions - STUTPRXWLA StarTech.com

What is the maximum transmission distance for the STUTPRXWLA?

The maximum distance is 300 meters at 800x600 resolution. At higher resolutions, the distance reduces (e.g., 1920x1200 at 50 meters).

Does the STUTPRXWLA support audio?

Yes, it provides a 3.5mm stereo audio output for connecting speakers or displays with audio input.

What type of cable is required between transmitter and receiver?

A standard CAT5, CAT5e, or CAT6 UTP (unshielded twisted pair) cable with RJ45 connectors is required.

How do I adjust the video quality on the receiver?

Use the EQ knob to adjust sharpness and the GAIN knob to adjust brightness. Additionally, the H-INV and V-INV switches can correct horizontal/vertical sync issues.

Can I use the STUTPRXWLA with a VGA splitter or switch?

Yes, it is compatible with standard VGA sources and displays. Ensure the source provides a standard VGA output signal.

What power adapter does the STUTPRXWLA require?

It requires a 12VDC, 600mA power adapter with a terminal block connector. The adapter is included in the package.

How do I install the wall plate unit?

Mount the unit into a standard single-gang wall box, connect the VGA source and display using male-to-male VGA cables, run CAT5 cable between transmitter and receiver, and connect power adapters.

What should I do if there is no video output?

Check that both units are powered (LED lit), verify VGA cable connections are secure, ensure CAT5 cable is properly terminated, and try adjusting EQ and GAIN controls.

Is the STUTPRXWLA compatible with HDCP?

No, this extender transmits analog VGA signals, which do not support HDCP. It is not designed for protected digital content.

What is the warranty period for the STUTPRXWLA?

StarTech.com offers a 1-year warranty against defects in materials and workmanship. Lifetime technical support is also included.

USER MANUAL STUTPRXWLA StarTech.com

STUTPRXWLA STUTPTXWLA STUTPWALLA

Instruction Manual

VGA Video Extender over CAT5

VGA Wall Plate Video and Audio Extender over CAT5 Receiver

VGA Wall Plate Video and Audio Extender over CAT5 Transmitter

StarTech.com Making hard-to-find easy!®

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ...... 1

Packaging Contents....1

System Requirements ....1

Installation 2

Transmitter Unit (STUTPTXWLA) 2

Receiver Unit (STUTPRXWLA) 3

Hardware Installation ....4

Wiring Information and Coding 5

Distances and Resolutions ...... 6

Adapter Output Polarity 6

Specifications 7

Technical Support 8

Warranty Information 8

Introduction

Packaging Contents

1 x STUTPTXWLA (transmitter) or STUTPRXWLA (receiver) •

* both units included in STUTPWALLA kit

1 x Power Adapter •

* 2 included in STUTPWALLA kit

1 x User Manual•

1 x Terminal Block adapter for power adapter •

* 2 included in STUTPWALLA kit

System Requirements

Open wall receptacle for Transmitter/Receiver unit installation•

Available power outlet•

Both Transmitter (STUTPTXWLA) and Receiver (STUTPRXWLA) • units

VGA video source•

VGA enabled display device•

Installation

Transmitter Unit (STUTPTXWLA)

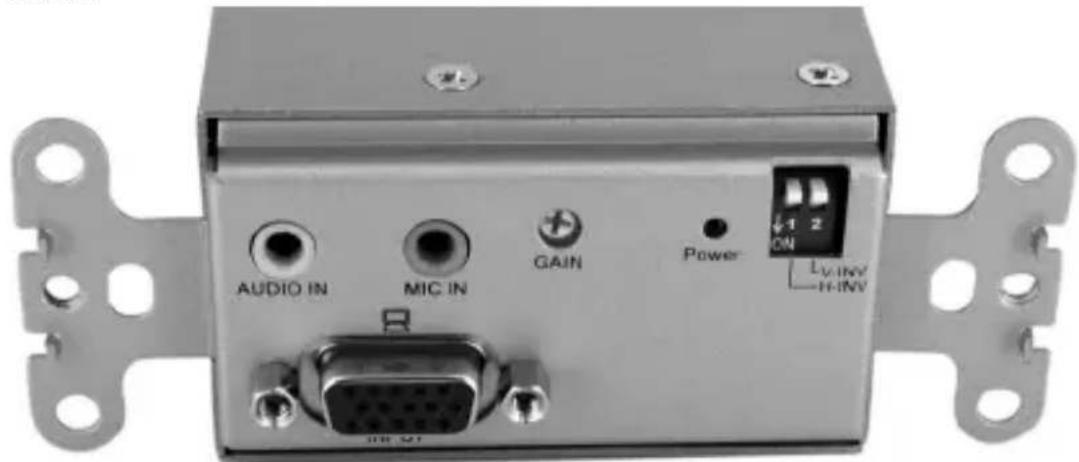

Front View

* picture may vary from actual product

DE-15 VGA Female Connector•

3.5mm Mini-Jack Audio Input•
3.5mm Mini-Jack Microphone Input•

GAIN – Adjust brightness•

Power LED•

Control H/V signal inverting switch•

The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the receiver must also be set to "ON".

The default setting of V-INV is "OFF". If V-INV is set to "ON", the vertical signal output is adjusted. V-INV on the receiver must also be set to "ON".

Use this setting when noise or sync issues are detected in the signal transfer.

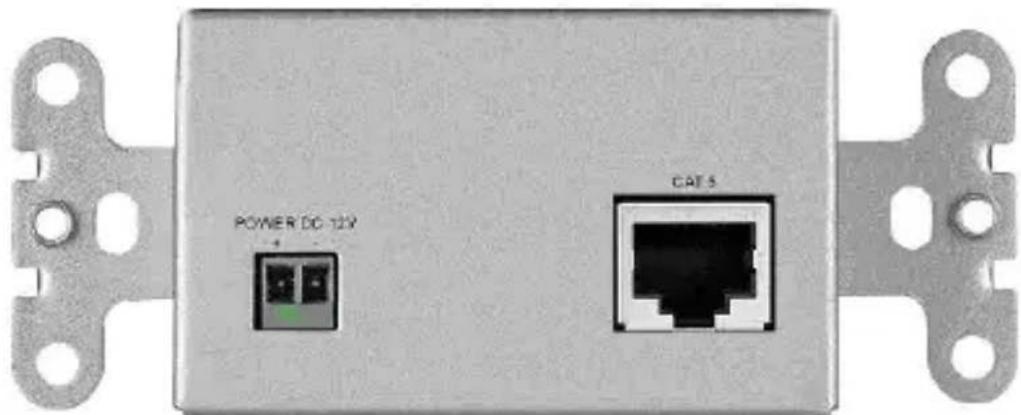

Rear View

* picture may vary from actual product

Power Terminal Block Connector•

RJ-45 Female Connector•

Receiver Unit (STUTPRXWLA)

Front View

* picture may vary from actual product

DE-15 VGA Female Connetor•

3.5mm Mini-Jack Audio Output•

EQ – Equalization length adjust (Adjust sharpness)•

GAIN – Adjust brightness •

Power LED•

Control H/V signal inverting switch•

The default setting of H-INV is "OFF". If H-INV is set to "ON", the horizontal signal output is adjusted. H-INV on the transmitter must also be set to "ON".

The default setting of V-INV is “OFF”. If V-INV is set to “ON”, the vertical signal output is adjusted. V-INV on the transmitter must also be set to “ON”.

Use this setting when noise or sync issues are detected in the • signal transfer.

Rear View

* picture may vary from actual product

Power Terminal Block Connector•

RJ-45 Female Connector•

Hardware Installation

Turn off the PC and remote monitor.1.

Connect STUTPTXWLA Transmitter unit DE-15 VGA female 2. connector with a DE-15 VGA male to male cable to PC video card.

Connect STUTPTXWLA Transmitter and STUTPRXWLA Receiver 3. units together with CAT5 UTP cable.

Connect STUTPRXWLA Receiver unit DE-15 VGA female connector 4. with a DE-15 VGA male to male cable to the monitor/display.

Connect the power adapter on each unit.5.

Turn on the monitor and PC.6.

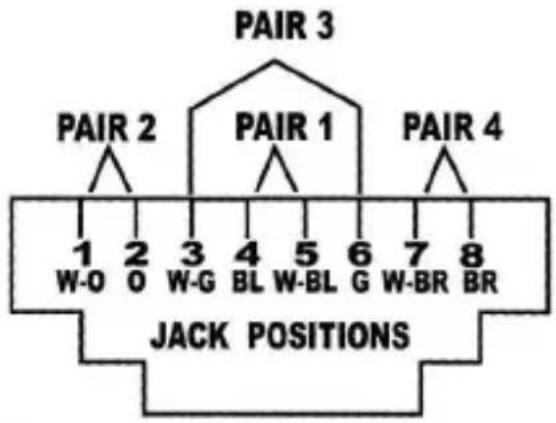

Wiring Information and Coding

Conductor RJ45 Pin	Conductor Colour Code
Pair 1	5 White-Blue
	4 Blue
Pair 2	1 White-Orange
	2 Orange
Pair 3	3 White-Green
	6 Green
Pair 4	7 White-Brown
	8 Brown

Distances and Resolutions

CAT5/CAT5e	50m 1920x1200
	100m 1600x1200
	180m 1280x1024
	200m 1024x768
	300m 800x600
CAT6	30m 1920x1440
	50m 1280x1024
	100m 800x600

Adapter Output Polarity

Pin Output Level	Conductor Colour
1 +12V Black-White
2 RTN (-) Black

Specifications

Video Connector	15-pin VGA (DE-15)
Audio Connector	3.5mm stereo Mini-Jack
Rear Connectors	RJ45Terminal Block
Maximum Resolution	1920x1200@60Hz (at 50 m)
Maximum Distance	300 meters (at 800x600)
Power Adapter Output	12VDC, 600mA
Material	Metal
Color	White
Weight	136 g (transmitter)136 g (receiver)
Dimensions	105.0 mm x 42.0 mm x 38.0 mm

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
