USER MANUAL PCI4S954PW StarTech.com

4 Port RS232 PCI Serial Card with Power

PCI4S954PW

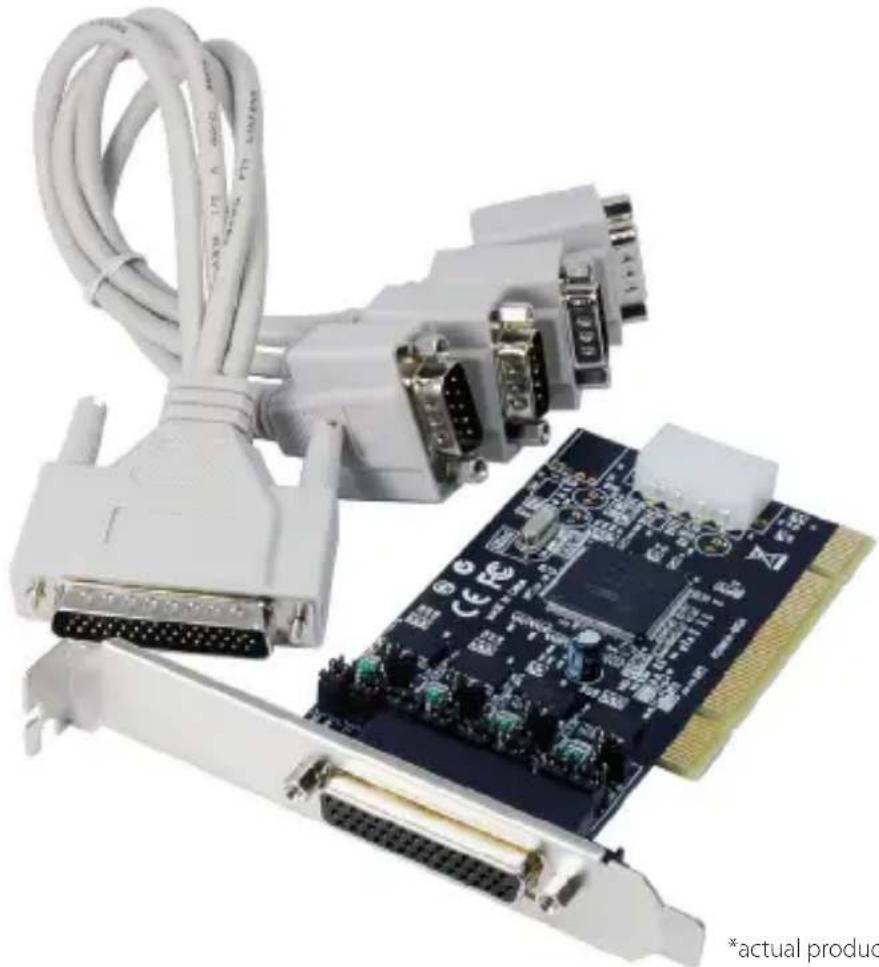

Electronic hardware components including a white VGA cable, multiple connected D-subnets, and a circuit board (no visible text or symbols)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Packaging Contents ....1

System Requirements....1

Installation 2

Jumper Configuration....2

Hardware Installation 4

Driver Installation....5

Verifying Installation....6

Specifications ....7

Technical Support 8

Warranty Information 8

Introduction

The PCI4S954PW 4-Port PCI Serial Card (with Power Output) turns a PCI slot into 4 RS232 (DB9) serial connections and enables compatible devices to draw power from the serial ports.

Suitable for many RS232-powered serial applications, this PCI serial card offers a selectable 5V or 12V power option capable of power output using pin 1, 4, 8 or 9, allowing you to configure the card to suit the requirements of your powered RS232 devices.

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Packaging Contents

• 1 x PCI Serial Card
• 1 x 4 Port DB9 Breakout Cable
• 1 x Low Profile Bracket
- 1 x Driver CD
• 1 x Instruction Manual

System Requirements

• PCI enabled computer system with available PCI expansion slot
• Computer power supply with available LP4 Molex power connector
- Microsoft® Windows® XP/ Server 2003/ Vista/ Server 2008 R2/ 7 (32/64-bit) / 8 (32/64-bit) or Windows CE 5.0, or Linux® kernel 2.4.x/ 2.6.x

Installation

WARNING! PCI cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI card by its edges and not the gold connectors.

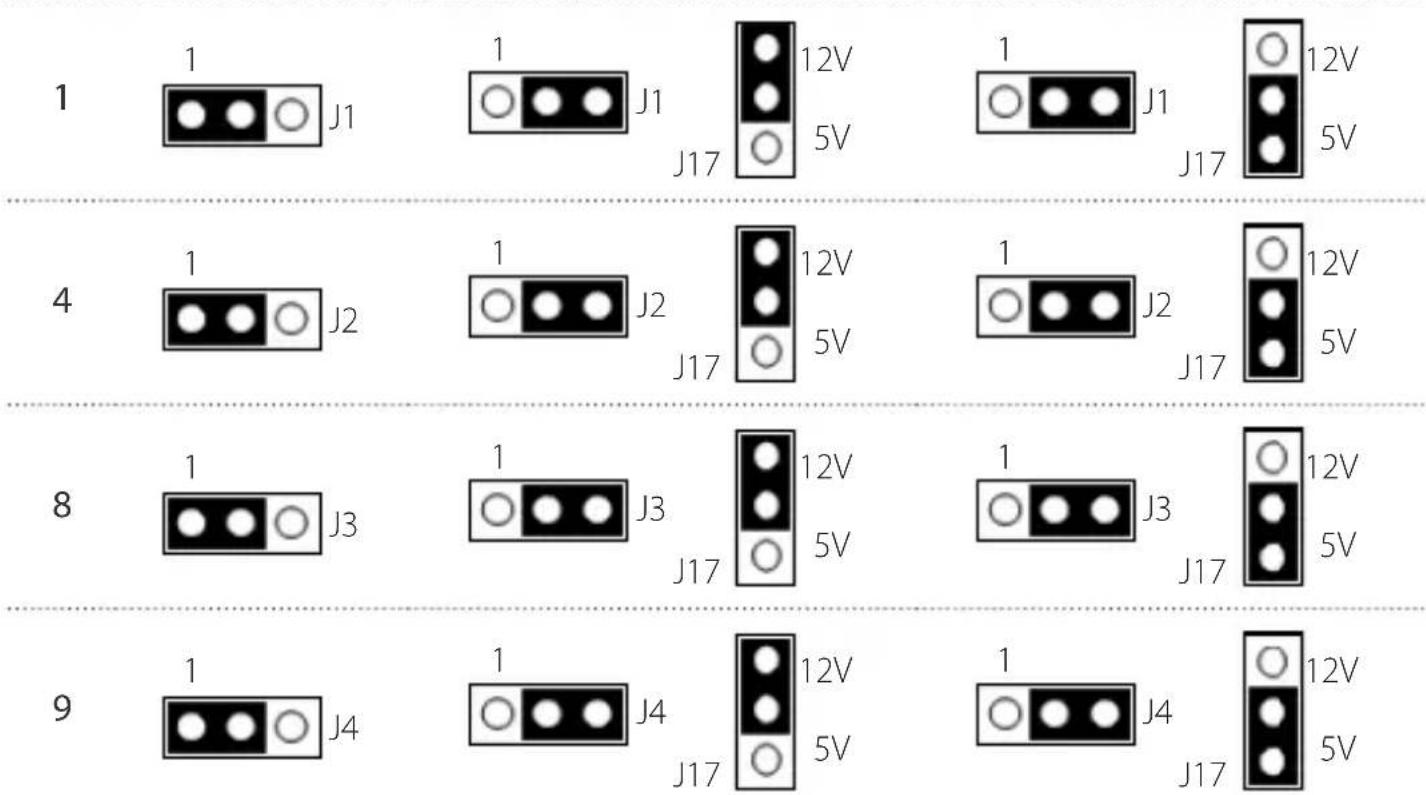

Jumper Configuration

Each serial port has a set of jumpers that are used to configure the voltage and on which pin the power is output. The ports can also be configured to not output any power and function as a standard serial port.

Pin Description

1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9	RI

1 5 6 9

Port 1
Pin Normal 12V 5V

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. Refer to documentation for your computer system for details.
3. Locate an open PCI or PCI-X slot and remove the metal cover plate on the rear of the computer case.
4. Gently insert the card into the open PCI or PCI-X slot and fasten the card's bracket to the rear of the case.

NOTE: If installing the card into a small form factor/low profile system, replacing the pre-installed full profile bracket with the included low profile installation bracket may be necessary.

1. OPTIONAL: If using power over serial, connect an LP4 Molex power connector from the computer power supply to the LP4 Molex connector on the card.

2. Place the cover back onto the computer case.

3. Connect the 4 Port breakout cable to the large connector on the card.

4. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1.

Driver Installation

Windows XP/ Server 2003/ Vista/ Server 2008 R2/ 7 / 8

1. Upon starting Windows, if the "Found New Hardware" wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer's CD/DVD drive.
2. On the CD browse to the folder "PCI_IO\ PCI_IO\OXuPCI952_954\Windows"
3. Run Setup.exe and install the drivers
4. Restart computer to complete the installation.

Windows CE

Refer to Installation Guide located on CD

Linux

Refer to Installation Guide located on CD

Verifying Installation

Windows XP/ Server 2003/ Vista/ Server 2008 R2/ 7 / 8

From the main desktop, right-click on "My Computer" ("Computer" in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel.

Open Explore Search... Manage Map Network Drive... Disconnect Network Drive... Create Shortcut Delete Rename Properties *screenshots for reference only Computer Management File Action View Help Computer Management (Local System Tools Task Scheduler Event Viewer Shared Folders Local Users and Groups Reliability and Perform Device Manager Storage Disk Management Services and Applications STARTECHCOM-PC Computer Disk drives Display adapters DVD/CD-ROM drives Human Interface Devices IDE ATA/ATAPI controllers Keyboards Mice and other pointing devices Monitors Network adapters Ports (COM & LPT) Processors Sound, video and game controllers Storage controllers System devices Universal Serial Bus controllers

Double-click on the "Ports (COM & LPT)" option. Additional COM ports should be listed under this category.

Specifications

Host Interface PCI v3.0 (32-bit, 3.3/5V)

Form Factor Full/Low Profile

Chipset ID PLX OXuPCI954

External Connectors 4 x 9-pin DB9 male (via breakout cable)

Internal Connectors 1 x 4-pin LP4 Molex male

Supported Protocols RS-232

Maximum Data Transfer Rate 460.8 Kbps

Data Bits 5, 6, 7, 8, 9

Parity None, Odd, Even, Space, Mark

Stop Bits 1, 1.5, 2

Flow Control None, Xon/Xoff, RTS/CTS, DSR/DTR

Operating Temperature 0°C \~ 50°C (32°F \~ 122°F)

Storage Temperature -20°C \~ 60°C (4°F \~ 140°F)

Humidity 5% \~ 85% RH

Dimensions 57.0mm x 19.0mm x 120.0mm

Weight

Compatible Operating Systems

95g

Windows XP/ Server 2003/ Vista/ Server 2008 R2/ 7 (32/64-bit) / 8 (32/64-bit), Windows CE 5.0, Linux

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
