USER MANUAL S252SMTB3 StarTech.com

ThunderBolt Dual 2.5" SATA SSD/HDD Enclosure

S252SMTB3

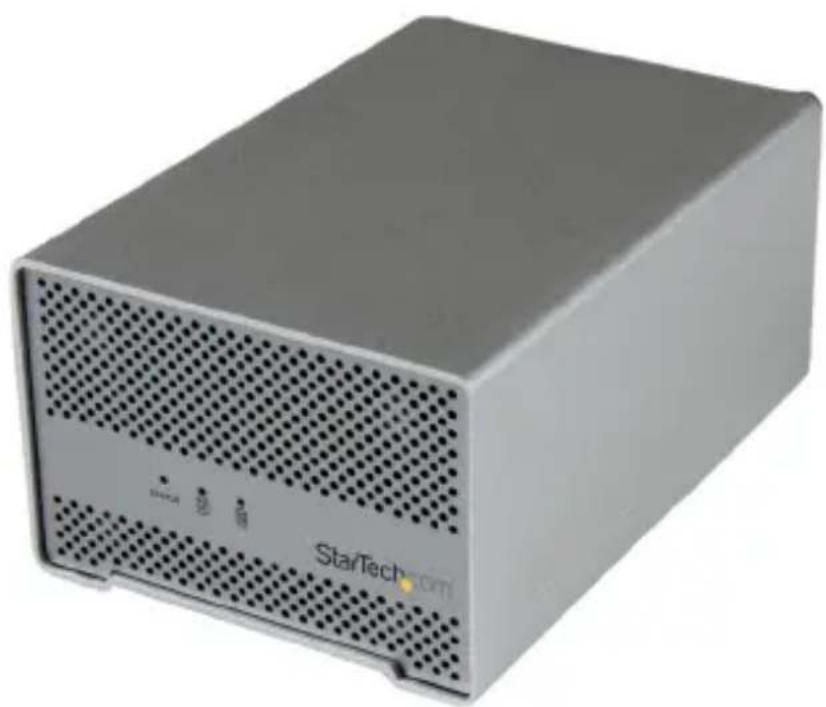

Exterior view of a gray StartTech 3.0M drive with ventilation grille and external ports (no readable text beyond branding)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Product Diagram....1

Front View .... 1

Rear View....1

Introduction......2

Packaging Contents 2

System Requirements....2

Installation 3

Hardware Installation .... 3

How to Use 6

Connecting the Hard Drives....6

LED Indicator 6

Disconnecting the Hard Drive....6

Initializing the Hard Drive 7

Technical Support 8

Warranty Information......8

Product Diagram

Front View

1. Status LED
2. Drive Activity LEDs

STATUS 1 2 StarTech.com

Rear View

1. Drive bay panel
2. Thumb screws
3. Drive Fan
4. Power Jack
5. 2 x Thunderbolt ports

2 HDD A HDD B 1 3 4 5

Introduction

Packaging Contents

• 1 x Thunderbolt 2.5" HDD RAID Enclosure
- 1 x Thunderbolt Cable
• 1 x HDD installation screw kit
• 1 x Universal Power Adapter w/ regional power cables (NA/EU/UK/AUS)
- 1 x Rubber foot set
• 1 x Instruction Manual

System Requirements

• 1x Computer system with available Thunderbolt port Microsoft® Windows® 8/7/Server 2008 R2 (32/64-bit) Apple® Mac® OSX Linux®

- 2 x 2.5" SATA SSD/HDDs

Installation Hardware Installation

WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.

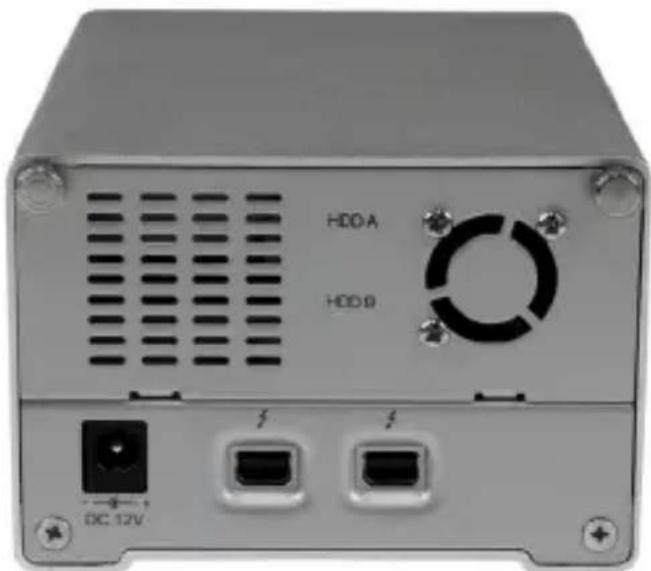

1. Remove the thumb screws on the back of the enclosure by turning them counter clockwise until released.

Front view of a silver rack-mounted electronic device with ventilation grilles and ports (no visible text or symbols)

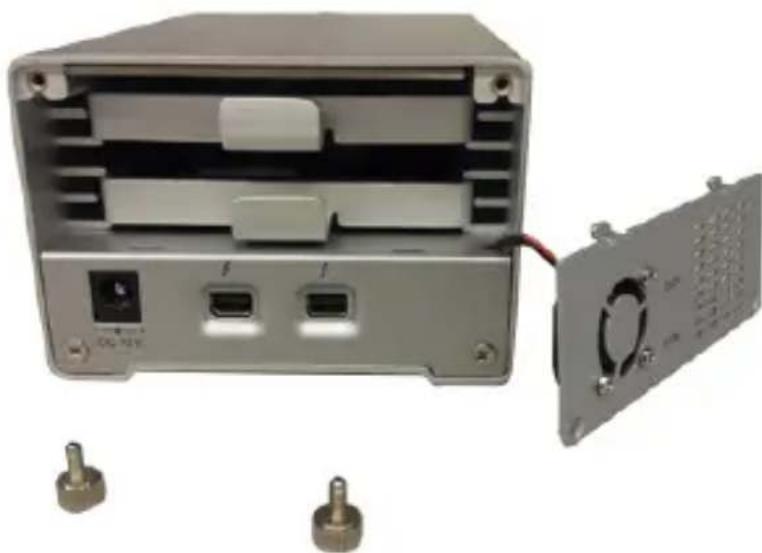

1. Remove the drive panel by lifting it up and outward.

Note: Drive fan cables will stay connected to the panel and the rest of the enclosure

Exterior view of a device chassis showing internal components and external wiring (no text or symbols visible)

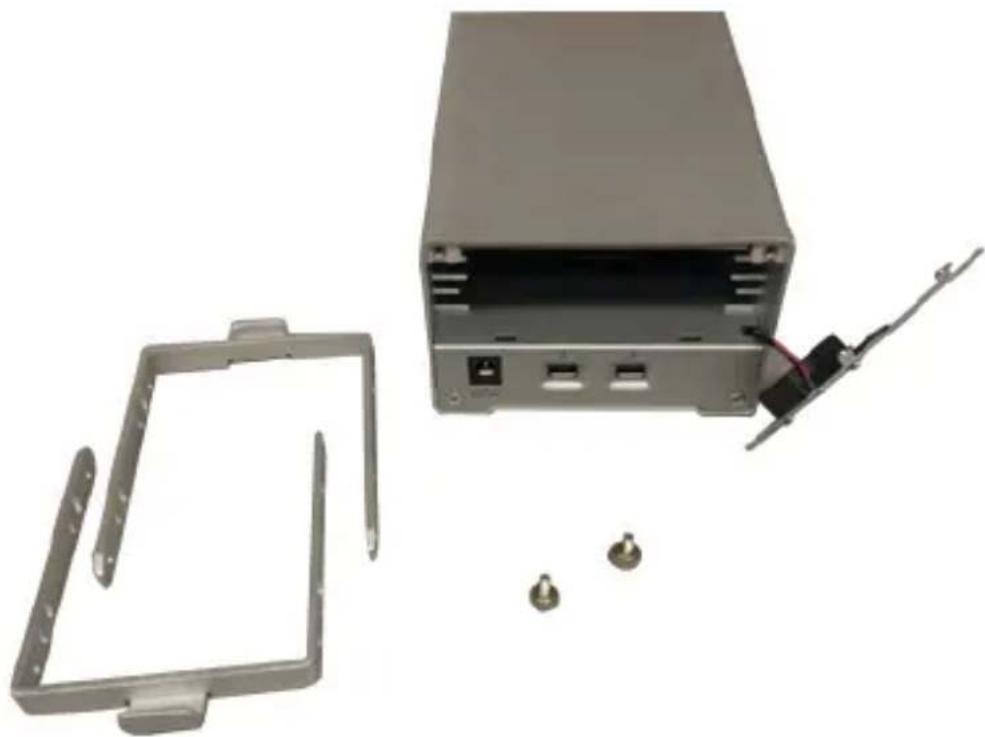

1. Grasp the drive tray handels to slide each of the drive trays out of the enclosure

Exterior view of a computer drive unit with plastic housing and accessories (no text or symbols visible)

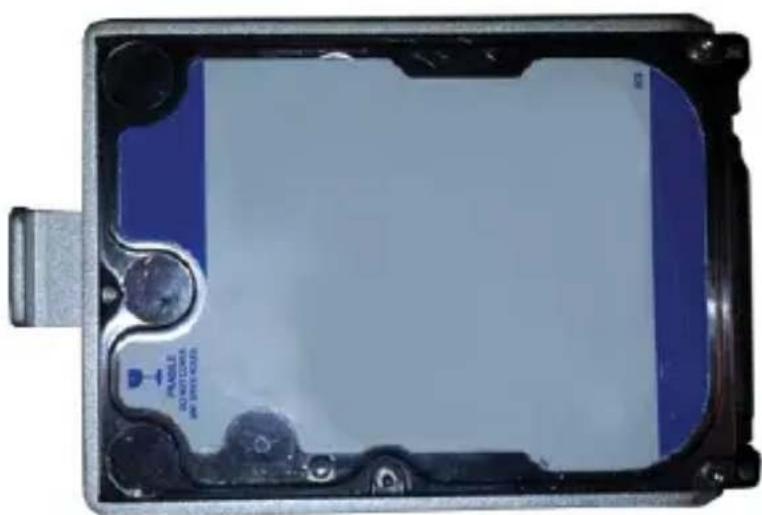

1. Place the drive tray around your 2.5" HDD/SSD with the label facing upward.

Close-up of a rectangular electronic device with blue and white panels, no visible text or symbols on the body.

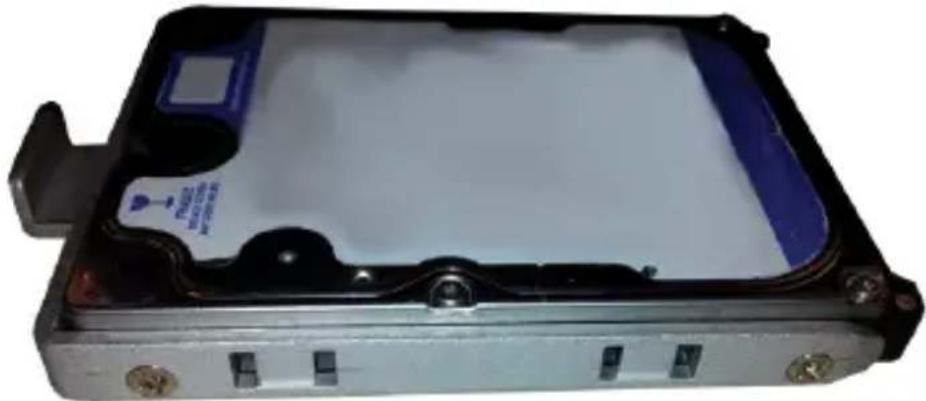

1. Fix four of the included hdd installation screws into place through the screw holes on the drive tray using a Phillips head screw driver (not included). Repeat this process for your second drive using the other drive tray.

Exterior view of a black hard drive chassis with blue and white casing (no visible text or symbols)

1. Slide the drive trays back into drive slots on the HDD Enclosure.

Exterior view of a device chassis showing internal components and external wiring (no text or symbols visible)

1. Replace the drive panel and thumb screws.

2. Connect the included thunderbolt cable from one of the Thunderbolt ports on the back of the enclosure, to an available Thunderbolt port on your computer.

Note: Either Thunderbolt port may be used to connect the enclosure to the host computer system. The remaining Thunderbolt port may be used to daisy chain to an additional device such as another enclosure, or Display.

1. Connect your power adapter from the power jack on the unit into an available power outlet.

How to Use

Connecting the Hard Drives

Once the enclosure has been attached to a computer, and your the drivers will install automatically, and the inserted drives will be accessible as though they were installed within the system.

Prior to using the drive array, it will need to be formatted according to your operating system requirements. Refer to Initializing the Hard Drive

LED Indicator

The hard drive enclosure offers LED indicators for each drive, so you can monitor drive activity. The LED will flash while the hard drive is being accessed. Do not remove the enclosure from the host computer while the LED is flashing, as it could damage the drive or the enclosure, resulting in data loss.

Disconnecting the Hard Drive

Windows

1. Select the "Safely remove Hardware and Eject Media" icon, located in the task bar.
2. Select the Mass Storage Device from the list that appears.
3. Wait for the message indicating that it is now safe to remove the device.

Note: Removing the connected drive prior to receiving notification that it is safe to do so, could result in losing or corrupting data stored on the drive. Once the Safe to Remove Hardware message appears, please disconnect the enclosure from the computer by removing the USB connection.

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. Once all windows are closed, click on the drive icon on the desktop, and drag it to the Trash Can icon on the desktop. Allow 5 seconds before physically removing the enclosure/drive from the computer.

Initializing the Hard Drive

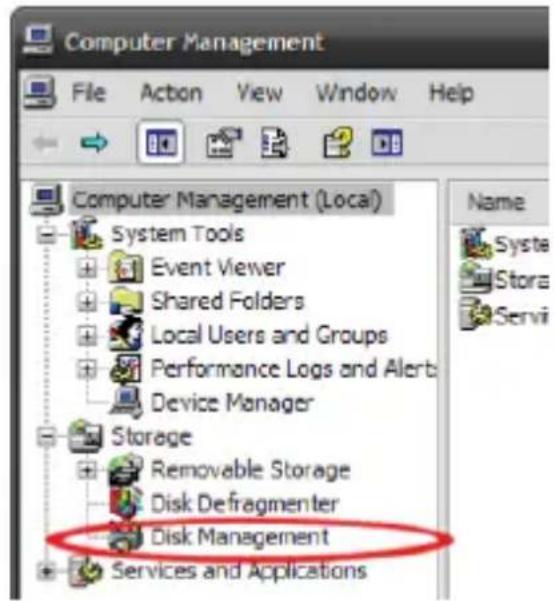

1. If the drive array is new it may need to be initialized and formatted before use. From the main Windows desktop, right-click on "My Computer" ("Computer" in Vista/7/8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel.

Open Explore Search... Manage Map Network Drive... Disconnect Network Drive... Create Shortcut Delete Rename Properties

Computer Management File Action View Window Help Computer Management (Local) System Tools Event Viewer Shared Folders Local Users and Groups Performance Logs and Alerts Device Manager Storage Removable Storage Disk Defragmenter Disk Management Services and Applications Name Syste Stora Servi

1. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an "MBR" or "GPT" disk. GPT (GUID partition) is required for drives larger than 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems.
2. Once initialized, locate the Disk that says it is "Unallocated" (check the listed hard drive capacity to confirm it's the correct hard drive) and then right-click in the section that says "Unallocated" and select "New Partition".

Disk 0 Basic 76.69 GB Online N 6.47 GB FAT3; Healthy (Unkn) N 9.77 GB FAT32 Healthy (Unknc) (C:) 19.53 GB NTFS Healthy (Systerr) Disk 1 Basic 111.79 GB Online 111.79 GB Unallocated New Partition... Properties Help CD-ROM 0 CD-ROM (D:) Unallocated Primary partition

1. Several on screen prompts will follow walking you through the steps to create the partition. Follow the prompts to complete partition creation.

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
