Product Type	4-Port PCI Express SuperSpeed USB 3.0 Card
Host Interface	PCI Express 2.0 (x4 slot connector)
Chipset	Renesas/NEC uPD720202
External Connectors	4x USB 3.0 Type A female
Internal Connectors	1x SATA power (15-pin) male
Number of Ports	4
Maximum Data Transfer Rate	USB 3.0: 5 Gbps per port
USB Standard	USB 3.0 revision 1.0 (backward compatible with USB 2.0/1.1)
Form Factor	Low profile / Full profile (bracket included)
Dimensions (L x W x H)	171 mm x 60 mm x 19 mm
Weight	73.2 g
Operating Temperature	5°C to 85°C
Storage Temperature	-65°C to 150°C
Humidity	20% to 80% RH
Power Supply	Powered by PCI Express slot; optional SATA power for higher per-port current (up to 900 mA per port)
Compatible Operating Systems	Windows XP (32/64-bit), Server 2003 (32/64-bit), Vista (32/64-bit), Server 2008 R2, 7 (32/64-bit), 8 (32/64-bit)
Warranty	2 years
Included Accessories	PCIe USB 3.0 card, low profile bracket, driver CD, product manual
Installation Requirement	Available PCI Express x4 (or larger) slot, SATA power connector (optional for high-power devices)
Certifications	FCC Class B

Frequently Asked Questions - PEXUSB3S400 StarTech.com

What operating systems are supported by the PEXUSB3S400?

The card supports Microsoft Windows XP (32/64-bit), Server 2003 (32/64-bit), Vista (32/64-bit), Server 2008 R2, 7 (32/64-bit), and 8 (32/64-bit). For other operating systems, it may work with generic drivers but is not officially tested.

Do I need to connect the SATA power connector?

The SATA power connector is optional. It is required only if you need to provide up to 900 mA per port to bus-powered USB devices (e.g., external hard drives) or if you experience connectivity issues. Without it, ports supply up to 500 mA per port (USB 2.0 standard).

Can I install the card in a PCI Express x16 slot?

Yes, the card is designed for a PCI Express x4 slot but is backward compatible with x8 and x16 slots. It will work at x4 speed in those slots.

Does the card require driver installation?

For Windows XP, Server 2003, Vista, and 7, drivers are provided on the included CD. For Windows 8, the driver installs automatically via Windows Update. The latest drivers are also available at www.startech.com/downloads.

How many USB 3.0 ports does the card provide?

The card provides four independent external USB 3.0 Type-A ports. Each port operates at full 5 Gbps bandwidth without sharing, unlike hub-based solutions.

What is the maximum power per USB port?

With the SATA power connector connected, each port can supply up to 900 mA. Without it, each port supplies up to 500 mA (standard for USB 2.0).

Is the card compatible with USB 2.0 devices?

Yes, the card supports USB 3.0 revision 1.0 and is fully backward compatible with USB 2.0 (480 Mbps) and USB 1.1 devices.

What should I do if my computer does not detect the card?

Ensure the card is properly seated in a PCI Express slot and that power is connected if needed. Check Device Manager under Universal Serial Bus Controllers for the Renesas/NEC USB 3.0 controller. If not detected, try reinstalling drivers from the CD or StarTech.com website.

Can I use the card in a low-profile computer case?

Yes, the card comes with a low-profile bracket that can replace the standard full-profile bracket, allowing installation in small form factor systems.

What is the warranty period for this product?

The PEXUSB3S400 is backed by a 2-year StarTech.com warranty covering defects in materials and workmanship. Free lifetime technical support is also provided.

USER MANUAL PEXUSB3S400 StarTech.com

4 Independent Port PCI Express SuperSpeed USB 3.0 Card

PEXUSB3S400

Green PCI expansion card with multiple ports and connectors (no visible text or symbols)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Packaging Contents ....1

System Requirements....1

Installation 2

Hardware Installation 2

Driver Installation 3

Verifying Installation 4

Specifications ....5

Technical Support 6

Warranty Information 6

Introduction

The PEXUSB3S400 PCI Express x4 USB 3.0 Card (with SATA Power) adds 4 independent external USB 3.0 ports to any PCI Express x4-enabled computer system. SuperSpeed USB 3.0 provides up to 5 Gbps of data bandwidth, while remaining backward compatible with existing USB 2.0 devices at 480Mbps.

With each port being independent, full bandwidth is available per port, instead of shared between ports. This allows for maximum transfer rates if multiple devices are connected.

Using a “stacked” port layout that places the ports one on top of the other, more ports are able to fit into a smaller space. This 4-port PCIe x4 USB 3.0 adapter enables all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system.

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

The PEXUSB3S400 USB 3.0 PCIe x4 card is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1x PCIe USB 3.0 Card
• 1x Low Profile Bracket
• 1x Driver CD
  • 1x Product Manual

System Requirements

• PCI Express enabled computer system with available x4 slot
  • Available SATA power connector from the computer power supply
• Microsoft® Windows® XP (32/64-bit)/Server 2003 (32/64-bit)/Vista (32/64-bit)/Server 2008 R2/7 (32/64-bit)/8 (32/64-bit)

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI Express card by its edges and not the gold connectors.

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer system for details.
3. Locate an open PCI Express x4 slot and remove the metal cover plate on the rear of the computer case (Refer to documentation for your computer system for details.). Note that this card will work in PCI Express slots of additional lanes (i.e. x8 or x16 slots).
4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of the case.

NOTE: If installing the card into a small form factor/low profile system, replacing the pre-installed full profile bracket with the included low profile installation bracket may be necessary.

1. OPTIONAL: Connect a 15-pin SATA power connector from the computer's power supply to the SATA power connector on the card. This is only required if using the ports with bus-powered USB devices (no external power adapter) or if experiencing connectivity issues.

2. Place the cover back onto the computer case.

3. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1.

Driver Installation

Windows XP/Server 2003/Vista/7

NOTE: The latest driver is available from www.startech.com.

1. Once the computer has started and the operating system is fully loaded, insert the provided Driver CD into the computer's CD/DVD drive.

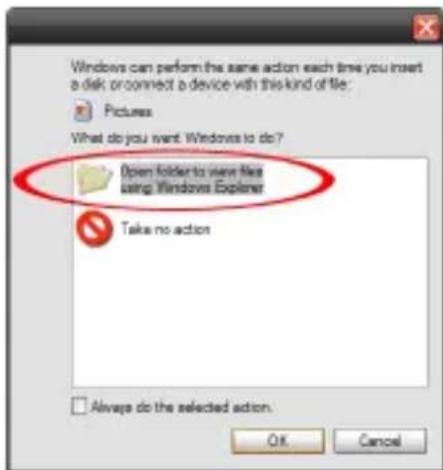

2. AutoPlay should give you the option to browse the files on the CD or automatically open the CD.

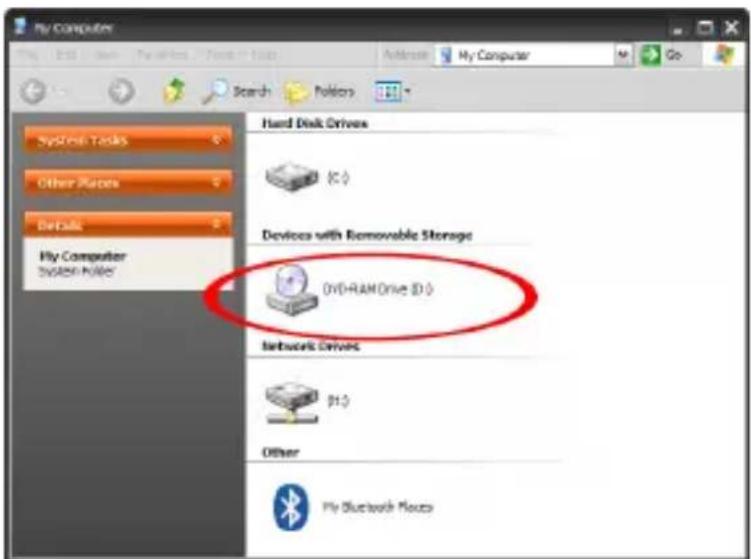

If AutoPlay does not start, go into "My Computer" and access the CD/DVD drive that the CD is in.

1. Open the folder "PEXUSB3S400_8430EL". Run the setup file inside. Follow the onscreen instructions to complete the driver installation.

Windows 8

The driver should automatically install through Windows Update.

Verifying Installation

Windows XP/Server 2003/Vista/7/8

From the main desktop, right-click on "My Computer" ("Computer" in Vista/7/8), then select Manage. In the new Computer Management window, select Device Manager from the left window panel.

In the Device Manager, under the Universal Serial Bus Controllers category, you should see the new entries for the USB 3.0 controller card.

Specifications

Number of Ports 4
Host Interface	PCI Express 2.0 (x4 slot connector)USB 3.0 revision 1.0
Form Factor Low/Full Profile
Chipset ID Renesas/NEC uPD720202
External Connectors 4x USB 3.0 type A female
Internal Connectors 1x SATA power (15-pin) male
Maximum Data Transfer Rate USB 3.0: 5 Gbps per port
Operating Temperature 5°C ~ 85°C
Storage Temperature -65°C ~ 150°C
Humidity 20% ~ 80% RH
Dimensions (LxWxH) 171 mm x 60 mm x 19 mm
Weight 73.2 g
Compatible Operating Systems	Windows XP(32/64bit)/ Server2003(32/64bit)/ Vista(32/64bit)/ Server2008 R2/ 7(32/64bit)/ 8(32-64-bit)

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
