USER MANUAL J3160MD BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

2004/108/CE, 2006/95/CE e 1999/05/CE

Short Declaration of conformity

We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives

2004/108/CE, 2006/95/CE and 1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ...... 1

1.1 Before You Start.... 1
1.2 Package Checklist.... 1
1.3 Motherboard Specifications 2
1.4 Rear Panel Connectors 3
1.5 Central Processing Unit (CPU).... 3
1.6 Motherboard Layout 4

Chapter 2: Hardware Installation....5

2.1 Connect Cooling Fans 5
2.2 Install System Memory 5
2.3 Expansion Slots....7
2.4 Jumper Setting 8
2.5 Headers & Connectors 9

Chapter 3: UEFI BIOS & Software....13

3.1 UEFI BIOS Setup 13
3.2 BIOS Update 13
3.3 Software.... 17

Chapter 4: Useful Help ......20

4.1 Driver Installation....20
4.2 AMI BIOS Beep Code.... 21
4.3 Troubleshooting....21

Appendix: SPEC In Other Languages....23

Arabic 23
French 24
German....25
Portuguese 26
Russian....27
Spanish....28
Thai....29

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

■ Prepare a dry and stable working environment with sufficient lighting.
■ Always disconnect the computer from power outlet before operation.
■ Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
■ Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
■ Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
- Keep the computer from dangerous area, such as heat source, humid air and water.
■ The operating temperatures of the computer should be 0 to 45 degrees Celsius.
■ To avoid injury, be careful of: Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Package Checklist

☑ Serial ATA Cable x2
☑ Rear I/O Panel for ATX Case x1
☑ Installation Guide x1
☑ Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Motherboard Specifications

Specifications
CPU Support	J3160MD: Intel® Celeron® J3160 processorJ3060MD: Intel® Celeron® J3060 processor
Memory	Supports Dual Channel DDR3L 1600/1066 (1.35V/1.5V)2x DDR3L U-DIMM Memory Slot, Max. Supports up to 16 GB Memory(Supports up to 8GB Memory for DDR3L-1600)Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3L module* Please refer to www.biostar.com.tw for Memory support list.
Storage	2x SATA 6Gb/s ConnectorSupports AHCI Mode
LAN	Realtek RTL8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec ALC662, 5.1 Channels, High Definition Audio
USB	6x USB 2.0 port (2 on rear I/Os and 4 via internal header)4x USB 3.0 port (2 on rear I/Os and 2 via internal header)
Expansion Slots	1x PCIe 2.0 x16 Slot (x1 speed)2x PCIe 2.0 x1 Slot
Rear I/Os	1x PS/2 Mouse1x PS/2 Keyboard1x VGA Port1x DVI-D Port1x LAN port2x USB 3.0 Port2x USB 2.0 Port3x Audio Jack
Internal I/Os	2x SATA 6.0Gb/s Connector1x 24-Pin Power Connector2x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x USB 3.0 Header (each header supports 2 USB 3.0 ports)2x System Fan Connector1x Front Panel Header1x Front Audio Header1x Clear CMOS Header1x Printer Port Header1x Serial Port Header
Form Factor microATX Form Factor, 226 mm x 188 mm
OS Support	Windows 7 (64bit)/ Windows 8.1 (64bit)/ Windows 10Biostar reserves the right to add or remove support for any OS with or without notice.

1.4 Rear Panel Connectors

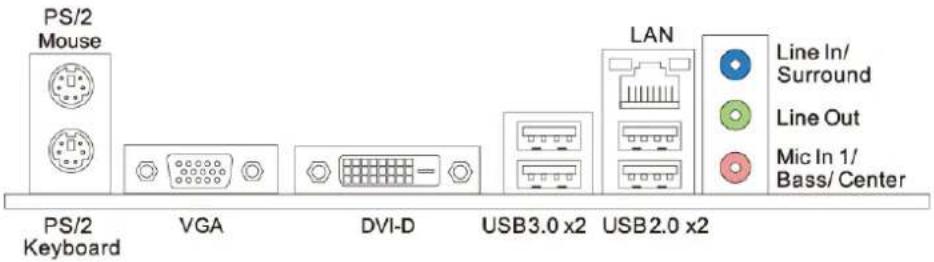

PS/2 Mouse PS/2 Keyboard VGA DVI-D LAN USB3.0 x2 USB2.0 x2 Line In/ Surround Line Out Mic In 1/ Bass/ Center

Note 1: Since the audio chip supports High Definition Audio Specification, the function of each audio jack can be defined by software. The input / output function of each audio jack listed above represents the default setting. However, when connecting external microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 2: Maximum resolution:

DVI-D: 1920 x 1080 @60Hz

VGA: 1920 x 1200 @60Hz

1.5 Central Processing Unit (CPU)

The motherboard is equipped with an onboard Intel processor and a CPU cooler.

Model Name:	Onboard CPU:
J3160MD	Intel® Celeron® J3160 processor (Quad Core, 2M Cache, up to 2.24 GHz)
J3060MD	Intel® Celeron® J3060 processor (Dual Core, 2M Cache, up to 2.48 GHz)

1.6 Motherboard Layout

Note: ■ represents the 1 ^st pin.

CHAPTER 2: HARDWARE INSTALLATION

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

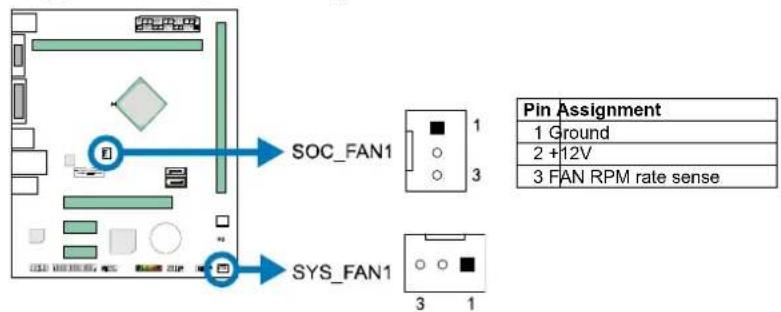

SOC_FAN1/SYS_FAN1: System Fan Header

SOC_FAN1 SYS_FAN1 Pin Assignment 1 Ground 2 +12V 3 FAN RPM rate sense

Note: When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to GND.

2.2 Install System Memory

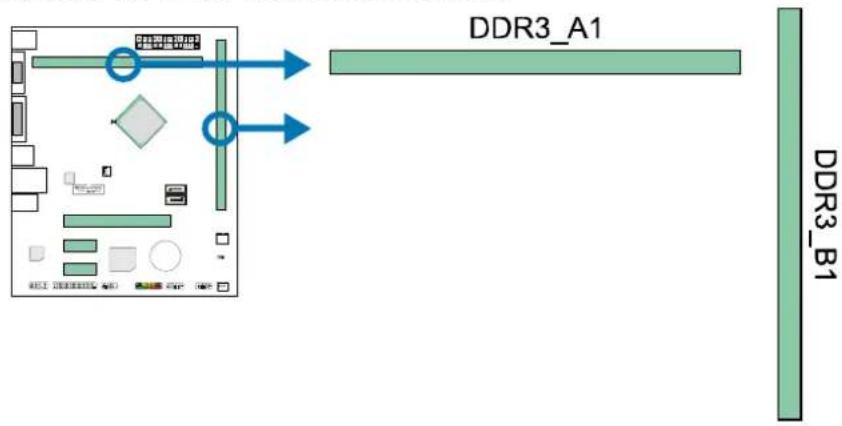

A. DDR3L U-DIMM Module (1.35V/1.5V)

Motherboard Manual

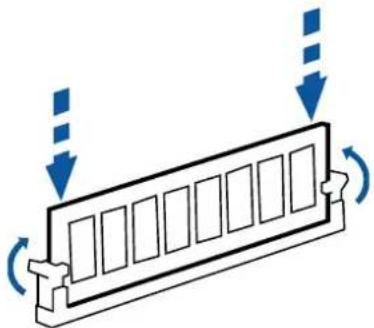

Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

Diagram showing a mechanical component with arrows indicating motion, no text or symbols present

Step 2: Insert the DIMM firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Note1: The DIMM must be installed to DIMMA1(DDR3_A1) slot first.

Note2: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

B. Memory Capacity

DIMM Socket Location	DDR3L Module Total Memory Size
DIMMA1	512MB/1GB/2GB/4GB/8GB	Max is 16GB(Supports up to 8GB Memory for DDR3L-1600)
DIMMB1	512MB/1GB/2GB/4GB/8GB

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status	DIMMA1 DIMMB1
Disabled	O
Enabled	O

(O means memory installed, X means memory not installed.)

Note: When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

2.3 Expansion Slots

PEX16\_1: PCI-Express x16 Slot (Gen2 x1 speed)

• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

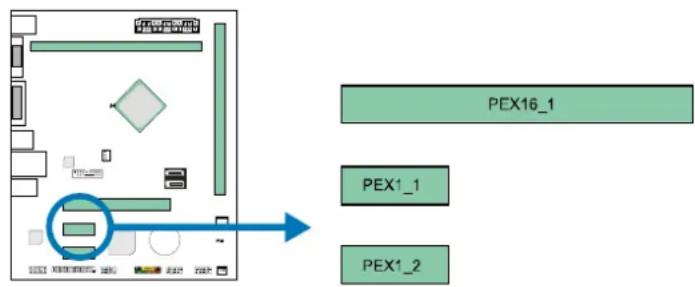

PEX1\_1/PEX1\_2: PCI-Express Gen2 x1 Slot

• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the expansion card into the computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. Replace your computer's chassis cover.
6. Power on the computer, if necessary, change BIOS settings for the expansion card.
7. Install related driver for the expansion card.

2.4 Jumper Setting

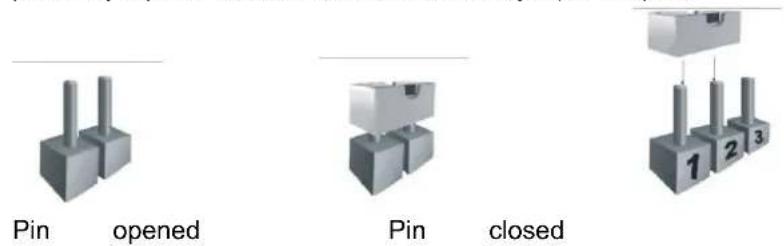

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin1-2
closed

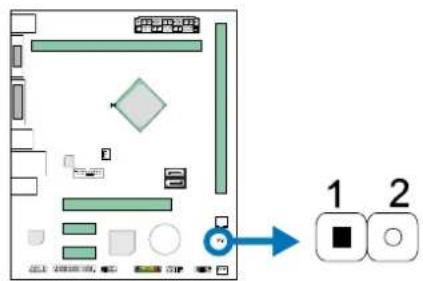

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

1. Remove AC power line.
2. Set the jumper to "Pin 1-2 close", you can use a metal object like a screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

2.5 Headers & Connectors

ATXPWR1: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

24 13 12 1

Pin	Assignment	Pin Assignment
13	+3.3V	1	+3.3V
14	-12V		2
15	Ground		3 Ground
16	PS_ON		4 +5V
17	Ground		5 Ground
18	Ground		6 +5V
19	Ground		7 Ground
20	NC		8 PW_OK
21	+5V		9 Standby Voltage+5V
22	+5V		10 +12V
23	+5V		11 +12V
24	Ground	12	+3.3V

Note1: Before you power on the system, please make sure the ATXPWR1 connector have been plugged-in.
Note2: Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

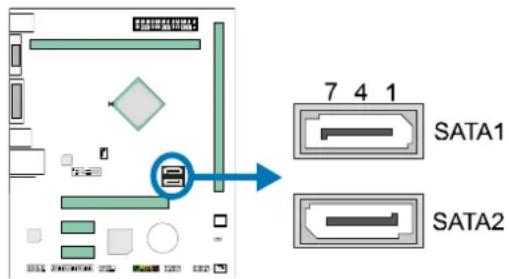

SATA1/2: Serial ATA Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case's front panel switch functions.

Power LED On/Off + - 9 16 1 8 + - Speaker HDD LED Reset

Pin	Assignment	Function	Pin	Assignment	Function
1	+5V	Speaker 10 Connector11 (+)	9	N/A	N/A
2	N/A			N/A
3	N/A			N/A	N/A
4	Speaker 12 Power LED				Power LED
5	HDD LED (+)	Hard drive LED	13	Power LED (+)
6	HDD LED (-)		14	Power LED (-)
7	Ground	Reset button 16	15	Power button	Power-on button
8	Reset control		Ground

F\_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel, and also can be connected with a wide range of simultaneously accessible external Plug and Play peripherals.

F_USB1 F_USB2 2 10 9

Pin	Assignment
1	+5V (fused)
2	+5V (fused)
3	USB-
4	USB-
5	USB+
6	USB+
7	Ground
8	Ground
9	Key
10	NC

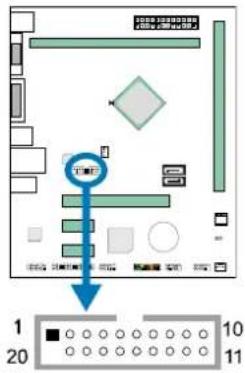

JFRONT\_USB3\_1: Header for USB 3.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel, and also can be connected with a wide range of simultaneously accessible external Plug and Play peripherals.

Diagram showing a layout with labeled components and a blue arrow pointing to a numbered component box.

Pin	Assignment Pin	Assignment
1	VBUS0	11	D2+
2	SSRX1-	12	D2-
3	SSRX1+	13	Ground
4	Ground	14	SSTX2+
5	SSTX1-	15	SSTX2-
6	SSTX1+	16	Ground
7	Ground	17	SSRX2+
8	D1-	18	SSRX2-
9	D1+	19	VBUS1
10	ID	20	Key

F\_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header supports HD and AC'97 audio front panel connector.

HD Audio			AC'97
Pin	Assignment	Pin		Assignment
1	Mic Left in		1	Mic In
2	Ground		2	Ground
3	Mic Right in	3		Mic Power
4	GPIO		4	Audio Power
5	Right line in	5	RT Line Out
6	Jack Sense	6	RT Line Out
7	Front Sense		7	Reserved
8	Key		8	Key
9	Left line in		9	LFT Line Out
10	Jack Sense		10	LFT Line Out

Note1: It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

Note2: Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front audio output cable. The function can be found via O.S. Audio Utility.

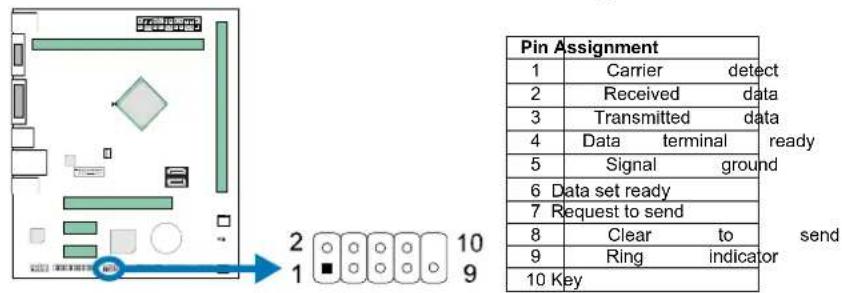

J COM1: Serial Port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin Assignment 1 Carrier detect 2 Received data 3 Transmitted data 4 Data terminal ready 5 Signal ground 6 Data set ready 7 Request to send 8 Clear to send 9 Ring indicator 10 Key

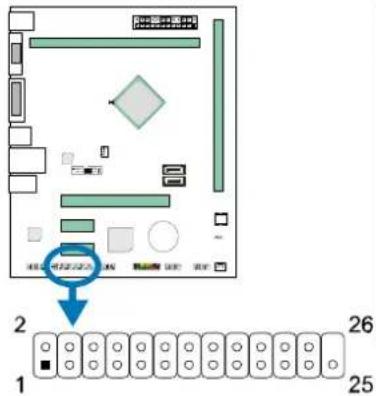

J\_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

2 1 26 25

Pin	Assignment	Pin	Assignment
1	-Strobe	14	Ground
2	-ALF	15	Data 6
3	Data 0	16	Ground
4	-Error	17	Data 7
5	Data 1	18	Ground
6	-Init	19	-ACK
7	Data 2	20	Ground
8	-Scltin	21	Busy
9	Data 3	22	Ground
10	Ground	23	PE
11	Data 4	24	Ground
12	Ground	25	SCLT
13	Data 5	26	Key

CHAPTER 3: UEFI BIOS & SOFTWARE

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual in the Setup DVD.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition.

Note2: Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose [fs0] to search for the BIOS file.

BIGSTAR BIG RASSER UTILITY Project Name: 01/02/2024 ISSU DATE: 04/10/2023 Status: No. 1 EXIT EXIT Status: EXIT Status: Service ID: Doo space File Date: 01/02/2024 EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: EXIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT Status: QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State QUIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State UIT State

1. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click Yes to start updating BIOS.

BIPSTAR BIG PLAYERS HISTORY Project Name: 01-01-2004 ISSUE NAME: 04-03-2025 File Date: 2007/06/20 09:00:00:00 SAR CODE: 1992 Game Title: BIPSTAR.COM my job here for the BIPSTAR.COM 1.00% Edit Back: Newspaper Save As: 10x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x8x

1. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the [Y] key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup. After entering the BIOS setup, please go to the Save & Exit, using the Restore Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the Online Update button on the main screen.

BIOS Update AMI BIOS Model Name BIOS Date Version online Update update BIOS backup BIOS

1. An open dialog will show up to request your agreement to start the BIOS update. Click Yes to start the online update procedure.
2. If there is a new BIOS version, the utility will ask you to download it. Click Yes to proceed.
3. After the download is completed, you will be asked to program (update) the BIOS or not. Click Yes to proceed.
4. After the updating process is finished, you will be asked you to reboot the system. Click OK to reboot.

Information The BIOS update process will take minutes. Please be patient and do not open any other applications during this process. System will auto reboot after finish process. Yes No

Do you want to download H67BR802.8ST BIOS via Internet ? Yes No

Information H67BR802.8ST Download Finish! Do you want to program ? Yes No

Information Update BIOS Finish ! Please Reboot System ! OK

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup. After entering the BIOS setup, please go to the Save & Exit, using the Restore Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the Update BIOS button on the main screen.

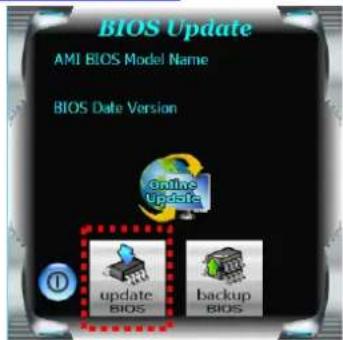

BIOS Update AMI BIOS Model Name BIOS Date Version Update Bios backup Bios

Motherboard Manual

1. A warning message will show up to request your agreement to start the BIOS update. Click OK to start the update procedure.
2. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on Open. It will take several minutes, please be patient.
3. After the BIOS Update process is finished, click on OK to reboot the system.

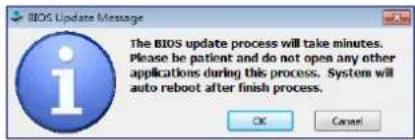

BIOS Update Message The BIOS update process will take minutes. Please be patient and do not open any other applications during this process. System will auto reboot after finish process. OK Cancel

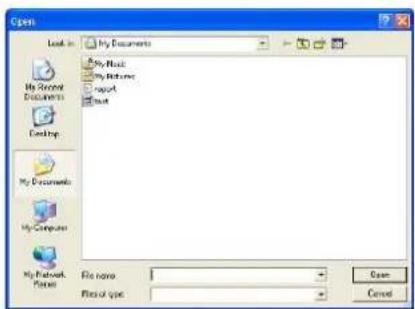

Open Load in: My Documents My Book My History Report Default My Recent Documents Desktop My Documents My Computer My Network Files File name: Files of type: Case Cancel

Information Update BIOS Finish! Please Reboot System! OK

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore Defaults function to load Optimized Defaults, and select Save Changes and Reset to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click Save.

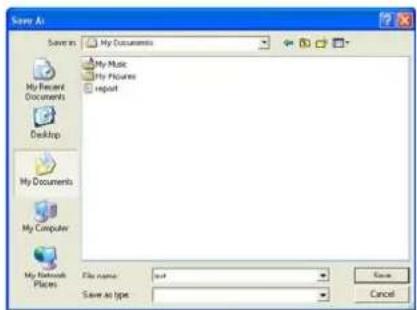

Save As My Documents My Music My Pictures Impact My Recent Documents Desktop My Documents My Computer My Network Places File name: unt Save as type Cancel

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note1: All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

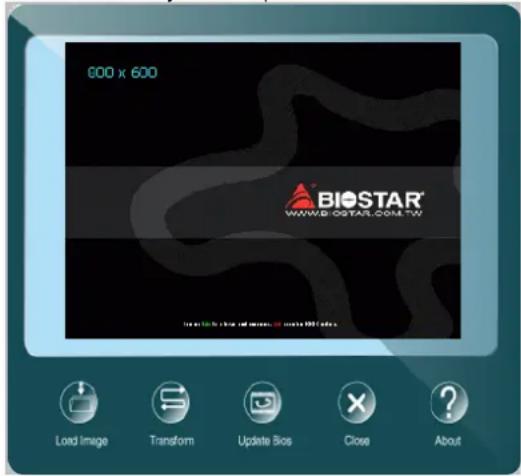

800 x 600 BIOSTAR® WWW.BIOSTAR.COM.TW Load Image Transform Update Bios Close About

Please follow the step-by-step instructions below to update boot logo:

• Load Image : Choose the picture as the boot logo.
  ● Transform : Transform the picture for BIOS and preview the result.
• Update Bios : Write the picture to BIOS Memory to complete the update.

eHot-Line

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client application program.

eHot-Line Base board information : Caption : Base Board CreationClassName : Win32_Basel Description : Base Board HostingBoard : TRUE HotSwappable : FALSE Manufacturer : BIOSTAR Group Name : Base Board PoweredOn : TRUE Product : TA780G M2+ Removable : FALSE Replaceable : TRUE RequiresDaughterBoard : FALSE SerialNumber : None Status : OK Tag : Base Board Version : 6.0 This block will show the information which would be collected in the mail. Symptom Description : Region : CC Email : Send the mail out. Save these information to a .txt file *Describe condition of your system. *Select your area or the area close to you. Provide the e-mail address that you would like to send the copy to. *Provide the name of the memory module manufacturer. Provide the name of the power supply manufacturer and the model no. Exit this dialog.

After filling up this information, click "Send" to send the mail out. A warning dialog would appear asking for your confirmation; click "Send" to confirm or "Do Not Send" to cancel.

If you want to save this information to a .txt file, click "Save As..." and then you will see a saving dialog appears asking you to enter file name.

Outlook Express A program is attempting to send the following e-mail message on your behalf: To: [e-mail]/[e-mail] Subject: TP35D2-A7 (P35BAC05 BS) report! Would you like to send the message? Send Do Not Send

Enter the file name and then click "Save". Your system information will be saved to a .txt file.

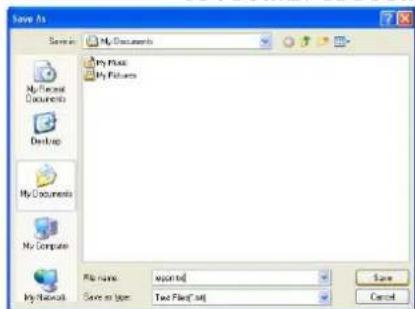

Save As Services My Documents My Files My Documents My Documents My Computer My Network File Name: exported Save as type: Two Files*.adj Save Cancel

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/device/OS information. This information is also concluded in the sent mail.

Scanned text of a file or report with multiple paragraphs and checkboxes, likely from a software interface.

Note1: We will not share customer's data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following website http://www.biostar.com.tw/app/en/about/contact.php for getting our contact information.

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance. You will see the following window after you insert the DVD

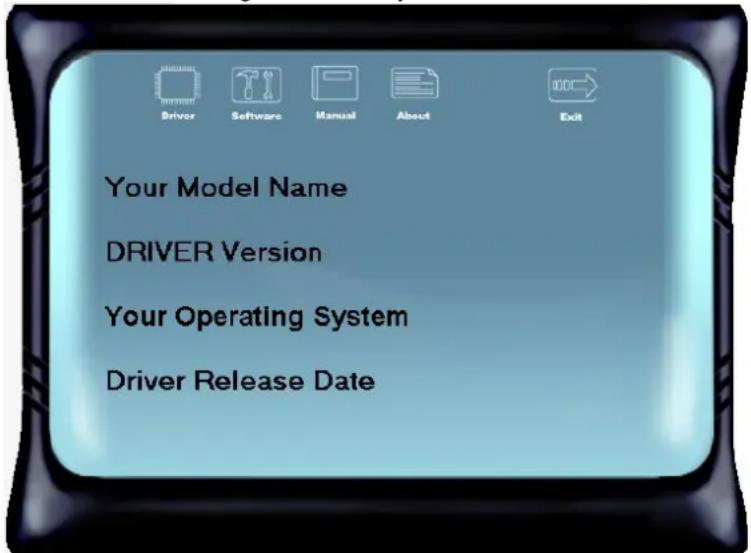

Driver Software Manual About Exit Your Model Name DRIVER Version Your Operating System Driver Release Date

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manuals.

Note1: If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive. Note2: You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps	Description
Continuing	Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps	Description
1	Success booting.
8	Display memory error (system video adapter)

4.3 Troubleshooting

Probable	Solution
1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in.2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive. Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
2. Wait for seconds.
3. Power on the system again.

APPENDIX: SPEC IN OTHER LANGUAGES

Arabic

المواصفات
J3160MD: Intel® Celeron® J3160 processorJ3060MD: Intel® Celeron® J3060 processor	Affordable وحدة المعلجة微软雅黑
DDR3L 1600/1066(1.35V/1.5V) تدعم قنناة مزدوجة دي. دي. ار. ( ) فتحات الذاكرة المزدوجة DDR3L . دي. دي. ار. 16 جيجابيت 2 x2 ذاكرةال达不到ة 8/4/2/1/ ميجابيت DIMM ميجابيت دون 512 ECC لregulated دون 8/4/2/1/ 512 ECC يرجى الرجوع إلى الموقع www.biostar.com.tw * येला دعم الذاكرة	ال达不到ة
SATA 6 ساتا 2 AHCI ت+++ رايد الأم	التخزين
Realtek RTL8111H ميجابيت / الثاني، ت+++ تقاني، النصف /其他国家/Mزدوجة 1000 / 100 / 10	LAN شبكة محلية
ALC662 قنوات عالية الduce 5.1	الترميز الصوتي
منافذ 6 ناقل متسىلىxi عام 2 2 USB (الداخلي) 2 2 USB (الداخلي) 2 2 USB (الداخلي) 2 2 USB (الداخلي) 2 2 USB (الداخلي)	ناقل متسىلىxi عام USB
(x1) 16 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 2.0 1 x PCIe 1.	فتحات التوسع
الفرة PS/2 x 1 ل warehouse المغانيح للك Michiganتر PS/2 x 1 ل warehouse المغانيح DVI-D (الشكة المحلية) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2	المداخل والivia
فتحة توصيل aged 1 2 2 USB (الشكة المحلية) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2	الماد Delhi والivia
فتحة توصيل aged 2 2 USB (الشكة المحلية) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1	الم directors والivia
موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1, موزع 2 2 USB (الشكة المحلية) 1 1 1 1, موزع 2 2 USB (الشكة المحلية).	موزع 2 2 USB (الشكة المحلية) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1, موزع 2 2 USB (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشكة المحلية) (الشkte-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشke-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKe-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشuke-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشake-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الش ke-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشoke-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشAKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشке-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الش.ke-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الش KE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشVE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشК-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKS-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشBE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشGE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشK-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشKE-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشΚ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشκ-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الشک-الش ک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الشک -الش ک -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alsh k -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshs -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshk -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshks -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alsh sk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshak -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshkk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshss -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshSk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshsk -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshski -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshske -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshska -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbr -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsBS -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshs b -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshs s -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshs bs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshsks -alshs k -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsbs -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshs l -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshssl -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsla -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsls -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsless -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles -alshsles

French
