USER MANUAL 95-3004 Metra

natural_image Interior view of a vehicle dashboard with steering wheel, dashboard display, and control panel (no visible text or symbols)

Cadillac Escalade2002

KIT FEATURES

• ISO DDIN radio provision
- Polished and textured to match the factory finish

KIT COMPONENTS

• A) Radio trim panel • B) Cutting template • C) Radio brackets

A
Metra 95-3004 - KIT COMPONENTS - 1

natural_image Simple line drawing of a rectangular frame or panel (no text or symbols)
  • Metra 95-3004 - KIT COMPONENTS - 2
natural_image Simple line drawing of a rectangular panel or enclosure with no text, numbers, or symbols
  • Metra 95-3004 - KIT COMPONENTS - 3
natural_image Technical line drawing of two mechanical clamping components (no text or symbols)

TABLE OF CONTENTS

Dash Disassembly....2

Kit Preparation 2

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1858 • 70-1859 (amplified models)

Antenna Adapter: 40-GM10

TOOLS REQUIRED

  • Panel removal tool • Phillips screwdriver
  • Cutting tool

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

  1. Withthekeyintheonposition,apply theparkingbrake,placetheshifter intolowgear,andthentiltthesteering wheeldownasfarasitwillgo.
  2. Unclipthefactorydashpanel,unplugall switches,andthenremovethepanel. (FigureA)

Note: Take precaution pulling the panel over the factory hazard button.

Continue to Kit Preparation

Metra 95-3004 - DASH DISASSEMBLY - 1

natural_image Technical line drawing of a car dashboard frame with internal compartments and a directional arrow indicating motion (no text or symbols)

(Figure A) (Figure A)

KIT PREPARATION

  1. Snapthe cutting template onto the dashpanelandmarktheinsideareato becutwithapencil.(FigureA)
  2. Removeanddiscardthe cutting template,thencuttheareasmarkedout inthepreviousstep.
  3. Cutandremovetheradiorearsupport fromthedashcavity.

Continue to Kit Assembly

Metra 95-3004 - KIT PREPARATION - 1

text_image Remove shaded area

KIT ASSEMBLY

ISO DDIN radio provision

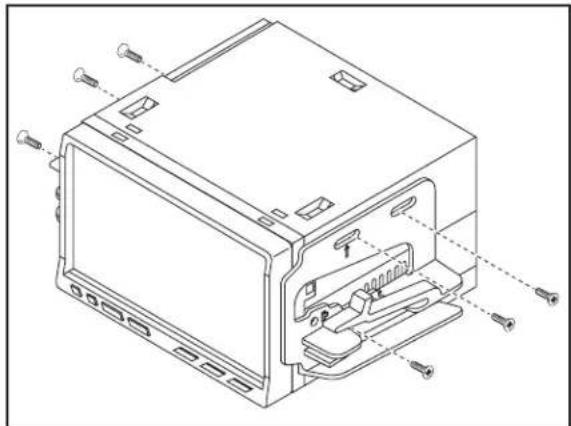

  1. Attach the radio brackets totheradio usingthescrewssuppliedwith theradio.(FigureA)

  2. Locatethefactorywiringharnessand antennaconnectorinthedash, and completeallnecessaryconnectionsto theradio.Metrarecommendsusingthe propermatingadapterfromMetraand/orAXXESS.

  3. After all connections are made, slide theradiointedash until the brackets click in.

  4. Snapthe ISO DDIN trim plate onto the factorydashpanel.

  5. Reassemblethedashinreverseorder ofdisassembly.

Metra 95-3004 - ISO DDIN radio provision - 1

natural_image Technical line drawing of an internal device with labeled ports and connectors (no text or symbols present)

(Figure A)

If you are having difficulties with the installation of this product, contact our Tech Support line either by phone at 386-257-1187, o email at tech support@metra-autosound.com. Before doing so, look over the instruction book let a second time and ensure that the installation was performed exactly asthe instruction booklet is stated. Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/AxxessTechSupport.

Metra 95-3004 - ISO DDIN radio provision - 2

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by supplying in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installennstitute.com or call

600-354-6782 for more information and take steps toward a better tomorrow.

Metra 95-3004 - ISO DDIN radio provision - 3

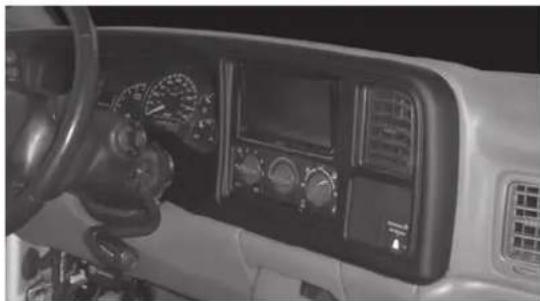

Metra recommends MECP certified technicians
