USER MANUAL MMC-1450 Mystery

White kitchen mixer with a stainless steel bowl and control knob (no visible text or symbols on the device body)

ВСТУП

Technical diagram of a kitchen mixer with numbered parts and exploded view labels

Line drawing of a kitchen mixer with an upward arrow indicating motion (no text or symbols)

Line drawing of a kitchen mixer with rotating handle (no text or symbols)

Для зміни насадки

Three-step line drawing of a kitchen appliance with a rotary knob, showing mechanical components and motion arrows (no text or symbols)

ЧАША ДЛЯ ЗМІШУВАННЯ

This appliance works well with 1000 W powerful motor, fashion design, knob control, easy operation. There are three kinds of professional mixing mode, show excellent performance. A variety of accessories can be selected to meet all your demand for the kitchen.

CHARACTERISTIC

1. 1000 W powerful motor, high efficiency and excellent performance.
2. 3 professional mixing settings.
3. Three kinds of professional mixing mode, with multi speeds option for excellent performance.
4. The front end is equipped with accessories interface, which is convenient to assemble various accessories.
5. With lifting head design, convenient for assembling accessories.
6. Planetary mixing operation track, no dead corner, more in place.
7. 4 L large capacity stainless steel mixing container for more ingredients and food.

Notes: Please read carefully and keep the instruction well to check before using this appliance.

ENVIRONMENT

1. Do not use outdoors. It may be caused electric shock under the rain.
2. To protect against risk of electrical shock, do not put mixer in water or other liquid. This may cause personal injury or damage to the product.
3. Do not operate mixer with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. If the mixer becomes damaged, please contact after service or technician for help.
4. Do not try to repair the appliance yourself or without the intervention of qualified engineer.
5. Please place the appliance on a stable and flat table. It will cause injury if it is placed on uneven level.
6. Do not place the mixer above or near lit hob burners or electric rings, inside an oven or near other heat sources.
7. Please do not let the power cord fall from the edge of the table, the power cord winding around the object or fuselage will make the product fall and cause damaged.

IMPORTANT

1. The mixer is 220V-240 V, 50/60 Hz and please check whether the power supply can fit it.

2. Please clean all accessories before first usage.

3. Do not touch power cord plugs and other electrical parts with wet hands which may lead electric shock.

4. When problem occurs, turn off all controls and remove plug from outlet, and then contact service center or dealer.
5. Do not use mixer for other than intended use.
6. The use of attachments not recommended or sold by this mixer dealer may cause fire, electrical shock or injury.
7. During mixing, please don't use the scraper or other tools to concentrate the material in the mixing container, it may cause involvement or injury.
8. Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
9. Close supervision is necessary when mixer is used by or near children or incapacitated persons.
10. Please turn to «OFF» setting, and unplug the power plug during installation, removing or cleaning parts, otherwise it may cause injury.
11. Do not touch the motor part after prolonged using.
12. Do not use the mixer to continue to work for over 24min.To stop and cool it down by 15min. before start it again.
13. The mixer has an internal safety to prevent overheating. If the mixer shuts down because of overheating, reset the speed control dial to OFF and unplug unit from wall. Wait 1 minute and plug back in. If mixer still does not start, wait 30 minutes to allow it to cool completely before turning back on.
14. When one of the output ports is operating, please make sure to remove the parts or components that are connected to the other output ports and be installed a protective cover.
15. To be careful when mixing hot food or liquid.
16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
18. Warn: Potential injury from misuse.
19. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
20. Be careful if hot liquid is poured into the blender or food processor as it can be ejected out of the appliance due to a sudden steaming.
21. Switch off the appliance and disconnect from supply before changing accessories or

approaching parts that move in use.

1. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

Notes:

1. This unit is for household use only.
2. Do not dump the appliance when it is not in use.
3. Do not leave mixer unattended while it is operating.
4. To check product periodically. Please do not continue to use it if there is any damage.
5. Do not try to repair this product by yourself. You should contact customer service center or send it to special maintenance site for inspection and maintenance.
6. Please keep this appliance, accessories, all packaging (including outer packing, color box packaging, PE bags, etc.) away from children.
7. Do not put any unnecessary objects into the container when the machine is running.
8. Unplug from outlet while not in use, before putting on or taking off parts and before cleaning.
9. The machine should be put on a flat and stable platform
10. Do not use the equipment without any food.
11. When using the meat grinder parts, be sure to use the standard food pusher.
12. Overload caution! Please do not use grinder head or glass jar together with mixing functions.

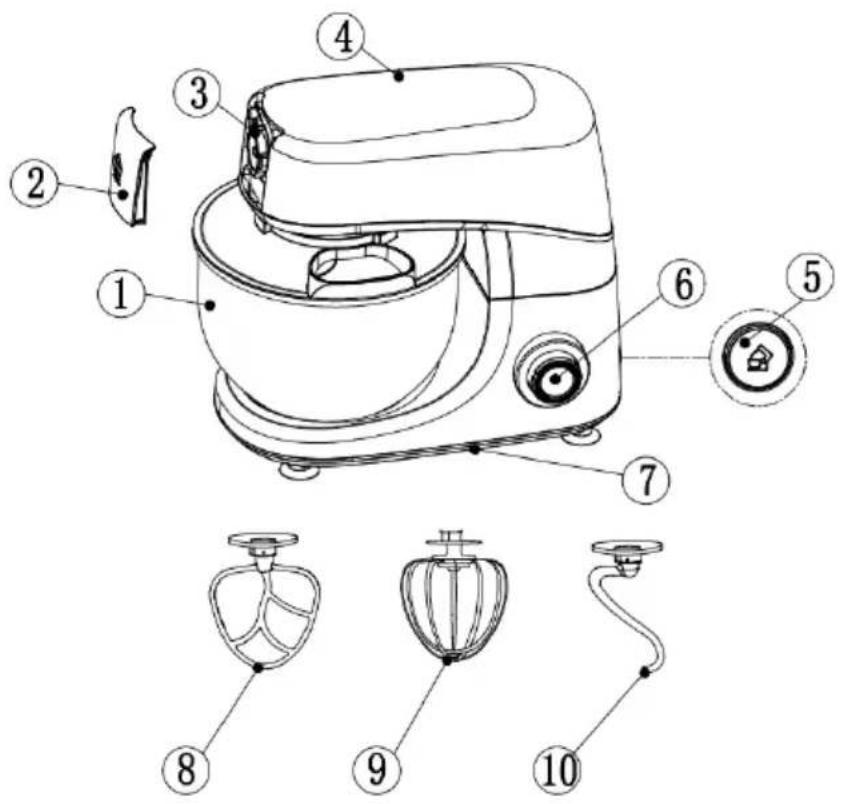

DESCRIPTION FOR COMPONENT

Technical diagram of a kitchen mixer with numbered parts and exploded view labels

1. Stainless steel bowl
2. Front Lid
3. Transverse power take-off
4. Body
5. Lift button
6. Rotary button
7. Base
8. Beater
9. Whisk
10. Dough hook

DESCRIPTION FOR USING

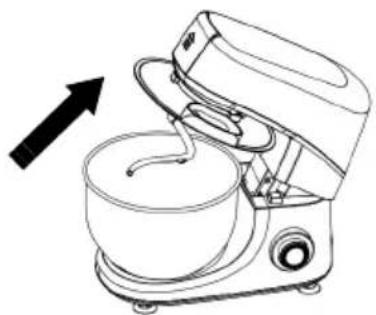

Installation and dis-assembly of mixing head

1. Press the locking button, the upper body will pop up automatically, at this time, the mixer is without electricity.

2. Push the dough hook upward and turn counterclockwise until it cannot move.

Line drawing of a kitchen mixer with an upward arrow indicating motion (no text or symbols)

Line drawing of a kitchen mixer with rotating fan (no text or symbols)

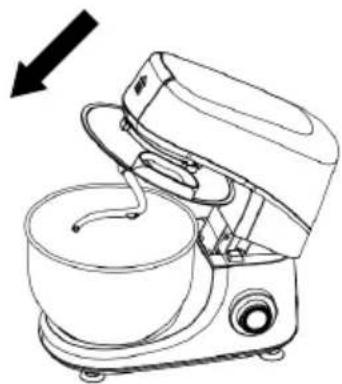

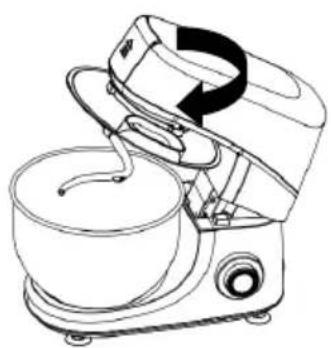

To remove attachments

1. Push the dough hook upward and turn it clockwise until it cannot move.
2. Take the dough hook out and remove the bowl cover.

Line drawing of a kitchen mixer with a side arm and control panel (no text or symbols)

Line drawing of a kitchen mixer with handle and control panel (no text or symbols)

Line drawing of a kitchen mixer with a side panel, showing no text or symbols

MIXING BOWL

1. Keep the appliance in a safe, stable, clean, and dry place.
2. One hand hold on the head of the machine, another hand press the locking button, the appliance will automatically lift the head, and we can make the appliance head to the maximum position by hand and install a bowl cover.
3. Installing the dough hook to the specified position according to the above-installing method.
4. Place the stainless steel bowl in the specified position and lock it clockwise.
5. Do not exceed the bowl's maximum capacity so as not to overload the appliance.
6. Ready and press down the appliance head to lock (the locking button will pop up) to recover the head position.
7. Switch on the 220V-240 V 50-60 Hz safety power supply.
8. Use the speed knob of the mixer to choose the speed you need.
9. When the mixture reaches the desired range of agitation, turn the speed knob to «00» and unplug the power plug.

USER MANUAL

1. Turn the stainless steel bowl counterclockwise and remove it from the machine.
2. Take out the mixture from a bowl.
3. The cleaning of parts can be carried out in the light of the methods described in «cleaning and maintenance».

Note: Before using this product, please clean the accessories with detergent, rinse them with water and leave it dry and ready.

DOUGH HOOK

A dough Hook is used for mixing bread, pasta, Chinese pasta, and other dense foods.

1. Choose the Dough Hook, install the Dough Hook and the stainless steel bowl according to the steps described before, and add the dry yeast and liquid material after adding the flour which needs stirring.
2. When fully installed, turn the switch knob to the «dough hook» speed and observe the flour has been rolled, stop the machine until the dough has a good elasticity or the gluten you needed.

BEATER

For use, the mixer mixes medium-density food such as cake, pie, cookie dough, butter, jujube paste cake, and so on which is produced using low-gluten flour.

1. Choose the beater. According to the steps described before, install the beater and the stainless steel bowl. Add the ingredients that need stirring.
2. After fully installed, plug in the power cord and turn on the switch knob. Before mixing the ingredients, adjust the switch knob to «Beater» speed, and gradually increase to the desired speed as the mixing process.

WHISK

Used for mixing materials when mixed with air, such as the production of protein cream, salad sauce, cream puffs, Sponge Cake, etc.

1. Please wipe the stainless steel bowl and egg whisk to make sure there is no water or oil.
2. According to the steps described before, rotary whisk and install it in and stainless steel bowl, and put in the necessary mixing of the protein (there must not have a little yolk in the protein).
3. After complete installation, plug in the power supply and open the speed knob to «whisk» speed so that the egg white whips to the desired degree of curing.

Foaming state at different stages

First step The bubbles are very big and uneven
Begin step The bubbles become fine and turn white
Wet foaming	Raise the whisk and then the bubbles can stand up and its front end is downward
Slightly curing	Raise the whisk and its front end is very sharp and soft
Dry foaming	Raise the whisk, which has a sharp angle with uniform color and luster
Curing and dry steps	Raise the whisk, which has a sharp angle with uniform color, mottled, and without luster

Making cream:

1. Chill the stainless steel bowl in the refrigerator for about 20 minutes.
2. Select the whisk, install the whisk and refrigerate the stainless steel bowl according to the steps described earlier, and put in the whipping cream and sugar that you need to mix.
3. After installing completely, plug in the power supply, turn on the speed knob and start mixing at 4 speeds until the desired degree of curing.

Bubbles state at different stages

Primary stage Mix well and begin to thicken
Patterns appear	Lift the whisk and the sharp corner will stand up and can be mixed with other ingredients for proper curing
Cured state	Creamy foam with sharp corners fully raised to the desired level of curing for cake cream, ice cream, puff filling, etc

Notes:

1. Cream curing only changes in just a few seconds.
2. In order not to pass excessively, please keep observing from the stage of appearance.

Mixing ingredients detailed reference table

Accessories	Food ratio		Operating time	Speed	Remarks
Dough hook	High-gluten flour 800g	Water is not less than 400ml	Working at «dough hook» speed for 8 minute. If you have not achieved the desired result after 8 minutes of work, you can increase the time (don't use other speed to mix dough)	«dough hook» speed	For concentrated foods, such as a variety of dough, the time marked here is flour into a group time, such as bread and other West Dessert, please lengthen the operation time according to the need, when using the maximum amount, it is recommended that the machine work for every 16 minutes with a 15 minutes break. Don't use a higher speed for mixing; the proportion of dry flour in water should be placed according to the standard ratio. If the amount of dry flour is more than 800g at one time, it may cause damage to the machine.
	Medium and low gluten flour 800g	Water is not less than 480ml
	Note: The ratio of high-gluten flour to water is 2:1; the ratio of medium - and low-gluten flour to water is 2:1.2
Beater	Flour 100g		3-5 minutes	«beater» speed	Medium-density foods such as pancakes and sponge-like mixtures.
	Caster sugar	100g
	Butter 100g
	Egg 2
Whisk	Cream (38% fat)	800ml 2 minutes		«whisk» speed	Light-duty foods such as fresh cream, whole eggs, and egg whites. Make sure the egg white is no water or oil. If the time is too long, it may cause excessive mixing. Watch out when mixing.
	Egg white 2	6pcs 4-6 minutes

CLEANING AND MAINTENANCE

For the goods for your product, the following conditions must be observed when cleaning.

The cleaning for the housing of the mixer

1. Please unplug the power cord before cleaning.
2. Do not wash the mixer with water directly, due to it may cause electric shock, internal rust, and other faults.
3. The housing of the mixer can only be wiped with a clean damp cloth.
4. Do not immerse the stand mixer in water.
5. Do not use any sharp, rough, or corrosive cleaning items to clean the machine.

How to clean your appliance

1. Before you clean the appliance, be sure to turn the speed control knob to «00» to stop the machine and remove the power plug, otherwise there is a danger of electric shock or injury.
2. The mixing parts and stainless steel bowl can't be cleaned by dishwashers. If heat sources or corrosive detergents are used, they may be deformed or discolored.
3. The parts that are connected with food can be washed with detergent and water.
4. Some parts can be separated to wash and must be installed again when they are completely dried.
5. To protect this product, please add some oil to its surface after it dried out completely.

TECHNICAL SPECIFICATIONS AND PARAMETERS

This product has been tested by relevant international requirements, such as electromagnetic compatibility, low voltage directives, safety technical regulations, etc.

Model Number ...... MMC-1450

Rated Voltage 220-240V / 50-60 Hz

Product Power 1000 W

Product Capacity 4 L

Class....II

QUESTION AND ANSWER

Phenomenon Reason	Method
The machine suddenly does not work	Whether the machine running time is too long or the ambient operating environment temperature is too high, causing the motor to protect the machine from overheating to power off.	Turn the speed control knob to «00», remove the power plug, and operate the unit after it has cooled down completely.
Turn the speed control knob and the machine does not react machine or motor sound in motion	Whether there is a blackout.	Operate after incoming electric.
	Whether the head is self-locking.	Keep the head in a horizontal position.
	Whether the power plug plugged into the socket.	Be sure that the plug is plugged into the socket.
	A loud increase in speed or load during a mechanical operation.	May overload or use too long, please adjust the amount of mixing and rest after use.
Motor speed down Whether it is	used in low temperatures which will harden the oil in the machine. Whether the mix will cause the motor to load too much.	No-load 5 minutes to soft the lubrication which will stabilize the speed. Reduce the amount of agitation and the load and turn the speed to a low position.
Unstable motor speed
The motor does not work

Note:

In accordance with the policy of continuous improvement of technical specifications and design, changes are subject to change without notice.

The device is assembled from modern and safe materials. At the end of its service life, in order to avoid possible harm to life, health, property or the environment, the appliance must be disposed of separately from household waste in accordance with the waste disposal regulations in your area.

Please note that the entire packaging of this appliance is not intended for secondary packaging or storage of FOOD.

The service life is 5 years, provided that the product is used in strict accordance with this operating manual.

TECHNICAL SUPPORT

One-stop reference service:

tel. [phone]

[e-mail]

Additional information on warranty and post-warranty repair can be obtained at the place of purchase of this product or at www.mystery.ua

Manufacturer:

MYSTERY ELECTRONICS PTE LIMITED.

Room 2006-8, 20/F, Two Chinachem Exchange Square,

338 Kings Road, Noz Point, Hong Kong, China

Made in China

Importer:

«PLAZMA MASTER»

Address: 114, Velyka Vasylkivska Street,

Kyiv, 03150

Tel.: [phone]

Warranty period: 1 year

Does not contain any harmful substances

Date of manufacture: 07.2023
