USER MANUAL MMC-1453 Mystery

Product photo of a white hand mixer with a kitchen stand and whisk, no visible text or symbols on the main objects.

Labeled diagram of a blender with numbered parts including a stand mixer, bulb, cup, and blender.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating rotation or movement.

УВАГА!

Diagram illustrating the step-by-step assembly of a blender with labeled parts and directional arrows indicating process flow.

Line drawing of a hairdryer with a whisk and cup, no text or symbols present

ЧИЩЕННЯ БЛЕНДЕРА

When using this electrical appliances in order to reduce the risk of fire and electric shock and/or injury to persons basic safety precautions should be followed. Please ensure you read these instruction before you operate this product, they have been written to ensure you get the very best from your purchase.

You should respect the following safety warnings

1. Read all instructions.
2. Before plugging into a socket, check whether your voltage corresponds to the rating label on the appliance.
3. Close supervision is necessary when any appliance is used near children. Children should not use this appliance.
4. Blades are sharp. Handle carefully.
5. Never let the appliance run unattended.
6. If the plug or power cable is damaged, or the appliance is faulty, do not attempt to repair, please contact with our technical assistance service.
7. The use of accessory attachments not recommended or sold by the manufacturer may result in fire, electric shock or personal injury.
8. Do not let cord hang over edge of table or counter, or touch hot surface including the stove.
9. Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
10. Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds.
11. The appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Do not process more than three batches without interruption. Let the appliance cool down to room temperature before you continue to process.
13. Do not use outdoors.
14. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
15. To protect against fire, electric shock and personal injury, do not immerse blender, its cord or plug in water or other liquid.
16. This appliance is intended for household only.

INSTRUCTIONS

Labeled diagram of a kitchen appliance with numbered parts for identification

1. Switch I
2. Switch «TURBO»
3. Motor unit
4. Blender bar
5. Whisk
6. Whisk coupling unit
7. Beaker
8. Chopper coupling unit
9. Chopper bowl
10. Chopper blade unit
11. Speed controller

1. PRELIMINARY CHECKS

a. After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact with the technical assistance service.
b. Connecting the appliance

Check that the mains power supply voltage corresponds to the value indicated on the rating label.

If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type, or change the plug by a qualified professional.

2. USING BLENDER

Diagram illustrating a mechanical or fluidic process with labeled components and directional arrows indicating motion.

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

a. Insert the blender bar into motor unit, turn clockwise to lock it into motor unit.
b. Put ingredients in the beaker, to prevent splattering, immerse the blade guard completely in the ingredients.

You can use the hand blender in the beaker and just as well as in any other vessel.

c. Switch the appliance on by pressing the switch I or switch II.

d. Blend the ingredients by moving the appliance slowly up, down and in circles.

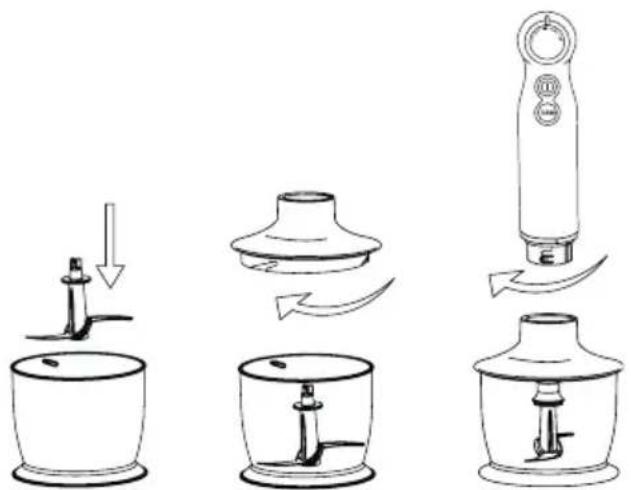

3. USING CHOPPER

The chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.

a. Put the chopper blade unit in the chopper bowl, press down the blade unit and lock bowl.
b. Put the ingredients in the chopper bowl, solid ingredients should not be larger than 2cm pieces.
c. Put the chopper coupling unit onto the chopper bowl.
d. Fasten the motor unit onto the chopper bowl, installation reference "using blender".
e. Switch the appliance on by pressing the switch I or switch II.

4. USING WHISK

Line drawing of a hand tool with a whisk, next to a cup and a small container (no text or symbols)

The whisk is intended for whipping cream beating egg whites and mixing sponges and ready-mix desserts.

a. Insert the whisk into the whisk coupling unit.
b. Connect the coupling unit to the motor unit, installation reference "using blender".
c. Press the switch I to activate the hand blender, and press the switch II after approx 30 seconds to prevent ingredients splashing.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the appliance and detach the accessories.
2. Wipe the motor unit, the chopper whisk coupling unit with a moist cloth, do not immerse them in water.
3. Use warm water to clean other accessories.
4. If food is not easily rinsed off the blade or whisk, place a drop of dish detergent in the mixing container with water. Plug cord into outlet. Immerse the blade end portion or whisk and operate the unit for about 10 seconds. Unplug, rinse under running water, and then dry.
5. When will not use long time, keep this appliance well ventilated at the aridity of place to prevent the motor of appliance is affected with damp.

CAUTION: The cutting edges of the blades are very sharp, cleaning it must be carefully.

TECHNICAL SPECIFICATIONS

Model ...... MMC-1453

Rated voltage 220-240V / 50-60 Hz

Rated power 900 BT

Class....II

Note:

In accordance with the policy of continuous improvement of technical specifications and design, changes are subject to change without notice.

The device is assembled from modern and safe materials. At the end of its service life, in order to avoid possible harm to life, health, property or the environment, the appliance must be disposed of separately from household waste in accordance with the waste disposal regulations in your area.

Please note that the entire packaging of this appliance is not intended for secondary packaging or storage of FOOD.

The service life is 5 years, provided that the product is used in strict accordance with this operating manual.

TECHNICAL SUPPORT

One-stop reference service:

tel. [phone]

[e-mail]

Additional information on warranty and post-warranty repair can be obtained at the place of purchase of this product or at www.mystery.ua

Manufacturer:

MYSTERY ELECTRONICS PTE LIMITED.

Room 2006-8, 20/F, Two Chinachem Exchange Square,

338 Kings Road, Noz Point, Hong Kong, China

Made in China

Importer:

«PLAZMA MASTER»

Address: 114, Velyka Vasylkivska Street,

Kyiv, 03150

Tel.: [phone]

Warranty period: 1 year

Does not contain any harmful substances

Date of manufacture: 07.2023
