USER MANUAL KAMN32F16LB Kogan

Front view of a black computer monitor with a three-leaf stand (no text or symbols visible)

32" CURVED GAMING MONITOR

1920 x 1080, 165Hz

KAMN32F16LB

Safety & Warnings 3

Components 4

Overview 5

Stand Assembly 6

VESA Mount 8

Connectivity 9

Operation 11

Cleaning & Care 17

Specifications 17

Notes 19

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

• Do not position the monitor on unstable surfaces. If the monitor falls, it may lead to damage and injuries to people around its vicinity.
• Do not place the monitor near heat sources (for example, heaters, stoves, fireplaces).
• Do not use the monitor in areas lacking adequate ventilation.
• Do not open the back panel of the monitor as it contains a high-voltage current even when unplugged.
• Do not place heavy objects on the monitor, its power cord, or any other connected cable.
• The back of this monitor is designed with ventilation holes. Do not cover or block them as this may cause overheating and damage.
• Do not insert or spray anything into the vents of this monitor.
• Unplug the monitor if it will not be used for an extended period.
• Ensure the monitor is unplugged before cleaning.
• Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners when cleaning the monitor.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States, and other countries.

COMPONENTS

Empty white rectangle with black border (no text or symbols)

A Monitor (x1)

B Stand stem (x1)

C Stand base (x1)

D Headset hook (x1)

E Cable guide (x1)

F Stand plate (x1)

G Screw (x4)

Four identical rectangular shapes with vertical cutouts, each labeled with a dimension of 35mm (no text or symbols on shapes)

H VESA connector (x1)

Pure electrical circuit lines without any symbols

I DisplayPort cable (x1)

Simple line drawing of a coiled electrical plug (no text or symbols)

J Power cable (x1)

K User guide (x1)

OVERVIEW

M ▽ △ E ⬤ 1 2 3 4 5 6

1 Menu/enter button
2 Down button
3 Up button
4 Exit button
5 Power button
6 LED indicator

Ports

Diagram of a device rear panel with labeled ports and connectors, showing internal structure and terminal labels.

7 Power port
8 3.5mm headphone jack
9 HDMI port
10 DVI port
11 DisplayPort port

STAND ASSEMBLY

1. Open the packaging and remove the stand stem (B) and stand base (C). Using a screwdriver (not supplied), secure the stand stem (B) to the stand base (C) with one screw. Ensure all components are present before disposing of any packaging.

Stand stem Screw Stand base

1. Slide and attach the cable guide (E) onto the bottom of the stand stem (B). Clip the headset hook (D) onto the top of the stand stem (B).

Headset hook Cable guide

1. Press the release button to remove the stand plate (F) from the packaging.

Release button Foam Stand plate

1. Using a screwdriver, secure the stand plate (F) onto the stand stem (B) with two screws.

Line drawing of a mechanical device with a curved top and base, no text or symbols present

Note:

If this assembly needs to be removed, use a screwdriver to loosen the screws and separate the components.

1. Take out the monitor (A) and lay it on a flat surface.
2. Pull the release button on the stand plate (F) upwards and clamp the monitor (A) onto the stand stem (B) and stand plate (F).

Release button

Line drawing of a mechanical clamp or bracket mounted on a curved platform (no text or symbols)

VESA MOUNT

1. Open the packaging, and with the foam attached, take out the monitor (A) and place it gently on a flat surface. Remove the foam covering the back of the monitor. If the monitor is attached to the stand stem (B) or stand base (C), detach it.

2. Take out the stand stem (B) and stand base (C) from the packaging. Press the release button to remove the stand plate (D).

Release button Foam Stand plate

1. Using a screwdriver, loosen the four screws on the back of the monitor.

Technical line drawing of a mechanical component with internal features and a separate view of two oval-shaped features (no text or symbols)

1. Mount the monitor with the steps provided with the VESA mount. Ensure to use the loosened screws from the previous steps to secure the monitor to the mount.

Mount (not supplied)

Notes:

• The mounting hole distance for this monitor is 75 x 75mm.
• VESA mount and mounting accessories are not included.

CONNECTIVITY

Power cable

Connect one end of the power cable into the power port on the monitor. Connect the other end into a power socket.

Power cable

Earphones

Plug in earphones (not supplied) into the 3.5mm headphone jack on the monitor.

Note: If audio devices are plugged into the monitor and computer, there will be no sound.

Earphones (not supplied)

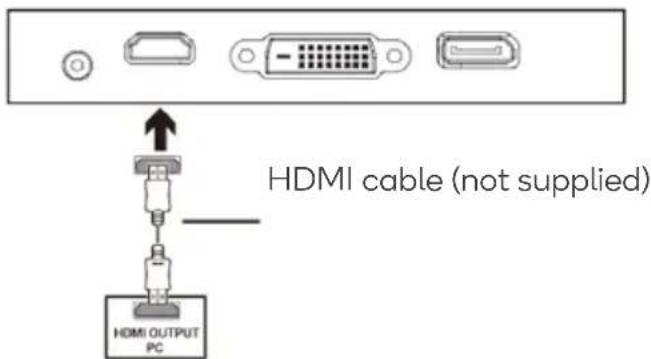

HDMI

To allow the monitor to receive HDMI signals from the computer, plug one end of an HDMI cable (not supplied) into the monitor. Plug the other end of the cable into the HDMI output port on your computer.

HDMI cable (not supplied) HDMI OUTPUT PC

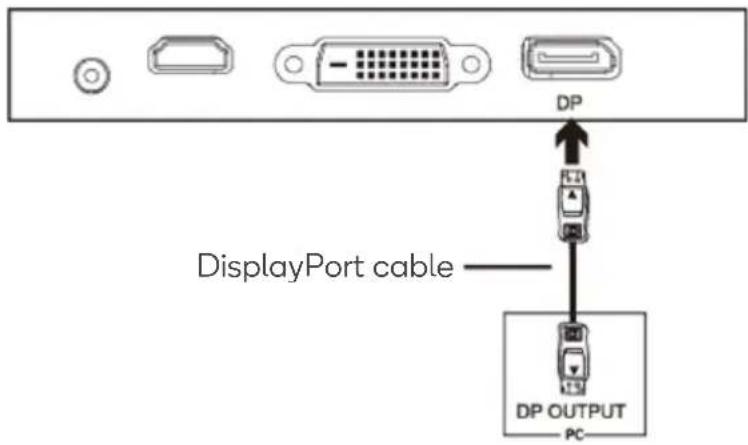

DisplayPort

To allow the monitor to receive DisplayPort signals from your computer, plug in one end of the provided DisplayPort cable into the DisplayPort port on the monitor. Plug the other end of the cable into the DisplayPort output on the computer.

DisplayPort cable DP DP OUTPUT PC

DVI

To allow the monitor to receive DVI signals from the computer, connect one end of a DVI cable (not supplied) into the DVI port on the monitor. Connect the other end into the DVI output on your computer.

DVI-D DVI cable (not supplied) DVI OUTPUT PC

OPERATION

1. Connect the monitor to your computer via HDMI/DisplayPort/DVI.

2. Connect one end of the power cable into the power port of the monitor. Plug the other end into a power socket. Switch the socket on.

Note:

It is recommended to use a surge protector with adequate voltage if the power cable is not directly connected to a wall socket.

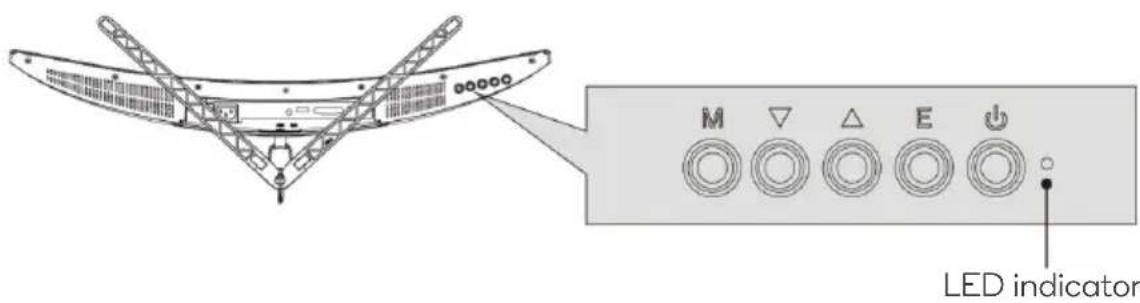

1. Press the power button on the monitor to turn it on. The LED indicator will turn a solid blue.

M ▽ △ E ⏻ LED indicator

Note:

If the LED indicator is flashing blue, there is no video, horizontal, or vertical signal detected. Ensure the HDMI/DisplayPort/DVI cable has been properly connected.

Navigation window

Whilst turned on, press any button (M, ▼, ▲, E, ⏻) located underneath the monitor to bring up the navigation window. These include options to go to the on-screen display menu, as well as shortcuts to sub-menus.

GamePlus menu Input source menu OSD menu ECO mode menu Power menu

• Press the menu/enter button (M) to access the OSD menu.
• Press the down button (▼) to access the GamePlus menu.
• Press the up button (▲) to access the ECO mode menu.
• Press the exit button (E) to access the input source menu.
• Press the power button (💡) to access the power menu.

On-screen display menu

The on-screen display (OSD) menu can be used to adjust the monitor's settings. When the monitor is used for the first time, optimal settings will be set as default.

1. Press any one of the buttons (M/▼/▲/E/ψ) located underneath the monitor to activate the navigation window.

2. Press the menu/enter button (M) to access the OSD menu.

BRIGHTNESS BRIGHTNESS 90 CONTRAST 50 ECO STANDARD DCR OFF

1. Press the up button (▲) and down button (▼) to browse through the categories of settings.

2. Press the menu/enter button (M) to enter the sub-menu of the desired category.

3. Press the up button (▲) and down button (▼) to browse through the sub-menu, then press the menu/enter button (M) on the desired setting you would like to change.

4. Press the up button (▲) and down button (▼) to adjust the settings to your liking. Press the menu/enter button (M) to confirm the change and exit back into the sub-menu. Press the input exit button (E) to exit the OSD menu.

OSD menu options
Below is a list of the various settings that can be adjusted through the OSD menu.

Category	Sub-Menu	Options	Description
BRIGHTNESS	Brightness	0-100	Adjusts the display brightness
	Contrast	0-100	Adjusts the display contrast
	ECO Standard,	Game, RTS, FPS, Movie, Text	Sets the display's colour balance to pre-set levels to suit different uses
	DCR On Turns the	DCR function on
		Off Turns the DCR	function off
IMAGE Aspect Wide, Auto, 4:3			Sets the display's aspect ratio
COLOUR TEMP.	Color temp.	Warm, Cool, User	Includes pre-set (Warm, Cool) and custom (User) colour temperatures
	Red	0-100 Adjusts the	level of red, green, and blue on the display
	Green	0-100
	Blue 0-100
OSD SETTING	Language	English, Español, Русский, Français, 한국, Português, Deutsch, Türkçe, 簡体中文, 日本語, Polski, Italiano, Nederlands	Sets the OSD language
	OSD H. POS.	0-100	Adjusts the horizontal position of the OSD menu
	OSD V. POS.	0-100	Adjusts the vertical position of the OSD menu
	OSD Timer	0-60	Sets how long the OSD menu stays open without input (in seconds)
	Transparency	0-100	Sets the level of transparency of the OSD menu
RESET Reset N/A			Resets the monitor to factory default settings
MISC	Signal source	HDMI, DVI, DP	Selects the input signal source
	Volume	0–100	Adjusts the audio volume
	Low blue ray 0–100	Sets the level of blue light filtering
	Adaptive-Sync	On, Off	Turns the Adaptive-Sync function on/off
	Over Driver	Off, Low, Middle, High	Setting these will decrease the monitor's response time speed.
	LED effect	Normal, Off, Flicker	Changes the mode of the LED

ECO modes

There are various pre-set colour modes suited for various use cases available on this monitor. These can be accessed using the ECO modes menu. The modes include the following:

• Standard (suitable for most activities)
  • Game (best suited general gaming)
  • RTS (best suited when playing real-time strategy games)
  • FPS (best suited when playing first-person shooter games)
  • Movie (best suited when watching movies)
  • Text (best suited when reading text)

GamePlus

The GamePlus menu allows you to change the appearance of crosshairs that appear when gaming.

CLEANING & CARE

• Ensure the monitor is turned off, unplugged, and cooled before cleaning.
• Clean the screen by wiping it with a dry microfibre cloth.
• Clean the monitor body with a slightly damp cloth with water.

SPECIFICATIONS

Model	KAMN32F16LB
Screen size	32"
Aspect ratio	16:9
Backlight	E-LED
Brightness	300cd/m2
Panel	VA
Resolution	1920 x 1080
Refresh rate	165Hz
Response time	5ms
Viewing angle	178° (H)178° (V) (Typical)
Contrast ratio	4000:1
VESA mounting	75 x 75mm
Colours	16.7M
Adaptive Sync Yes
Signal Input	x1 DisplayPort, x1 DVI, x1 HDMI 1.4
Voltage	220-240V
Frequency/amplitude	50Hz, 1.5A
Audio
Audio out	Yes
Speakers	No
Accessories
Power cable	Yes
DisplayPort cable	Yes
Additional functions
Low blue light	Yes
Flicker free	Yes
Physical dimensions
Dimensions (with stand)	712.5 x 505.6 x 226.5mm
Dimensions (without stand)	712.5 x 422.8 x 113.3mm
Net weight	7.07kg
Gross weight	9.09kg

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
