USER MANUAL KAMN27QFSB Kogan

kogan.com kogan

27" QHD IPS FREESYNC 75HZ FRAMELESS MONITOR

2560 x 1440

KAMN27QFSB

Safety & Warnings 3

Components 4

Overview 5

Stand Assembly 6

VESA Mount 8

Connectivity 9

Operation 12

Cleaning & Care 17

Specifications 18

Notes 19

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

- Do not open the back panel of the monitor as it contains a high-voltage current even when unplugged.

- Do not position the monitor on unstable surfaces. If the monitor falls, it may become damaged and may cause injury to those within its vicinity.

- Do not place the monitor near heat sources (for example, heaters, stoves, fireplaces).

- Do not place the monitor in areas lacking adequate ventilation.

- Do not place heavy objects on the monitor, power cord, or connected cables as this may cause damage.

- This monitor is designed with ventilation holes on the back panel. To maintain optimal performance, do not cover or block these holes.

- Do not insert or spray anything into the vents.

- Ensure the monitor is unplugged before cleaning.

- Do not expose cleaning alcohol, ammonia-based liquids, or other harsh cleaners to this monitor.

- Unplug the monitor if it will not be used for an extended period.

• The VESA mount and mounting accessories are not included.

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

Empty white rectangle with black border, no text or symbols present

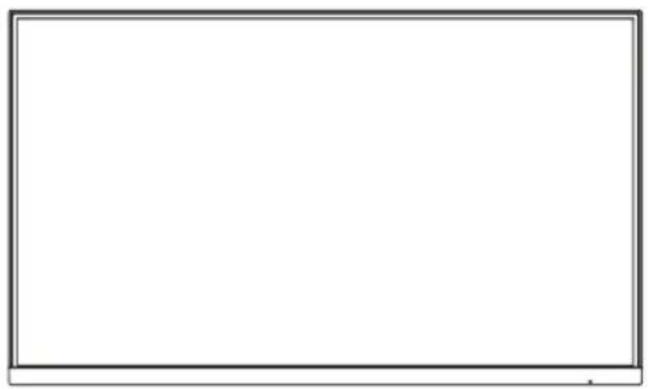

A Monitor (x1)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

B Stand connector (x1)

Line drawing of a propeller blade with three blades (no text or symbols)

C Stand base (x1)

M6 16 mm

D 16mm M6 stand base screw (x1)

Five identical vertical cylindrical objects with a 10 mm height dimension labeled, arranged horizontally (no text or symbols on objects)

E VESA screw (x4)

F DisplayPort cable (x1)

Line drawing of a cord with a plug and cable (no text or symbols)

G Power cable (x1)

USER GUIDE kegan.com kegan.com 27TH QHD IPS FreeSync 75Hz Frameless Monitor (2014.1.2008) MILK 2014

H User guide (x1)

Monitor controls

Diagram of a computer monitor setup with labeled components and directional arrows indicating navigation or control.

1 Power button
2 Directional arrows

Ports

Diagram of a monitor with labeled ports and panel, showing front view and internal components

3 Power port
4 DVI port
5 HDMI port

6 DP connector
7 VGA connector
8 Audio input

STAND ASSEMBLY

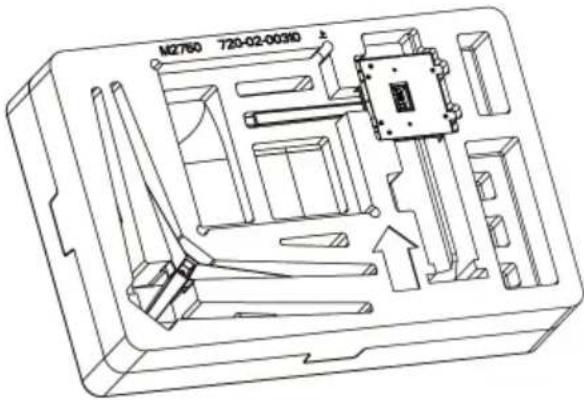

1. Carefully remove the monitor (A) from the packaging with the foam attached, and place it face down on a soft cloth spread across a stable surface.

M2760 720-02-00390

Note:

The monitor is fragile. Keep the foam underneath the monitor while assembling the stand.

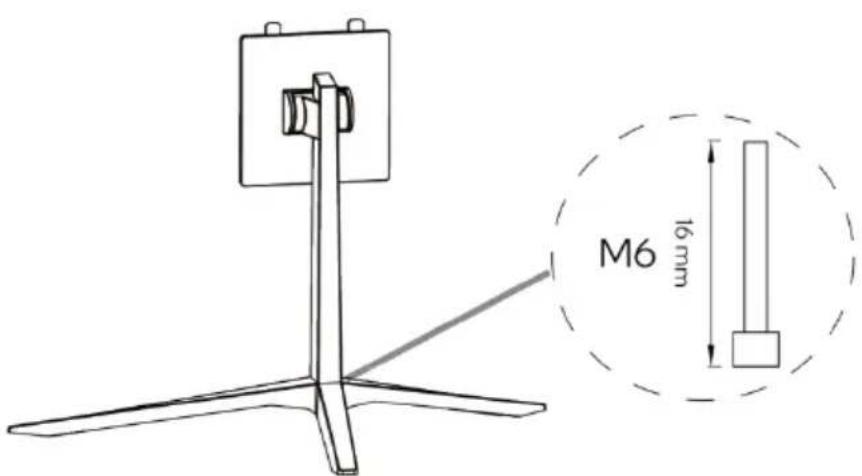

1. Attach the stand base to the stand connector using the 16mm M6 stand base screw (D) provided.

M6 16 mm

1. Insert the stand connector (B) onto the back of the monitor (A). Push down until firmly connected.

Line drawing of a computer monitor with a stand and a cable, labeled 'Open' (no other text or symbols)

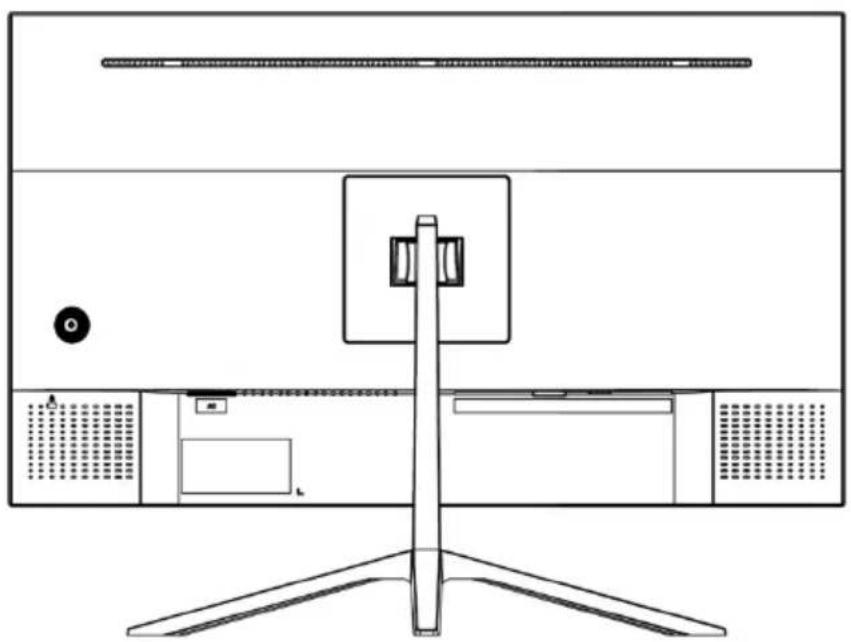

1. Lift the monitor (A) straight up and remove the foam on the bottom. Stand the monitor (A) on the installed base.

Line drawing of a computer monitor setup with front panel, screen, and base (no text or symbols)

VESA MOUNT

1. Open the box and gently take out the monitor with the protection form attached and place it on a desktop or table. Remove the extra components and the foam covering the back of the monitor.

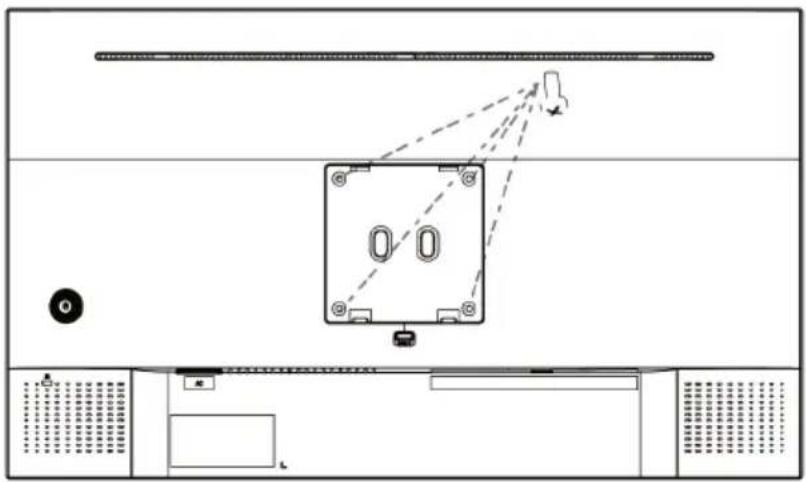

Press the release button to remove the stand plate. If the monitor was already attached to the stand, remove the stand.

Stand base Stand plate Foam Stand connector Release button Monitor

1. Assemble the mount as per the instructions provided with the mount.

Diagram of a device layout with labeled components and directional arrows indicating movement or positioning.

Notes:

• VESA mounting pattern 100 x 100mm, screw size M6.
• VESA mount and mounting accessories are not included.

CONNECTIVITY

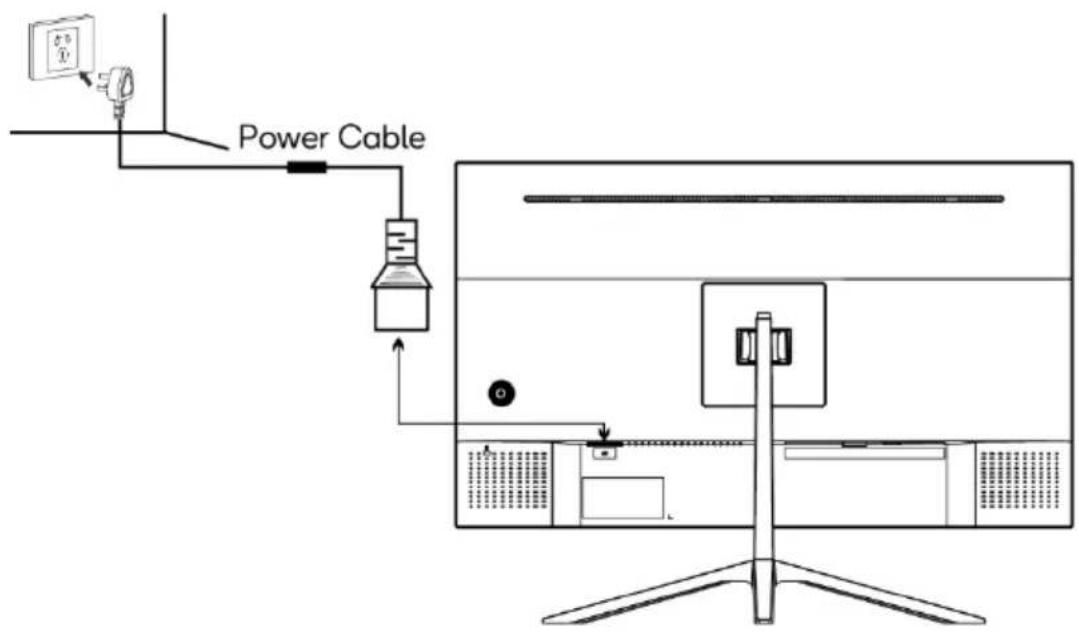

Power cable

Connect one end of the power cable into the monitor's power port, then connect the other end to a power outlet.

Power Cable

Audio input

Connect the audio end of an audio to 3.5mm cable (not included) into the audio input on the monitor. Connect the 3.5mm end into your computer.

Diagram showing connection between a server rack and an external computer tower, with labeled ports and an arrow indicating connection to the tower.

VGA

For the monitor to receive VGA signals from the computer, plug one end of a VGA cable (not included) into the VGA connector on the monitor. Connect the other end into the computer's VGA output.

VGA OUTPUT PC

DisplayPort

For the monitor to receive DisplayPort signals from the computer, plug one end of the DisplayPort cable into the DP connector on the monitor. Connect the other end into the computer's DP port.

DP

HDMI

For the monitor to receive HDMI signals from the computer, plug an HDMI cable (not included) into the HDMI port on the monitor. Connect the other end into the computer's HDMI port.

HDMI OUTPUT PC

DVI

For the monitor to receive DVI signals from the computer, plug one end of the DVI cable (not included) into the DVI port on the monitor. Connect the other end into the computer's DVI output.

DVI OUTPUT PC

OPERATION

1. Connect the monitor to your input device via HDMI/DP/VGA/DVI.
2. Connect the power cable of the monitor into the monitor's power port and the power socket. Switch the power socket on.
3. Press and hold the power button for 6 seconds to turn the monitor on.

Monitor control

You can easily control the functions of the monitor by pressing or sliding the Power button.

Button		Action	Description
		Press in	Press and hold the Power button for 6 seconds to turn the monitor on/off.When the display is turned on, press and hold the Power button for one second to bring up the main menu.Press to confirm menu selections.
		Slide left	When pushed left, the monitor will show the display mode menu. Use your cursor to select the desired mode and press Power to confirm.Used to reduce the intensity of a setting (for example, brightness settings)
		Slide right	When pushed right, the monitor will show the signal source menu. Use your cursor to select the desired source and press Power to confirm.Used to increase the intensity of a setting (for example, brightness settings)
		Slide up	When pushed up, the monitor will show the GamePlus timer menu. Select the desired timing length and press Power to confirm. To exit the menu, push the power button up again.
	[kHGZ]	Slide down	When pushed down, the monitor will show the GamePlus crosshair shortcut. Select the desired crosshair and press the Power button to confirm. To exit, push the Power button up.

FreeSync

To use this feature, ensure your hardware has FreeSync capabilities, and that the graphics drivers are fully up to date.

After connecting the monitor, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in the graphics card menu.

Check your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

Note:

The feature is disabled by default when set to a 75Hz refresh rate.

ECO modes

This monitor features several pre-set colour modes for different computer uses to optimise your viewing experience. These modes include:

• Standard (suitable for most activities)
  • Text (optimised for reading)
• Movie (optimised for watching movies and videos)
  • Game (optimised for general gaming)
  • FPS (optimised for gaming that requires a high frame rate)
  • RTS (optimised for real-time strategy games)

ECO Standard

On-screen display (OSD) menu

The On-Screen Display (OSD) menu may be used to adjust your monitor's settings (for example, appearance, modes).

When using the monitor for the first time, it will configure to the optimal settings automatically. If you would like to make manual changes, follow the instructions below:

1. Press the Power button to enter the OSD menu.
2. Slide the Power button up and down to the desired settings category you would like to change. Slide the Power button right to enter the sub-menu.
3. Slide the Power button up and down to browse through the sub-menu of settings. Press the Power button again to highlight the setting you wish to change.
4. If the settings are shown as a bar, slide the Power button left and right until the setting is adjusted to your liking. Once adjusted, press the Power button to confirm your changes.

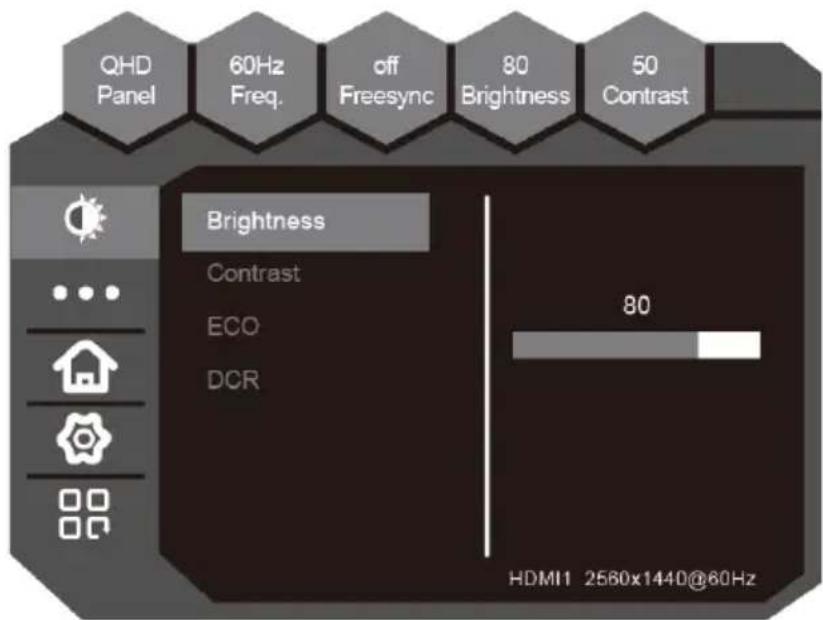

QHD Panel 60Hz Freq. off Freesync 80 Brightness 50 Contrast Brightness Contrast ECO DCR 80 HDMI1 2560x1440@60Hz

1. Slide the power button left to exit the settings menu and to return to the main screen.

Refer to the below table for a detailed list of the OSD menu options.

Category	Sub-menu	Options	Description
	Brightness	~0-100	Adjusts display brightness
	Contrast	~0-100	Adjusts display contrast
	ECO	STANDARD / TEXT / GAME / MOVIE / FPS / RTS	Selection of pre-set colour modes
	DCR On/ Off Turns	dynamic contrast ratio on/off
	Colour temperature	Standard	Selection of pre-set colour modes (Standard, Warm, Cool, sRGB)Allows for manual configuration of the colour temperature (User Define)
		Warm
		Cool
		sRGB
		User Define
	Red	~0-100	Adjusts the redness of the display
	Green	~0-100	Adjusts the greenness of the display
	Blue	~0-100	Adjusts the blueness of the display
	Language	English, 简体中文,□□□, Deutsch, Español, Français, Italiano	Sets the language of the OSD menu
	OSD horizontal 0-100		Adjusts the horizontal position of the OSD menu
	OSD vertical 0-100		Adjusts the vertical position of the OSD menu
	OSD transparency 0-100		Adjusts the transparency of the OSD menu
	OSD time out	10-60	Sets the duration the OSD menu remains on-screen after the last input (seconds)
	Input source	Auto Source / VGA / HDMI / DVI / DP	Auto-selection of input source and allows for manual selection
	Mute ON / OFF		Enables/disables the monitor's speaker
	Volume	0-100	Adjusts monitor speaker's volume
	Reset /		Restores the monitor to factory default settings
OOO	Display size	Full Screen	Adjusts the display's aspect ratio
		4:3
		Auto
	Low blue	Off	Adjusts the amount of blue light emitting from the display
		Weak
		Strong
	Over driver On / Off		Turning this on will reduce the response time from the display. This may be useful for gaming when the fastest response times are needed.
	FreeSync	On / Off	Enables / disables AMD FreeSync

CLEANING & CARE

Ensure the monitor is unplugged before cleaning.

• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, wait for it to cool completely, then wipe with a dry micro-fibre cloth.

SPECIFICATIONS

Screen size	27"
Aspect ratio	16:9
Power	AC 240V, 50Hz, 1.1A
Brightness	350cd/m2 (typical)
Panel	IPS
Resolution	2560 x 1440
Refresh rate	75Hz
Response time	7ms with Overdrive enabled (14ms typical)
Viewing angle	≥178°(H) / 178°(V)
Contrast ratio	1000:1
VESA mounting	100 x 100mm
Colours	16.7M
Signal input	HDMI 1.4 x 1, DP 1.2 x 1, VGA x 1, DVI x 1

Audio

Speakers	Yes
Audio in	Yes

Accessories

Power cable	Yes
DisplayPort cable	Yes

Additional functions

Low blue light	Yes
Flicker-free	Yes

Physical dimensions

Dimensions (with stand)	613.8 x 537.4 x 247.2 (mm)
Dimensions (without stand)	613.8 x 362.5 x 63.3 (mm)
Net weight	5.5kg
Gross weight	7.7kg

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
