Kogan 55" OLED 4K 120Hz Smart Google TV

SERIES 9 X98J (KAOD55X98JSTA)

CONTENTS

Safety and warnings 02

Components 05

Product overview 06 Inputs 06

Assembly and installation....07 Stand assembly ....07 Connect to antenna ....07

Using remote / power button....08 Remote control overview....09

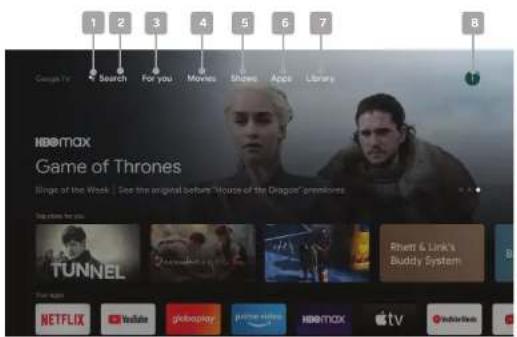

First time setup 10 - 11 Basic operation 12

Selecting channels .... 12 Volume / mute .... 12 Input Source .... 12 Colour buttons .... 12 Navigating menus .... 12

Settings.... 13 Quick menu.... 13 Global settings....13-14-15

PVR mode 16 Instant recording 16 Schedule recording 16 Timeshift mode 17

Media playback 17 Wall-mounting 18

Specifications.... 19 Troubleshooting .... 20

THIS USER GUIDE COVERS THE FOLLOWING MODELS

Kogan 55° OLED 4K 120Hz Smart Google TV ( SERIES 9 X98J )

SAFETY AND WARNINGS

Thank you for buying this Kogan product. Please read all safety instructions before using your TV.

Stability Hazard

The television set may fall, causing serious personal injury or death. Never place a television set in an unstable location, A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

- ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.

- ALWAYS use furniture that can safely support the television set. - ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.

- ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

- ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

- NEVER place a television set in an unstable location. - NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

- NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If your existing television set is being retained and relocated. The same consider actions as above should be applied.

To prevent injury, this television set must be securely attached to the floor/wall in accordance with the installation instructions.

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
- The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, (for example, vases), shall be placed on the apparatus.
- When discarding used batteries, always be mindful of the environment. Ensure you follow any guidelines for recycling and safe disposal of batteries that apply in your local area. Don't throw used batteries in rubbish bin.
- When installing your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.
- The openings/slots on the back of the apparatus have been provided for necessary ventilation. Ventilation should not be impeded by blocking these openings in any way (for example, newspapers, table-cloths, curtains, etc.)
- No naked flame sources, such as lit candles, should be placed on the apparatus. To prevent the spread of fire, keep candles or other open flames away from this product at all times.
- The device may malfunction when under electrostatic discharge. It can be manually resumed by switching power off completely (at wall outlet), then switching power on again.
• To avoid any injury caused by overturn of the product when installed with base stands, please always ensure the whole product is placed horizontally within the supporting surface and that the television is not overhanging the edge of the supporting furniture.
- If not using with base stands, use only a wall or ceiling mount which has been recommended by the manufacturer of the television.

SAFETY AND WARNINGS cont'd

- Keep small accessories out of reach of children so they are not mistakenly swallowed.

CAUTION: Connecting the power cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if appearance indicates damage or deterioration, immediately discontinue use of the appliance until the cord is replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

The MAINS plug is used as the disconnect device, and the disconnect device shall remain readily operable.

Operating Temperature: 5°C to 45°C

Storage Temperature: -15°C to 45°C

Operating Humidity: ≤80%

Storage Humidity: ≤90%

CAUTION

Do not attempt to modify this product in any way without written authorization from supplier. Unauthorized modification could void the user's authority to operate this product.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

No matter in what circumstances, please keep the TV panel vertically placed, if any tilt, the tilt angle bet ween panel and vertical plane must not exceed 15^ (the rule applies to frameless series product).

It is recommended not to use the product in places where there is oil smoke or steam that may damage the material of this product.

The power consumption might increase if TV is turned into standby when it is in Apps or network function mode. It will be stabilized in 30 minutes. Alternatively press and hold power button on remote for 3 seconds, TV will go into fully standby and close all functions.

Risk of explosion if battery is replaced by an incorrect type. Replacement of a battery with an incorrect type that can defeat a safeguard; Disposal of a battery into fire or a hot oven, or or mechanically crushing or cutting of a battery, that can result in an explosion; Leaving a or mechanically crushing or cutting of a battery, that can result in an explosion; Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas The mains plug is used as the disconnect device, The socket-outlet shall be installed near the equipment and shall be easily accessible.

If TV is turned into standby mode during initial installation setup, it might cause higher standby power consumption.

Refer to the table below as a guide to the symbols and warnings which may be on your TV.

CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN	CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL
	The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: Rated voltage marked with this symbol is AC voltage.
---	DC voltage: Rated voltage marked with this symbol is DC voltage.
	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

SAFETY AND WARNINGS cont'd

Precautions for OLED TV Screen Protection

Unlike ordinary LED/LCD screens, each pixel is actively luminous in OLED TV output images, resulting in a perfect black color and sharp and clear images. High resolution image quality is achieved through organic materials, and because of their inherent properties, OLED users may experience temporary image residue in certain situations, such as displaying static images for a long time. Nevertheless, this phenomenon is rare under normal viewing conditions, rather than a malfunction. This product has a built-in screen saver function. To avoid displaying images that may cause residual images, please follow the recommendations during use.

Examples of images that may cause image residue

• Images or display modes that cause to appear black areas on the upper, lower, left and right of the screen, such as a ratio of 4:3 or 14:9.
• Fix displayed images for a long time, such as channel numbers, TV station logos, game console icons, set-top box menus, etc. If a static image is continuously displayed on the screen, the brightness of a specific area or the entire screen will automatically decrease. After the static image disappears, the screen brightness will automatically return to the previous setting. This is not a product malfunction.
• Other fixed screen images or duplicate displayed images.

Suggested methods to prevent image residue

1. Avoid watching videos that display the images listed above for a long time.
2. It is recommended to watch TV in Default picture mode for considering power savings and prevention of Image retention.
3. Run [OLED Compensation], [Manual OFF-RS Compensation], and [Pixel Shift] to protect the OLED TV screen.

OLED TVs are equipped with OLED Compensation and OFF-RS Compensation functions, which can check the screen status on their own to prevent uneven panel lighting or image residue on the screen. This

function automatically calculates the optimal execution time based on the accumulated viewing time and executes automatically when the TV is turned off.

To manually run the [OLED Compensation], [Manual OFF-RS]

Compensation], and [Pixel Shift] functions, you can find the corresponding options through [Settings] → [Picture] → [OLED].

When the TV is turned on for a long time, it will calibrate for possible image residues on the screen. It may take 30 seconds for calibration, and once completed, the TV will automatically enter standby mode.

• Do not unplug the power cord during the process.
• If you turn on the TV, OLED Compensation will stop operating.

When the TV is turned on for a long time, it will calibrate for possible uneven brightness on the screen. It may take 30 seconds for calibration, and once completed, the TV will automatically enter standby mode.

- Do not unplug the power cord during the process.

- If you turn on the TV, Manual OFF-RS Compensation will stop operating.

Pixel Shift

After the pixel offset function is turned on, the image pixels will move in a loop as a whole, and will move once every minute. The moved characters may be cut off, which is not a product malfunction.

- This setting default is "ON".

- When "Close" is selected, the image will return to its optimal position.

COMPONENTS

Plain gray rectangular panel with no visible text, symbols, or markings

A Kogan 55" OLED 4K 120Hz Smart Google TV
B Remotecontrol
C Stand(x2)

D M4 X 25 mm screw (x4)
E AAA battery (x2)
F Quick-start guide
G Warranty card

NOT INCLUDED

Phillips head screwdriver, antenna cable, broadband internet connection.

PRODUCT OVERVIEW

Technical diagram showing a container layout with labeled components and structural details

1 HDR4KLEDdisplayscreen

3 Inputs/Ports

2 Remote sensor / Standby light

4 Power button

Inputs

Audio in		Stereo (2.0) audio input.
Composite video in		Usually paired with stereo audio inputs(red and white cables), the single-wire composite cable provides video signal.
Component video in		Three cables ("Y," "Pb" and "Pr") provide a higher quality connection than the single-wire composite cable ("Y") commonly used to hook up earlier AV equipment.
HDMI		Connect an HDMI cable between the HDMI port on the TV and the HDMI port on the DVD player/Set-Top Box. Ports marked 'ARC' also support Audio Return Channel.
USB 2.0		USB storage devices can be inserted to record and pause live TV in PVR mode, or to watch media files stored on device in media mode.
VGA		Connect to a desktop or laptop computer.
ANT		For free-to-air TV, use an antenna cable (not supplied) to connect to a working antenna, either via an antenna wall socket, or directly.
LAN		For a wired internet connection via a broadband modem or router, connect an Ethernet cable to the LAN port.
Digital audio out (optical)		Audio out for digital audio devices. Port and cable may look different depending on an optical or coaxial input. Please use the cable appropriate for your device.
Digital audio out (coaxial)
3.5mm audio out		Line audio out port for use with headphones, amplifier, soundbar or any other audio device via an AUX cable (not supplied).

This is a general guide to inputs and ports, your TV may not feature all of the above.

ASSEMBLY AND INSTALLATION

BEFORE YOU GET STARTED

Spread cushioning flat to lay the TV on. This will help to prevent damage.

1. Stand assembly

a. Attach stands to base of TV, ensuring 'L' and 'R' markings on the TV and stands match.
b. Insert two 25mm screws for each stand and use Phillips head screwdriver (not supplied) to tighten.

Diagram of a 3D rectangular device with labeled dimensions R and L, no readable text or symbols present

Pure electrical circuit lines without any symbols

2. Connect to antenna

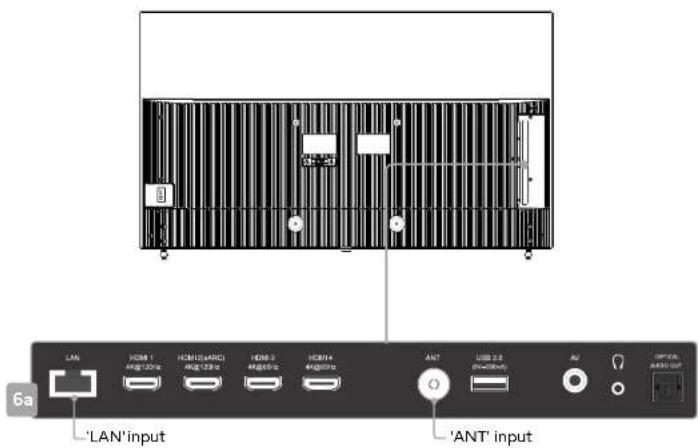

a. Connect an antenna cable (not supplied) via the 'ANT' input port at the back of the TV.
b. Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home, or directly.

2a Antenna wall socket 2b Antenna cable (not supplied)

2.1 Game Optimiser

The user connects the HDMI device and presses the MENU key for 2 seconds to enter the Game Optimiser menu.

1. Wizard menu

(1) In order for you to experience the game better, please follow the guide to understand the basic operation settings.
(2) Tips: This function is recommended to connect to Xbox, PlayStation and other game consoles.

2. Setting menu

(1) Game

(2) Picture

ALLM : Automatic Low Latency Mode, the TV can automatically turn on or off the low latency game mode according to the signal content, usually used with game consoles.
Low Latency: Low Latency mode, users can manually turn on or off the low latency gamemode.
Crosshair: Bullseye, user can turn on or off the bullseye.
Crosshair Type: Bull's-eye pattern, user can choose favorite bull's -eye pattern.
FPS : Display frame rate information.

Contrast Type: User can choose different contrast type. Backlight: User can adjust the brightness of the backlight.
Low Blue Light: User can adjust low blue light intensity.
Display Mode : User can adjust the screen ratio.
Sharpness : User can adjust the sharpness of the screen.

3. Game Optimiser recommend devices:

PlayStation4, PlayStation4 PRO, PlayStation5

Xbox Series X

Xbox Series S

Nintendo Switch

Notice:

(1) Some game consoles (e.g. Xbox ones) doesn't report device information to the TV for running game optimiser; this is a device specific issue, and not an issue with the TV.
(2)The support list may change with device updates, and the list serves only as a reference.

USING REMOTE CONTROL / POWER BUTTON

3. Remote control assembly

a. Open the battery compartment cover on the back side. b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings (+ / -) of the batteries with the diagram inside the compartment.
c. Replace battery compartment cover.

3a 3b 3c

WARNINGS

• One loading of batteries will last for 1 year under normal use.
- If you do not intend to use the remote controller for a long period of time, remove them to avoid damage due to leakage.
- Do not use old and new batteries together.
- The batteries (battery pack or batteries installed) shall not exposed to excessive heat such as sunshine, fire or the like.

4. Using remote control without bluetooth

Your Android TV remote control has bluetooth capability, but until this is paired with your TV, you will need to ensure the distance between the remote control and the TV is no greater than 8 metres, at an angle of no more that 30 degrees on either side (4a). Point the remote towards the sensor at the front of the TV (this may differ from the illustration).

TIPS

Do not block the path between the sensor and the remote control.

4a 30° 30°

5. Turning TV on

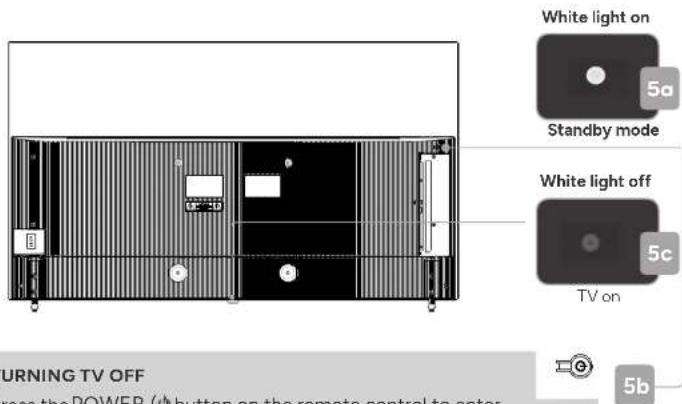

a. Plug the power cord into a suitable power outlet. The standby will display a light, showing that the TV is receiving power.
b. Priest the BOWER (remote or at the bottom of the TV) to turn the TV on.
c. The standby light will turn off when the TV is on.

White light on 5a Standby mode White light off 5c TV on 5b TURNING TV OFF press the POWER (1) button on the remote control to enter

TURNING TV OFF

Press the POWER ( button on the remote control to enter standby mode.

To power down the TV completely, unplug the power cord from the power outlet.

Do not leave your set in standby mode for long periods of time. If you will not use the TV for a long time, it is recommended to unplug the set from both the power outlet and aerial.

REMOTE CONTROL OVERVIEW

1 2 3 4 5 6 7 8 9 0 SUBT 5 6 7 8 9 10 11 12 13 1 2 3 4 OK

14 15 16 17 18 20 21 22 23 24 25 26 27 NETFLIX YouTube prime video USB kogan

1 Power, press to enter or exit standby mode
2 Source displays the list of input source channels.
3 Number buttons to select channels or input passwords
4 Quick Menu to display TV options with optional, adjustable settings
5 SUBT Subtitles to select subtitles
6 Account Switch account
7 Google Assistant to launch the built-in virtual assistant for voice commands

8 ^/√/< /> Direction buttons for navigating menus and settings

9 Dashboard Dashboard contains user account, settings page, input source list, weather panel, image settings, notifications, etc.

10 Back to the previous menu

11 ok Enter select the current item or confirm selection, display Channel list in DTV mode

12 Home to access the home page

13 Electronic Program Guide DTV mode

14 Mute to toggle sound on/off
15 Volume to adjust the volume up or down
16 ^P∨ Program to scroll channels
17 NETFLIX to open app homepage
18 prime video to open app homepage
19 YouTube to open app homepage
20 Google Play to open app homepage
21 📁 Virtual keyboard Open virtual keyboard (only under Live TV)

22 🎨 Apps Show all installed apps
23 ☐ Teletext to show/hide Teletext (Teletext not available in Australia or New Zealand)
24 Record in DTV mode;
25 info displays the current program information
26 ©I/II Audio to select available languages and audio channels.
27 Colour buttons for navigational use within apps

FIRST TIME SETUP

When turning the TV on for the first time, the Welcome screen will appear. Use the ^, ∨ and OK buttons to navigate the following options.

Language

Select your menu language.

The entertainment you love

In your Google Account you get. Movies and TV, shows from your favorite Streaming apps. Personalized recommendations, Google Assistant. Search and control your TV with your voice, live tv, External devices, Basic TV can also be set directly.

Select Wi-Fi network

Your Google TV will automatically scan. for wireless networks nearby. Ensure the TV is within range of your wireless modem or router, and have your password handy. Follow the prompts to input your password and connect your TV to your selected network. If you'd prefer to connect an Ethernet cable to connect to the internet simply insert the cable (not supplied) to the 'LAN' input port at the back of the TV (6a), next page), and ensure that it is correctly connected to the internet.

Select terms

This page will allow you to read each of the Google Terms of Service, Privacy Policy, and Google Play Terms of Service in full, and to accept.

Welcome English Cable See Auth Experienced Principal All visits

Google TV The entertainment you love Start up Google TV Set up Google TV ■ Netflix TV is also used to get ■ Netflix TV will access our own website (www.nu.gov) ■ The following promotional: ■ Google TV is also used to get out your website with your own ■ i.v. TV ■ External devices (e.g. Netflix) NETFLIX Steam YouTube Baidu Tubi Google TV Google TV Google TV Google TV Google TV

Select your Wi-Fi network DIRECT-200P-GECH GECH-OFFICE_SG GECH-OFFICE_SG RT-LIME_OCEP TCP/IP

Search across all your TV apps Allow it to share your requests with your TV's apps. Without this permission, Google Assistant may not be able to find all the content from your TV's apps.

Choose your subscriptions

Your subscribed app will be installed on your device. Additionally, the apps that came with your device will also be installed during installation.

Remote & accessories

Your Google TV remote control has bluetooth capabilities. Follow the onscreen prompts to pair the remote with the TV. This will allow you to use voice commands with your remote via the Google Assistant button.

Password

Set a default password.

Select TV mode

The 'home mode' is optimized for efficient usage for home use. The 'retail mode' is optimized for store Demo with fixed settings.

NOTE: Recommend watching TV in HOME mode.

Search across all your TV apps To do you, about it's read your app and your TV apps. You can use this setting off your app in our TV app/Get App at your Internet Without any permission, I'll have a much better app to be able to Find all the apps from your TV app.

Choose your subscriptions Your choice will be saved but often to form new recommendations under you to signal your post change. Access Confirm How to your subscriptions will be modified by consultation, or any other information can be used in the following: you can't use any options for this service. You can't use any options for this service. You can't use any options for this service.

Remote & accessories Step 3 • Live the product while standing in the TV before adding the distance of 1 meter at least 3 seconds. Because your finger when the location is right enough of the car or more features. Step this step if your mode is saved to the bottle.

Front view of a modern TV with a green checkmark on the screen and a control panel below (no text or symbols visible)

FIRST TIME SETUP (cont'd)

Following these options, the Channel Scan screen will appear. Ensure you have an antenna cable connected to the 'ANT' input port at the back of the TV (6a).

The auto tuning function will search for and save all available free-to-air TV channels. After confirming your settings,

the process will automatically begin. The number of searched channels will be displayed on the screen.

Channel Scan Day Scan

6a 'LAN'input 'ANT' input

1 2 3 4 5 6 7 8 Search For you Movies Shows Apples Library HBO-MOX Game of Thrones Binge of the Week | See the original before "House of the Dragon" previewes Top choice for you TUNNEL Rheft & Link's Buddy System NETFLIX YouTube GloDrama Pride a little HBO-MOX Apple TV Netflix

1 Google Assistant

Click to launch the built-in virtual assistant, which will begin listening for voice commands. Give it a try, ask "What's the weather today?"

2 Text search

Enter text manually to search TV apps.

3 For you

Displays Application recommendation, new episodes of the daily courtroom spin-off resume, Top picks for you, . Your apps.

4 Movies

You can watch popular movies, new movies, and more.

5 Shows

You can watch popular programs, new programs, etc.

6 Apps

Access the App Centre to display all installed apps. Free -to-air channels can be accessed under the "Live TV" option.

7 Library

View records, manage watch list.

8 Dashboard

Dashboard contains user account, settings page, input source list, weather panel, image settings, notifications, etc.

Note:

The layout and functions of the home page will change dynamically with the version of the launcher. All pictures in the user manual start guide are for reference only.

BASIC OPERATION

Selecting channels

There are two ways to select channel:

1. Using number buttons followed by the _k button on the remote control to select channel directly.

2. To select channel 5, press: 5.

3. To select channel 21, press: 2→1 in quick succession.
4. Using ^Buttons on the remote control or on your TV to select channel. When you press the ^Buttons, the TV changes channels in sequence. You will see all the channels that the TV has saved, but will not see channels that were either not saved, or manually erased.

Volume adjustment and mute setup

Press + buttons on the remote control or the TV to adjust the volume of the TV.

• To increase the volume, press 4 button
- To decrease the volume, press ↕ button

Press the ◀× Mute button to toggle TV sound on and off. To resume sound when TV is muted, press the ◀× Mute button again, or simply press the △+ button.

Input source

You can use the ☑ button on your remote control to access the list from any channel or screen.

Colour buttons

In some menus and apps, the remote control's four colour buttons (●●●) can be used.

Navigating menus

• Press the ≡Menu button to display the quick menu.
• Press the^/\~Navigational buttons to select the desired sub item.
• Press theok Enter or > Navigational button to access the menu of the next level.
• Select More on quick menu list to bring up the full settings menu.
• Press the←Back button to return to the previous menu.

NOTE

• When a menu item is greyed out, it means that the item is not available or cannot be adjusted.
• Some items in menus may be hidden depending on modes or signal sources used.

SETTINGS

Quick menu

Options for your TV (picture, Sound, power) can be accessed by pressing the ≡ Quick Menu button on your remote control. Use <buttons to navigate through the submenus, and ∧/∨ buttons to access Channel and Recording/Time Shift options (7a).

Channels

TV options

Inputs Picture Screen Sound Power Parental Controls Advanced Options Settings

Record

Global settings

To access the global settings menu, Press the > key until the Dashboard menu appears, then press the arrow keys to move to the Settings icon, Here you will find all of the adjustable options for Android TV's interface, connectivity, and apps.

In live tv mode you can also press the ≡ Quick Menu button on your remote control and use the </>buttons to navigate to the 'Settings' option.

Settings Set your device name Use this name where calling phones, video, and read from your voice Channels & Inputs Channels, universal inputs Display & Sound Images, screens, sound Network & Internet Driver: 34.06 Accounts & sign-in Channels & Inputs

QUICK MENU

Inputs

List of inputs status. Connected and standby input status will be displayed separately.


Provides video adjustment feature for users. It allows users to adjust the image or picture quality so that users can enjoy watching Tv. User can press up/Down key to select the "Picture Function" that want to adjust.

Screen

Adjust the screen ratio, you can choose Full, 4:3, 16:9, etc.

Sound

Locate settings for sound balance, speakers, sorround sound and more in this submenu.

Power

Display power usage and sleep timer options, as well as the option for picture off (audio only) playback.

Parental Controls

Can set Channels Blocked, Program Restrictions, Inputs Blocked, etc.

Advanced options

Adjust settings for subtitle, default channel, blue mute and more. Also see system information.

Settings

Selecting the settings option here will take you to the Global Settings menu, also accessible via the home screen.

SETTINGS (cont'd)

GLOBAL SETTINGS

CHANNELS & INPUTS

Channel

Auto channel update : Toggle on/off.

Inputs

HDMI CEC (Consumer Electronic Control) settings can be adjusted here.

Option to rename inputs (for example, 'HDMI 1' can be set as 'Blu-ray' or even a custom name, which will appear on the source inputs list) are also located in this submenu.

DISPLAY & SOUND


Adjust picture settings here, in more detail than the Quick Menu's picture mode presets.

Screen

Adjust the screen ratio, you can choose Full, 4:3, 16:9, etc.

Sound

Locate settings for sound balance, speakers, sourround sound and more in this submenu.

Audio output

Digital output, Spdif Delay mode can be set

NETWORK & INTERNET

Here you will find the options for Wi-Fi and Ethernet internet connections.

Wi-Fi

Available Wi-Fi networks are listed, with the option to manually add a new network.

Scanning always available

Toggle on/off.

WOW

Toggle on/off for Wake On Wi-Fi function.

WOL

Toggle on/off for Wake On LAN function.

ACCOUNT & SIGN-IN

Here you find the same Google account sign-in screen from the start-up wizard.

PRIVACY

Location

Enable location settings.

Usage & diagnostics

Enable permission to share usage and diagnostic data.

Google Assistant

Access options for Google Assistant and voice controls.

Payment & Purchases

Manage your account and purchases through the play store app on our mobile device, or by following these links in a web browser.

App Permissions

View and adjust settings for app permissions, special app access, and security & restrictions.

Special app access

Allow installation of apps from sources other than the play store.

APPS

Recently opened apps

View all recently used apps.

SYSTEM

About

View system information.

Date & Time

Set clock and date information.

Language

Interface language settings for on-screen display.

SETTINGS (cont'd)

Keyboard

Adjust keyboard options. Third party keyboards can be added from the Play store. By default, Google's GBoard keyboard is installed.

Storage

View and adjust device storage information and set up external drives for use.

Power & Energy

Adjust power settings here and energy mode.

Cast

Let others control your cast media.

Restart

Restart your tv.

REMOTES & ACCESSORIES

All compatible Bluetooth devices will appear here. You can connect and disconnect from devices here.

HELP & FEEDBACK

Visit google tv help at.

Defining favourite channels

This is how to add channels to the Favourite list or remove them:

1. Press [OK] to open the "Channel list" menu.
2. Press [BLUE] to enter the Favorites list Selection menu.
3. Press [OK] ok to add the program to Favourites 1.
4. Press [up and down] to select favorites list, press ok to add favorite programs.
5. Press [ok] to cancel adding favorite programs

Channel List - All channels 1 RED/MANAGER 2 USB 3 MOVING 4 4x3 MONOSCOPE 5 WHITE WINDOW(ROS) 6 SUB LUMINANCE 7 32STEP 8 MOVING1 ARCH: 102.4x4 Select More Add Favourite

Favourites List Selection □ Favourites1 □ Favourites2 □ Favourites3 □ Favourites4

PVR MODE

NOTE

• Don't connect or disconnect any USB device while in USB playback mode.
• Ensure all personal data is backed up before inserting USB device into TV. We assume no liability for any loss of data due to malfunction or misuse.
  • USB device should have capacity at least 512MB.
• USB device must support USB 2.0 high-speed specification.
• Use only USB storage devices formatted to FAT32.
• You cannot change channels while recording.
• If the signal is interrupted while recording, the recording will stop until signal is regained.
• While in time-shift mode, do not turn TV off.

Setup

To use PVR and Timeshift settings, first you must prepare your USB device.

Ensure you have a USB drive inserted in either of your TV's USB 2.0 input ports.

Channels TV options Record Start Recording Record List Device Info Schedule List Time Shift Mode

Press the ≡ Quick Menu button on your remote control, then the button to scroll down to the Record menu. Select Device Info(8a) to prepare your USB device for PVR or Timeshift functionality.

Your attached USB device will display on the Device Info list if it is prepared for PVR or Timeshift usage, or both.

You can also format your device and run speed tests from this menu.

Recording and Timeshift controls

ok Confirm / Play / Pause

</> Navigation//Skipcheckward&forward, Hold to skip to start & end

^/Navigation

Recording

There are two types of recording: Instant Recording and Schedule Recording. Instant recording can record current TV programmes, while schedule recording can be set to record TV programmes automatically on the day, time, and duration you choose.

Instant recording

Select the channel you want, then press the ● Record button on the remote control to start recording.

Press the ≡Quick Menu button on your remote control, then the button to scroll down to the Record menu. Press Stop Recording to stop recording Or to stop the recording, press the ☑ key to enter the soft keyboard press ■Stop button to exit the recording.

Schedule recording

Select the Schedule List from the Record menu. Use the navigation buttons to select the desired programme, and press the Add to schedule a programme for recording. You can schedule several items to record. Enter the Schedule List to view the list of currently scheduled programmes. Different schedules should not overlap and there must be at least a one-minute time gap to set up between two schedules.

NOTE

Schedule recording still works when TV is in standby mode.

Retro television remote with control buttons and a color palette below (no text or symbols on the device itself)

PVR MODE (cont'd)

Timeshift mode

With the Timeshift turned on, you may pause and rewind normal TV viewing at any time without missing any of the live broadcast. This can also allow you to create a buffer and skip forward through commercials.

Under DTV, press the key to enter the soft keyboard, click the

II Pause icon to activate Timeshift, The TV stores the channel from the point of view you want to record. ▶ Play will resume from where you left off. Press

■Stop to exit Timeshift mode. If a USB device dedicated to recording is disconnected, Timeshift files that were saved will automatically be deleted.

Playing recorded files

After recording is complete, press the ≡ Quick Menu button on your remote control, then the ▼ button to scroll down to the Record menu to find the Record List. Here you will find a complete list of your recordings. Press the

● Yellow colour button to delete any files you no longer require.

MEDIA PLAYBACK

NOTE

You will need to have an app installed for media playback. We recommend you are welcome to choose your preferred media player from the Google Play store.

To access media playback mode, insert a USB drive containing files of the following type into the TV's USB input port. Next, from the Home page, select your preferred media player app. The following file types are supported:

Data Format
Photo	jpg, jpeg, bmp, png, gifMPEG1/2 Layer 1, MPEG1/2 Layer 2, MPEG1/2/2.5
Audio	Layer 3, AC3(DD).EAC3(DDP), AAC-LC, FLACVP9, HEVC/H.265, MPEG1/2, MPEG4,
Video	Sorenson H.263, H.263, H.264, VC1, VP8, AV1

Alongside flashdrives, the TV's USB port is also capable of reading from devices such as digital cameras and USB hard disks.

Recordings saved in PVR mode will also be playable.

Media playback controls

ok Confirm / Play / Pause

Navigation / Skip backward & forward, Hold to skip to start & end

^/Navigation

← Back to previous menu

WALL MOUNTING

Wall mount kit not included. Steps below are provided as an optional alternative to the supplied base-mounts.

A Mounting bracket (x2)
B Shaft sleeve - M6 (x4)
C M6 x 45mm screw (x4)

D M6 x 60mm self-tapping screw (x4)
E Wall anchor (x4)

9. Optional wall-mounting installation

a. Measure and double-check the distance of threaded holes on the back panel of the TV before creating any holes in the wall.
b. Use 45mm screws (C) to attach shaft sleeves (B) within the four threaded holes on the back panel of the TV.

Technical diagram showing labeled components A, B, and C on a mechanical assembly with bolted connections

c. Use a mounting bracket (A) as a guide to mark the positions for the four holes on the wall with a pencil.
d. Using a drill, create holes in the marked positions on the wall.
e. Insert the four wall anchors (E) to the screw holes in the wall.
f. Place the mounting brackets against the wall, aligned with the wall anchors, ensuring the directional arrow is facing upwards.
g. Fix the mounting brackets with the 60mm self-tapping screws.
h. Attach the TV to the mounting brackets by placing all four shaft sleeves into the larger openings of the brackets, then lowering the TV so that the shaft sleeves "lock" into place within the brackets.

It is recommended that two people perform step 9h together to ensure the sleeves are properly aligned before the TV is lowered onto the brackets.

NOTE:

Only use wall-mounts that match the same size screws and fittings as those listed on this page. Other methods of wall-mounting have not been tested for this model and can not be guaranteed to safely support the TV.

SPECIFICATIONS

Audio
Speakers	Full -frequency: 2 x 8
	Low frequency: 2 x 14
Connectivity
Ethernet (RJ45) Yes
HDMI	2.1
HDMI-ARC Yes | HDMI 2
HDMI-CEC Yes | HDMI 1, HDMI 2, HDMI 3, HDMI 4
USB	2 x USB 2.0
Wi-Fi IEEE 802.11a/b/g/n/ac
Dimensions
Distance Between Legs	1082.6mm
Without Stand	1227.8x 702.1x 59.1mm
With Stand	1227.8 x734.1x 258.2mm
VESA Wall Mount Pattern	300 x 300
Weight	20.5kg
Display
Colours	1.07B
Computer Supported Resolutions	640×360, 853x480, 1024x576, 1280x720, 1366x768, 1920x1080, 3840x2160 (@60Hz) 3840x2160(@120Hz)
Contrast Ratio	CR @ Pritchard880:150000:1CR @ Pritchard810L (25% APL):1500000:1
Native Aspect Ratio 16:9
Refresh Rate	120Hz
Resolution 3840 x 2160
Response Time	GTG 0.1ms/MPRT 6
Size	55"
Color viewing Angle	120°(min)
Features
EPG	Yes
HDCP	Yes | 2.3
TV Resolution	4K UHD

USB Media Playback	Yes
Inputs
Composite (AV)	1
HDMI	4
Outputs
3.5mm Stereo Audio	1
Optical Audio Out	1
Performance
CPU	ARM A73 Quad Core with TEE1.2GHz
GPU	G52
OS	Android 11
RAM	3GB
Storage Capacity	16GB

Power

Average Consumption	103W
Energy Consumption	378kWh per year
Energy Rating	4.5 Star
Tuning And Signal
Tuner Type	DVB-T

Note:

• Design and specifications are subject to change without notice.
  • Weight and dimension shown are approximate.

TROUBLESHOOTING

Common fixes

Many minor issues can be resolved by hard resetting, or power cycling the unit or upgrading the firmware.

To perform a hard reset, or power cycle please use the following steps.

• Unplug it from the main power socket and leave it for 10-15 minutes.
• Press and hold the power button on the TV for 5 seconds.
• Connect the TV back to the power and turn it on.

Poor picture and sound quality

• Try a different channel
• Adjust the antenna
• Check all connections

No picture or sound in TV status

• Try another channel
• Press the TV/AV button
  • Make sure TV is plugged in
• Check the antenna connection

No sound or sound is too low at maximum volume

• Check the volume settings on any external speakers connected to your television
• Adjust the TV volume accordingly
• Check another channel or input
• Check that MUTE hasn't been turned on

Picture rolls vertically

- Check all connections

No colour, wrong colour or tints

• Make sure the program itself is broadcast in colour

- Select the picture menu, then adjust the colour and tint submenus

Blurred or snowy picture, distorted sound

• Check direction, location and connections to your antenna
• Issues may be caused by the use of an indoor antenna (poor signal)

Remote control malfunctions

• Replace remote control batteries
• Check battery terminals
• Remote is out of range, move closer to TV
• Remove any obstructions between remote and IR sensor of TV
  • Make sure the power cord to your TV is plugged in and turned on

Image is not centred on the screen

- Adjust the horizontal and vertical position

"No Signal" on HDMI source

• Test the device with a different HDMI cable
• Plug the device into another HDMI port
• Try a different device connected to the same cable and port
  • Perform a factory reset on your TV

Care & maintenance

Unplug the television from the power supply before cleaning. Do not use any liquid cleaners or harsh chemicals. Always use a soft, damp cloth.

Cleaning the screen

Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the casing

To remove dirt or dust, wipe the TV casing with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

For our full TV troubleshooting guide and extended User Manual for this TV, head online to help.kogan.com

Dolby

VISION ATMOS

Dolby, Dolby Vision, Dolby Atmos, and the double -D symbol are registered trademarks Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories.

Confidential unpublished works. Copyright © 2012 -2021 Dolby Laboratories. All rights reserved.
