USER MANUAL IST-2000S Imarflex

Exterior view of a modern Steamer with a fish inside a digital steamer, surrounded by fresh vegetables and condiments (no text or symbols visible on the food items)

TWIN HEATERS FOR RAPID STEAM

20 LITERS CAPACITY

DETACHABLE STEAM TRAY BASE FOR EXTRA STEAMING CAPACITY

IST-2000S

SPECIFICATION

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Check that the power supply voltage corresponds to that shown on the appliance (alternating current).
2. If the appliance is used in a country other than that which is purchased, please have it checked by an approved service center for power supply compliance.
3. Do not place the appliance near a heat source or in a hot oven to avoid serious injuries.
4. Always place the appliance on a flat and stable work surface, away from sinks or any other water source.
5. Never leave the appliance unattended while in operation.
6. Keep away from children.
7. Do not allow the cord to hang over the edge of table or counter, or touch hot surfaces.
8. Always plug the appliance into an earthed socket.
9. Do not unplug the appliance by pulling on the cord.
10. Do not operate the appliance with a damaged cord or plug after the appliance malfunctions, or is dropped or damaged in any manner.
11. Burns can occur by touching the hot surface of the appliance, hot water, steam or food.
12. Do not touch the appliance when it is steaming. Always use oven gloves to remove the lid, rice bowl and steam baskets.
13. Do not operate the appliance without water in water tank.

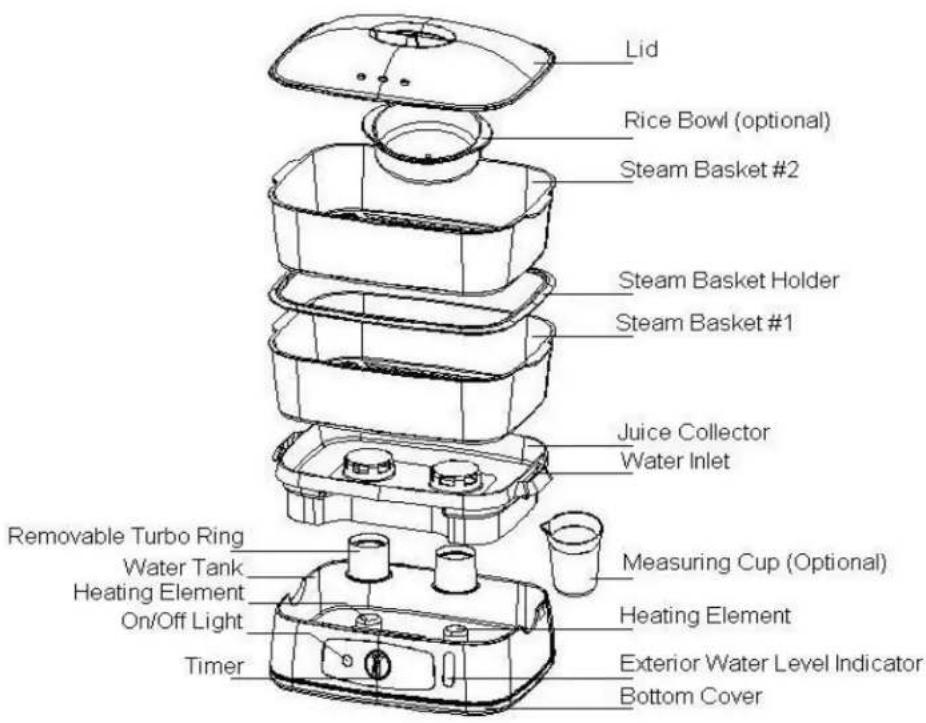

DESCRIPTION OF PARTS

Lid Rice Bowl (optional) Steam Basket #2 Steam Basket Holder Steam Basket #1 Juice Collector Water Inlet Measuring Cup (Optional) Water Tank Heating Element On/Off Light Timer Exterior Water Level Indicator Bottom Cover Removable Turbo Ring

HOW TO USE

Prior to use

1. Using warm water and liquid detergent, wash all the removable parts and the inside of the water tank.

2. Rinse and dry.

How to fit the turbo ring

1. Place the turbo ring as indicated A as shown in below diagram. The correct way to put the turbo ring into the water tank is as ☐

Removable Turbo Ring ✓ A × B

Filling the water tank

1. There are two ways to fill the water tank before place the juice collector on the tank.
2. Pour the water directly into the water tank, up to the maximum level.
3. Pour the water directly into the water inlets up to the minimum level.

Positioning the baskets

1. Place the food in the steam basket.
2. Place the steam basket on top of the juice collector.
3. Always place the basket # 1 on the juice collector.
4. Place the steam basket holder.
5. Place basket # 2 then put the lid on.

To boil rice

1. Put the rice and the water in the rice bowl.
2. Place the rice bowl in the steam basket, cover with the lid to cook.

To cook eggs

1. Place the built-in egg holders into the steam basket, followed by the eggs into the built-in egg holders. Cover with the lid to cook.

Steam cooking

1. Plug the appliance in.
2. Set the timer for the recommended cooking times.
3. The indicator light will be illuminated to indicate steam cooking has begun.
4. During cooking check the water level by inspecting the exterior water level indicator.
5. If necessary, add water through the Juice collector.
6. At the end of cooking, the appliance will switch off automatically.
7. The timer will ring and the indicator light will go off.
8. To stop the appliance ahead of time, turn the timer to the 0 position.

Removing the food from the steam baskets

1. Remove the lid by the handle.
2. Remove the steam basket(s).
3. Place the steam basket(s) on a plate.

CLEANING AND MAINTENANCE

How to clean the Water Tank:

1. Unplug the appliance.
2. Let it cool completely before cleaning.

Protection

Built-in thermostat to protect dry boil. In case water dry up, please do not operate the appliance when water is at minimum level to avoid discoloring. The pilot lamp will repeatedly on and off when water is below minimum level and this may damage the appliance. It is advisable to add in the water in order to continue operate.

Cleaning the appliance

• Empty the water tank and clean with a damp cloth.
- All other removable parts can be placed in the dishwasher.
- Clean the turbo ring after each use.

Note: Some natural-colored juices from food such as carrots, beetroot etc., may stain the juice collector and water tank. This is normal and will not affect its performance. To avoid staining, wash these two parts immediately after every use. You may also use mild bleach if necessary and rinse thoroughly.

Removing scale build-up from the appliance

• Fill the water tank with cold water up to "max" level.
• Do not heat up (to avoid any descaling odor). Leave it on to descale.
• Rinse the inside of the water tank with warm water several times.

Storing the baskets

• Place the rice bowl and egg holders (depending on model) upside down in the juice collector.
• Stack the baskets one inside the other following the order shown.
• Turn all parts over on the base unit. Cover the lid over the parts.
