USER MANUAL IF-344T Imarflex
imarflex®
In Every Home.
www.imarflex.com
IF-344T
SPECIFICATION
SPECIFICATION MODEL NO. : IF-344T
RATED VOLTAGE : 230Va.c. 60Hz
POWER CONSUMPTION : 50W T
IMPORTANT SAFEGUARDS:
- Read all instructions carefully.
- Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
- Do not use a two-way socket with another appliance.
- Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
- Do not place the unit near gas stove, electric stove or in a heated oven.
- Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
- Children should be supervised to ensure that they do not play with the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
- To protect against electric shock, do not immerse the unit in water or any other liquid.
- Do not use the unit for outdoor use.
- This unit must only be used for room ventilation. Do not use in bathrooms.
- Do not insert your fingers or any objects into the fan guard. It may cause accident or injuries.
- Never touch the unit with wet hands.
- Do not use the plug to stop or start the operation of the unit, use the switch button.
- Be sure that the fan is switched off from the convenient outlet before removing the fan guard, any of its parts or before cleaning.
- Avoid water spillage into the socket, connector, cord and alike.
- Do not use this unit other than its intended use.
- For household use only; not intended for any business purposes.
- Save this instruction for future reference.
DESCRIPTION OF PARTS


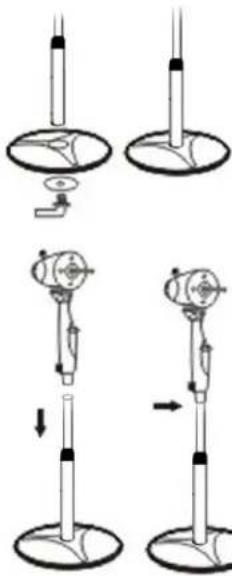

Four-step diagram showing mechanical assembly or assembly process with no visible text or symbols- Insert the Stand Pipe on top of the Base.
- Insert the Base Lock on the bottom of the Base and turn it clockwise.
- Unscrew the Fastening Screw on the Main Body and insert Height Adjustment Pipe. Tighten the Fastening Screw.
- Fit the Rear Fan Guard to the motor housing by matching the three Rear Holes of the back guard to the three round pins in front of the motor housing.
- Fasten the clamping nut by turning it clockwise.
- Insert the fan blade to the motor shaft.
- Fasten the Fan Cap by turning it counter clockwise.
- Fit the Rear Fan Guard and the Front Fan Guard, push-up the Clamp and tightened the Screw
HOW TO USE
- Plug the unit into the convenience outlet (230Va.c.).
- Press the Switch Button to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "0" to turn it OFF.
- To set the Timer: Turn Timer Knob to desired number of hours. Turn the Timer Knob to ON if you do not want to use the Timer
- Push-down the Oscillating Knob for oscillation and Pull-up the Oscillating Knob for fixed position.
- The air flow can be adjusted upward or downward by moving the Motor Housing up or down.
- To adjust the height: Turn Fastening Cap clockwise and Pull-up/Push-down to desired height then turn the Fastening Cap counter clockwise to fix the height.
CLEANING MAINTENANCE
- Always disconnect the unit from the convenience outlet before disassembling the unit or before cleaning.
- To disassemble the unit, simply reverse the assembly instruction.
- Wash the Front Fan Guard, Fan Cap, Fan Blade, Clamping Nut and Rear Fan Guard with soap and water.
- Use a moistened cloth (NOT WET) to remove the dirt from the plastic and metal surfaces of Electric Fan.
- Do not immerse the Motor Base in water or other liquids.
- Allow the detachable parts to dry off before assembling the unit.
REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address imarflexfb@evergoodinc.com
Distributed By: Sabretech Technology Inc.
103-113 Sen Gil Puyat Ave. Pasay
Made in China
