2022

Honda TALON

SXS1000S2R/S2RD

SXS1000S2X/S2XD

OWNER'S MANUAL

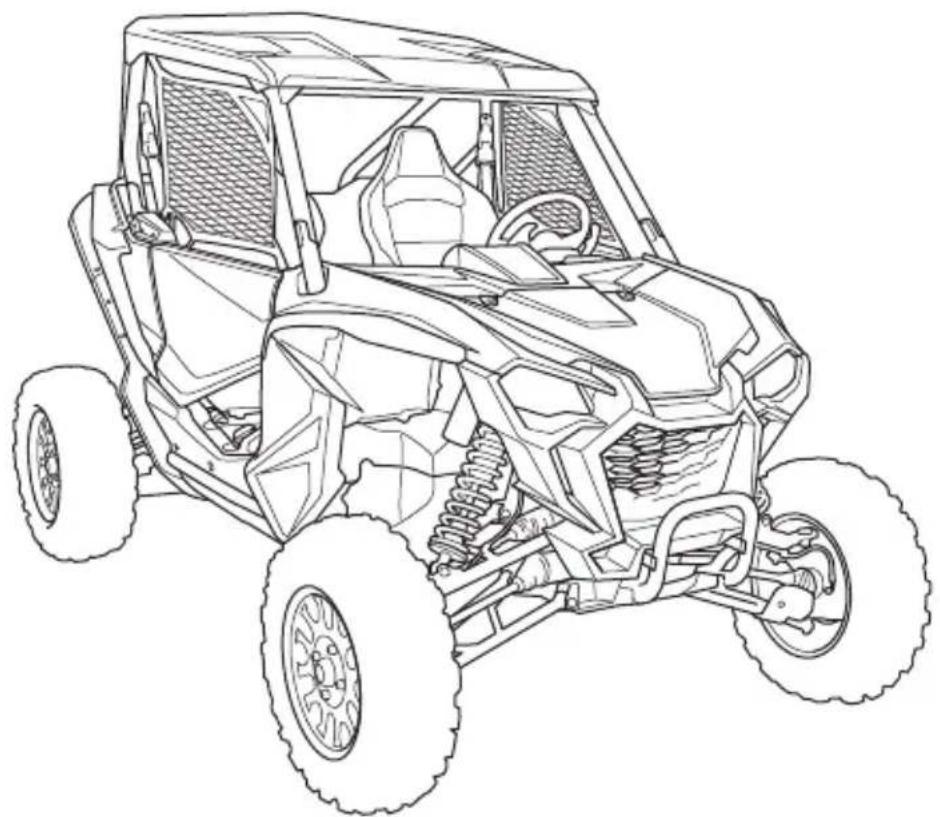

Line drawing of a four-wheeled off-road vehicle with visible suspension and steering wheel (no text or symbols)

Congratulations on choosing your Honda Talon. When you own a Honda, you're part of a worldwide family of satisfied customers—people who appreciate Honda's reputation for building quality into every product.

Before you begin driving your vehicle, we recommend that you read this owner's manual. It's full of facts, instructions, safety information, and helpful tips. To help you find what you are looking for, the manual contains a detailed list of contents at the beginning of each section and an alphabetical index at the back of the book.

To protect your investment, we urge you to keep your vehicle well maintained. Scheduled service is a must, of course, but it's also important to observe the break-in guidelines and perform all pre-drive and other periodic checks detailed in this manual.

As you read this manual, you will find information that is preceded by a NOTICE. This information is intended to help you avoid damage to your Honda, other property, or the environment.

Be sure to read the Warranties Booklet (page 274) so you understand the coverages that protect your new Honda and are aware of your rights and responsibilities.

If you have any questions, or if you ever need special service or repairs, remember that your dealer knows your Honda SXS best and is dedicated to your complete satisfaction.

Please report any change of address or ownership to your dealer so we will be able to contact you concerning important product information.

You may also want to visit our website at

USA: www.powersports.honda.com.

Canada: www.honda.ca.

Introduction

- The following codes in this manual indicate each country.

SXS1000S2R

A	United States of America - 49 states, Australia, New Zealand
AC	United States of America - 50 states (meets California)

SXS1000S2RD

V A	United States of America - 49 states, Australia, New Zealand
V AC	United States of America - 50 states (meets California)

SXS1000S2X

A	United States of America - 49 states, Australia, New Zealand
AC	United States of America - 50 states (meets California)
CM Canada

SXS1000S2XD

V A	United States of America - 49 states, Australia, New Zealand
V AC	United States of America - 50 states (meets California)

• The illustrations herein are based on the SXS1000S2R AC type.
• The specifications may vary with each locale.

A Few Words About Safety

Your safety, and the safety of others, is very important. And operating your Honda safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not possible to warn you about all hazards associated with operating or maintaining this vehicle. You must use your own good judgment.

You will find important safety information in a variety of forms, including:

Safety Labels — on the vehicle.

Safety Messages — boxed messages preceded by a safety alert symbol ⚠️ and one of three signal words: DANGER, WARNING, or CAUTION.

These signal words mean:

DANGER

You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

WARNING

You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.

CAUTION

You CAN be HURT if you don't follow instructions.

A Few Words About Safety

A Few Words About Safety

Safety Headings — such as “Important Safety Reminders” or “Important Safety Precautions.”

Safety Section — “Driver & Passenger Safety,” beginning on page 1.

Instructions — how to operate this vehicle correctly and safely.

In addition to the above, your owner's manual is full of information that can help you safely operate and maintain your vehicle. So please read it carefully.

Contents

These pages give an overview of the contents of your owner's manual.

The first page of each section lists the topics discussed in that section.

Driver & Passenger Safety 1

The most important safety guidelines, how accessories and modifications can affect your safety, and the location of safety-related labels on your vehicle.

Instruments & Controls ....11

The location, function and operation of the indicators, driver controls, and other operational components.

Before Driving....73

The importance of wearing a seat belt, helmet, protective eyewear and other protective gear, how to make sure you and your Honda are ready to drive, plus load limits and guidelines on carrying cargo.

Basic Operation & Driving Guidelines....85

How to start and stop the engine, select a driving mode and gear, plus guidelines for driving on hills and other off-road situations.

Servicing Your Honda 111

Why your vehicle needs regular maintenance, what you need to know before servicing your vehicle, a maintenance schedule, and instructions for specific maintenance and adjustment items.

Tips 213

How to store and transport your Honda, and how to be an environmentally responsible driver.

Contents

Taking Care of the Unexpected 223

What to do if you have a flat tire, your engine won't start, etc.

Technical Information ......253

ID numbers, technical specifications, and other technical facts.

Consumer Information (USA & Canada only)......272

Information on warranties, emissions controls, how to get a service manual, and how to contact Honda.

Index....279

Alphabetical listing of topics in the manual.

Quick Reference

Handy facts about fuel, engine oil, tire sizes, and air pressure.

Driver & Passenger Safety

This section presents some of the most important information and recommendations to help you drive your Honda safely. Please take a few moments to read these pages. This section also shows you the location of safety labels on your vehicle.

Important Safety Information.... 2

Accessories & Modifications.... 4

Safety Labels 6

Important Safety Information

There is much that you can do to protect yourself and your passenger. You'll find many helpful recommendations throughout this manual. The following are those we consider to be most important.

Follow Age and Size Recommendations

The driver should be at least 16 years old and tall enough to wear the seat belt properly and reach all the controls. A passenger should also be tall enough for the seat belt to fit properly and brace themselves, if needed, placing both feet firmly on the floor.

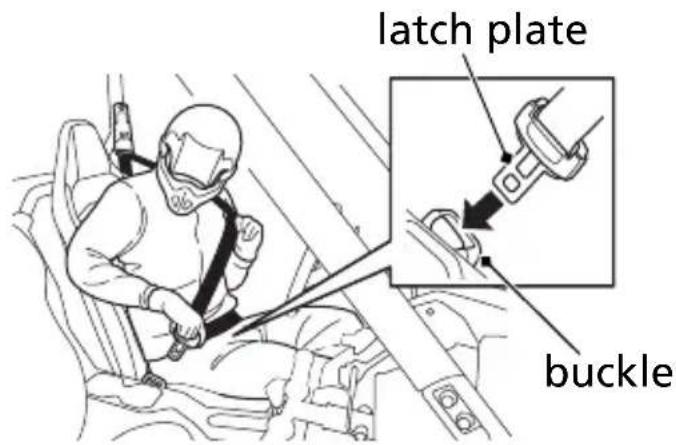

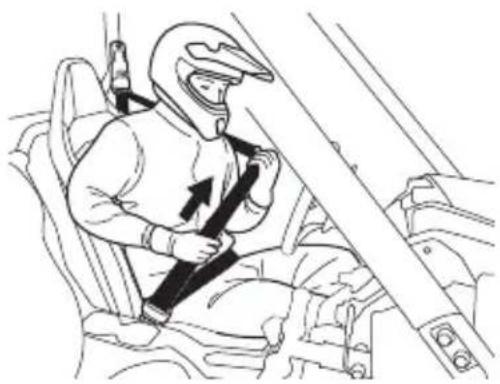

Always Wear a Seat Belt

Wearing a properly positioned seat belt is your best protection against injury in a crash or rollover.

Protect Your Head and Eyes

We recommend that occupants always wear a helmet with a chin strap. We also recommend that you wear eye protection, boots, gloves, and other protective gear (page 75).

Keep Doors and Side Nets Closed

Make sure the doors and the side nets are closed, the side net buckles are fastened and secure help keep the driver's and passenger's arms and legs inside the occupant protective structure (OPS), should the vehicle tip or turn over.

Never Carry a Passenger in the Cargo Area

Your vehicle was designed to carry a driver and one passenger. Never carry additional passengers in the cargo area, as they could be thrown against or out of the vehicle and be seriously hurt or killed.

Obey Loading Limits & Guidelines

Do not carry more than the loading limits in the cargo bed (page 82). Make sure all cargo is properly loaded and as far forward, centered, and low as possible.

Keep Your Vehicle in Safe Condition

It's important to keep your vehicle properly maintained and in safe operating condition. Having a breakdown can be difficult, especially if you are stranded far from your base. To help avoid problems, inspect your Honda before each use and perform all recommended maintenance.

Don't Drink or Use Drugs and Ride

Alcohol or drugs and riding don't mix. Even one alcoholic drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. The same is true for drug use. Don't drink or use and ride, and don't let your friends do it either.

Stay Off Public Roads

Your vehicle has been designed for use on private property and designated off-highway areas. It does not have turn signals or many other items required for use on either paved or unpaved public roads.

Modifying your vehicle or using non-Honda accessories can make it unsafe. Before you consider making any modifications or adding an accessory, be sure to read the following information.

Accessories

We strongly recommend that you use only Honda Accessories that have been specifically designed or approved and tested for your vehicle. Because Honda cannot test all other accessories, you must be personally responsible for the proper selection, installation, and use of non-Honda accessories.

You should also be aware that accessories add weight, reducing the amount of cargo and total weight you can carry, and can raise the vehicle's center of gravity, increasing the risk of a rollover.

Check with your dealer for assistance, and always follow these guidelines:

• Make sure the accessory does not obscure any lights, reduce ground clearance, limit suspension travel or steering travel, or interfere with operating any controls.
• Do not add any electrical equipment that will exceed the vehicle's electrical system capacity (page 259). A blown fuse can cause a loss of lights or engine power (page 239).

WARNING

Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding accessories and modifications.

4 Driver & Passenger Safety

Modifications

We strongly advise you not to remove any original equipment or modify your Honda in any way that would change its design or operation. Such changes could seriously impair your vehicle's handling, stability, and braking and make it unsafe to drive.

We also advise you not to make any modifications or remove any equipment (such as the spark arrester, muffler, or emissions control system components) that would make your vehicle illegal in your area.

Your Honda comes with several labels that contain important information.

You, and anyone else who operates or rides in the vehicle, should read and understand this information before driving.

The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.

- Indicates something apparent. - Indicates something concealed.

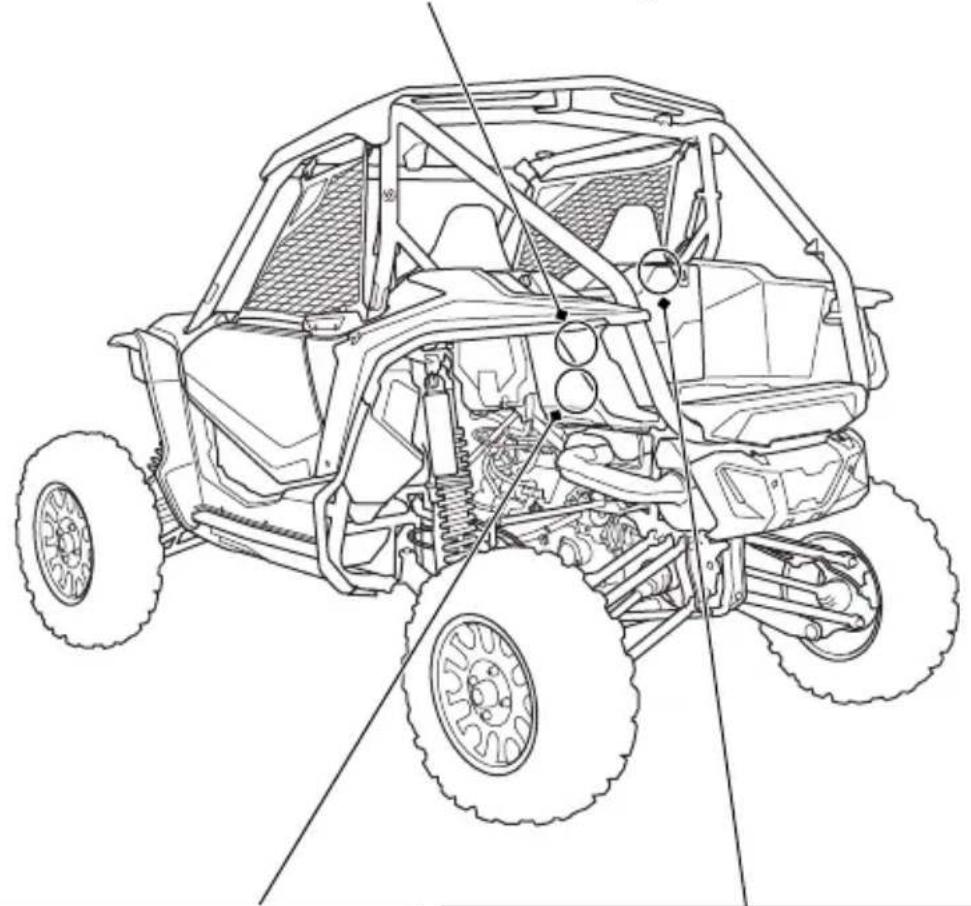

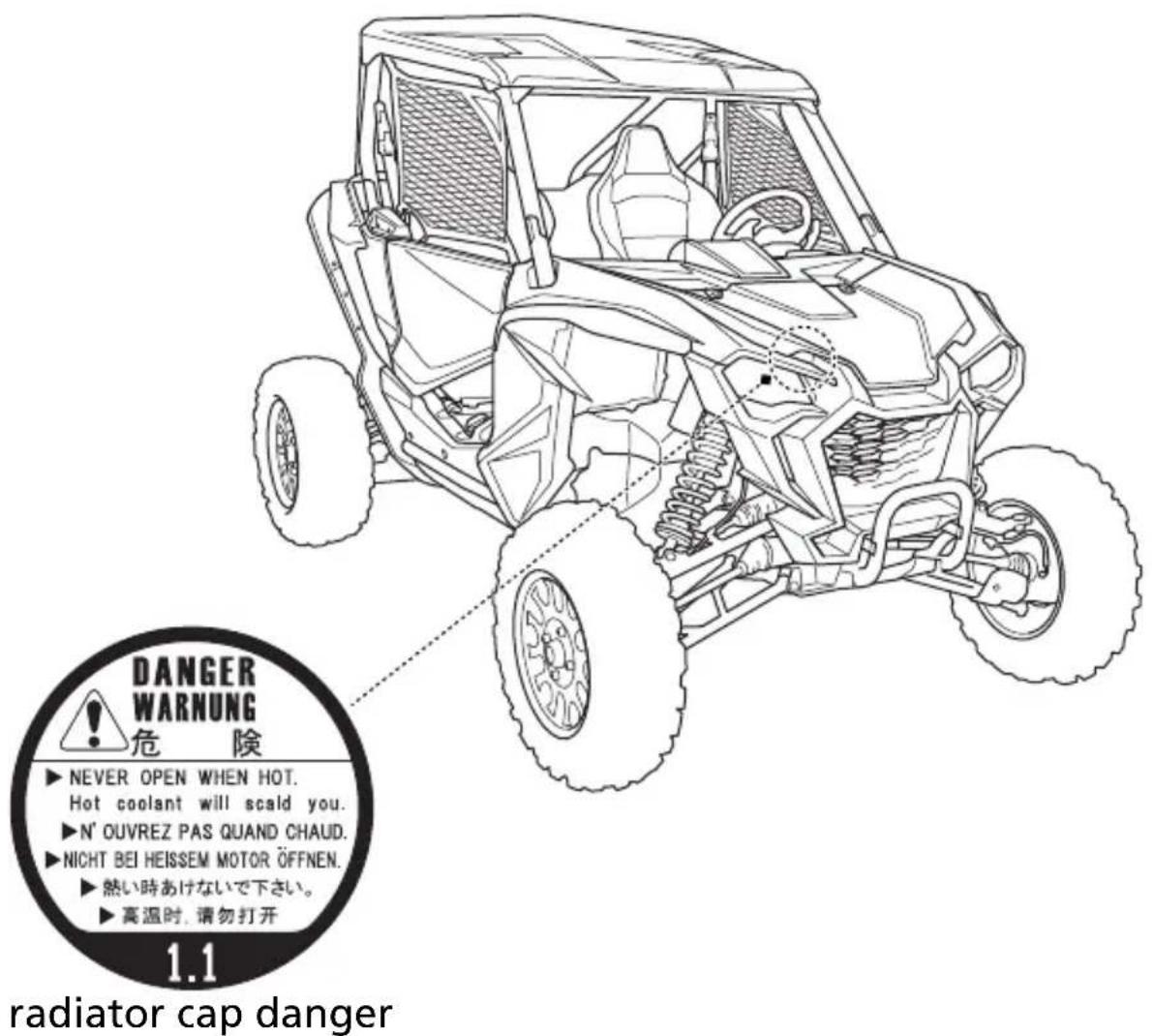

DANGER WARNUNG 危 陰 ▶ NEVER OPEN WHEN HOT. Hot coolant will scald you. ▶ N' OUVREZ PAS QUAND CHAUD. ▶ NICHT BEI HEISSEM MOTOR ÖFFNEN. ▶ 熱い時あけないで下さい。 ▶ 高温时. 请勿打开 1.1 radiator cap danger

SXS1000S2R/S2RD/S2XD

WARNING Improper tire pressure, overloading or overly worn or damaged tres can cause loss of control. Loss of control can result in severe injury or death. Check tires before each use. • Cold tire pressure: Front : 16 psi ( 110 kPa) Rear : 16 psi ( 110 kPa) • Maximum weight capacity: 732 lbs (332 kg) (including weight of cargo, occupants, accessories and. If applicable,trailer tongue load)

SXS1000S2X

WARNING Improper tire pressure, overloading or overly worn or damaged tres can cause loss of control. Loss of control can result in severe injury or death. Check tires before each use. - Cold tire pressure Front : 14 psi ( 100 kPa) Rear : 14 psi ( 100 kPa) • Maximum weight capacity: 732 lbs (382 kg) (Including weight of cargo, occupants, accessories and. If applicable.trailer tongue load)

tire & overload warning

Technical line drawing of a two-wheeled off-road vehicle showing structural components and suspension (no text or symbols)

WARNING SERIOUS INJURY OR DEATH can result if you ignore the following: DO NOT RIDE IN CARGO BED. DO NOT OVERLOAD CARGO BED. • Overloading can cause loss of control and crash, • Maximum load (200 lbar/136 kg), • Keep cargo inside the bed, as far forward, centered and as low as possible. • Secure items to prevent shifting. • Reduce speed and allow more room to turn or stop.

The ROPS meets the requirements of ISO 3471 :2008 and OSHA 1926.1002(c) Model: Honda SXS1000S2X/S2R Test GVWR: 2,350 lbs (1,066 kg) American Honda Motor Co., Inc. 1111 Honda Way, Timmonsville, SC

OSHA
loading warning

Tilt Table Test Result HONDA Vehicle Models: SXS1000S2X SXS1000S2R 37.3 Measurement of lateral stability, in degrees, of a sample, standard condition vehicle (with an operator and a passenger load - 430 pounds) as measured by the manufacturer in accordance with the SF table lateral stability test in the ANSIROHNA standard for Recreational Off-Highway Vehicles, Vehicle modifications, accessories, and loading can affect lateral stability. Training courses to teach ROV driving are available. For information contact your dealer and/or rehva.org (or oehiva in Canada). Check with your dealer to find out about state or local laws regarding ROV operation. THIS HANG TAG IS NOT TO BE REMOVED BEFORE SALE.

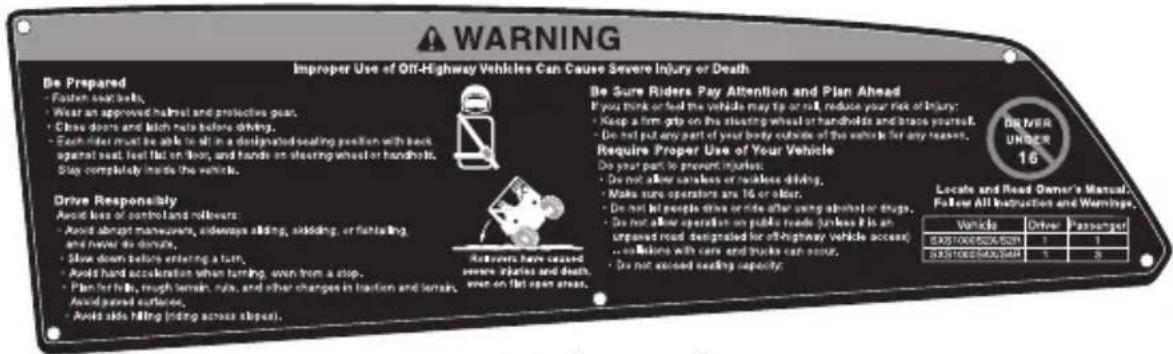

WARNING Improper Use of Off-Highway Vehicles Can Cause Severe Injury or Death Be Prepared - Pushing seat belts. - Wear an approved helmet and protective gear. - Close doors and latch seats before driving. - Each rider must be able to sit in a designated seating position with back against seat, lock flat on floor, and hands on steering wheel or handheld. Stay completely inside the vehicle. Drive Responsibly Avoid loss of control and reduce. - Avoid abrupt maneuvers, endways sliding, skiding, or htailing, and never do damage. - Slow down before entering a turn. - Avoid hard acceleration when farming, even from a step. - Plan for help, rough leather, ride, and other charges in trucker and lemmers. Avoid paved surfaces. - Avoid side lifting (filing across slope). Be Sure Riders Pay Attention and Plan Ahead If you think or load the vehicle may tip or roll, reduce your risk of injury; - Keep a firm grip on the clearing wheel or handhelds and brace yourself. - Do not put any part of your body outside of the vehicle for any reason. Require Proper Use of Your Vehicle Do your part to prevent injuries: - Do not allow carless or reckless driving. - Make sure operations are 16 or rider. - Do not let people drive or ride after using alcohol or drugs. - Do not allow operation on public roads (unless it is an unpaved road designated for off-Highway vehicles across) -- collists with cars and trucks can occur. - Do not exceed seeding capacity. Prepare and Read Owner's Manual. Follow All Instruction and Warnings.

general warning tag

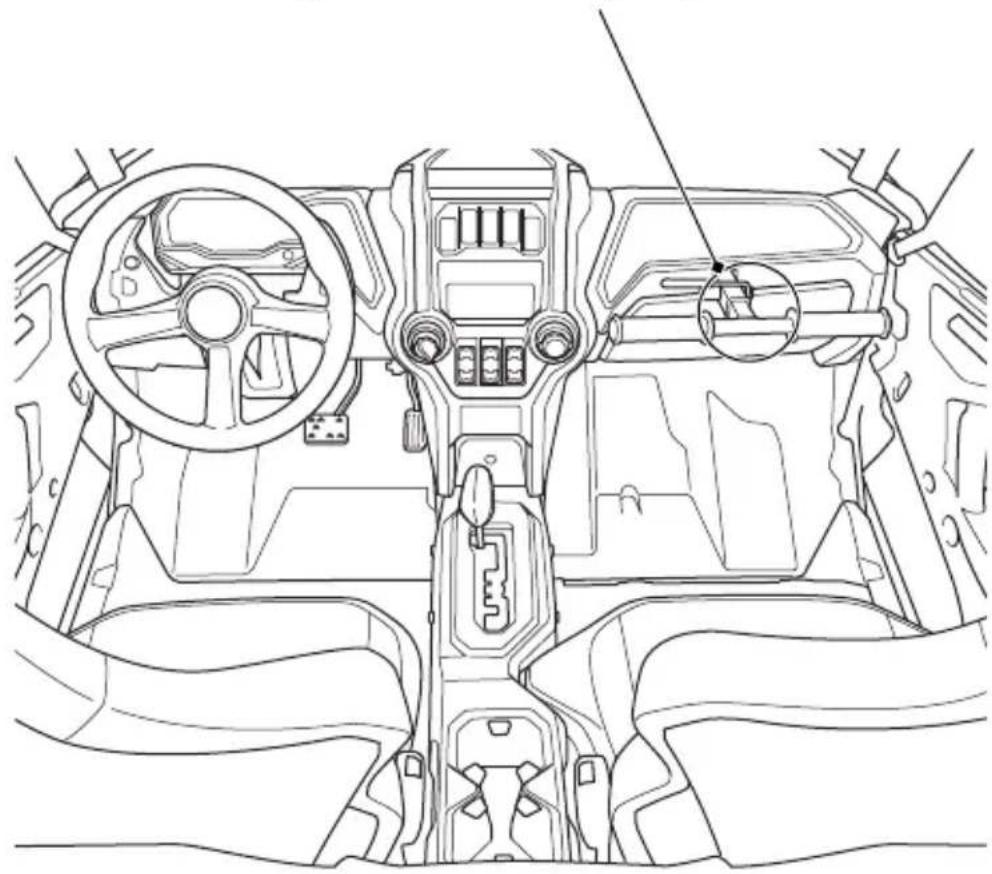

Technical line drawing of a vehicle dashboard and steering wheel (no text or symbols)

WARNING Improper Use of Off-Highway Vehicles Can Cause Severe Injury or Death Be Prepared - Faster road balls, - Wear an approved helmet and protective gear, - Close doors and latch parts before driving, - Each rider must be able to sit in a designated seating position with back against seat, feel flat on floor, and hands on steering wheel or handrails. Stay completely inside the vehicle. Drive Responsability Avoid loss of control and rolbeurs: - Avoid abrupt maneuvers, sidewops sliding, sliding, or fortailing and never do donut, - Slow down before entering a turn, - Avoid hand acceleration when turning, own from a stop, - Plan for hills, rough terrain, rules, and other changes in location and terrain. Avoid paved surfaces, - Avoid side filling (riding across slopes). Be Sure Riders Pay Attention and Plan Ahead If you think or feel the vehicle may tip or roll reduce your risk of injury: - Keep a firm gets on the steering wheel or handrails and brace yourself. - Do not put any part of your body outside of the vehicle for any reason. Require Proper Use of Your Vehicle Do your part to prevent injuries: - Do not allow animals or rockless driving, - Make sure operators are 16 or older. - Do not let people drive or ride after using alcohol or drugs. - Do not allow operator on public roads (unless it is an organized road designated for off-highway vehicles accessed) ...or bikes with cars and trucks can occur, - Do not exceed seating capacity. DR/NER UNDER 16 Locals and Road Owner's Manual Follow All Instructions and Warnings. Vehicle Driver Passenger SASSTOCKEER/BOX/RAY 1 1 SASSTOCKEER/BOX/RAY 1 20

general warning

Technical line drawing of a vehicle dashboard and steering wheel (no text or symbols)

Shift Select Lever Information

To prevent drivetrain damage, bring the unit to a complete stop before operating the shift select lever

$$ (P - R - N - H - L) $$

shift select lever information

This page intentionally left blank.

The items listed below are described in this section.

Operation Component Locations 13

Indicators & Displays.... 17

Neutral Indicator.... 19

Reverse Indicator 19

Electric Power Steering (EPS) Indicator.... 19

High Coolant Temperature Indicator 19

PGM-FI Malfunction Indicator Lamp (MIL) 19

Seat Belt Indicator.... 19

Low Oil Pressure Indicator.... 20

Hill Start Assist (HSA) Indicator.... 20

I - 4WD Indicator 20

Clutch Temperature Indicator 20

FLV Warning Indicator (SXS1000S2RD/S2XD only).... 21

FLV SPORT Indicator (SXS1000S2RD/S2XD only).... 21

FLV NORMAL Indicator (SXS1000S2RD/S2XD only).... 21

LAUNCH MODE Indicator 21

Multi-function Display.... 24

Speedometer 25

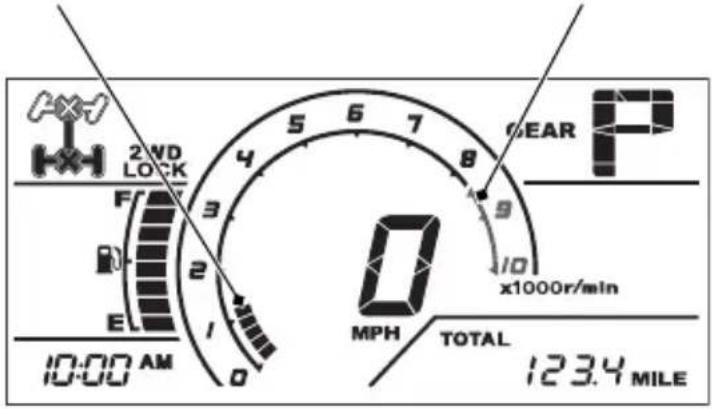

Tachometer 26

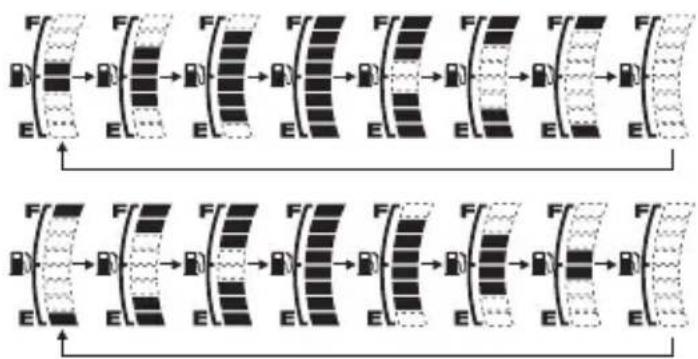

Fuel Gauge 27

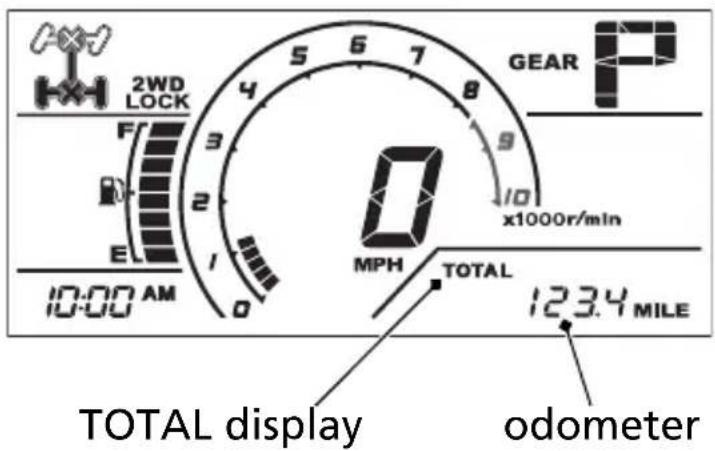

Odometer Display 28

Maintenance Minder Indicator 33

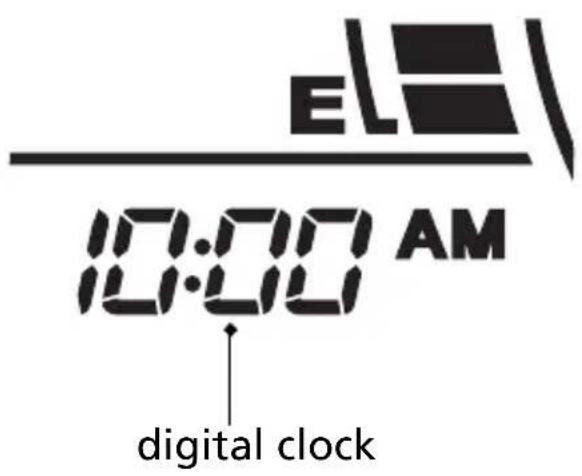

Digital Clock 34

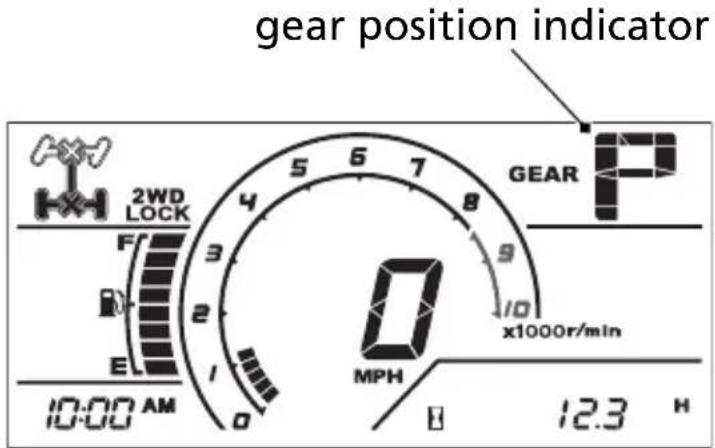

Gear Position Indicator.... 35

AT Indicator / MT Indicator / LOW Indicator 36

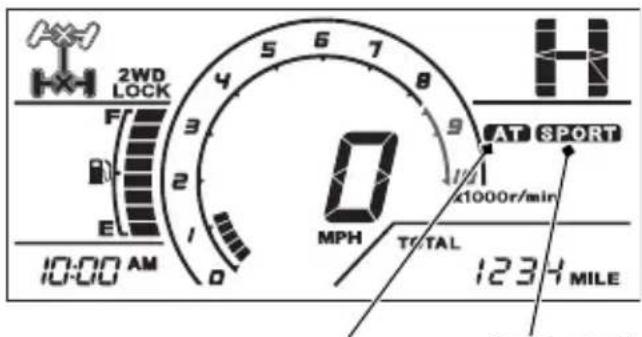

SPORT Indicator 36

Drive Mode Indicator 37

Driver Controls 38

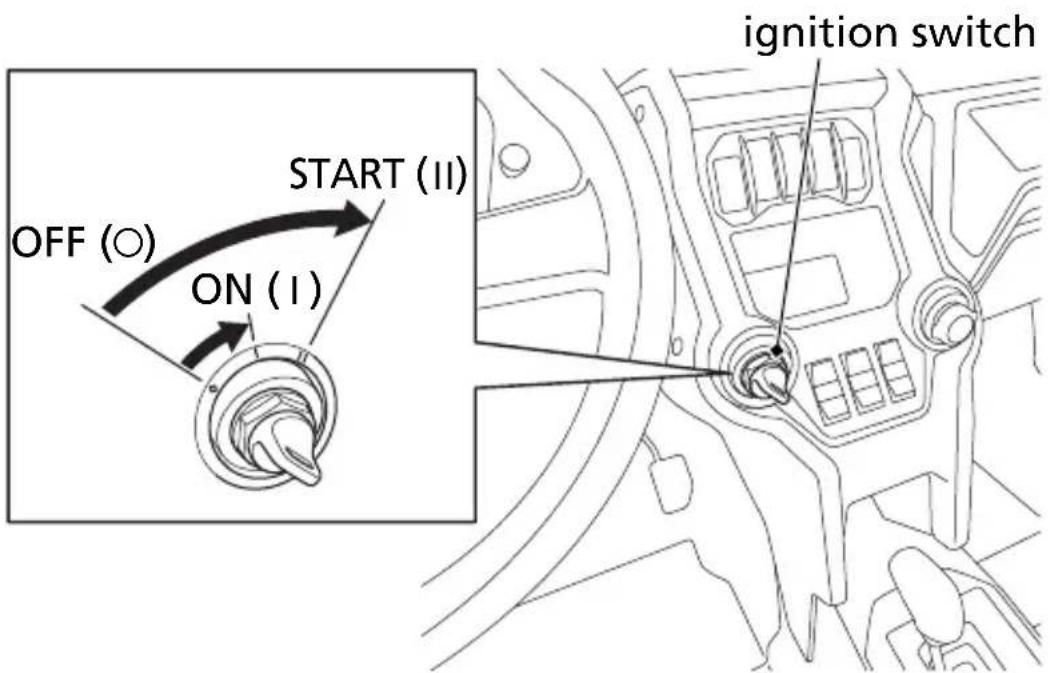

Ignition Switch.... 38

Headlight Switch 39

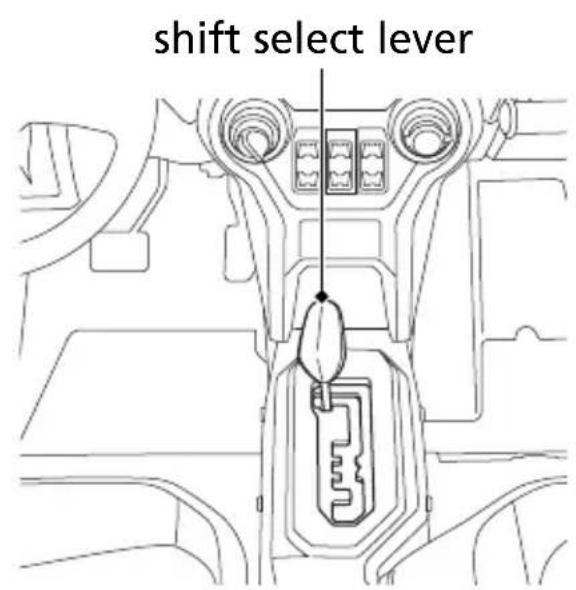

Shift Select Lever 40

(cont'd)

Instruments & Controls

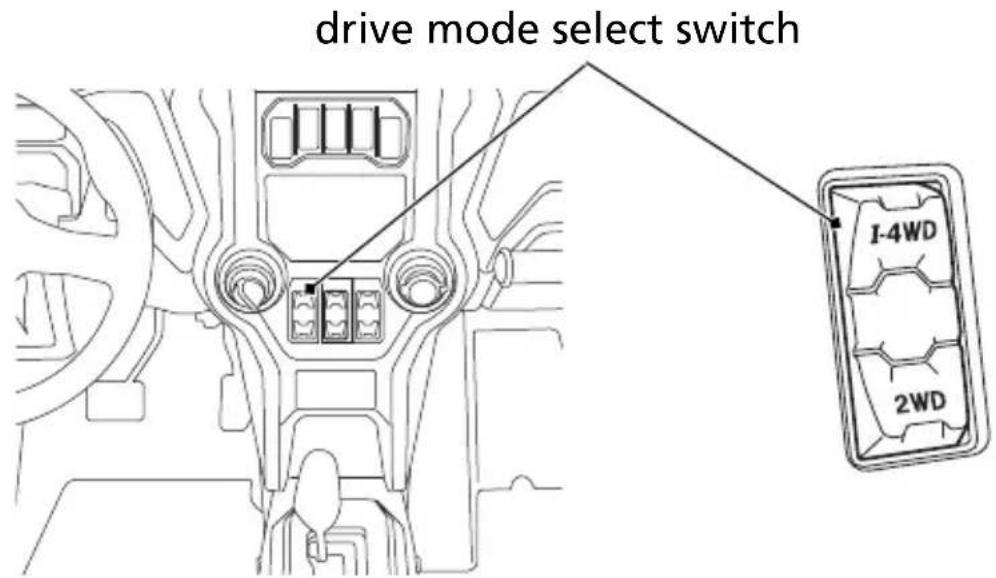

Drive Mode Select Switch 41

AT/MT Switch 43

SPORT Switch 44

Hill Start Assist (HSA) Switch 45

LAUNCH MODE Switch.... 46

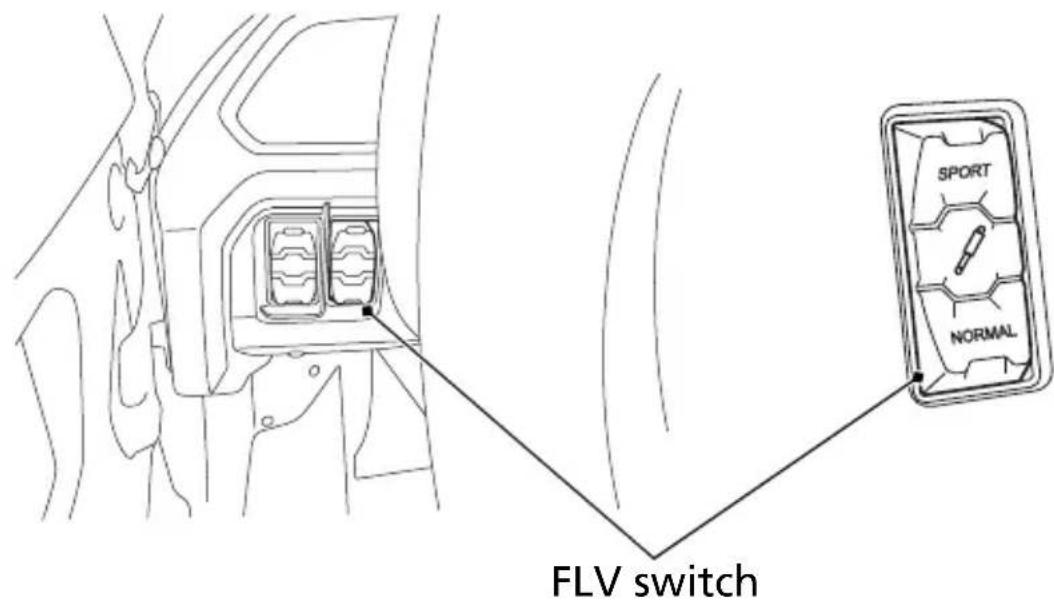

FOX® Live Valve (FLV) Switch (SXS1000S2RD/S2XD only)...... 47

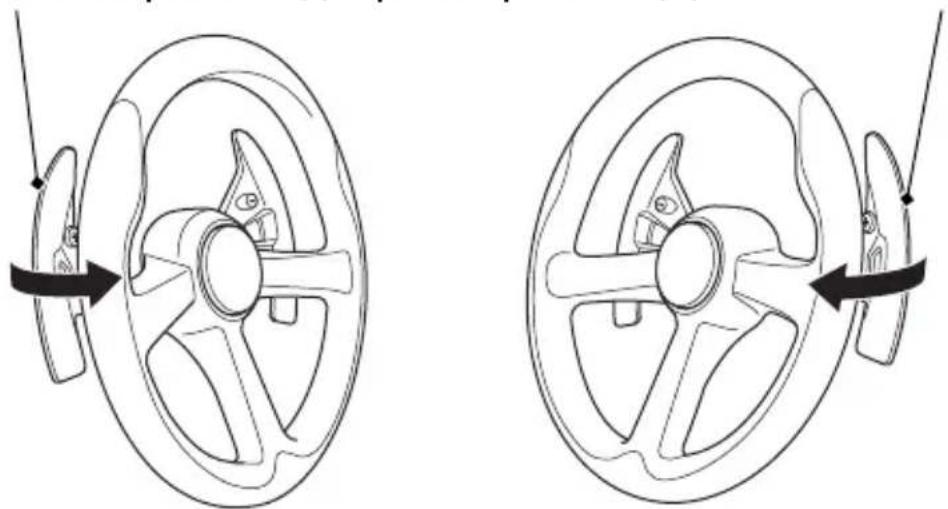

Shift Paddles.... 48

Steering Wheel Adjustment Lever 49

Doors 51

Side Nets 53

Side Nets Set Up 54

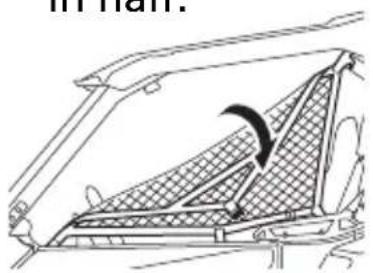

Side Nets Folding in Half 55

Seat.... 56

Seat....56

Driver Seat Position Adjustment 57

Seat Belts 59

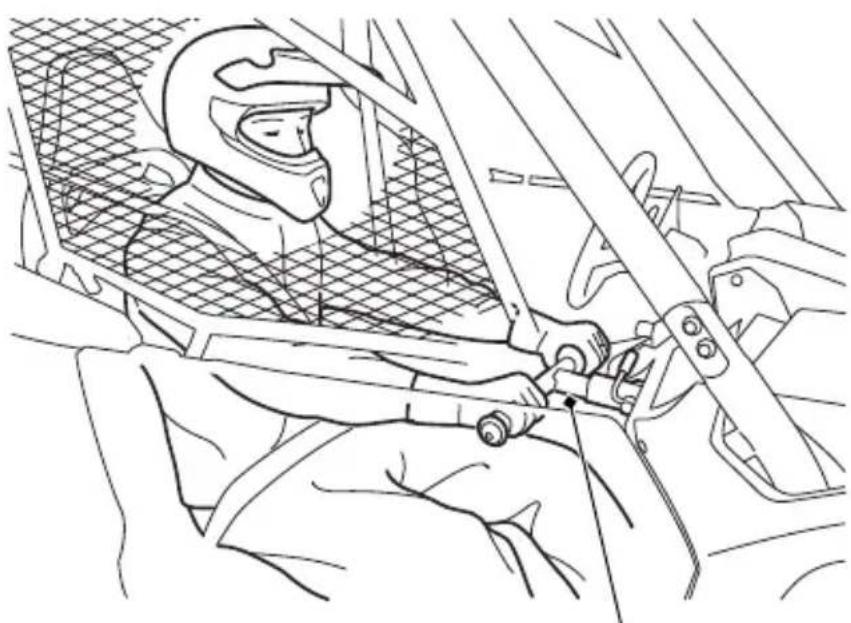

Passenger Handhold 64

Passenger Handhold 64

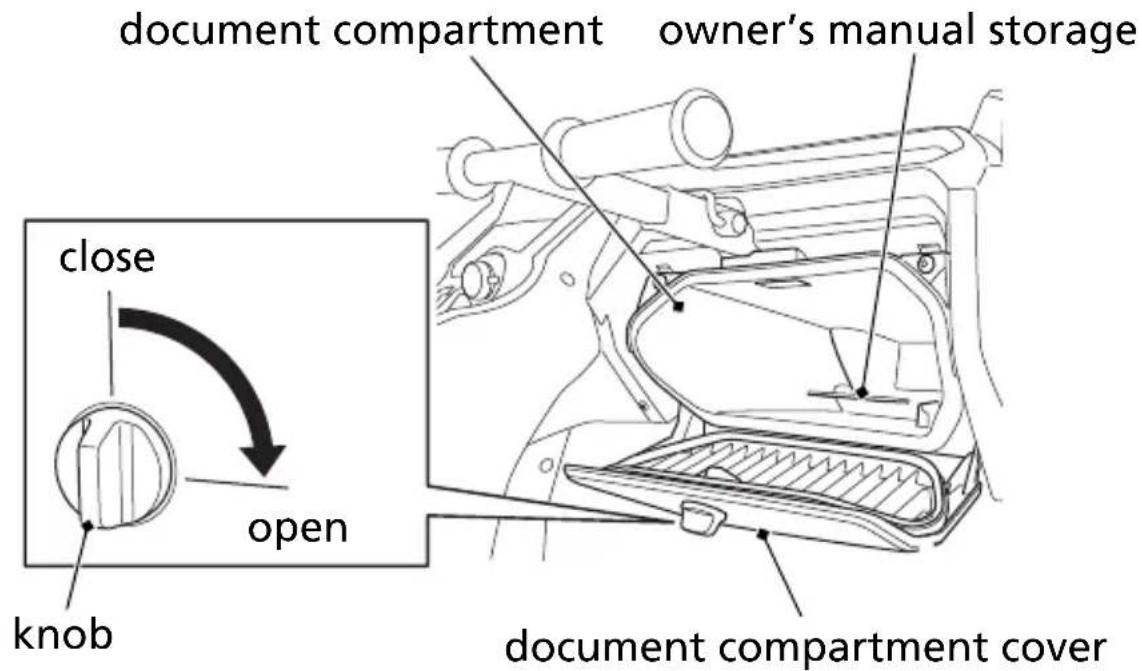

Storage Compartments 67

Accessory Power Socket 68

Cargo Bed 69

Tie-Down Hooks 69

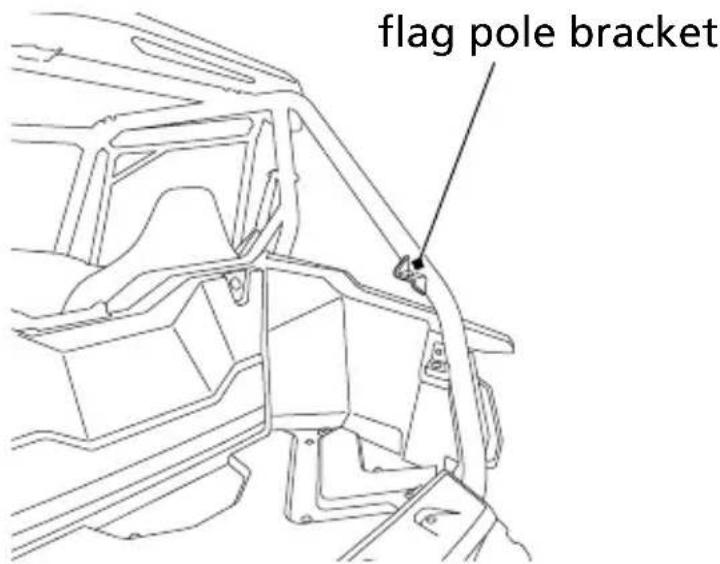

Flag Pole Bracket 70

Electronic Brakeforce Distribution (EBD) 71

Electric Power Steering (EPS) 72

Operation Component Locations

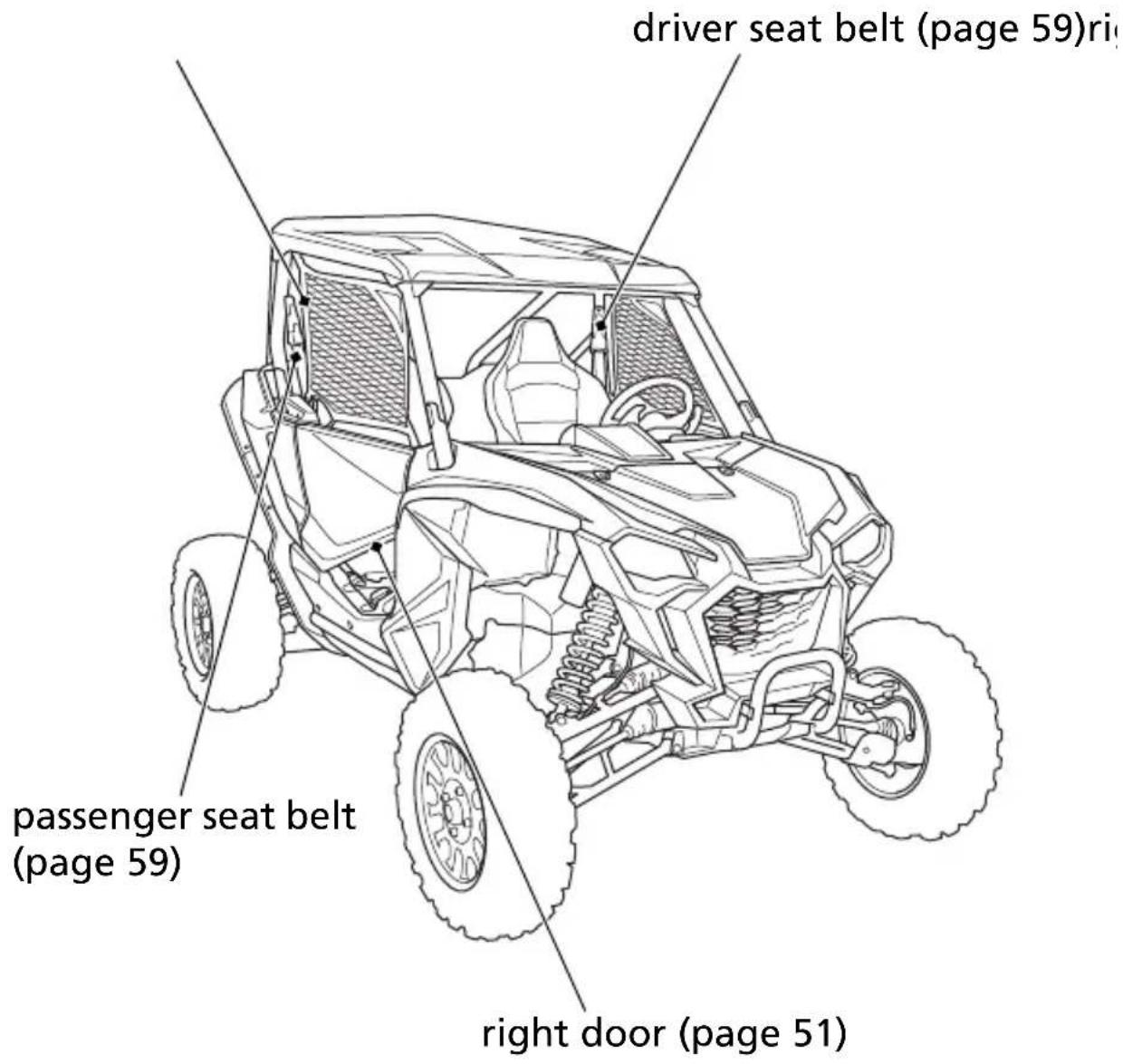

driver seat belt (page 59) right passenger seat belt (page 59) right door (page 51)

Operation Component Locations

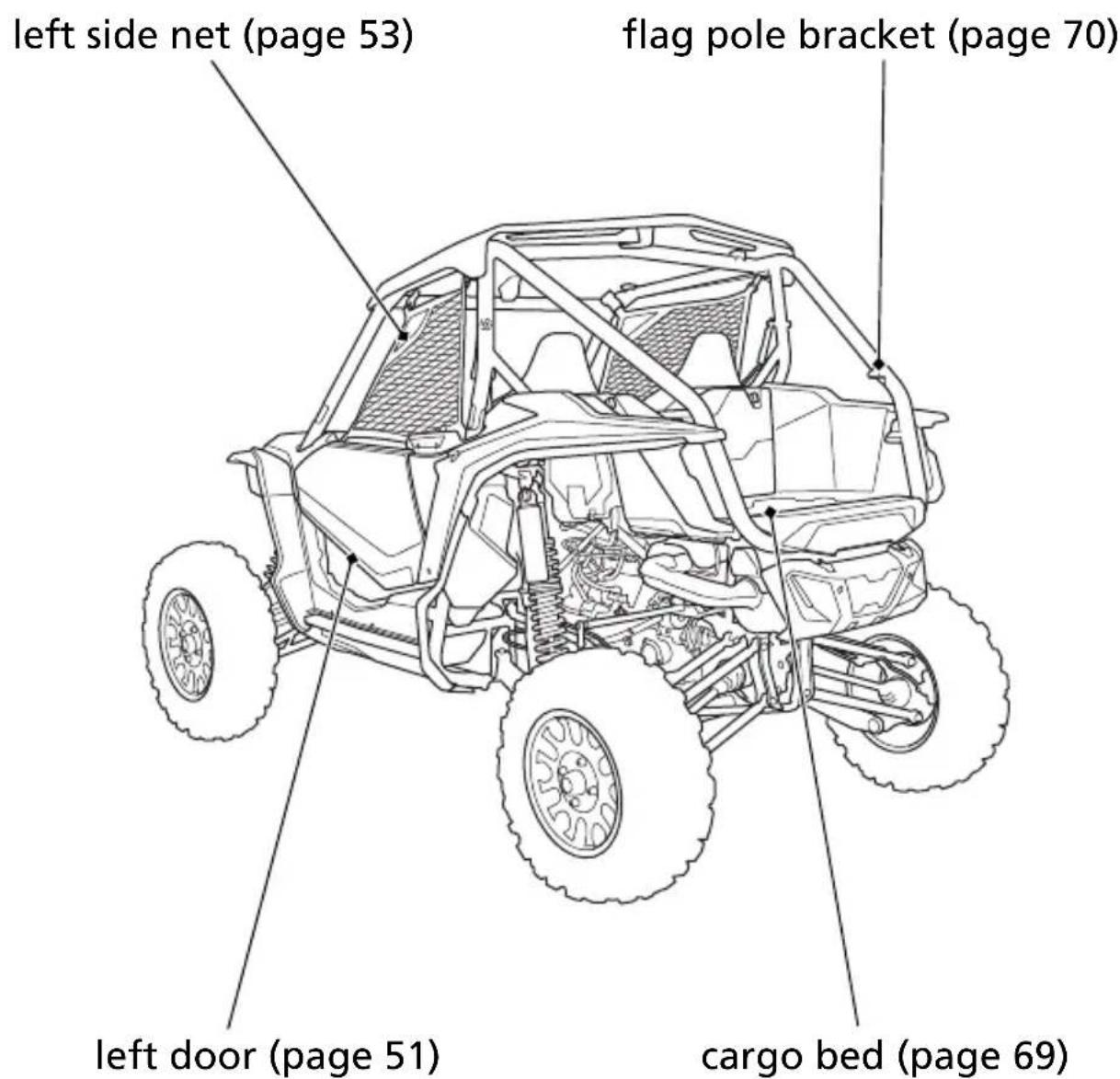

left side net (page 53) flag pole bracket (page 70) left door (page 51) cargo bed (page 69)

Operation Component Locations

steering wheel adjustment lever (page 49) indicators & displays (page 17) downshift paddle (page 48) upshift paddle (page 48) shift select lever (page 40) headlight switch (page 39) driver seat position adjustment seat lever (page 58) FLV switch (SXS1000S2RD/S2XD only) (page 47)

Operation Component Locations

accessory power socket (page 68) passenger handhold lock lever (page 65) ignition switch (page 38) passenger handhold (page 64) drive mode select switch (page 41) AT/MT switch, SPORT switch (page 43, 44) hill start assist (HSA) switch, LAUNCH MODE switch (page 45, 46)

Indicators & Displays

The indicators and displays on your Honda SXS keep you informed, alert you to possible problems, and make your driving safer and more enjoyable. Refer to the indicators frequently. Their functions are described on the following pages.

Lamp Check

The indicators come on and go off sequentially when you turn the ignition switch to the ON (1) position.

If one of these indicators does not come on when it should, have your dealer check for problems.

Indicators & Displays

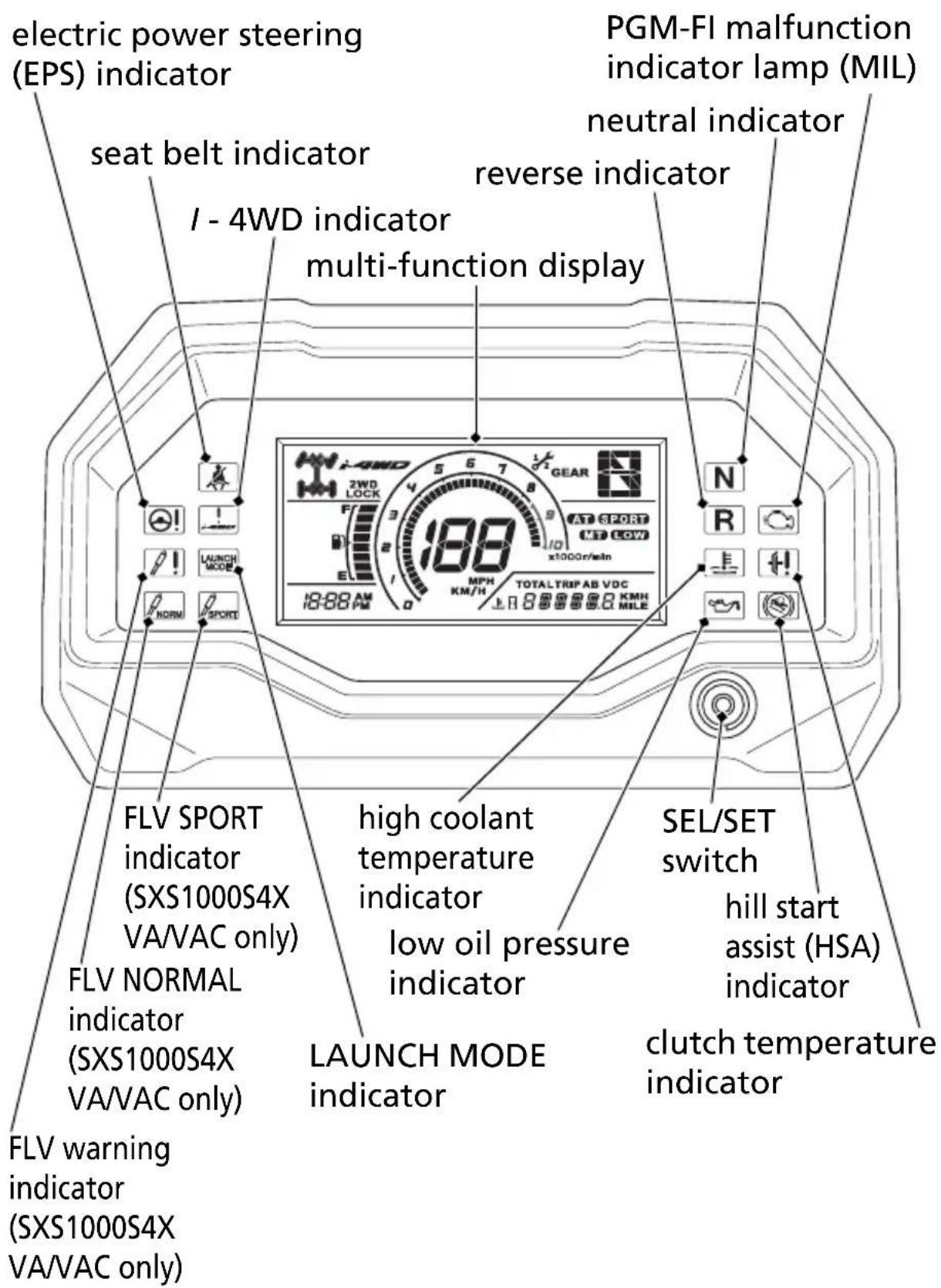

electric power steering (EPS) indicator seat belt indicator I - 4WD indicator multi-function display PGM-FI malfunction indicator lamp (MIL) neutral indicator reverse indicator FLV SPORT indicator (SXS1000S4X VA/VAC only) FLV NORMAL indicator (SXS1000S4X VA/VAC only) FLV warning indicator (SXS1000S4X VA/VAC only) high coolant temperature indicator low oil pressure indicator LAUNCH MODE indicator SEL/SET switch hill start assist (HSA) indicator clutch temperature indicator

Neutral Indicator

N This indicator comes on and stays on when the transmission is in neutral.

Reverse Indicator

This indicator comes on and stays on when the transmission is in reverse.

Electric Power Steering (EPS) Indicator

This indicator comes on when the ignition switch is turned ON (1) and remains on until the engine is started.

This indicator comes on and stays on when there is abnormality in the electric power steering system.

High Coolant Temperature Indicator

This indicator comes on and stays on when the coolant temperature is high enough to adversely affect the service life of the engine. If this indicator comes on while you are driving, stop as soon as possible, turn the engine off, and let it cool.

PGM-FI Malfunction Indicator Lamp (MIL)

This indicator comes on and stays on when there is a problem with your vehicle's engine system. If this happens, reduce speed and take your vehicle to a dealer as soon as possible.

Seat Belt Indicator

This indicator starts blinking if the driver's seat belt is not latched and remains blinking until the driver's seat belt is latched. If the driver's seat belt is not latched properly, the maximum vehicle speed will be limited by the seat belt speed limiting system (page 60).

Low Oil Pressure Indicator

This indicator comes on when the ignition switch is turned ON (1) and remains on until the engine is started.

This indicator comes on and stays on when the engine oil pressure is low enough to cause engine damage. If this indicator comes on while you are driving, stop as soon as possible, turn the engine off and check for oil leaks and oil level.

This indicator also comes on when the emergency valve is operated. (See more details about the emergency valve on page 231)

Hill Start Assist (HSA) Indicator

This indicator comes on briefly when the ignition switch is turned ON (1).

This indicator comes on when HSA is being used (page 45).

I - 4WD Indicator

This indicator comes on briefly when the ignition switch is turned ON (1).

This indicator comes on and stays on when there is a problem with your vehicle's HSA (Hill Start Assist), BTCS (Brake Traction Control System) and EBD (Electronic Brakeforce Distribution). If this happens, reduce speed and take your vehicle to a dealer as soon as possible.

Clutch Temperature Indicator

This indicator comes on briefly when the ignition switch is turned ON (1).

If the indicator light does not go off after indicator lamp check, have your vehicle inspected by your dealer.

This indicator flashes when the clutch temperature is unusually high. If the indicator flashes while driving, see page 238.

FLV Warning Indicator (SXS1000S2RD/S2XD only)

This indicator comes on briefly when the ignition switch is turned ON (1).

This indicator comes on and stays on when there is a problem with your vehicle's FOX® Live Valve (FLV) system. If this happens, reduce speed and take your vehicle to a dealer as soon as possible.

FLV SPORT Indicator (SXS1000S2RD/S2XD only)

This indicator comes on briefly when the ignition switch is turned ON (1).

This indicator comes on when FLV is in the SPORT mode (page 181).

FLV NORMAL Indicator (SXS1000S2RD/S2XD only)

This indicator comes on briefly when the ignition switch is turned ON (1).

This indicator comes on when FLV is in the NORMAL mode (page 181).

LAUNCH MODE

LAUNCH MODE Indicator

This indicator comes on briefly when the ignition switch is turned ON (1).

This indicator comes on when launch mode is activated (page 96). If this indicator flashes, launch mode is deactivated. Release the accelerator pedal and shift paddles and wait until the indicator goes off. Verify the preconditions are met and reactivate launch mode. (page 96).

Indicators & Displays

Multi-function display		This display includes the following functions.
	Speedometer Shows	driving speed in miles or kilometers per hour (page 25).
	Tachometer Shows	the engine rpm (page 26).
	Fuel gauge Shows	approximate fuel supply available (page 27).
	Odometer display Shows	shows the odometer, tripmeter, coolant temperature gauge, hour meter, maintenance tripmeter and maintenance hour meter (page 28).
	Maintenance minder indicator	Shows when specified maintenance interval is reached (page 33).
	Digital clock Shows	the time (hours and minutes) (page 34).
	Gear position indicator	Shows the gear position (page 35).
	AT/MT/LOW indicator	Shows the transmission mode (page 36).
	SPORT indicator
	Drive mode indicator	Shows the driving mode (page 37).
SEL/SET switch This switch		ch is used to select the mode, to change the mileage unit and adjust/ resets the digital clock, tripmeter and hour meter (page 24).

Indicators & Displays

Display Check

When the ignition switch is turned ON (1), the multi-function display will temporarily show all the modes and digital segments and initial message. This indicates that the liquid crystal display is functioning properly.

If any part of this display does not come on when it should, have your dealer check for problems.

multi-function display

Multi-function Display

The multi-function display consists of the following function displays:

• Speedometer
• Gear position indicator
• Tachometer
• AT indicator
• Fuel gauge
• MT indicator
• Odometer display
• LOW indicator
• Maintenance minder indicator
• SPORT indicator
• Drive mode indicator
• Digital clock

drive mode indicator maintenance minder gear position indicator speedometer AT indicator SPORT indicator GEAL 2WD LOCK AT SPORT MT LOW x1000rpm MPH KM/H TOTALTRIP/AB VDC N R E S O MORM ESPORT 1800 MPH ±0.8mm/11.8mm/8.1mm/8.5mLE LOW indicator MT indicator SEL/SET switch fuel gauge digital clock tachometer odometer display

Speedometer

This display shows speed in miles or kilometers per hour.

Mileage Unit Change

The speedometer, odometer, tripmeter, and maintenance tripmeter show in either "MPH" and "MILE" or "KM/H" and "KM".

To change the mileage unit, press and hold the SEL/SET switch for more than 5 seconds in odometer mode (page 28) with the vehicle stopped.

MPH KM/H KM MILE 18:00 AM PM 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18.00 18,000r/min AT SPORT NE LOW GEAR MPH TOTALTRIP AB VDC KM/H MILE

SEL/SET switch

Speedometer Blinking

If the speedometer digits and seat belt indicator blink simultaneously while you are driving, the maximum vehicle speed will be limited to no more than 15 mph (24 km/h) by the seat belt speed limiting system (page 60).

Indicators & Displays

Tachometer

This display shows the engine speed in revolutions per minute (rpm). Do not operate the engine in the tachometer red zone. Excessive engine speed can adversely affect engine life.

tachometer red zonetachom

2VD LOCK F E 10:00 AM 10 x1000r/min MPH TOTAL 123.4 MILE GEAR P

Fuel Gauge

The fuel gauge shows the approximate fuel supply available. The fuel tank capacity is:

7.27 US gal (27.5 ℓ)

fuel gauge

When the last segment blinks, you should refill the tank as soon as possible. The amount of fuel remaining when the blinking starts is approximately:

1.14 US gal (4.3 ℓ)

F B E

Fuel gauge failure:

If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustrations.

If this occurs, see your dealer as soon as possible.

Odometer Display

This display includes the odometer, tripmeter, coolant temperature gauge, hour meter, maintenance tripmeter, and maintenance hour meter.

Each time you press the SEL/SET switch, the mode will change as shown in the illustration.

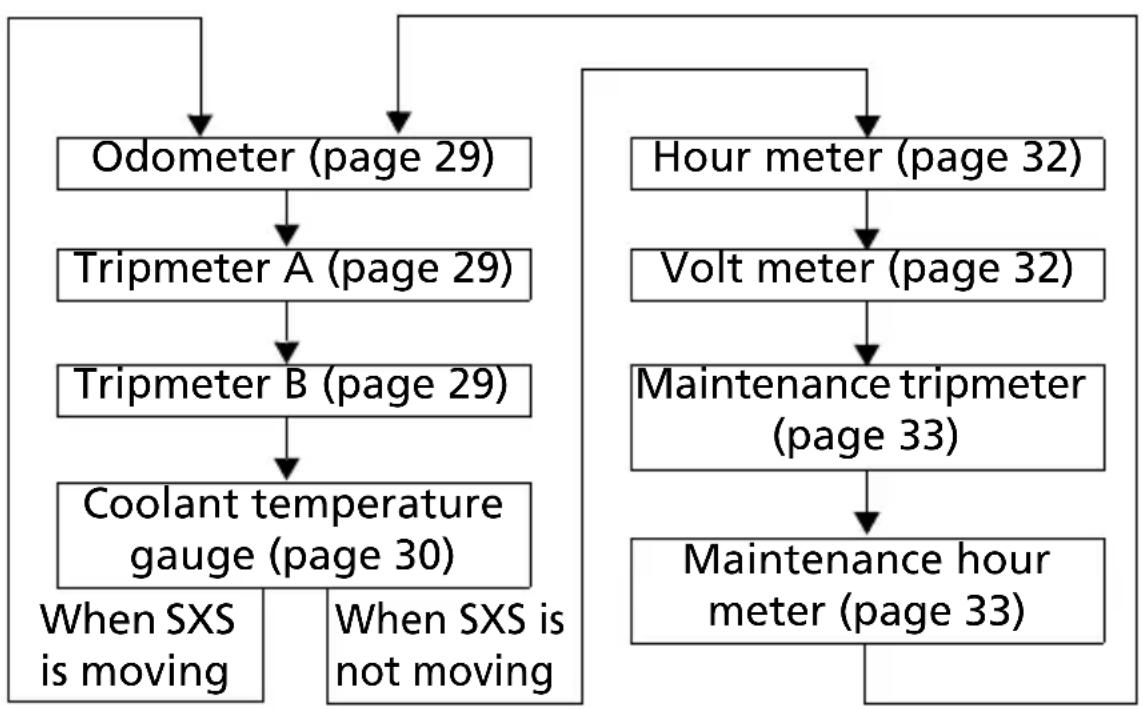


If a display item malfunctions, press and hold the SEL/SET switch for 10 seconds to reset the display.

Indicators & Displays

Odometer

The odometer shows the total miles or kilometers ridden with the TOTAL display. The odometer locks at 999,999 when the readout exceeds 999,999.

2WD LOCK F E 10:00 AM 1000r/min MPH TOTAL 123.4 MILE ODOMETER GEAR

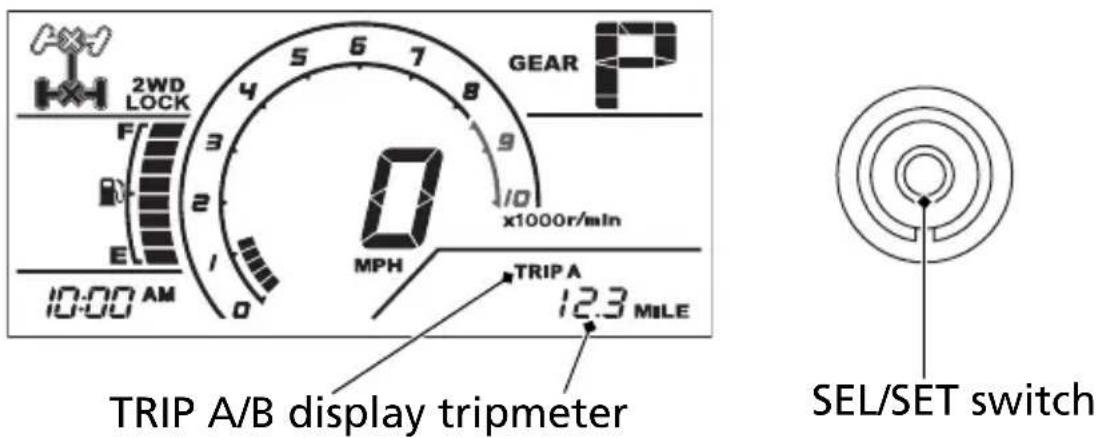

Tripmeter

The tripmeter shows the number of miles or kilometers ridden since you last reset the tripmeter A or B. The tripmeter A and B returns to 0.0 when the readout exceeds 9,999.9.

To reset the tripmeter, press and hold the SEL/SET switch while the display is in tripmeter A or B.

2WD LOCK F R E 10:00 AM 4 5 6 7 8 GEAR x1000r/min MPH TRIP A 12.3 MILE TRIP A/B display tripmeter SEL/SET switch

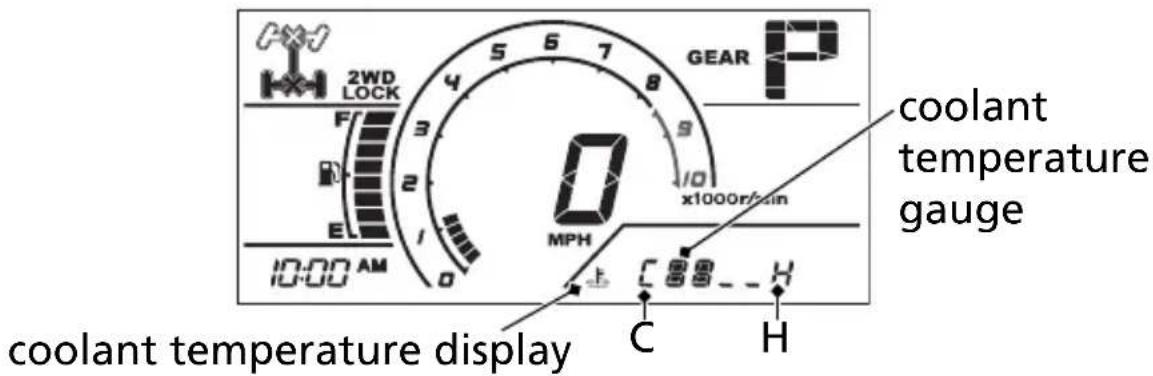

Coolant temperature gauge

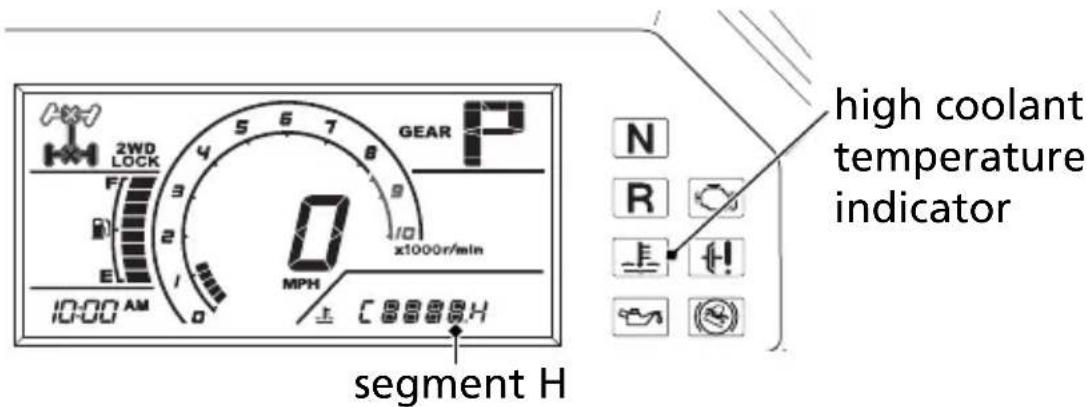

The coolant temperature gauge shows engine coolant temperature with the coolant temperature display. When the segment begins to move above the C (Cold) display, the engine is warm enough for the SXS to be ridden. When the coolant temperature is low, the coolant temperature gauge will display “Lo”. The normal operating temperature range is within the section between the H and C displays.

2WD LOCK GEAR coolant temperature gauge coolant temperature display 10:00 AM MPH C H

If all sections of the coolant temperature gauge, including segment H and the high coolant temperature indicator are on, the engine is overheated. Stop the engine and check the reserve tank coolant level.

Read pages 236 – 237 and do not drive the SXS until the problem has been corrected.

NOTICE

Continuing to ride with an overheated engine can cause serious engine damage.

2WD LOCK F R E 10:00 AM 0 GEAR P x1000r/min MPH segment H high coolant temperature indicator N R E H!

Indicators & Displays

Coolant temperature gauge failure:

If the coolant temperature system has an error, the coolant temperature gauge will blink and appear in the display, and the high coolant temperature indicator will turn on.

If this occurs, see your dealer as soon as possible.

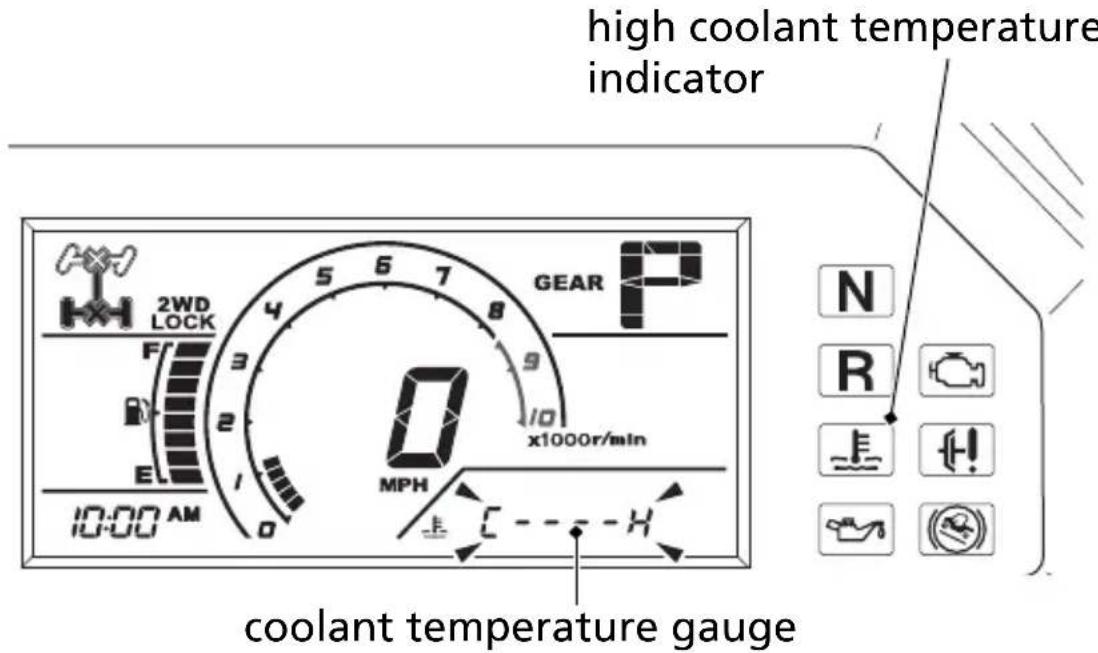

high coolant temperature indicator 2WD LOCK GEAR P 0 x1000r/min MPH coolant temperature gauge N R E H! L

Indicators & Displays

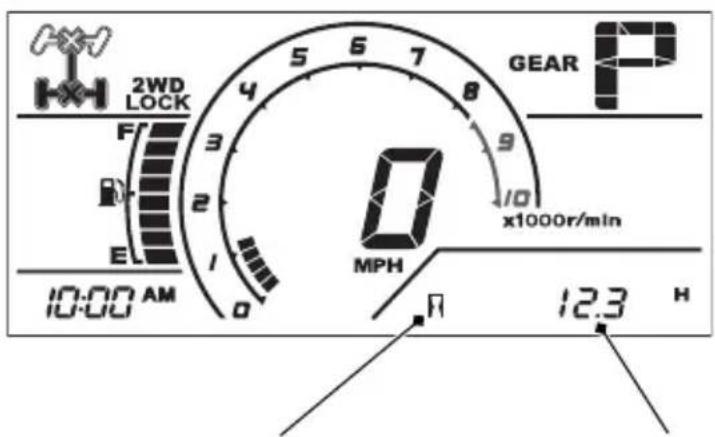

Hour meter

The hour meter display shows the accumulated hours the ignition is ON (1). The hour meter locks at 99,999.9 when the readout exceeds 99,999.9.

2WD LOCK F E 10:00 AM 4 3 2 1 0 5 6 7 8 9 MPH GEAR x1000r/min 10 12.3 H

hour meterhour me

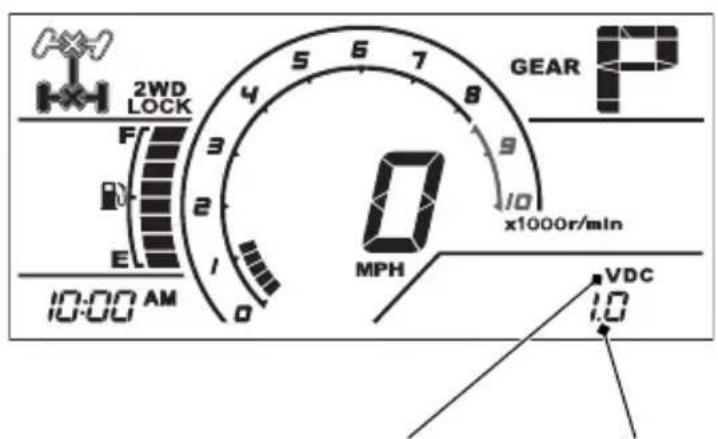

Volt meter

The volt meter shows the current battery voltage.

2WD LOCK F E 10:00 AM 4 3 2 1 0 5 6 7 8 9 MPH GEAR x1000r/min VDC 1.0

The maintenance minder indicator appears in the display when the mileage or operating hours on your Honda SXS reach the maintenance interval specified on the maintenance schedule (page 119).

Reset the indicator after each scheduled maintenance is performed. If the scheduled maintenance is performed before the maintenance minder indicator appears, be sure to reset the maintenance minder after performing the scheduled maintenance.

Resetting the indicator:

To reset the indicator, press and continue to hold the SEL/SET switch and turn the ignition switch to ON (1). The indicator will light up, and after 2 seconds will blink twice to indicate, the maintenance minder indicator is reset.

The maintenance tripmeter and maintenance hour meter will also reset.

See more details about the maintenance minder indicator on page 117.

maintenance minder indicator 1 2 GEAR P 1 2 GEAR P 8 9 x1000r/min 8 9 x1000r/min ---- 600 MILE maintenance tripmeter ---- 100 H maintenance hour meter SEL/SET switch

Digital Clock

The digital clock shows the hour and minutes with the 12-hour clock display.

To set the time:

1. Turn the ignition switch to ON (I).
2. Change to the hour meter display (page 28).
3. Press and hold the SEL/SET switch until the hour digits start flashing.
4. Press the SEL/SET switch until the desired hour is displayed.
5. Press and hold the SEL/SET switch. The minute digits start flashing.
6. Press the SEL/SET switch until the desired minute is displayed.
7. Press and hold the SEL/SET switch. The AM or PM starts flashing.
8. Press the SEL/SET switch to select AM or PM.
9. To complete setting the clock, press and hold the SEL/SET switch or turn the ignition switch OFF (O).

EL 10:00 AM digital clock

SEL/SET switch

Gear Position Indicator

The gear position indicator shows the selected shift position by the shift select lever (page 40).

The indicator displays: P for park, N for neutral, R for reverse, H for high-range, L for low-range, and 1 – 6 for gear positions (shift paddles operation).

“-” will be displayed on the gear position indicator when the transmission is not shifted into gear properly. Before driving, check that the gear position is properly displayed on the gear position indicator.

If the gear position indicator blinks, see If the Transmission Is Not Functioning Properly, page 229.

gear position indicator 2WD LOCK F E 10:00 AM MPH x1000r/min GEAR 12.3 H

AT Indicator / MT Indicator / LOW Indicator

These indicators display the transmission mode of the SXS.

The indicators display: AT for automatic shift mode, MT for manual shift mode.

To switch between AT mode and MT mode, press the AT/MT switch (page 43). When MT mode is selected in low-range (L), the LOW indicator also comes on.

2WD LOCK F E 10:00 AM 4 5 6 7 8 9 AT MT LOW x100/r/min MPN TOTAL 1234 MILE AT indicator MT indicator LOW indicator

SPORT Indicator

When AT mode is selected, pressing the SPORT switch displays the SPORT indicator (page 44).

2WD LOCK F E 10:00 AM 0 4 5 6 7 8 9 MPH TOTAL 1/21 x1000r/min AT SPORT 1234 MILE

SPORT indicatorAT ind

Drive Mode Indicator

The drive mode indicator shows the selected drive mode by pressing the drive mode select switch (page 41, 95).

drive mode indicator IAWD LOCK F R E 10:00 AM 0 MPH TOTAL 1234 MILE N R E H! G

drive mode select switch position	2WD I - 4WD
drive mode indicator	2WDLOCK

The drive mode indicator will flash between 2WD mode and I - 4WD mode for various conditions.

• The drive mode select switch is in / - 4WD mode while the engine is not running.
• A speed difference between front and rear tires is larger than allowed by the control program. (Release the accelerator pedal)
  • The system detects a malfunction. (See your dealer)

Ignition Switch

The ignition switch is a three-position, key-operated switch used to start and stop the engine.

OFF (○) — The engine and all electrical circuits are off. The key can be inserted and removed only when it is in this position.

ON (1) — The electrical circuits are on. You can use the accessory power socket in this position.

START (II) — This position is used only to start the engine. The key will automatically return to the ON (I) position when you let go of it.

OFF (○) START (II) ON (I) ignition switch

Headlight Switch

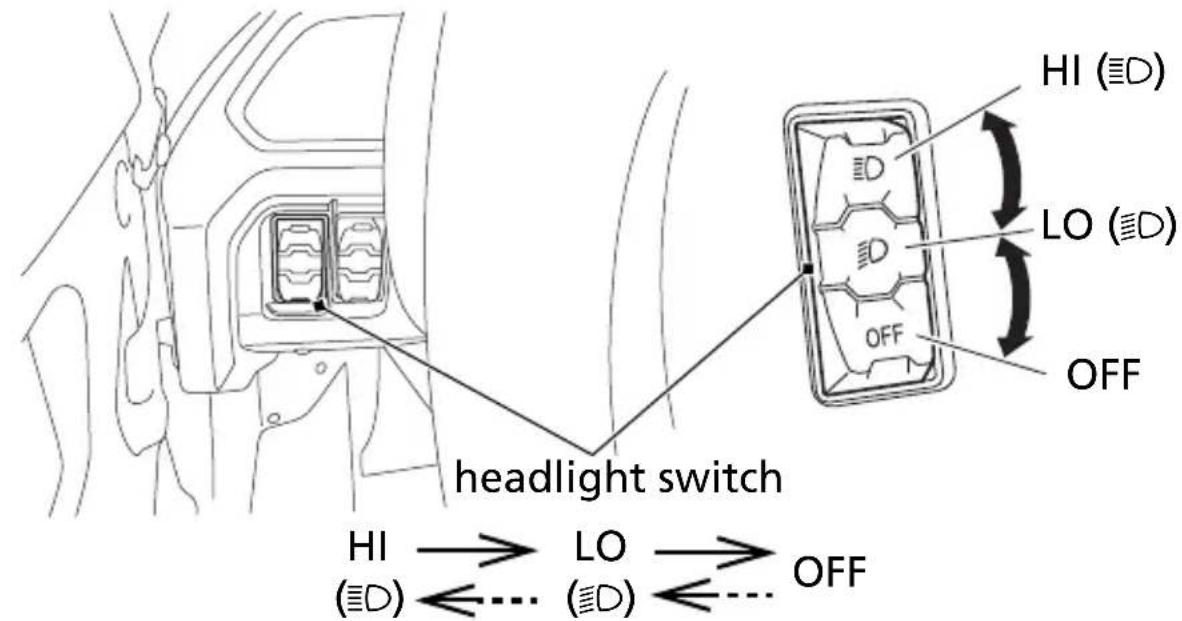

The headlight switch is located on the left side of the steering wheel, has three positions: OFF, LO and HI.

This switch turns the headlights and taillights on and off, and changes between low beam or high beam.

For example:

To change the headlight position from OFF to HI: press the HI side of headlight switch until you feel two clicks.

To change the headlight position from OFF to LO: press the HI side of headlight switch until you feel one click.

To change the headlight position from HI to LO: press the OFF side of headlight switch until you feel one click.

HI (≡D) LO (≡D) OFF OFF headlight switch HI → LO → OFF (≡D) ← ... (≡D) ← ...

Press "≡D" side of headlight switch until you feel one click Press "OFF" side of headlight switch until you feel one click

OFF — The headlights and taillights are off.

LO (ID) — The headlights and taillights are on. The headlights are low beam.

HI (≡D) — The headlights and taillights are on. The headlights are high beam.

Shift Select Lever

Your Honda SXS is equipped with an automatically controlled 6-speed transmission. The shift select lever, located on the center console, has five positions: park (P), reverse (R), neutral (N), high-range (H), and low-range (L).

shift select lever

You should shift the shift select lever only when the vehicle is stopped with your foot on the brake pedal and with the engine idling. Use a firm motion to select the appropriate gear. Have your vehicle checked by a dealer if you experience any shifting problems.

NOTICE

Do not attempt to shift the shift select lever with the engine speed above idle or while the vehicle is moving, as you may damage the transmission.

Drive Mode Select Switch

The drive mode select switch, located on the center console, has two drive modes: 2WD and I - 4WD (page 95).

You can switch between 2WD mode and I - 4WD mode by pressing the drive mode select switch at any time the engine is running; you can also select I - 4WD mode while driving.

It is not recommended to change the drive mode under high throttle or excessive rear tire slippage.

When I - 4WD mode is selected and the ignition switch turned OFF (O) and then back to ON (I), the drive mode temporarily defaults to 2WD mode. Once the engine is re-started, I - 4WD mode will automatically resume.

• I - 4WD mode remains engaged until the 2WD mode is selected or the engine is stopped.
• I - 4WD mode will only engage while the engine is running.

drive mode select switch I-4WD 2WD

(cont'd)

To check your present drive mode, look at the drive mode indicator.

drive mode select switch position	2WD I - 4WD
drive mode indicator

The drive mode indicator will flash between 2WD mode and I - 4WD mode for various conditions.

• The drive mode select switch is in I - 4WD mode while the engine is not running.
• A speed difference between front and rear tires is larger than allowed by the control program. (Release the accelerator pedal)
• The system detects a malfunction. (See your dealer)

If the indicators do not go out or come on according to the drive mode, see your dealer.

AT/MT Switch

The AT/MT switch is located on the center console.

When the shift select lever is in high-range (H) or low-range (L) position, you can switch between AT mode and MT mode by pressing the AT/MT switch.

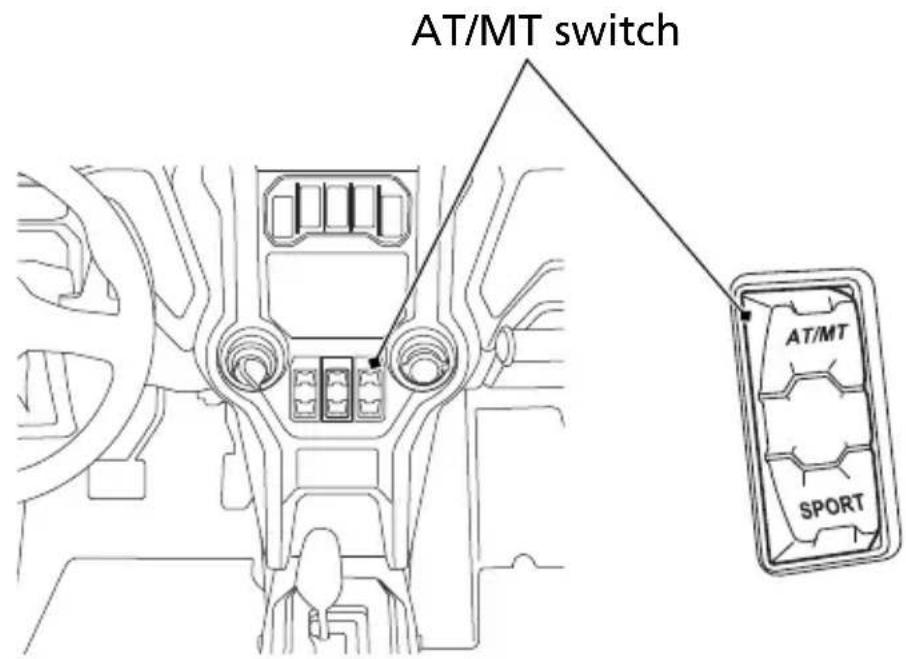

AT/MT switch AT/MT SPORT

SPORT Switch

The SPORT switch is under the AT/MT switch.

When AT mode is selected and the shift select lever is in the high-range (H) position, you can switch between turning SPORT mode on and off by pressing the SPORT switch.

When the shift select lever is in the low-range (L) position, SPORT mode will not turn on even if the SPORT switch is pressed.

When MT mode is selected, SPORT mode will not turn on even if the SPORT switch is pressed.

AT/MT SPORT SPORT switch

Hill Start Assist (HSA) Switch

The Hill Start Assist (HSA) switch is located on the center console.

HSA keeps the brake pressure applied briefly to help prevent the vehicle from rolling on inclines as you move your foot from the brake pedal to the accelerator pedal.

HSA switch LAUNCH MODE

To operate HSA:

1. Press and hold the brake pedal to hold the vehicle.
2. Make sure the shift select lever is in "H" or "L" when facing uphill, or "R" when facing downhill.
3. Press and hold the HSA switch until the HSA indicator comes on the display.

(cont'd)

Driver Controls

1. Release the pressure from the brake pedal and apply the accelerator.

- HSA is active for 1.5 seconds or until the accelerator is applied. HSA will self cancel if the accelerator is not applied within 1.5 seconds of pushing the HSA button.

- HSA is not a parking brake.

- HSA may not prevent the vehicle from rolling downhill if the vehicle is overloaded, on a steep hill, or sliding in slippery conditions.

NOTICE

Avoid prolonged Hill Start Assist (HSA) use, as continuous operation may cause the system to overheat and fail.

LAUNCH MODE Switch

The LAUNCH MODE switch is under the HSA switch.

The LAUNCH MODE switch is used to operate the launch mode. For launch mode operation procedure, see page 96.

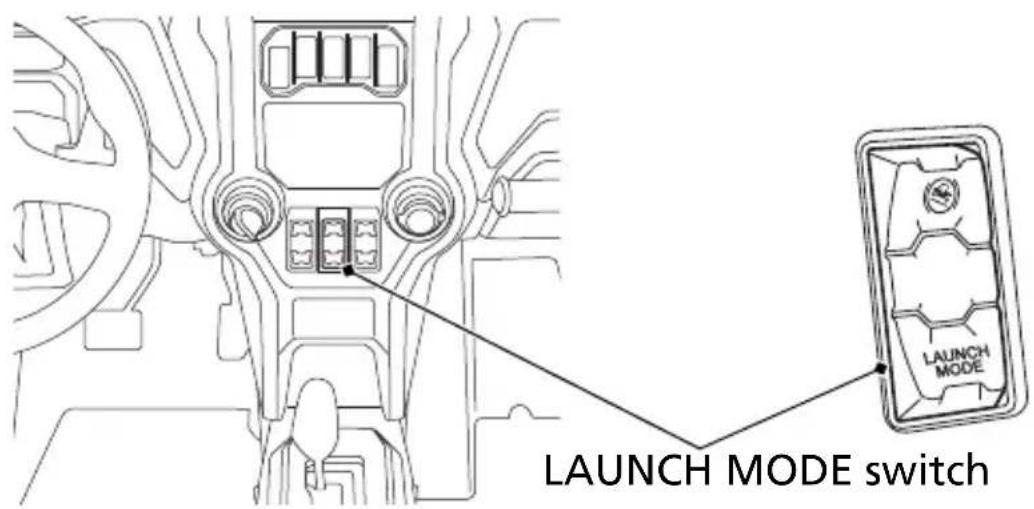

LAUNCH MODE switch LAUNCH MODE

FOX® Live Valve (FLV) Switch (SXS1000S2RD/S2XD only)

The FLV switch is located on the left side of the steering wheel, and has two modes: NORMAL mode and SPORT mode.

The FLV switch is used to change between NORMAL mode and SPORT mode of FOX Live Valve (FLV) system.

For more information on FOX Live Valve (FLV) system, see page 181.

FLV switch SPORT NORMAL

Shift Paddles

Your Honda SXS is equipped with a pair of shift paddles that are located behind the steering wheel.

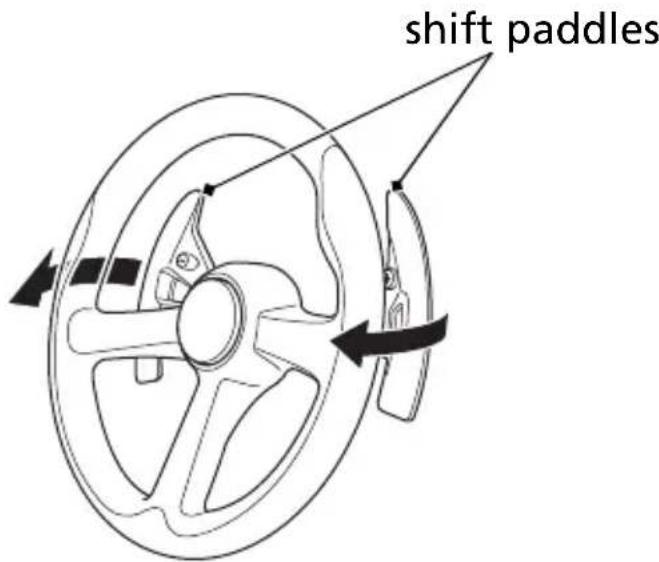

downshift paddle (-) upshift paddle (+)

Diagram showing two views of a steering wheel with directional arrows indicating motion (no text or symbols)

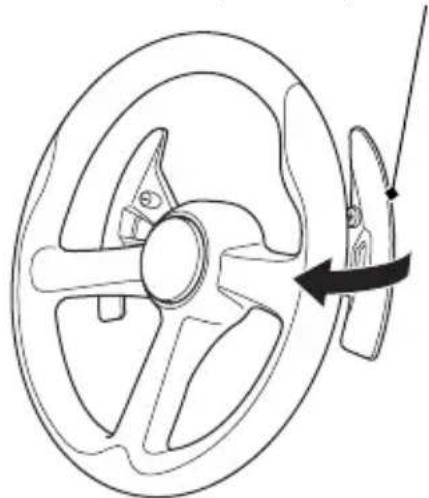

Pull the upshift paddle (+) to shift to a higher gear position and the downshift paddle (-) to shift to a lower gear position.

In MT mode, operate the shift paddles to drive the SXS.

In AT mode, you can drive the SXS without operating the shift paddles. You can also operate the shift paddles to temporarily change the gear position. (See page 88 for more information)

Steering Wheel Adjustment Lever

Your Honda SXS is equipped with a height-adjustable steering wheel. Adjust the steering wheel position so that you can comfortably grip the steering wheel in an appropriate driving posture.

WARNING

Adjusting the steering wheel position while driving may cause you to lose control of the vehicle and be seriously injured in a crash. Adjust the steering wheel only when the vehicle is stopped.

NOTICE

The steering wheel position damper unit contains high pressure nitrogen gas. Do not attempt to disassemble, service, or improperly dispose of the damper. See your dealer.

Driver Controls

Adjustment

1. Hold the steering wheel and pull the steering wheel adjustment lever up towards you.
2. While pulling the steering wheel adjustment lever towards you, adjust the steering wheel position.
3. Release the steering wheel adjustment lever.
4. After adjusting the position, make sure you have securely locked the steering wheel in place by trying to move it up and down.

steering wheel

steering wheel adjustment lever

Your Honda SXS is equipped with doors to prevent branches, gravel, or other debris from getting inside the driver's compartment, and to keep the driver's and passenger's legs and feet inside the vehicle if your vehicle ever tips or overturns. Be sure all doors are securely closed before driving your Honda SXS, and never remove a door.

If a door is damaged or does not close securely, see your dealer for repair or replacement.

Do not drive the Honda SXS with the doors open or removed.

The left and right doors can be opened in the same manner.

Open

1. Release the side net buckle.
2. Pull up on the handle.
3. Open the door.

Close

1. Close the door securely until the second latch click is heard.
2. Fasten the side net buckle.
3. Make sure the door is closed securely.

LEFT SIDE (right side similar)

side net buckle door handle

Doors

If the doors rattle when closed, turn the door stopper counterclockwise to adjust the doors. Each door has a double latching mechanism. Adjust the door stoppers so that it latches on the second click.

The left and right doors can be adjusted in the same manner.

Adjustment

1. Open the door (page 51).
2. Turn the door stopper counterclockwise to extend it, and clockwise to retract it.
3. Make sure the door is closed securely until the second latch click is heard.

LEFT SIDE (right side similar)

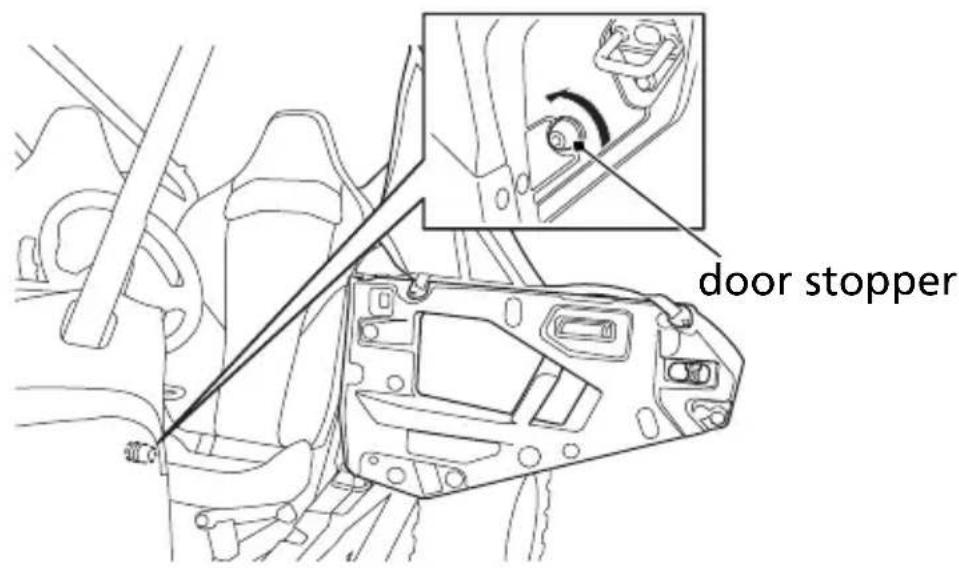

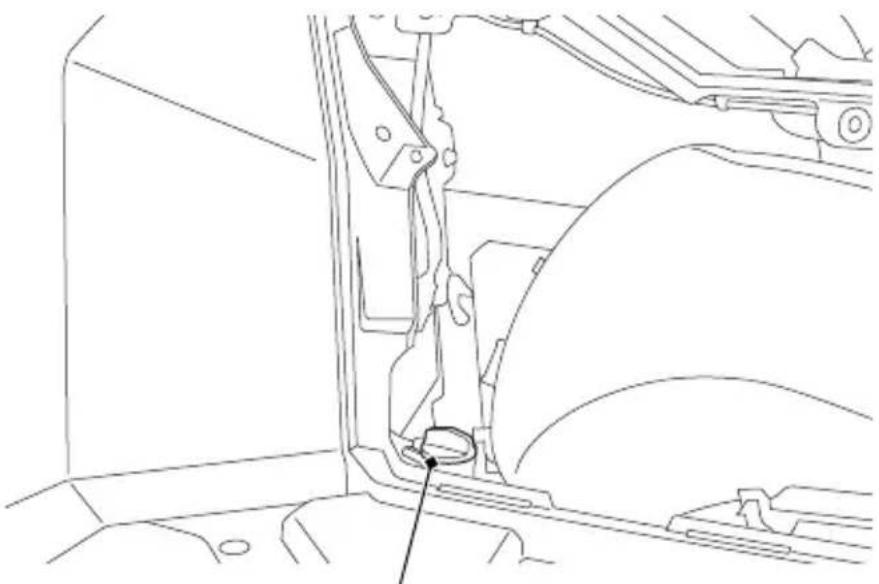

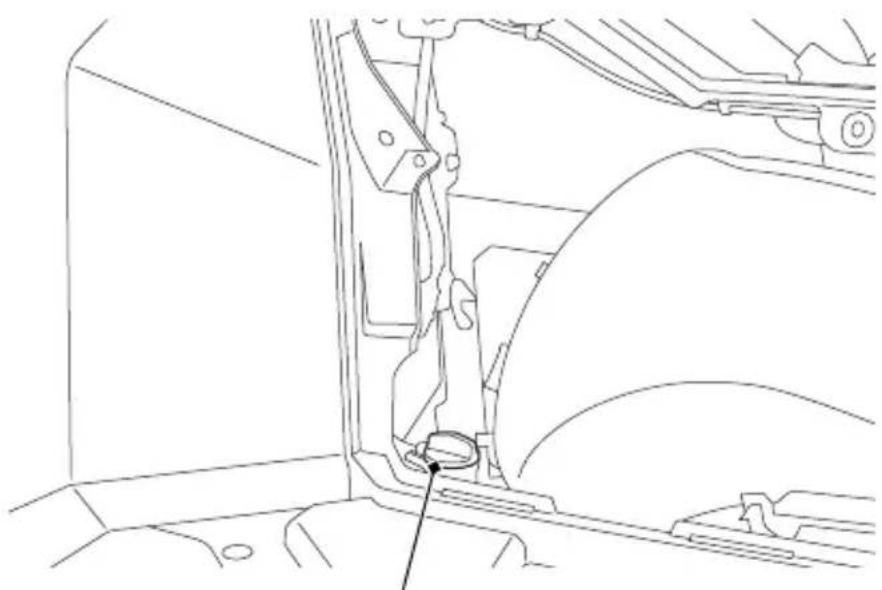

door stopper

Your Honda SXS is equipped with side nets to prevent branches, or other debris from getting inside the driver's compartment, and to keep the driver's and passenger's hands and arms inside the occupant protective structure (OPS) if the vehicle ever tips or overturns.

The side nets are secured to the OPS with side net D-rings and side net buckles. To function properly, the side nets should be tight. If a side net is loose, tighten the belts on the side net D-rings.

Be sure the side nets are properly latched before driving your Honda SXS, and never remove side nets from the vehicle. Inspect the condition of the side net and its mounting hardware. If there is wear, deterioration, damage, or they do not latch and tighten securely, see your dealer for repair or replacement.

Side Nets Set Up

The left and right side nets can be set up in the same manner.

Inspect the side nets and their mounting hardware for damage as specified in the maintenance schedule on page 119.

1. Tighten the belts on the side net D-rings.
2. Fasten the side net buckle.

LEFT SIDE (right side similar)

side net buckle side net D-ring belt side net D-ring belt

Side Nets Folding in Half

The side nets can be folded in half to make cleaning and maintaining your Honda SXS a little easier.

The left and right side nets can be folded in the same manner.

To Fold the Side Net

1. Release the side net buckle.
2. Fold the side net in half towards outside of the vehicle.
3. Grab the hook and secure the side net by hooking on to the net outer profile.

To Spread the Side Net

1. Unhook the hook from side net and spread the side net.
2. Fasten the side net buckle.

Always return the side nets to their normal positions, properly fastened, and tightened before driving.

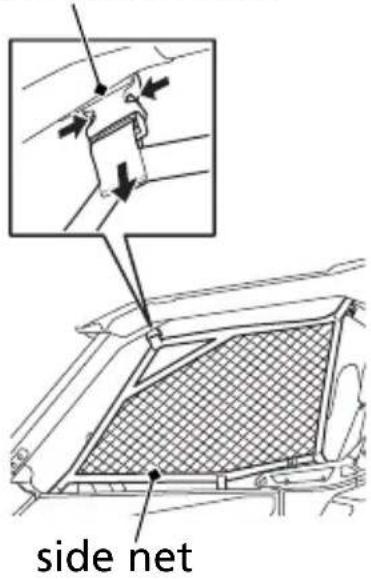

LEFT SIDE (right side similar)

side net buckle

side net

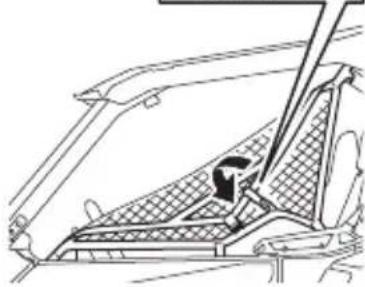

Fold the side net in half.

Diagram of a car interior showing a meshed structure with an arrow indicating direction (no text or symbols)

hook

Pure mechanical linkage diagram without any text, numbers, or symbols

Technical line drawing of a car interior showing steering wheel and seatbelt (no text or symbols)

Seat

Your Honda SXS is equipped with two bucket seats that are designed to carry a driver and one passenger only.

CAUTION

Driving with cargo on the passenger seat can interfere with the drivers ability to control the vehicle.

Cargo on the passenger seat can be thrown around causing injury or a crash.

Do not drive with any cargo on the passenger seat. Properly secure all cargo in the cargo area.

Driver Seat Position Adjustment

The driver seat can be adjusted to suit the drivers preference. Adjust the drivers seat to the desired position that allows the driver to maintain full control of the vehicle.

The driver should be able to sit upright with back against the seat-back, be able to properly reach the pedals, and be able to grip the steering wheel comfortably with both hands.

Allow sufficient space between the center of the steering wheel and drivers chest.

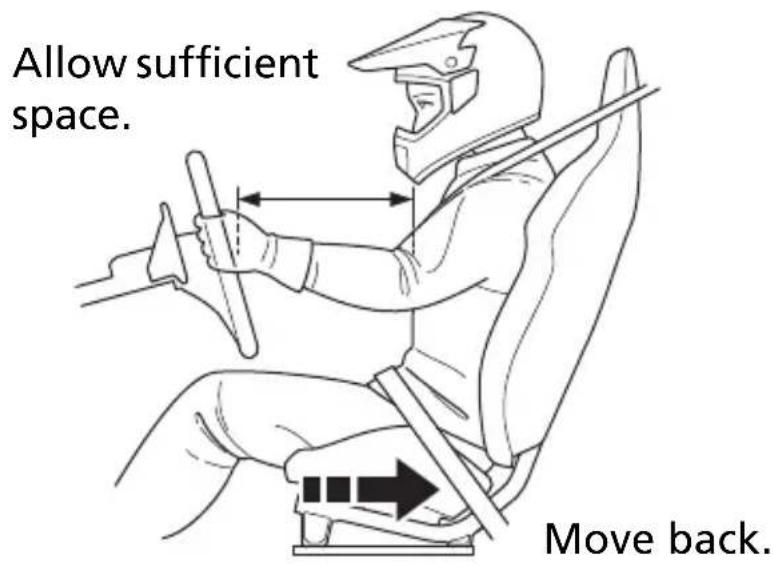

Allow sufficient space. Move back.

Always make driver seat adjustment before driving. The passenger seat does not have a seat position adjustment.

Seat

Adjustment

1. Sit down in the driver seat.
2. Pull up on the seat lever to unlock the seat, while pulling up on the seat lever slide the driver seat to your preferred position. The driver seat adjustment has 6 positions to select from.
3. Release the seat lever to lock the seat in place.

Once the seat is adjusted correctly, rock it back and forth to make sure it is locked in position.

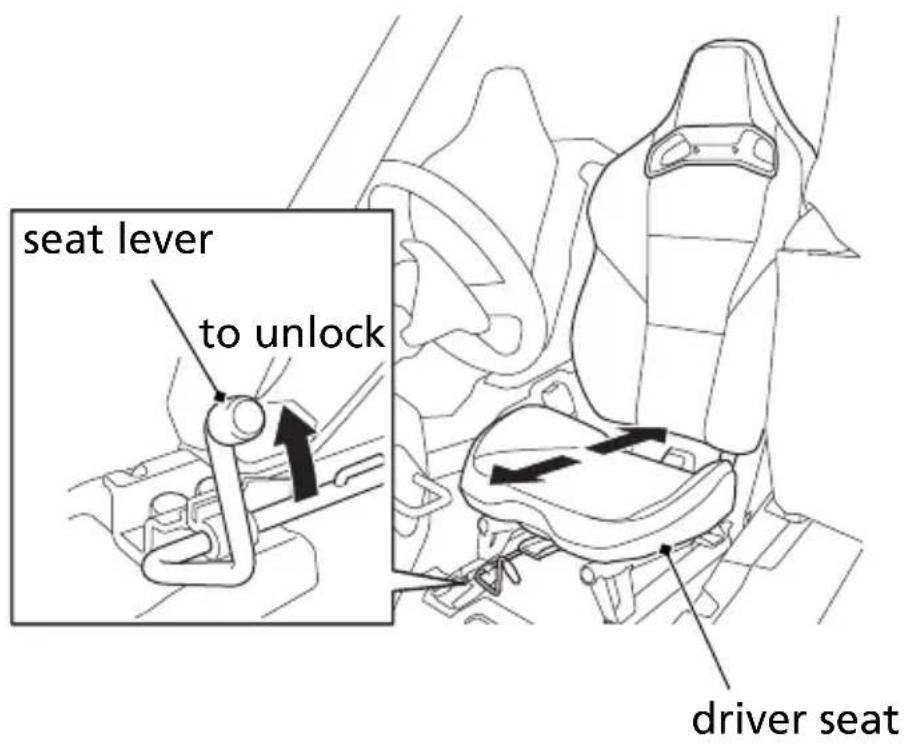

seat lever to unlock driver seat

Your Honda SXS is equipped with lap/shoulder seat belts in each seating position. A seat belt keeps you connected to the vehicle so you won't be thrown out during a crash or rollover. Together with a proper helmet, a seat belt is your best protection against serious injuries in any type of crash, so make sure you and your passenger always buckle up before driving.

WARNING

Not wearing a seat belt, or wearing one improperly, can result in serious injury or death in a crash or rollover.

Make sure the driver and passenger always wear their seat belts properly.

Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury.

Seat Belt Speed Limiting System

When the driver's seat belt is not latched properly, the maximum vehicle speed will be limited by the seat belt speed limiting system.

When the driver's seat belt is not latched, the seat belt speed limiting system will:

• Limit the maximum vehicle speed to no more than 15 mph (24 km/h).
• Cause the seat belt indicator and speedometer to blink simultaneously.

To return the vehicle to normal operation the driver must:

1. Properly deploy and latch their seat belt.
2. Release the throttle for one second if the vehicle is moving.

The speed limitation will be removed and seat belt indicator and speedometer will stop blinking after the driver follows this procedure and correctly deploys and fastens their seat belt.

To avoid speed limitations altogether, the driver should always deploy and fasten their seat belt (and require a passenger to be securely belted) before driving the vehicle and keep their seat belt fastened while underway. If the driver unlatches their seat belt while the vehicle is travelling at speeds greater than 15 mph (24 km/h), the vehicle speed will be limited to 15 mph or less until the driver's seat belt is deployed and properly latched and throttle is released for one second.

How you wear a seat belt also matters. For the best protection:

1. Insert the latch plate into the buckle, then tug on the belt to make sure it is securely latched.

latch plate buckle

1. Check that the belt is not twisted, because a twisted belt can cause injuries.

2. Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt to make sure the lap part is snug. This keeps you connected to the vehicle and lets your strong pelvic bones take the force of a crash.

3. Make sure the shoulder part of the belt goes over your shoulder and rests against your chest.

Line drawing of a person wearing a helmet and seatbelt, seated inside an industrial vehicle (no text or symbols)

To unlatch a seat belt, press the red PUSH button on the buckle.

Seat Belt Locking Mechanism

The seat belts in your Honda SXS are equipped with a belt locking mechanism.

The belt locking mechanism is in the holder of the latch plate. When the seat belt is subjected to intense forces during a crash or rollover, part of the holder locks the belt.

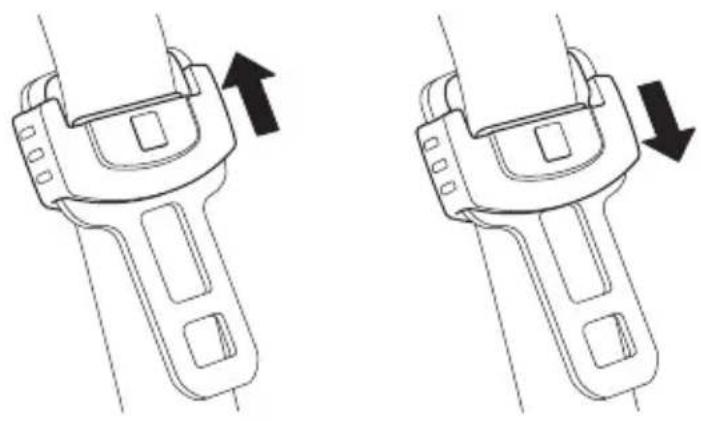

LOCK POSITION UNLOCK POSITION (ORDINARY USE)

Two technical line drawings of a mechanical component with directional arrows indicating movement (no text or symbols)

Unlock

1. To unlatch a seat belt, press the red PUSH button on the buckles.

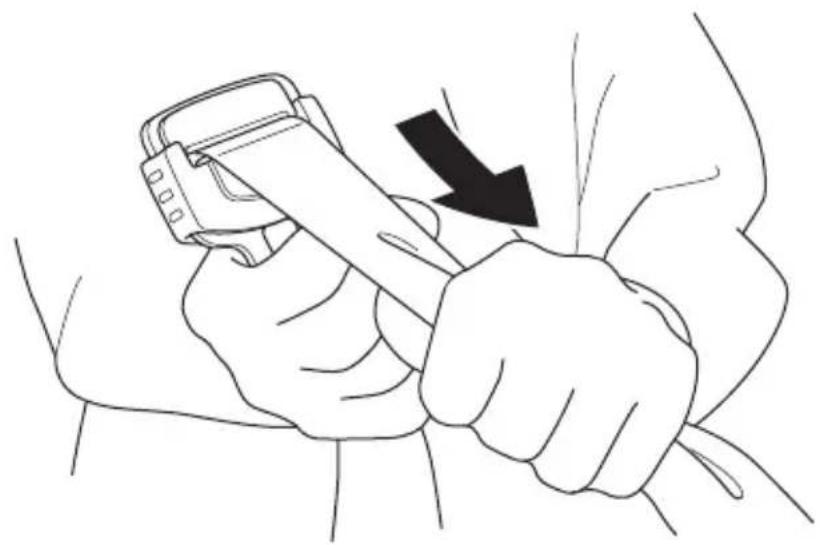

2. Hold the latch plate and one side of the belt, and pull the other side of the belt. Doing so unlocks part of the holder.

Line drawing of a hand gripping a device with a black arrow indicating force or movement (no text or symbols)

If you have been driving in an extremely muddy or dusty area, be sure to inspect your belt and remove any dirt or debris before letting the belt retract into the retractor. Failure to do so could clog the retractor and make it inoperable.

Each seat belt has an emergency locking retractor. In normal driving conditions, the retractor lets you move freely in your seat while keeping some tension on the belt. During a crash or rollover, the retractor automatically locks the belt to help restrain your body.

Do not put any accessories on a seat belt, as that may reduce the effectiveness of the belt and increase the chance of injury in a crash.

If a seat belt is worn in a crash, the seat belt assembly must be replaced by your dealer. A belt that has been worn during a crash may not provide the same level of protection in a subsequent incident. The dealer should check the retractor and replace it if needed.

Seat belt washing procedure

1. Fully extend seat belt.
2. Rinse entire length of seat belt by spraying with water from a low pressure hose.
3. Leave belt extended until dry.

Passenger Handhold

Passenger Handhold

Your Honda SXS has a handhold to give a passenger extra support when the vehicle travels over rough or bumpy terrain. The passenger can also brace their feet against the floorboard.

Line drawing of a person in protective gear seated inside a vehicle cockpit (no text or symbols)

passenger handhold

Adjustment

1. Release the lock lever.
2. Adjust the handhold position so that the passenger can grip the handhold securely in a comfortable riding posture.
3. Secure the lock lever tightly until it contacts the square pipe.

Once the passenger handhold is adjusted correctly, pull it back and forth to make sure it is locked in position.

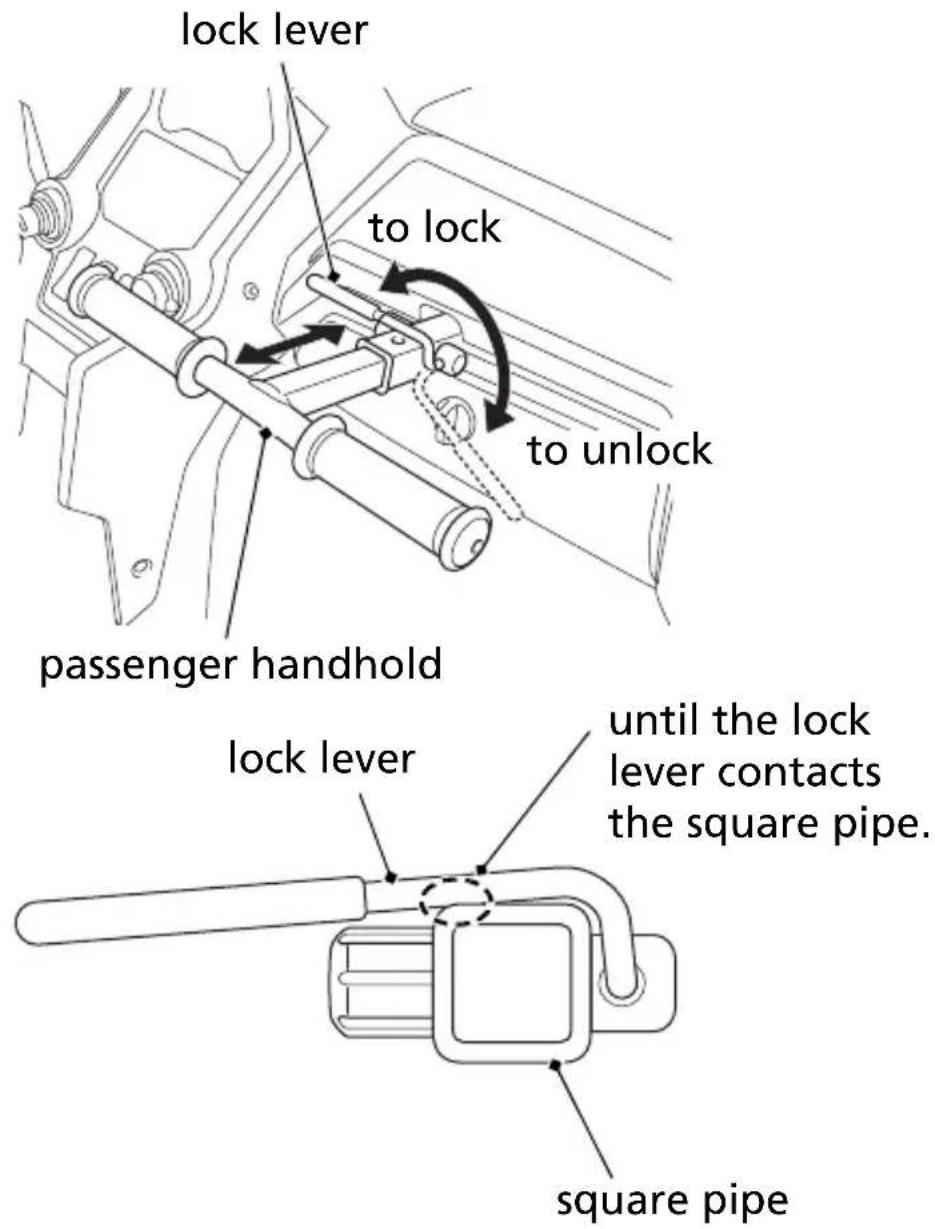

lock lever to lock to unlock passenger handhold lock lever until the lock lever contacts the square pipe. square pipe

Passenger Handhold

If the passenger handhold is not secured firmly, re-tighten the adjusting nut and lock nut of the handhold to the specified torque in the following procedure.

1. Secure the lock lever tightly until it contacts the square pipe.
2. Remove the clamp bolt cap and loosen the lock nut and adjusting nut.
3. Tighten the adjusting nut to the specified torque:

13 lbf·ft (17 N·m, 1.7 kgf·m)

1. Tighten the lock nut to the specified torque while holding the adjusting nut:

20 lbf·ft (26.5 N·m, 2.7 kgf·m)

1. Install the clamp bolt cap.
2. Adjust the handhold position (page 65).

Once the passenger handhold is adjusted correctly, pull it back and forth to make sure it is locked in position.

cam-lock clamp bolt lock nut adjusting nut clamp bolt cap

Do not apply a grease or lubrication to the handhold slider surface and cam-lock clamp.

Storage Compartments

Your Honda SXS has a document compartment, two glove boxes and two drink holders where you can carry small, lightweight items.

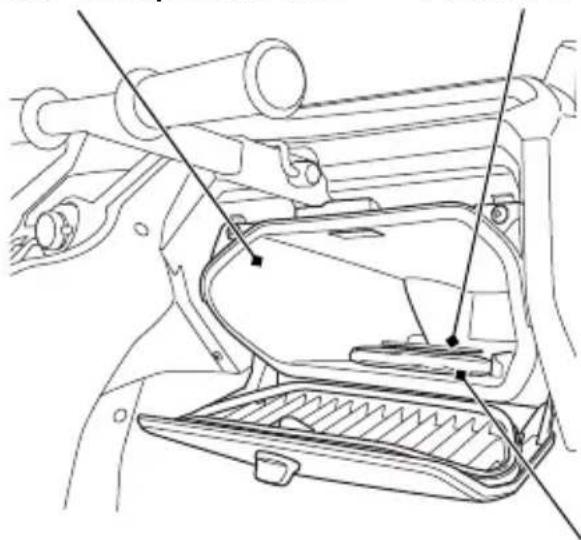

glove boxes drink holders document compartment

To open the document compartment, turn the knob clockwise. To close the document compartment, turn the knob counterclockwise.

document compartment owner's manual storage close open knob document compartment cover

Accessory Power Socket

The accessory power socket is located on the right side of ignition switch. The socket is intended for 12-volt DC accessories rated for 120 watts (10 amps) or less. Exceeding the limit can blow the accessory socket fuse (see page 240).

The socket can be used to power such items as a trouble light, spotlight, CB radio, or cell phone, but not a heat-generating accessory, such as a car cigarette lighter.

socket cap accessory power socket

To use the accessory power socket, the engine must be running.

NOTICE

Using any heat-generating accessory or improperly rated accessory can damage the socket.

Remember to close the cap when you are finished using an accessory, and keep water or other fluids away from the socket.

See page 82 for Loading Cargo when driving with cargo in the bed.

Tie-Down Hooks

The cargo bed has tie-down hooks for securing items in the bed. Before using the tie-down hooks, select a firm level surface and shift the shift select lever into the park (P) position.

tie-down hooks tie-down hooks

Flag Pole Bracket

Flag poles are optional equipment available from your Honda dealer. To mount a pole in the bracket, follow the instructions that come with the flag pole kit.

Flag poles are required in some driving areas. Check local regulations before driving.

RIGHT REAR

flag pole bracket

Electronic Brakeforce Distribution (EBD)

Your Honda SXS is equipped with an Electronic Brakeforce Distribution (EBD).

To improve vehicle stability when the brakes are applied, EBD adjusts the braking force distribution between the front and rear brakes according to traction conditions.

During hard stops the brake pedal may become stiff, then quickly return to normal feel. This is due to EBD activating, this is normal.

This SXS is equipped with an electronically controlled, electric power-assisted steering system.

While the engine is running, the Electric Power Steering (EPS) system provides power from the electric motor, which helps you to turn the SXS's steering wheel more easily.

The EPS system on this SXS utilizes an overheat protection feature to prevent damage to system components. In certain extended, repetitive high-load situations the electric power steering (EPS) indicator will illuminate and the system will reduce or even disable power steering assist. The steering will perform as a normal non-EPS system during this brief period. If this occurs, safely stop the vehicle and allow the EPS system to cool down until the electric power steering (EPS) indicator goes off. After cooling down, steering will return to normal EPS operation.

The electric power steering (EPS) indicator should light when the ignition switch is turned ON (1) and remain on until the engine is started.

The electric power steering (EPS) indicator also lights when there is any abnormality in the EPS system. If this occurs, the electric power assist for turning will not be available, but the manual steering system will perform as usual.

If the electric power steering (EPS) indicator lights at any time while riding, other than the temporary overheat condition described above, reduce speed and take your SXS to your dealer as soon as possible. Continuing to ride with a EPS system problem can damage system components.

Do not modify your EPS system. In case of a malfunction, take your SXS to your dealer.

Before driving your SXS, you need to make sure you and your vehicle are both ready. This section discusses how to evaluate your driving readiness and what items you should check on your vehicle. It also includes important information about loading cargo.

Are You Ready to Drive? 74

Age & Size Recommendations 74

Protective Apparel 75

Get to Know Your Vehicle 76

Don't Drink & Drive 76

Is Your Vehicle Ready to Drive? 77

Pre-drive Inspection 78

Loading Cargo 82

Load Limit....82

Loading Guidelines 83

Are You Ready to Drive?

Before driving your Honda SXS for the first time, we urge you to carefully read this owner's manual and the labels on your vehicle and make sure you understand all the safety information.

Age & Size Recommendations

The driver should be at least 16 years old and tall enough to wear their seat belt properly (page 59) and operate all the controls. A passenger should also be tall enough to wear the seat belt properly and ride with both feet on the floor.

WARNING

Allowing a person who is too young or too small to drive this vehicle or ride as a passenger could result in serious injury or death in a crash.

Follow all instructions and guidelines in this owner's manual regarding the proper age and size for a driver and a passenger.

Protective Apparel

To help prevent head injury from striking an occupant protective structure (OPS) or other hard object, we recommend that occupants always wear a helmet secured with a chin strap.

To protect the eyes from brush and flying objects, we also recommend that occupants wear impact-resistant goggles or a face shield.

For your safety, we also recommend that you always wear boots, gloves, long pants, and a long-sleeved shirt or jacket whenever you drive.

WARNING

Driving or riding in this vehicle without a proper helmet, eye protection and other protective gear can result in serious injury or death in a crash.

Always wear a helmet secured with a chin strap, eye protection (goggles or face shield) and other protective gear when driving or riding in this vehicle.

Get to Know Your Vehicle

Because all vehicles have unique characteristics, it's important to learn how this one operates and handles. We recommend that you take time to practice using the different controls, and get accustomed to how the vehicle accelerates, brakes, and turns in different driving modes, on different surfaces, and on different terrain conditions.

Don't Drink & Drive

It's well known that alcohol and drugs can seriously affect a person's judgment, perception, and ability to safely operate any vehicle. We therefore strongly recommend that you do not drive, or let anyone else drive or ride in this vehicle, after consuming alcohol or drugs.

WARNING

Operating this vehicle after consuming alcohol or drugs can result in a crash in which you or others can be seriously injured or killed.

Never drive this vehicle after consuming alcohol or drugs.

Is Your Vehicle Ready to Drive?

Before driving your Honda SXS, it's important to inspect the vehicle and correct any problem you find. A pre-drive inspection is a must, not only for safety, but because having a breakdown can be a major inconvenience.

If your vehicle has overturned or been involved in a crash, do not drive it until it has been inspected by your dealer. There may be damage or other problems you cannot see.

WARNING

Improperly maintaining this vehicle or failing to correct a problem before driving can cause a crash in which you or someone else can be seriously hurt or killed.

Always perform a pre-drive inspection and correct any problems before you operate the vehicle.

Pre-drive Inspection

Check the following items before driving your Honda SXS:

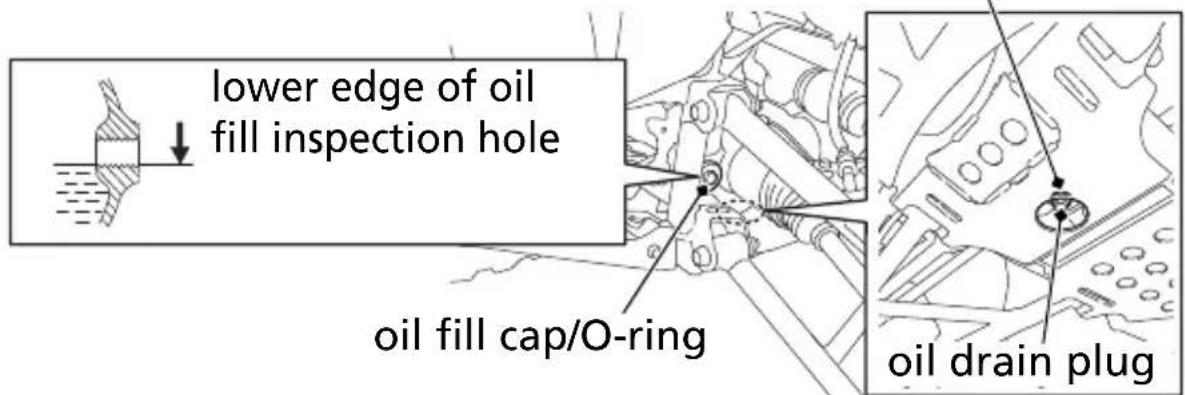

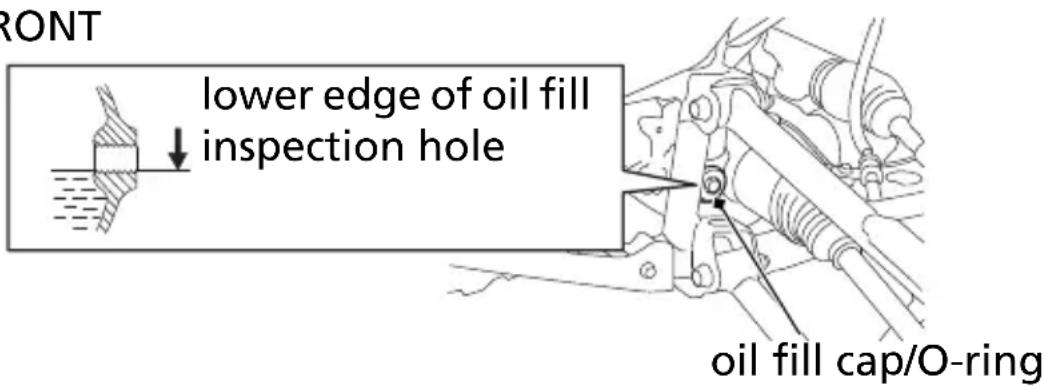

Oil Level Check the engine and sub-transmission oil levels and add oil, if needed (pages 140, 150). Also check under the vehicle for leaks.

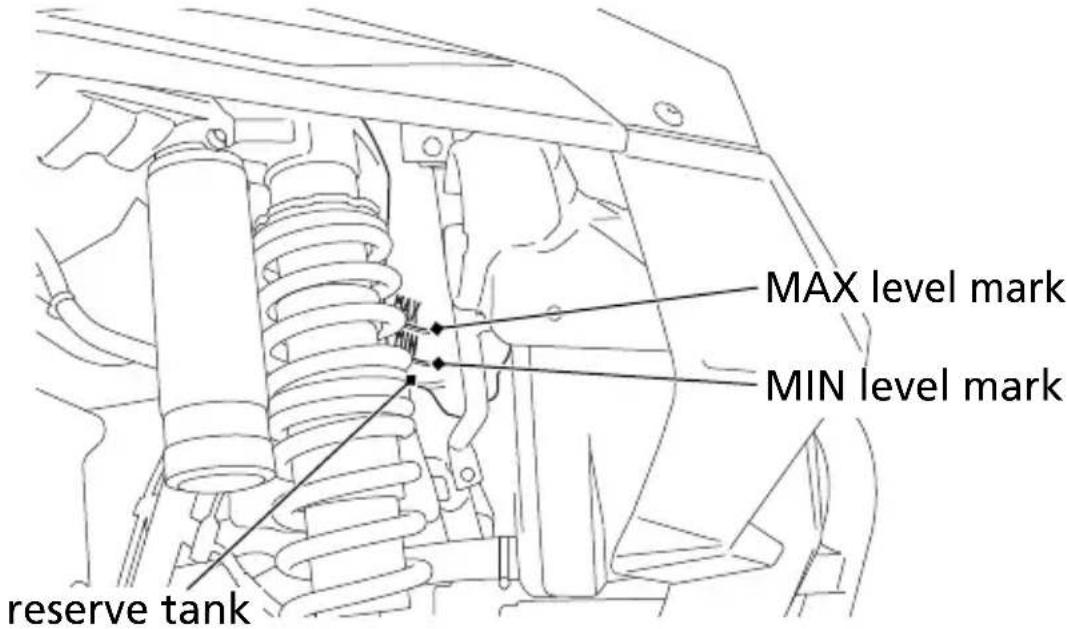

Coolant Check the coolant level (page 160). If it is low, add a 50/50 mixture of silicate-free coolant and distilled water. Check for leaks.

Fuel Level Check the fuel gauge (page 27) and add fuel, if needed (page 135). Make sure the fuel fill cap is secure. Also check for the smell of fuel or fumes - if you smell any fuel, turn the ignition switch to OFF (O) immediately, and see your dealer.

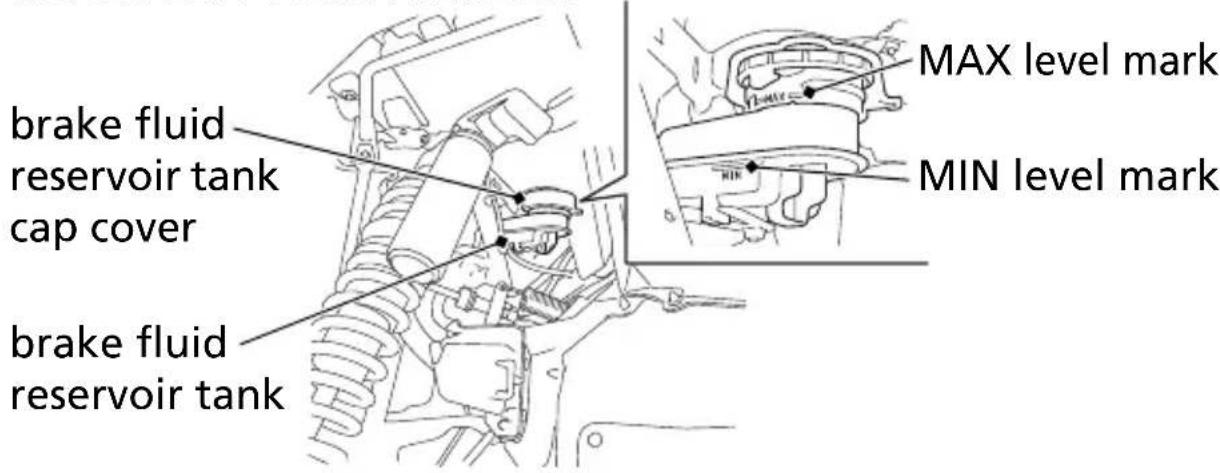

Brake Fluid Check the level (page 187). If it is near MIN, check the brake pads for wear (page 189). If the brake pads are within the specification, check for leaks in the braking system (page 186).

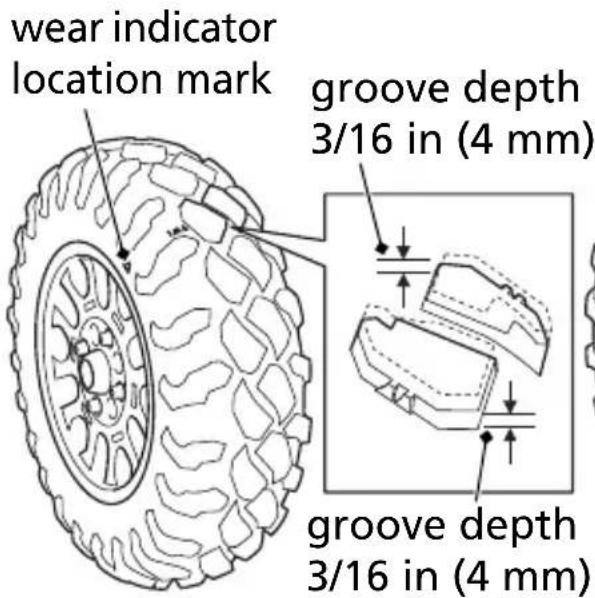

Tires Check the air pressure of all tires and inflate them to the proper pressure (page 193). Also inspect the tires for damage or excessive wear (page 195). If necessary see your dealer.

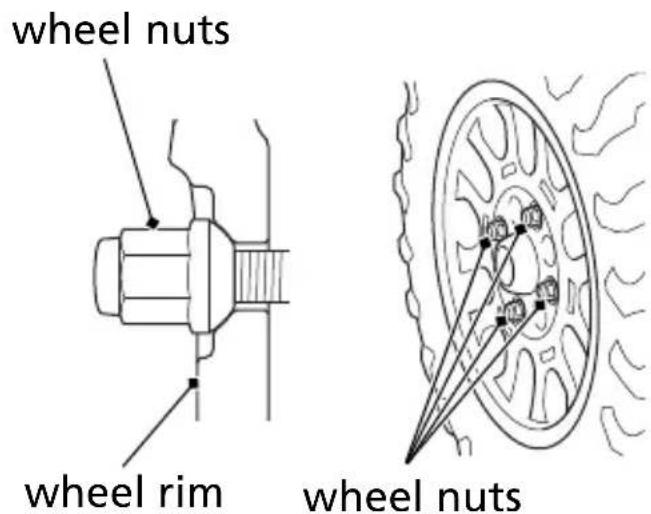

Wheels Make sure the wheel nuts are properly tightened and the wheels are not cracked or deformed (page 200).

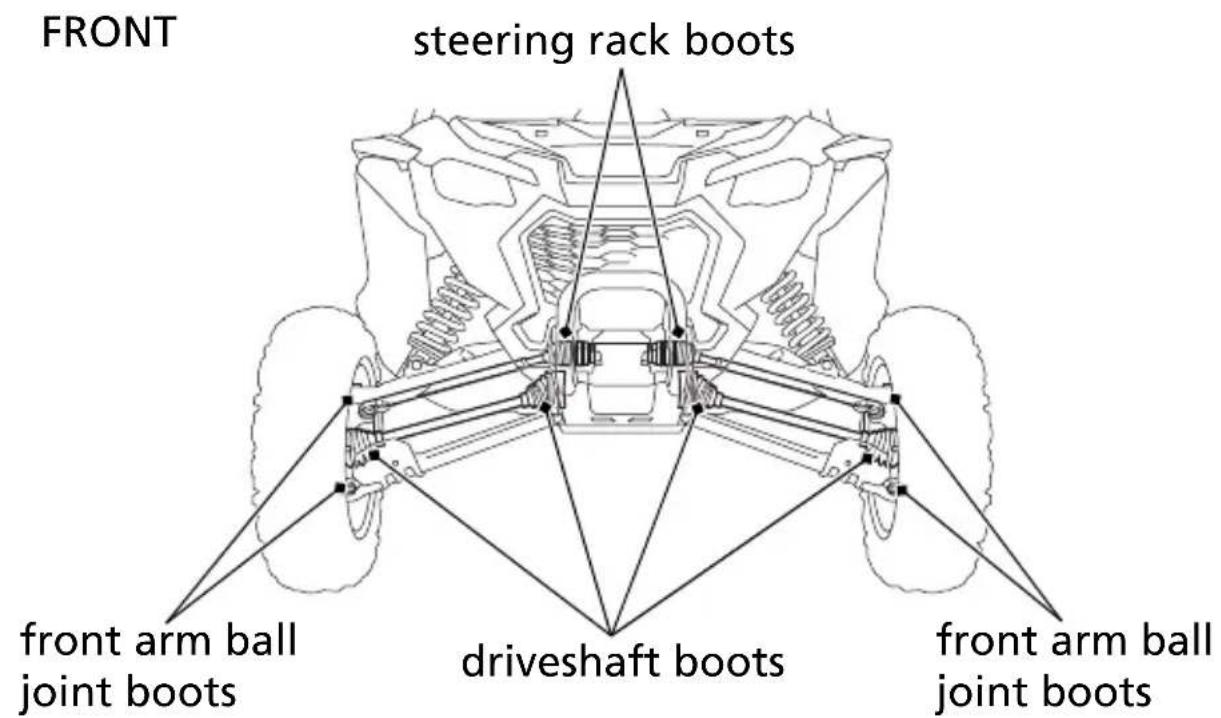

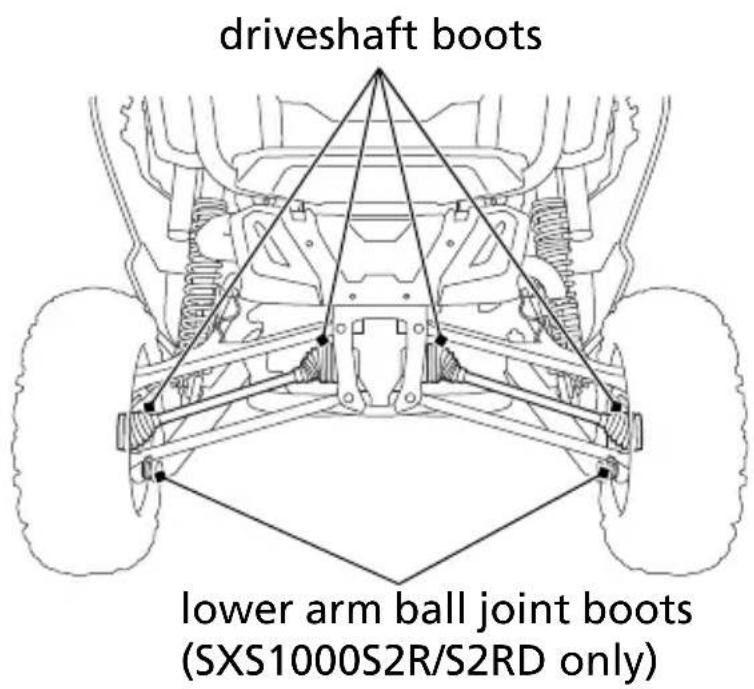

Driveshafts Inspect the driveshafts and boots for damage, tears, or leaks and see your dealer if any are found.

Is Your Vehicle Ready to Drive?

Steering Check the steering to make sure it turns smoothly in both Gearbox and directions. Check that there is no binding or play in the boots steering. Check for any tears in the boots. If any tears are found, see your dealer.

Underbody Check for and remove any debris stuck in the underbody; take extra care in your inspection if the vehicle was last driven in deep grass, brush, a wetland, or flooded area. Check for any visible dents or cracks. If any dents or cracks are found, see your dealer.

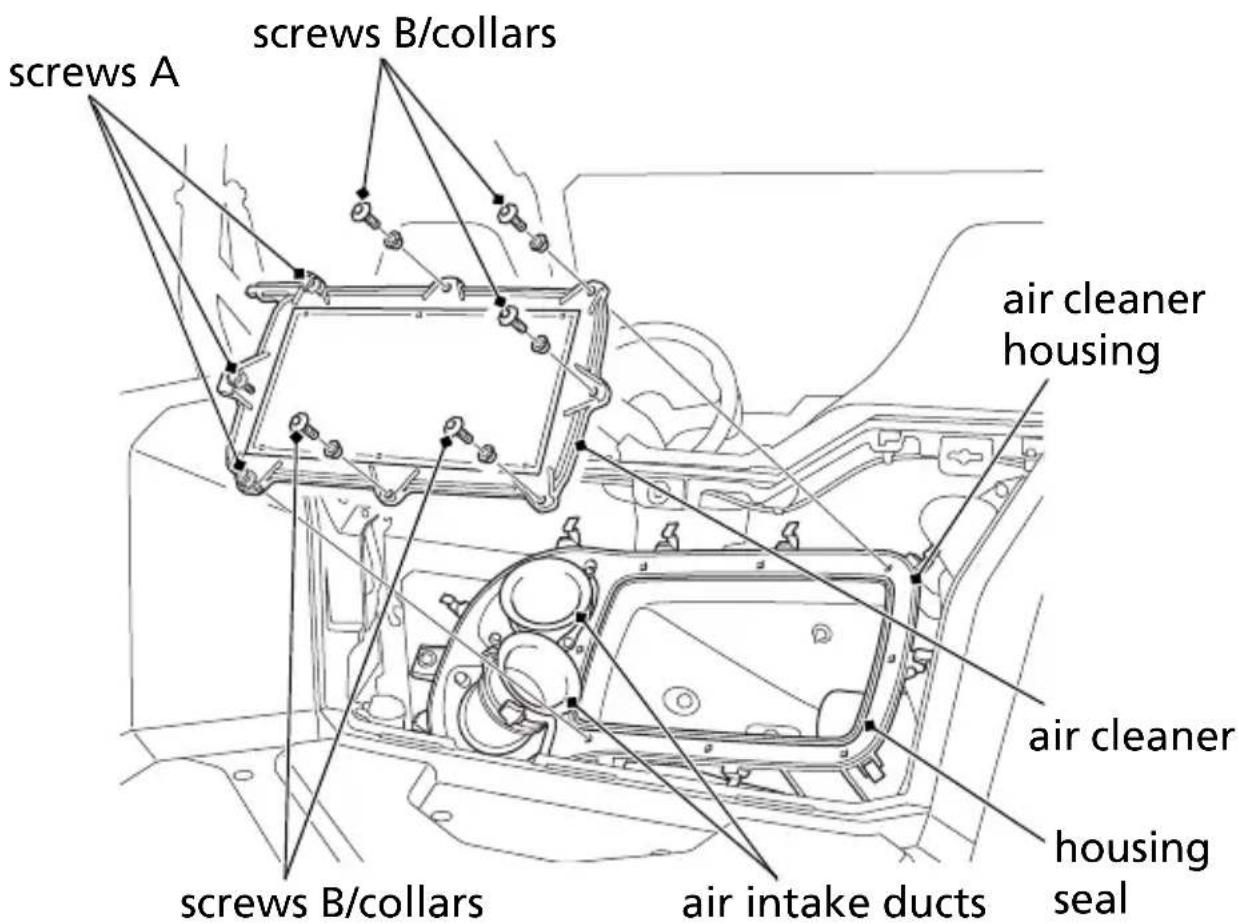

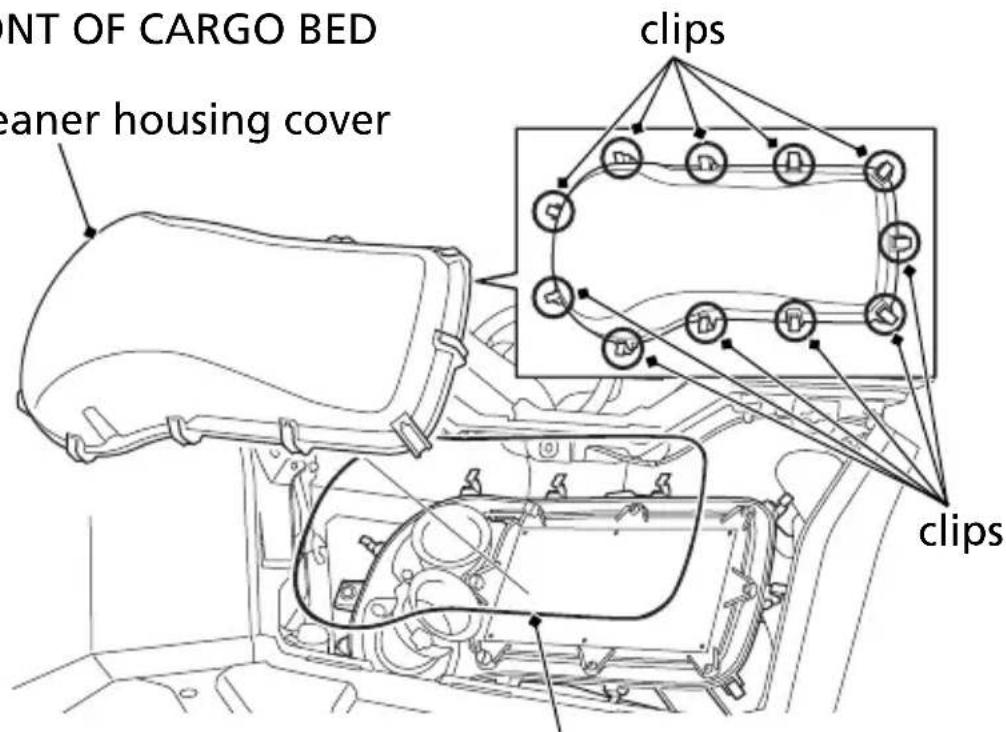

Air Cleaner Inspect the air cleaner element. If necessary, replace the air cleaner element (page 165).

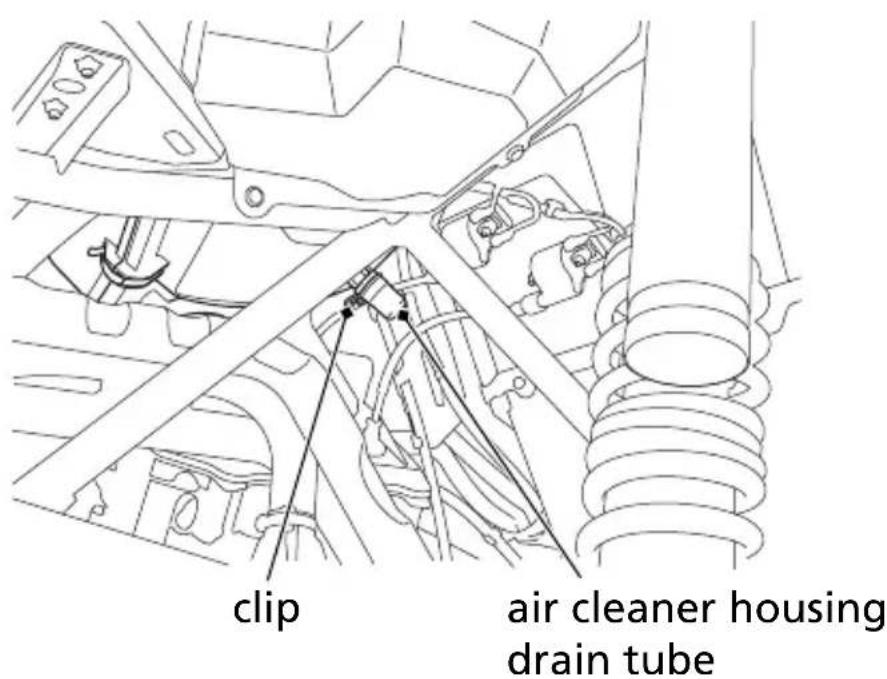

Air Cleaner Check for deposits in the drain tubes. If necessary, Housing clean the tubes (page 167) and check the air cleaner Drain Tubes housing.

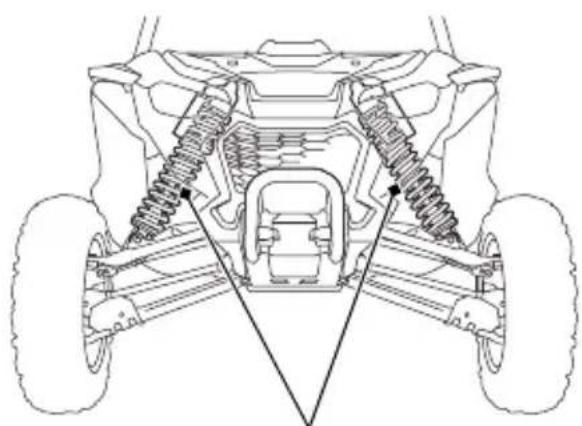

Suspension Check the condition of all suspension components. Be sure to look for bends or oil leaks in the cushion damper. Check for tears in the boots of the front arm ball joints and rear lower trailing arm ball joint (SXS1000S2R/S2RD only).

Lights Make sure the headlights, taillights, and brake lights are working properly.

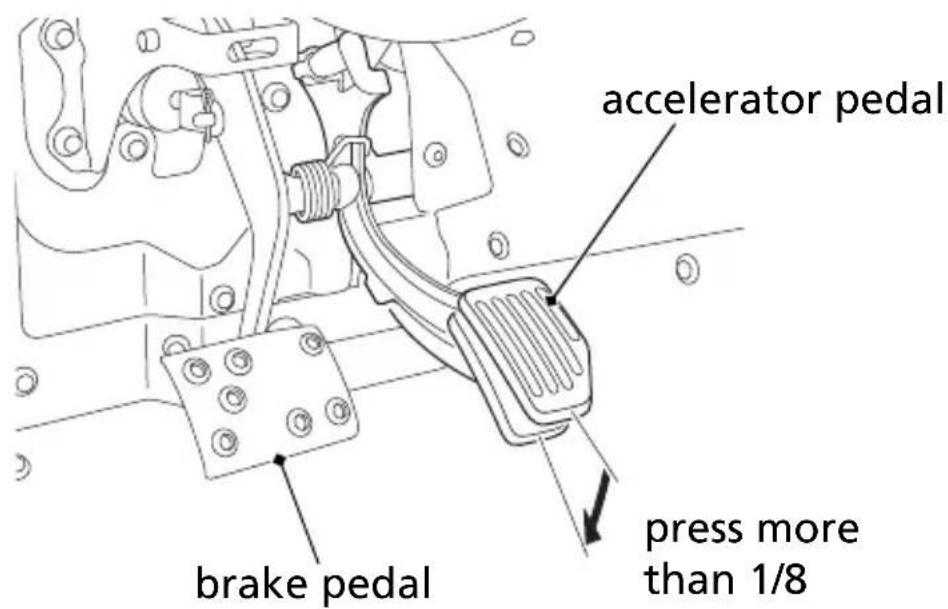

Controls Check that all driving controls, including the accelerator pedal, brake pedal, drive mode select switch, shift select lever, and shift paddles are operating smoothly.

(cont'd)

Is Your Vehicle Ready to Drive?

Tie-rod Ends The wheels need to be lifted off the ground to correctly check the tie-rod ends, so it cannot be done in the pre-drive inspection. To have the tie-rod ends properly inspected, see your dealer.

Cargo Be sure items in the cargo bed are within the cargo limit and are properly secured to prevent shifting (pages 82, 83).

Seat Position Make sure the driver seat is secured in the proper seat position. If necessary, adjust the seat position (page 57).

Seat Belts Make sure all seat belts are in good condition and operate properly. The seat belts must move smoothly when pulled out, and retract on their own when released.

The latch plates should click securely into the buckles and release when the release buttons are pushed firmly.

Side Nets Make sure all side nets and their mounting hardware are in good condition and that they latch and tighten securely.

Is Your Vehicle Ready to Drive?

Exhaust System

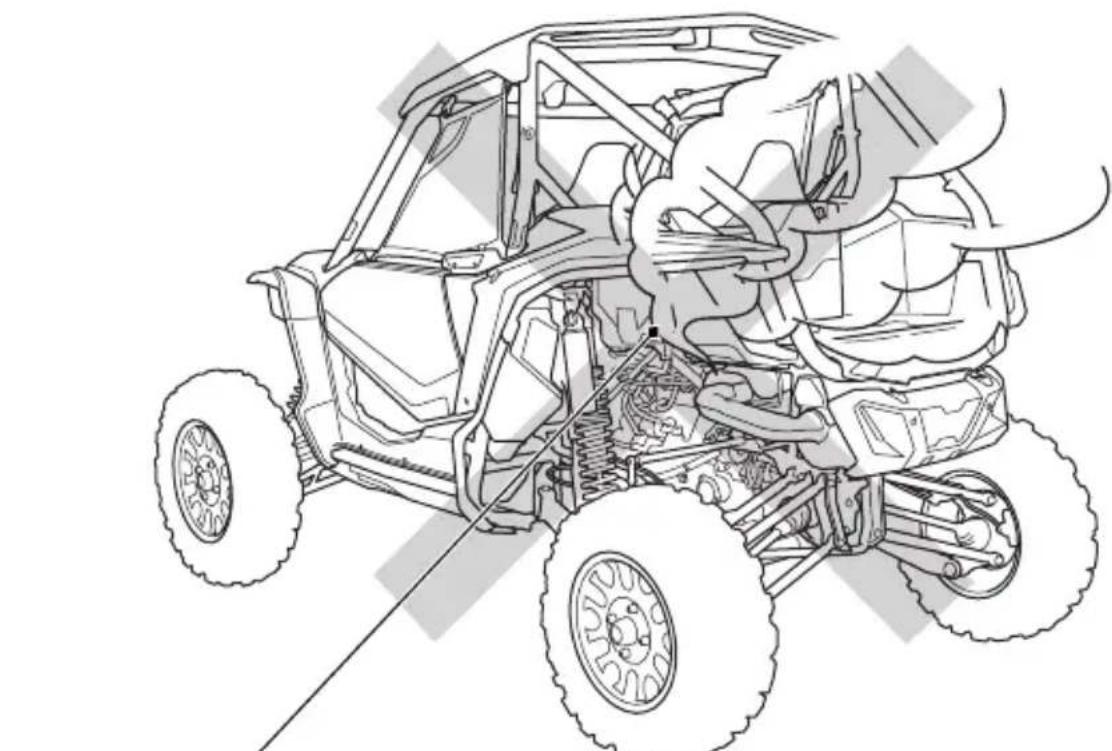

Make sure no materials or debris are sticking to, or accumulating around, the exhaust system. If any such debris is found, remove it so there's no chance for it to catch on fire. Start the engine and listen for any leaks.

CAUTION

Exhaust system operates at very high temperatures.

You can be burned if you touch the exhaust system.

Do not touch the exhaust system without letting the system cool down.

NOTICE

Exhaust system operates at very high temperatures.

Accumulated debris and vegetation that contact the exhaust can catch on fire.

Always conduct a pre-drive inspection and remove accumulated debris.

Remember to take care of any problem you find or have your dealer correct it before you drive your Honda SXS.

Loading Cargo

Your vehicle was designed to carry cargo. However, carrying a load that is too heavy or improperly loaded can adversely affect your vehicle's handling, stability, and stopping distance and make it unsafe. Before carrying any type of cargo, be sure to read the following pages.

Load Limit

See page 105 for guidelines on driving with cargo.

Maximum weight capacity = 732 lb (332 kg)

This includes the weight of cargo, occupants and accessories.

Maximum cargo weight = 299 lb (136 kg)

This includes all items in the cargo bed and any accessories.

WARNING

Overloading the cargo bed or failing to secure cargo properly can cause a crash in which you or others could be seriously hurt or killed.

Follow the cargo limits and loading guidelines in this owner's manual.

Loading Guidelines

• Make sure the tires are properly inflated (page 193).
• Place all items on the floor of the cargo bed, and as far forward and centered as possible.
• Use the tie-down hooks (page 69) to secure any items that could shift position while you are driving.
• Do not let items extend over the side rails, as they could get caught on something.
• Be aware that carrying tall, heavy items will significantly raise the vehicle's center of gravity, increasing the chance of a rollover.
• Never let a passenger ride in the cargo area or hang onto the side of the vehicle, even for a short distance. The person could be thrown off the vehicle or cause a crash.
• Before driving with heavy cargo, shift the shift select lever into low-range (L) position.

WARNING

Driving with a passenger in the cargo area can result in very serious injury or death if the person is thrown against the vehicle or out of the bed.

A passenger should only ride in the passenger's seat and wear their seat belt properly.

This page intentionally left blank.

Basic Operation & Driving Guidelines

This section gives information on how to start and stop your engine. It also provides guidelines for operating on different types of terrain, and driving with cargo.

Basic Operation 86

Starting & Stopping the Engine.... 86

Shifting Gears.... 88

Selecting a Drive Mode 95

Operating Launch Mode 96

Parking 100

Driving Guidelines 101

Safe Driving Precautions 101

Off-road Driving Considerations.... 103

Basic Driving 105

Driving on Hills 106

Driving Through Water 109

Driving at Night 110

Starting & Stopping the Engine

For safety, we recommend that you start the engine in a well-ventilated area. If that is not practical, move the vehicle outdoors as soon as possible. The engine's exhaust contains carbon monoxide, a colorless and odorless gas that can cause illness and even death.

WARNING

Running the engine of your vehicle while in an enclosed or even partially enclosed area can cause a rapid build-up of toxic carbon monoxide gas.

Breathing this colorless, odorless gas can quickly cause unconsciousness and lead to death.

Only run your vehicle's engine when it is located in a well ventilated area outdoors.

The starter motor will operate when the shift select lever is in the park (P) or neutral (N) position, or the brake pedal is pressed. You should do the following checks and adjustments before you drive your vehicle.

Before START:

1. Check that any items you may be carrying are stored properly or fastened down securely.
2. Make sure the doors, side nets and front hood are securely closed.
3. Fasten your seat belt. Check that your passenger has fastened their seat belt as well.
4. When you start the engine, check the indicators in the instrument panel.

Starting the engine:

1. Shift the shift select lever into the park (P) position.
2. Press on the brake pedal.
3. Without touching the accelerator pedal, insert the key and turn the ignition switch to the START (II) position.
   Immediately after the engine starts, let go of the key. The switch returns to the ON (1) position.

Do not hold the key in the START (II) position for more than 5 seconds at a time.

If the engine does not start after 5 seconds, turn the key back to the OFF (O) position and wait about 10 seconds before turning it to START (II) again.

If the engine fails to start after repeated attempts, it may be flooded with excess fuel. To clear a flooded engine:

1. Press the accelerator pedal all the way down. The engine will not start when the throttle is fully open because the electronic control unit shuts off the fuel supply.
2. Turn the ignition switch to the START (II) position for 5 seconds to clear flooding.
3. Follow the normal starting procedure.
4. If the engine does not start, wait 10 seconds, then follow steps 1 – 3 again.

If the engine still won't start, see If Your Engine Quits or Won't Start, page 226.

(cont'd)

OFF (○) ON (I) START (II) ignition switch

Stopping the engine:

To stop the engine, turn the ignition switch to the OFF (O) position. Remember to shift into the park (P) position and remove the key if you plan to leave the vehicle.

Shifting Gears

You can move forward or in reverse by shifting the shift select lever from P or N, to R, H, or L.

Your Honda SXS is equipped with a dual clutch transmission, which is an automatically controlled 6-speed transmission.

When the shift select lever is in the high-range (H) or low-range (L) position, you can switch between AT mode and MT mode by pressing the AT/MT switch. In AT mode, you can use the shift paddles to temporarily select a gear.

To avoid damaging the transmission, move the shift select lever only when the vehicle is stopped and the engine is idling.

Select a driving mode appropriate for your driving environment and driver visibility.

NOTICE

Under extreme constant high load usage, the temperature of the clutch can rise over the allowable temperature limit for the clutch material. In this usage condition, clutch slippage and burning may occur and the clutch temperature indicator may flash.

To avoid damaging the clutch, follow the proper usage of the sub-transmission dual range as described.

To prevent clutch damage, do not use the throttle to hold the vehicle stationary on an incline or try to pull an immovable object.

If the clutch temperature indicator flashes while driving, see page 238.

Shift Position and Meter Display

→ shift the shift select lever
→ push the AT/MT switch
→ push the SPORT switch
shift override using shift paddles is available. during shift override, shifted gears (1 – 6) are displayed

Selecting a Shift Position

Your Honda SXS has five shift select lever positions: park (P), reverse (R), neutral (N), high-range (H), and low-range (L).

Park:

Used when parking or starting the engine.

Reverse:

Used when driving in reverse.

Neutral:

Used when idling the engine during a temporary stop.

High-range:

Used when driving forward on hard surfaces or with light cargo.

You can switch between AT mode and MT mode by pressing the AT/MT switch. You can also select SPORT mode in AT mode.

Low-range:

Used when driving forward in the following situations:

• When driving with heavy cargo
• When ascending steep hills
• When driving over large obstacles
• When driving at a constant low speed (5 mph [8 km/h] or below) You can switch between AT mode and MT mode by pressing the AT/MT switch.

To avoid damaging the transmission, move the shift select lever only when the vehicle is stopped and the engine is idling.

Selecting a AT/MT Mode

Your Honda SXS has 2 transmission modes: AT mode and MT mode.

AT AT mode:

This mode automatically shifts the gears with optimal timing according to your driving conditions.

You can temporarily shift up or down by operating the shift paddles while driving in AT mode. The shifted gear will be shown on the gear position indicator.

MT MT mode:

In this mode, the gears are shifted manually through shift paddle operation.

• Pulling the shift paddle does not continuously shift the gears. To continue shifting, release your fingers from the shift paddle, and then pull the shift paddle again.
• The gears do not shift up automatically in MT mode. Do not allow the engine to exceed the rev limit.
• The gears shift down automatically when you slow down, even in MT mode.
• You will start from 1st gear when MT mode is selected. For details on shift paddles operation in MT mode, see page 94.

When using the AT/MT switch to switch between AT mode and MT mode, be sure the shift select lever is in the high-range (H) or low-range (L) position.

Selecting SPORT Mode

SPORT SPORT mode:

When using the SPORT switch, shift the shift select lever to the high-range (H) position, and select AT mode. When SPORT mode is turned on, the SPORT indicator comes on.

In SPORT mode, high engine revolutions is used compared to normal AT mode.

Temporarily changing gears by operating the shift paddle while AT mode is selected

You can temporarily change gears by operating the shift paddles even while AT mode is selected.

When operating the shift paddles while AT mode is selected, the "H" or "L" displayed in the gear position indicator of the multifunction display changes to a gear position number (1 – 6). (The AT indicator stays on)

Because the gear change is temporary, the vehicle automatically returns to normal AT mode under the following conditions:

• When the shift paddles are not operated for a prescribed time
• When the vehicle speed is reduced and automatically downshifts
• When the AT/MT switch is pressed
• When the SPORT switch is pressed
• When the shift select lever is operated

Shift Limit:

During MT mode, downshifts may not be executed if it causes the engine to exceed the rev limit.

NOTICE

To prevent clutch damage, do not use the throttle to hold the vehicle stationary on an incline or try to pull an immovable object.

Basic Operation

Driving by operating the shift paddles while MT mode is selected. To upshift the transmission, pull the right side upshift paddle once. To downshift the transmission, pull the left side downshift paddle once.

Diagram of a steering wheel with a gear shift and motion arrow (no text or symbols)

upshift paddle (+)

Line drawing of a steering wheel with a directional arrow indicating motion (no text or symbols)

After starting the engine and letting it warm up, follow this procedure:

1. Press the brake pedal.
2. With the throttle closed, select the shift select lever into high-range (H) or low-range (L) position and then select MT mode by pressing the AT/MT switch.
3. Release pressure from the brake pedal and increase engine speed by gradually pressing the accelerator pedal.
4. When speed increases, shift to 2nd gear by pulling the upshift paddle once.
5. Repeat this sequence to progressively upshift to 3rd, 4th, 5th, and 6th (top) gear.
6. To downshift, pull the downshift paddle once.

Selecting a Drive Mode

You can change the drive mode at any time the engine is running. See page 41 for additional information.

2WD

This mode supplies power to the rear wheels. This mode is best for surfaces that provide good traction.

I - 4WD

This mode supplies power to the front and rear wheels. In addition, Brake Traction Control System (BTCS) will work to enhance vehicle stability in slippery conditions.

Brake Traction Control System (BTCS):

BTCS applies the front brake in slippery conditions to help prevent loss of traction due to wheel spin when applying the accelerator pedal.

When applying the brake while BTCS is operating, the brake pedal will have a flutter feel. This is normal.

Operating Launch Mode

Launch Mode allows the DCT start clutch to be engaged from a high engine speed which increases vehicle acceleration.

WARNING

Only use Launch Mode on flat ground, with a clear path in front and sides of your vehicle.

Do not use Launch Mode when carrying cargo, on slippery surfaces or when the vehicle is not on flat ground.

Failure to follow the Launch Mode guidelines can lead to a crash in which you or others can be seriously hurt or killed.

Do not use Launch Mode as follows:

• at a location where there may be hidden obstacles or there is not a clear sight line
• on slippery surface such as concrete, mud, water and ice
• when carrying cargo
  • for any objective other than takeoff

To Operate Launch Mode

1. Stop the vehicle completely.
2. Make sure all doors and all side nets are securely closed (page 51, 53).

3. Fasten your seat belt. Check to make sure your passenger fasten the seat belt (page 59) and is holding the handhold firmly (page 64).

4. Make sure the front wheels are pointing straight.

5. Press and hold the brake pedal, shift the shift select lever into the high-range (H) position (page 40).
6. Press and hold the LAUNCH MODE switch until the LAUNCH MODE indicator comes on.

The LAUNCH MODE indicator does not come on when

– the vehicle is not completely stopped.
- the shift position is not in the high-range (H).
– the brake pedal is not depressed firmly.
– the seat belt indicator blinks (the driver's seat belt is not latched).
– there is a problem with a vehicle system (the PGM-FI Malfunction Indicator Lamp (MIL) comes on.)
- engine is not at normal operating temperature (the coolant temperature gauge displays "Lo" or the high coolant temperature indicator comes on.
– the clutch temperature indicator blinks.

LAUNCH MODE indicator NORM SPORT LAUNCH MODE switch

(cont'd)

Basic Operation

1. With both hands on the steering wheel, pull and hold both shift paddles simultaneously.

shift paddles

1. Release the brake pedal and apply the accelerator pedal, pressing the accelerator pedal more than 1/8.

accelerator pedal brake pedal press more than 1/8

1. To launch the vehicle, release both shift paddles simultaneously.

- If the LAUNCH MODE indicator flashes during steps 6 - 9, release the accelerator pedal and the shift paddles and wait until the LAUNCH MODE indicator goes off. Follow steps 6 - 9 again.

- If the PGM-FI Malfunction Indicator Lamp (MIL) comes on, or the gear position flashes or displays “−”, turn the ignition switch to the OFF (O) position, then to the ON (I) position again.

- After launching, the vehicle will return to normal operation after a few seconds or by releasing the accelerator pedal.

Launch Mode does not activate when:

• the shift paddles are not both pulled or released simultaneously (step 7 & 9).
• the accelerator pedal is not applied more than 1/8th of its travel when the shift paddles are released (step 8 & 9).
• the vehicle speed exceeds 3 mph (5 km/h) in step 8.

To Cancel Launch Mode After the LAUNCH MODE Indicator Comes On Launch Mode will be canceled under the following conditions:

• when you press the LAUNCH MODE switch again.
• when you release either shift paddle.
• when you release the accelerator pedal and maintain zero accelerator position until the LAUNCH MODE indicator turns off.
• when 30 seconds or more have elapsed from the LAUNCH MODE indicator comes on.

Parking

Look for a clear, level parking area with a firm surface. Avoid parking on a slope or on loose or slippery surfaces, if possible. If you must park on a slope, block the wheels to help keep the vehicle from sliding.

After bringing your vehicle to a stop:

1. Keep your foot on the brake pedal while you shift into the park (P) position.
2. Slowly release the brake pedal.
3. Turn the ignition switch to the OFF (O) position, and remove the key.

Your Honda SXS has been designed with many safety features to help protect you. These include a strong occupant protection structure, seat belts, doors, and side nets. However, no safety system can prevent all injuries.

The following pages contain important precautions and driving guidelines to help you make good decisions and operate your vehicle safely.

WARNING

Failure to follow the driving guidelines in this owner's manual can lead to a crash or overturn in which you or others can be seriously hurt or killed.

Follow all safe-driving guidelines in this owner's manual.

Safe Driving Precautions

Before driving your Honda SXS for the first time, please review the "Driver & Passenger Safety" section (page 1), the "Before Driving" section (page 73), and the precautions below.

We also recommend that you complete the Recreational Off-Highway Vehicle (ROV) E-Course. The free course is available at www.ROHVA.org. The two-hour ROV E-Course is a multi-media, interactive, online safety course that reinforces:

• Key risk factors associated with ROV operation
- Safe driving practices that will reduce risk of injury
- The best resources for learning about your particular vehicle

The ROHVA (Recreational Off-Highway Vehicle Association) also offers the hands-on ROV Basic Driver Course (RBDC). Information on and registration for the RBDC is available at www.ROHVA.org.

Off-highway Use Only

Your Honda SXS was designed for use on a wide variety of terrain and situations. However, it should not be driven on any public road, paved or unpaved, because it is not equipped to legally or safely drive on such roads.

Remember to obey all local off-road regulations, obtain permission before driving on someone else's private property, and respect all "no trespassing" signs.

Control Speed

Driving at excessive speed for the terrain or other conditions increases the chance of a crash or overturn. Always reduce speed when driving on hilly terrain, or when carrying cargo.

Use Extra Care on Unfamiliar Terrain

When driving in a new area, keep your speed low and check the terrain ahead for possible problems, such as large rocks, bumps, holes, or drop-offs. Don't drive fast on unfamiliar terrain or when visibility is limited. If you drive in an area with other vehicles, be sure to keep a safe distance to avoid a collision.

Do Not Perform Stunts

Keep all four wheels on the ground at all times. Showing off or attempting to perform stunts could lead to a crash or overturn in which the driver, a passenger, or others could be seriously hurt or killed.

Off-road Driving Considerations

Your Honda SXS was designed and intended for off-road use. In the event that you must drive on a paved surface, be aware that your Honda SXS will feel and handle different than it does on dirt. The tires will also wear much faster.

Vehicle Design

The Honda SXS handles somewhat differently from on-highway vehicles due in part to features that allow it to perform its role as an off-highway recreational vehicle. For example, this Honda SXS has a higher center of gravity than vehicles designed for use only on pavement. It is also equipped with large low-pressure tires that allow good traction in sand, loose dirt, wet grass and other low-traction surfaces.

These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it can more easily tip or roll over if you make abrupt turns or drive on sloped terrain.

Off-highway Environments

Driving on private property, or in approved off-highway areas, means you leave a generally predictable and orderly world behind. You won't find lane markers or traffic signals, and no one will be there to warn you of trouble ahead. It's up to you to assess situations and drive within limits. The terrain has limits (it may be too steep or bumpy, for example). The vehicle has limits (e.g., traction, stability, and power). And you may be limited by lack of experience.

Surface Considerations

The kind of surface you drive on can affect how your vehicle handles. For example, on loose or soft surfaces you'll need more time and distance to accelerate, turn, or brake to a stop.

Avoid any sudden sharp turns, particularly on pavement and other hard surfaces. Always slow down after moving from one type of surface to another until you get accustomed to how your vehicle handles.

Reading the Terrain

Because visual information comes in unpredictable ways off-road, you need to stay alert, constantly survey the terrain, and go slow enough to analyze situations and make good decisions.

As your eyes search the terrain ahead, watch for changes in surface conditions. One minute you can be on firm soil and the next in soft sand or deep mud. A path can quickly change from level to bumpy, slope at a dangerous angle, or disappear in a drop-off. Always keep your eyes open for holes, washouts, or obstacles that could upset or damage the vehicle.

Controlling Speed

Whether you travel off-road or on pavement, the general rule is to keep your speed low. Of course, you'll need enough speed to keep moving forward, but too much speed can lead to problems.

When driving off-road at higher speeds, you have less time to read the terrain and make good decisions. The drive can also be more bumpy, and there's a greater chance of the vehicle sliding if you brake or turn quickly on wet soil, gravel, or another slippery surface. Never go faster than conditions allow.

When driving at a constant low speed (5 mph [8 km/h] or below), shift the shift select lever into low-range (L) position.

104 Basic Operation & Driving Guidelines

Driving with Cargo

The added weight of carrying cargo will affect how your vehicle accelerates, brakes, and handles.

Please follow these guidelines whenever you carry cargo:

• Do not exceed the cargo limit (page 82).
• When driving with heavy cargo, shift the shift select lever into low-range (L) position.
• Keep speed low, particularly when driving on hills.
• Allow extra distance to accelerate, turn, and slow or stop.

Basic Driving

Making Turns

The basic turning technique for Honda SXS is to drive at low speed and gradually adjust the amount of steering to suit the surface. Do not make sudden sharp turns, either off-road or on pavement.

If your vehicle ever skids sideways during a turn, steer in the direction of the skid. Also, avoid hard braking or accelerating until you have regained directional control.

Braking

The best off-road braking technique is to gently push down on the brake pedal, then increase pressure as more braking is needed. Light braking may be all you need on soft surfaces, such as sand or loose dirt. Avoid hard braking on any surface.

Your Honda SXS is equipped with an EBD. For more information about EBD, see page 71.

Driving on Hills

Hills present some of the greatest challenges and hazards, especially if you are carrying cargo. If you are new to off-road driving, start with gentle inclines, take time to learn how your vehicle handles on slopes, and read the information that follows.

Even if you have previous off-road driving experience, the guidelines below should serve as important reminders.

Approaching a Hill

When you approach a hill, you need to decide whether it is one that you, your passenger, your cargo and your vehicle can handle. For example, ask yourself:

• Is the hill too steep? Is the incline constant, or are there places where it gets suddenly steeper? If you run out of power, you may not be able to continue forward.
• Is there enough traction for you to make it to the top without spinning the wheels or sliding backwards?
• Are there obstacles, such as rocks or ruts, that could upset your vehicle and make it roll over?
• If there is no safe predetermined path, can you drive straight up the hill without turning?
• Do you know what is on the other side of the hill?

If you do not know the answers to these questions before beginning an ascent, you should stop and walk up the hill to find out.

Driving Up a Hill

If you decide that it is safe to drive your Honda SXS up a hill:

• Select an appropriate drive mode for the hill. When ascending steep hills, shift the shift select lever into low-range (L) position.
• Approach the hill with enough speed to smoothly start up the hill.
• Maintain a steady speed as you climb the hill.
• Reduce speed as you approach the top, and watch for other vehicles that may be approaching the top from the other side of the hill.

NOTICE

To prevent clutch damage, do not use the throttle to hold the vehicle stationary on an incline or try to pull an immovable object.

If You Stall Going Up a Hill

If a hill is steeper than you expected, traction is poor, or you don't maintain sufficient speed, you may begin to stall. If that happens:

• Stop the vehicle and shift into the park (P) position.
• If you have a passenger, you may want to have them get out and move away from the vehicle.
• If you are headed straight up the hill, shift into the reverse (R) position, and slowly back straight down the hill, gently using the brake pedal to control speed.

Driving Down a Hill

Before driving down a hill, as with driving up a hill, you need to evaluate whether you can make it safely to the bottom and away from the slope.

Ask yourself:

• Is the hill too steep to maintain speed and steering control?
• Is the surface too rough or too slippery?
• Can you drive straight down without turning?
• Is there a safe exit when you reach the bottom of the hill?

(cont'd)

If you decide it is safe to drive down a hill:

• Hold the steering wheel firmly and drive straight back down the hill.
• Gently apply the brakes to help control speed, but do not “ride” the brakes.

Crossing a Hill

Before traversing a hill, consider these facts:

• A hill that you can drive straight up or down can be too steep to drive across.
• When you drive straight up or down a slope, the length of the wheelbase reduces the chance of tipping over backward or forward, but when you drive across a slope, the vehicle's narrower track and higher center of gravity increases the chance of tipping or rolling over.
• If you drive across a slope and an uphill wheel hits a bump, or a downhill wheel drops into a hole, your vehicle will tip downward even more.

If you can't clearly see all terrain conditions (good traction, no bumps, holes or other obstacles, etc.), stop and walk the slope before you drive on it. If you have any doubt whether you can safely drive across a slope, don't do it. Find another route.

Avoiding Obstacles

When driving off-road, always watch for bumps, pot holes, rain ruts and other obstacles. Large bumps and holes can bounce you around and cause you to lose control or get stuck. Slow down whenever you drive on rough terrain.

Driving Through Water

Before driving through water, stop and make sure that:

• The water is not more than about 10 inches (25 cm) deep.
• The water is not flowing too fast. Deep rushing water can sweep you downstream. Even very shallow rushing water can wash the ground from under your tires and cause you to lose traction and possibly roll over.
• Both banks have gradual slopes and good traction, so you can enter the stream and exit safely.
• The surface under the water appears to provide good traction. Remember, the water may hide hazards, such as rocks, holes, mud, or slippery vegetation.

If you decide you can safely cross the water:

• Proceed at a slow, steady speed.
- Watch for submerged obstacles, including slippery rocks and holes.
- Avoid getting the spark plugs or air cleaner wet, as this would cause the engine to stop.

NOTICE

Water entering the air intake system can cause severe engine damage.

If your Honda SXS becomes immersed in water (water level is above the floorboard), do not start the engine. Take your Honda SXS to your dealer for service.

Driving at Night

If you drive your Honda SXS at night, always drive slower and more cautiously than you would in daylight.

To help keep your Honda SXS in good shape, this section includes a Maintenance Schedule for required service and step-by-step instructions for specific maintenance tasks. You'll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking good.

For information about replacing fuses, see page 239.

(USA & Canada only)

For information about the exhaust emission and noise requirements of the U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment and Climate Change Canada (ECCC), see page 264.

USA Only

Maintenance, replacement or repair of the emission control devices and systems may be performed by any repair establishment or individual using parts that are “certified” to EPA standards.

Before You Service Your Honda

The Importance of Maintenance 113

Maintenance Safety.... 114

Important Safety Precautions 115

Maintenance Schedule 116

Maintenance Record.... 121

Service Preparations

Maintenance Component Locations 122

Tool Kit 127

Owner's Manual Storage 128

Front Hood.... 129

Seat Removal.... 130

Air Cleaner Outer Cover Removal 131

(cont'd)

Servicing Your Honda

Clip Removal 132

Jack-Up Point & Support Point 133

Service Procedures

Fluids, Filters & Lubricants

Fuel 134

Engine Oil & Filters 137

Sub-Transmission Oil 150

Front Final Gear Oil.... 154

Rear Final Gear Oil.... 156

Coolant 159

Air Cleaner 164

Lubrication 169

Engine

Accelerator Pedal.... 172

Spark Plugs.... 174

Spark Arrester 177

Exhaust System.... 179

Chassis

Suspension 180

Brakes 186

Tires 192

Wheels 200

Driveshaft Boots 201

Electrical

Battery 202

Appearance Care.... 207

112 Servicing Your Honda

The Importance of Maintenance

A well-maintained Honda SXS is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. Careful pre-drive inspections and good maintenance are especially important because your Honda SXS is designed to be driven over rough off-road terrain.

To help you properly care for your Honda SXS, this section of the manual provides a Maintenance Schedule. The service intervals in this schedule are based on average operation conditions.

WARNING

Improperly maintaining this Honda SXS or failing to correct a problem before you drive can cause a crash in which you can be seriously hurt or killed.

Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

Frequent servicing of the air cleaner is especially important to help you avoid a possible costly engine repair.

If your Honda SXS overturns or is involved in a crash, be sure your dealer inspects all major parts, even if you are able to make some repairs.

This section includes instructions on how to perform some important maintenance tasks. If you have basic mechanical skills, you can perform many of these tasks with the tools provided with your Honda SXS.

Other tasks that are more difficult and require special tools are best performed by professionals. Removing the wheels should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.

Some of the most important safety precautions follow. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

WARNING

Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed.

Always follow the procedures and precautions in this owner's manual.

Important Safety Precautions

- Make sure the engine is off before you begin any maintenance or repairs. This will help eliminate several potential hazards:

Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you operate the engine.

Burns from hot parts. Let the engine and exhaust system cool before touching.

Injury from moving parts. Do not run the engine unless instructed to do so.

• Read the instructions before you begin, and make sure you have the tools and skills required.
• To reduce the possibility of a fire or explosion, be careful when working around gasoline. Use only non-flammable solvent, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from all fuel-related parts.

Remember that your Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or other equivalents for repair and replacement. If you have the tools and skills required for additional maintenance jobs, you can purchase an official Honda Service Manual (page 273).

The required Maintenance Schedule that follows specifies how often you should have your Honda SXS serviced, and what things need attention. It is essential to have your Honda SXS serviced as scheduled to maintain safe, dependable performance, and proper emission control.

The service intervals in this Maintenance Schedule are based on average driving conditions. Some items will need more frequent service if you drive in unusually wet, muddy, sandy, dusty areas or at full throttle. Consult your dealer for recommendations applicable to your individual needs and use.

Some items in the Maintenance Schedule can be performed with basic mechanical skills and hand tools. Procedures for these items are provided in this manual. Other items involve more extensive procedures and may require special training, tools, and equipment. We recommend that you have your dealer perform these tasks unless you have advanced mechanical skills and the required tools and equipment. Procedures for such items in this schedule are provided in an official Honda Service Manual available for purchase (page 273).

If you do not feel capable of performing a given task or need assistance, remember that your Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. If you decide to do your own maintenance, use only Honda Genuine Parts or their equivalents for repair or replacement to ensure the best quality and reliability.

Perform the pre-drive inspection (page 78) and owner maintenance in this section at each scheduled maintenance period.

Maintenance Minder Messages on the Multi-function Display

The maintenance minder indicator appears in the multi-function display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule.

Maintenance Minder Indicators:

	Initial MaintenanceAppears at 100 miles (150 km) or 20 operating hours, whichever comes first. See Initial Maintenance on the maintenance schedule.
	Regular Maintenance Interval 1Appears 600 miles (1,000 km) or 100 operating hours after the Initial Maintenance is performed and maintenance minder is reset (page 33). See Regular Maintenance Interval for 100, 300, and 500 operating hours (or corresponding mileage interval, whichever comes first) in the maintenance schedule.
	Regular Maintenance Interval 2Appears 600 miles (1,000 km) or 100 operating hours after Regular Maintenance Interval 1 is performed and maintenance minder is reset (page 33). See Regular Maintenance Interval for 200, 400, and 600 operating hours (or corresponding mileage interval, whichever comes first) in the maintenance schedule.

• The Initial Maintenance indicator appears only once over the life of the vehicle.
• The Regular Maintenance Interval 1 and 2 indicators will appear alternately over the life of the vehicle.
• Consider the total mileage and operating hours shown on the odometer/hour meter, along with your vehicle maintenance history, to determine the appropriate Regular Maintenance Interval to follow on the maintenance schedule.

Each item on the maintenance schedule requires some mechanical knowledge. Certain items (particularly those marked * and **) may require more technical information and tools. Consult your dealer.

* Should be serviced by your dealer, unless you have the proper tools and service data, and is mechanically qualified. Refer to the official Honda Service Manual (page 273).
** In the interest of safety, we recommend these items be serviced only by your dealer.

Summary of Maintenance Schedule Notes:

NOTES:

Note 1 Inspect valve clearance as needed, if engine is noisy.
Note 2 Service more frequently when operating in dusty areas, sand or snow.
Note 3 Service more frequently when operated in muddy conditions.
Note 4 Check the underbody whenever the under guard has been hit.

Service the items listed at the indicated distance (or time, if given).
		Initial maintenance	Regular maintenance interval
FREQUENCY(Whichever comes first)ITEMS Hours 20 100 200 300	×100 mi	1 6 12 18 24	30 36 Note Refer							to page
	×100 km	1.5 10 20 30	40 50	60
	400 500	600
	Check engine oil and coolant	Check oil and coolant at fuel stop								140, 160
	Check tires	Check inflation and condition once a month								193
	Check side net and mounting hardware	●	●	●	●	●	●	●	53
	Check brake fluid	Check fluid level once a month								187
	Replace engine oil and oil filter	●		●		●		●		142
	Check sub-transmission oil	●		●		●		●		150
	Replace sub-transmission oil		Every 2 years (regardless of mileage)							152
	Replace DCT oil filter	●				●				147
*	Inspect valve clearance	●			●			●	1	—
*	Clean spark arrester		●	●	●	●	●	●		177
	Replace air cleaner element		●	●	●	●	●	●	2	165
	Check air cleaner housing drain tube		●	●	●	●	●	●	3	167
	Check spark plugs			●		●		●		174
*	Inspect idle speed	●			●			●		—
*	Check fuel lines and connections				●			●		—
	Check front and rear brakes	●			●			●	3	186
	Replace front and rear final gear oil	●			●			●		155, 157

* Should be serviced by your dealer, unless you have the proper tools and service data, and is mechanically qualified. Refer to the official Honda Service Manual (page 273).

Note 1 Inspect valve clearance as needed, if engine is noisy.

Note 2 Service more frequently when operating in dusty areas, sand or snow.

Note 3 Service more frequently when operated in muddy conditions.

Maintenance Schedule

Service the items listed at the indicated distance (or time, if given).
		Initial maintenance	Regular maintenance interval
FREQUENCY(Whichever comes first)ITEMS	×100 mi	1 6 12 18 24	30 3	6 No	te R	efer			4	0 to page
	× 1 0	0 k m	1 .	5	1 0	2	0	3 0
	Hours	20	100	200	300	400	500	600
	Lubricate all hinges, latches, and pivots				●			●		169
**	Inspect suspension components		●	●	●	●	●	●	3	185
	Inspect drive shaft boots		●	●	●	●	●	●	3	201
	Inspect the following items:WheelsAccelerator pedal and brake pedalBrake light switchExhaust systemBattery terminal condition				●			●		—
										200
										172,190
										191
										179
										203
*	Check shift lever adjustment	●						●		—
**	Inspect the following items:Tie-rod endsSteering gearbox and bootsBrake hoses and linesSXS underbody							●		—
										—
										—
										—
										4	—
*	Inspect evaporative emission control system(USA - 50 states [meets California])		Every 2 years(regardless of mileage)							—
*	Replace the following items:Engine coolantBrake fluid		Every 2 years(regardless of mileage)							—
										162
										—

* Should be serviced by your dealer, unless you have the proper tools and service data, and is mechanically qualified. Refer to the official Honda Service Manual (page 273).
** In the interest of safety, we recommend these items be serviced only by your dealer.

Note 3 Service more frequently when operated in muddy conditions.

Note 4 Check the underbody whenever the under guard has been hit.

Keeping an accurate maintenance record will help ensure that your Honda SXS is properly maintained. Retain detailed receipts to verify the maintenance was performed. If the Honda SXS is sold, these receipts should be transferred with the Honda SXS to the new owner. Make sure whoever performs the maintenance completes this record. All scheduled maintenance, including the 100-mile (150 km) or 20 hours initial maintenance, is considered a normal owner operating cost and will be charged for by your dealer. Use the space under Notes to record anything you want to remind yourself about or mention to your dealer.

Miles (km) or hours	ODO or HOUR	Date Performed By:	Notes
100 (150) or 20
600 (1,000) or 100
1,200 (2,000) or 200
1,800 (3,000) or 300
2,400 (4,000) or 400
3,000 (5,000) or 500
3,600 (6,000) or 600
4,200 (7,000) or 700
4,800 (8,000) or 800

Maintenance Component Locations

Indicates something visible.
Indicates something concealed.

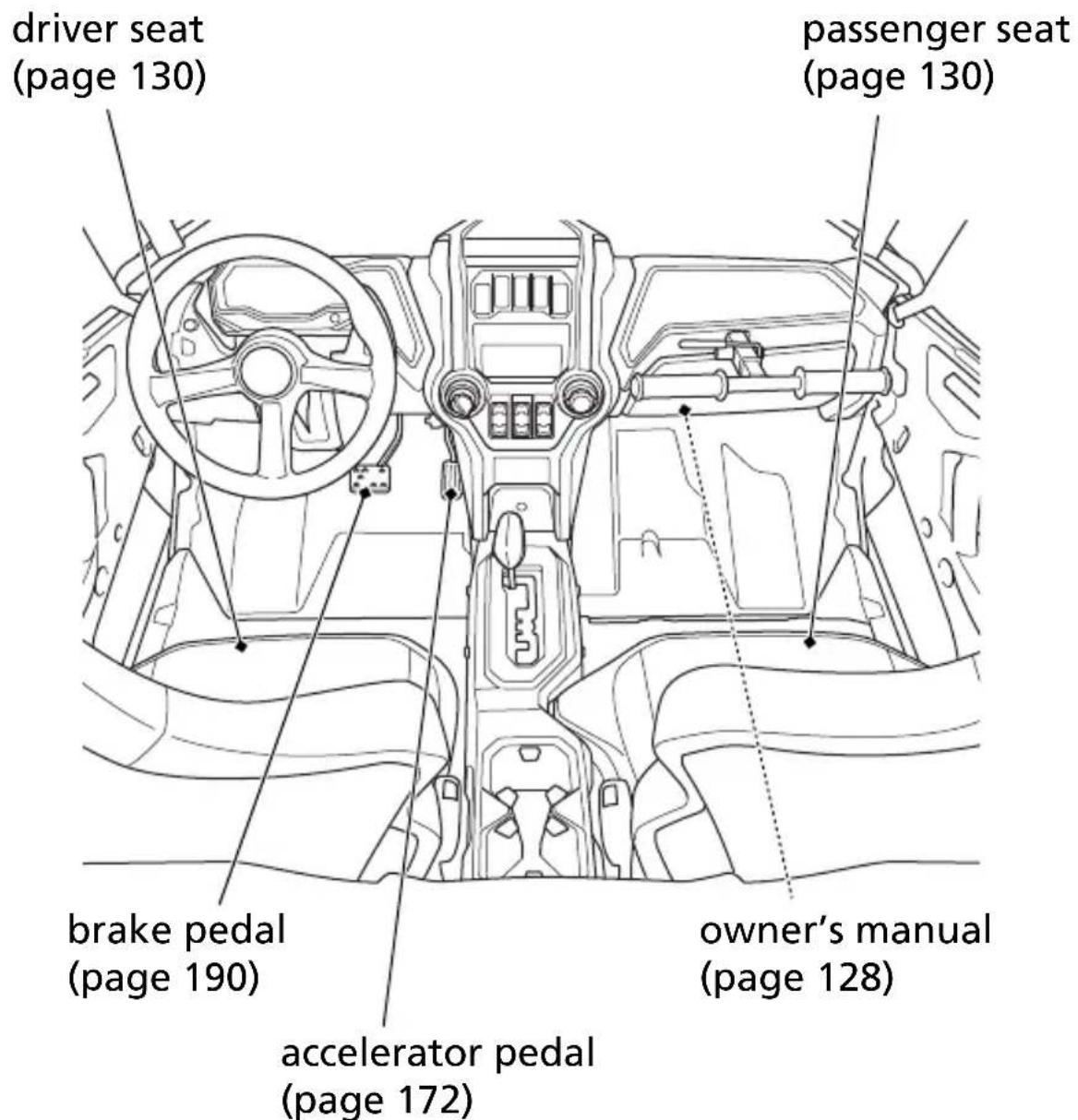

driver seat (page 130) passenger seat (page 130) brake pedal (page 190) accelerator pedal (page 172) owner's manual (page 128)

Maintenance Component Locations

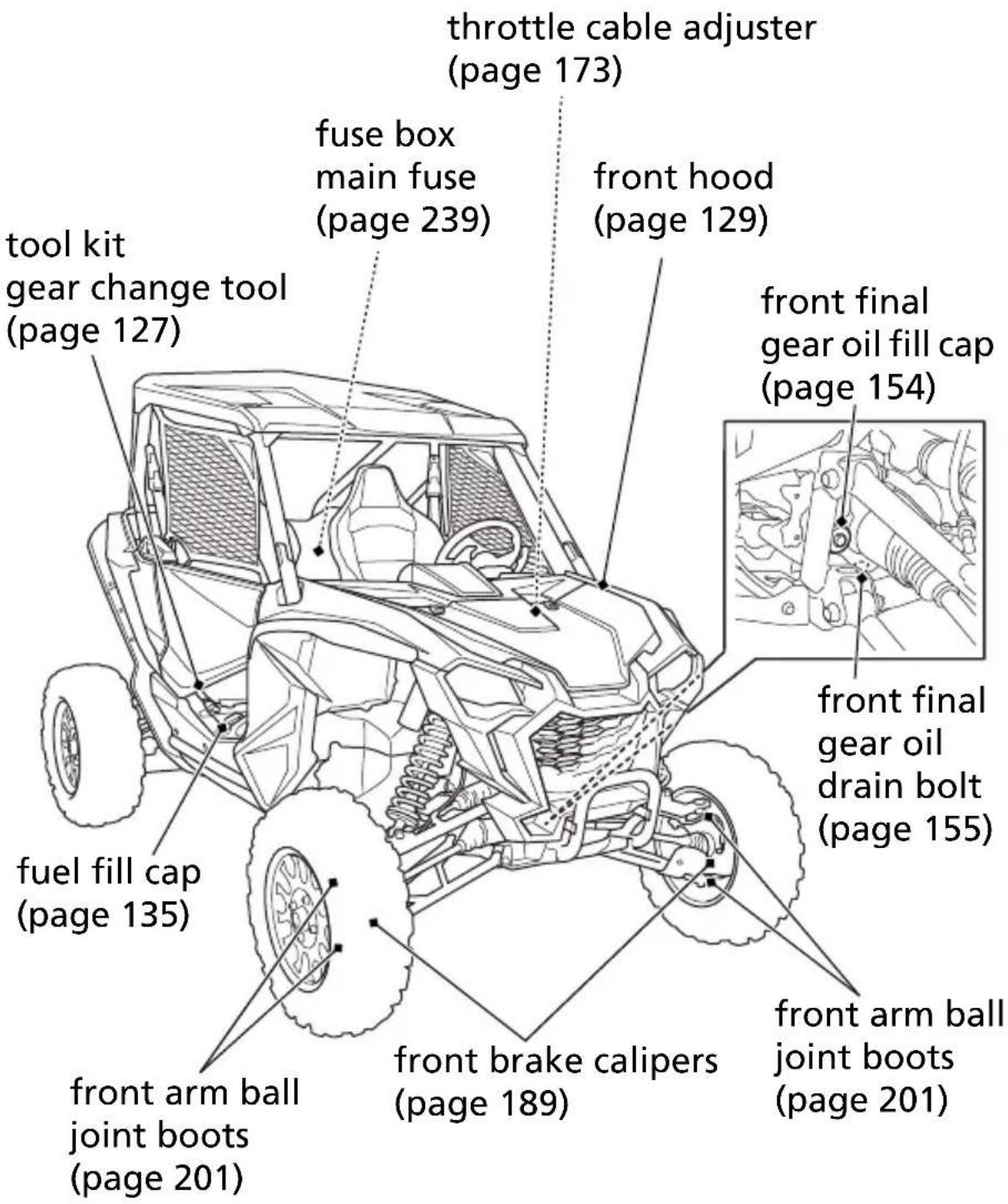

throttle cable adjuster (page 173) fuse box main fuse (page 239) front hood (page 129) tool kit gear change tool (page 127) front final gear oil fill cap (page 154) fuel fill cap (page 135) front final gear oil drain bolt (page 155) front arm ball joint boots (page 201) front brake calipers (page 189) front arm ball joint boots (page 201)

Maintenance Component Locations

Indicates something visible.
Indicates something concealed.

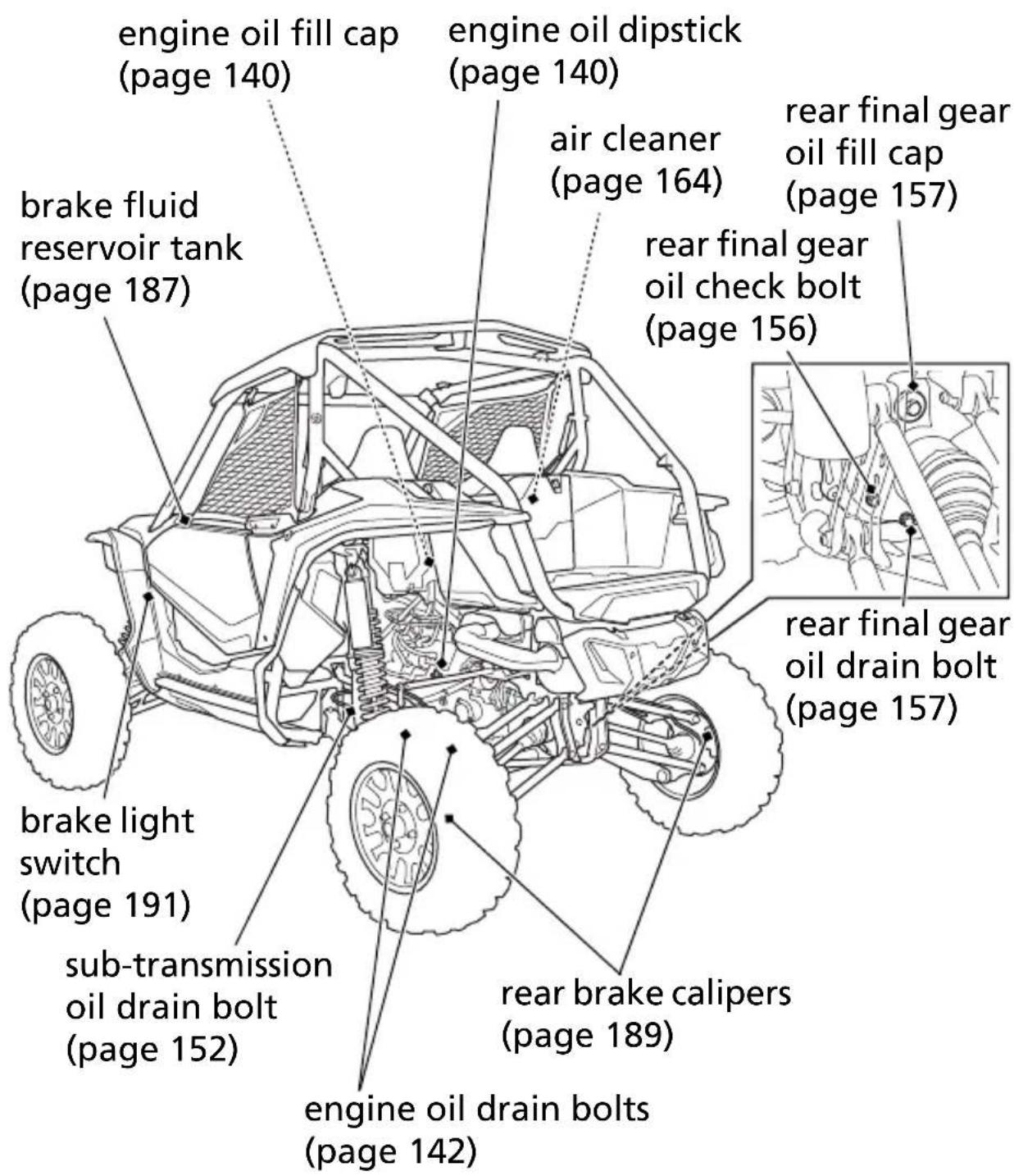

engine oil fill cap (page 140) engine oil dipstick (page 140) air cleaner (page 164) rear final gear oil fill cap (page 157) brake fluid reservoir tank (page 187) rear final gear oil check bolt (page 156) rear final gear oil drain bolt (page 157) brake light switch (page 191) sub-transmission oil drain bolt (page 152) rear brake calipers (page 189) engine oil drain bolts (page 142)

124 Servicing Your Honda

Maintenance Component Locations

coolant reserve tank (page 159) FOX® Live Valve (FLV) system (SXS1000S2RD/S2XD only) (page 181) front suspension damping adjuster (SXS1000S2R/S2X only) (page 183) air cleaner housing drain tube (page 167) spark plugs (page 174) steering rack boots (page 201) sub-transmission oil fill cap/dipstick (page 150) driveshaft boots (page 201)

Maintenance Component Locations

Indicates something visible.
Indicates something concealed.

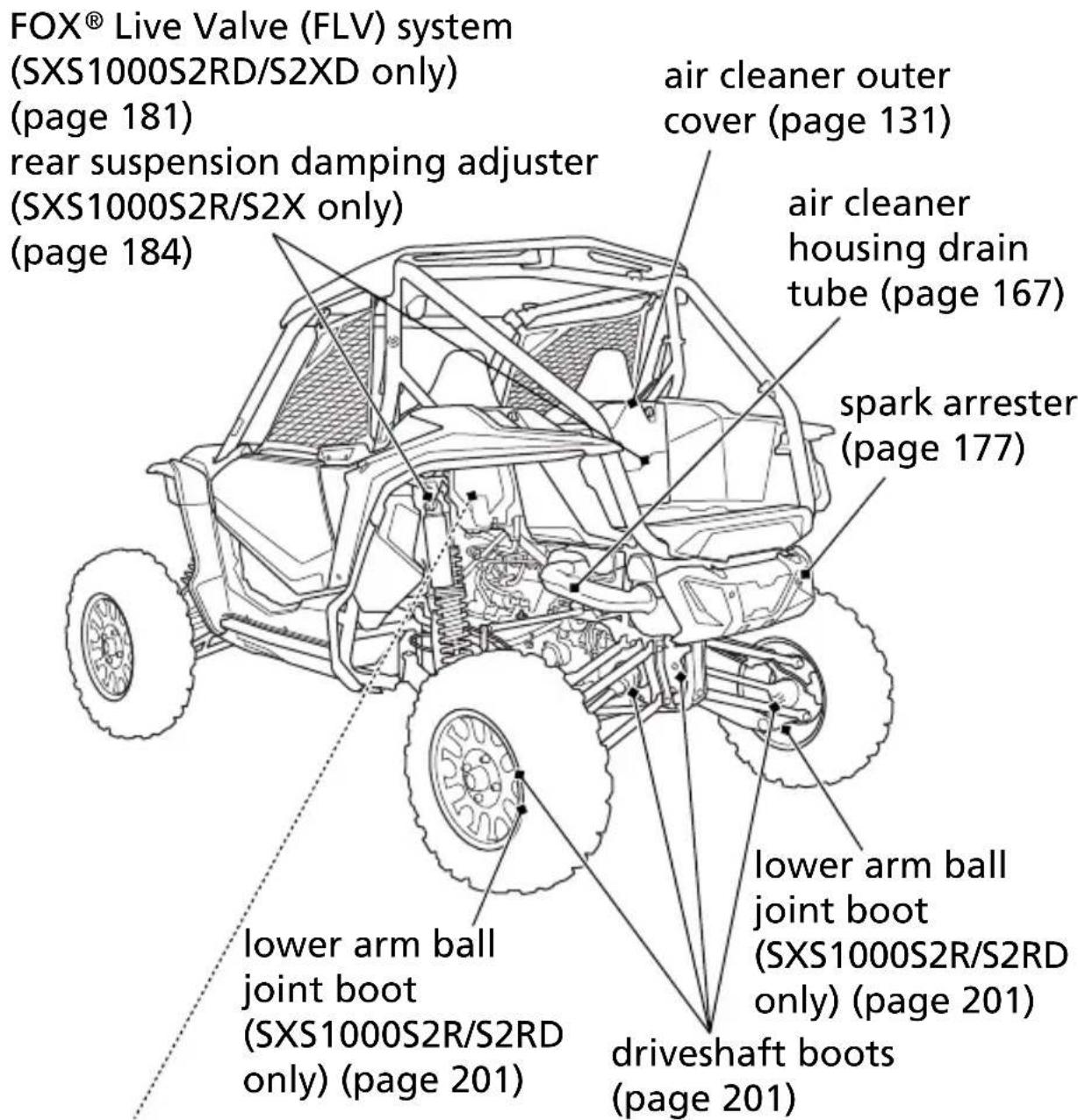

FOX® Live Valve (FLV) system (SXS1000S2RD/S2XD only) (page 181) rear suspension damping adjuster (SXS1000S2R/S2X only) (page 184) air cleaner outer cover (page 131) air cleaner housing drain tube (page 167) spark arrester (page 177) lower arm ball joint boot (SXS1000S2R/S2RD only) (page 201) driveshaft boots (page 201)

battery (page 202) electric power steering (EPS) fuse brake traction control system (BTCS) fuse radiator fan fuse (page 244)

The tool kit and the gear change tool are stored under the passenger seat.

To access the tool kit and the gear change tool, remove the passenger seat (page 130), and remove the rubber band securing the tool kit.

After using the tool kit or the gear change tool, be sure to use the rubber band to fasten the tool kit and the gear change tool securely.

An optional, larger tool kit may be available. Check with your dealer's parts department.

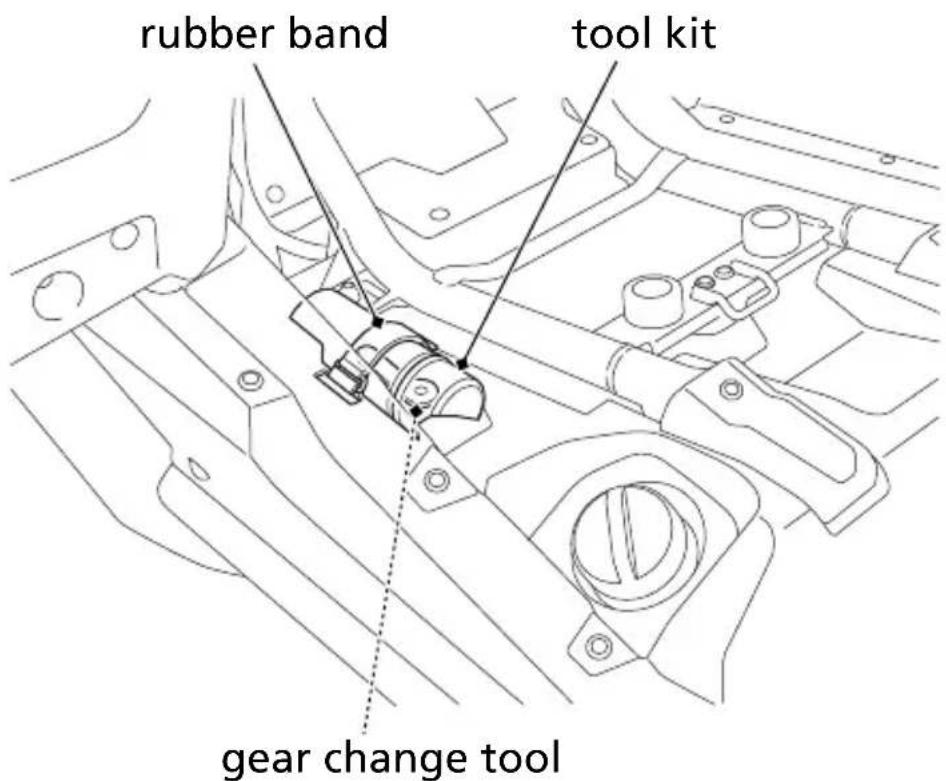

UNDER PASSENGER SEAT

rubber band tool kit gear change tool

Owner's Manual Storage

Your Honda SXS provides storage for the owner's manual so you'll have it with you for easy reference. Store your owner's manual in the owner's manual storage on the inside of the document compartment.

The owner's manual should be stored in the plastic bag.

Be careful not to flood this area when washing your Honda SXS.

RIGHT SIDE

document compartment owner's manual storage

Technical line drawing of a vehicle interior showing mechanical components and structural details (no text or symbols)

owner's manual

Refer to Safety Precautions on page 115.

The front hood must be removed to add coolant and adjust the accelerator pedal freeplay.

Removal

1. Lift the tabs on knobs up, turn the knobs 1/4 clockwise or 1/4 counterclockwise.
2. Remove the prongs from the grommets.
3. Remove the front hood.

Installation

1. Insert the slots into the hooks.
2. Insert the prongs into the grommets.
3. Turn the knobs 1/4 counterclockwise or 1/4 clockwise, push the tabs down to lock the knobs.

Make sure that the hood is securely installed before driving.

While driving, if the prongs of the front hood pop up from the grommets, stop the vehicle at a safe place and insert the prongs into the grommets securely.

front hood tnbs to unlock to lock knobs prongs slots hooks grommets

Refer to Safety Precautions on page 115.

The driver seat and passenger seat can be removed in the same manner.

Removal

1. Open the door (page 51).
2. Pull the seat lock lever at the front center of the seat.
3. Pull the front of the seat upward then slide it slightly forward.

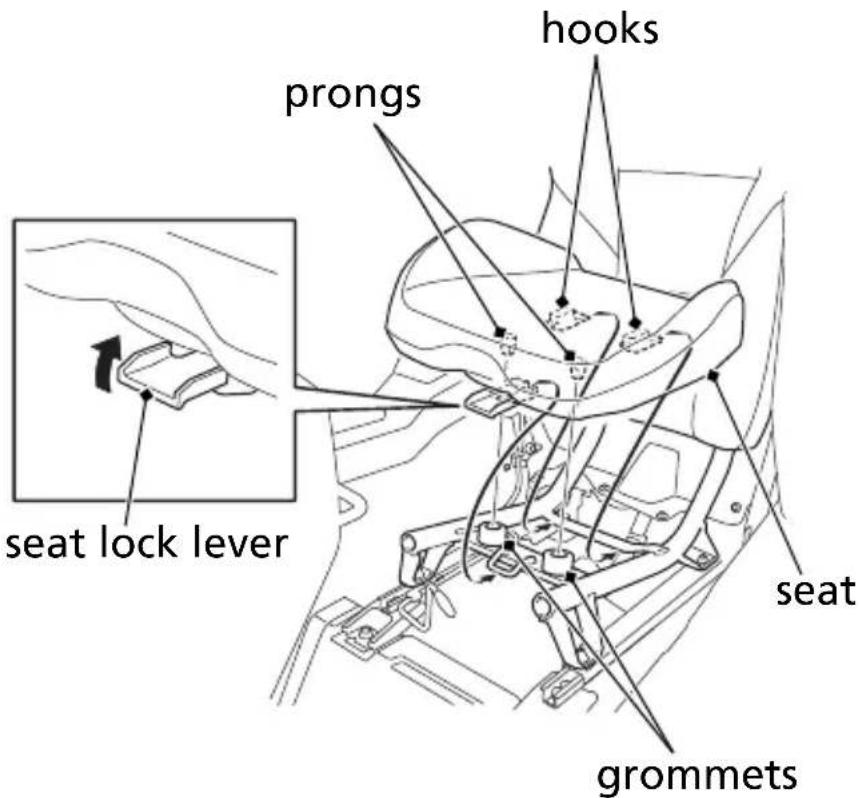

prongs hooks seat lock lever seat grommets

Installation

1. Insert the hooks into the frame and the prongs into the grommets of the seat.
2. Press down on the seat until it locks.

Make sure that the seat is locked securely in position by pulling it up lightly.

Since the bottom shape of the driver seat and the passenger seat are different, install them in their correct position.

Air Cleaner Outer Cover Removal

Refer to Safety Precautions on page 115.

The air cleaner outer cover must be removed to replace the air cleaner and to add the engine oil.

Removal

1. Turn the knobs 1/4 clockwise or 1/4 counterclockwise to the unlock positions.
2. Remove the prong from the grommet.
3. Remove the air cleaner outer cover upward.

Installation

1. Insert the hooks into the slots.
2. Insert the prong into the grommet.
3. Turn the knobs 1/4 counterclockwise or 1/4 clockwise to the lock position.

IN FRONT OF CARGO BED

to unlock to unlock knobs prong air cleaner outer cover hooks slots grommet

Clip Removal

Clip removal and installation:

Removal

1. Pull up the center pin to release the lock.
2. Pull out the clip of the hole.

1

Simple line drawing of a mechanical component with a curved handle and arrow indicating direction (no text or symbols)

2

Technical line drawing of a mechanical component with a directional arrow indicating motion (no text or symbols)

Installation

1. Insert the clip into the hole.
2. Press down the center pin securely to lock the clip.

1

Technical line drawing of a mechanical component with a circular end and arrow indicating direction (no text or symbols)

2

Refer to Safety Precautions on page 115.

When jacking up and supporting this vehicle, the following jack-up points and support points should be used.

WARNING

The vehicle can easily roll off a jack, seriously injuring anyone underneath.

Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.

When using a jack, always abide by the following instructions.

• Do not leave the engine running.
• Shift the shift select lever into the park (P) position.
• Use only on a firm level surface.
• Place a jack only at the specified jack-up point.
• Do not leave any person or cargo in the vehicle.
• Do not place any object above or under a jack.

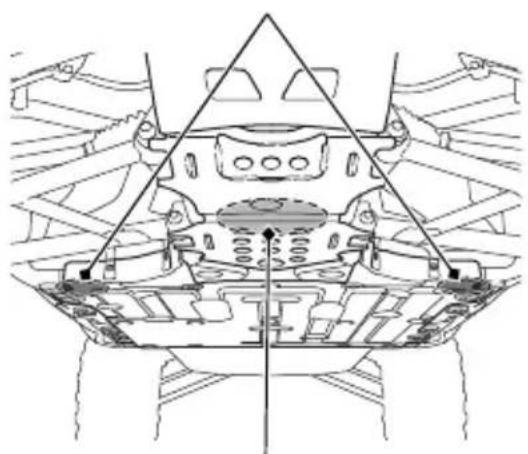

REARFRONT

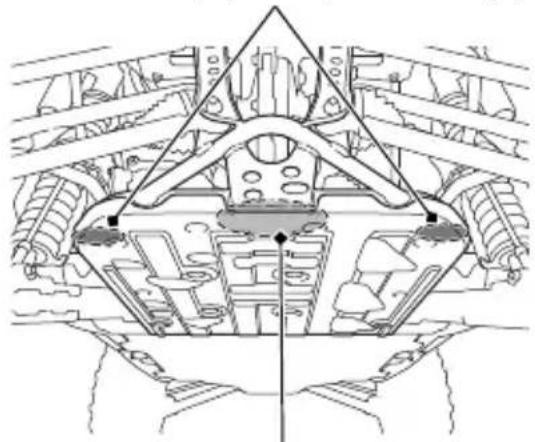

Technical line drawing of a vehicle chassis with structural components and a triangular roof structure (no text or symbols)

jack up point

support pointssupport

Technical line drawing of a mechanical assembly with no visible text or symbols

jack up point

Refer to Safety Precautions on page 115.

Fuel Recommendation

type unleaded
pump octane number 86	(or higher)

Use only unleaded fuel in your Honda. The use of leaded fuel will damage the catalytic converter. If you drive your Honda in a country where leaded fuel might be available, take precautions to use only unleaded fuel.

Your engine is designed to use any unleaded gasoline that has a pump octane number of 86 or higher. Gasoline pumps at service stations normally display the pump octane number. For information on the use of oxygenated fuels (USA & Canada only), see page 268.

For information on the use of Petrol Containing Alcohol (Australia & New Zealand only), see page 270.

Use of lower octane gasoline can cause persistent “pinging” or “spark knock” (a loud rapping noise) which, if severe, can lead to engine damage. Light pinging experienced while operating under a heavy load, such as climbing a hill, is no cause for concern.

If pinging or spark knock occurs at a steady engine speed under normal load, change brands of gasoline. If pinging or spark knock persists, consult your dealer.

Never use stale or contaminated gasoline or an oil/gasoline mixture. Avoid getting dirt, dust, or water in the fuel tank.

Fuel Capacity

Fuel tank capacity:

7.27 US gal (27.5 ℓ)

When there is only one segment left in the fuel gauge (page 27), fuel will be low and you should refuel as soon as possible.

Refueling Procedure

Refer to Safety Precautions on page 115.

RIGHT SIDE

fuel fill cap lower edge of filler neck

1. Open the right side door (page 51).
2. Turn the fuel fill cap counterclockwise.

(cont'd)

1. Add fuel until the level reaches the lower edge of the filler neck. Avoid overfilling the tank. There should be no fuel in the filler neck.

WARNING

Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks and flames away.
• Only handle fuel outdoors.

• Wipe up spills immediately.

• After refueling, turn the fuel fill cap clockwise until it clicks and close the right side door.

If you replace the fuel fill cap, use a Honda Genuine replacement part or equivalent.

NOTICE

Gasoline can damage painted and matte painted surfaces.

Do not allow spilled gasoline to pool on painted and matte painted bodywork. Also, do not allow gasoline soaked rags to be placed on painted and matte painted bodywork.

Engine oil quality is a major factor that affects both the performance and the service life of the engine.

Using the proper oil (page 138) and filter, and regularly checking, adding, and changing oil will help extend your engine's life. Even the best oil wears out. Changing oil helps get rid of dirt and deposits in the engine. Operating the engine with old or dirty oil can damage your engine. Running the engine with insufficient oil can cause serious damage to the engine and transmission.

Change the engine oil as specified in the maintenance schedule on page 119. When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.

Oil Recommendation

API classification SJ or	higher except oils labeled as energy conserving or resource conserving on the circular API service label
viscosity (weight) SAE	10W-30
JASO T 903 standard	MA
suggested oil*	Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent motorcycle oil.

*Suggested oils are equal in performance to SJ oils that are not labeled as energy conserving or resource conserving on the circular API service label.

• Your Honda SXS does not need oil additives. Use the recommended oil.
• Do not use oils with graphite or molybdenum additives. They may adversely affect clutch operation.
• Do not use API SJ or higher oils displaying a circular API “energy conserving” or “resource conserving” service label on the container. They may affect lubrication and clutch performance.

API SERVICE SI SAE 10W-30 RESOCE CONSERVNS API SERVICE SI SAE 10W-30 ENERGY CONSERVNS API SERVICE SI SAE 10W-30

Not recommended Recommended

- Do not use non-detergent, vegetable, or castor based racing oils.

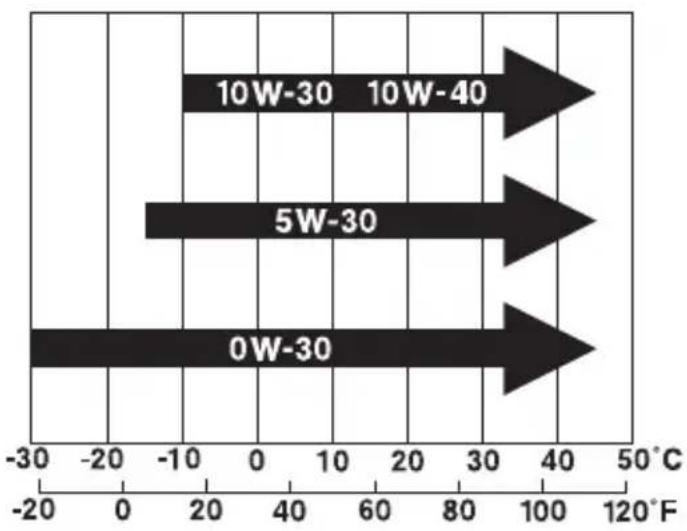

Other viscosities shown in the following chart may be used when the average temperature in your driving area is within the indicated range.

JASO T 903 standard

The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines.

There are two classes: MA and MB.

Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification.

MA oil code oil classification

Checking & Adding Engine Oil

Refer to Safety Precautions on page 115.

Check the engine oil level each day before operating your Honda SXS and add, if needed.

1. Park your Honda SXS on a firm, level surface. Shift the shift select lever into the park (P) position.
2. Start the engine in a well-ventilated area and let it idle for 3 – 5 minutes. Stop the engine and wait 2 – 3 minutes.

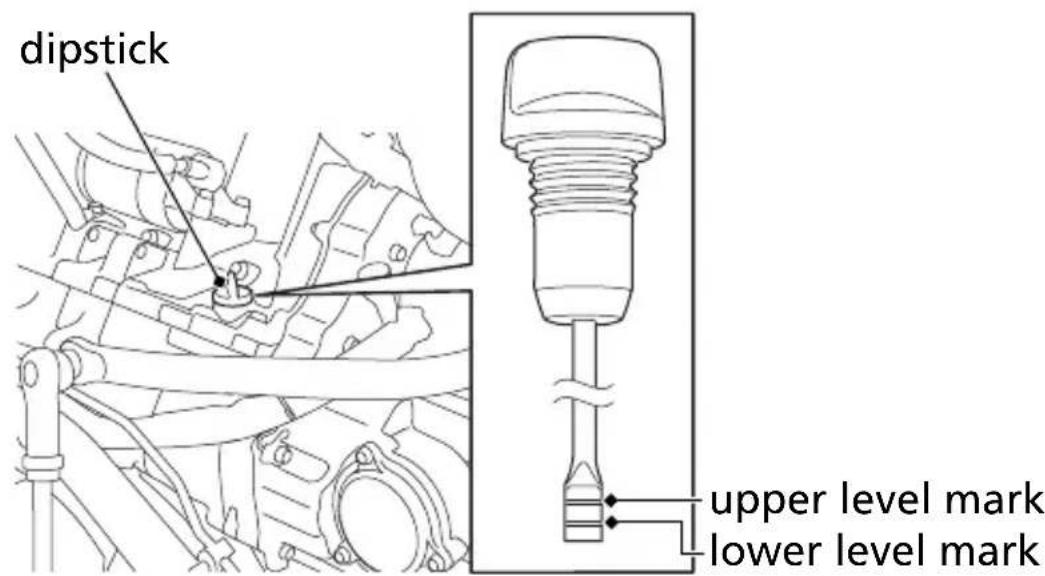

3. Remove the dipstick and wipe it clean.
4. Insert the dipstick without screwing it in, then remove the dipstick and check the oil level. The oil level should be between the upper level mark and the lower level mark on the dipstick.

UNDER LEFT REAR FENDER

dipstick upper level mark lower level mark

1. If required, remove the air cleaner outer cover (page 131) and oil fill cap, and then add the specified oil into the fill cap hole, up to the upper level mark on the dipstick. Do not overfill.

2. Reinstall the oil fill cap and dipstick, and then install the air cleaner outer cover.

NOTICE

Running the engine with an improper oil level can cause serious engine damage.

IN FRONT OF CARGO BED LEFT SIDE

Technical line drawing of a vehicle's front and side components, showing structural parts without any text or symbols.

oil fill cap

Changing Engine Oil & Filters

Refer to Safety Precautions on page 115.

Your Honda SXS's oil filter has very specific performance requirements. Use a new Honda Genuine oil filter specified for your model or a filter of equal quality.

NOTICE

Using the wrong oil filter may result in leaks or engine damage.

This procedure requires mechanical skill and professional tools such as a torque wrench and access from underneath the vehicle, as well as the means for disposing of the drained fluid (page 221). If you do not have the skills or the tools, see your dealer.

Your Honda SXS is equipped with two oil filters: an engine oil filter and a DCT (Dual Clutch Transmission) oil filter.

When changing the engine oil, also change the engine oil filter.

Also change the DCT oil filter for every two times the engine oil is changed.

Drain the Engine Oil:

1. Make sure the Honda SXS is parked on a firm, level surface. Shift the shift select lever into the park (P) position.

- It may be necessary to jack up and support your Honda SXS to change the oil and filter, see page 133.

1. Remove the air cleaner outer cover (page 131).
2. Remove the oil fill cap and dipstick (page 140).

IN FRONT OF CARGO BED

LEFT SIDE

Technical line drawing of a vehicle's front and side components, showing structural parts without any text or symbols.

oil fill cap

(cont'd)

Engine Oil & Filters

1. Place an oil drain pan under the engine oil drain bolts.
2. Remove the engine oil drain bolts and sealing washers.

UNDER BODY sub-transmission oil drain hole FORWARD BACKWARD sealing washer sealing washer engine oil drain bolt (oil pan) sealing washer engine oil drain bolt (oil tank)

NOTICE

Be sure not to drain sub-transmission oil unless intending to do so. The engine and sub-transmission oils are not connected.

Install a New Engine Oil Filter:

Place shop towels under the oil filter cover because oil will flow out.

1. Remove the engine oil filter cover (ENG marked) and O-ring by removing the bolts. Let the remaining oil drain out. Discard the oil filter in an approved manner (page 221).
2. Apply engine oil to a new O-ring and install it to the engine oil filter cover. Install a new oil filter.

Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter, inserting a filter in backwards, using a filter with no OUTSIDE markings, or a non-Honda filter which is not of equivalent quality may cause engine damage.

1. Install a new filter with the OUTSIDE mark facing outward, reinstall the spring and engine oil filter cover making sure the bolts are tightened to the specified torque:

9 lbf·ft (12 N·m, 1.2 kgf·m)

NOTICE

Improper installation of the oil filter can cause serious engine damage.

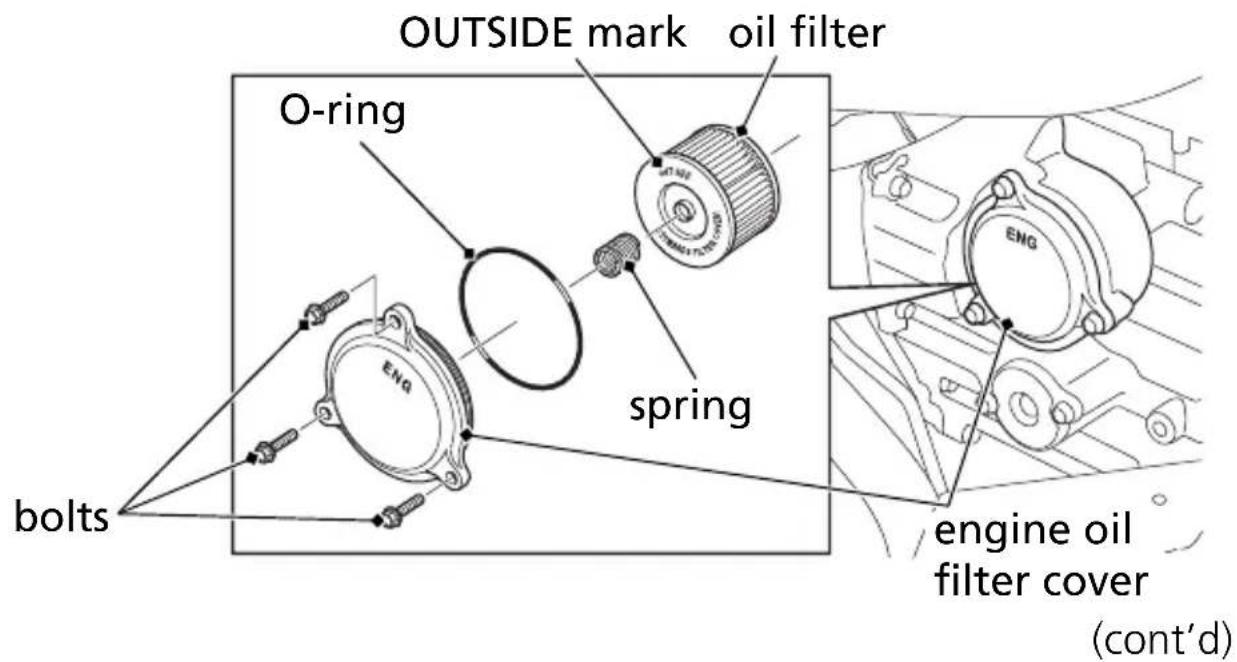

UNDER LEFT REAR FENDER

OUTSIDE mark oil filter O-ring spring ENG bolls engine oil filter cover (cont'd)

Engine Oil & Filters

1. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 221).

NOTICE

Improper disposal of drained fluids is harmful to the environment.

1. When changing the DCT oil filter, proceed to step 11 in Install a New DCT Oil Filter on the next page. If you are not changing the DCT oil filter, proceed to step 15 in Add Engine Oil: on page 149.

Install a New DCT Oil Filter:

Place shop towels under the oil filter cover because oil will flow out.

1. Remove the DCT oil filter cover (DCT marked) and O-ring by removing the bolts. Let the remaining oil drain out. Discard the oil filter in an approved manner (page 221).

2. Apply engine oil to a new O-ring and install it to the DCT oil filter cover. Install a new oil filter.

Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter, inserting a filter in backwards, using a filter with no OUTSIDE markings, or a non-Honda filter which is not of equivalent quality may cause engine damage.

1. Install a new filter with the OUTSIDE mark facing outward, reinstall the spring and DCT oil filter cover making sure the bolts are tightened to the specified torque:

9 lbf·ft (12 N·m, 1.2 kgf·m)

NOTICE

Improper installation of the oil filter can cause serious engine damage.

UNDER LEFT REAR FENDER

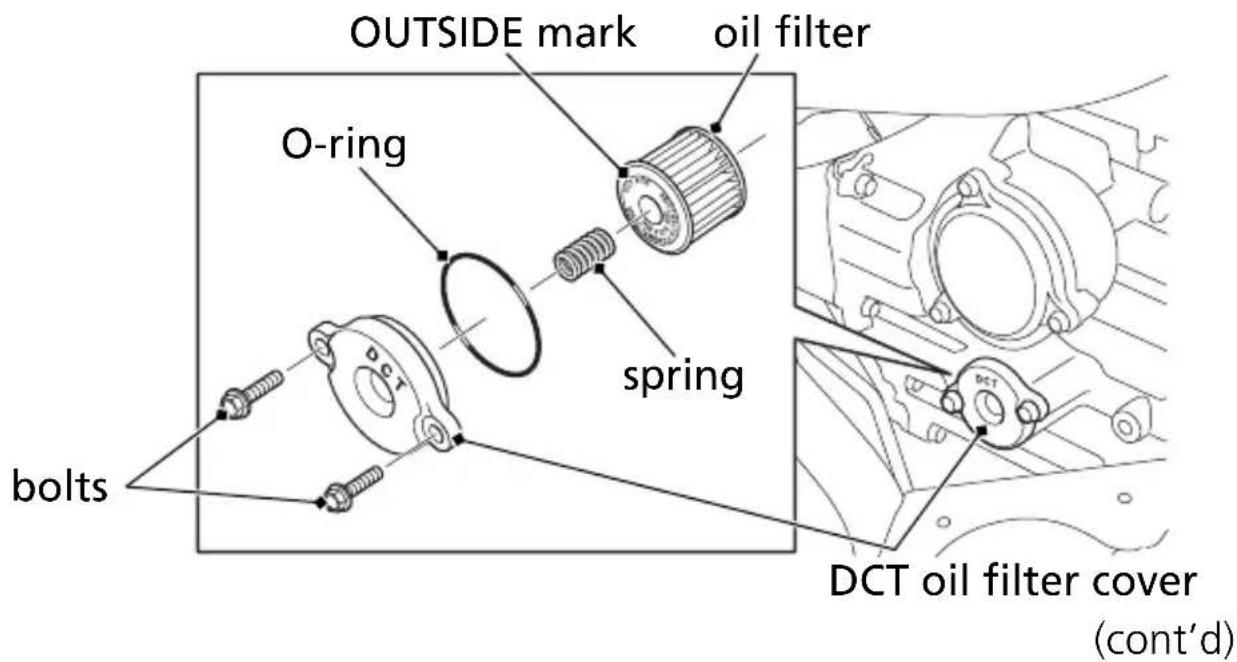

OUTSIDE mark oil filter O-ring spring bolts DCT oil filter cover (cont'd)

Engine Oil & Filters

1. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 221).

NOTICE

Improper disposal of drained fluids is harmful to the environment.

Add Engine Oil:

1. Reinstall the drain bolts and new sealing washers and tighten the bolts to the specified torque:
   21 lbf·ft (29 N·m, 3.0 kgf·m)

2. Fill the crankcase with the recommended oil, approximately: engine oil filter change: 6.08 US qt (5.75 ℓ) engine & DCT oil filters change: 6.1 US qt (5.8 ℓ)

3. Reinstall the oil fill cap and dipstick.

4. Start the engine and let it idle for 3 - 5 minutes.

5. Stop the engine and after 2 – 3 minutes, check the oil level. Make sure the oil is between the upper and lower level marks on the dipstick. If necessary, add more oil but do not overfill.

6. Reinstall the oil fill cap and dipstick.

7. Install the air cleaner outer cover.

8. Check that there are no oil leaks.

If a torque wrench is not used for installation, see your dealer as soon as possible to verify proper assembly.

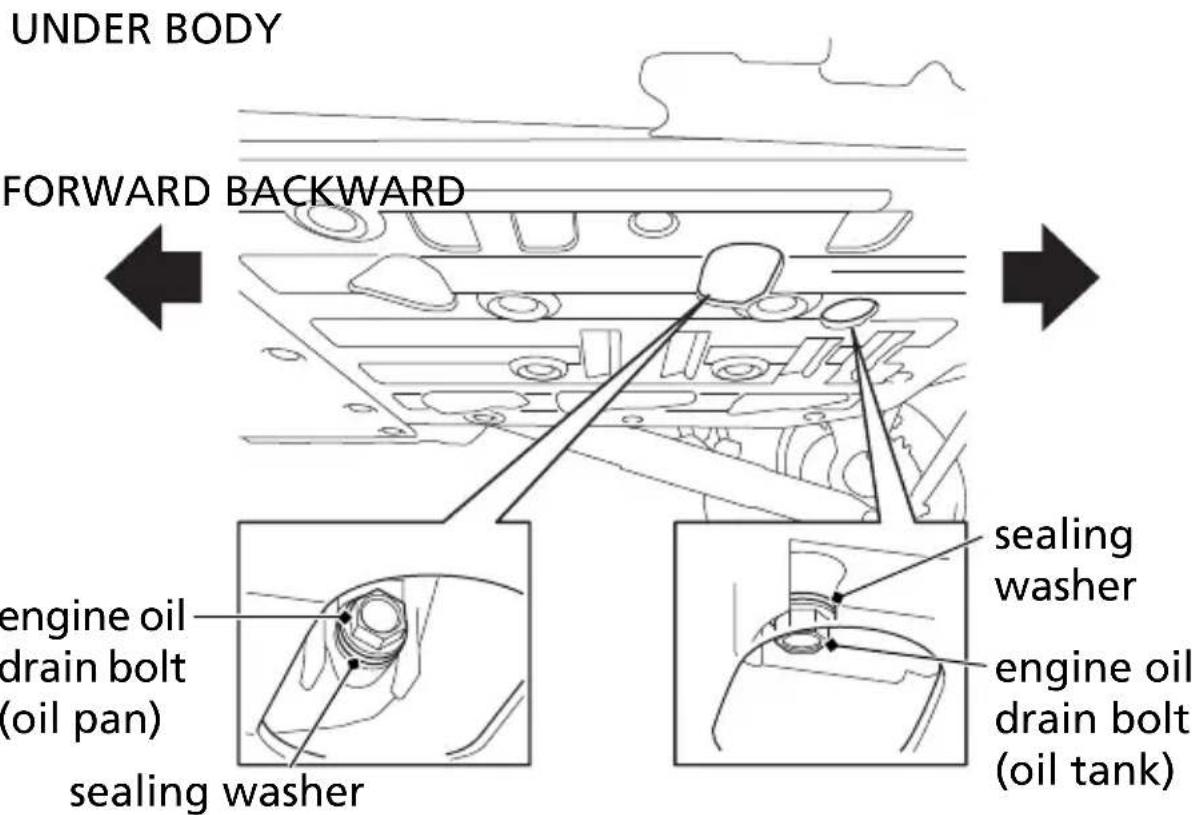

UNDER BODY FORWARD BACKWARD engine oil drain bolt (oil pan) sealing washer sealing washer engine oil drain bolt (oil tank)

Oil Recommendation

The recommended sub-transmission oil is the same as the engine oil (page 138).

Checking & Adding Sub-Transmission Oil

Refer to Safety Precautions on page 115.

Check the sub-transmission oil level as specified in the maintenance schedule (page 119) and add, if needed.

Before driving your SXS, check the sub-transmission oil level.

1. Park your Honda SXS on a firm, level surface. Shift the shift select lever into the park (P) position.
2. Remove the oil fill cap/dipstick from the transmission cover and wipe it clean.
3. Insert the dipstick without screwing it in, then remove the oil fill cap/dipstick and check the oil level. The oil level should be between the upper level mark and the lower level mark on the oil fill cap/dipstick.

UNDER RIGHT REAR FENDER

oil fill cap/dipstick upper level mark lower level mark

1. If the oil level is near or below the lower level mark, add the specified oil into the oil fill cap hole, fill to the upper level mark on the dipstick. Do not over fill.
2. Reinstall the oil fill cap/dipstick.

NOTICE

Running the engine with an improper oil level can cause serious engine damage.

Changing Sub-Transmission Oil

Refer to Safety Precautions on page 115.

This procedure requires mechanical skill and professional tools such as a torque wrench, and access from underneath the vehicle, as well as the means for disposing of the drained fluid (page 221). If you do not have the skills or the tools, see your dealer.

1. Make sure the Honda SXS is parked on a firm, level surface. Shift the shift select lever into the park (P) position.
2. It may be necessary to jack up and support your Honda SXS to change the sub-transmission oil, see page 133.
3. Remove the oil fill cap/dipstick (page 150).
4. Place an oil drain pan under the sub-transmission oil drain bolt.
5. Remove the sub-transmission oil drain bolt and sealing washer.

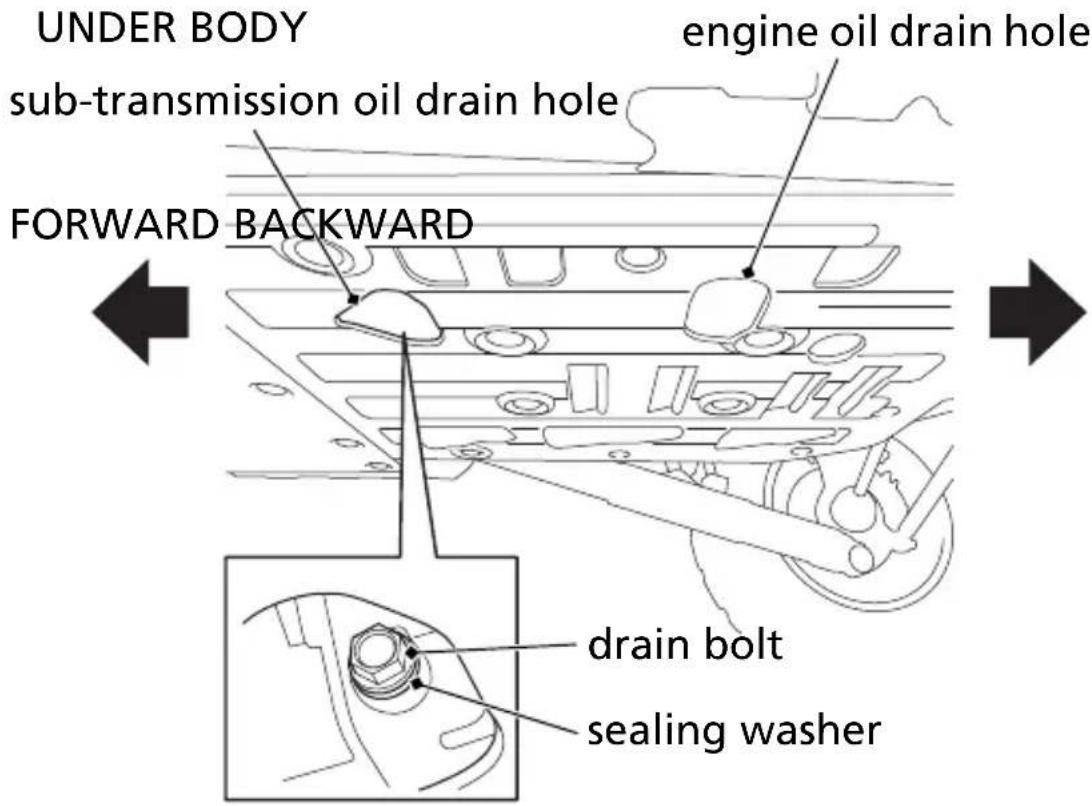

UNDER BODY sub-transmission oil drain hole engine oil drain hole FORWARD BACKWARD drain bolt sealing washer

152 Servicing Your Honda

Pour the drained oil into a suitable container and dispose of it in an approved manner (page 221).

1. Reinstall the drain bolt and new sealing washer, and tighten the bolt to the specified torque:
   21 lbf·ft (29 N·m, 3.0 kgf·m)
2. Fill the sub-transmission case with the recommended oil, approximately:
   1.35 US qt (1.28 ℓ)
3. Insert the dipstick without screwing it in, then remove the oil fill cap/dipstick and check the oil level. Make sure the oil is between the upper level mark and lower level mark on the dipstick. If necessary, add more oil but do not overfill.
4. Reinstall the oil fill cap/dipstick.
5. Check that there are no oil leaks.

If a torque wrench is not used for installation, see your dealer as soon as possible to verify proper assembly.

NOTICE

Improper disposal of drained fluids is harmful to the environment.

Oil Recommendation

API classification	GL-5 except oils labeled as energy conserving on the circular API service label
type hypoid gear oil
viscosity (weight) SAE	80W-90
suggested oil Honda	shaft drive oil or equivalent

Checking Oil

Refer to Safety Precautions on page 115.

1. Park your Honda SXS on a firm, level surface. Shift the shift select lever into the park (P) position.
2. Remove the oil fill cap and O-ring.
3. Make sure the oil level is at the lower edge of the oil fill inspection hole.
4. Apply a thin coat of grease to a new O-ring and insert it into the oil fill cap groove.
5. Install and tighten oil fill cap to the specified torque:
   9 lbf·ft (12 N·m, 1.2 kgf·m)

LEFT FRONT

FRONT lower edge of oil fill inspection hole oil fill cap/O-ring

Changing Oil

Refer to Safety Precautions on page 115.

Change the oil with the front final gear at normal operating temperature to assure complete and rapid draining.

1. Park the Honda SXS on a firm, level surface. Shift the shift select lever into the park (P) position.
2. Place an oil drain pan under the oil drain plug.
3. Remove the oil fill cap, O-ring, drain plug, and sealing washer.
4. After the oil has completely drained, reinstall the drain plug with a new sealing washer and tighten it to the specified torque:

9 lbf·ft (12 N·m, 1.2 kgf·m)

1. Fill the front final gear with the recommended oil.

13.4 US oz (395 cm ^3 )

1. Make sure the oil level is at the lower edge of the oil fill inspection hole.

2. Apply a thin coat of grease to a new O-ring and insert it into the oil fill cap groove.

3. Install and tighten oil fill cap to the specified torque:

9 lbf·ft (12 N·m, 1.2 kgf·m)

1. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 221).

NOTICE

Improper disposal of drained fluids is harmful to the environment.

LEFT FRONT

lower edge of oil fill inspection hole oil fill cap/O-ring oil drain plug

Oil Recommendation

API classification	GL-5 except oils labeled as energy conserving on the circular API service label
type hypoid gear oil
viscosity (weight) SAE	80W-90
suggested oil Honda	shaft drive oil or equivalent

Checking Oil

Refer to Safety Precautions on page 115.

1. Park your Honda SXS on a firm, level surface. Shift the shift select lever into the park (P) position.
2. Remove the oil check bolt and sealing washer.
3. Make sure the oil level is at the lower edge of the oil check inspection hole.
4. Install the oil check bolt with a new sealing washer and tighten to the specified torque:
   9 lbf·ft (12 N·m, 1.2 kgf·m)

RIGHT REAR

sealing washer lower edge of oil check inspection hole oil check bolt

Changing Oil

Refer to Safety Precautions on page 115.

Change the oil with the rear final gear at normal operating temperature to assure complete and rapid draining.

1. Park the Honda SXS on a firm, level surface. Shift the shift select lever into the park (P) position.
2. Place an oil drain pan under the oil drain plug.
3. Remove the oil fill cap, O-ring, oil check bolt, drain plug, and sealing washers.

4. After the oil has completely drained, reinstall the drain plug with a new sealing washer and tighten it to the specified torque:
   9 lbf·ft (12 N·m, 1.2 kgf·m)

5. Fill the rear final gear with the recommended oil.

3.9 US oz (115 cm ^4 )

1. Make sure the oil level is at the lower edge of the oil check inspection hole. Allow oil to settle for 1 minutes before proceeding to next step.

(cont'd)

Rear Final Gear Oil

1. Install the oil check bolt with a new sealing washer and tighten to the specified torque:

9 lbf·ft (12 N·m, 1.2 kgf·m)

1. Apply a thin coat of grease to a new O-ring, and insert it into the oil fill cap groove.

2. Install and tighten oil fill cap to the specified torque:

9 lbf·ft (12 N·m, 1.2 kgf·m)

1. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 221).

NOTICE

Improper disposal of drained fluids is harmful to the environment.

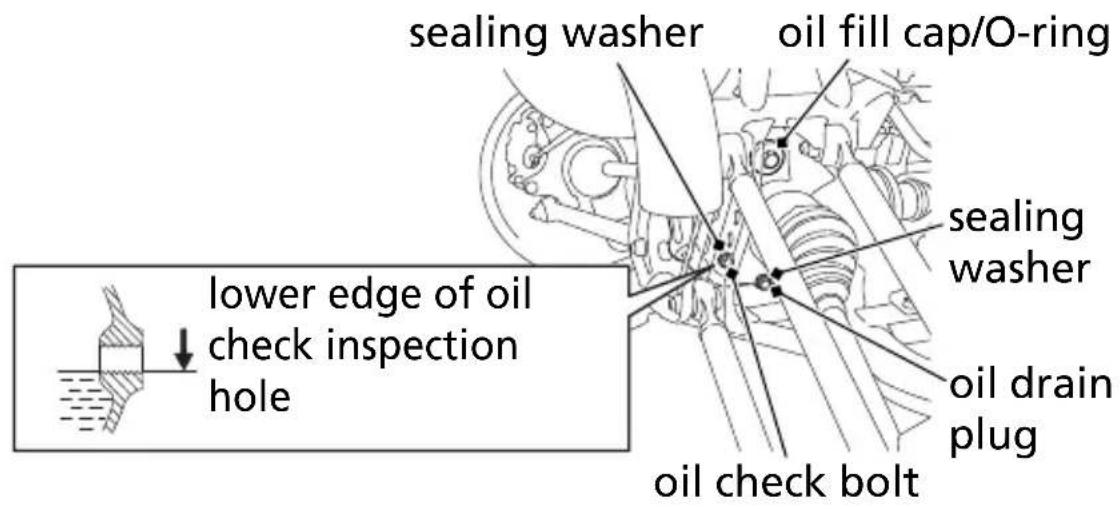

RIGHT REAR

sealing washer oil fill cap/O-ring lower edge of oil check inspection hole sealing washer oil drain plug oil check bolt

Your Honda SXS's liquid cooling system dissipates engine heat through the coolant jacket that surrounds the cylinder and cylinder head.

Maintaining the coolant will allow the cooling system to work properly and prevent freezing, overheating, and corrosion.

Coolant Recommendation

Use Pro Honda HP Coolant or an equivalent high-quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines. Check the antifreeze container label.

Use only distilled water as a part of the coolant solution. Water that is high in mineral content or salt may be harmful to the aluminum engine.

NOTICE

Using coolant with silicate inhibitors may cause premature wear of water pump seals or blockage of radiator passages. Using tap water may cause engine damage.

The factory provides a 50/50 solution of antifreeze and distilled water in this Honda SXS. This coolant solution is recommended for most operating temperatures and provides good corrosion protection.

Decreasing the concentration of antifreeze to less than 40% will not provide proper corrosion protection.

Increasing the concentration of antifreeze is not recommended because it decreases cooling system performance. Higher concentrations of antifreeze (up to 60%) should only be used to provide additional protection against freezing. Check the cooling system frequently during freezing weather.

Checking & Adding Coolant

Refer to Safety Precautions on page 115.

Check the engine coolant level every day before operating your Honda SXS and add, if needed.

1. Make sure the vehicle is parked on a firm, level surface.
2. With the engine at normal operating temperature, check the coolant level in the reserve tank. It should be between the MAX and MIN level marks.
   If the reserve tank is empty, or if coolant loss is excessive, check for leaks and see your dealer for repair.

UNDER RIGHT FRONT FENDER

MAX level mark MIN level mark reserve tank

1. Remove the front hood (page 129).

2. Remove the reserve tank cap.

Always add coolant to the reserve tank. Do not attempt to add coolant by removing the radiator cap.

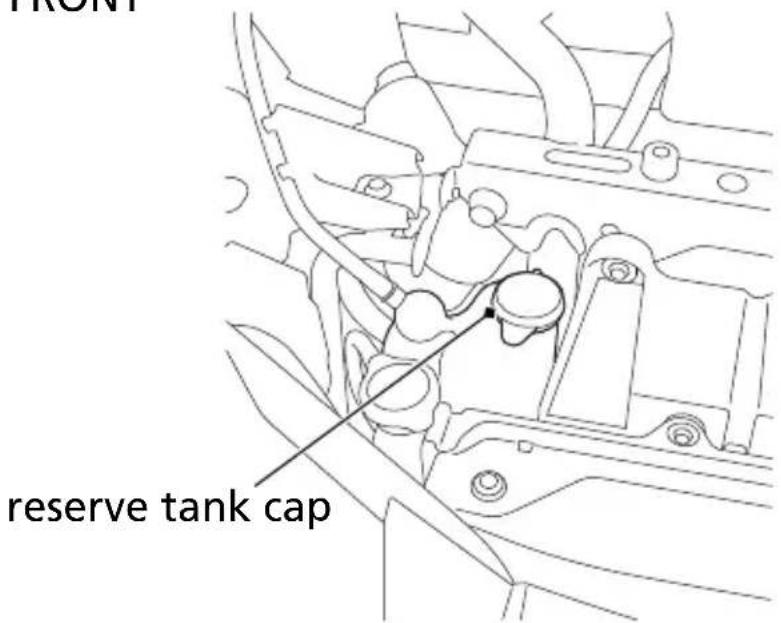

UNDER FRONT HOOD RIGHT FRONT

reserve tank cap

1. Add coolant to the reserve tank as required to bring the coolant level to the MAX level mark.

2. After adding coolant, install the reserve tank cap and install the front hood.

Coolant Replacement

Refer to Safety Precautions on page 115.

Coolant should be replaced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual.

WARNING

Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

To properly dispose of drained coolant, refer to You & the Environment, page 221.

NOTICE

Improper disposal of drained fluids is harmful to the environment.

Radiator Core

Refer to Safety Precautions on page 115.

Check the air passages for clogging or damage. Remove insects, mud, or any obstruction with low water pressure. Have the radiator checked by your dealer if more than 20% of the radiator surface air flow is restricted.

Clean the radiator core after driving your Honda SXS in mud.

To clean the radiator core:

1. Remove the front hood (page 129).
2. Wash the radiator core with low water pressure.

NOTICE

Do not apply high pressure water directly to the radiator core. High pressure water can damage the radiator core fins.

Refer to Safety Precautions on page 115.

This vehicle is equipped with a viscous type air cleaner which cannot be cleaned with compressed air or any chemicals without degrading its performance.

Service the air cleaner more frequently if you drive in unusually wet or dusty areas. Your dealer can help you determine the correct service interval for your driving conditions.

Your Honda SXS's air cleaner has very specific performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality.

NOTICE

Using the wrong air cleaner may result in premature engine wear.

Replacing Air Cleaner

NOTICE

Clean the air cleaner housing cover prior to removal.

Remove the air cleaner to the right side.

When removing the air cleaner, be careful not to allow foreign objects to drop into the air intake ducts.

1. Remove the air cleaner outer cover (page 131).
2. Clean the air cleaner housing cover.
3. Unlatch the retainer clips and remove the air cleaner housing cover and cover seal.

IN FRONT OF CARGO BED
air cleaner housing cover

NT OF CARGO BED cleaner housing cover clips clips

cover seal

1. Pull the air cleaner out to the right side by loosening the screws A and removing the screws B and collars.

When removing the air cleaner, be careful not to allow foreign objects to drop into the air intake ducts and air cleaner housing.

(cont'd)

1. Remove the housing seal from the air cleaner housing.

screws A screws B/collars air cleaner housing air cleaner housing seal screws B/collars air intake ducts

1. Install a new housing seal into the seal groove of the air cleaner housing.

2. Insert a new air cleaner into the air cleaner housing. Make sure that the air cleaner is properly seated in the air cleaner housing.

3. Install the collars and screws B and tighten the screws A and screws B to the specified torque:

3.7 lbf·ft (5 N·m, 0.5 kgf·m)

1. Install a new cover seal into the seal groove of the air cleaner housing cover.
2. Install the air cleaner housing cover and latch the retainer clips.
3. Install the air cleaner outer cover.

Air Cleaner Housing Drain Tubes

Your Honda SXS has two air cleaner housing drain tubes (clean side and dirty side).

The air cleaner housing drain tubes should be serviced every 600 miles (1,000 km) or 100 hours of operating your Honda SXS. (Driving through water may require more frequent inspection.)

If deposits can be seen in the dirty side drain tube, the tube must be cleaned before starting the vehicle.

Dirty side

1. Place a suitable container under the crankcase breather tube.
2. Remove the air cleaner housing drain tube by removing the clip.
3. Drain the deposits.
4. Reinstall the air cleaner housing drain tube, securing it with the clip.

UNDER RIGHT REAR FENDER

clip air cleaner housing drain tube

Clean side

1. Release the clamp.
2. Place a suitable container under the crankcase breather tube plug.
3. Remove the air cleaner housing drain tube plug by removing the clip.
4. Drain the deposits.
5. Reinstall the air cleaner housing drain tube plug, securing it with the clip.
6. Secure the air cleaner housing drain tube with the clamp.

UNDER LEFT REAR FENDER

clamp clip air cleaner housing drain tube air cleaner housing drain tube plug

To keep moving parts functioning properly, coat them with a multipurpose grease (without Teflon or molybdenum additives, such as CRC 6-56 or equivalent).

Provide lubrication when moving parts do not work smoothly. Also lubricate according to the maintenance schedule (page 120).

Consult your dealer for more information about lubrication procedures.

Apply grease to each pivot to prevent corrosion. Check for smooth movement after lubrication. If the movement is not smooth after applying grease, see your dealer.

Lubrication Points

Lubricate the steering wheel tilt pivots as shown in the following illustration. Remove the clips (page 132) and the lower cover.

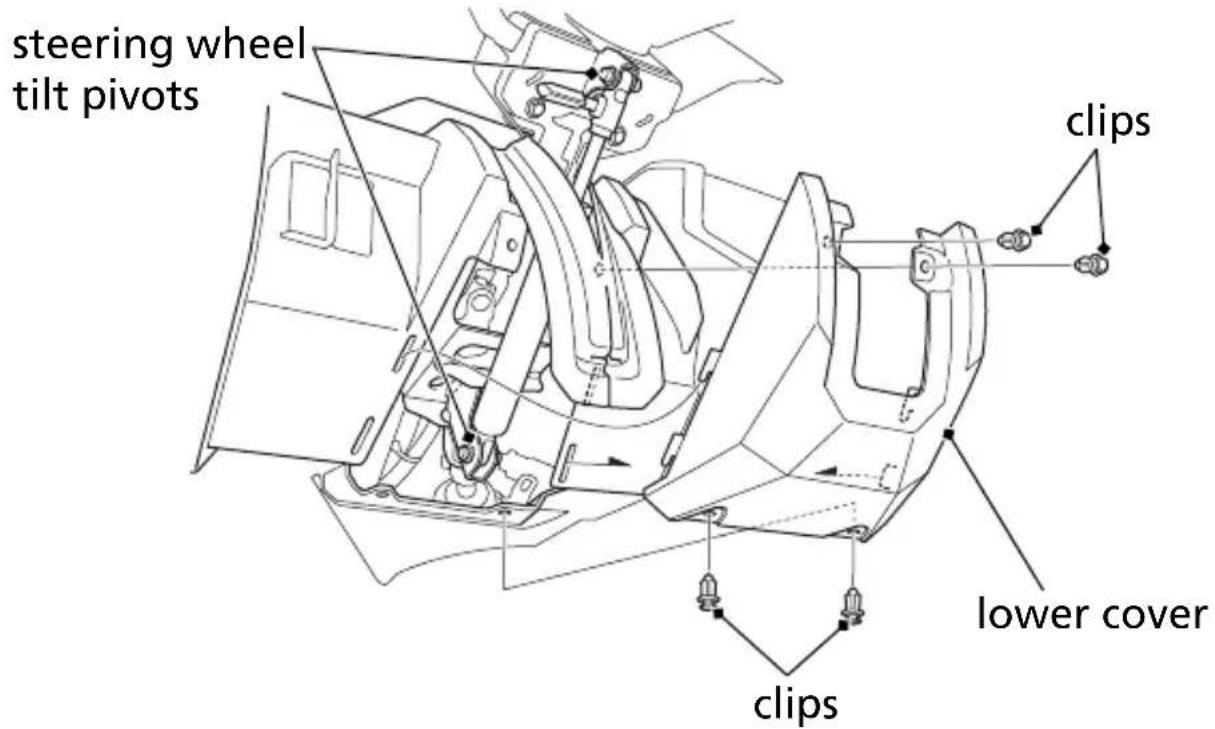

steering wheel tilt pivots clips lower cover clips

Lubricate the brake pedal pivot and accelerator pedal pivot as shown in the following illustration.

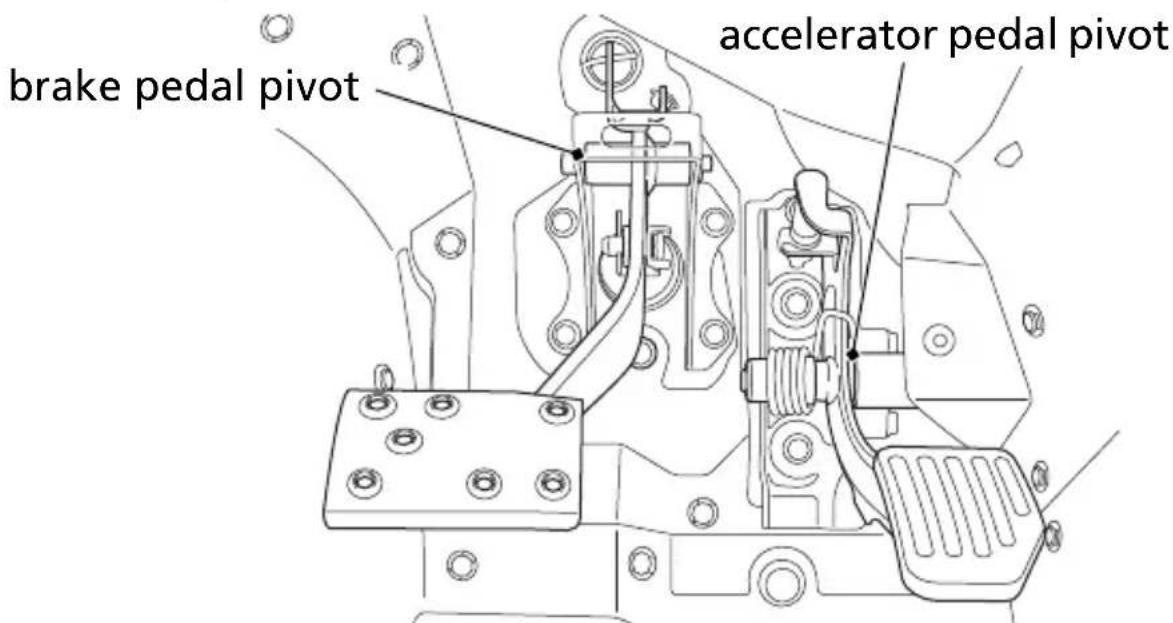

brake pedal pivot accelerator pedal pivot

170 Servicing Your Honda

Lubricate the shift select lever pivots as shown in the following illustration.

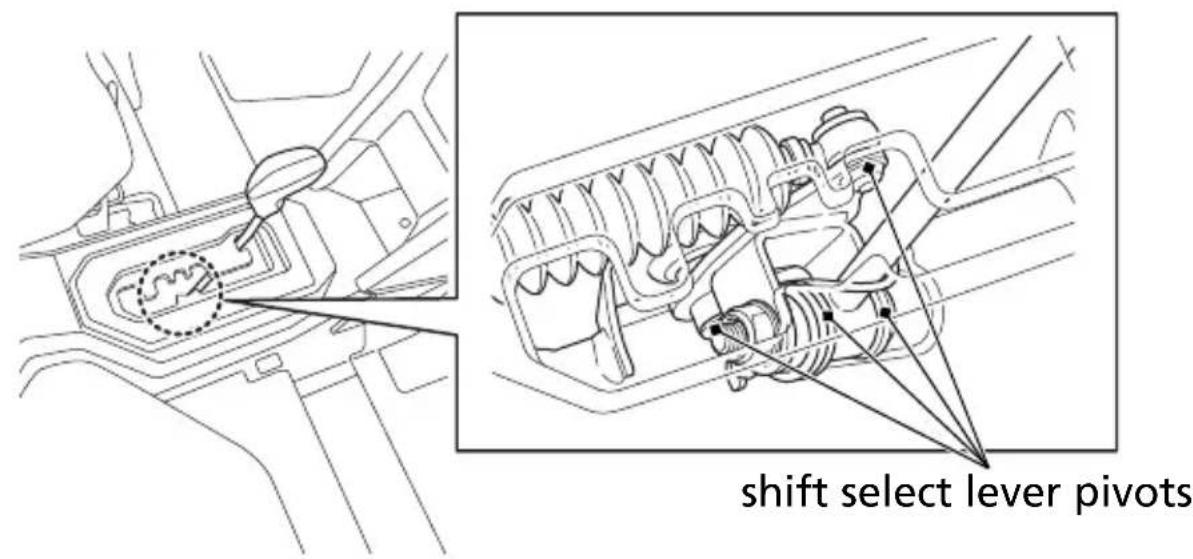

CENTER CONSOLE

shift select lever pivots

Lubricate the door latch as shown in the following illustration. Open the door (page 51).

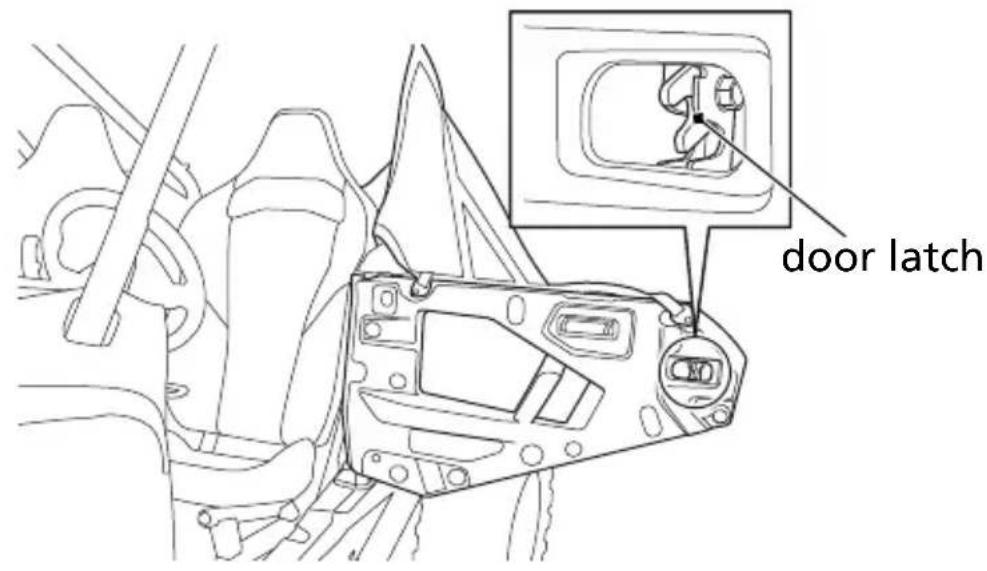

LEFT SIDE (right side similar)

door latch

Accelerator Pedal Inspection

Refer to Safety Precautions on page 115.

Your Honda SXS is equipped with an accelerator pedal position sensor. When the openings of the accelerator pedal and throttle valve do not match, the PGM-FI Malfunction Indicator Lamp (MIL) comes on and limits the vehicle to a safe controllable speed.

If the accelerator pedal has excessive play due to cable stretch or incorrect adjustment, the openings of the accelerator pedal and throttle valve will not match.

Check the accelerator pedal play periodically in accordance with the Periodic Maintenance Chart, and adjust the play if necessary.

Inspection

Check freeplay of the accelerator pedal.

Freeplay:

3/16 - 3/8 in (5 - 10 mm)

accelerator pedal 3/16 - 3/8 in (5 - 10 mm)

Adjustment

1. Remove the front hood (page 129).
2. Slide the sleeve back to expose the throttle cable adjuster.
3. Loosen the lock nut.
4. Turn the adjuster to obtain the correct freeplay.
5. Tighten the lock nut and reinstall the sleeve.
6. After adjustment, check for smooth operation of the accelerator pedal.
7. Install the front hood.

UNDER FRONT HOOD LEFT FRONT

sleeve decrease freeplay throttle cable adjuster increase freeplay lock nut

Spark Plug Recommendation

standard spark plug SILMAR8A9S (NGK)

Use only the recommended type of spark plug in the recommended heat range.

NOTICE

Using spark plugs with an improper heat range can cause engine damage.

This SXS uses spark plugs that have an iridium coated center electrode.

Be sure to observe the following when servicing the spark plugs.

• Do not clean the spark plugs. If an electrode is contaminated with accumulated objects or dirt, replace the spark plug with a new one.
• To check the spark plug gap, use a “wire-type feeler gauge” only. To prevent damaging the iridium coating of the center electrode, never use a “leaf-type feeler gauge.”
• Do not adjust the spark plug gap. If the gap is out of specification, replace the spark plug with a new one.

Spark Plug Inspection & Replacement

Refer to Safety Precautions on page 115.

1. Clean any dirt from around the spark plug base.
2. Disconnect the spark plug caps. Take care to avoid damaging the spark plug wires when disconnecting the caps.
3. Using a spark plug wrench provided in the tool kit, remove the spark plug.
4. Inspect the electrode and center porcelain for deposits, corrosion, or carbon fouling. If the corrosion or deposits are heavy, replace the plug.
5. Make sure that a 0.04 in (1.0 mm) wire-type feeler gauge cannot be inserted between the spark plug gap. If the gauge fits in the gap, replace the plug with a new one.

UNDER RIGHT REAR FENDER

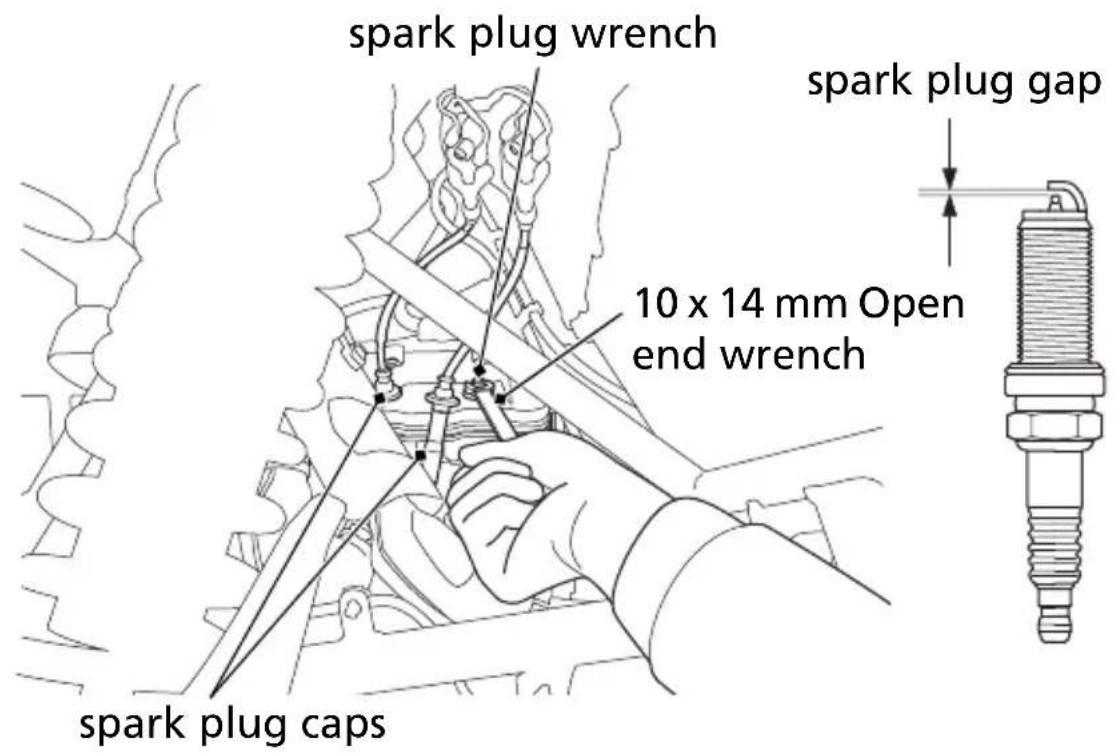

spark plug wrench 10 x 14 mm Open end wrench spark plug gap spark plug caps

(cont'd)

1. With the plug washer attached, thread the spark plug in by hand to prevent cross-threading.

2. Tighten the spark plug:

3. If the old plug is good: 1/12 turn after it seats.

4. If installing a new plug, tighten it twice to prevent loosening:

a) First, tighten the plug: 1/4 turn after it seats.

b) Then, loosen the plug.

c) Next, tighten the plug again: 1/12 turn after it seats.

NOTICE

An improperly tightened spark plug can damage the engine. If a plug is too loose, the piston may be damaged. If a plug is too tight, the threads may be damaged.

1. Connect the spark plug caps. Take care to avoid pinching any cables or wires.

Refer to Safety Precautions on page 115.

The spark arrester must be serviced every 600 miles (1,000 km) or 100 operating hours to maintain its efficiency.

(USA & Canada only)

Regular servicing prevents carbon build up (which can diminish engine performance) and also complies with USDA regulations for regular maintenance to assure proper function. The spark arrester prevents random sparks from the combustion process in your engine from reaching the environment.

The use of safety glasses is recommended for this procedure.

Because of the possible fire hazard, check that there are no combustible materials in the area before purging the spark arrester.

1. Select a well-ventilated area free of combustible materials and make sure the exhaust pipe is cool.
2. Remove the bolt.

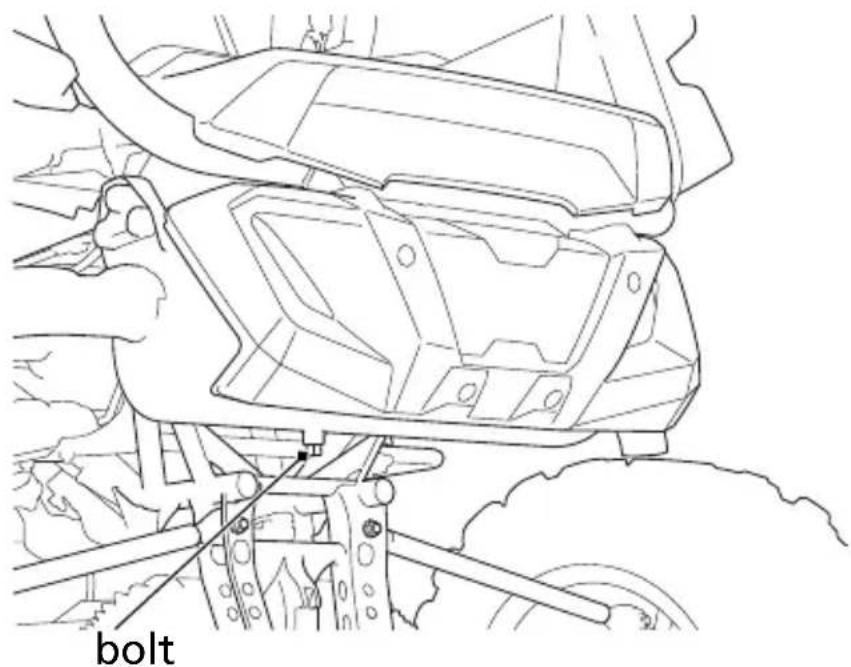

REAR

bolt

(cont'd)

Spark Arrester

1. Start the engine and rev it up approximately twenty times while momentarily creating exhaust system back pressure by blocking the end of the muffler with a shop towel.
2. Stop the engine and allow the exhaust pipe to cool.
3. Reinstall the bolt securely.

Exhaust System Inspection

Stop the engine and check for any sign of exhaust gas leakage. Listen for exhaust leaks near the muffler, which is located by the left rear wheel well.

Technical line drawing of a vehicle chassis with visible suspension and wheelbars (no text or symbols)

check for exhaust leakage

Suspension

Your front and rear suspension systems use springs and hydraulic damping devices that suspend your weight and most of the weight of your Honda SXS.

The oil damper systems hydraulically control the natural compression and rebound of the suspension springs so that traction and comfort are maintained as the wheels ride over rough terrain.

The front and rear shock absorber assemblies include a damper unit that contains high pressure nitrogen gas. Do not attempt to disassemble, service, or dispose of the damper. See your dealer.

The way you drive your Honda SXS and the type of ride you want to experience can also influence your suspension needs.

FOX® Live Valve (FLV) System (SXS1000S2RD/S2XD only)

Your model is equipped with the FOX Live Valve (FLV) system. This system consists of front and rear suspension, a suspension control unit (SCU), steering angle sensor, and IMU (Inertia Measurement Unit).

This system will adjust suspension characteristics to meet driving conditions automatically.

The system will continuously calculate the required compression damping for the front and rear suspension as the SCU receives signals from the various control units and sensors on the SXS. As a result, the optimum compression damping force for the driving conditions are provided.

The system is always active while moving and will continually adjust compression damping levels according to the situation and behavior of the vehicle such as accelerating, decelerating, braking or cornering.

This system has two modes: NORMAL mode and SPORT mode. You can switch between NORMAL mode and SPORT mode by pressing the FLV switch at any time when the ignition switch is turned ON (1).

FLV switch SPORT NORMAL

NORMAL mode: This mode provides reduced damping characteristics optimized for ride comfort or casual/recreational driving.

SPORT mode: This mode provides increased damping characteristics optimized for high speed tracking and large bump absorption. If running high payload, SPORT mode can also provide added support.

You can check the current mode with the indicators.

FLV warning indicator

LAUNCH MODE NORM SPORT

FLV NORMAL mode indicator

FLV SPORT mode indicator

If the FLV warning indicator comes on while driving, reduce speed and take your vehicle to a dealer as soon as possible.

Front Suspension Adjustment (SXS1000S2R/S2X only)

The front suspension can be adjusted for driver, passenger and driving conditions by changing the low speed compression damping. Do not attempt to disassemble, service, or dispose of the damper; see your dealer. The instructions found in this owner's manual are limited to adjustments of the shock assemblies.

Front Suspension Damping (SXS1000S2R/S2X only)

Refer to Safety Precautions on page 115.

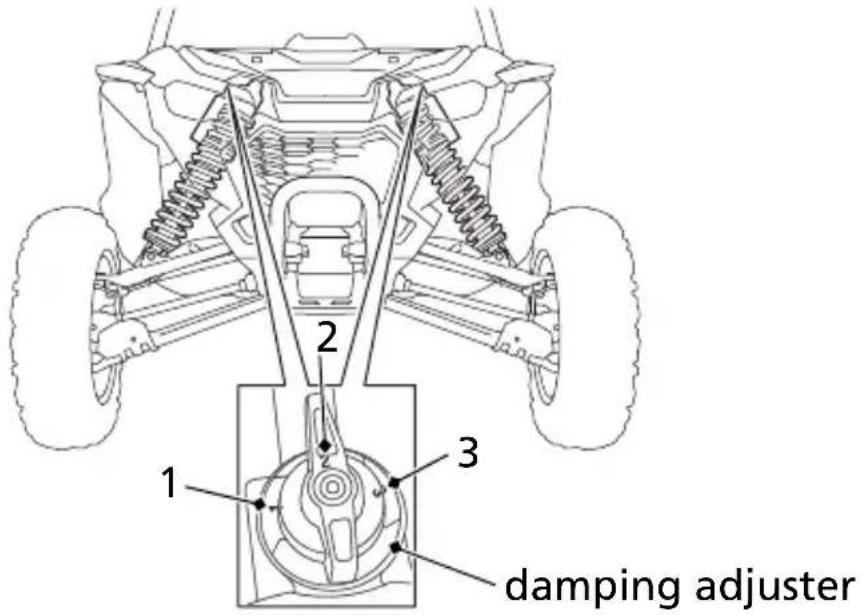

FRONT

1 2 3 damping adjuster

The damping adjuster has 3 positions for different loads or driving conditions.

Position 1: use in low payload conditions at low speeds.

Position 2: standard position.

Position 3: use in high payload conditions such as driving with 2 riders, and/or at higher speeds.

Make sure that both shock absorbers are adjusted to the same position.

Rear Suspension Adjustment (SXS1000S2R/S2X only)

The rear suspension can be adjusted for carrying heavier cargo by changing the low speed compression damping.

Do not attempt to disassemble, service, or dispose of the damper; see your dealer. The instructions found in this owner's manual are limited to adjustments of the shock assemblies.

Rear Suspension Damping (SXS1000S2R/S2X only)

Refer to Safety Precautions on page 115.

REAR

1 2 3 damping adjuster

The damping adjuster has 3 positions for different loads or driving conditions.

Position 1: use in low payload conditions at low speeds.

Position 2: standard position.

Position 3: use in high payload conditions such as driving with 2 riders, driving with cargo, and/or at higher speeds.

Make sure that both shock absorbers are adjusted to the same position.

184 Servicing Your Honda

Suspension Components Inspection

Refer to Safety Precautions on page 115.

1. Jack up and support your Honda SXS (page 133).
2. Visually inspect the front and rear suspension arms, bushings, ball joints and shock mount bearings for any damage.
3. Visually inspect the front and rear shock absorbers for any oil seal leaks, dents in main body or shock reservoir, shock body wear or other damages.

If leaks or damage is found, take your vehicle to your dealer.

REARFRONT

Technical line drawing of a vehicle chassis showing suspension components and chassis structure (no text or labels)

front suspensions

Technical line drawing of a vehicle chassis frame with suspension components (no text or symbols)

rear suspensions

The hydraulic disc braking system on your Honda SXS dissipates the heat generated by the friction of the brake pads on the disc as the wheels are slowed.

As the front and rear brake pads wear, the brake fluid level will drop. A leak in the system will also cause the level to drop.

There are no adjustments to perform, but fluid level and pad wear must be inspected periodically. The system must also be inspected frequently to ensure there are no fluid leaks.

If the brake pedal freeplay seems abnormal or the pedal feels spongy, see your dealer to have the air bled from the system.

Brake Operation Check

Refer to Safety Precautions on page 115.

Push down on the brake pedal to check that the controls operate normally.

Check for damage to the brake pads and disc plate.

Brake Fluid Recommendation

brake fluid Honda DOT 4 Brake Fluid

The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid of equal quality and performance. Use fresh brake fluid from a sealed container. Be sure to read the label before opening the sealed container. An opened container may be contaminated or may have absorbed moisture from the air.

Fluid Level Inspection

Refer to Safety Precautions on page 115.

Brake Fluid Level

If your inspection indicates a low fluid level, have your dealer inspect the brake system for possible leaks or worn brake pads.

The brake fluid level will drop as the brake pads wear.

Do not add or replace brake fluid, except in an emergency. If you do add fluid, have your dealer check the system as soon as possible.

NOTICE

Brake fluid can damage plastic and painted surfaces. Handle with care.

Check the fluid level on level ground.

1. Slide the brake fluid reservoir tank cap cover up a little to reveal the MAX level mark. Do not remove the brake fluid reservoir tank cap cover.

UNDER LEFT FRONT FENDER

brake fluid reservoir tank cap cover brake fluid reservoir tank MAX level mark MIN level mark

It should be between the MIN and MAX level marks. If the level is at or below the MIN level mark, check the brake pads for wear (page 189).

(cont'd)

1. Return the brake fluid reservoir tank cap cover to its normal position.

Worn brake pads should be replaced. If the pads are not worn, have your brake system inspected for leaks.

Wipe up spills immediately. Avoid contact with skin or eyes.

If brake fluid comes in contact with your eyes, wash them out with clean water and immediately call a doctor.

If brake fluid comes in contact with your skin, wash with clean water and, if necessary, call a doctor.

Other Inspections

• Make sure there are no fluid leaks.
• Check for deterioration or cracks in the hoses and fittings. If the hoses are worn or cracked, have them replaced by your dealer.

Brake Pad Wear

Refer to Safety Precautions on page 115.

Brake pad wear will depend upon the severity of usage and driving conditions. The pads will wear faster in wet, sandy, or muddy conditions.

Visually inspect the pads during all regular service intervals to determine pad wear.

Note that the pads are designed to make a metallic noise during braking when they reach the wear limit.

If you hear a continuous metallic friction sound when applying the brakes, the brake pads need to be replaced. Have the vehicle checked by a dealer.

Brake Pedal Inspection

Refer to Safety Precautions on page 115.

Check that the brake pedal moves smoothly and does not feel abnormally spongy according to the maintenance schedule (page 120).

CHECK THAT THE BRAKE PEDAL MOVES SMOOTHLY. brake pedal

Brake Light Switch Adjustment

Refer to Safety Precautions on page 115.

Periodically check the operation of the brake light switch. It is located near the brake fluid reservoir.

The brake light should turn on just before the brake works.

Adjustment is done by holding the switch body and turning the adjusting nut. Turn the nut in direction (A) if the switch operates too late, and in direction (B) if the switch operates too soon.

UNDER LEFT FRONT FENDER

brake light switch A B

Tires

To safely operate your Honda SXS, your tires must be the proper type and size, in good condition with adequate tread, and correctly inflated.

WARNING

Using tires that are excessively worn, improperly inflated, damaged, or overloaded can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding tire inflation and maintenance.

The following pages give detailed information on how and when to check your air pressure, how to inspect your tires for wear and damage, and our recommendations for tire repair and replacement.

Air Pressure

Refer to Safety Precautions on page 115.

Properly inflated tires provide the best combination of handling, tread life, and driving comfort. Generally, underinflated tires wear unevenly, adversely affect handling, and are more likely to fail from being overheated. Overinflated tires make your Honda SXS drive harshly, are more prone to damage from surface hazards, and wear unevenly.

Make sure the valve stem caps are secure. If necessary, install new caps.

Tires

Always check air pressure when your tires are “cold.” If you check air pressure when your tires are “warm” — even if your Honda SXS has only been driven for a few miles — the readings will be higher. If you let air out of warm tires to match the recommended cold tire pressures, the tires will be underinflated. Be sure to check tire pressure at the driving site, since changes in altitude can affect air pressure.

The recommended "cold" tire pressures are:

RECOMMENDED PRESSURE
FRONT	(SXS1000S2R/S2RD/S2XD)16 psi (110 kPa)(SXS1000S2X)14 psi (100 kPa)
REAR	(SXS1000S2R/S2RD/S2XD)16 psi (110 kPa)(SXS1000S2X)14 psi (100 kPa)

A manually operated tire pump should be used rather than the high pressure system found in service stations. This will minimize the possibility of tire damage from overinflation. If you use a high pressure system at a service station, add air in small amounts and check the pressure increase frequently to prevent possible tire damage from overinflation.

WARNING

Operating this Honda SXS with improper tires, uneven tire pressure, damaged tires, or overloading the tires may cause loss of control, and you could be seriously injured or killed.

• Always use the size and type of tire specified in this owner's manual for this vehicle.
• Always maintain proper tire pressure as described in this owner's manual.

Inspection

Refer to Safety Precautions on page 115.

Whenever you check the tire pressures, you should also look for:

• Bumps or bulges in the side of the tire or the tread. Replace any tire that has a bump or bulge.
• Cuts, slits, or cracks in the tires. Replace the tire if you can see fabric or cord.
• Nails or other foreign objects embedded in the side of the tire or tread.
• Excessive tread wear.

Tires

Also, if you hit a hard object while driving, stop as soon as you safely can and carefully inspect the tires for damage.

Tread Wear

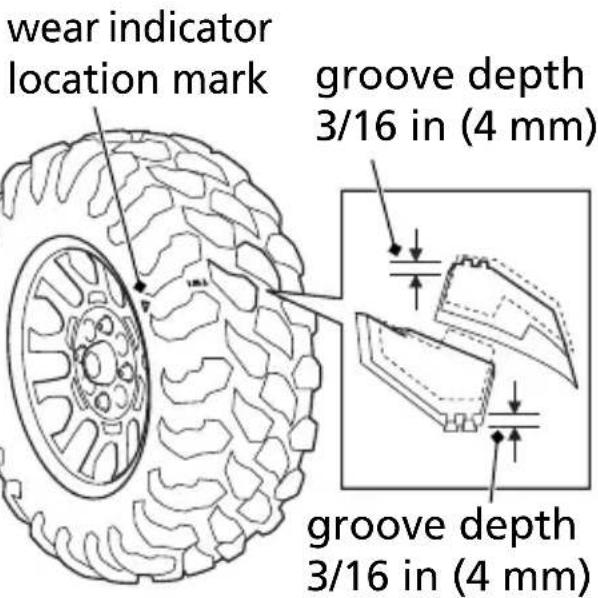

FRONT

wear indicator location mark groove depth 3/16 in (4 mm) groove depth 3/16 in (4 mm)

REAR

wear indicator location mark groove depth 3/16 in (4 mm) groove depth 3/16 in (4 mm)

To check the condition of a tire tread, measure the groove depth in the center of the tire, or check the wear indicator.

For best performance, you should replace a tire before the tread depth at the center reaches the following limits:

front 3/16	in (4 mm)
rear 3/16	in (4 mm)

Tire Repair

Refer to Safety Precautions on page 115.

We strongly recommend that you replace, not repair, any tire that is punctured or damaged. As discussed below, a tire that is repaired, either temporarily or permanently, will have lower speed and performance limits than a new or undamaged tire.

A temporary repair can sometimes be made in an emergency situation. However, since a temporary repair may not hold, you must drive very slowly, preferably without any cargo, and have the tire replaced or permanently repaired as soon as possible. (For more information on temporary repairs, see If You Have a Flat Tire, page 233.)

A permanent repair, such as an internal plug patch, can be made if a tire has only a small puncture in the tread area. With such a repair, you should drive very slowly for the first 24 hours. However you may not be able to safely carry as much weight. If you choose to have a tire repaired, be sure the repair work is performed by a professional.

If you have a tire professionally repaired at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.

Tire Replacement

Refer to Safety Precautions on page 115.

The tires that came on your Honda SXS were designed to match the performance capabilities of the vehicle and provide the best combination of handling, braking, and comfort.

It is best to replace all four tires. However, if that is not possible, you must replace the tires in pairs (front or rear) with tires of the same size and type as the originals. Never replace just one tire.

WARNING

Installing improper tires on your Honda SXS can affect handling and stability. This can cause a crash in which you can be seriously hurt or killed.

Always use the size and type of tires recommended in this owner's manual.

The recommended tires for your Honda SXS are:

front	28X9.00R15 NHSMAXXIS MU9H
rear	28X11.00R15 NHSMAXXIS MU9H

When you replace a tire, remember:

Have the tire replaced by your Honda dealer, if possible.

If you have a tire professionally replaced at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.

Inspection

Check that the wheel nuts are tight and there are no cracks or deformation in the wheel.

CHECK FOR CRACKS OR DEFORMATION.

Technical illustration of a tire wheel assembly with a close-up inset showing the wheel rim detail (no text or symbols)

CHECK THAT THE WHEEL NUTS ARE TIGHT

Refer to Safety Precautions on page 115.

Check the rubber boots for tears or traces of splattered grease. If necessary, have your dealer replace them.

FRONT steering rack boots front arm ball joint boots driveshaft boots front arm ball joint boots

REAR

driveshaft boots lower arm ball joint boots (SXS1000S2R/S2RD only)

Your Honda SXS has a maintenance-free type battery. You do not have to check the battery electrolyte level or add distilled water as you would with a conventional-type battery.

NOTICE

Your battery is a maintenance-free type and can be permanently damaged if the cap strip is removed.

Electrical accessories use current from the battery, some even when the ignition is OFF (O). Limited operation of your Honda SXS also allows the battery to discharge. If you have electrical accessories on your Honda SXS, or do not drive frequently, we recommend that you charge the battery frequently (see Battery Charging, page 206).

If you do not expect to drive your Honda SXS for at least two weeks, we recommend you remove the battery, or at least disconnect the battery cables (negative cable first).

If you plan to store your Honda SXS, see Battery Storage, page 203.

If your battery seems weak and/or is leaking electrolyte (causing slow starting or other electrical problems), see your dealer.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.

Battery Storage

Refer to Safety Precautions on page 115.

If you plan to store your Honda SXS, we recommend you remove the battery and store it where it can be charged every 30 days to maintain its service life.

If you do not remove the battery, we recommend disconnecting the battery cables (negative cable first).

Check the terminals for corrosion (a white or yellowish powder). To remove it, cover the terminals with a solution of baking soda and water. It will bubble up and turn brown. When this stops, wash it off with plain water. Dry off the battery with a cloth or paper towel.

You will get the best storage results from removing the battery and slow charging it every 30 days (see Battery Charging, page 206). Before you remove the battery, be sure to read all the information that follows, as well as the information on the battery label.

WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance.

The battery is located under the left rear fender.

Removal

1. Make sure the ignition switch is OFF (O).
2. Unlatch the retainer clips and remove the battery cover.

UNDER LEFT REAR FENDER

retainer clips battery cover

1. Disconnect the negative (-) terminal lead from the battery first, then disconnect the positive (+) terminal lead.
2. Unhook the rubber band.
3. Remove the battery from the battery box.
4. Charge the battery (see the following section), unless you have been driving regularly.
5. Store your battery in an easy-to-reach location off the floor, in an area protected from freezing temperature and direct sunlight.
6. Clean the battery box after removing the battery for storage. Dry the battery box.
7. Slow charge the battery (see following section) once every 30 days.

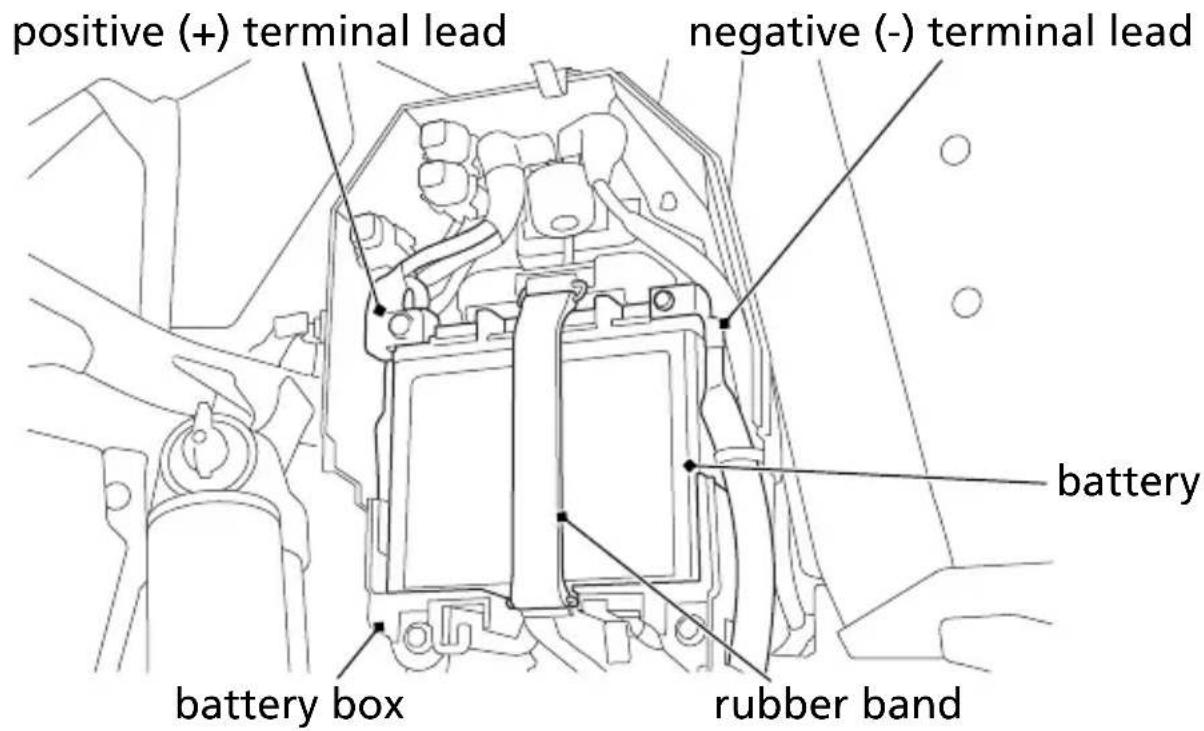

positive (+) terminal lead negative (-) terminal lead battery battery box rubber band

Installation

Reinstall in the reverse order of removal.

Be sure to connect the positive (+) terminal first, then the negative (-) terminal.

Make sure the clock is set to the proper time after the battery is reconnected (page 34).

Battery Charging

Refer to Safety Precautions on page 115.

charger

Be sure to read the information that came with your battery charger and follow the instructions on the battery. Improper charging may damage the battery.

We recommend using a charger designed specifically for your Honda, which can be purchased from your dealer. These units can be left connected for long periods without risking damage to the battery. However, do not intentionally leave the charger connected longer than the time period recommended in the charger's instructions.

Avoid using an automotive-type battery charger. An automotive charger can overheat a Honda SXS battery and cause premature damage.

Frequent cleaning and polishing will keep your Honda looking newer longer.

Frequent cleaning also identifies you as an owner who values their Honda SXS. A clean Honda SXS is also easier to inspect and service.

General Recommendations

Refer to Safety Precautions on page 115.

• To clean your Honda SXS, you may use:
  -water
• Hondabrite
• a mild, neutral detergent and water
• a mild spray and wipe cleaner/polisher
  For matte painted surfaces, use a spray cleaner. Avoid using a spray cleaner/polish.
• a mild spray and rinse cleaner/ degreaser and water

- Avoid products that contain harsh detergents or chemical solvents that could damage the metal, paint, plastic, and painted plastic coating on your Honda SXS.

- If your Honda SXS is still warm from recent operation, give the engine and exhaust system time to cool off.

- Park in a shady area. Washing your Honda SXS in bright sunlight may cause the finish to fade because water droplets intensify the sun's brightness. Spotting is also more likely because surface water can dry before you have time to wipe it off.

- Clean your Honda SXS regularly to protect surface finishes.

- We recommend the use of a low pressure garden hose to wash your Honda SXS. High pressure washers (like those at coin-operated car washers) can damage certain parts of your Honda SXS.

NOTICE

High pressure water (or air) can damage certain parts of your Honda SXS.

(cont'd)

• After cleaning, inspect for damage, wear, and leaks (fuel, oil, coolant, and brake fluid).

Washing Your Honda SXS with a Mild Detergent

Refer to Safety Precautions on page 115.

1. Rinse your Honda SXS thoroughly with cool water to remove loose dirt.
2. Fill a bucket with cool water. Mix in a mild, neutral detergent, such as dish washing liquid or a product made especially for washing motorcycles or automobiles.
3. Wash your Honda SXS with a sponge or soft towel. As you wash, check for heavy grime. If necessary, use a mild cleaner/degreaser to remove the grime.
4. After washing, rinse your Honda SXS thoroughly with plenty of clean water to remove any residue. Detergent residue can corrode alloy parts.
5. Dry your Honda SXS with a chamois or a soft towel. Leaving water on the surface to air dry can cause dulling and water spots. As you dry, inspect for chips and scratches.

6. Start the engine and let it idle for several minutes. The engine heat will help dry moist areas.

7. As a precaution, drive your Honda SXS at a slow speed and apply the brakes several times. This will help dry the brakes and restore normal braking performance.

The headlights' inside lens may fog temporarily after washing or while driving in the rain. This does not impact the headlight function.

However, if you see a large amount of water or ice accumulated inside the lens(es), have your vehicle inspected by your dealer.

Spray Cleaning Your Honda SXS

Refer to Safety Precautions on page 115.

Avoid using spray cleaner products on the tires or suspension components.

Suggestions for using spray cleaners:

Honda SXS condition Recommended Cleaning
Dust and fingerprint smudges.	Apply a spray cleaner/polish* and wipe paint, chrome, glass, and clear plastic.
Light road grime. Spray any difficult-to-reach or very dirty areas with a spray cleaner/degreaser.Rinse and dry.Apply a spray cleaner/polish* and wipe with a non-abrasive cloth.
Heavy grime. Oil leaks. Brake dust.	Use a spray cleaner/degreaser. If necessary, rub with a sponge.Rinse and dry.Apply a spray cleaner/polish* and wipe with a non-abrasive cloth.
Dull, corroded chrome or aluminum.	Apply a high quality chrome/aluminum polish and wipe with a non-abrasive cloth.

* For matte painted surfaces, use a spray cleaner. Avoid using a spray cleaner/polish.

Aluminum Wheel Maintenance

Refer to Safety Precautions on page 115.

Aluminum may corrode from contact with dirt, mud, or road salt. Clean the wheels after driving through any of these substances. Use a wet sponge and mild detergent. Avoid stiff brushes, steel wool, or cleaners containing abrasives or chemical compounds.

After washing, rinse with plenty of water and dry with a clean cloth. Do not use wax or polishing compounds on matte painted surface.

Exhaust Pipe and Muffler Maintenance

Refer to Safety Precautions on page 115.

The exhaust pipe and muffler are stainless steel but may become stained by mud or dust. Make sure no flammable materials or debris are sticking to the exhaust system. If any flammable materials or debris is found, remove it.

To remove mud or dust, use a wet sponge and a liquid kitchen abrasive, then rinse well with clean water. Dry with chamois or a soft towel.

If necessary, remove heat stains by using a commercially available fine texture compound. Then, rinse by the same manner as removing mud or dust.

Finishing Touches

Refer to Safety Precautions on page 115.

(Except for matte painted surface)

After washing your Honda SXS, consider using a commercially available spray cleaner/polish or quality liquid or paste wax to finish the job. Use only a non-abrasive polish or wax made specifically for motorcycles or automobiles. Apply the polish or wax according to the instructions on the container.

(USA & Canada only)

If a surface on your Honda SXS is chipped or scratched, your dealer has touch-up paint to match your Honda SXS's color. Be sure to use your Honda SXS's color code (page 255) when you buy touch-up paint.

If the frame has a chip that exposes the metal, first apply primer (to prevent corrosion) and then apply the touch-up paint. Several thin layers of touch-up paint are better than one thick coat.

Cleaning Matte Painted Surfaces

Refer to Safety Precautions on page 115.

Use a soft cloth or sponge, plenty of water, and a mild detergent to clean the matte paint. Dry with a soft cloth.

Do not use polishing compounds or wax containing polishing compounds. These can damage or discolor the matte painted surface.

Here's some helpful advice on how to prepare for an off-road adventure, how to transport and store your Honda, and how to be an environmentally responsible Honda SXS owner.

Preparing for a Drive.... 214

What to Take to the Operating Area.... 214

What to Take on the Trail 215

Transporting Your Honda 216

Storing Your Honda.... 217

Preparation for Storage.... 218

Removal from Storage 220

You & the Environment 221

A safe and enjoyable drive begins with good planning and preparation. Always drive with at least one other person in case you have trouble, and let someone know where you're going and when you expect to return.

Before driving in an unfamiliar area, find out in advance if you need special permits, get maps so you can study the terrain, and talk to other drivers who know the area. The Forest Service and the Bureau of Land Management (USA only), the Ministry of Natural Resources (Canada only), driver's clubs, and off-road magazines are good sources of information.

What to Take to the Operating Area

Along with your Honda SXS and personal safety gear, you should take along some tools and supplies in case you have a problem. For some of the difficulties you might encounter, see Taking Care of the Unexpected, which begins on page 223.

We recommend that you always take water, food, a first aid kit, and your owner's manual. Other items you should consider taking along include:

• a tool kit
• tire repair supplies and tools
• wire, duct tape, and rope
• extra gasoline and a fire extinguisher

What to Take on the Trail

What you take with you during a ride depends on the kind of terrain, how long you expect to drive, how far you might go from help, and how experienced you or your companions are in making repairs.

If you decide to take some tools, spare parts, or other supplies on the trail, be sure you can carry them safely and know how to use them. Also, be sure to follow the loading guidelines and weight limit (page 82).

Transporting Your Honda

Do not tow your Honda SXS behind a car or other vehicle.

Follow these procedures:

1. Shift the shift select lever into the park (P) position.

2. Secure the vehicle with tie-down straps in the areas shown.

3. Suitable tie-down straps are available from your dealer.

4. Ordinary rope is not recommended because it can stretch under load.

5. Using tie-down straps in any other areas can damage your Honda SXS.

6. Rock the vehicle back and forth to make sure the tie-down straps are tight and the vehicle is secure.

Line drawing of a multi-axle off-road vehicle with visible suspension and chassis (no text or symbols)

Line drawing of a multi-axle off-road vehicle chassis with visible suspension legs and structural components (no text or symbols)

If you won't be driving for an extended period, such as during the winter, thoroughly inspect your Honda SXS and correct any problem before storing it. That way, needed repairs won't be forgotten and it will be easier to get your Honda SXS running again.

(USA only)

For more information about storage, refer to the Honda Winter Storage Guide, available from your dealer.

(Canada only)

For more information about storage, visit our website at www.honda.ca and look up “Storage Tips” under the “Honda Warranty” in the Warranty tab for your Model.

We suggest you perform the following procedures to keep your Honda SXS in top condition. These storage procedures will reduce the deterioration that can occur during storage.

Preparation for Storage

Refer to Safety Precautions on page 115.

1. Change the engine oil and filters (page 142).
2. Make sure the cooling system is filled with a 50/50% antifreeze solution (page 159).

3. Add Pro Honda Fuel Stabilizer or equivalent to the fuel tank before filling it with fuel. Fill the fuel tank. Make sure the fuel fill cap is properly installed. Run the engine so that the treated fuel will circulate into the fuel injectors.

4. To prevent rusting in the cylinder, perform the following:

5. Disconnect the spark plug caps from the spark plugs.

6. Remove the spark plugs.
   Do not connect the spark plugs to the spark plug caps.
7. Pour a tablespoon (15 – 20 cc) of clean engine oil into the cylinder and cover the spark plug holes with a piece of cloth.
8. Turn the ignition switch to the START (II) position and crank the engine several times to distribute the oil.

9. Reinstall the spark plugs and spark plug caps.

10. Remove the battery and charge it fully. Store it in an area protected from freezing temperatures and direct sunlight. Slow charge the battery (page 206) once a month.

WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance.

1. Wash and dry your Honda SXS. Wax all painted surfaces (except matte painted surface).
2. Inflate the tires to their recommended pressures (page 194).
3. Store your Honda SXS in an unheated area, free of dampness, away from sunlight, with a minimum of daily temperature variation.
4. Place your Honda SXS on blocks to lift all tires off the floor.
5. Cover your Honda SXS with a porous material. Avoid using plastic or similar non-breathing, coated materials that restrict air flow and allow heat and moisture to accumulate.

Removal from Storage

Refer to Safety Precautions on page 115.

1. Uncover and clean your Honda SXS.
2. If your Honda SXS has been stored for more than four months — change the engine oil (page 142).
3. If your Honda SXS has been stored for more than two months — ask your dealer to drain and replace the fuel.
4. Charge the battery (page 206) as required. Install the battery.
5. Perform a pre-drive inspection (page 78), then test-ride your Honda SXS at low speeds.

Owning and operating a Honda SXS can be enjoyable, but you must do your part to protect nature. When you show respect for the land, wildlife, and other people, you also help preserve off-road driving.

Following are tips on how you can be an environmentally responsible Honda SXS owner.

• Tread Lightly. Stay on existing paths and trails, avoid surfaces that are easily damaged, and drive only in areas approved for off-road vehicles.
• Keep the Noise Down. Loud vehicles can be offensive. Drive as quietly as possible, don’t remove your spark arrester, and don’t modify the muffler or any other part of your air intake and exhaust systems. Such modifications not only increase noise, they also reduce engine performance and may be illegal.
• Choose Sensible Cleaners. Use a biodegradable detergent when you wash your Honda SXS. Avoid aerosol spray cleaners that contain chlorofluorocarbons (CFCs) which damage the atmosphere's protective ozone layer. Don't throw cleaning solvents away; see the following guidelines for proper disposal.
• Recycle Wastes. It’s illegal and thoughtless to put used engine oil in the trash, down a drain, or on the ground. Used oil, gasoline, and cleaning solvents contain poisons that can hurt refuse workers and contaminate our drinking water, lakes, rivers, and oceans. Before changing your oil, make sure you have the proper containers. Put oil and other toxic wastes in separate sealed containers and take them to a recycling center. Call your local or state office of public works or environmental services to find a recycling center in your area and to get instructions on how to dispose of non-recyclable wastes.

This page intentionally left blank.

Taking Care of the Unexpected

With all the challenges you can encounter off-road, there's a chance that sometime something may go wrong. This section gives practical advice to help you deal with a wide range of problems. Take time to read this section before you drive. Also review the tips in Preparing for a Drive (page 214).

General Guidelines 224

If Your Engine Quits or Won't Start 226

If the Transmission Is Not Functioning Properly 229

If You Have a Flat Tire.... 233

If the High Coolant Temperature Indicator Lights.... 236

If the Clutch Temperature Indicator Flashes 238

If a Fuse Blows.... 239

If You Crash 246

If You Lose Your Key 247

If the Battery Is Low.... 248

If a Component Fails.... 250

If the Vehicle Speed Does Not Exceed 15 mph (24 km/h) ...... 251

General Guidelines

Keeping your Honda SXS well-maintained is the best way to reduce the possibility of having a problem while driving. However, problems can arise even with well-maintained machines.

Remember to take along your owner's manual, the tool kit that came with your Honda SXS, and any other items (such as tire repair supplies and additional tools) that might help you solve a problem on your own.

If something goes wrong during a drive, the first thing to do is stop as soon as you safely can. Do not continue driving if you have a flat tire, or you hear an unusual noise, or your Honda SXS just doesn't feel right. If you continue driving, you could cause more damage and endanger your own safety.

After stopping, take time to assess the situation. Carefully inspect your Honda SXS to identify the problem, then consider your options before you decide what to do.

If a problem is relatively minor and you have the tools, supplies, and skills to make a permanent repair, you may be able to fix it on the trail and continue driving.

When a problem is more serious — or you don’t have the tools, supplies, experience, or time to deal with it — you need to choose the safest way to get yourself and your Honda SXS back home.

Taking Care of the Unexpected

Should you ever have a problem while driving, please follow these guidelines:

• Always put personal safety first.
- Take time to assess the situation and your options before deciding what to do.
- If the problem is relatively minor and you have the tools, supplies, and skills to make a temporary repair, be sure to have permanent repairs made as soon as possible.
- Do not continue driving if you are hurt or your Honda SXS is not in safe driving condition.

Additional recommendations for specific problems follow.

If Your Engine Quits or Won't Start

Proper operation and maintenance can prevent starting and engine performance problems. In many cases, the cause of the problem may be a simple operational oversight.

If you have a problem starting the engine — or experience poor engine performance — the following information may help you. If you can't correct the problem, see your dealer.

If your SXS won't start, listen as you turn the ignition key to the START (II) position. If you don't hear the starter motor turning, refer to the Starter motor doesn't operate symptom. If you can hear the starter motor working normally, refer to the Starter motor works, but the engine won't start symptom.

If Your Engine Quits or Won't

Start

SYMPTOM: Starter motor doesn’t operate.
POSSIBLE CAUSE WHAT TO DO
transmission not in park (P) or neutral (N) position	Shift into park (P) or neutral (N) position or press on the brake pedal.
blown fuse Replace with a	new fuse of the same rating (page 239).
battery lead loose Tighten	the battery lead.
low battery Charge the	battery (page 206).If charging doesn’t help, see your dealer.
faulty starter motor If all	possible causes are negative, the starter motor may be faulty. See your dealer.

SYMPTOM: Starter motor works, but the engine won’t start.
POSSIBLE CAUSE WHAT TO DO
out of fuel Fill the fuel tank.
flooded engine See starting the engine(page 87).
loose or unconnected spark plug caps	Install the spark plug caps securely. If the engine still won’t start, see your dealer.
loose battery cables Tighten the battery terminal bolts.
weak battery Charge the battery (page 206).If charging doesn’t help, see your dealer.

If Your Engine Quits or Won't Start

SYMPTOM: Engine starts, but runs poorly.
POSSIBLE CAUSE WHAT TO DO
high coolant temperature	Check the high coolant temperature indicator. Refer to If the High Coolant Temperature Indicator Lights, page 236.
runs erratically, misfires May damage catalytic converter. See your dealer.
blubbers (rich fuel mixture)	See your dealer.
sooty exhaust (rich fuel mixture)	See your dealer.
detonates or pings under load	If applicable, switch to the recommended octane gasoline (page 134) or change your brand of gasoline. If the problem persists, see your dealer.
afterfires (backfires) May damage catalytic converter. See your dealer.
pre-ignition (runs on after ignition switched OFF)	May damage catalytic converter. See your dealer.

SYMPTOM: Engine starts, but runs poorly or dies when hot.
POSSIBLE CAUSE WHAT TO DO
poor or inadequate fuel flow due to clogged fuel filter	See your dealer.(ensure clean fuel supply)

If the Transmission Is Not Functioning Properly

If the gear position indicator is blinking, perform the following:

1. If you are driving your Honda SXS, stop at a safe place.
2. Shift the shift select lever to the park (P) position.
3. Check the pattern displayed on the gear position indicator, and then perform the following.

"P", "R", "N", "H" or "L" is blinking:

You can drive in either AT mode or MT mode. See your dealer as soon as possible.

"1", "2", "3", "4", "5" or "6" is blinking:

At high-range (H) or low-range (L), you can drive only in the gear position that is blinking. You can also drive in reverse (R).

To avoid damaging the clutch, we recommend that you drive in low-range (L). The engine brake may not work, so please drive slowly.

See your dealer as soon as possible.

“-” is blinking:

Check for SXS failure again. Perform the following procedure.

1. Check that the shift select lever is at the park (P) position.
2. Turn the ignition switch to the OFF (O) position.
3. Turn the ignition switch to the START (II) position and then start the engine.
4. Check the gear position indicator display, and then perform the following.

(cont'd)

If the Transmission Is Not Functioning Properly

If “-” continues to blink:

Change the gear position by using the gear change tool, and tighten the emergency valve. Perform the following procedure.

1. Turn the ignition switch to the OFF (O) position to stop the engine.
2. Turn the ignition switch to the ON (I) position. Do not turn it to the START (II) position.
3. Take out the gear change tool from the storage compartment (page 127).
4. Put the gear change tool on the spindle which is located on the crankcase.
5. To downshift, turn the gear change tool counterclockwise. To upshift, turn the gear change tool clockwise. When you upshift one position from the lowest downshift position, "E" blinks in the gear position indicator.

If you cannot shift properly, shift the shift select lever to the high-range (H) position, and while pushing the gear change tool in the direction you want to rotate, rock the vehicle back and forth. When the transmission shifts, return the shift select lever to the park (P) position.

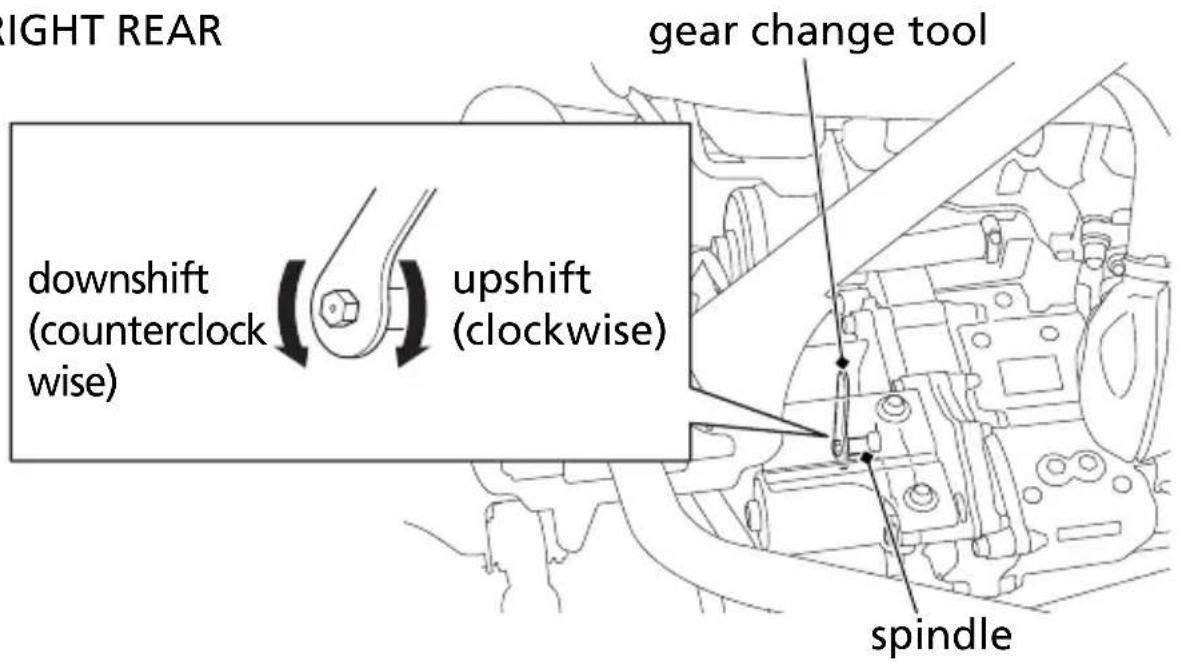

RIGHT REAR

RIGHT REAR downshift (counterclock wise) upshift (clockwise) spindle gear change tool

If the Transmission Is Not Functioning Properly

1. Return the gear change tool to the storage compartment.
2. Check that "E" is blinking. Next, tighten the emergency valve. Proceed to "E" is blinking.

If “-” is not displayed in the gear position indicator and you change the gear position by using the gear change tool, the DCT system will automatically stop. To reactivate the system, turn the ignition switch to the OFF (O) position, and then turn it back to the ON (I) position.

"E" is blinking:

Tighten the emergency valve. Perform the following procedure.

1. Turn the ignition switch to the OFF (O) position to stop the engine.

2. Loosen the bolt and release the lock plate, and turn the emergency valve all the way in.

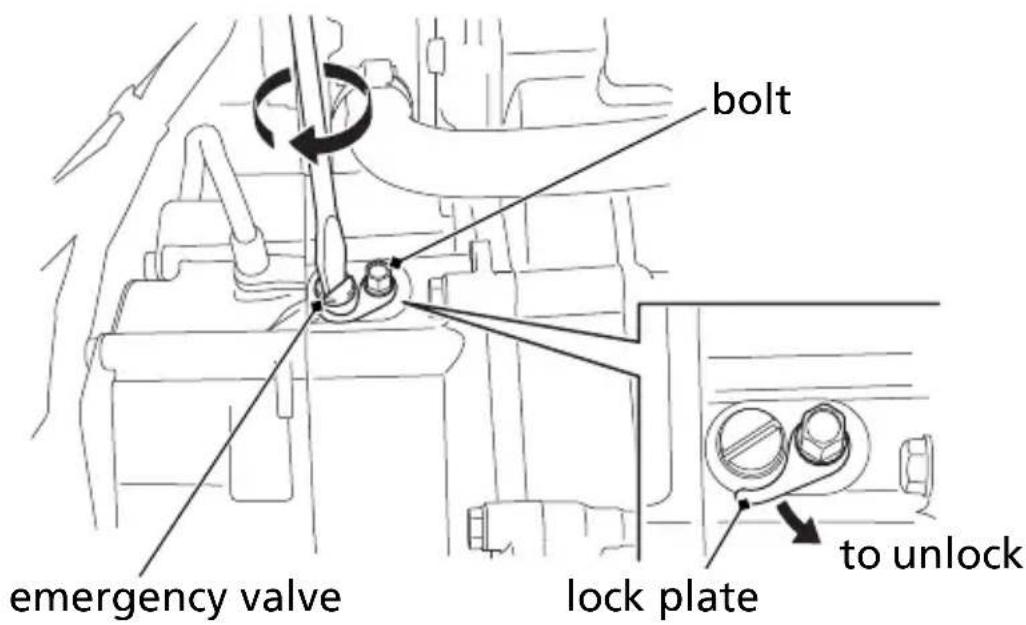

RIGHT REAR

bolt emergency valve lock plate to unlock

1. Return the lock plate and tighten the bolt securely.

(cont'd)

If the Transmission Is Not Functioning Properly

1. Turn the ignition switch to the START (II) position to start the engine.
2. Check that the gear position ("1", "2", "3", "4", "5" or "6") is blinking.

3. At high-range (H) or low-range (L), you can drive only in the gear position that is blinking. You can also drive in reverse (R).
   To avoid damaging the clutch, we recommend that you drive in low-range (L). The engine brake may not work, so please drive slowly. See your dealer as soon as possible.

4. When in the reverse (R), high-range (H), or low-range (L) position, low oil temperatures will cause the vehicle to move slowly. Shift into the park (P) position and warm up the engine.

5. When restarting the engine, although "E" stops blinking, the gear position ("1", "2", "3", "4", "5" or "6") blinks, and the low oil pressure indicator comes on, you can drive the vehicle.

How you handle a flat tire on the trail depends on how serious the tire damage is, and what tools and supplies you have with you.

If you have a slow leak or a minor puncture, use the plug method to make a temporary repair. (The plug method is applied from the outside of the tire and is the same as that for conventional tubeless tires.)

A plug-type repair kit, available at most auto parts stores or service stations, provides a plug, an installation tool, tire cement, and an instruction sheet. Follow the instructions provided with the repair kit to make a temporary repair.

As soon as possible, have the tire permanently repaired by your dealer.

Any tire that cannot be repaired should be replaced.

Whenever the Honda SXS is to be operated far from service facilities or available transportation, we recommend that you carry a tire pump and a repair kit with the vehicle.

If the leak is more serious, or a temporary repair doesn't hold, the tire must be replaced. The tire will also need to be replaced if it is damaged (page 195). Replacing a tire involves removing and re-installing the wheel (page 234).

If you are unable to repair a flat tire on the trail, you will need to send for help. We strongly recommend that you do not try to drive with a flat tire. The Honda SXS will be hard to handle, and if the tire comes off the rim, it may lock up the wheel and cause you to crash or overturn.

Emergency Wheel Removal/Installation

Refer to Safety Precautions on page 115.

Removal

1. Park your Honda SXS on a firm, level surface.
2. Loosen — but do not remove — the wheel nuts.
3. Raise the front (or rear) wheels off the ground (page 133).
4. Remove the wheel nuts.
5. Remove the wheel.

- Avoid getting grease, oil, or dirt on the disc or pad surfaces when removing and installing each wheel. Any contamination can cause poor brake performance or rapid pad wear after reassembly.

234 Taking Care of the Unexpected

Installation

1. Thoroughly clean hub and wheel.
2. Position the wheel.
3. Position the wheel nuts so that the tapered sides face the wheel rim.
4. Hand-tighten the wheel nuts on the wheel, then lower the Honda SXS to the ground before tightening the nuts in a crisscross (rather than circular) pattern to the specified torque: 80 lbf·ft (108 N·m, 11 kgf·m)

If a torque wrench was not used for installation, see your dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of control and braking capability.

If the High Coolant Temperature Indicator Lights

Normally, the high coolant temperature indicator will only light momentarily when you turn the ignition ON (1). Occasionally, it may flicker at or near idling speed.

High coolant temperature may be caused by restriction of air flow to the radiator (such as mud caked on the radiator), extended idling, an oil leak, a coolant leak, a low oil level, a low coolant level, or extended operation under adverse conditions.

If the all sections of the coolant temperature gauge including segment H and high coolant temperature indicator are on while you're driving, don't ignore it. Pull safely to a stop. Stop the engine as soon as it's safe to do so, and let it cool.

NOTICE

Continuing to drive with high coolant temperature or an overheated engine can cause serious engine damage.

• A steaming engine indicates a coolant leak. Shut the engine off and wait until the steaming stops. Look for a leak, but don't touch the engine or radiator system. Let everything cool off first.
• Check for any restriction of air flow to the radiator.
• If there's no obvious problem, leave the engine on so the fan and coolant circulating system can continue working. Monitor the coolant temperature gauge and high coolant temperature indicator. The coolant temperature gauge and indicator may return to normal after a brief stop with no load on the engine.
• Check the radiator fan.

If the fan is not working, turn the engine off. Remove the battery cover (page 204) and check the radiator fan fuse. If the fuse is blown, replace it with the proper (same rating) spare fuse. Start the engine. If the all sections of the coolant temperature gauge including segment H and high coolant temperature indicator stay on, turn the engine off.

If the radiator fan is working, visually check the coolant level in the reserve tank located under the front hood. It isn't necessary to touch the radiator system.

If the High Coolant Temperature Indicator Lights

- If the reserve tank is low or empty, don't drive without adding coolant (page 160). After adding coolant, turn the engine on and check the coolant temperature gauge and high coolant temperature indicator.

If the indicator doesn't turn off, do not drive. The engine needs repair.

Transport your Honda SXS to a dealer (page 216).

If the temperature drops to normal, check the coolant level. If it has gone down, add more coolant.

- Check for an oil leak.

- Check the oil level. If necessary, add the recommended oil (page 138) to the upper level mark. If you must leave your Honda SXS to get oil, secure it as much as possible.

- Start the engine, and check that the coolant temperature gauge and high coolant temperature indicator are normal.

If the coolant temperature gauge and indicator return to normal, resume driving. If there is a leak, do not drive the SXS until the leak is repaired by your dealer.

If there's a mild coolant leak, you can drive for a while, carefully watching the coolant temperature gauge and indicator. Be prepared to stop and add more coolant or water. If the leak is bad, transport your Honda SXS to your dealer (page 216).

If the Clutch Temperature Indicator Flashes

The clutch temperature indicator flashes if the clutch temperature becomes unusually high. If the indicator flashes, release the accelerator pedal as soon as it is safe to and apply the brakes.

Shift the transmission to neutral (N) or park (P) and allow the engine to idle until the indicator stops flashing. Once the indicator stops flashing, the vehicle is safe to operate. If the clutch temperature indicator continues to flash, have your vehicle inspected by your dealer.

The clutch temperature indicator may flash under certain conditions, such as slow speed rock crawling, holding the vehicle stationary on an incline with the accelerator pedal, when the vehicle is stuck and the wheels are not turning, or attempting to pull an immovable object.

NOTICE

Continuing to apply the accelerator pedal with the clutch temperature indicator flashing can damage the clutch.

All of the electrical circuits on your Honda SXS have fuses to protect them from damage caused by excess current flow (short circuit or overload).

If something electrical on your Honda SXS stops working, the first thing you should check for is a blown fuse.

blown fuse 50 blown fuse

Check all the fuses before looking elsewhere for another possible cause of the problem. Replace any blown fuses and check component operation.

The main fuse and circuit fuses are located in the fuse box under the fuse box lid.

The electric power steering (EPS) fuse, brake traction control system (BTCS) fuse and radiator fan fuse are located in the battery cover.

Recommended Fuses

main fuse 50 A
circuit fuses SXS1000S2R/S2X	30 A × 2, 15 A × 2, 10 A × 6SXS1000S2RD/S2XD30 A × 2, 15 A × 1, 10 A × 7
electric power steering (EPS) fuse	40 A
brake traction control (BTCS) fuse	40 A
radiator fan fuse 40 A

Main & Circuit Fuses

1. To prevent an accidental short circuit, turn the ignition switch OFF (O) before checking or replacing fuses.
2. Pull the top of fuse box lid out to release its prong from the grommet.

3. Pivot the fuse box lid down.
   Be careful not to damage the seat surfaces while removing the fuse box lid.

4. Remove the fuse box lid by releasing its tabs from the slit.

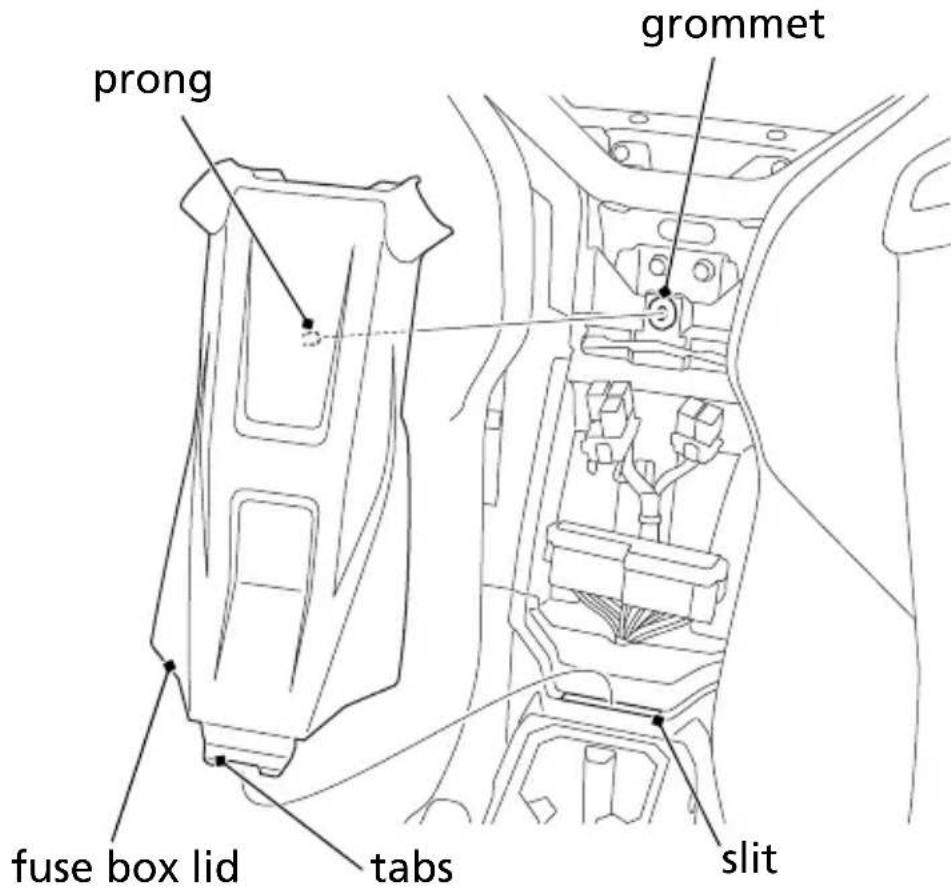

BETWEEN DRIVER SEAT AND PASSENGER SEAT

prong grommet fuse box lid tabs slit

(cont'd)

If a Fuse Blows

Main Fuse Access

1. Remove the fuse box cover.
2. To access the main fuse, remove the bolts, and then pull the main fuse out. If the main fuse is blown, see your dealer for this service.

fuse box cover main fuse bolts

Circuit Fuse Access

1. To check or replace a circuit fuse, pull the fuses out one by one with the fuse puller located behind the fuse box cover. If the fuse is blown, replace it with a spare fuse of the same rating.

If you do not have a replacement fuse with the proper rating for the circuit, install one with a lower rating.

NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system.

1. Install the removed parts in reverse order of removal.

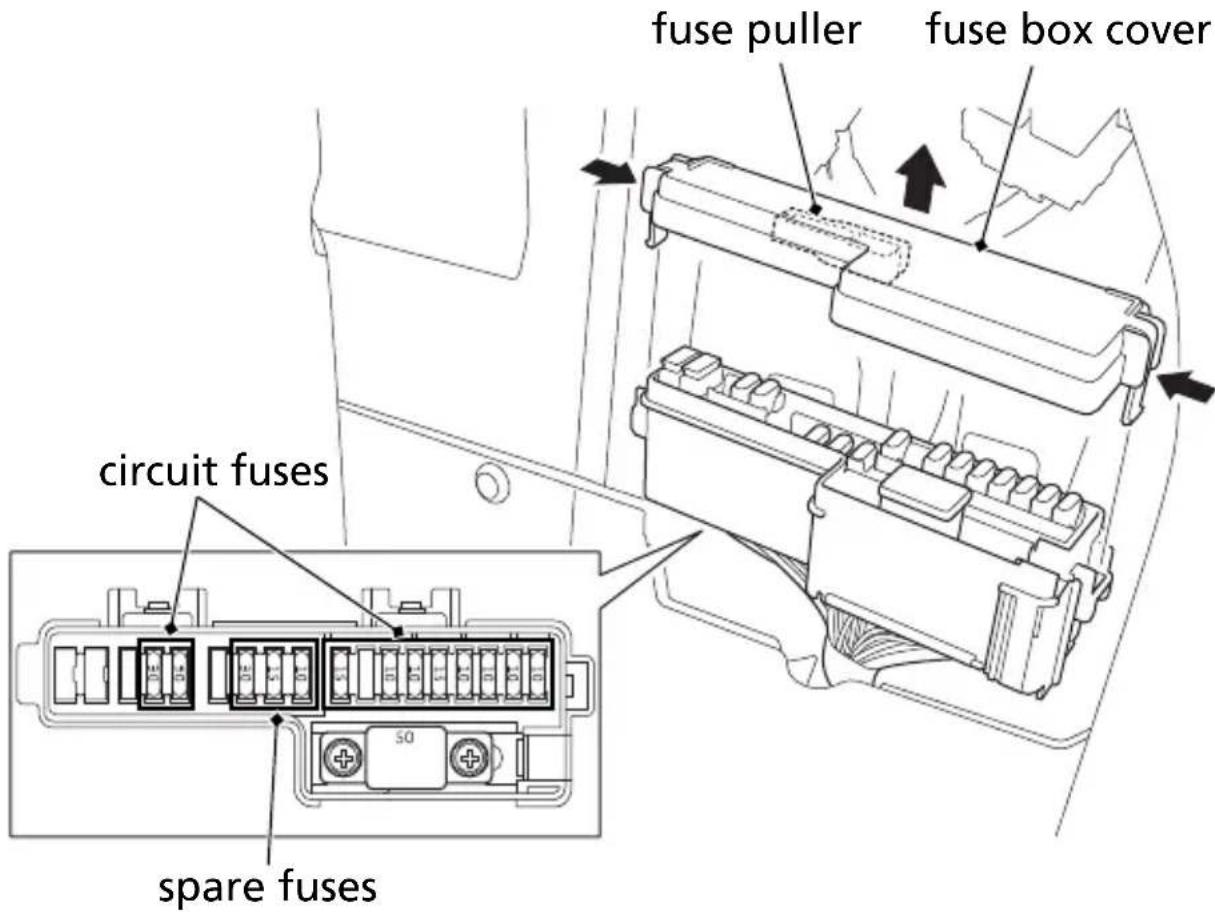

fuse puller fuse box cover circuit fuses spare fuses

Other Fuses

1. Turn the ignition switch to OFF (O) before checking the fuse.
2. Remove the battery cover (page 204).

Electric Power Steering (EPS) Fuse Access

1. To access the EPS fuse, remove the fuse cover. If the EPS fuse is blown, see your dealer for this service.

Brake Traction Control System (BTCS) Fuse Access

1. To access the BTCS fuse, remove the fuse cover. If the BTCS fuse is blown, see your dealer for this service.

Radiator Fan Fuse Access

1. To access the radiator fan fuse, remove the fuse cover. If the radiator fan fuse is blown, see your dealer for this service.

2. Install the fuse covers.

3. Install the battery cover.

UNDER LEFT REAR FENDER

brake traction control system (BTCS) fuse electric power steering (EPS) fuse radiator fan fuse fuse cover

244 Taking Care of the Unexpected

If you do not have a spare fuse and you cannot drive the Honda SXS without fixing the problem, take a fuse of the same rating or a lower rating from one of the other circuits that you can do without temporarily.

If you replace a blown fuse with a spare fuse that has a lower rating, replace the fuse with the correct rating as soon as you can. Also remember to replace any spare fuses that were installed.

If the replacement fuse of the same rating burns out in a short time, there is probably a serious electrical problem on your Honda SXS. Leave the blown fuse in that circuit and have your Honda SXS checked by your dealer.

Personal safety is your first priority after a crash. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue driving. If you cannot drive safely, send someone for help. Do not drive if you will risk further injury.

If you decide that you are capable of driving your SXS safely, first evaluate the condition of your SXS. If the engine is still running, turn it off and look it over carefully; inspect it for fluid leaks, check the tightness of critical nuts and bolts securing such parts as the steering wheel, control levers, brakes, and wheels.

If there is minor damage, or you are unsure about possible damage but decide to try driving the Honda SXS back to your base, drive slowly and cautiously.

Sometimes, crash damage is hidden or not immediately apparent. When you get home, thoroughly check your Honda SXS and correct any problems you find. Also, be sure to have your dealer check the frame suspension, seat belts, and occupant protective structure after any serious crash.

If You Lose Your Key

Be sure to record your key number. Store the spare key and recorded key number in a safe location. You'll need this number to have a duplicate key made.

If you lose your key and aren't carrying a duplicate, either get your spare or have one made. If you don't know your key number, call the dealer where you purchased your Honda SXS. They may have it listed in their records. If they don't, transport your Honda SXS to them or the nearest dealer. The dealer will probably have to remove the ignition switch assembly to find the key number so they can make a key for you.

key number

If the battery is low, the starter motor doesn't operate or works poorly, and you can't start the engine.

Jump starting your Honda SXS should be avoided.

Instead, the battery should be removed and recharged (page 206). If you can't charge the battery or it appears unable to hold a charge, contact your dealer.

WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.

However, when there is no option other than jump starting, follow the instructions given below.

NOTICE

If a battery sits in extreme cold, the electrolyte inside can freeze. Attempting to jump start with a frozen battery can cause it to rupture.

Use a battery that is the same as the one in the vehicle or an equivalent.

1. To prevent an accidental short circuit, turn the ignition switch OFF (O).
2. Remove the battery cover (page 204).
3. Using a fully charged 12-volt battery, connect the positive (+) side of the jumper cable to the charged battery, and connect the positive (+) side on the other end of the jumper cable to the positive (+) terminal of vehicle battery.
4. Connect the negative (-) side of the jumper cable to the charged battery, and connect the negative (-) side on the other end of the jumper cable to the frame ground cable terminal bolt.
5. After starting the engine, remove the negative (-) sides of the jumper cable from the vehicle and the battery. Then, remove the positive (+) sides of the jumper cable from the vehicle battery and the charged battery.
6. Install the battery cover.

- Do not let the positive (+) side of the jumper cable touch on the negative (-) terminal.

- If the jumper cable is connected to the battery with the polarity reversed, the battery can explode or the electrical system will be seriously damaged.

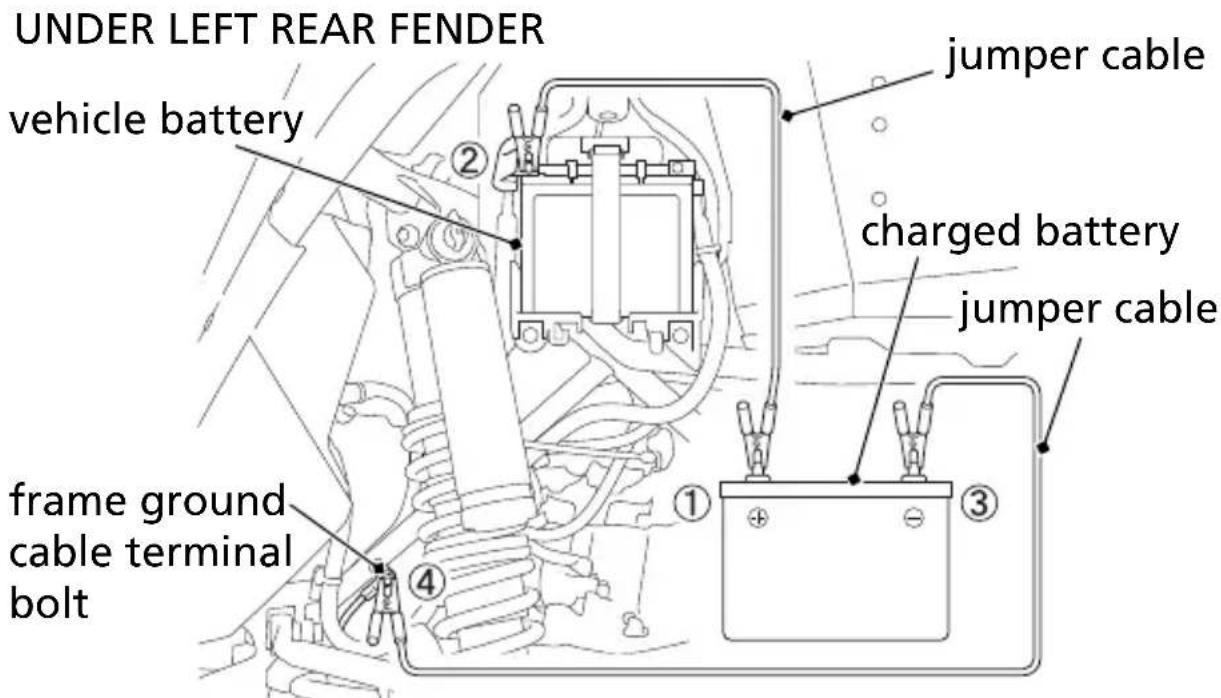

UNDER LEFT REAR FENDER vehicle battery ② jumper cable charged battery jumper cable frame ground cable terminal bolt ① ③

If a Component Fails

The brake lines, control cables, and other components can be damaged as you drive in dense brush or over rocky terrain. Making a trailside repair depends on how serious the damage is and what tools and supplies you have with you.

• If any component in the brake system is damaged, you may have reduced or limited stopping power. If you decide to continue driving back to your base, do so cautiously and at a very low speed.
• If you damage the accelerator cable or other critical component, your Honda SXS may be unsafe to drive. Carefully assess the damage and make any repairs that you can. But if there is any doubt, it's best to be conservative and safe.

If the Vehicle Speed Does Not Exceed 15 mph (24 km/h)

If the driver's side seat belt is not latched properly, the maximum vehicle speed will be limited to no more than 15 mph (24 km/h) by the seat belt speed limiting system (page 60). Also, the seat belt indicator and speedometer digits blink.

Make sure that the driver's side seat belt is latched properly. If the problem persists, see your dealer.

This page intentionally left blank.

Technical Information

This section contains dimensions, capacities, and other technical data, plus information on government requirements and how to break-in your Honda SXS.

Vehicle Identification 254
Specifications 256
Break-in Guidelines.... 263
Emission Control Systems (USA & Canada only) 264
Oxygenated Fuels (USA & Canada only) 268
Petrol Containing Alcohol (Australia & New Zealand only)...... 270
Catalytic Converter.... 271

Serial Numbers

The VIN and engine serial number may be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of this manual.

The VIN is stamped on the left side of the frame, located under the left front fender.

The engine number is stamped on the upper side of the rear crankcase.

UNDER LEFT FRONT FENDER UNDER RIGHT REAR FENDER

VIN engine number

Color Label & Code

The color label is attached to the right side of the frame, located under the front hood (page 129).

The color code is helpful when ordering replacement parts. You may record the color and code in the Quick Reference section at the rear of this manual.

UNDER FRONT HOOD

color label

Specifications

Dimensions
overall length 123.7 in (3,143 mm)
overall width SXS1000S2R/S2RD68.4 in (1,737 mm)SXS1000S2X/S2XD64.0 in (1,625 mm)
overall height SXS1000S2R/S2RD75.6 in (1,921 mm)SXS1000S2X75.3 in (1,913 mm)SXS1000S2XD75.28 in (1,912 mm)
wheelbase SXS1000S2R/S2RD92.7 in (2,355 mm)SXS1000S2X/S2XD87.6 in (2,226 mm)
ground clearance	SXS1000S2R/S2RD13.0 in (331 mm)SXS1000S2X12.7 in (323 mm)SXS1000S2XD12.68 in (322 mm)
curb weight SXS1000S2RA: 1,554 lb (705 kg)AC: 1,559 lb (707 kg)SXS1000S2RDVA: 1,561 lb (708 kg)V AC: 1,563 lb (709 kg)SXS1000S2XA, CM: 1,499 lb (680 kg)AC: 1,501 lb (681 kg)SXS1000S2XDVA: 1,523 lb (691 kg)V AC: 1,526 lb (692 kg)
Fuel & Lubricants
fuel recommendation	unleaded gasoline, pump octane number of 86 or higher
fuel tank capacity 7.27 US gal (27.5 ℓ)
engine oil capacity	after disassembly:7.6 US qt (7.2 ℓ)after draining:5.8 US qt (5.5 ℓ)after draining & engine oil filter change:6.08 US qt (5.75 ℓ)after draining, engine & DCT oil filters change:6.1 US qt (5.8 ℓ)
sub-transmission oil capacity	after disassembly:1.5 US qt (1.4 ℓ)after draining:1.35 US qt (1.28 ℓ)
engine/sub-transmission oil recommendation	API Service Classification SJ or higher except oils labeled as energy conserving or resource conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent
cooling system recommendation	Pro Honda HP Coolant (USA & Canada) or an equivalent high quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines
cooling system capacity	4.3 US qt (4.1 ℓ)

Specifications

Capacities
passenger capacity	driver and one passenger
maximum weight capacity	732 lb (332 kg)driver, passenger, all cargo and accessories

Engine Specifications
displacement 60.9 cu-in (999 cm3)
bore & stroke	3.6220 x 2.9586 in (92.000 x 75.148 mm)
compression ratio 10.0 : 1
spark plug(standard)	SILMAR8A9S (NGK)
spark plug gap 0.03	-0.04 in (0.8 - 0.9 mm)
valve clearance(cold)	intake: 0.006 ± 0.001 in(0.16 ± 0.03 mm)exhaust: 0.009 ± 0.001 in(0.24 ± 0.02 mm)
idle speed 1,200 ± 100 rpm (non-adjustable)

Power Transmission
primary reduction 1.883
final reduction front	3.384
	rear 3.307
transmission ratio 1st	2.764
	2nd 2.047
	3rd 1.583
	4th 1.230
	5th 0.968
	6th 0.800
sub-transmission ratio	low 2.666
	high	1.880
	reverse	2.640
final drive		shaft
Chassis & Suspension
caster 4°
trail SXS1000S2R/S2RD	1.0 in (26 mm)SXS1000S2X/S2XD0.9 in (23 mm)
tire size front: 28X9	00R15 NHS	MAXXIS MU9H
	rear: 28	X11.00R15 NHSMAXXIS MU9H
tire pressure (cold)	front:	SXS1000S2R/S2RD/S2XD16 psi (110 kPa)SXS1000S2X14 psi (100 kPa)
	rear: SXS	S1000S2R/S2RD/S2XD16 psi (110 kPa)SXS1000S2X14 psi (100 kPa)

Electrical
battery GYZ20H-A 1	2 V-20 Ah (10HR)
generator 0.7 kW/5,	000 rpm

Specifications

Lights
headlight SXS1000S2R/S2X	12 V 60/55 W x 2SXS1000S2RD/S2XDLED
brake/tail light LED
neutral indicator LED
reverse indicator LED
high coolant temperature indicator	LED
PGM-FI malfunction indicator lamp (MIL)	LED
electric power steering (EPS) indicator	LED
seat belt indicator LED
I - 4WD indicator	LED
low oil pressure indicator	LED
hill start assist (HSA) indicator	LED
clutch temperature indicator	LED
FLV warning indicator (SXS1000S2RD/S2XD only)	LED
FLV SPORT indicator (SXS1000S2RD/S2XD only)	LED
FLV NORMAL indicator (SXS1000S2RD/S2XD only)	LED
LAUNCH MODE indicator	LED
If there is a LED which is not turned on, see your dealer for this service.
Fuses
main 50 A
circuit SXS1000S2R/S2X	30 A × 2, 15 A × 2, 10 A × 6SXS1000S2RD/S2XD30 A × 2, 15 A × 1, 10 A × 7
EPS 40 A
BTCS 40 A
radiator fan 40 A

Specifications

Torque Specification
passenger handhold adjusting nut	13 lbf·ft (17 N·m, 1.7 kgf·m)
passenger handhold lock nut	20 lbf·ft (26.5 N·m, 2.7 kgf·m)
engine oil filter cover bolts	9 lbf·ft (12 N·m, 1.2 kgf·m)
DCT oil filter cover bolts	9 lbf·ft (12 N·m, 1.2 kgf·m)
engine oil drain bolts (oil pan and oil tank)	21 lbf·ft (29 N·m, 3.0 kgf·m)
sub-transmission oil drain bolt	21 lbf·ft (29 N·m, 3.0 kgf·m)
front final gear oil fill cap	9 lbf·ft (12 N·m, 1.2 kgf·m)
front final gear oil drain plug	9 lbf·ft (12 N·m, 1.2 kgf·m)
rear final gear oil check bolt	9 lbf·ft (12 N·m, 1.2 kgf·m)
rear final gear oil fill cap	9 lbf·ft (12 N·m, 1.2 kgf·m)
rear final gear oil drain plug	9 lbf·ft (12 N·m, 1.2 kgf·m)
air cleaner mounting screws A and B	3.7 lbf·ft (5 N·m, 0.5 kgf·m)
wheel nuts 80 lbf·ft	(108 N·m, 11 kgf·m)

Help assure your Honda SXS's future reliability and performance by paying extra attention to how you drive during the first operating day or 15 miles (25 km).

During this period, avoid full-throttle starts and rapid acceleration.

Emission Control Systems (USA & Canada only)

Exhaust Emission Requirements

The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment and Climate Change Canada (ECCC) require that your SXS comply with applicable exhaust emissions standards during its useful life, when operated and maintained according to the instructions provided.

The Vehicle Emission Control Information Label is attached on the left side of the frame under the left rear fender.

UNDER LEFT REAR FENDER

vehicle emission control information label

Technical line drawing of a car interior showing dashboard, steering wheel, and engine components (no text or labels)

vehicle emission control information label (Canada model only)

Emission Control Systems (USA & Canada only)

Source of Exhaust Emissions

The combustion process produces carbon monoxide (CO), oxides of nitrogen (NOx) and hydrocarbons (HC). Control of hydrocarbons and oxides of nitrogen is very important because, under certain conditions, they react to form photochemical smog when subjected to sunlight. Carbon monoxide does not react in the same way, but it is toxic.

Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide, oxides of nitrogen and hydrocarbons.

Exhaust Emission Control System

The exhaust emission control system includes an oxygen sensor, a three-way catalytic converter and a PGM-FI system.

No adjustment to this system should be made although periodic inspection of the components is recommended.

The exhaust emission control system is separate from the crankcase emission control system.

Evaporative Emission Control System (USA - 50 states [meets California])

An evaporative emissions control system uses a canister filled with charcoal to adsorb fuel vapor from the fuel tank while the engine is off. The vapor is drawn into the engine and burned while driving.

Models sold in and used in California:

An add-on or modified part must be compliant with applicable ARB evaporative emission control standards. A violation of this requirement is punishable by civil and/or criminal punishment.

Emission Control Systems (USA & Canada only)

Crankcase Emission Control System

The engine is equipped with a closed crankcase system to prevent discharging crankcase emissions into the atmosphere. Blow-by gas is returned to the combustion chamber through the air cleaner and throttle body.

Problems That May Affect Exhaust Emissions

If you are aware of any of the following symptoms, have the vehicle inspected and repaired by your dealer.

Symptoms:

1. Hard starting or stalling after starting
2. Rough idle
3. Misfiring or backfiring during acceleration
4. After-burning (backfiring)
5. Poor performance (driveability) and poor fuel economy

Federal regulations prohibit removing or disabling a device or element of design that may affect your engine's emission performance unless your Honda will be used exclusively in competition. If you modify your engine for use in sanctioned competition events, you must deface or destroy the emission control information label.

If you loan, sell, or give your competition modified Honda to someone else, according to applicable law, you must inform the new owner/driver in writing that the vehicle is to be used for competition only.

Emission Control Systems (USA & Canada only)

Noise Emission Control System

TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED: State laws prohibit, or Canadian provincial laws may prohibit, the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use; or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE THE FOLLOWING ACTS:

• Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
• Removal of, or puncturing of any part of the intake system.
• Lack of proper maintenance.
• Removing or disabling any emissions compliance component, or replacing any compliance component with a non-compliant component.

Fuel Permeation Emission Control System

This vehicle complies with the Fuel Permeation Emission Control regulations of the U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment and Climate Change Canada (ECCC).

The fuel tank, fuel hoses, and fuel vapor charge hoses used on this vehicle incorporate fuel permeation control technologies.

Tampering with the fuel tank, fuel hoses, or fuel vapor charge hoses to reduce or defeat the effectiveness of the fuel permeation technologies is prohibited by federal regulations.

Oxygenated Fuels (USA & Canada only)

Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.

If you use an oxygenated fuel, be sure it is unleaded and meets the minimum octane rating requirement.

Before using an oxygenated fuel, try to confirm the fuel's contents. Some states/provinces require this information to be posted on the pump.

The following are percentages of oxygenates for non-road vehicles:

ETHANOL (ethyl or grain alcohol) up to 10% by volume.

You may use gasoline containing up to 10% ethanol by volume. Gasoline containing ethanol may be marketed under the name "Gasohol".

Do not use gasoline containing more than 10% ethanol by volume. The use of gasoline containing a higher percentage (e.g. E15, E20, E85) of ethanol has not been approved for use in this vehicle and may cause starting and/or performance problems and can also damage metal, rubber, and plastic parts of the fuel system and are not covered by the Distributor's Limited Warranty.

Do not use gasoline containing METHANOL (methyl alcohol).

Oxygenated Fuels (USA & Canada only)

If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline.

Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates mentioned above are not covered under warranty.

Oxygenated fuels can damage paint and plastic. Be careful not to spill fuel when filling the fuel tank. Wipe up any spills immediately.

NOTICE

Oxygenated fuels can damage paint and plastic. Damage caused by spilled fuel is not covered by warranty.

Petrol Containing Alcohol (Australia & New Zealand only)

If you decide to use a petrol containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended.

Do not use gasohol that contains more than 10% ethanol.

Engine performance problems resulting from the use of fuels that contain alcohol are not covered under the warranty. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is not yet complete.

Before buying fuel from an unfamiliar station, try to find out if the fuel contains alcohol. If it does, confirm the type and percentage of alcohol used. If you notice any undesirable operating symptoms while using a petrol that contains alcohol, or one that you think contains alcohol, switch to a petrol that you know does not contain alcohol.

This SXS is equipped with a three way catalytic converter. The catalytic converter contains precious metals that serve as catalysts, promoting chemical reactions to convert the exhaust gases without affecting the metals.

The catalytic converter acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent.

The catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set fire to any combustible materials that come near it. Park your SXS away from high grasses, dry leaves, or other flammables.

A defective catalytic converter contributes to air pollution, and can impair your engine's performance. Follow these guidelines to protect your SXS's catalytic converter.

• Always use unleaded gasoline. Even a small amount of leaded gasoline can contaminate the catalyst metals, making the catalytic converter ineffective.
• Keep the engine in good running condition. A poorly running engine can cause the catalytic converter to overheat causing damage to the converter or the SXS.
• If your engine is misfiring, backfiring, stalling, or otherwise not running properly, stop driving and turn off the engine. Have your SXS serviced as soon as possible.

Consumer Information (USA & Canada only)

This section contains information on your warranty and how to get an official Honda service manual.

Authorized Manuals (USA & Canada only) 273
Warranty Coverage (USA & Canada only) 274
Warranty Service (USA & Canada only) 275
Contacting Honda (USA & Canada only)...... 276
Your Honda Dealer (USA & Canada only).... 277
Reporting Safety Defects (Canada only) 278

Authorized Manuals (USA & Canada only)

The Service Manual used by your authorized dealer is available from your Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order authorized manuals.)

Also available but not necessary to service your model is the Honda Common Service Manual which explains theory of operation and basic service information for various systems on Honda motorcycles, scooters, ATVs, SXSs and PWCs.

(USA only)

The Winter Storage Guide in conjunction with the Owner's Manual and Service Manual can help you prepare your Honda motorcycle, scooter, ATV, and SXS for winter storage.

These Honda manuals are written for the professional technician, but most mechanically capable owners should find them easy to use if they have the proper tools and observe proper safety standards. Special Honda tools are necessary for some procedures.

Description

2022 SXS1000S2R/S2RD/S2X/S2XD TALON Service Manual

Common Service Manual (61CSM00)

(USA only) Winter Storage Guide (S9507)

2022 SXS1000S2R/S2RD/S2X/S2XD TALON Owner’s Manual

Order online: www.helminc.com

Order Toll Free: 1-888-CYCLE93 (1-888-292-5393)

(NOTE: For Credit Card Orders Only) Monday - Friday 8:00 AM - 6:00 PM EST

Warranty Coverage (USA & Canada only)

Your new Honda is covered by these warranties:

• Honda SXS Limited Warranty
- Emission Control System Warranty

There are responsibilities, restrictions, and exclusions which apply to these warranties. Please read the Warranties Booklet given to you by your Honda dealer at the time of purchase. Be sure to keep your Honda owner's card with your Warranties Booklet.

Canada: Please refer to the Warranty Booklet posted on our website at www.honda.ca.

It is important to realize that your warranty applies to defects in material or workmanship of your Honda. Your warranty coverage does not apply to normal wear or deterioration associated with using the Honda SXS.

Your warranty coverage will not be voided if you choose to perform your own maintenance. However, you should have the proper tools and service information and be mechanically qualified. Failures that occur due directly to improper maintenance are not covered.

Almost all of your warranty coverage can be extended through the HondaCare® Protection Plan (USA only). For more information, see your dealer.

Warranty Service (USA & Canada only)

Please remember that recommended maintenance interval servicing is not included in your warranty coverage. Additionally, your warranty does not apply to the normal wear of items (such as brakes, tires, etc.).

If you believe you have a problem with your Honda SXS, call the service department of your dealer. Make an appointment for an inspection and diagnosis. Remember, as the owner of the Honda SXS, you will be asked to authorize that inspection. Your dealer will give you the results of the inspection. If the problem is covered under warranty, your dealer will perform the warranty repairs for you.

If you have questions about warranty coverage or the nature of the repair, it is best to talk to the Service Manager of your dealer.

Sometimes, in spite of the best intentions of all concerned, a misunderstanding may occur. If you aren't satisfied with your dealer's handling of the situation, we suggest you discuss your problem with the appropriate member of the dealership's management team. If the problem has already been reviewed with the Service Manager, Parts Manager, Sales Manager, etc., contact the Owner of the dealership or their designated representative.

Contacting Honda (USA & Canada only)

Your owner's manual was written to cover most of the questions you might ask about your Honda. Any questions not answered in the owner's manual can be answered by your dealer. If your dealer doesn't have the answer right away, they will get it for you.

If you have a difference of opinion with your dealer, please remember that each dealership is independently owned and operated. That's why it's important to work to resolve any differences at the dealership level.

If you wish to contact Honda directly to comment on your experiences with your Honda or with your dealer, please send your comments using one of the following methods:

USA:

POST MAIL

Powersports Customer Relations, American Honda Motor Co., Inc., P.O. Box 2200, Torrance, CA 90509-2200, mailstop: 100-4W-5F

PHONE

Telephone: [phone]

ONLINE CUSTOMER SERVICE

Website: https://powersports.honda.com/contact-us

Canada: Honda Canada Inc., Customer Relations Dept, 180 Honda Boulevard, Markham, Ontario L6C 0H9, telephone: [phone], facsimile: [phone].

E-mail: [e-mail]

Please include the following information in your letter:

• product model, year, and VIN
- date of purchase
- dealer name and address

- name, address, and telephone number

We will likely ask your dealer to respond, or possibly acknowledge your comments directly.

276 Consumer Information (USA & Canada only)

Your Honda Dealer (USA & Canada only)

Once you purchase your new Honda, get familiar with the organization of your Honda dealer so you can utilize the full range of services available.

The service department is there to perform regular maintenance and unexpected repairs. It has the latest available service information from Honda. The service department will also handle warranty inspections and repairs.

The parts department offers Honda Genuine Parts, Pro Honda products, Honda Accessories (USA only), and Honda accessories and products (Canada only). The same quality that went into your Honda can be found in Honda Genuine replacement parts. You'll also find comparable quality in the accessories and products available from the parts department.

The sales department offers the HondaCare® Protection Plan to extend almost all of your warranty coverage (USA only).

Your Honda dealer can inform you about competition and other driving events in your area. You'll also find that your dealer is a source of information about safety training available in you local area.

We're sure you'll be as pleased with the service your Honda dealer continues to provide after the sale as you are with the quality and dependability of your Honda.

Reporting Safety Defects (Canada only)

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may lead to a recall and remedy campaign.

However, Transport Canada cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada's Defect Investigations and Recalls Division,

Mailing Address:

Transport Canada - ASFAD

330 Sparks Street

Ottawa, ON

K1A 0N5

Telephone: [phone] (Ottawa-Gatineau area or internationally)

Toll free: 1-800-333-0510 (in Canada)

Online:

(English Link:) www.tc.canada.ca/recalls

(French Link:) www.tc.canada.ca/rappels

For more information on reporting safety defects or about motor vehicle safety, go to

https://www.tc.gc.ca/roadsafety.

A

accessories 4

accessory power socket 68

age and size recommendation 2

air cleaner outer cover removal 131

air cleaner, filter 164

housing drain tubes 167

air pressure, tire 193

American Honda, contacting 276

apparel, protective 75

appearance care 207

AT indicator 36

AT/MT switch 43

authorized manuals 273

B

battery 202

brake traction control system (BTCS) 95

brakes, fluid ....186

pad wear 189

pedal inspection 190

break-in guidelines 263

C

capacity, fuel 135

care, appearance 207

cargo, bed 69

limit 3,82

catalytic converter 271

cleaning, appearance care 207

Index

climbing hills 106

clip removal 132

color label 255

compartment, owner's manual ....128

storage 67

tool kit 127

component fails 250

consumer information 272

coolant temperature gauge 30

crash, if you 246

crossing a hill 108

customer service 276

D

dipstick 140, 150

doors 51

drive mode 95

drive mode indicator ....37

drive mode select switch 41

driveshaft boots ....201

driving, basic operations ....85

clothing 2,75

precautions 101

preparing for 214

safety 2

through water 109

E

electric power steering (EPS) indicator 19

electronic brakeforce distribution (EBD) 71

emission control systems 264

engine,

number 254

oil 137

pinging 134

starting 86

stopping 86

sub-transmission 150

won't start 226

environment 221

F

final gear oil 154, 156

flag pole bracket 70

flat tire 233

FLV NORMAL indicator 21

FLV SPORT indicator 21

FLV warning indicator ....21

FOX® Live Valve (FLV) switch 47

FOX® Live Valve (FLV) system 181

fuel,

fill cap 135

oxygenated 268

recommendation 134

tank capacity 135

fuses 239

G

gap, spark plug 175, 258

gasohol 268

gasoline 134

gear position indicator 35

H

headlight switch 39

hill start assist (HSA) 45

hill start assist (HSA) indicator 20

hill,

approaching a hill ....106

crossing a hill 108

driving down a hill 107

driving up a hill 107

stopping on a hill 107

hour meter 32

|

identification, vehicle 254

ignition switch 38

indicators,

AT indicator ....36

clutch temperature indicator 20, 238

electric power steering (EPS) indicator 19

gear position indicator ....35

high coolant temperature indicator 19,236

hill start assist (HSA) indicator 20

I - 4WD indicator .....20

LAUNCH MODE indicator 21

LOW indicator 36

low oil pressure indicator 20

MT indicator 36

neutral indicator 19

PGM-FI malfunction indicator lamp (MIL) 19

reverse indicator 19

seat belt indicator 19

SPORT indicator 36

inspection, pre-drive 78

K

key,

lost 247

number 247

kit, tool 127

L

labels, safety 6

Launch Mode 96

LAUNCH MODE indicator 21

LAUNCH MODE switch 46

limit, cargo 3, 82

loading guidelines 83

LOW indicator 36

low oil pressure indicator 20

lubrication,

engine oil 138

final gear oil 154, 156

points 170

M

maintenance,

importance 113

maintenance minder indicator 33,117

precautions 115

record 121

safety 114

schedule 116

manual, service 273

maximum weight limit 3,82

modifications 5

MT indicator 36

multi-function display 24

Index

N

neutral indicator 19

noise emission control systems 267

numbers, serial 254

0

obstacles, avoiding 108

odometer 29

odometer display 28

oil,

engine 138

final gear 154, 156

owner's manual storage 128

oxygenated fuels 268

P

parking 100

passenger,

handhold 64

no carrying in cargo bed ....3

pedal, accelerator 172

pinging, engine 134

plug, spark 174

pre-drive inspection 78

problems, unexpected 224

protective apparel 75

R

removal, seat 130

reverse indicator 19

S

safety,

driving precautions 101

important precautions 115

labels 6

schedule, maintenance 116

seat belt indicator 19

seat,

belts 59

position adjustment ....57

removal 130

serial numbers 254

service,

customer 276

manuals 273

warranty 275

shift paddle 48

shifting 40

side nets 53

spark arrester 177

spark knock 134

spark plugs 174

specifications 256

speedometer 25

speedometer display 25

SPORT indicator 36

SPORT switch 44

starting,

engine 86

troubleshooting 226

steering wheel adjustment lever 49

stopping engine 86

Index

storage,

owner's manual 128

SXS 217

sub-transmission 150

suspension,

adjustment 180

damping, front 183

damping, rear 184

inspection 185

switch,

AT/MT 43

drive mode select 41

FOX® Live Valve (FLV) 47

headlight 39

hill start assist (HSA) 45

ignition 38

LAUNCH MODE 46

SPORT 44

T

tires,

air pressure 193

flat 233

repairing 197

replacing 198

thread conditions 195, 196

tool kit 127

transporting your Honda 216

tripmeter 29

trouble, unexpected 223

troubleshooting, starting 226

turning, on level ground 105

V

vehicle identification no. (VIN) 254

W

warning labels 6

warranty,

coverage 274

extended 274

service 275

washing your SXS 208

water, driving through 109

weight limit 82

wheel removal 234

The following is a brief, but important collection of information you need to know about your Honda. You'll also find space to record important notes.

How To Avoid Costly Repairs

The engine of your Honda can be the most expensive component to repair. Proper maintenance, especially the use of the recommended fluids and filters, prevents premature wear and damage.

Frequent causes of costly repairs are:

• Engine oil — insufficient quantity, improper oil.
• Air cleaner — dirty, leaking because of improper installation (poor seal).

Record important information on the following page:

Quick Reference

Engine No.
VIN
Color Label
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Mgr.

Quick Reference

Scheduled Maintenance	Initial: 100 miles (150 km) Regular: every 600 miles (1,000 km)
Pre-drive Inspection	Each time before you drive (page 78): oil level, coolant, fuel level, brake fluid, tires, wheels, driveshafts, steering gearbox and boots, underbody, suspension, lights, controls, tie-rod ends, cargo, seat belts, driver seat position, side nets, exhaust system
Fuel/Capacity Unleaded gasoline, pump octane number 86 or higher 7.27 US gal (27.5 ℓ)
Engine Oil/ Capacity, Sub-Transmission Oil/Capacity	API Service Classification SJ or higher except oils labeled as energy conserving or resource conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent engine oil after draining: 5.8 US qt (5.5 ℓ) after draining & engine oil filter change: 6.08 US qt (5.75 ℓ) after draining, engine & DCT oil filters change: 6.1 US qt (5.8 ℓ) sub-transmission oil after draining: 1.35 US qt (1.28 ℓ)
Maximum Weight Capacity	732 lb (332 kg) driver, passenger, all cargo and accessories
Tires Front: 28X9.00R15 NHSMAXXIS MU9H
Tire Pressure (cold) Front: SXS1000S2R/S2RD/S2XD16 psi (110 kPa)SXS1000S2X14 psi (100 kPa)
Spark Plugs standard: SILMAR8A9S (NGK)
Coolant Ethylene glycol antifreeze (silicate-free)for aluminum engines in 50/50 solutionwith Pro Honda HP Coolant or anequivalent distilled water
Fuses main: 50 A	circuit: SXS1000S2R/S2X30 A × 2, 15 A × 2, 10 A × 6SXS1000S2RD/S2XD30 A × 2, 15 A × 1, 10 A × 7EPS: 40 ABTCS: 40 Aradiator fan: 40 A

These symbols are used in Driver Controls section:

SYMBOL	COMPONENT SEE PAGE
IISTART	— ignition switch 38
ION —	ignition switch 38
OOFF —	ignition switch 38
≡DLow beam —	headlight switch 39
≡DHigh beam —	headlight switch 39
P, R, N, H, L	Park — Reverse — Neutral — High — Low — shift select lever	40
	ON — Hill Start Assist (HSA) switch 45
	FLV switch (SXS1000S2RD/S2XD only)	47
+ Up —	right shift paddle 48
- Down	— left shift paddle 48

WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to www.P65Warnings.ca.gov/passenger-vehicle.

MADE FROM 50% RECYCLED PAPER MINIMUM 10% POST-CONSUMER CONTENT

HONDA

The Power of Dreams

BEST ON EARTH™

31HL6630

00X31-HL6-6301

A/CE

PRINTED IN USA
