USER MANUAL 95-8901 Metra

INSTALLATION INSTRUCTIONS FOR PART 95-8901

APPLICATIONS

Subaru Legacy/Outback 2005-2009

For manual climate controls only, excluding Outback Sport.

95-8901

KIT FEATURES

• Double DIN radio provision
- Painted to match the factory color and finish

Interior view of a car dashboard with air vent and control knobs (no visible text or symbols)

KIT COMPONENTS

• A) Radio Housing • B) Brackets • C) (5) #8 x 3/8" Phillips Screws

A

B

C

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-8901 Subaru harness 1990-up

Antenna Adapter: • 40-SB10 Subaru antenna adapter 2005-up

Table of Contents

Dash Disassembly

- Subaru Legacy/Outback 2005-2009 .... 2

Kit Assembly

- Double DIN radio provision 3

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
- Socket Wrench

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

95-8901

Dash Disassembly

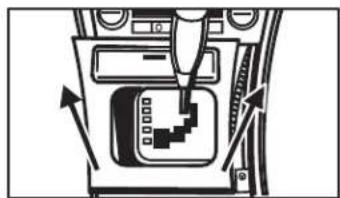

1. Unclip and remove panel surrounding shifter including ashtray. (Figure A)
2. Remove (1) Phillips screw per side panel then unclip and remove panels. (Figure B)

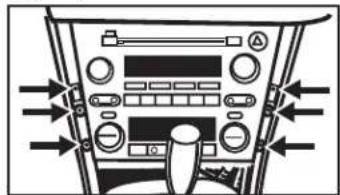

3. Remove (6) Phillips from radio to remove. (Figure C)

Interior view of a car infotainment device showing internal components and directional arrows (no text or symbols)

(Figure A)

Pure electrical circuit lines without any symbols

(Figure B)

Interior view of a car dashboard with directional arrows indicating traffic flow (no text or symbols)

(Figure C)

1. Remove (4) screws securing the climate control to the radio/climate control assembly then unclip and remove climate control. (Figure D)

NOTE: You will need to unclip the climate control cable from behind the pocket, above the radio, in order to remove the radio and climate controls. (use caution when removing the pocket as the dash will scratch very easily) (Figure E)

Continue to kit assembly

2 Screws Per Side

(Figure D)

Technical line drawing of a car interior showing dashboard, steering wheel, and dashboard frame (no text or symbols)

(Figure E)

95-8901

Kit Assembly

ISO DDIN radio provision

1. Clip the climate control into the back of the 95-8901. (Figure A)
2. Attach the hazard switch to the radio housing trim panel with the supplied (1) #8 x 3/8" Phillips screw supplied. (Figure A)

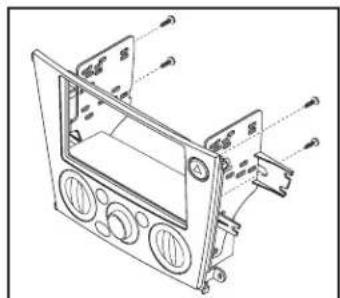

3. Attach the radio brackets to the radio housing trim panel using the (4) #8 x 3/8" Phillips screws supplied. (Figure B)
4. Secure the climate control to the brackets using the factory screws. (Figure C)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figure A) (Figure C)

Technical line drawing of a car front panel with mounting brackets and ventilation slots (no text or symbols)

(Figure B)

1. Slide the radio into the bracket/radio housing trim panel assembly and secure to the assembly using the screws supplied with the radio. (Figure D)
2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
3. Reassemble dash in reverse order of disassembly.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of an electronic device with labeled ports and a screen, showing internal components and directional arrows.

(Figure D)

INSTALLATION INSTRUCTIONS FOR PART 95-8901

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and repurposed.

enrolling in the most recognized and resp. mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP

certified technicians

Interior view of a car dashboard with digital display and control knobs (no visible text or symbols)

COMPONENTES DEL KIT

Line drawing of a car dashboard panel with labeled sections A and B (no text or symbols on the diagram itself)

Technical line drawing of two metal bracket components (no text or symbols)

Interior view of a car infotainment system showing plug, mode, and control buttons (no text or labels)

(Figura A)

Pure electrical circuit lines without any symbols

(Figura B)

Interior view of a car dashboard with directional arrows indicating traffic flow (no text or symbols)

(Figura C)

Interior view of a car showing the dashboard and seat area (no text or symbols visible)

(Figura E)

95-8901

Ensamble del kit

Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

(Figura A) (Figura C)

Technical line drawing of a car front panel with mounting holes and internal compartments (no text or labels)

(Figura B)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of an electronic device with labeled ports and control panel

(Figura D)
