EZ-48-3AB-125-35 Weather Station Mounting Tripod and Mast

EZ-125-35M 35" Mast Extension (Optional)

EZ-125-SK Stake Kit (Optional)

EZ-46-3 Tar Pad Kit (Optional)

EZ-GWA Guy Wire Kit (Optional)

EZ-48-3AB-125-35 Weather Station Mounting Tripod and Mast

Metal tripod stand with metal legs and support beams (no text or symbols visible)

The EZ-48-3AB-125-35 Tripod assembly is constructed of 18 gauge 1008-10 steel tubing, galvanized using the Flo-Coat (zinc-chromate-polymer) process for excellent corrosion protection.

Ungalvanized leg braces, mast collars, & connecting components are gold irridited for corrosion protection.

Mast collars feature a captive "stop-nut" design, to eliminate lock nut spin when tightened; and a mast supporting cup for additional stability. The tripod base is 33" (85.8 cm).

Tripod height 33 inches (85.8 cm). Supplied with one mast for an assembly height of 53" inches (150.8 cm), and an adjustment range of 41 to 58 inches (106.6 to 150.8 cm).

Add up to two mast extensions to extend the height of 31" per mast extension.

Add the optional stake kit for moderate wind ground installation.

Add the optional tar pads for roof-top installations.

Add the optional guy wire kit for configurations with two extension poles, or for locations that experience sustained periods of high wind.

Figure 1

Components

The EZ-48-3AB-125-35 Tripod assembly includes the following components.

Technical line drawing of a mechanical lever assembly (no text or symbols)

Mounting Tripod 33" x 33" x 33"

Mast (mounting pole) 36"

Six identical illustrations of a hexagonal bolt, shown in a row (no text or symbols)

6 5/16" Bolts (already assembled to the Mounting Tripod)

Figure 2

Tools and Materials Needed

• Adjustable Wrench
• Level or Plumb
• Drill

Important Installation Instructions

CAUTION: Improper installation of the mounting tripod to your roof top may result in leaks. We recommend a licensed roofing specialist for evasive installations.

CAUTION: Any metal object may attract a lightning strike, including your weather station and tripod.

Never install your weather station in a thunderstorm.

We recommend properly grounding the tripod to avoid extensive damage to the weather station and structure. Consult a licensed electrician or local lightning detection expert prior to installing a ground wire.

Tripod Installation

Unfold the tripod so the installed pads are flat on the ground.

5/16" Bolt Hex Nut Hex Nut

Figure 3

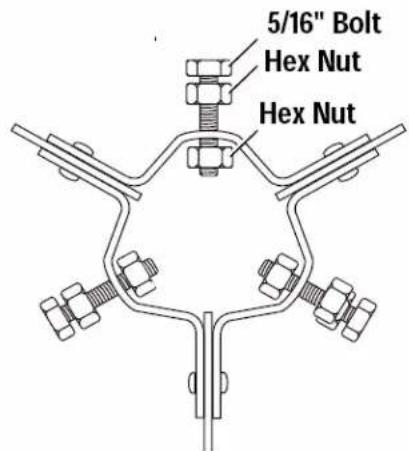

Reference Figure 3. Insert the mounting pole into the center of the two collars. Secure the mast by tightening the hex nuts on the 5/15" bolts until the bolts hold the mast in place securely. Make sure the mast is level.

EZ-125-35M 35" Mast Extension (Optional)

Simple horizontal line drawing with no text or symbols

Galvanized 1-1/4 inch (3.25 cm) O.D., 35 inch (89 cm) long steel post with one end crimped for insertion into another post of the same O.D.

Made of 18 gauge 1008-10 steel tubing, galvanized using the Flo-Coat (zinc-chromate-polymer) process for excellent corrosion protection.

When used with the EZ-48-3AB-125-35 Mast assembly, this extension will raise the anemometer to a height of 84 inches, with an effective adjustment range of 72 to 89 inches (187.2 to 231.4 cm).

Figure 4

Mast Extension Installation

Figure 5

Reference Figure 5. Insert the swaged end of the mast extension into the mounting tripod mast and tighten so the extension does not rotate.

Repeat this step for additional mast extensions (maximum two is recommended).

EZ-125-SK Stake Kit (optional)

Three identical metallic threaded rods with evenly spaced notches, shown against a plain background (no text or symbols)

The stake kit consists of 3-12 7/8" bolts, solid steel spikes with a welded cap on one end. The spikes are designed to be driven into soil, through holes provided in the Tripod foot pads. This installation technique effectively anchors the tripod in light to moderate wind, or serves as a temporary installation method. If high winds are anticipated, or a permanent tripod installation is required, it is recommended that the tripod be connected to a concrete pad or other permanent base using bolts and guy-wires.

Stake Kit Installation

Insert the three ground stakes into the three foot bracket holes. With a hammer, drive the stakes

Figure 6

all the way into the ground to secure the tripod and mast assembly.

Installation Note – for high wind locations, place concrete cinder blocks on top of each of the foot brackets.

EZ-46-3 Tar Pad Kit (Optional)

Three identical black-and-white photos of screw fasteners arranged in two rows, each with a separate pair of pins (no text or symbols visible)

Apply the pitch pads to each leg of the Mounting Tripod for roof mount installations.

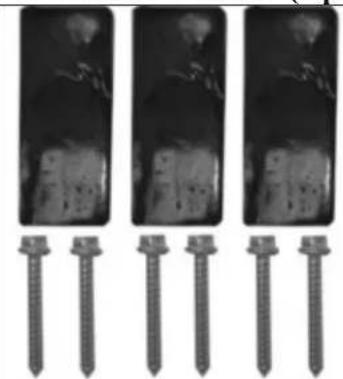

Includes 3-3" Tar pads, 6 ¼-20 Lag screws

Figure 7

Tar Pad Kit Installation (Optional)

Note – Improper installation of the mounting tripod to your roof top may result in leaks. Use a licensed roofing specialist for evasive installations.

Reference Figure 9. Mount the tripod and mast on the desired pitched or flat surface.

For pitched roof applications, place the pitch pad in between the mounting feet and the roof surface (Figure 8).

Figure 8

ambient weather

Ambient Weather

6845 W. Frye Road

Chandler, AZ 85226

TEL [phone] ● FAX [phone]

www.AmbientWeather.com

Mast (use plumb or level to find true vertical) Tighten nut when proper angle of feet determined ¼-20 Lag screws (pitch pad option) ROOF MOUNTING

Deck or other flat surface DECK MOUNTING

Figure 9

EZ-GWA Guy Wire Kit (Optional)

Collection of automotive suspension components including hoses, clips, and car parts (no text or symbols visible)

The Guy-wire Kit contains three precut lengths of plastic coated, steel guy-wire cable, and all hardware required to secure the guy-wires to the top of the tripod mast, and the bottom of the tripod legs.

Alternatively, the bottom connection can be made to eye-bolts set into a concrete pad, or other fixed structure. The guy-wire kit is designed for permanent installations, or for tripod configurations with two extension poles, or for locations that experience sustained periods of very high wind.

Figure 10

Guy Wire Kit Installation (Optional)

For areas with winds greater then 50 mph, use the guy wire kit and stake kit to reduce vibration.

Reference Figure 12. Attach the tri-clamp to the top of tripod mast. Secure the mast by tightening the hex nuts on the 5/15" bolts until the bolts hold the tri-clamp in place securely. Orient the eyebolts on the tri-clamp so they align with each tripod foot EZ-125-SK stake.

Attach one end of the guy wire cable to one eyebolt on the tri-clamp. Open the wire clamp by loosening the screw on it. Place the clamp over the wire and tighten. Leave 1 inch of wire protruding from the clamp.

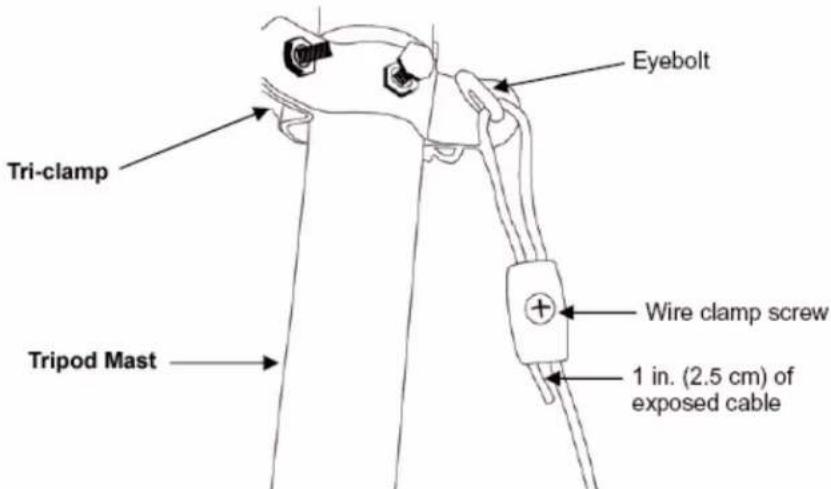

Tri-clamp Tripod Mast Eyebolt Wire clamp screw 1 in. (2.5 cm) of exposed cable

Figure 11

Hook one "S" hook and one turnbuckle on the corresponding stake (Figure 12) or leg (Figure 13).

Cut the guy wire cable so that it can be put through the loose end of the turnbuckle and the wire clamp. Make sure each turnbuckle is extended as shown in Figure 12 and Figure 13 before feeding the cable through.

Install the hooks, turnbuckles and cables onto the other two stakes or tripod legs.

Tighten the three guy wires evenly by turning the turnbuckles.

Attach a post level on the upper mast to maintain the mast at vertical.

The guy wires should be taunt when the installation is complete.

Turnbuckle S-Hook Stake

Figure 12

Lower tripod leg Turnbuckle S-Hook

Figure 13
