TABLE OF CONTENTS

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS....6

GENERAL CARE AND MAINTENANCE....8

COMMERCIAL MAINTENANCE SCHEDULE....9

COMPLIANCES....9

DIMENSIONS AND WEIGHTS....10

LABEL LOCATIONS....11

WARNING AND INTENDED USE LABELS....11

ASSEMBLY INSTRUCTIONS

PREASSEMBLY CHECKLIST....13

ASSEMBLY STEPS....15

PREVENTATIVE MAINTENANCE

DAILY INSPECTION AND MAINTENANCE....23

WEEKLY INSPECTION AND MAINTENANCE....23

OTHER SCHEDULED PREVENTATIVE MAINTENANCE....23

CLEANING THE EQUIPMENT....24

WARRANTY INFORMATION

COMMERCIAL LIMITED WARRANTY....25

IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS

! FACILITY AND USER SAFETY PRECAUTIONS

• Review and understand all of the warning labels affixed to this machine and on the facility safety sign.
• Be certain that the machine operation is understood before it is used. Refer to the instructional procedure label affixed to the machine.
• Make sure all users are properly trained on how to use this equipment. If this machine is being used in a commercial setting, end users may not have access to this owners manual. It is the responsibility of the facility to instruct users as to the proper usage of the equipment as well as making them aware of potential hazards. Maximum user weight is 400 lbs / 182 kg.
• Use each machine only for the intended exercise. Do not allow anyone to invent exercises not included on the instructional procedure label or the intended use label.

- Do not modify the machine.

- This equipment meets industry safety standards for stability when used for the intended exercise. Do not allow straps, resistance bands or other means to be attached to the framework of this machine to perform stretching or body weight exercises. This can result in machine instability and lead to serious crushing injuries.

- Keep children away from this equipment. Adults should closely supervise use by teenagers.

- It is recommended that users receive a thorough medical exam before commencing an exercise program. All medical issues should be reviewed to ensure that weight training will not aggravate pre-existing medical conditions.

- If the machine appears damaged or inoperable, contact a facility staff member to place an "OUT OF ORDER, DO NOT USE" sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.

- Instruct users not to wear loose or dangling clothes or have headphone wires hanging when using this equipment.

- Do not attempt to free any jammed assemblies by yourself as this may cause injury.

- On Plate Loaded and Free Weight machines:

Use of spotter(s). Instruct users to seek the advice of the facility staff as to the appropriate use of spotters when lifting. More than one spotter may be required depending upon the amount of weight being lifted.
- Instruct users to load weight plates evenly and carefully to avoid tipping equipment and crushing injuries.
If the machine is equipped with safety stops or catches, inspect them and verify their proper operation before use and make sure they are securely in place before using or exiting the machine. Be certain members are instructed on how to operate and adjust all safety mechanisms.
- This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9").
Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs (25 kg).

- On Selectorized and cable equipped machines:

Do not allow users to perform any exercise by holding the end of the cable and/or the cable end fitting. Use only appropriate handles or attachments properly connected to the cable end.

Do not high-pin or double-pin the weight stack. Do not allow the machine to be used if the top plate or weight stack is pinned in a raised position. Use an assistant and carefully return the machine to the proper position with the cap plate resting on the top weight. Inspect the entire length of the cable to ensure that it is properly seated in all of the pulley grooves.

Do not allow the use of weight plates or dumbbells to be used as a means to add additional weight to the weight stacks. Use only the TRUE adder weight system specifically designed for the machine.

INSTALLATION SAFETY PRECAUTIONS

• Read this installation manual entirely before assembling this equipment.
• Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility.
• Install this piece of equipment on a solid level surface that does not deviate more than 1/8" over a 10' distance (or as defined and required by local building and architectural codes.)
• TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.

Due to the wide variation of flooring on which the unit can be installed, contact a qualified contractor to determine an appropriate fastening system for your floor.
Use 3/8" diameter hardware (10 mm) to anchor the machine. Anchors should have a minimum pull out force of 220 lb (110 kg) for each position.
When attaching the machine to the floor, if there is a gap between the machine foot and the floor, do not use the anchor to remove the gap as this can cause the machine frame to deform. Instead, place a shim between the bottom of the foot and the floor, then tighten the anchor.
- Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the equipment to the floor.

• DO NOT install any fitness equipment near a pool, hot tub or other damp locations. Corrosion caused by installation in these locations can lead to premature failure of components.
• Be sure all hardware is tight before using this machine.
• Some assembly materials may come preassembled in the carton. Refer to the Assembly Instructions for more information on disassembling any assembly materials before beginning assembly.

MAINTENANCE SAFETY PRECAUTIONS

• Refer to the maintenance schedule table in this manual for when to perform maintenance.
- Check the function of your machine DAILY by verifying the following:

If equipped with cables, inspect cables and end fittings for any signs of wear. Replace if worn, frayed, or damaged with TRUE replacement components.
- Verify that all adjustments are possible and carried out with ease. Make sure that each adjustment pin inserts completely into each position without binding.
- Verify that safety catches and stops are in proper working order and engaged.
- Verify that the exercise is performed smoothly, free of noise, and/or binding.
- If equipped with a weight stack, verify that the proper weight selector pin is in place.

- Check the function of your machine WEEKLY by verifying the following:

• Nuts, Bolts, and Fasteners: check tightness weekly. If any hardware has become loose, retighten it, use Loctite® Threadlocker 242, or both.
• Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components.

- Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.

GENERAL CARE AND MAINTENANCE

IMPORTANT

Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

• Cables (if equipped)—inspect end fittings daily for wear. Inspect the entire length of the cable weekly. Replace cables at the first sign of wear and on an annual basis. If the cable tension has been adjusted, be certain that the cable nut is tight.
• Nuts, bolts, and fasteners—check tightness weekly. If any hardware has become loose, retighten and/or use Loctite® brand Threadlocker 242. Be sure all hardware is tight before using the machine.
• Safety catches—inspect catches, stop rods and their associated fasteners. Tighten any loose hardware and replace any components at first signs of wear.
• Frames—sweat, disinfecting sprays and spills can lead to corrosion which may lead to premature failure of components. Wipe all machines down with a damp cloth and dry completely each day. This includes painted parts, chrome parts and upholstered pads.
• Painted and chrome plated parts—use Simple Green with a dilution of 32:1 or similar cleaner for light dirt and grime. Use Turtle Wax Polishing Compound or a good car polish to remove heavier dirt and grease as well as for polishing. DO NOT use solvents, lacquer thinner, acetone or finger nail polish remover. For scuffs and marks that are not removed by the above methods use a soft scrub cleanser. Make sure all parts are dry upon completion.
• Weight stack enclosures (shrouds) (if equipped)—wipe down with a damp cloth as needed.

- Exercise instruction labels—clean with soap and water as needed.

- Guide rods (if equipped)—wipe all dirt and dust from the guide rods before applying a light application of Tri-Flow™ or other tefl on spray lubricant. Spray the Tri-Flow™ on a rag and then wipe the guide rods with the rag. DO NOT use oil lubricants such as WD-40.

CAUTION: Tri-Flow™ will stain carpet and clothing.

• Bronze bushings—check monthly for signs of wear and replace as needed.
• Linear bearing shafts—wipe any accumulation of dust or other contaminants from the shafts on a weekly basis. Apply a thin layer of a Tefl on® (PTFE) grease on a weekly basis. TRUE recommends Magnalube® brand.

- When replacing any component, use only TRUE supplied parts.

- Be sure all hardware is tight before using the machine.

Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783).

COMMERCIAL MAINTENANCE SCHEDULE

Commercial Maintenance Schedule
	Daily	Weekly	Monthly	6 Months	Annually
Inspect cables for wear, tension, and proper connection if equipped. Replace at the first sign of wear.	X
Inspect cable length and cable end fittings. Replace at the first sign of wear.		X
Inspect all nuts and bolts and tighten if needed. X
Inspect safety catches, stop rods, and their fasteners. Replace at the first sign of wear.	X
Inspect all anti-slip surfaces and replace as needed.		X
Inspect all adjustment pins, weight stack pins, set screws, gas shocks, snap links, and pulleys if equipped.	X
Inspect all accessory bars and handles. X
Inspect all safety and instructional decals. X
Inspect all weight stack shields if equipped. X
Clean guide rods and lubricate with a tefl on lubricant if equipped.		X
Clean and condition upholstery. X
Clean and polish frame. X
Clean and polish chrome. X
Lubricate pivot bearings and linear bearings. X
Replace cables if equipped. X

COMPLIANCES

This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi.tness.com.

DIMENSIONS AND WEIGHTS

- ASSEMBLED DIMENSIONS (W X D X H) 48.5" x 45" x 46.5" / 123.2 cm x 114.3 cm x 118.1 cm

HEIGHT

46.5"

118.1 cm

WIDTH

48.5”

123.2 cm

DEPTH

45”

114.3 cm

• PRODUCT WEIGHT 227 lbs / 103 kg

• MAXIMUM USER WEIGHT 400 lbs / 182 kg

- MAXIMUM LOAD (USER WEIGHT + WEIGHT PLATES) 580 lbs / 263 kg

POST CAPACITY

Number of Active Posts	Max 45LB. Plates Per Active Post	Number of Storage Posts	Max 45LB. Plates Per Storage Post	Total Number of Weight Plates Allowed
1	4		0	4

weight plate

active post

45 20.4

LB. KG.

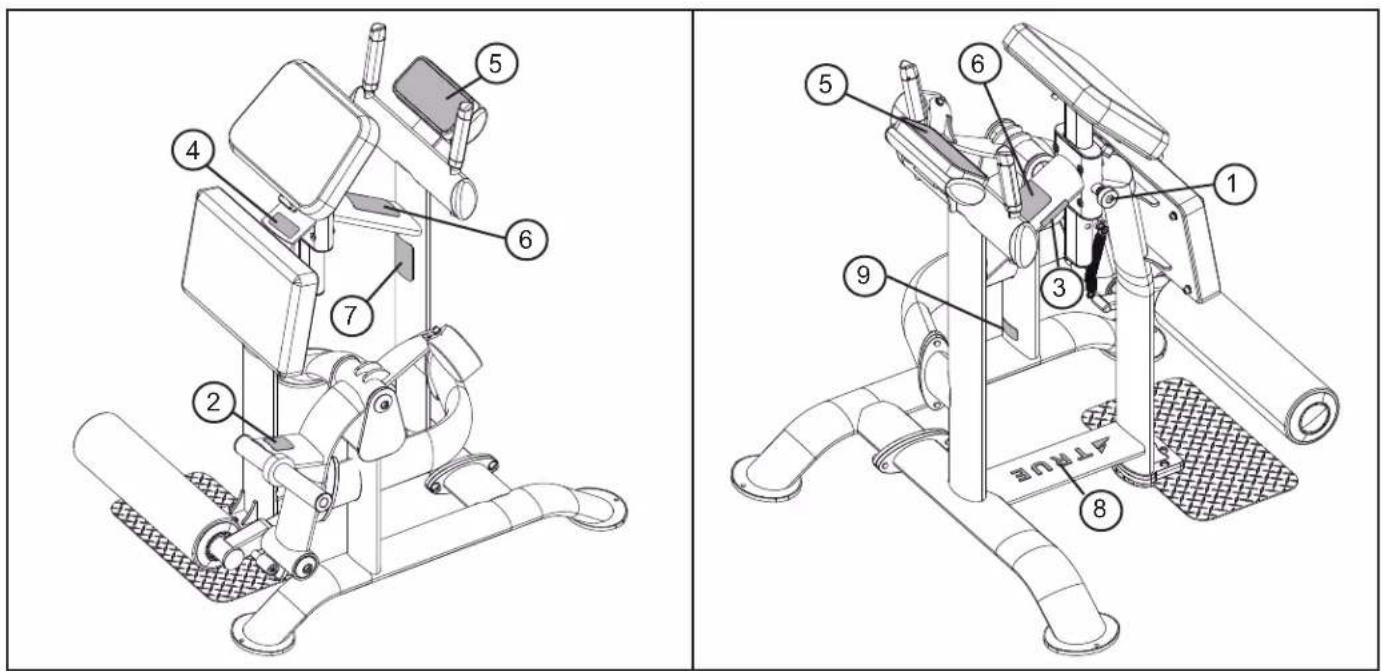

LABEL LOCATIONS

Item Description Qty
1 LBL-ADJ-SPL013 (Adjustment Knob) 1
2 LBL-WRN-PLS003 (Plate Weight) 1
3 B2065 (Pop Pin Warning) 1
4 LBL-WRN-PLS1301 (Finger Warning) 1
5 LBL-PRO-PLS1300 (Placard) 1
6 LBL-WRN-PLS001 (General Warning) 1
7 LBL-MTN-PLS001 (Maintenance) 1
8 LBL-LOG-010BK (Logo) 1
9 SPL-00-LBLSN (Serial Number)	1

WARNING AND INTENDED USE LABELS

WARNING: Replace all labels that may be worn, damaged, or missing.

To replace any worn or missing decals contact TRUE product support ([e-mail] // 800.883.8783).

Description	Image
LBL-ADJ-SPL013 (Adjustment Knob)
LBL-WRN-PLS003 (Plate Weight)
Description Image
B2065 (Pop Pin Warning)
LBL-WRN-PLS1301 (Keep Fingers Clear Warning)
LBL-PRO-PLS1300 (Placard)
LBL-WRN-PLS001 (General Warning)
LBL-MTN-PLS001 (Maintenance)
LBL-LOG-010BK (Logo)
SPL-00-LBLSN (Serial Number)

ASSEMBLY INSTRUCTIONS

PREASSEMBLY CHECKLIST

CAUTION:

Use caution when assembling this product.

Unpacking and assembling this product requires two or more people.

Use caution when unpacking this product. Avoid damage to the product and product pads.

DO NOT use a box cutter. DO NOT slice into the packaging.

VERIFY BOX CONTENTS

IMPORTANT! Please verify all box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com // 800.883.8783).

TOOLS NEEDED FOR ASSEMBLY
Wire Cutters or Scissors (used in unboxing the machine)
#2 Phillips Screwdriver or Electric Screwdriver (both are optional in unboxing the machine)
3/8", 5/16", and 5/32" Allen Wrenches (or ratcheting socket wrench with hex bits - ball end recommended)
Rubber Mallet
Retaining Ring Pliers

BOX CONTENTS
Item Image Qty
Main Frame Assembly		1
Side Frame Assembly		1
Arm Assembly 1
Leg Assembly 1

Diagram of a grid-patterned surface with a small circular object on the right side (no text or symbols)

ASSEMBLY STEPS

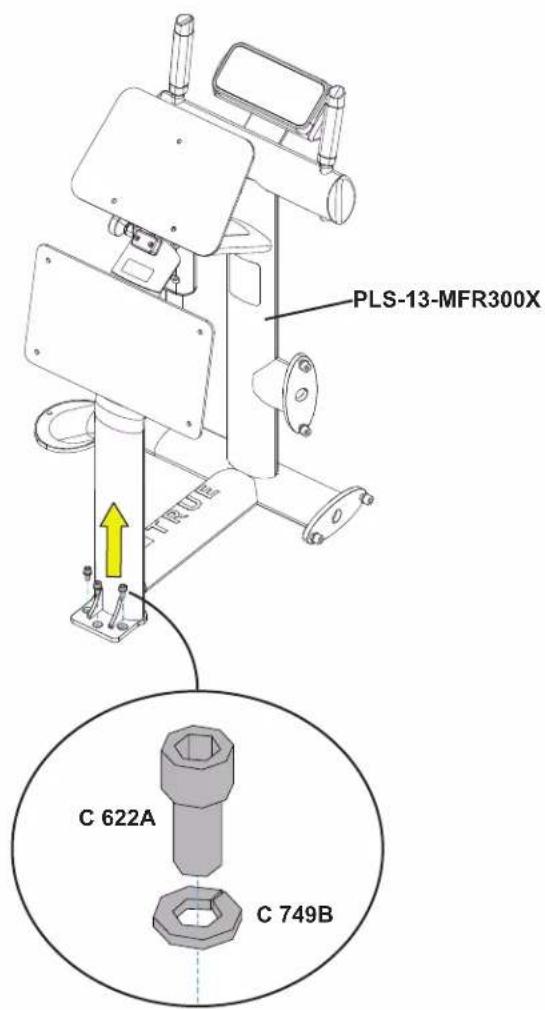

STEP 1—ASSEMBLE FOOT PLATE TO CENTER FRAME ASSEMBLY

Tools Used in this Step
5/16" Allen Wrench

Parts Used in this Step
PART# DESCRIPTION	ION QTY
PLS-13-MFR300X ASSEMBLY, CENTER FRAME 1
PLS-13-FPT010 WE LDMENT, FOOT PLATE 1
C 749B LOCK WAS HER, 3/8", BLK ZP 3
C 622A SHCS, 3/8"-16 X 3/4", BLK 3

1. Using a 5/16" allen wrench, remove and set aside the socket head cap screws and lock washers from the center frame assembly.

PLS-13-MFR300X C 622A C 749B

1. Using two people, line up the foot plate with the center frame assembly and finger tight the previously removed socket head cap screws and lock washers.

PLOS-13-FPT010

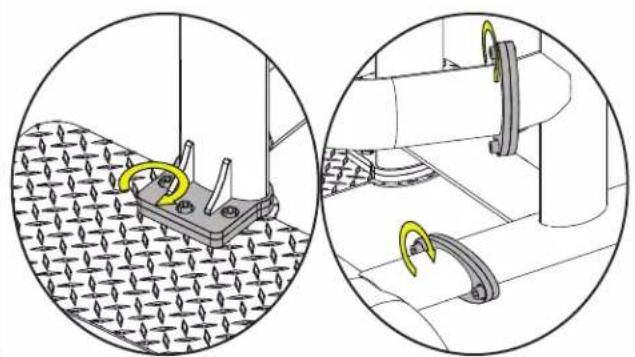

STEP 2—ASSEMBLE SIDE FRAME ASSEMBLY TO CENTER FRAME ASSEMBLY

Tools Used in this Step
3/8" Allen Wrench
5/16" Allen Wrench

Parts Used in this Step
PART# DESCRIPTION	ION QTY
PLS-13-MFR300X ASSEMBLY, CENTER FRAME 1
PLS-13-MFR250X ASSEMBLY, RIGHT FRAME 1
C 750B LOCK WASHER, 1/2MED.SPLIT, BLK 4
C 640A SHCS, 1/2"-13 X 1", BLK 4

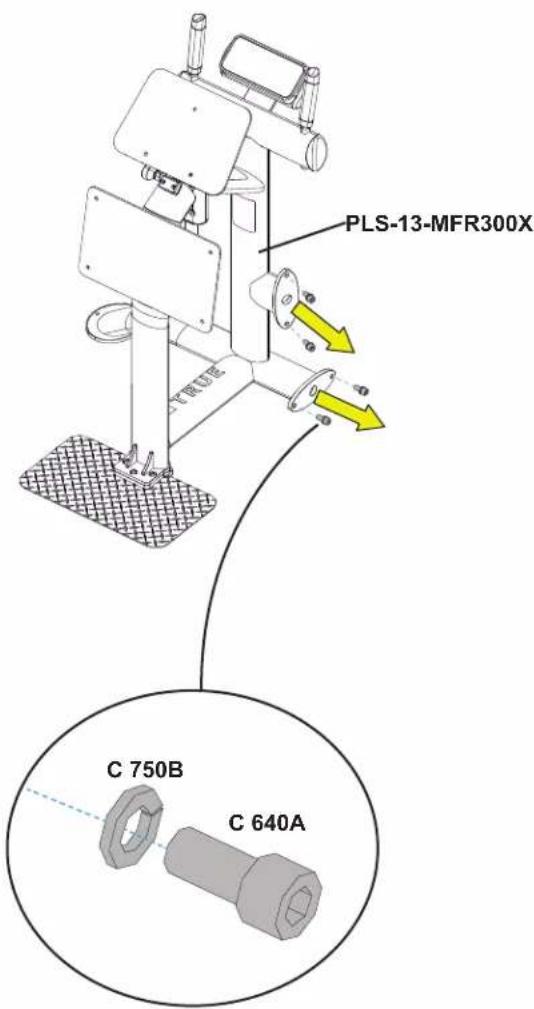

1. Using a 3/8" allen wrench, remove and set aside the socket head cap screws and lock washers from the center frame assembly.

PLS-13-MFR300X C 750B C 640A

1. Using two people, line up the side frame with the center frame assembly and fi nger tight the previously removed socket head cap screws and lock washers. Once all the frame hardware is fi nger tight, use a 3/8" allen wrench and 5/16" allen wrench to fully tighten.

PLS-13-MFR250X

Technical illustration of a mechanical clamp device with mesh pattern and two circular views showing internal components (no text or symbols)

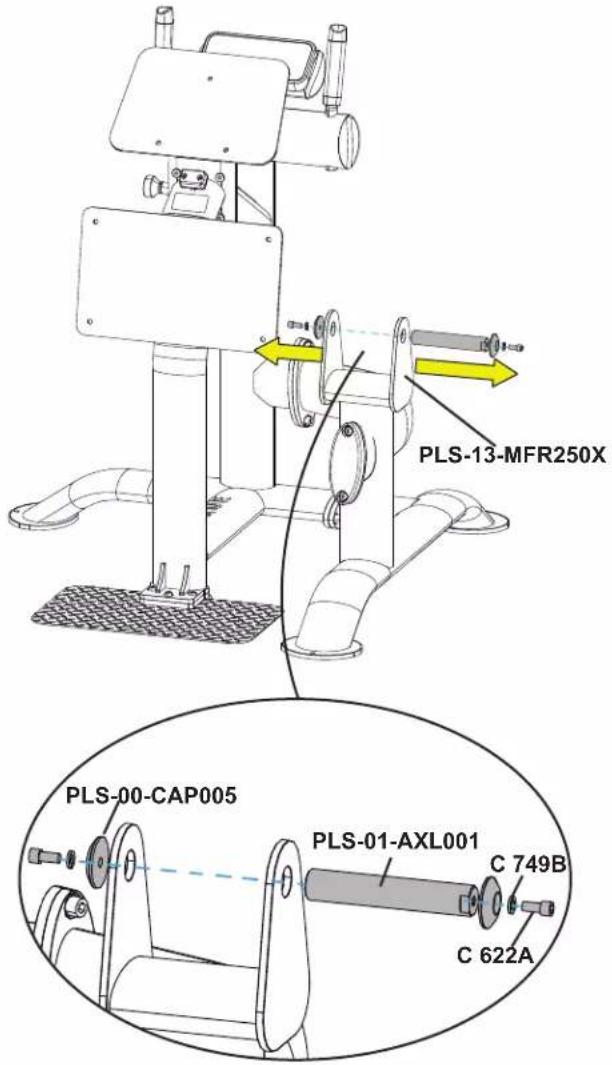

STEP 3—ASSEMBLE ARM ASSEMBLY TO SIDE FRAME ASSEMBLY

Tools Used in this Step
5/16" Allen Wrench
Rubber Mallet

Parts Used in this Step
PART# DESCRIPTION QTY
PLS-13-ARM200X ASSEMBLY, LIFTING ARM 1
PLS-13-MFR250X ASSEMBLY, RIGHT FRAME 1
PLS-01-AXL001 AXLE, PIVOT 1
PLS-00-CAP005 ALM BOLT CAP 2
C 622A	SHCS, 3/8"-16 X 3/4"	2
C 749B	LOCK WASHER, 3/8", BLK ZP	2

1. Using a 5/16" allen wrench, remove the preassembled socket head cap screws, lock washers, caps, and axle from the side frame assembly.

PLS-13-MFR250X PLS-00-CAP005 PLS-01-AXL001 C 749B C 622A

1. Using two people, place the arm assembly in between the brackets of the side frame assembly.
2. Line up the flat edge of the axle with the flat edge of the frame/shaft and using a rubber mallet, lightly tap the axle into place.
3. Using a 5/16" allen wrench, attach the socket head cap screws, lock washers, and caps to secure the arm assembly to the side frame assembly.

PLS-13-ARM200X flat edge of axle flat edge of shaft

STEP 4—ASSEMBLE ANKLE ASSEMBLY TO LIFTING ARM ASSEMBLY

Tools Used in this Step
Retaining Ring Pliers
5/16" Allen Wrench

Parts Used in this Step
PART# DESCRIPTION QTY
PLS-13-ARM200X ASSEMBLY, LIFTING ARM 1
PLS-13-ARM150X ASSEMBLY, RIGHT ANKLE ARM 1
C 749B LOCK WASHER, 3/8", BLK ZP 1
C 622A SHCS, 3/8"-16 X 3/4", BLK 1
SPL-00-CAP002 CAP, BOLT, ALUMINUM 1
D 132 RING, WST-137 MED HVY DUTY RETAINING 1
D2208	SPRING, EXTENSION	1

1. Using a 5/16" allen wrench and retaining ring pliers, remove and set aside the socket head cap screw, lock washer, cap, and retaining ring from the leg assembly.

PLS-13-ARM150X D 132 C 749B SPL-00-CAP002 C 622A

1. Attach the ankle assembly to the lifting arm assembly.
2. Using retaining ring pliers and a 5/16" allen wrench, securely fasten the previously removed retaining ring, cap, lock washer, and socket head cap screw.
3. Attach the extension spring to the lifting arm assembly and ankle assembly.

IMPORTANT! Verify the retaining ring is completely wrapped around the end of the ankle assembly ax PLS-13-ARM150X PLS-13-ARM200X D2208 retaining ring retaining ring

STEP 5—ATTACH PADS TO MAIN FRAME AND ANKLE ASSEMBLY

Tools Used in this Step
5/16" Allen Wrench

Parts Used in this Step
PART# DESCRIPTION QTY
PLS1300 PAD KIT P	AD KIT PLS 1
PAD KIT HARDWARE
C 624A SHCS, 3/8"-	16 X 1-1/4", BLK 7
C 749A LOCK WASHER, 3/4 MED SPLIT, BLKPHOS/OIL BLK 7
C 754B WASHER, FLAT, 3/8" SAE, BLK 7
C 749B LOCK WASHER, 3/8", BLK ZP 1
C 623A SHCS, 3/8"-	16 X 1" BLK ZP 1
SPL-11-ADJ157	ROLLER PAD WASHER	1
PAD-RLR100X-2	ROLLER PAD END CAP	1

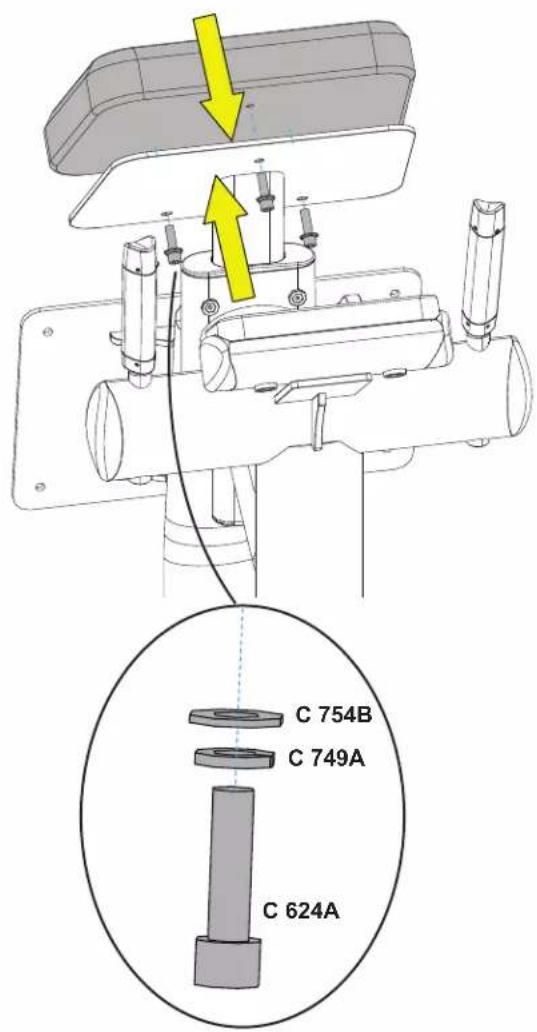

1. Using a 5/16" allen wrench, attach the three socket head cap screws, lock washers, and fl at washers to secure the upper pad assembly to the main frame assembly.

C 754B C 749A C 624A

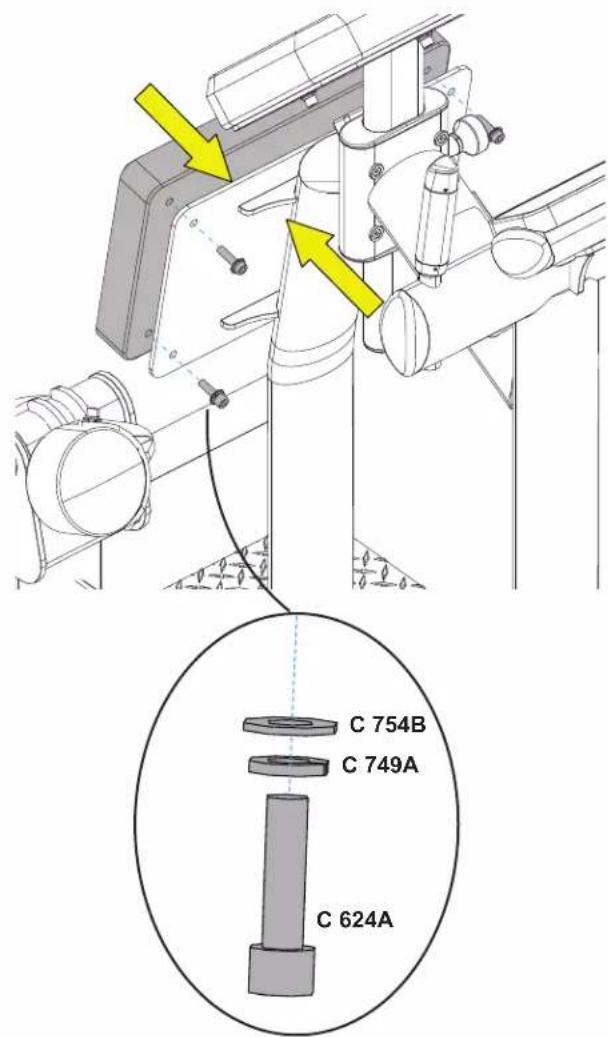

1. Using a 5/16" allen wrench, attach the four socket head cap screws, lock washers, and fl at washers to secure the middle pad assembly to the main frame assembly.

C 754B C 749A C 624A

STEP 5—ATTACH PADS TO MAIN FRAME AND ANKLE ASSEMBLY CONTINUED

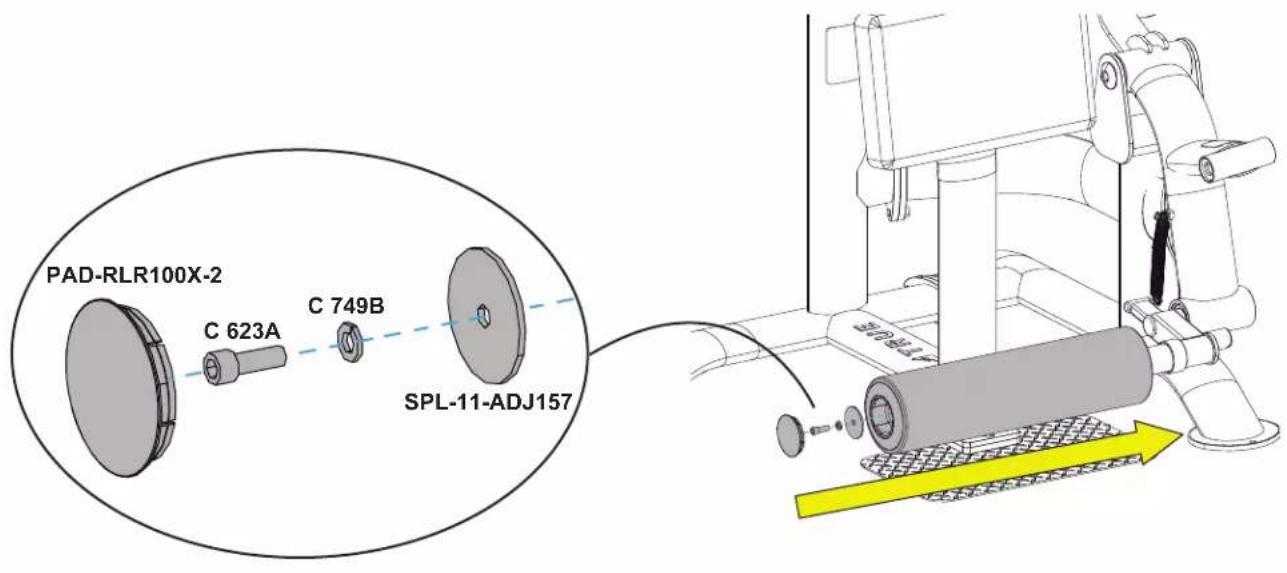

1. Using a 5/16" allen wrench, attach the socket head cap screw, lock washer, and flat washer to secure the roller pad assembly to the ankle assembly.

PAD-RLR100X-2 C 623A C 749B SPL-11-ADJ157

STEP 6—ATTACH WEIGHT POST ASSEMBLY

Tools Used in this Step
5/16" Allen Wrench
Rubber Mallet

Parts Used in this Step
PART# DESCRIPTION QTY
PLS-00-PST030X ASSEMBLY, PLS WEIGHT HORN (ACTIVE) 1
PLS-00-CAP005 ARM BOLT CAP 1
C 749B LOCK WASHER, 3/8", BLK ZP 1
C 622A SHCS, 3/8"-16 X 3/4" 1

1. Using a 5/16" allen wrench, remove and set aside the socket head cap screw, lock washer, and cap from the active weight post assembly.

PLS-00-PST030X C 749B C 622A PLS-00-CAP005

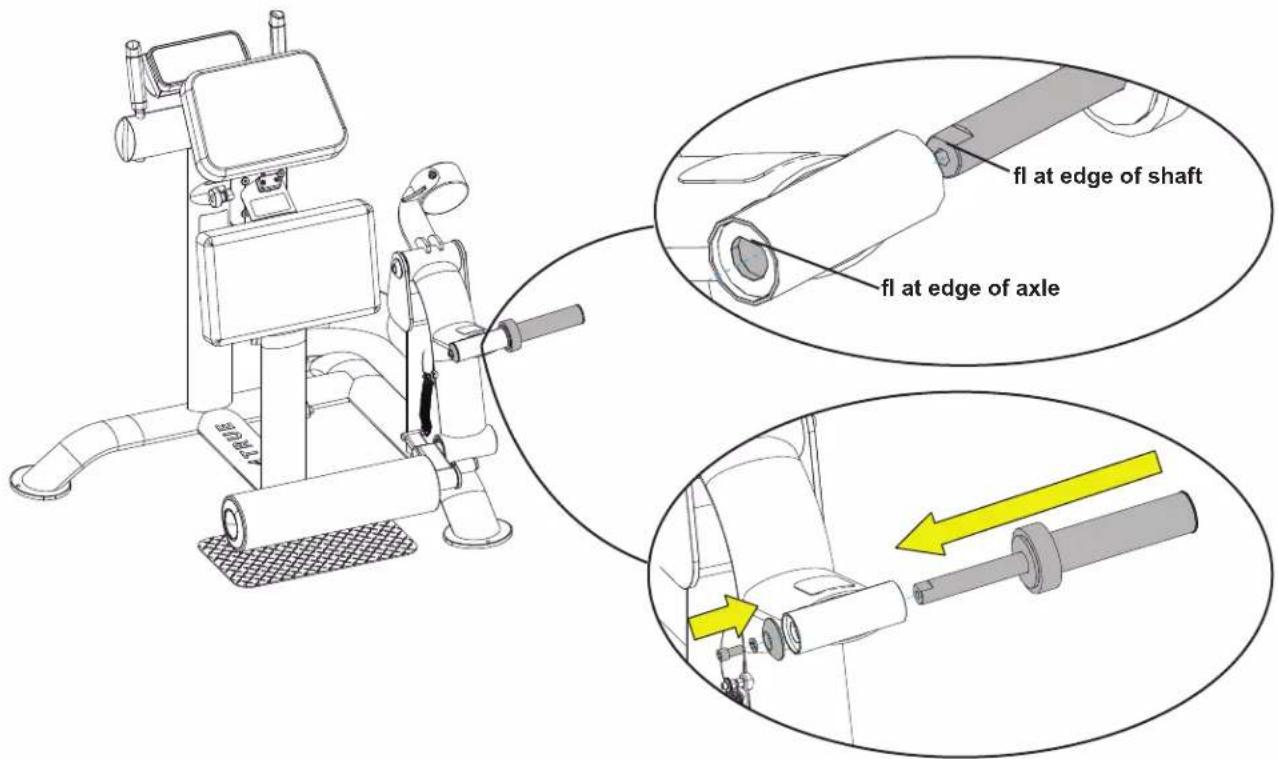

1. Attach the active weight post assembly to the lifting arm assembly.

A. Line up flat edge of the weight post axle with the flat edge of the shaft and using a rubber mallet, lightly tap the weight post axle into the shaft.
B. Using a 5/16" allen wrench, attach the socket head cap screw, lock washer, and cap to secure the weight post assembly to the lifting arm assembly.

fl at edge of shaft fl at edge of axle

STEP 7—VERIFY ADJUSTMENTS FUNCTION AS INTENDED

Pull the pop pin out and place it into each of the adjustment holes for the chest assembly. IMPORTANT! Verify the pin inserts in and out of each hole completely.

Mechanical component diagram showing a blue brake pad with yellow directional arrow indicating motion (no text or symbols)

PREVENTATIVE MAINTENANCE

Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the Safety Instructions section of this document and the items that follow here, should be included in your maintenance program.

IMPORTANT! Always purchase replacement parts from TRUE. Many parts are tested and manufactured specifically for TRUE equipment. Use of unapproved parts may cause serious injury and/or void the limited warranty.

DAILY INSPECTION AND MAINTENANCE

The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

• Inspect for cleanliness. Wipe and dry the upholstery, frame, and chrome. (See cleaning the equipment.)
• Inspect all adjustment pins, weight stack pins, set screws, gas shocks, snap links, and pulleys if equipped.
  • Inspect all safety and instructional decals.
• Inspect all weight stack shields if equipped.
• Verify that rubber hand grips are intact and secure.
• Verify that anti-skid foot grips are intact and secure.

WEEKLY INSPECTION AND MAINTENANCE

The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each week. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

• Verify that the adjustment pop pins retract easily and fully engage (when released) into each adjustment disc hole/slot. The pop pins are spring loaded so they should return to the engaged position when you release the knob.
• Verify that the adjustment pin disengages and engages freely when actuating the adjustment mechanism. Be sure that the adjustment pin inserts fully into the adjustment disc.
• Verify that all hardware is tight and that associated frame members are secure. Apply a few small drops of a thread locking compound such as Loctite® on any loose bolts.
• Inspect frame for integrity and function. Replace any components at the first sign of wear with only TRUE supplied parts.

OTHER SCHEDULED PREVENTATIVE MAINTENANCE

TRUE recommends that scheduled maintenance be performed by a qualified service technician. Please contact your dealer or visit www.truefitness.com to contact a local TRUE authorized service technician.

Monthly

Clean guide rods and lubricate with a Teflon grease if equipped with guide rods.

Every 6 Months

Lubricate pivot bearing and linear bearings with lithium grease.

CLEANING THE EQUIPMENT

Daily Cleaning

Wipe all machines with a water dampened cloth and dry completely. This includes painted parts, chrome plated parts (except guide rods), plastic parts, and upholstered pads. It is important not to leave parts damp. This will increase the potential for corrosion to occur.

CAUTION: Certain anti-bacterial cleaners and other harsh cleaning agents can induce corrosion on the machine components. These solutions can also dry out and cause cracking and splitting on the upholstery.

Heavy Duty Cleaning

• Guide Rods (if equipped)—Clean and lubricate with a Teflon Spray. Be sure to coat the entire guide rod. Spraying lubricant into the cap plate bushings is also recommended.
• Chromed Adjustment Tubes—Wipe away dust and dirt before applying a Teflon spray lubricant. TRUE recommends using Tri-Flow™ or a similar brand.
• Linear Bearings—Clean the linear shaft and lubricate (as required) with Teflon based grease. Keeping linear bearings clean and lubricated is critical to long life and good performance.
• Painted Frames—If you have scuff marks, grease or a heavy dirt buildup on frame components, start with a mild soap solution or a diluted solution of a product such as Simple Green with a dilution of 32:1. If you cannot remove the marks using those methods, use a car polish/cleaner. DO NOT use solvents such as lacquer thinner, mineral spirits or acetone. For deeper scuff marks, use an automobile finish rubbing compound.
• Upholstery—For heavy duty cleaning, use a mild soap solution. This method should be sufficient in the majority of instances. In severe stain cases, you can use a solution of 5-10% household bleach diluted with water. Be sure to test an inconspicuous area first. DO NOT use chemical cleaners on the vinyl upholstery. You can also use a lanolin based hand cleaner to clean your upholstery. Wipe off after cleaning with a damp cloth and thoroughly dry.
• Plastic Parts—Use a mild soap solution to clean dirt and grease marks.

- Labels—Use a mild soap solution to clean dirt and grease marks.

- Shrouds—Use a mild soap solution to clean dirt and grease marks.

CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

CAUTION: If you determine that the equipment needs service, make sure that the equipment cannot be used inadvertently and ensure other users know that the machine needs service.

To order parts or to contact a TRUE authorized service representative, please visit www.truefitness.com.

WARRANTY INFORMATION

PLS1300 LIMITED WARRANTY

Save Time and Register Online! Activate Multiple Warranties at truefi tness.com

All TRUE® Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the "Product") listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the period of time beginning from the original date of purchase set forth below.

WARRANTY ITEM DURATION
Frame* 10 Years
PartsBearings, Bushings, and Weight PlatesGuide Rods and PulleysCables and BeltsCosmetics, Coatings, Grips, and Upholstery	5 Years5 Years1 Year90 Days
LaborFrameBearings, Bushings, and Weight PlatesGuide Rods and PulleysCables and BeltsCosmetics, Coatings, Grips, and Upholstery	1 Year1 Year1 Year1 Year90 Days

NOTES:

• Warranty valid for USA and Canada only.
- Failure to register this product will result in no servicing or authorization of parts to be shipped.
- Buying after-market products from a 3rd party will result in voided warranty.
- This product is intended for Light Commercial use which includes non-dues paying facilities where usage does not exceed 8 hours per day. If this product will not be used in this particular setting, please contact TRUE as this warranty is void.

DO NOT RETURN TO THE RETAILER

TRUE limited warranty service may be obtained by contacting the authorized TRUE dealer from whom the Product was purchased. If the dealer from whom the Product was purchased, is no longer an authorized TRUE dealer, TRUE limited warranty may be obtained by contacting TRUE Product Support:

• [e-mail]
800.883.8783
Monday - Thursday 8:30am - 6:00pm (CST)
Friday 8:30am - 5:00pm (CST)

FRAME

*This limited warranty on the structural frame does not include paint or coatings. The frame is defined as the serialized base of the unit and does not include any parts that can be removed. Warranty applies to the value of the frame only and does not cover labor, shipping, or other costs associated with removal or replacement of the covered unit. Frame warranty shall not exceed seven years after discontinuation of this specific model.

PARTS

The parts are warranted for defects in material and workmanship for five years with one year labor warranty. Cables and belts are warranted for defects in material and workmanship for one year with one year labor warranty. This limited warranty does not cover damage or equipment failure resulting from or caused by improper assembly/installation, failure to follow instructions and warnings in the owner's manual, accident, misuse, abuse, unauthorized modification, or failure to provide reasonable and necessary maintenance.

REASONABLE AND NECESSARY MAINTENANCE

Failure to perform proper maintenance as specified in the owner's manual will void this limited warranty. Proof/receipts of necessary maintenance may be required within 30 days of requested warranty part or service.

WEAR ITEMS

The cosmetic parts, coatings, grips and upholstery are warranted for defects in material and workmanship for 90 days with labor warranty to match the parts warranty period. This limited warranty does not cover damage or equipment failure resulting from or caused by improper assembly/installation, failure to follow instructions and warnings in the owner's manual, accident, misuse, abuse, unauthorized modification, or failure to provide reasonable and necessary maintenance. This limited warranty will apply to, but may not be limited to, plastic covers, shrouds, caps, badges, overlays, paint, coatings, soft step inserts, and grips.

LABOR

Labor is covered for the specified period of time from the date of purchase, unless otherwise expressed within this limited warranty as long as a TRUE authorized service provider performs the service. Service that requires over 50 miles of travel may be subject to additional charges.

PLS1300 LIMITED WARRANTY

Save Time and Register Online!

Activate Multiple Warranties at truefi tness.com

THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW:

1. This limited warranty is valid for the United States and Canada only.
2. This product is intended for specified use. If this product will not be used in the specified setting, please contact TRUE as this warranty is void, unless otherwise stated and within this warranty.
3. This limited warranty gives you specific legal rights, and your rights may vary from state to state.
4. This limited warranty is in lieu of all other warranties of any kind either expressed or including but not limited to implied warranties of merchant.
5. This limited warranty can be processed only if the warranty registration form is completed on-line; or if the attached form is filled in, signed by the original purchaser, and mailed to TRUE within 30 days of purchaser's receipt of this Product. The serial number must be intact on the Product for this limited warranty to be valid.
6. TRUE will neither assume nor authorize any person to assure for us any other obligation or liability concerning the sale of this Product. Under no circumstances shall TRUE be liable under this warranty, or otherwise, of any damage to any person or property, including any lost profits or lost savings, for any special, indirect, secondary, incidental, or consequential damages arising out of the use of or inability to use this Product.
7. Failure to register this product within 30 days of purchase will result in no servicing or authorization of parts to be shipped.
8. Installation or download of any 3rd party or after-market products will result in voided warranty. Includes but not limited to electrical and mechanical parts, software, or applications.
9. TRUE will ship to any authorized service provider any new or rebuilt replacement part or component, or at our option, replace or refund the Product. Replacement parts are warranted for the remaining portion of the original warranty period.
10. No one is authorized to change, modify, or extend the terms of this limited warranty.
11. This limited warranty applies to the Product only while the Product remains in the possession of the original purchaser and is not transferable.

12. This limited warranty becomes VALID ONLY if the Product is initially assembled/installed by a TRUE authorized dealer/technician (if anyone other than a TRUE authorized dealer/technician initially assembles and installs the Product, this limited warranty will be void unless the written authorization of TRUE is first obtained).

13. This limited warranty does not cover damage or equipment failure resulting from or caused by improper assembly/installation, failure to follow instructions and warnings in owner's manual, accident, misuse, abuse, unauthorized modification, or failure to provide reasonable and necessary maintenance (as referenced in the owner's manual). Proof/receipts of necessary maintenance may be required within 30 days of requested warranty part or service.

14. This limited warranty applies only to the cost of repair or replacement of parts and does not include labor (beyond the above warranty period), transportation, service, return, and freight charges associated there with except as expressly specified herein.
15. This limited warranty shall not apply to: Service calls to correct installation of the equipment or instruction to owners on how to use the equipment; or any labor costs incurred beyond the applicable labor warranty period.
16. This limited warranty, which is given expressly and in lieu of all other express warranties, constitutes the only warranty made by TRUE.
17. ANY IMPLIED WARRANTY, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION AND REMEDY TO THE TIME PERIOD COVERED BY THE LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
18. THE REMEDIES DESCRIBED HEREIN ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND TRUE'S ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. TRUE'S LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE PRODUCT, NOR SHALL TRUE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

NOTE TO AUTHORIZED WARRANTY LABOR

PROVIDERS—Warranty labor reimbursement or warranty parts rights may not be transferred to, or reassigned to, a third party without the express written consent of TRUE. Even jobbing out warranty labor requires TRUE's written approval.

PLS1300 LIMITED WARRANTY

Save Time and Register Online!

Activate Multiple Warranties at truefi tness.com

PLATE LOADED STRENGTH SERIAL NUMBER:

The PLS1300 comes with one serial number on the base of the machine. Please write down your serial number below and keep for your records.

PLEASE KEEP THIS FOR YOUR RECORDS

RETAIN THIS PORTION

BASE SERIAL NUMBER:

base serial number location

TRUE

TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MIRELLI 68366 USA

MODEL NO: PLSXXXX

SERIAL NO: 23-PLSXX00000

Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go online now to truefitness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.

IMPORTANT! Failure to register this product will result in no servicing or authorization of parts to be shipped.

To mail your warranty information, please fill in the information below and mail to: Service Dept., TRUE Fitness, 865 Hoff Road, St. Louis, MO 63366 (or save postage and register online at www.truefitness.com).

Warranty Registration

Base Serial Number

Purchase Date

Company (if applicable)

Customer Name (First and Last)

Email Address

Phone Number

Street Address City

State

Postal Code Country

TRUEFITNESS.COM

TRUE®

INTEGRITY MATTERS

TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366

© 2023 TRUE. All Rights Reserved.

PLS1300 Owner's Manual, Assembly Guide, and Warranty Card

(MAN-PLS1300 REV01)
