M25 / 30 Series Manual Pallet Trucks

Esteemed users:

For proper and safe operation of the products, before using the products, be sure to read the operating instructions carefully and retain them properly for future reference.

The operator needs to have proficient operation skills. The operator has responsibility to carefully understand the performance and safety rules of the pallet truck. If you have any doubts during the application, please don't hesitate to contact Eoslift.

Eoslift

M25 / 30 Series Manual Pallet Trucks

Table of contents

1. Technical parameters 01
   II. Safety rules 02
   III. Installation of handles 03
   IV. Adjusting the finger grip handle 04
   V. Maintenance 05
   VI. Transport, loading, test run and storage 06
   vii. Troubleshooting 07
   vii. Parts list 09

Technical parameters

Model		M25/M30
Rated capacity	kg	2500/3000
Load center	mm	600
Dead-weight	kg	72-79
Wheel material		PU/NYLON
Maximum fork height H	mm	200	190
Minimum fork height H1	mm	85	75
Steering wheel	mm	Φ200x50/Φ180x50	Φ200x50
Load-bearing wheel	mm	Φ80x70	Φ74x70
Single Load-bearing wheel B	mm	Φ74x93
Overall fork width L	mm	540/685
Fork length L1	mm	1150/1220
Length of the truck R	mm	1580/1650
Minimum turning radius	mm	1325/1395

Technical line drawing of a mechanical pallet jack with handle and wheels (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

M25 / 30 Series Manual Pallet Trucks

Eoslift

Safety rules

The truck is only applicable to indoor use and the application environment must meet the following conditions: Free from rainwater or corrosion of harmful gases;
Room temperature of -20°C\~+40°C:
Relative ambient humidity <90%;
and Requirements for ground: hard, anti-skid and level without barriers.
Before using the pallet truck, the operator must read the operating instructions and the warning labels on the truck body carefully.
▶ Do not use this truck on the muddy ground.
Do not operate the pallet truck unless you are fully familiar with it and have been authorized to do so.
Do not operate the pallet truck unless you have carefully checked its condition. Pay special attention to the wheels, the handle assemblies, the truck frame, the unloading plate, etc.
To pull the truck, always move the finger grip control handle into the middle position. This makes the handle easier to move and reduces the rebound of the handle by the small piston. This also preserves the hydraulic seals and the piston components. A long service life can be expected.
- Do not carry or lift passengers.
The operator shall wear safety shoes and gloves for protection.
While the goods are being transported, all people should stay 600mm away from the truck frame.
- Do not lift goods in the way as shown in Figure B. Goods should be stacked stably.
▶ Overload is prohibited.
- Do not use the truck in a potentially flammable and explosive atmosphere.
▶ Do not use the truck as a vehicle jack.
▶ Do not use the truck during strong wind forces.
- Do not use the truck on places insufficiently illuminated.

Diagram illustrating a mechanical device with labeled components and cross-sectional views A and B, including parts like boxes, gears, and trucks.

Installation of handles

1. Make sure the chain on the handle is in this position shown in the picture.

2.Push the handle shaft through the holes.Fix it with the spring pin.

3.Put the chain through the hole on the sh

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

4.Fix the chain in the slot of the unloading plate.

5.Pull the shaft from the hole. Then the assembly is complete.

Eoslift

Adjusting the finger grip handle

On the handle of this pallet truck, you can find finger grip control handle(1-1) which can be regulated in three positions:

1-1 Upper Middle Lower

Lifting-set the control handle at lower position
☑ Middle position: set the control handle at middle position
3 Lowering: set the control handle at upper position. The handle moves back to the middle position when released.

However if the truck cannot operate normally under three positions, you can adjust them according to the following steps:

If the forks elevate while pumping in the Middle position, turn the adjusting nut (2-4) on the adjusting bolt (2-3) or screw (2-6) clockwise until pumping action does not raise the forks and the finger grip control handle works properly Middle position.
② If the forks descend while pumping in the Middle position, turn the screw(2-6) or nut(2-6) counter clockwise until the forks stop descending.
③ If the forks do not descend when the finger grip control handle (1-1) is in the Lowering position, turn the nut (2-4) or screw (2-6) clockwise until raising the control handle lowers the forks. Then check the Middle position according to items ① and ② to make sure the nut (2-4) and screw(2-6) are in the proper position.
④ If the forks do not elevate when the finger grip control handle is in the Lifting position, turn the nut (2-4) or screw (2-6) counterclockwise until the forks elevate. Then check the function of the Lowering position and Middle position according to items ①,② and ③ is normal.

2-3 2-4 2-6

Maintenance

Transport, loading, test run and storage

M25 / 30 Series Manual Pallet Trucks

Eoslift

① The truck should be parked with the forks lowered to the min. height.
② Check if the signs and warning labels on the truck are in place before using the truck each time.
③ Use original parts.
4 The waste liquid shall be place in special collection places for disposal.
⑤ Modifications or alterations to the truck, especially the safety device are prohibited.
6 Only customer service persons specially trained by our company can carry out maintenance of the truck.
7 Thoroughly standardized maintenance is the most important preconditions to ensure stable and reliable operation performance of the truck. Neglect of regular maintenance could result in failure and malfunction of the truck and poses a potential threat to the safety of the staff and operation.

1.Hydraulic oil

Please check the oil level every six months and change the oil every twelve months. 2. 32 # hydraulic oil is recommended, with total volume of about 0.5 liters.

2. Remove the air

The air may enter into the pump because of transportation or pump in upset position. It will cause the forks fails to be lifted when the finger grip control handle switched to the lifting position. The air can be removed in the following way: pull the finger grip control handle (1-1) to the lowering position and move handle up and down for several times.

3. Daily check and maintenance

Daily check and maintenance of the pallet truck can limit wear as much as possible. Special attention should be paid to the wheels, the axles, as thread, rags, etc. may block the wheels and axles. The forks should be unloaded and lowered in the lowest position when the job is over.

4.Lubrication

All bearings and pivots are provided with long-life lubricants at the factory. You only need fill the lubrication points with long-life lubricants at monthly intervals or after each time the truck is cleaned thoroughly.

If the truck has to be transported for a long distance, it should be packed in the wooden pallet in order to avoid collision during transportation.

The handle should be fixed stably in case sliding and damages and transported by fork truck or crane.
Before shipment, the operator should first check the truck weight, in order to choose the right crane.
- When unloading the truck, the operator should be aware of safety of the surroundings to ensure the truck slowly unloaded.
If the truck is transported with the forklift truck, the forklift shall lift and lower it slowly to keep the balance of the truck.
The truck shall be commissioned according to the following function tests: steering, traveling braking and combined functions with rated capacity.
When a truck is inoperative, the cargoes (if applicable) shall be removed with proper tools, the truck shall be transported out of the working zone with a proper way.
- When the truck will be shut down and in storage for a long time, the storage environment shall be kept dry and clean, with forks lowered to their lowest position.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Troubleshooting

M25 / 30 Series Manual Pallet Trucks

Eoslift

This chapter enables the user to identify and rectifies basic faults and the effects of incorrect operation. When trying to locate a fault, proceed in the order shown in the table below. If, after carrying out the following remedial action listed in "actions", the truck cannot be restored to operation, contact the manufacturer's after-sale service department. Additional troubleshooting must only be performed by the manufacturer's specialist service engineers. The manufacturer's customer service department is specially trained to carry out these operations.

No.	Fault	Possible cause	Action
1	The forks cannot be lifted to max. height	The hydraulic oil is insufficient	Add the hydraulic oil
2	The forks cannot be lifted	The hydraulic oil is insufficientThe hydraulic oil has impuritiesAdjusting nut(2-4) or adjusting screw(2-6) in wrong positionsAir enters into the cylinderSeals damaged	Add the hydraulic oilChange hydraulic oilAdjust nut(2-4) or adjusting screw(2-6)Put the finger grip handle in the upper position and press the handle dozens of timesReplace the damaged seals with new seals
3	The forks cannot be lowered	Piston rod or the frame is deformed resulting from overloading or cargo starting to one sideThe forks was kept in raised position for extended period of time, then the piston rod is exposed to the air and gets rusted , which blocks the motion of the pistonAdjusting nut(2-4) or adjusting screw(2-6) in wrong positions	Replace the related parts of the cylinder or the frame with new onesKeep the forks at the lowest position while not in use, and keep piston rods lubricated in timeAdjust nut(2-4) or adjusting screw(2-6)
4	Oil leakage	Seals damagedParts damaged.	Replace the damaged seals with new sealsReplace the damaged parts with new parts

5

The forks descended without operation

Impurities in the oil cause the valve to be unable to close tightlySeals damagedAdjusting nut(2-4) or adjusting screw(2-6) in wrong positions

Change hydraulic oilReplace the damaged seals with new sealsAdjust nut(2-4) or adjusting screw(2-6)

Note: Do not attempt to repair the pallet truck unless you are trained in the professions.

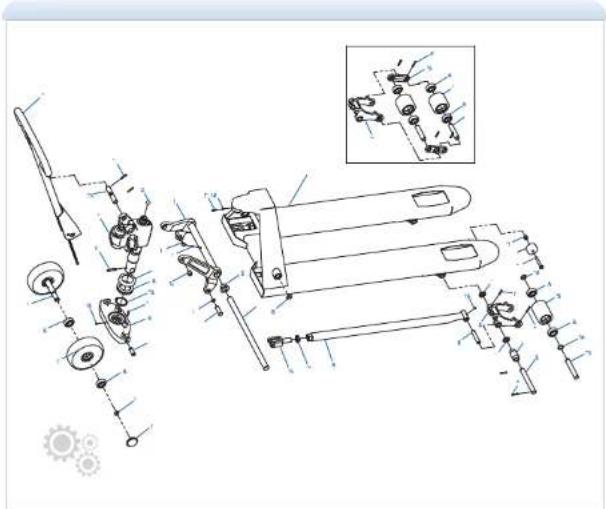

Parts list · Frame

M25 / 30 Series Manual Pallet Trucks

Eoslift

NO.	Parts number	Description Qty.	Qty.
1	WC02000001	Frame(2.5t,540x1150 - 85), .5012	1
	WC02000083	Frame(3.0t,540x1150 - 85), .5012
	WC02000079	Frame(2.5t,565x1220 - 85), .5012
	WC02000088	Frame(3.0t,585x1220 - 85), .5012
	WC02000119	Double-whee frame(2.5t,60x1220 - 75) ,5012
	WC02000162	Single-whee frame(2.5t,60x1220 - 75) ,5012
	WC02000788	Double-whee frame(3.0t,60x1220 - 75) ,5012
	WC02000490	Double-whee frame(3.0t,60x1220 - 75) ,5012
2	WC02000013	Long shaft(>40),	1
	WC02000082	Long shell(>85),
3	WC02000005	Connecting rod assembly(2.0t,540),black	1
	WC02000084	Connecting rod assembly(3.0t,b-90),black
	WC02000081	Connecting rod assembly(2.0t,685),black
	WC02000087	Connecting rod assembly(3.0t,685),black
4	WC01000001	Cylinder assembly (AC=85), galvanized	1
	WC01000005	Cylinder assembly (AC=75), galvanized
	WC01000005	Cylinder assembly (AC 80), with quick lift, galvanized
	WC01000007	Cylinder assembly (AC=75), with quick lift, galvanized
5	WC02000002	Push rod welded (1150), black	2
	WC02000080	Push rod welded (1220), black
6	WC02000009	Connecting shaft for small wheel contact galvanized	2
7	WC02000082	Connecting hose, galvanized	2
8	WC02000005	Small wheel corner (85), black	2
	WC02000888	Small wheel corner (75), black
9	WC02000008	Plastic washer	4
10*	WC02000011	Wheel short, galvanized	4
11	WC02000031	Plastic roller	2
12	WC02000021	Guide wheel (into roller 40 x 50 x 10.5)	2
13	WC02000029	Iron cord PU knock 2100x30, bright red PU, black ran cord	2
	WC02000050	Aluminum core nasser wheel 2100 x 60 x 120, black
	WC02000078	Nylon vineship 180x80("lower-shape wheel)
	WC02000085	Nylon wheel 180x80,white/plane wheel
	WC02000199	Aluminum core-U wirepin 99x30, bright red PU
	WC02000156	Aluminum core nasser wheel 225x50x100, black

NO.	Parts number	Description
13	WC02000177	Iron-core FL wheel 200 × 50 , bright red 70, black for one	2
	WC02000435	Nylon wheel 20 × 50 , white flower-shaped wheel
14	WC02000003	Handle FOS AG, black	1
15	WC02000020	CF808, Stock ball S18	1
16	WC02000010	Push rod connecting shaft, galvanized	2
17*	WC02000007	Rocker, galvanized	4
18	WC02000022	CF276 Deep groove ball bearing 620', two-acc insulated	6
19*	WC02000023	Iron-core FL wheel 20 × 50 , thrust red-4, black for one	4
	WC02000077	Nylon wheel 50 × 70 , white
	WC02000130	Iron-core FL wheel 74 × 76 , bright red 70, black for one
	WC02000120	Nylon wheel 74 × 76 , white
20	WC02000012	Bolt pin 2, galvanized	2
21	WC02000014	Bolt pin, galvanized	2
22	WC02000015	Dual cover, galvanized	1
23	WC02000018	Big wheel cover, black	2
	WC02000075	Big wheel cover, white
24	WC02000017	Big wheel shaft, galvanized	1
25	WC02000018	Connecting backbone, galvanized	1
26	WC02000024	Sliding bearing 25 × 25 × 25	2
27	WC02000025	Sliding bearing 18 × 18 × 15	4
28	WC02000028	GI301, thrust ball bearing 51111	1
29	WC02000027	GE30/62.1.0-ring 6 × 1.8	1
30	WC02000026	J87940.3, Angle hismatic groove plastic MG	1
31	WT07000002	CF854 . Chopf for soft lift covering	2
32	WT07000004	CF854 . Chopf for soft 20+overing	2
33	WE06000001	GBLW9.1 Sorbing type straight pin 6×42, backlocking	1
34	WE03000001	GBLW9.1 Sorbing contact head cap screw M/s x 16, galvanized	1
35	WT05000001	CF854 homed type spring lock washer 8, galvanized	1
36	WE07000001	GB503.1 Chopf for hole 2b, packaging	2
37	WC02000004	Connecting shaft, galvanized	1
38	WC02000019	J87940.4, Dual-fin type groove block A	3
39	WL06000002	GBLW9.1 Sorbing type straight pin 6×25, backlocking	2
40	WE00000003	CF859.1 Sorbing type straight pin 5×38, backlocking	2
41	WE06000001	GB503.1 Sorbing type straight pin 5×32, backlocking	8

Parts list · Frame Parts list · Handle

M25 / 30 Series Manual Pallet Trucks

Eoslift

NO.	Parts number	Description Qty.	Qty.
43	WFC1000001	CB5780 Hexagon head bolt M1066 gasketed	2
43	WFC4000002	CB6941 Hexagon locking nut M100 galvanized	2
44	WFC4000001	CB6173 Hexagon thin nut M20x 1.5 galvanized	2
45	WCC2000076	Wheeler	4
46	WCC2000074	Iron-core PU wheel (675 x 33, bright box PU, black iron core)	2
	WCC2000118	Nylon wheel@74x93
47	WCC2000073	Single shool shell, gasketed	2
48	WFC7000003	CB894.1,Cinch for shell 52,labscoring	1
49*	WCC2000006	Small wheel carrier (85), black	2
	WCC2000088	Small wheel carrier (75), black
50*	WFC6000001	CB870.1,Spring type steel rod 5x30, blocking	8
51*	WCC2000022	CB276 Thin power ball bearing 620V, two-size swirled	8

Technical line drawing of a mechanical assembly with exploded view and close-up detail (no text or symbols)

Note: Marked with "2" are double wheel parts

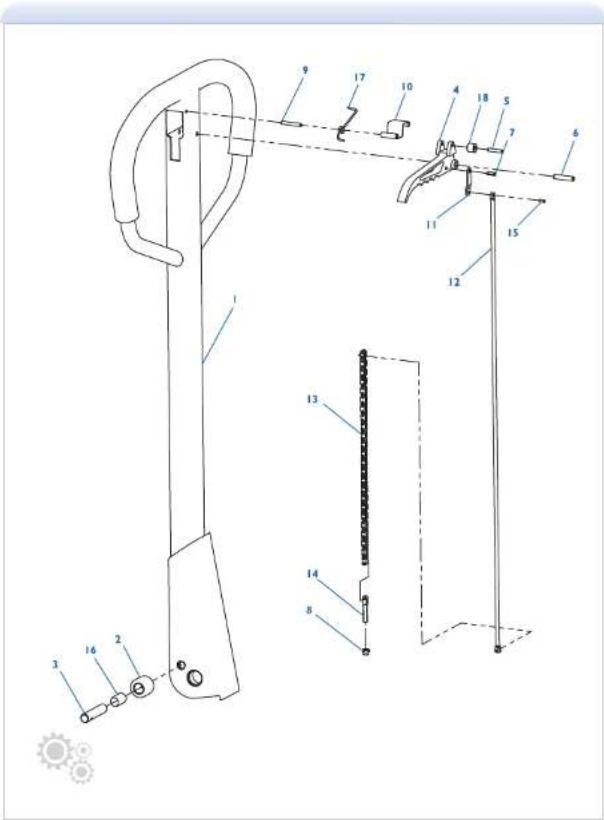

NO.	Parts number	Description
1	WJ10800014	Handic waded	1
2	WJ10800015	Clamping roller	1
3	WJ10800016	Roller pin	1
4	WJ10800011	Finger grip handle	1
5	WJ10800008	Spring type pin (5)	1
6	WJ10800008	Spring type pin (6)	1
7	WJ10800004	Spring type pin (7)	1
8	WJ10800000	Locking nut	1
9	WJ10800002	Spring type pin (8)	1
10	WJ10800008	Positioning plate	1
11	WJ10800012	Commodifying shoot of pull rod	1
12	WJ10800013	Pull rod	1
13	WJ10800018	Chain	1
14	WJ10800019	Adjusting bolt	1
15	WJ10800005	Spring type pin (15)	1
16	WJ10800017	Rushing	1
17	WJ10800009	Torson spring	1
18	WJ10800010	Plastic roller	1

Parts list · Handle Parts list · Cylinder

M25 / 30 Series Manual Pallet Trucks

Eoslift

Technical diagram of a mechanical device with numbered components for identification

NO.	Parts number	Description	Qty.
1	WC02000157	Valve body welds(75), galvanized	1
	WC02000038	Valve body welds(85), galvanized
2	WC02000080	CJ9R2, Combination axelling gasket 1C	1
3	WC02000038	Screw	1
4	WC02000061	Sea ring UHS3c	1
5	WC02000059	CJ34b2.1,O-ringφ34.5×3.55	1
6	WC02000058	Dualproof ring DH35	1
7	WC02000035	Piston rox	1
8	WC02000045	Safety valve spoo	1
9	WC02000048	Pressure adjusting spring	1
10	WC02000038	Pressure adjusting scave	1
11	WC02000071	CJ34b2.1,O-ring φ11.2×2.65	1
12	WC02000037	Screw plug	1
13	WC02000044	Copper gasket	1
14	WC02000039	Pump body	1
15	WC02000064	Sea ring UHS18	1
16	WC02000083	Dustrood ring DH18	1
17	WC02000042	Spring cutter	1
18	WC02000041	Pump core	1
19	WC02000043	Pressure spring	1
20	WC02000040	Pin	1
21	WC02000049	Unloading plate, galvanized	1
22	WC06000005	665.201. String type steel rod 665.20 paneling	1
23	WC03000003	665.3 Borted cut series with flat point 1/8 x 20 quinched	1
24	WC04000003	CJ6172.1, Hexagon thin nut MR, galvanized	1
25	WC01000046	Integrated valve assembly	1

Exploded view diagram of a mechanical assembly with numbered parts for identification

Parts list · Integrated valveParts list · Cylinder

M25 / 30 Series Manual Pallet Trucks

Eoslift

NO.	Parts number	Description	Qty.
1	WC02CCCCe1	Push pin alvee	1
2	WC02CCCCe5	GJ34s2.1.0-ringφ15.2x2.4	1
3	WC02CCCCe7	GB34s2.1.0-ringφ8x1.6	2
4	WC02CCCCe9	Return valve skrpo	1
5	WC02CCCCe6	GJ34s2.1.0-ringφ8.5x1.8	1
6	WC02CCCCe0	S cm	1
7	WC02CCCCe7	Linking spring	1
8	WC02CCCCe4	O-ring retainer II	1
9	WC02CCCCe9	GJ308.Steel ball 57	1
10	WC02CCCCe0	Liquid inlet valve skrpo	1
11	WF08CCCC08	GJ117, Copoet taper pin 2 x 8	2
12	WC02CCCCe6	O-ring retainer	1
13	WC02CCCCe7	GJ34s2.1.0-ringφ13.5x2.4	1
14	WC02CCCCe8	Spring lock	1
15	WC09CCCC02	QDC 0.Fan head screw with close contact MFC, g/coverbed	1
16	WC02CCCCe6	Looset valve spoo	1
17	WC02CCCCe7	Spool spring	1
18	WC02CCCCe7	Blino nut	1
19	WC02CCCCe8	GJ34s2.1.0-ring φ21.2x2.65	1

Parts list · Integrated valve

M25 / 30 Series Manual Pallet Trucks

Eoslift

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator assembly.
