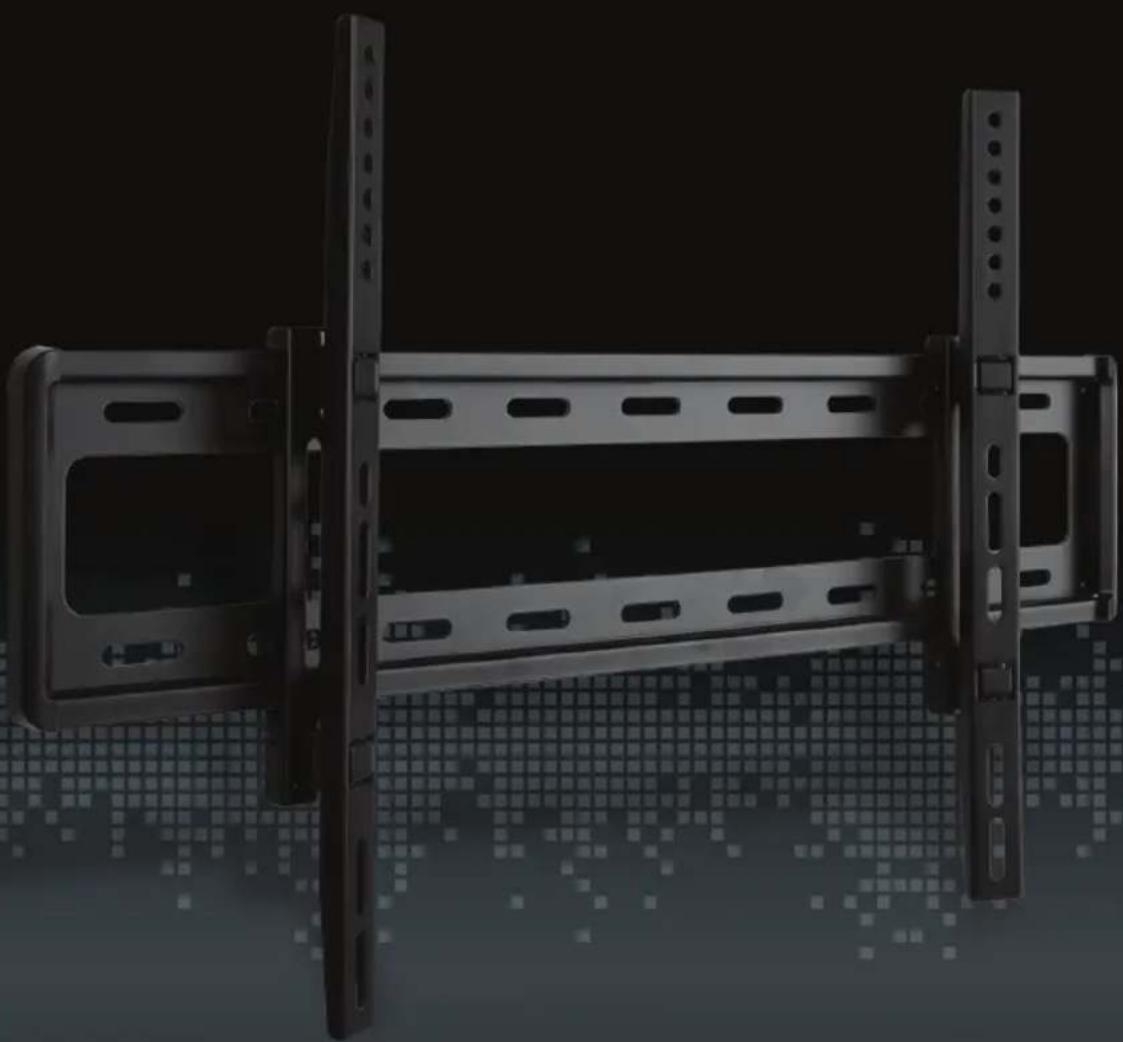

CWM2113BK5 - Wall Mount Mitsai - Free user manual and instructions

Product Type	Curved TV Wall Mount
Brand	Mitsai
Model	CWM2113BK5
Color	Black
Material	Steel
Max Load Capacity	40 kg (88 lbs)
Compatible Wall Types	Wood stud, solid concrete
VESA Compatibility	M4, M5, M6, M8 screw sizes (various VESA patterns)
Dimensions (Approx.)	50 x 30 x 5 cm (19.7 x 11.8 x 2 in)
Weight (Approx.)	2.2 kg (4.9 lbs)
Mount Type	Fixed mount with quick-release mechanism
TV Compatibility	Flat-back and curved-back TVs
Included Accessories	Screws (M4x25mm, M5x25mm, M6x25mm, M8x25mm), washers, spacers, magnetic bubble level
Installation	Required, with at least two people
Indoor Use Only	Yes
Maintenance	Check fastenings every two months
Cleaning	Soft dry cloth
Warranty	2 years for manufacturing defects

Frequently Asked Questions - CWM2113BK5 Mitsai

What is the maximum weight capacity of the Mitsai CWM2113BK5?

The maximum load capacity is 40 kg (88 lbs). Never exceed this limit to avoid product failure or personal injury.

What wall types are compatible with this mount?

This mount is designed for wood stud walls and solid concrete walls. Do not install on drywall alone.

Does this mount work with curved TVs?

Yes, the CWM2113BK5 is specifically designed for curved TVs and also works with flat-back TVs. Special instructions are included for curved backs or obstructions.

What tools are needed for installation?

You will need a drill, stud finder, level, screwdriver (Phillips), socket wrench, and safety gear. A magnetic bubble level is included.

Are all necessary screws included?

Yes, the package includes screws in sizes M4x25mm, M5x25mm, M6x25mm, and M8x25mm, along with washers and spacers to fit most TVs.

How do I remove the TV from the mount?

After the TV is hung, pull down the two strings simultaneously to unlock the brackets from the wall plate, then lift the TV off.

Can I tilt or swivel the TV once mounted?

No, this is a fixed mount with no tilt or swivel capability. It holds the TV flush against the wall.

How often should I check the mount for security?

It is recommended to check all fastenings every two months to ensure screws are tight and the mount is secure.

What is the warranty period for this product?

Mitsai provides a 2-year warranty for manufacturing defects from the date of purchase, valid for correct use as per the manual.

Is it safe to install this mount by myself?

The manual states that at least two people are required for installation. Use proper safety gear and tools. If unsure, contact a professional installer.

USER MANUAL CWM2113BK5 Mitsai

CURVED TV WALL MOUNT

SOPORTE DE TV CURVA

SUPORTE DE PAREDE PARA TV CURVA

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

CWM2113BK5

EN

CURVED TV WALL MOUNT

INSTRUCTION MANUAL

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instruction manual is provided to simplify the use of the appliance. The instructions guarantee quick and safe use.

Please read the instructions and safety measures described in this manual carefully.

We wish our clients great satisfaction in using their new appliance.

INDEX

1.	Safety	Instructions
1.1.	Power	Supply
1.2.	Power Cord and Other Cables	3
1.3.	Humidity	and	Water
1.4.	Cleaning
1.5.	General	Precautions
2.	Use and Operation
2.1.	Product	Description
2.2.	Operations	Instructions
2.3.	Maintenance
3.	Technical	Specifications
4.	Customer	Service
5.	Protection	of the	Environment

4

9

9

1. SAFETY INSTRUCTIONS

ATTENTION RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION: TO AVOID THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. THE INTERIOR DOES NOT CONTAIN ANY PARTS THAT MAY BE REPAIRED BY THE USER. ASK FOR ASSISTANCE TO QUALIFIED PERSONNEL.

Important Warnings

Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you may need it for future consultations.

2

Before you start your appliance, and to ensure a correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

THIS APPLIANCE CAN BE USED BY CHILDREN FROM 8 YEARS OLD AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

These instructions are also available on www.suporteworten.pt

1.1. Power Supply

Make sure the mains voltage is compatible with the appliance voltage. If this is not the case consult the vendor or Customer Support Service.

1.2. Power Cord and Other Cables

Do not roll up or pull the cord to disconnect the appliance, and do not use it to twine the appliance. Keep the cord away from warm surfaces.

EN

CURVED TV WALL MOUNT

Never use the appliance if it has a damaged cable or socket, or if it is not working properly.

If the power cord is damaged, do not use your appliance. Take it to technical assistance for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water (for example to wash it).

1.4. Cleaning

Use only a soft and dry cloth to clean to enclosure of the product.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized dealers.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than originally designed, or if it is not correctly connected, the product may suffer damage and the warranty will be voided.
• This product was designed to be installed on wood stud walls and solid concrete walls.
• Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
• Never exceed the maximum load capacity of 40 kg in order to avoid product failure or personal injury.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children.
• Make sure these instructions are read and completely understood before attempting installation. If you are unsure of any part of this installation, contact a professional installer for assistance.
• The wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the structure must be reinforced.
• Safety gear and proper tools must be used. A minimum of two people are required for this installation. Failure to use safety gear can result in property damage, serious injury or death.

2. USE AND OPERATION

2.1. Product Description

M4X25MM

A1(4PCS)

M5X25MM

A2(4PCS)

M6X25MM

A3(4PCS)

M8X25MM

A4(4PCS)

A5(4PCS)

A6(4PCS)

B1(4PCS)

B2(4PCS)

B3(4PCS)

Magnetic removable bubble level

You will also need:

EN

CURVED TV WALL MOUNT

2.2. Operations Instructions

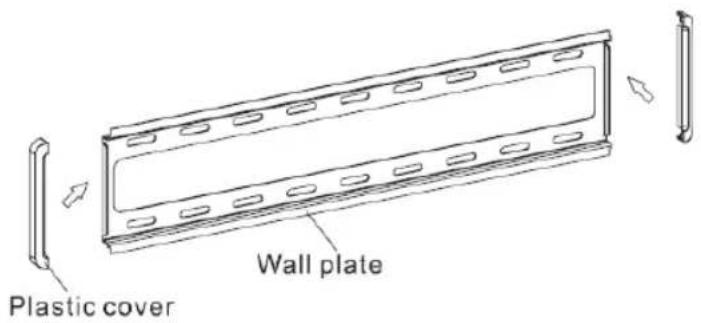

Step 1

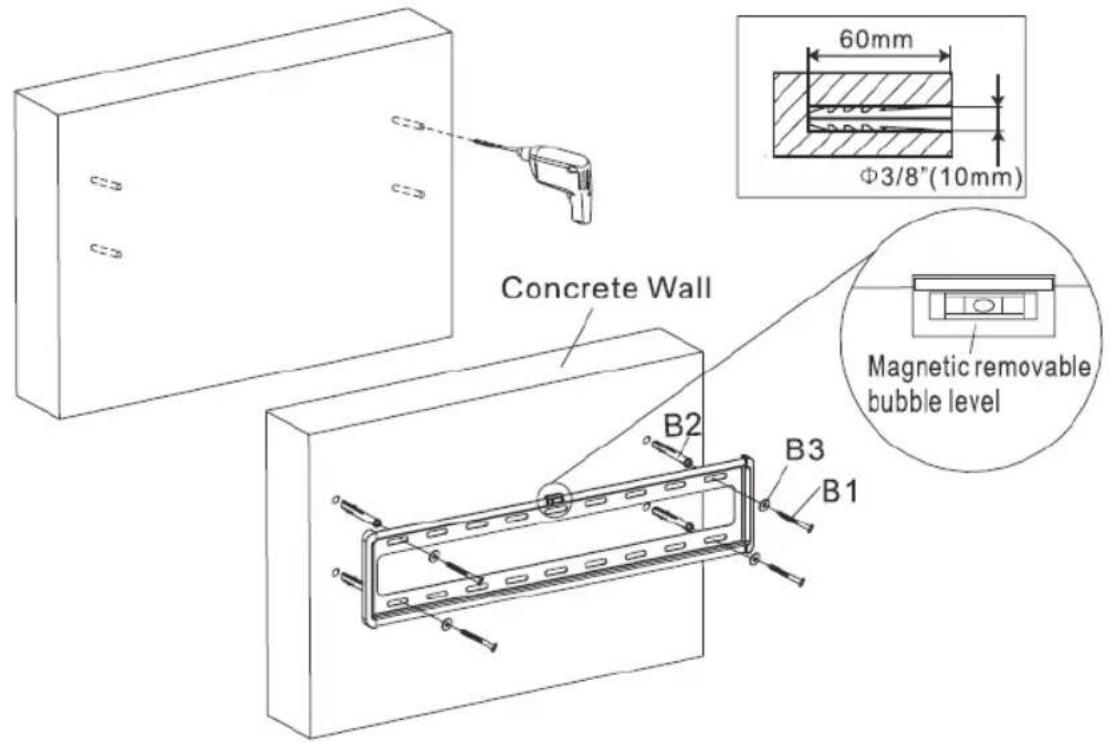

Step 2A

Solid concrete mounting

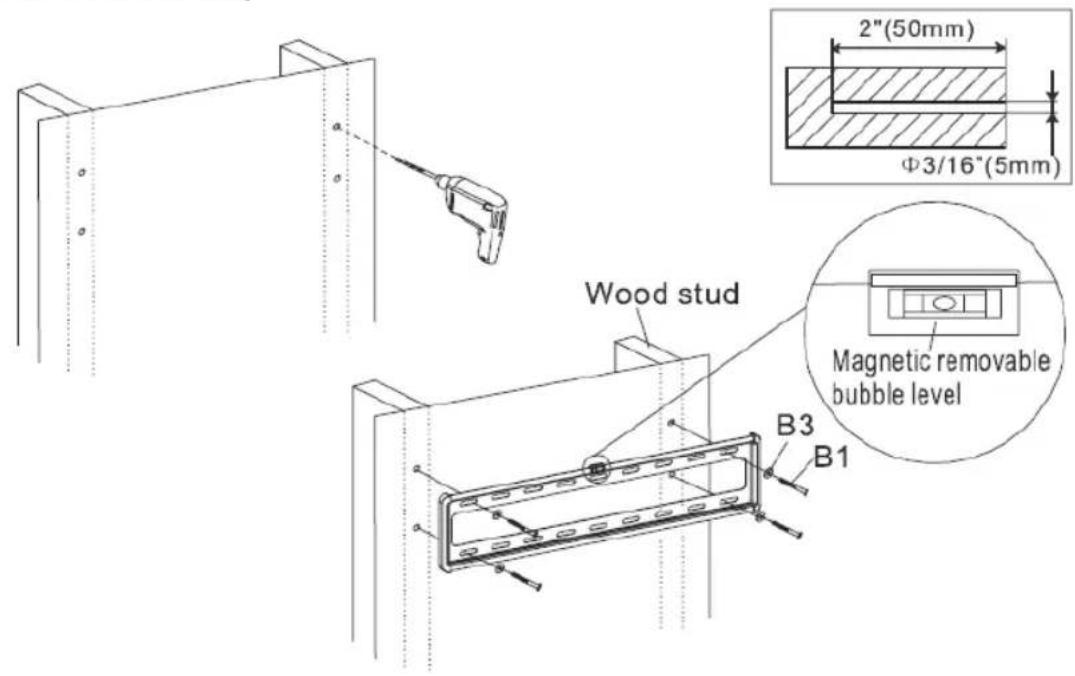

Step 2B
Wood Stud Mounting

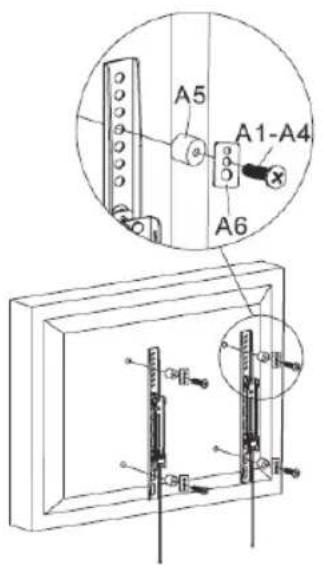

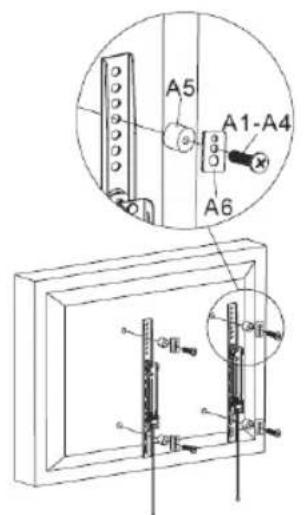

Step 3A
Attaching Brackets to Screen

For TVs with a flat back

EN

CURVED TV WALL MOUNT

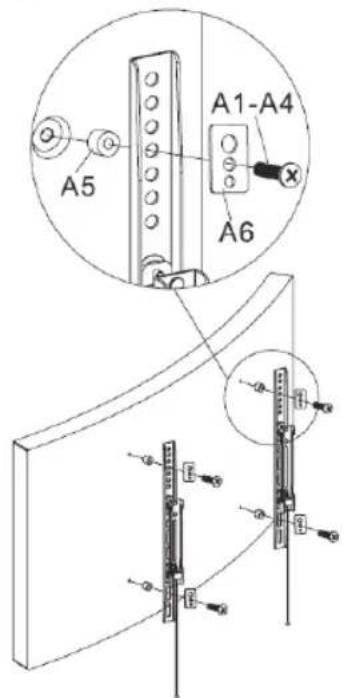

Step 3B

For TVs with a curved back or an obstruction

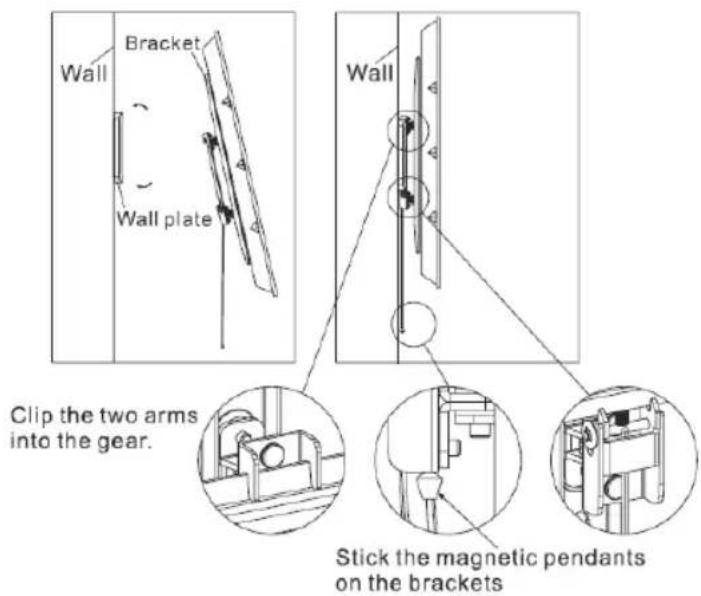

Step 4

Hang the TV onto the wall plate

(1) Press the brackets after you put them on the wall plate, so that they lock with the wall plate.

(2) Pull down the two strings together to unlock the brackets from the wall plate, and then you can take the brackets down.

2.3. Maintenance

Please check fastenings every two months, making sure the screws are not loose.

3. TECHNICAL SPECIFICATIONS

4. CUSTOMER SERVICE

Mitsai has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs you may be able to determine its cause by following the procedures suggested in this section.

Do not attempt to open the appliance – there is a risk of electrical shock.

EN

CURVED TV WALL MOUNT

If you are not able to solve the problem please contact your seller or manufacturer. All users must be familiar with this section. Knowing what could go wrong can help to prevent problems occurring.

WARNING:

any attempt to repair the appliance without contacting the manufacturer will void the warranty.

If the problem persists take your appliance to the customer service of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar provides a 2 year warranty for manufacturing defects from the date of purchase of the appliance. The warranty is applicable for correct use and maintenance of the appliance, namely according to the instructions in this manual. Malfunctions caused by any other situations are not covered by the warranty.

The repair of electric appliances must only be made by qualified technicians in order to prevent future problems.

To avoid unnecessary risks, any malfunctions concerning wires or other components must be repaired in a specialized technical support workshop because suitable tools are required.

5. PROTECTION OF THE ENVIRONMENT

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials once disassembled by a specialized company. Comply with local regulations concerning recycling of all materials.

CURVED TV WALL MOUNT
