USER MANUAL 1480RH Tennsco

ASSEMBLY INSTRUCTIONS & PARTS MANUAL

Standard Storage Cabinet with Recessed Handle Unassembled Model 1470RH or 1480RH

tennsco®

Storage Made Easy

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

Exterior view of a gray metal cabinet with two doors (no text or symbols visible)

Exterior view of a beige metal cabinet with open doors and shelves (no text or symbols visible)

GENERAL SAFETY INFORMATION

LOAD CAPACITIES PER SHELF LEVEL EVENLY DISTRIBUTED
UNIT SIZE	WEIGHT CAPACITY
36w x 18d	200 lbs.
36w x 24d	200 lbs.

Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury. For safety, wear a pair of work gloves when assembling or performing any maintenance on products.

LIMITED WARRANTY

Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by persons not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modified or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:

a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT SELLER'S OPTION, AND SHALL IN NO EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the goods to Seller for inspection on Seller's premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty and are returned within the warranty period stated above.

ASSEMBLY OF 1470RH OR 1480RH CABINET

Tools Needed: A free 11/32" nut driver is included with each Tennisco cabinet.

Two people are recommended for assembly. Approximate assembly time: 30-40 minutes.

1. The reference numbers used throughout this sheet refer to the illustration on the back cover. This is to help you to identify the various parts as they are mentioned.

NOTE: All illustrations show a solid door. Assembly for C-Thru doors (CVD1470/CVD1480) is identical.

1. Place the cabinet back (Ref. No. 1) on a protected surface to prevent scratching the paint.

The flange on the bottom of the back should be facing upward.

k (Ref. No. 1) on a event d. Flange faces upward.

NOTE: When bolting the unit together, leave the bolts slightly loose until Step 8, unless otherwise specified.

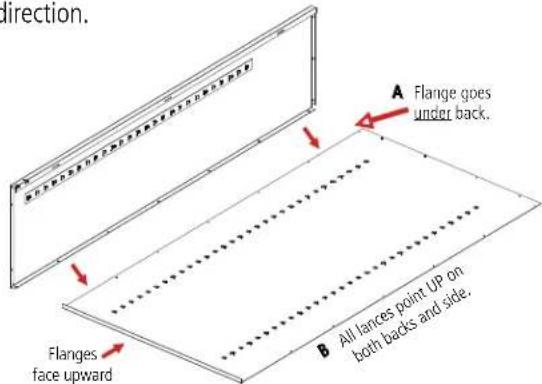

1. Attach the left side (Ref. No. 2) to the back by placing flange (A) around the back and bolting together with seven bolts and nuts (Ref. Nos. 17 & 18). Be sure that the lances on all shelf adjustment strips (B) are pointing in the same direction.

direction. A Flange goes under back. B All lances point UP on both backs and side. Flanges face upward

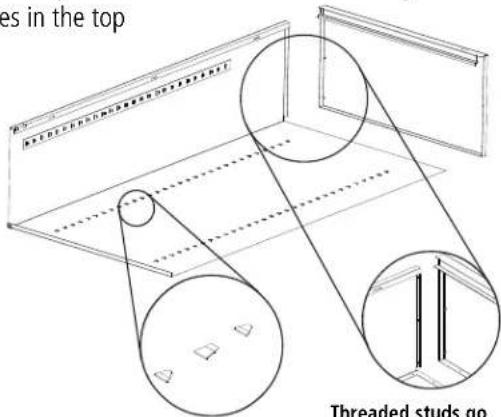

1. Attach the top (Ref. No. 5) to the unit by sliding the outer flange over the back of the unit and the side flange on the top over the side panel. The threaded studs should go through the holes in the top

flange of the side and fasten with three nuts. Attach the back to the top using four bolts and nuts.

es in the top Threaded studs go

Threaded studs go through the holes in the flange at the top of the side.

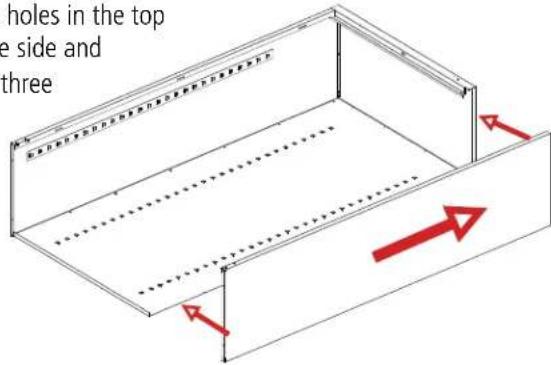

1. Attach the right side (Ref. No. 3) to the back in the same manner as you did in step 3, again, making sure that the flange is around the back and that the lances on the shelf adjustment strips are pointed in the same direction as those on the back and left side. Push the side panel up so the studs in the top go

through the holes in the top flange of the side and fasten with three nuts as in step 4).

holes in the top e side and three

1. Attach the sill (Ref. No. 6) to the sides. Place nuts loosely on each of the studs and slide the ends of the sill into the slots on both sides of the unit. Then, securely tighten the nuts.

Nuts placed loosely on studs of the sill. Slide ends in to the slots on the bottom of the sides.

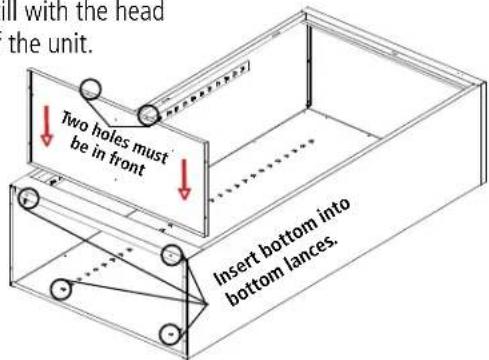

1. Place the rear flange of the bottom (Ref. No. 7) into the bottom lances of the back. The flange with two holes should face the front, hanging over the sill. Insert the bolts through the bottom and still with the head facing the front of the unit.

Secure with two nuts.

ill with the head the unit. Two holes must be in front Insert bottom into bottom lances.

1. Set the unit upright and tighten all nuts around the entire unit.
2. Insert the four shelves (Ref. No. 4) at your desired levels.

NOTE: In order to place the shelves, you must first tilt the shelf slightly to the left or right before inserting into the unit.

hten . No. 4) ne : ft

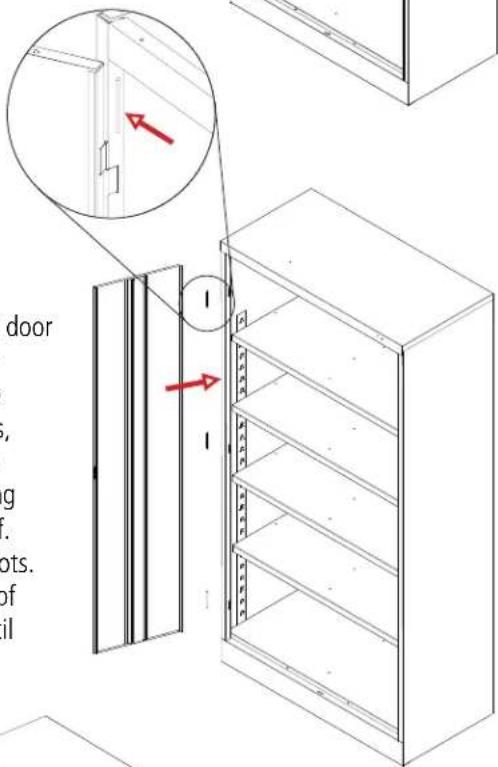

1. Attach the left door (Ref. No. 8) to the unit by placing the door on the hinges, aligning the hinge holes, and dropping the hinge pins (Ref. No. 15) into the slots. Then, tap the top of each hinge pin until fully seated.


door , ing f. ots. of il

Leveler Access Holes

1. Attach the right door (Ref. No. 9) to the unit in the same way you attached the left door.

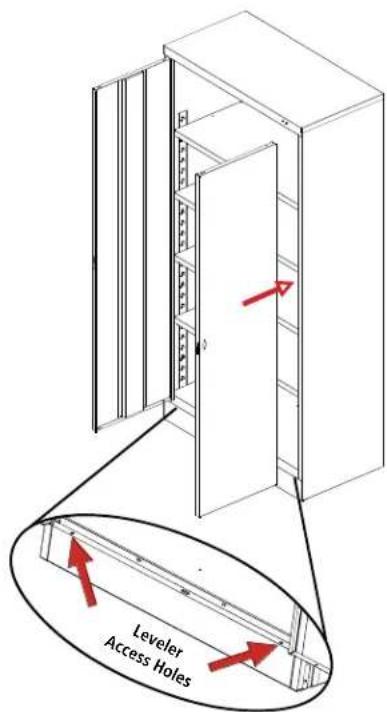

2. The cabinet must be level in order for the doors to close properly. Levelers may be adjusted by placing the nut driver through the hole in each end of the sill and adjusting the leveling screw.

Handle/Locking System Installation

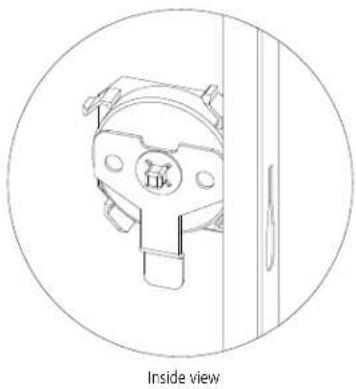

1. Place the locking handle (Ref. No. 9) on the right hand door and push it until it snaps into place. Then turn the handle to the open position. The latch should be facing downward as shown.

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

should be facing Outside view

Line drawing of a mechanical component inside a circular frame (no text or symbols)

1. With the handle still in the open position, hook the locking bars (Ref. No. 8) to the locking cam (Ref. No. 12).

2. Slowly rotate the door handle to the closed position so the lock bars protrude from the holes at the top and bottom of the door (shown below).

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

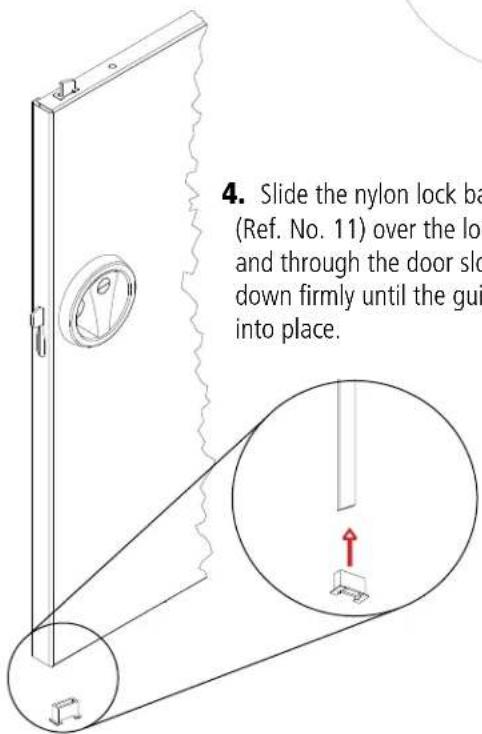

1. Slide the nylon lock bar guide inserts (Ref. No. 11) over the lock bar ends and through the door slots. Push down firmly until the guides snap into place.

4. Slide the nylon lock bar (Ref. No. 11) over the lock and through the door slide down firmly until the guide into place.

REPLACEMENT PARTS

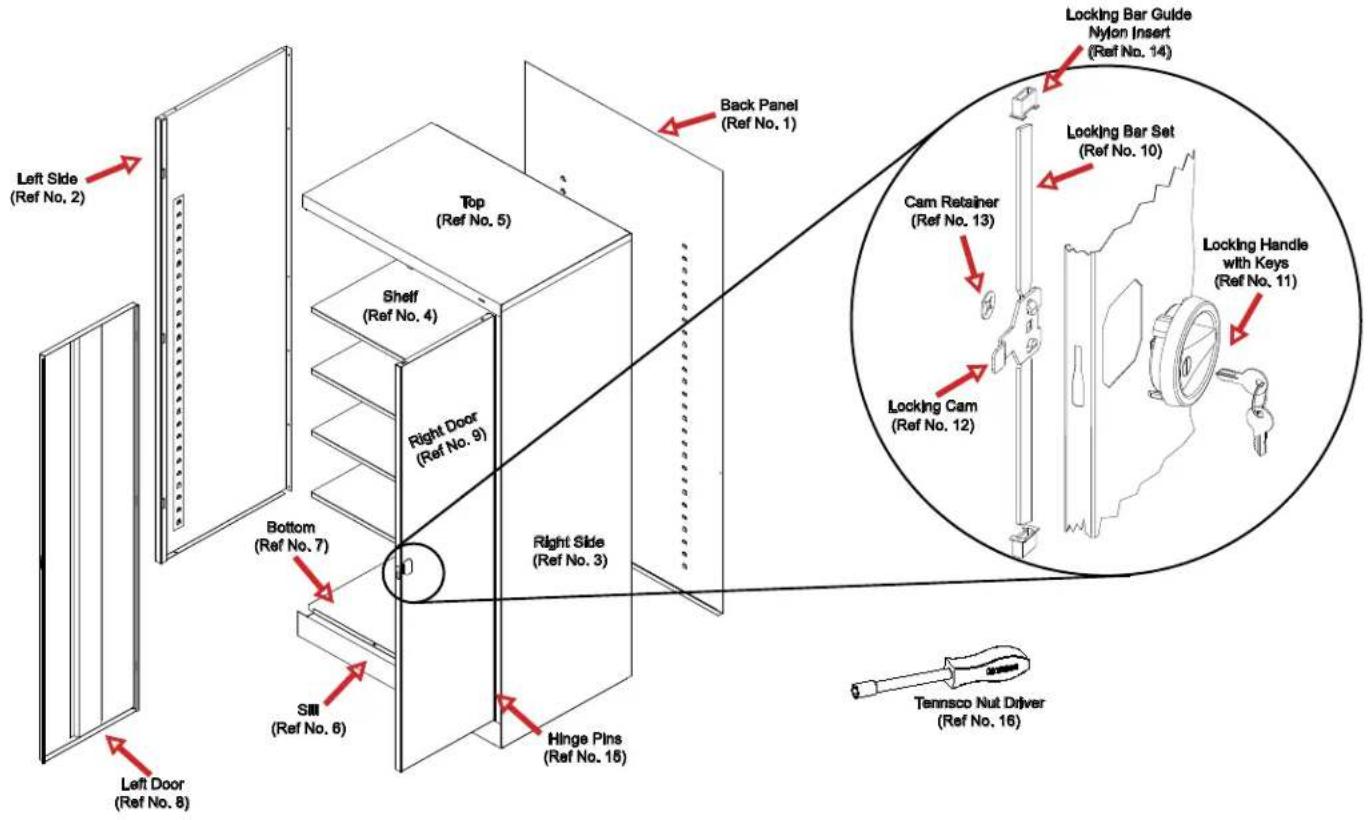

Left Side (Ref No. 2) Top (Ref No. 5) Back Panel (Ref No. 1) Shelf (Ref No. 4) Right Door (Ref No. 9) Bottom (Ref No. 7) Right Side (Ref No. 3) SMM (Ref No. 6) Hinge Pins (Ref No. 18) Left Door (Ref No. 8) Locking Bar Guide Nylon Insert (Ref No. 14) Locking Bar Set (Ref No. 10) Cam Retainer (Ref No. 13) Locking Handle with Keys (Ref No. 11) Locking Cam (Ref No. 12) Tennisco Nut Driver (Ref No. 16)

REF. NO.	DESCRIPTION	1470RH (18"d Cabinet)		1480RH (24"d Cabinet)
		QTY.	PART NO.	QTY.	PART NO.
1	Back Panel	1	944BA	1	944BA
2	Left Side	1	944LS	1	292LS
3	Right Side	1	944RS	1	292RS
4	Shelf	4	301	4	302
5	Top	1	944TON	1	292TO
6	Sill	1	944SIN	1	944SS
7	Bottom	1	944BO	1	292BO
8	Left Door	1	944LD	1	944LD
9	Right Door	1	944RD-RH	1	944RD-RH
10	Locking Bar Set	1	944LB	1	944LB
11	Recessed Locking Handle w/keys	1	RH-1	1	RH-1
12	Locking Cam*	1	944LC	1	944LC
13	Locking Bar Guide Insert (Nylon)	2	944GI	2	944GI
14	Cam Retainer*	1	944CR	1	944CR
15	Hinge Pins	6	944HP	6	944HP
16	Tennsco Nut Driver	1	TOOL-2	1	TOOL-2
17	#8-32 x 3/8" bolts (not shown above)	20	**	20	**
18	#8-32 nuts (not shown above)	30	**	30	**

*Included in Ref. No. 11, locking handle with keys and hardware (Part No. RH-1).
**Available Locally

NOTE: Additional hardware may be included for replacement purposes.

Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged.

However, should your unit contain missing or damaged parts, please contact your purchase location.
